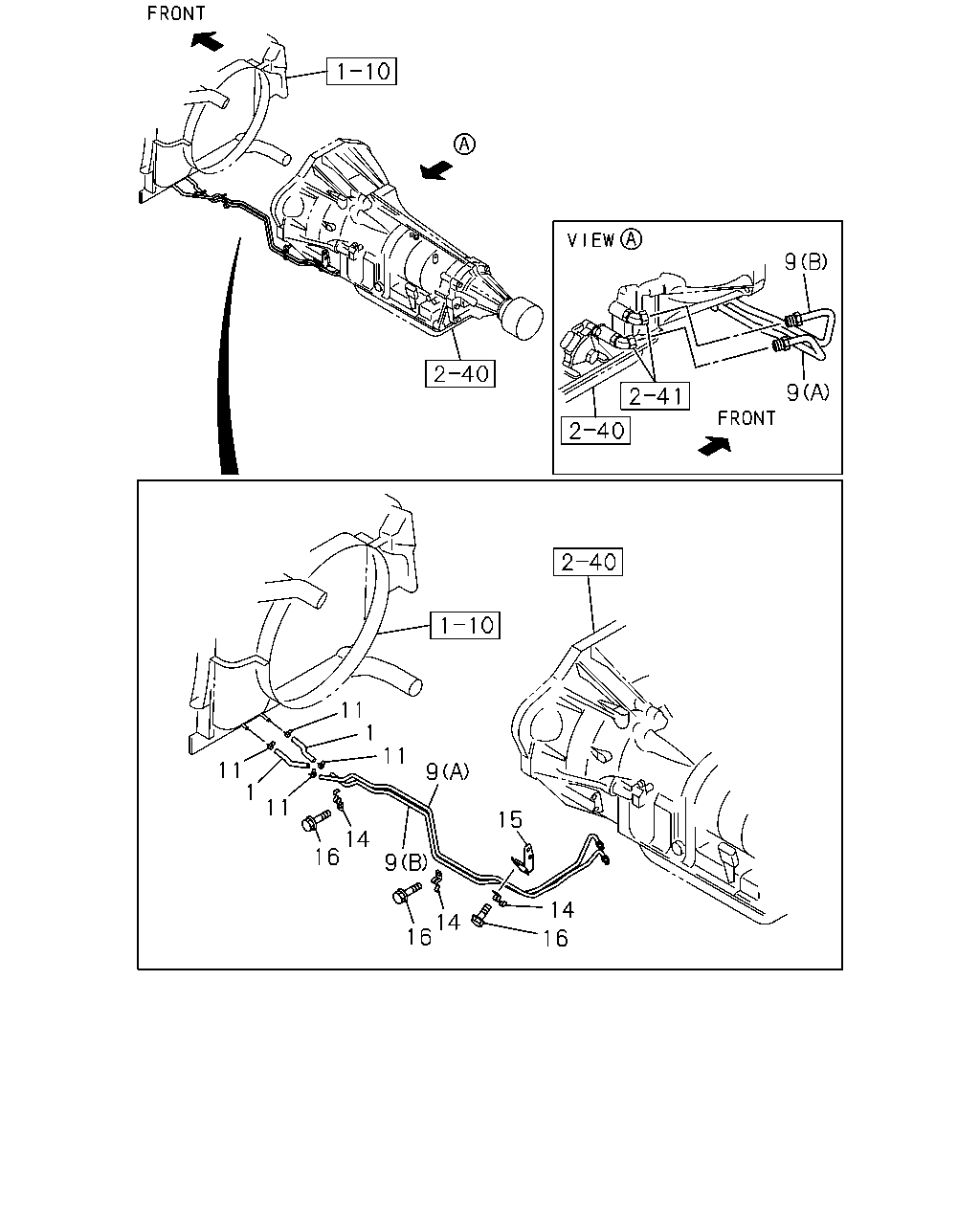

2-53B — TRANSMISSION OIL COOLER SYSTEM (#151782) — 48 parça

9 9 11 1 11 9 14 11 1 11 16 9 16 14 16 15 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF L=180 SERVICED BY L=3000	0-02259-300-0	02	1	1409-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A) INLET	8-98100-272-2	01	1	1409-1508
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) INLET	8-98100-272-2	01	1	1509-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (B) RETURN	8-98100-274-2	01	1	1409-1508
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) RETURN	8-98100-274-2	01	1	1509-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCY ENG(RDX) (A) INLET	8-98289-239-1	01	1	1409-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCY ENG(RDX) (B) RETURN	8-98289-242-1	01	1	1409-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC) (C) INLET	8-98221-531-2	01	1	1409-1508
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) (C) INLET	8-98221-531-2	01	1	1509-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC) (D) RETURN	8-98221-532-2	01	1	1409-1508
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) (D) RETURN	8-98221-532-2	01	1	1509-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC) (C) INLET	8-98289-240-1	01	1	1409-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC) (D) RETURN	8-98289-243-1	01	1	1409-
11	04.128 CLIP; PIPE	8-98008-165-0	04	1	1409-
14	04.128 CLIP; PIPE TO ENG SIDE 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX)	8-98008-163-0	03	1	1409-1508
14	04.128 CLIP; PIPE TO ENG SIDE 4X4(TFS***) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC)	8-98008-163-0	03	1	1409-1508
14	04.128 CLIP; PIPE TO ENG SIDE 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)	8-98008-163-0	03	1	1509-
14	04.128 CLIP; PIPE TO ENG SIDE 4X4(TFS***) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC)	8-98008-163-0	03	1	1509-
14	04.128 CLIP; PIPE TO ENG SIDE 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC)	8-98008-163-0	02	1	1409-1508
14	04.128 CLIP; PIPE TO ENG SIDE 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC)	8-98008-163-0	02	1	1509-
14	04.128 CLIP; PIPE TO ENG SIDE 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC)	8-98232-374-0	01	1	1409-1508
14	04.128 CLIP; PIPE TO ENG SIDE 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC)	8-98232-374-0	01	1	1509-
15	04.128 BRACKET; ATF PIPE	8-98100-277-0	01	1	1409-
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1409-

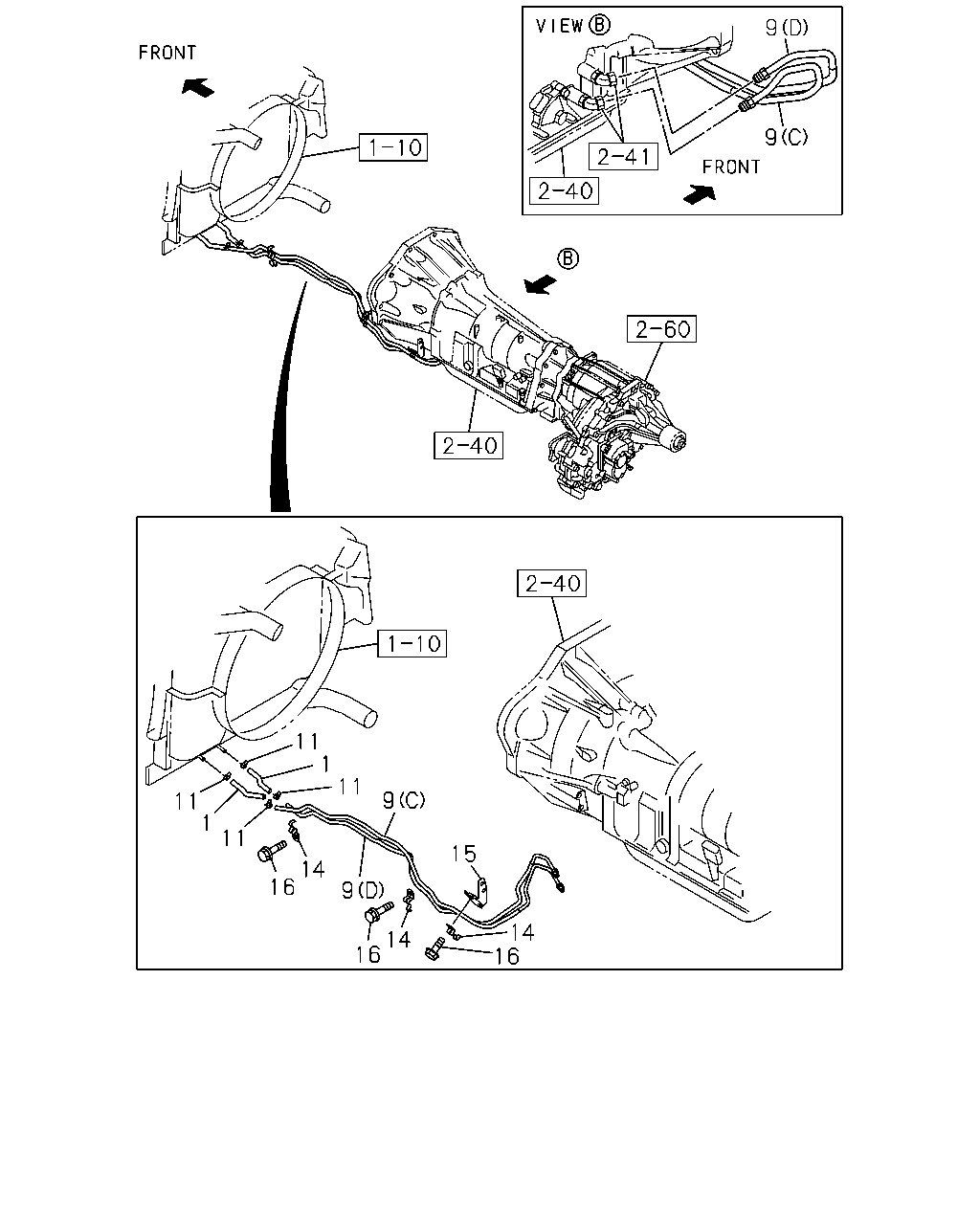

9 9 11 1 11 9 9 14 16 11 1 11 16 15 16 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF L=180 SERVICED BY L=3000	0-02259-300-0	02	1	1409-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A) INLET	8-98100-272-2	01	1	1409-1508
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) INLET	8-98100-272-2	01	1	1509-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (B) RETURN	8-98100-274-2	01	1	1409-1508
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) RETURN	8-98100-274-2	01	1	1509-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCY ENG(RDX) (A) INLET	8-98289-239-1	01	1	1409-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCY ENG(RDX) (B) RETURN	8-98289-242-1	01	1	1409-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC) (C) INLET	8-98221-531-2	01	1	1409-1508
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) (C) INLET	8-98221-531-2	01	1	1509-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC) (D) RETURN	8-98221-532-2	01	1	1409-1508
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) (D) RETURN	8-98221-532-2	01	1	1509-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC) (C) INLET	8-98289-240-1	01	1	1409-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC) (D) RETURN	8-98289-243-1	01	1	1409-
11	04.128 CLIP; PIPE	8-98008-165-0	04	1	1409-
14	04.128 CLIP; PIPE TO ENG SIDE 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX)	8-98008-163-0	03	1	1409-1508
14	04.128 CLIP; PIPE TO ENG SIDE 4X4(TFS***) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC)	8-98008-163-0	03	1	1409-1508
14	04.128 CLIP; PIPE TO ENG SIDE 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)	8-98008-163-0	03	1	1509-
14	04.128 CLIP; PIPE TO ENG SIDE 4X4(TFS***) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC)	8-98008-163-0	03	1	1509-
14	04.128 CLIP; PIPE TO ENG SIDE 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC)	8-98008-163-0	02	1	1409-1508
14	04.128 CLIP; PIPE TO ENG SIDE 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC)	8-98008-163-0	02	1	1509-
14	04.128 CLIP; PIPE TO ENG SIDE 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC)	8-98232-374-0	01	1	1409-1508
14	04.128 CLIP; PIPE TO ENG SIDE 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC)	8-98232-374-0	01	1	1509-
15	04.128 BRACKET; ATF PIPE	8-98100-277-0	01	1	1409-
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1409-
