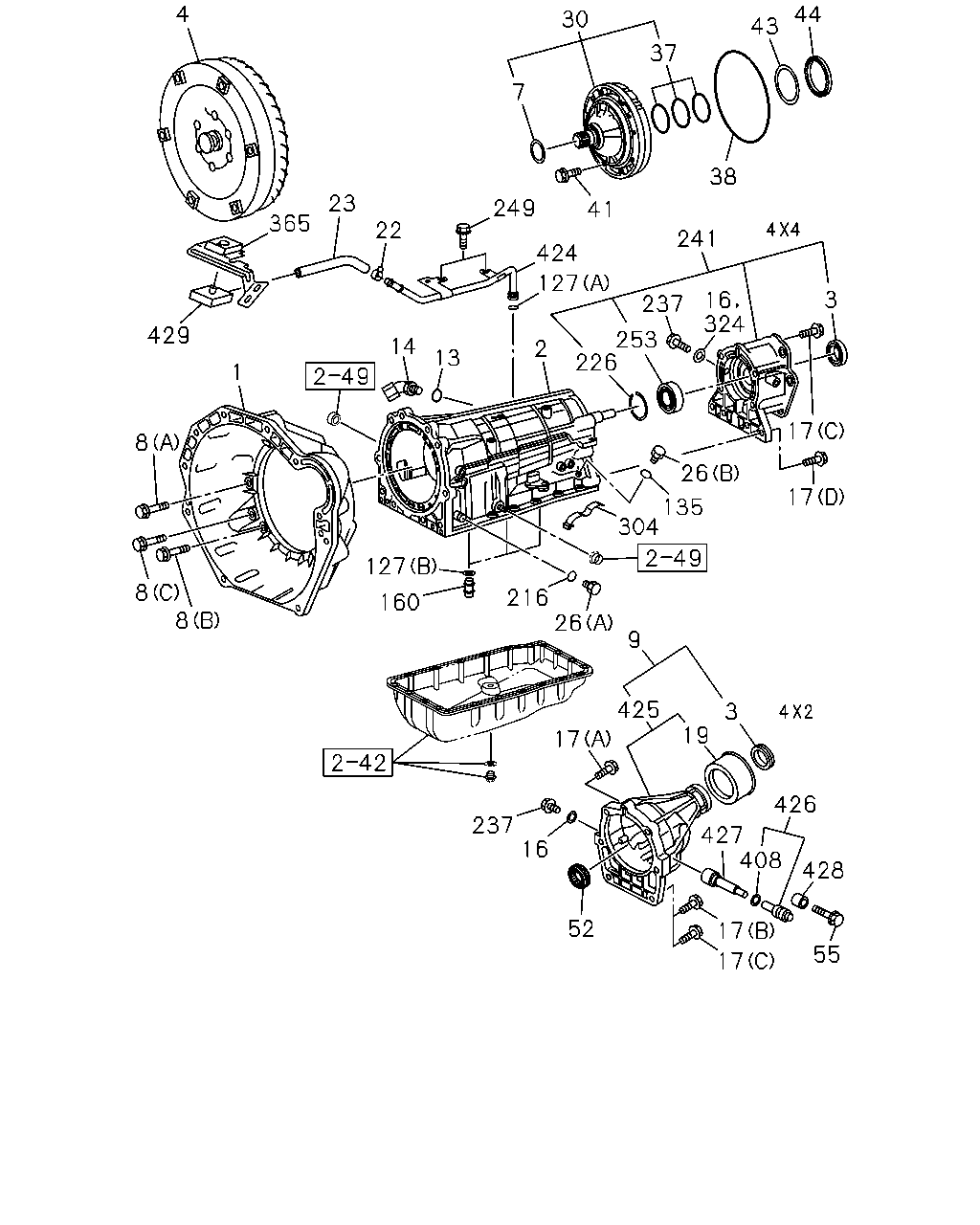

1 |
04.103 HOUSING; CONV,A/T
|
8-98189-468-0 |
01 |
1 |
1409- |
| |
2 |
04.103 CASE ASM; A/T
4X2(TFB***)
4JK1-TCX ENG(LR0)
|
8-98189-485-0 |
01 |
1 |
1409-1508 |
| |
2 |
04.103 CASE ASM; A/T
4X2(TFB***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
|
8-98189-485-0 |
01 |
1 |
1509- |
| |
2 |
04.103 CASE ASM; A/T
4X2(TFB***)
4JK1-TCY ENG(RDX)
|
8-98189-783-0 |
01 |
1 |
1409-1508 |
| |
2 |
04.103 CASE ASM; A/T
4X4(TFS***)
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX)
|
8-98189-783-0 |
01 |
1 |
1409-1508 |
| |
2 |
04.103 CASE ASM; A/T
4X2(TFB***)
4JK1-TCY ENG(RDX)
|
8-98189-783-0 |
01 |
1 |
1509- |
| |
2 |
04.103 CASE ASM; A/T
4X4(TFS***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),
4JK1-TCY ENG(RDX)
|
8-98189-783-0 |
01 |
1 |
1509- |
| |
3 |
04.241 SEAL; OIL,RR COVER,A/T
|
8-98189-757-0 |
01 |
1 |
1409- |
| |
4 |
04.115 CONVERTER ASM; TORQUE,A/T
4JK1-TCX ENG(LR0)
|
8-98189-761-0 |
01 |
1 |
1409- |
| |
4 |
04.115 CONVERTER ASM; TORQUE,A/T
4JK1-TCY ENG(RDX)
|
8-98189-467-0 |
01 |
1 |
1409-1508 |
| |
4 |
04.115 CONVERTER ASM; TORQUE,A/T
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
|
8-98189-467-0 |
01 |
1 |
1509- |
| |
7 |
04.226 SEAL; OIL,LIP,A/T
|
8-98189-493-0 |
01 |
1 |
1409- |
| |
8 |
04.217 BOLT; HSG TO CASE
(A)
M10X35
|
8-90257-082-0 |
06 |
1 |
1409- |
| |
8 |
04.217 BOLT; HSG TO CASE
(B)
M10X35
|
8-98189-486-0 |
02 |
1 |
1409- |
| |
8 |
04.217 BOLT; HSG TO CASE
(C)
M12X38
|
8-98189-487-0 |
02 |
1 |
1409- |
| |
9 |
04.317 COVER ASM; RR,A/T
4X2(TFB***)
4JK1-TCX ENG(LR0)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98189-754-0 |
01 |
1 |
1409-1508 |
| |
9 |
04.317 COVER ASM; RR,A/T
4X2(TFB***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98189-754-0 |
01 |
1 |
1509- |
| |
9 |
04.317 COVER ASM; RR,A/T
4X2(TFB***)
4JK1-TCX ENG(LR0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98189-777-0 |
01 |
1 |
1409-1508 |
| |
9 |
04.317 COVER ASM; RR,A/T
4X2(TFB***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98189-777-0 |
01 |
1 |
1509- |
| |
9 |
04.317 COVER ASM; RR,A/T
4X2(TFB***)
4JK1-TCY ENG(RDX)
|
8-98197-898-0 |
01 |
1 |
1409- |
| |
13 |
04.205 GASKET; OIL COOLER PIPE
04.265
ID=11.7
|
8-94479-724-0 |
02 |
1 |
1409- |
| |
14 |
04.205 UNION; OIL COOLER RETURN PIPE
|
8-98189-473-0 |
02 |
1 |
1409- |
| |
16 |
04.318 GASKET; EXT HSG
4X2(TFB***)
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX)
ID=15.4
|
8-98189-759-0 |
01 |
1 |
1409-1508 |
| |
16 |
04.318 GASKET; EXT HSG
4X4(TFS***)
4JK1-TCY ENG(RDX)
ID=15.4
|
8-98189-759-0 |
01 |
1 |
1409-1508 |
| |
16 |
04.318 GASKET; EXT HSG
4X2(TFB***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),
4JK1-TCY ENG(RDX)
ID=15.4
|
8-98189-759-0 |
01 |
1 |
1509- |
| |
16 |
04.318 GASKET; EXT HSG
4X4(TFS***)
4JK1-TCY ENG(RDX)
ID=15.4
|
8-98189-759-0 |
01 |
1 |
1509- |
| |
17 |
04.319 BOLT; REAR COVER TO CASE
4X2(TFB***)
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX)
(A)
M10X45
|
8-94473-632-0 |
04 |
1 |
1409-1508 |
| |
17 |
04.319 BOLT; REAR COVER TO CASE
4X2(TFB***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),
4JK1-TCY ENG(RDX)
(A)
M10X45
|
8-94473-632-0 |
04 |
1 |
1509- |
| |
17 |
04.319 BOLT; REAR COVER TO CASE
4X2(TFB***)
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX)
(B)
M10X35
|
8-94479-951-0 |
02 |
1 |
1409-1508 |
| |
17 |
04.319 BOLT; REAR COVER TO CASE
4X2(TFB***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),
4JK1-TCY ENG(RDX)
(B)
M10X35
|
8-94479-951-0 |
02 |
1 |
1509- |
| |
17 |
04.319 BOLT; REAR COVER TO CASE
4X2(TFB***)
4JK1-TCY ENG(RDX)
04.472
(C)
M8X45
|
8-94479-858-0 |
01 |
1 |
1409-1508 |
| |
17 |
04.319 BOLT; REAR COVER TO CASE
4X4(TFS***)
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX)
04.472
(C)
M8X45
|
8-94479-858-0 |
01 |
1 |
1409-1508 |
| |
17 |
04.319 BOLT; REAR COVER TO CASE
4X2(TFB***)
4JK1-TCY ENG(RDX)
04.472
(C)
M8X45
|
8-94479-858-0 |
01 |
1 |
1509- |
| |
17 |
04.319 BOLT; REAR COVER TO CASE
4X4(TFS***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),
4JK1-TCY ENG(RDX)
04.472
(C)
M8X45
|
8-94479-858-0 |
01 |
1 |
1509- |
| |
17 |
04.319 BOLT; REAR COVER TO CASE
4X4(TFS***)
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX)
(D)
M10X50
|
8-94479-935-0 |
08 |
1 |
1409-1508 |
| |
17 |
04.319 BOLT; REAR COVER TO CASE
4X4(TFS***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),
4JK1-TCY ENG(RDX)
(D)
M10X50
|
8-94479-935-0 |
08 |
1 |
1509- |
| |
19 |
04.241 COVER; DUST,REAR COVER
4X2(TFB***)
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX)
|
8-98189-756-0 |
01 |
1 |
1409-1508 |
| |
19 |
04.241 COVER; DUST,REAR COVER
4X2(TFB***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),
4JK1-TCY ENG(RDX)
|
8-98189-756-0 |
01 |
1 |
1509- |
| |
22 |
04.101 CLIP; BREATHER HOSE,A/T
03.163
ID=11
|
8-97173-219-0 |
01 |
1 |
1409- |
| |
23 |
04.101 HOSE; BREATHER,A/T
04.104
L=220
SERVICED BY L=3000
|
0-02857-300-0 |
01 |
1 |
1409- |
| |
26 |
04.195 PLUG; TRANS CASE
04.103
(A)
|
5-34119-002-0 |
05 |
1 |
1409- |
| |
26 |
04.195 PLUG; TRANS CASE
(B)
M14X12
|
8-98189-490-0 |
01 |
1 |
1409- |
| |
30 |
04.224 PUMP ASM; OIL,A/T
|
8-98189-491-0 |
01 |
1 |
1409- |
| |
37 |
04.226 RING; SEAL,OIL PUMP,A/T
ID=63
|
8-98189-492-0 |
03 |
1 |
1409- |
| |
38 |
04.226 GASKET; OIL PUMP,A/T
ID=218
|
8-98189-494-0 |
01 |
1 |
1409- |
| |
41 |
04.226 BOLT; OIL PUMP HSG,A/T
M8X40
|
8-97141-759-0 |
10 |
1 |
1409- |
| |
43 |
04.226 RACE; THRUST BRG,OIL PUMP,A/T
ID=74
|
8-98189-495-0 |
01 |
1 |
1409- |
| |
44 |
04.226 BEARING; THRUST,OIL PUMP,A/T
|
8-98189-496-0 |
01 |
1 |
1409- |
| |
52 |
04.175 GEAR; SPD DRIVE
4X2(TFB***)
4JK1-TCX ENG(LR0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98189-771-0 |
01 |
1 |
1409-1508 |
| |
52 |
04.175 GEAR; SPD DRIVE
4X2(TFB***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98189-771-0 |
01 |
1 |
1509- |
| |
55 |
04.226 BOLT; COVER
4X2(TFB***)
4JK1-TCX ENG(LR0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
04.338
M8X14 W/WASHER
|
8-94480-043-0 |
01 |
1 |
1409-1508 |
| |
55 |
04.226 BOLT; COVER
4X2(TFB***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
04.338
M8X14 W/WASHER
|
8-94480-043-0 |
01 |
1 |
1509- |
| |
127 |
04.103 GASKET; CASE TO COVER
(A)
ID=5
|
8-98189-476-0 |
01 |
1 |
1409- |
| |
127 |
04.103 GASKET; CASE TO COVER
(B)
ID=10
|
8-98189-488-0 |
03 |
1 |
1409- |
| |
135 |
04.195 GASKET; PLUG,A/T CASE
04.265
ID=11.7
|
8-94479-724-0 |
01 |
1 |
1409- |
| |
160 |
04.265 GASKET; BRK DRUM,A/T
|
8-98189-489-0 |
03 |
1 |
1409- |
| |
216 |
04.265 GASKET; SOLENOID OUTER
04.103
ID=6
|
5-34119-001-0 |
05 |
1 |
1409- |
| |
226 |
04.052 RING; SNAP
4X4(TFS***)
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX)
ID=67
|
8-98189-790-0 |
01 |
1 |
1409-1508 |
| |
226 |
04.052 RING; SNAP
4X4(TFS***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),
4JK1-TCY ENG(RDX)
ID=67
|
8-98189-790-0 |
01 |
1 |
1509- |
| |
237 |
04.216 PLUG; COVER
|
8-98189-760-0 |
01 |
1 |
1409- |
| |
241 |
04.317 ADAPTER; A/T
4X4(TFS***)
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX)
|
8-98189-788-0 |
01 |
1 |
1409-1508 |
| |
241 |
04.317 ADAPTER; A/T
4X4(TFS***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),
4JK1-TCY ENG(RDX)
|
8-98189-788-0 |
01 |
1 |
1509- |
| |
249 |
04.166 BOLT; BRKT
04.050
M6X10
|
8-94252-680-0 |
02 |
1 |
1409- |
| |
253 |
04.317 BEARING; BALL,COVER
4X4(TFS***)
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX)
|
8-98189-789-0 |
01 |
1 |
1409-1508 |
| |
253 |
04.317 BEARING; BALL,COVER
4X4(TFS***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),
4JK1-TCY ENG(RDX)
|
8-98189-789-0 |
01 |
1 |
1509- |
| |
304 |
04.205 SPRING; LEAF,A/T
|
8-98189-484-0 |
01 |
1 |
1409- |
| |
324 |
04.195 GASKET; PLUG,REAR COVER
4X4(TFS***)
4JK1-TCX ENG(LR0)
04.318
ID=15.4
|
8-98189-759-0 |
01 |
1 |
1409-1508 |
| |
324 |
04.195 GASKET; PLUG,REAR COVER
4X4(TFS***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
04.318
ID=15.4
|
8-98189-759-0 |
01 |
1 |
1509- |
| |
365 |
04.104 BRACKET; BREATHER HOSE,A/T
04.047
|
8-98161-920-1 |
01 |
1 |
1409- |
| |
408 |
04.329 GASKET; SPEED SENSOR
4X2(TFB***)
4JK1-TCX ENG(LR0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
04.338
ID=19
|
8-97181-545-0 |
01 |
1 |
1409-1508 |
| |
408 |
04.329 GASKET; SPEED SENSOR
4X2(TFB***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
04.338
ID=19
|
8-97181-545-0 |
01 |
1 |
1509- |
| |
424 |
04.226 TUBE; BREATHER
|
8-98189-475-0 |
01 |
1 |
1409- |
| |
425 |
04.317 COVER SUB ASM; RR,A/T
4X2(TFB***)
4JK1-TCX ENG(LR0)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98189-755-0 |
01 |
1 |
1409-1508 |
| |
425 |
04.317 COVER SUB ASM; RR,A/T
4X2(TFB***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98189-755-0 |
01 |
1 |
1509- |
| |
425 |
04.317 COVER SUB ASM; RR,A/T
4X2(TFB***)
4JK1-TCX ENG(LR0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98189-778-0 |
01 |
1 |
1409-1508 |
| |
425 |
04.317 COVER SUB ASM; RR,A/T
4X2(TFB***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98189-778-0 |
01 |
1 |
1509- |
| |
425 |
04.317 COVER SUB ASM; RR,A/T
4X2(TFB***)
4JK1-TCY ENG(RDX)
|
8-98197-899-0 |
01 |
1 |
1409- |
| |
426 |
04.119 SLEEVE; SPEED METER
4X2(TFB***)
4JK1-TCX ENG(LR0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
04.345
|
8-97181-543-0 |
01 |
1 |
1409-1508 |
| |
426 |
04.119 SLEEVE; SPEED METER
4X2(TFB***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
04.345
|
8-97181-543-0 |
01 |
1 |
1509- |
| |
427 |
04.175 GEAR; SPEED METER
4X2(TFB***)
4JK1-TCX ENG(LR0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
Z=19
|
8-98189-772-0 |
01 |
1 |
1409-1508 |
| |
427 |
04.175 GEAR; SPEED METER
4X2(TFB***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
Z=19
|
8-98189-772-0 |
01 |
1 |
1509- |
| |
428 |
04.224 PLATE; SLEEVE
4X2(TFB***)
4JK1-TCX ENG(LR0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98189-773-0 |
01 |
1 |
1409-1508 |
| |
428 |
04.224 PLATE; SLEEVE
4X2(TFB***)
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98189-773-0 |
01 |
1 |
1509- |
| |
429 |
04.104 CLIP; BREATHER HOSE
|
8-98161-881-0 |
01 |
1 |
1409- |
