Sayfa 2-30A - Isuzu EPC

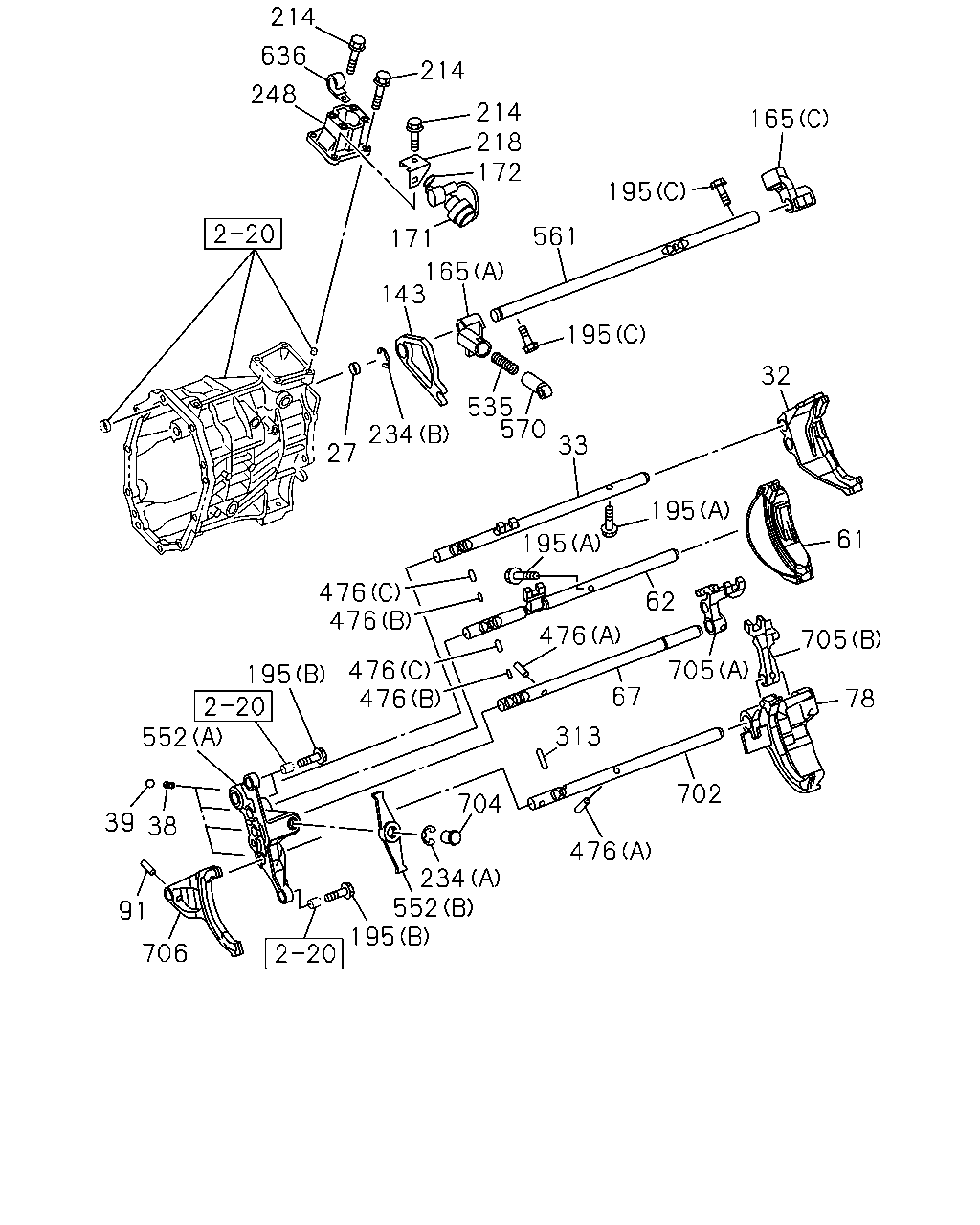

2-30A — GEAR SHIFTER AND QUADRANT BOX (#151772) — 313 parça

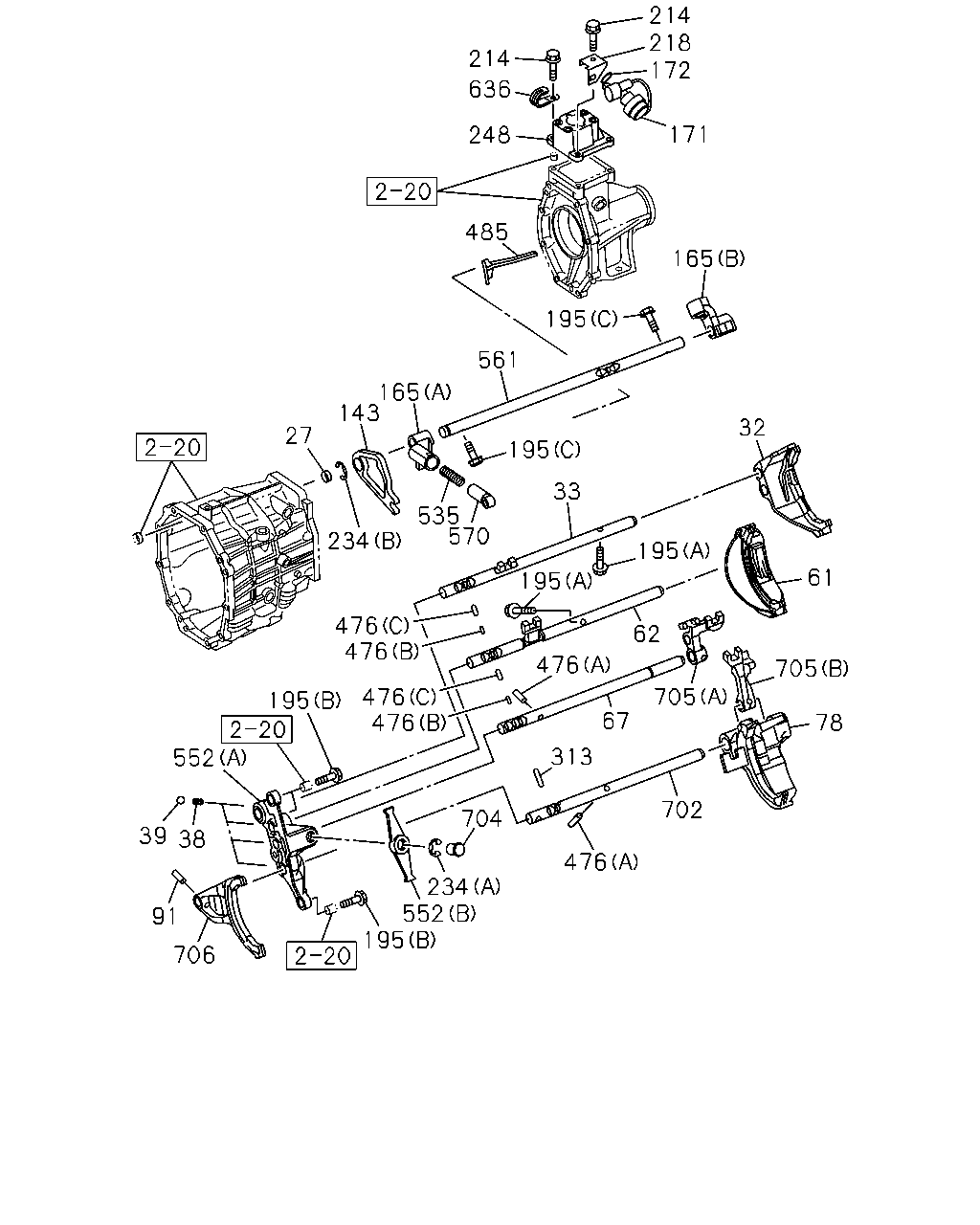

214 218 172 171 214 636 248 485 165 195 561 165 143 27 234 535 570 33 195 32 476 476 476 476 195 552 39 38 91 706 195 552 234 704 476 702 313 67 476 62 195 195 705 705 78 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
27	04.302 BUSHING; SHIFT ROD 04.317	8-89048-304-0	01	1	1409-	●
32	04.303 ARM; SHIFT,1ST & 2ND	8-98203-153-0	01	1	1409-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97362-441-0	01	1	1509-		●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1409-			●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98203-156-0	01	1	1409-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1409-				●	●	●
38	04.311 SPRING; DETENT	8-98203-171-0	04	1	1409-	●
39	04.307 BALL; DETENT	8-97165-089-0	04	1	1409-	●
61	04.303 ARM; SHIFT,3RD & 4TH	8-98203-150-0	01	1	1409-	●
62	04.309 ROD; SHIFT,3RD & 4TH	8-98203-157-0	01	1	1409-	●
67	04.309 ROD; SHIFT,5TH & 6TH	8-98203-158-0	01	1	1409-	●
78	04.302 ARM; SHIFT,REV	8-97362-434-1	01	1	1509-		●
78	04.302 ARM; SHIFT,REV	8-98203-149-0	01	1	1409-	●
91	04.302 PIN; SPR,SHIFT ARM	8-97164-994-0	01	1	1409-	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1409-			●	●	●	●
143	04.030 CAM; STOPPER,REV INHIBITOR	8-98203-148-0	01	1	1409-	●
165	04.302 LEVER; SHIFT 4X2(TFB***) (B)	8-98203-142-0	01	1	1409-	●
165	04.302 LEVER; SHIFT (A)	8-98203-160-0	01	1	1409-	●
165	04.302 LEVER; SHIFT 4X4(TFS***) (C)	8-98203-141-0	01	1	1409-	●
171	04.054 SWITCH; NEUTRAL	8-98180-974-0	01	1	1509-		●
171	04.054 SWITCH; NEUTRAL	8-98103-743-0	01	1	1409-				●
171	04.054 SWITCH; NEUTRAL	8-98203-248-0	01	1	1409-	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1409-				●	●	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	8-98210-376-0	01	1	1409-	●
195	04.105 BOLT (D) M8X8.5 TAPER	8-97250-975-0	01	1	1509-		●
195	04.105 BOLT (E) M8X30 FLANGE	8-98034-764-0	04	1	1509-		●
195	04.105 BOLT (A)	8-97164-962-0	02	1	1409-	●
195	04.105 BOLT (B)	8-98203-146-0	04	1	1409-	●
195	04.105 BOLT (C)	8-98203-167-0	02	1	1409-	●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105	8-98203-146-0	04	1	1409-	●
218	04.057 BRACKET; HARNESS CLIP,QUAD BOX	8-98203-245-0	01	1	1409-	●
234	04.311 RING; SNAP 04.307 (C) ID=12	8-94460-357-0	04	1	1509-		●
234	04.311 RING; SNAP (A)	8-98203-175-0	01	1	1409-	●
234	04.311 RING; SNAP (B)	8-98203-176-0	01	1	1409-	●
248	04.105 RETAINER; CONT BOX	8-98203-143-0	01	1	1409-	●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1409-			●	●	●	●
313	04.309 ROLLER; SHAFT	8-98203-168-0	01	1	1409-	●
476	04.311 PIN; SHIFT ROD 04.303 (D) D=4.2 L=25	8-94171-541-0	04	1	1509-		●
476	04.311 PIN; SHIFT ROD 04.303 (A)	8-97164-925-0	02	1	1409-	●
476	04.311 PIN; SHIFT ROD (B)	8-98203-172-0	02	1	1409-	●
476	04.311 PIN; SHIFT ROD (C)	8-98203-173-0	02	1	1409-	●
485	04.105 TROUGH; OIL 4X2(TFB***)	8-98203-178-0	01	1	1409-	●
535	04.302 SPRING; LEVER	8-98203-170-0	01	1	1409-	●
552	04.105 BRACKET (C)	8-97362-465-1	01	1	1509-		●
552	04.105 BRACKET (A)	8-98203-147-0	01	1	1409-	●
552	04.105 BRACKET (B)	8-98203-151-0	01	1	1409-	●
561	04.309 ROD; SHIFT	8-98095-659-1	01	1	1509-		●
561	04.309 ROD; SHIFT 4X2(TFB***)	8-98203-163-0	01	1	1409-	●
561	04.309 ROD; SHIFT 4X4(TFS***)	8-98203-162-0	01	1	1409-	●
570	04.311 PIN; SHIFT LEVER	8-98203-166-0	01	1	1409-	●
636	04.057 BRACKET; CLIP 02.343 ID=22 L=35	8-97375-643-0	01	1	1409-	●
702	04.309 ROD; REVERSE	8-98203-159-0	01	1	1409-	●
704	04.105 PIVOT	8-98203-152-0	01	1	1409-	●
705	04.309 HEAD; GEAR SHIFT (B)	8-98203-155-0	01	1	1409-	●
705	04.309 HEAD; GEAR SHIFT (A)	8-98236-473-0	01	1	1409-	●
706	04.309 FORK; GEAR SHIFT	8-98203-161-0	01	1	1409-	●

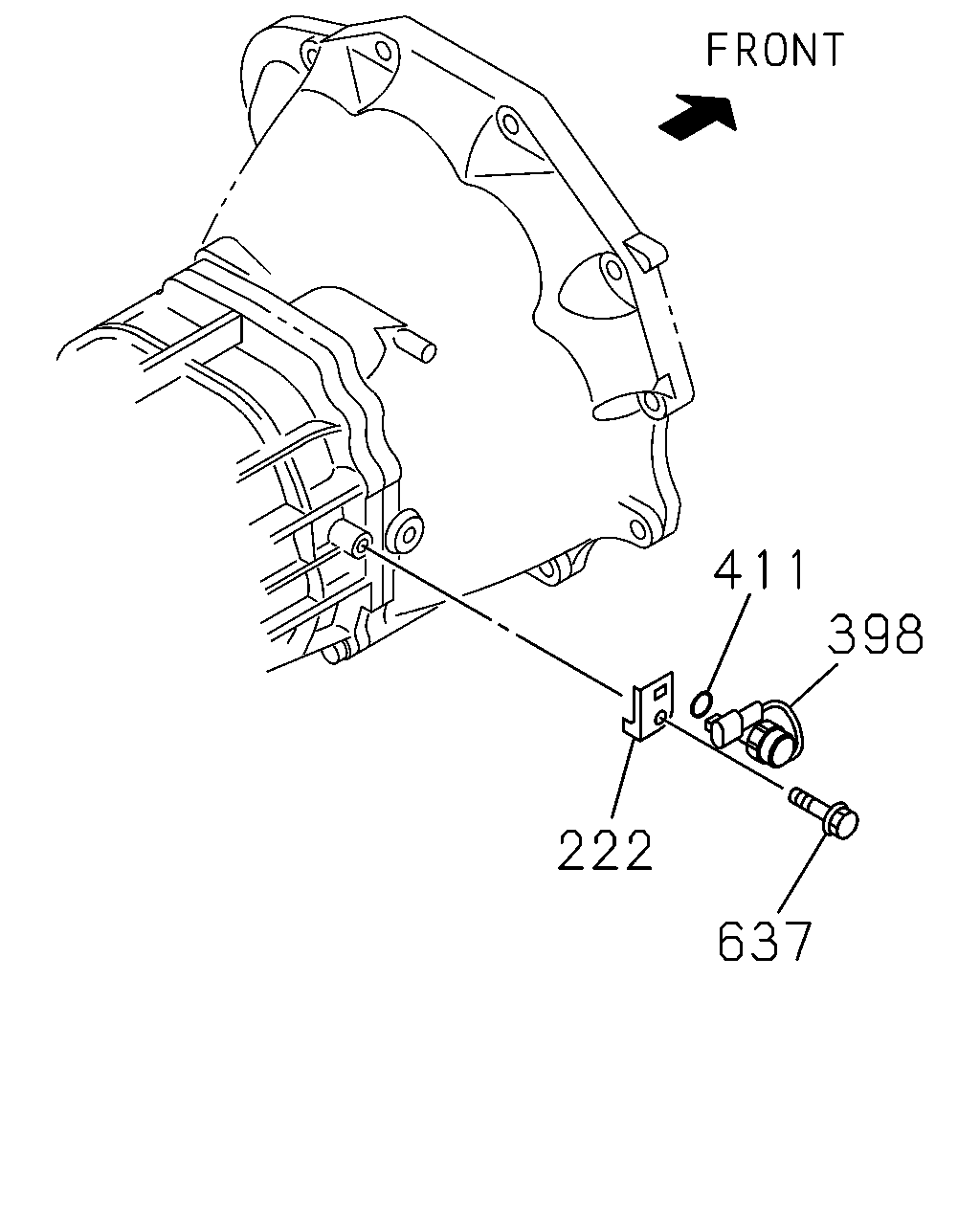

411 398 222 637

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
222	04.057 BRACKET; CLIP	8-98203-246-0	01	1	1409-	●
398	02.698 SWITCH; REV LAMP	8-98180-973-0	01	1	1509-		●
398	02.698 SWITCH; REV LAMP	8-98254-591-0	01	1	1503-						●
398	02.698 SWITCH; REV LAMP CONGO EQUIPMENT(CDF)	8-98254-591-0	01	1	1503-				●
398	02.698 SWITCH; REV LAMP	8-98208-758-0	01	1	1409-	●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1409-1502			●	●	●	●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1503-			●		●
398	02.698 SWITCH; REV LAMP EXC. CONGO EQUIPMENT(CDF)	8-98103-750-0	01	1	1503-				●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1409-			●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.054	8-98210-376-0	01	1	1409-	●
637	04.105 BOLT; BRACKET	8-98203-256-0	01	1	1409-	●

214 636 248 214 214 218 172 171 165 143 234 27 535 570 33 195 561 195 165 476 476 476 476 195 552 39 38 91 706 195 552 234 704 476 313 702 67 476 195 195 62 705 705 78 61 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
27	04.302 BUSHING; SHIFT ROD 04.317	8-89048-304-0	01	1	1409-	●
32	04.303 ARM; SHIFT,1ST & 2ND	8-98203-153-0	01	1	1409-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97362-441-0	01	1	1509-		●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1409-			●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98203-156-0	01	1	1409-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1409-				●	●	●
38	04.311 SPRING; DETENT	8-98203-171-0	04	1	1409-	●
39	04.307 BALL; DETENT	8-97165-089-0	04	1	1409-	●
61	04.303 ARM; SHIFT,3RD & 4TH	8-98203-150-0	01	1	1409-	●
62	04.309 ROD; SHIFT,3RD & 4TH	8-98203-157-0	01	1	1409-	●
67	04.309 ROD; SHIFT,5TH & 6TH	8-98203-158-0	01	1	1409-	●
78	04.302 ARM; SHIFT,REV	8-97362-434-1	01	1	1509-		●
78	04.302 ARM; SHIFT,REV	8-98203-149-0	01	1	1409-	●
91	04.302 PIN; SPR,SHIFT ARM	8-97164-994-0	01	1	1409-	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1409-			●	●	●	●
143	04.030 CAM; STOPPER,REV INHIBITOR	8-98203-148-0	01	1	1409-	●
165	04.302 LEVER; SHIFT 4X2(TFB***) (B)	8-98203-142-0	01	1	1409-	●
165	04.302 LEVER; SHIFT (A)	8-98203-160-0	01	1	1409-	●
165	04.302 LEVER; SHIFT 4X4(TFS***) (C)	8-98203-141-0	01	1	1409-	●
171	04.054 SWITCH; NEUTRAL	8-98180-974-0	01	1	1509-		●
171	04.054 SWITCH; NEUTRAL	8-98103-743-0	01	1	1409-				●
171	04.054 SWITCH; NEUTRAL	8-98203-248-0	01	1	1409-	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1409-				●	●	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	8-98210-376-0	01	1	1409-	●
195	04.105 BOLT (D) M8X8.5 TAPER	8-97250-975-0	01	1	1509-		●
195	04.105 BOLT (E) M8X30 FLANGE	8-98034-764-0	04	1	1509-		●
195	04.105 BOLT (A)	8-97164-962-0	02	1	1409-	●
195	04.105 BOLT (B)	8-98203-146-0	04	1	1409-	●
195	04.105 BOLT (C)	8-98203-167-0	02	1	1409-	●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105	8-98203-146-0	04	1	1409-	●
218	04.057 BRACKET; HARNESS CLIP,QUAD BOX	8-98203-245-0	01	1	1409-	●
234	04.311 RING; SNAP 04.307 (C) ID=12	8-94460-357-0	04	1	1509-		●
234	04.311 RING; SNAP (A)	8-98203-175-0	01	1	1409-	●
234	04.311 RING; SNAP (B)	8-98203-176-0	01	1	1409-	●
248	04.105 RETAINER; CONT BOX	8-98203-143-0	01	1	1409-	●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1409-			●	●	●	●
313	04.309 ROLLER; SHAFT	8-98203-168-0	01	1	1409-	●
476	04.311 PIN; SHIFT ROD 04.303 (D) D=4.2 L=25	8-94171-541-0	04	1	1509-		●
476	04.311 PIN; SHIFT ROD 04.303 (A)	8-97164-925-0	02	1	1409-	●
476	04.311 PIN; SHIFT ROD (B)	8-98203-172-0	02	1	1409-	●
476	04.311 PIN; SHIFT ROD (C)	8-98203-173-0	02	1	1409-	●
535	04.302 SPRING; LEVER	8-98203-170-0	01	1	1409-	●
552	04.105 BRACKET (C)	8-97362-465-1	01	1	1509-		●
552	04.105 BRACKET (A)	8-98203-147-0	01	1	1409-	●
552	04.105 BRACKET (B)	8-98203-151-0	01	1	1409-	●
561	04.309 ROD; SHIFT	8-98095-659-1	01	1	1509-		●
561	04.309 ROD; SHIFT 4X2(TFB***)	8-98203-163-0	01	1	1409-	●
561	04.309 ROD; SHIFT 4X4(TFS***)	8-98203-162-0	01	1	1409-	●
570	04.311 PIN; SHIFT LEVER	8-98203-166-0	01	1	1409-	●
636	04.057 BRACKET; CLIP 02.343 ID=22 L=35	8-97375-643-0	01	1	1409-	●
702	04.309 ROD; REVERSE	8-98203-159-0	01	1	1409-	●
704	04.105 PIVOT	8-98203-152-0	01	1	1409-	●
705	04.309 HEAD; GEAR SHIFT (B)	8-98203-155-0	01	1	1409-	●
705	04.309 HEAD; GEAR SHIFT (A)	8-98236-473-0	01	1	1409-	●
706	04.309 FORK; GEAR SHIFT	8-98203-161-0	01	1	1409-	●

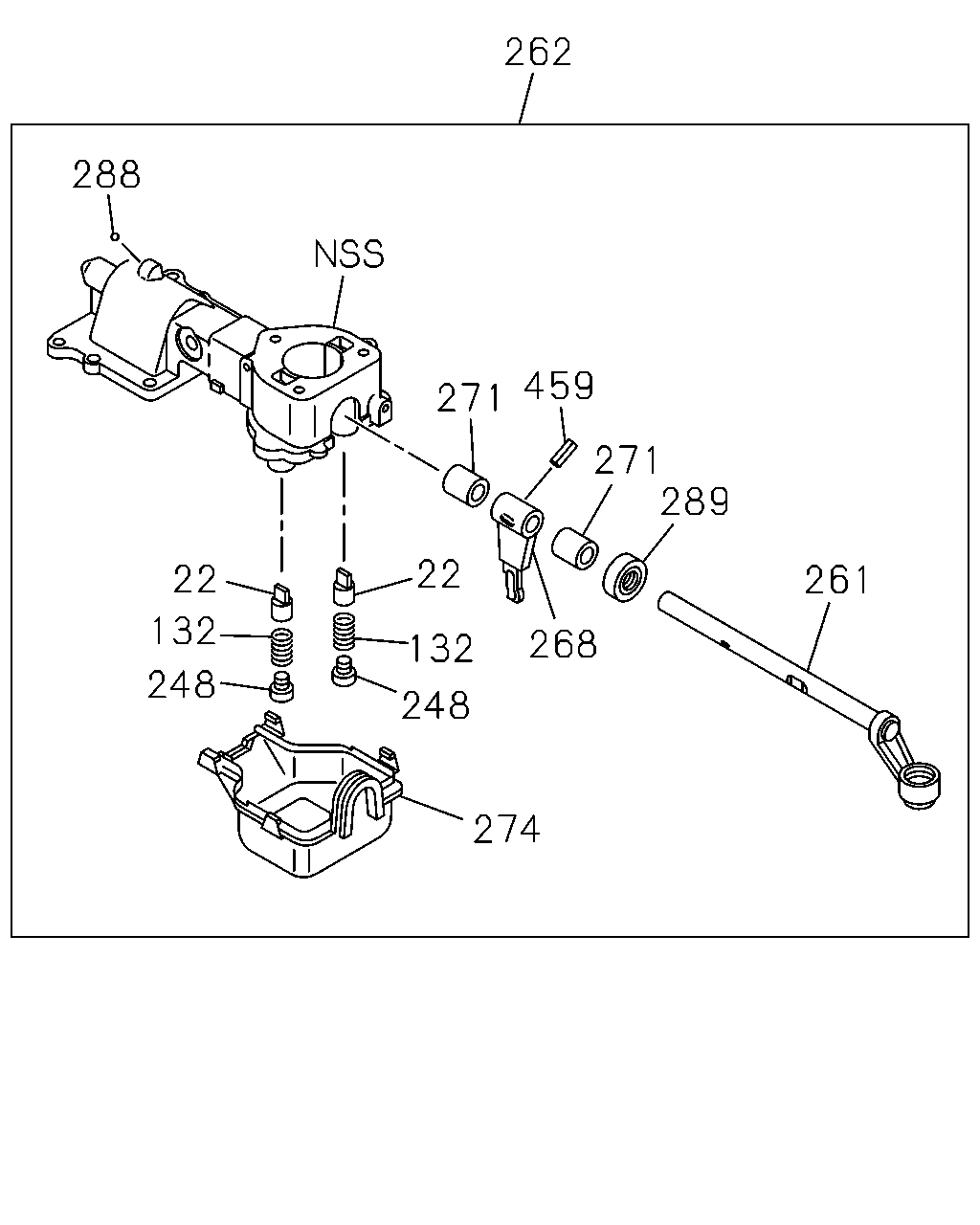

262 288 22 132 248 271 459 271 289 261 274 268 248 132 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	1409-			●	●	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	02	1	1409-			●	●	●	●
248	04.105 RETAINER; CONT BOX	8-98203-143-0	01	1	1409-	●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1409-			●	●	●	●
261	04.309 ROD; GEAR CONT	8-97362-444-0	01	1	1509-		●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	1409-			●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	1409-				●	●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1409-			●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1409-				●	●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	1409-			●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	1409-				●	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	1409-			●	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	1409-			●	●	●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	1409-			●	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	1409-			●	●	●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	1409-			●	●	●	●

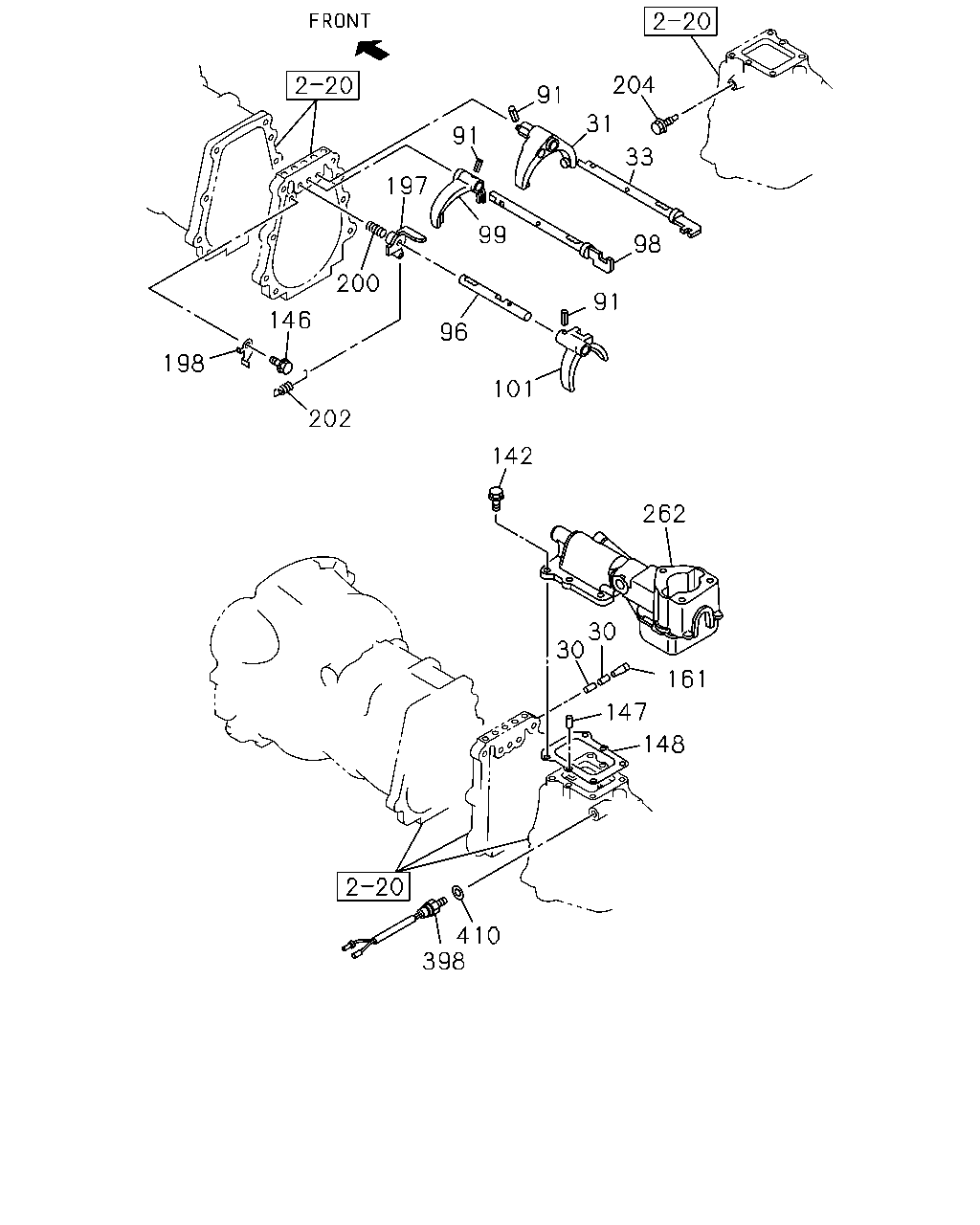

204 31 33 91 91 98 91 99 197 101 96 200 146 198 202 142 262 30 30 161 147 148 410 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	1409-			●	●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97362-435-0	01	1	1509-		●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	1409-			●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	1409-				●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97362-441-0	01	1	1509-		●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1409-			●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98203-156-0	01	1	1409-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1409-				●	●	●
91	04.302 PIN; SPR,SHIFT ARM	8-97164-994-0	01	1	1409-	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1409-			●	●	●	●
96	04.309 ROD; SHIFT,5TH IDENTIFICATION LABEL FOR KD<6UT>	8-97232-886-0	01	1	1409-				●	●
96	04.309 ROD; SHIFT,5TH	8-97232-886-0	01	1	1409-						●
96	04.309 ROD; SHIFT,5TH EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94440-079-1	01	1	1409-				●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	1409-			●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	1409-				●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD 04.303	8-97362-439-2	01	1	1509-		●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	1409-			●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	1409-				●	●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	1409-			●
101	04.302 ARM; SHIFT,REV & 5TH IDENTIFICATION LABEL FOR KD<6UT>	8-97232-894-0	01	1	1409-				●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-97232-894-0	01	1	1409-						●
101	04.302 ARM; SHIFT,REV & 5TH EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94448-755-2	01	1	1409-				●	●
142	04.012 BOLT; QUAD BOX 01.060 M8X35 FLANGE	0-28650-835-0	04	1	1509-		●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1409-			●	●	●	●
146	04.032 BOLT; REV INHIBITOR IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1409-				●	●
146	04.032 BOLT; REV INHIBITOR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1409-						●
146	04.032 BOLT; REV INHIBITOR EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1409-				●	●
147	04.020 PIN; KNOCK 04.510 OD=6 L=12	9-08150-612-0	02	1	1409-				●	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	1409-			●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	1409-				●	●	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	1409-			●	●	●	●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	1409-				●	●	●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	1409-				●	●	●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	1409-				●	●	●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	1409-				●	●	●
204	04.309 STOPPER; REV INHIBITOR	8-98035-673-0	01	1	1409-				●	●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1409-			●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1409-				●	●	●
398	02.698 SWITCH; REV LAMP	8-98180-973-0	01	1	1509-		●
398	02.698 SWITCH; REV LAMP	8-98254-591-0	01	1	1503-						●
398	02.698 SWITCH; REV LAMP CONGO EQUIPMENT(CDF)	8-98254-591-0	01	1	1503-				●
398	02.698 SWITCH; REV LAMP	8-98208-758-0	01	1	1409-	●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1409-1502			●	●	●	●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1503-			●		●
398	02.698 SWITCH; REV LAMP EXC. CONGO EQUIPMENT(CDF)	8-98103-750-0	01	1	1503-				●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	1409-				●	●	●

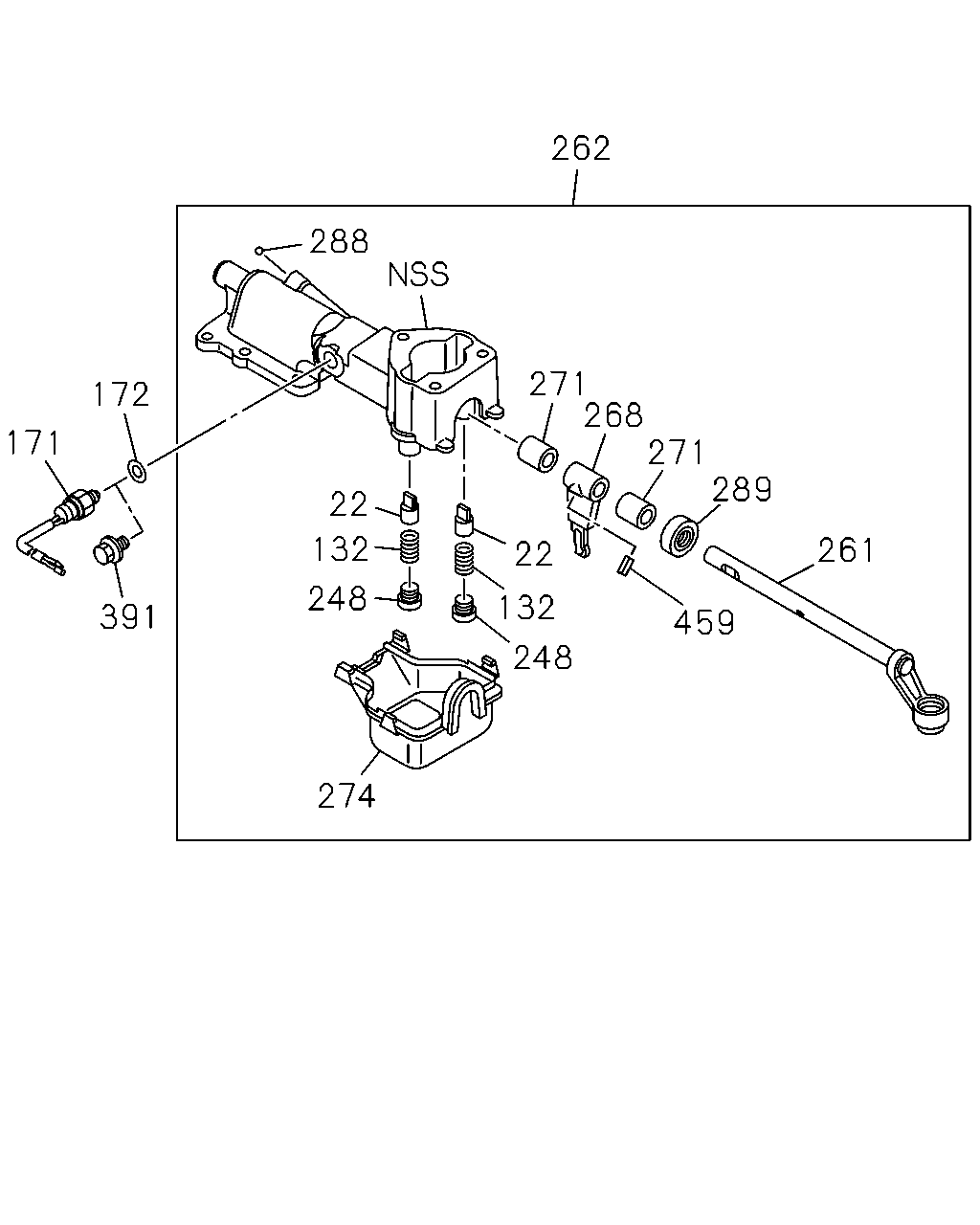

262 288 172 171 391 22 132 248 274 248 132 22 271 268 271 289 261 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	1409-			●	●	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	02	1	1409-			●	●	●	●
171	04.054 SWITCH; NEUTRAL	8-98180-974-0	01	1	1509-		●
171	04.054 SWITCH; NEUTRAL	8-98103-743-0	01	1	1409-				●
171	04.054 SWITCH; NEUTRAL	8-98203-248-0	01	1	1409-	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1409-				●	●	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	8-98210-376-0	01	1	1409-	●
248	04.105 RETAINER; CONT BOX	8-98203-143-0	01	1	1409-	●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1409-			●	●	●	●
261	04.309 ROD; GEAR CONT	8-97362-444-0	01	1	1509-		●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	1409-			●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	1409-				●	●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1409-			●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1409-				●	●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	1409-			●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	1409-				●	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	1409-			●	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	1409-			●	●	●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	1409-			●	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	1409-			●	●	●	●
391	04.104 PLUG; SW HOLE M14X11	8-98035-674-0	01	1	1409-					●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	1409-			●	●	●	●

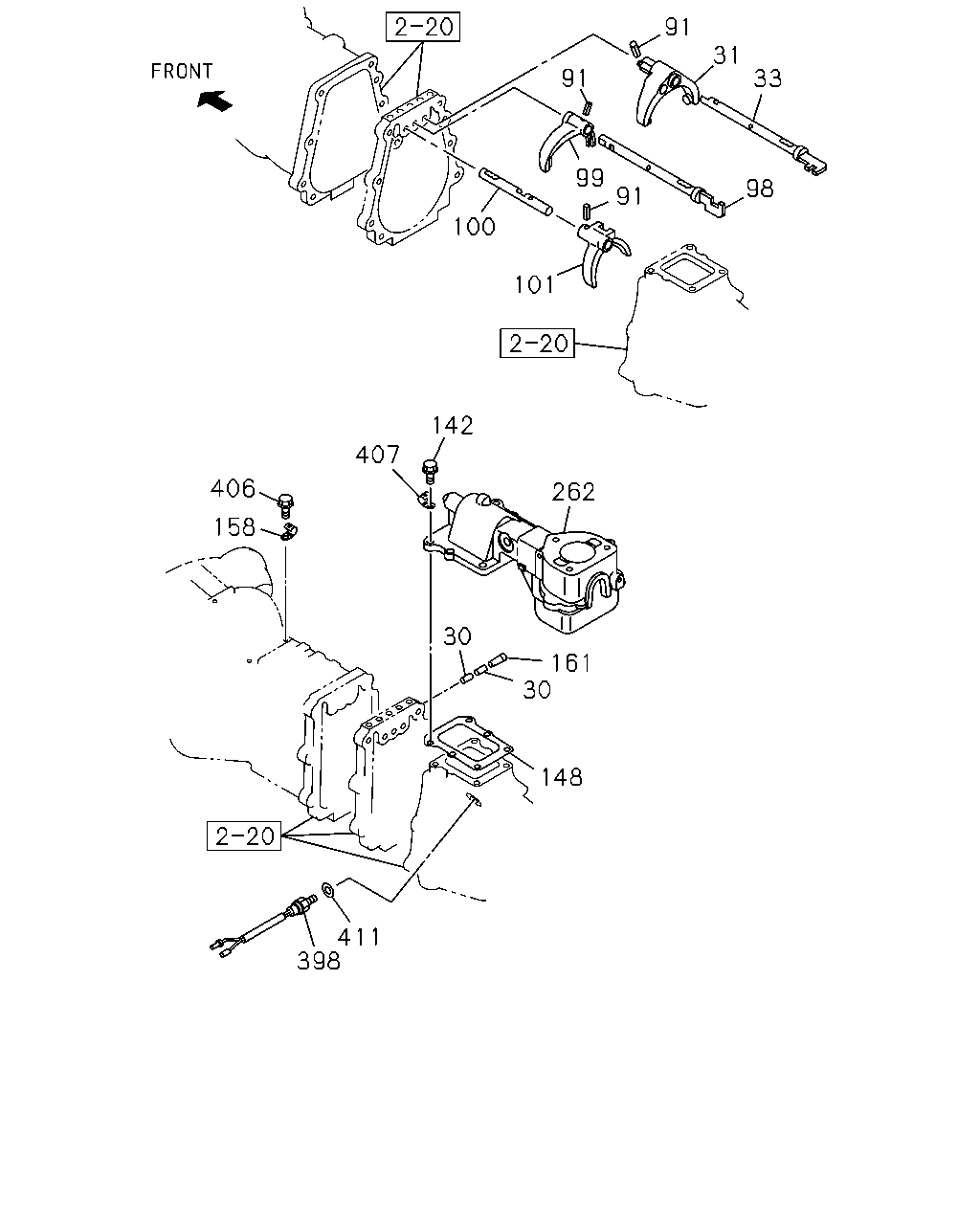

398 411 148 30 161 30 262 142 407 406 158 101 100 91 99 98 33 31 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	1409-			●	●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97362-435-0	01	1	1509-		●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	1409-			●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	1409-				●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97362-441-0	01	1	1509-		●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1409-			●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98203-156-0	01	1	1409-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1409-				●	●	●
91	04.302 PIN; SPR,SHIFT ARM	8-97164-994-0	01	1	1409-	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1409-			●	●	●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	1409-			●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	1409-				●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD 04.303	8-97362-439-2	01	1	1509-		●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	1409-			●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	1409-				●	●	●
100	04.309 ROD; SHIFT,REV & 5TH	8-97232-885-0	01	1	1409-			●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	1409-			●
101	04.302 ARM; SHIFT,REV & 5TH IDENTIFICATION LABEL FOR KD<6UT>	8-97232-894-0	01	1	1409-				●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-97232-894-0	01	1	1409-						●
101	04.302 ARM; SHIFT,REV & 5TH EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94448-755-2	01	1	1409-				●	●
142	04.012 BOLT; QUAD BOX 01.060 M8X35 FLANGE	0-28650-835-0	04	1	1509-		●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1409-			●	●	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	1409-			●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	1409-				●	●	●
158	04.105 CLIP; HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1409-			●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	1409-			●	●	●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1409-			●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1409-				●	●	●
398	02.698 SWITCH; REV LAMP	8-98180-973-0	01	1	1509-		●
398	02.698 SWITCH; REV LAMP	8-98254-591-0	01	1	1503-						●
398	02.698 SWITCH; REV LAMP CONGO EQUIPMENT(CDF)	8-98254-591-0	01	1	1503-				●
398	02.698 SWITCH; REV LAMP	8-98208-758-0	01	1	1409-	●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1409-1502			●	●	●	●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1503-			●		●
398	02.698 SWITCH; REV LAMP EXC. CONGO EQUIPMENT(CDF)	8-98103-750-0	01	1	1503-				●
406	02.559 BOLT; HARNESS CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1409-			●
407	02.698 CLIP; SWITCH HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1409-			●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1409-			●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.054	8-98210-376-0	01	1	1409-	●

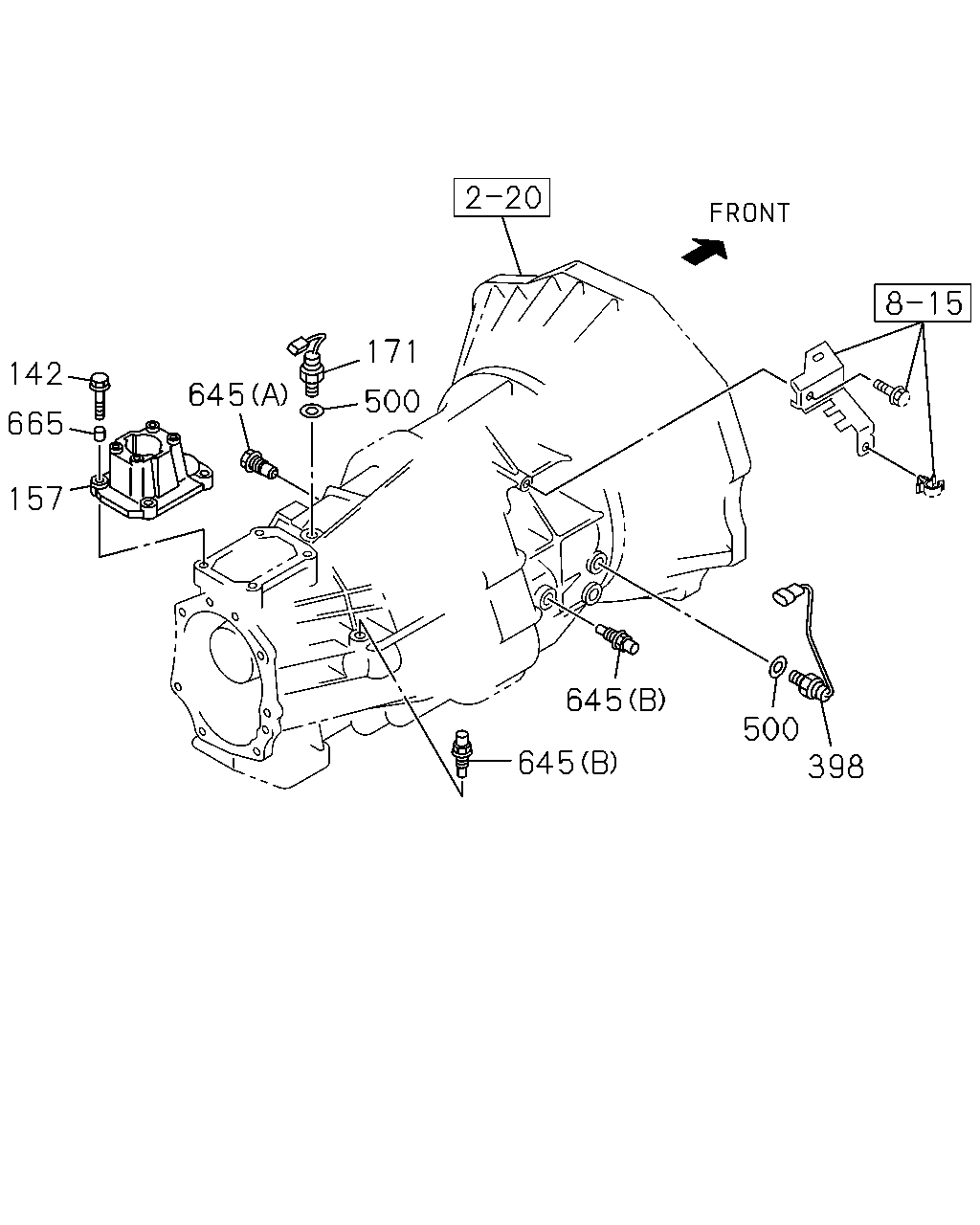

142 665 157 645 171 500 645 645 500 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
142	04.012 BOLT; QUAD BOX 01.060 M8X35 FLANGE	0-28650-835-0	04	1	1509-		●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1409-			●	●	●	●
157	04.105 BOX; QUAD,TRANS	8-98094-798-1	01	1	1509-		●
171	04.054 SWITCH; NEUTRAL	8-98180-974-0	01	1	1509-		●
171	04.054 SWITCH; NEUTRAL	8-98103-743-0	01	1	1409-				●
171	04.054 SWITCH; NEUTRAL	8-98203-248-0	01	1	1409-	●
398	02.698 SWITCH; REV LAMP	8-98180-973-0	01	1	1509-		●
398	02.698 SWITCH; REV LAMP	8-98254-591-0	01	1	1503-						●
398	02.698 SWITCH; REV LAMP CONGO EQUIPMENT(CDF)	8-98254-591-0	01	1	1503-				●
398	02.698 SWITCH; REV LAMP	8-98208-758-0	01	1	1409-	●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1409-1502			●	●	●	●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1503-			●		●
398	02.698 SWITCH; REV LAMP EXC. CONGO EQUIPMENT(CDF)	8-98103-750-0	01	1	1503-				●
500	04.075 GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1509-		●
645	04.311 DETENT ASM (A)	8-97362-469-2	01	1	1509-		●
645	04.311 DETENT ASM 04.307 (B)	8-98019-536-0	02	1	1509-		●
665	00.206 DOWEL OD=11 L=8	9-11229-058-1	02	1	1509-		●

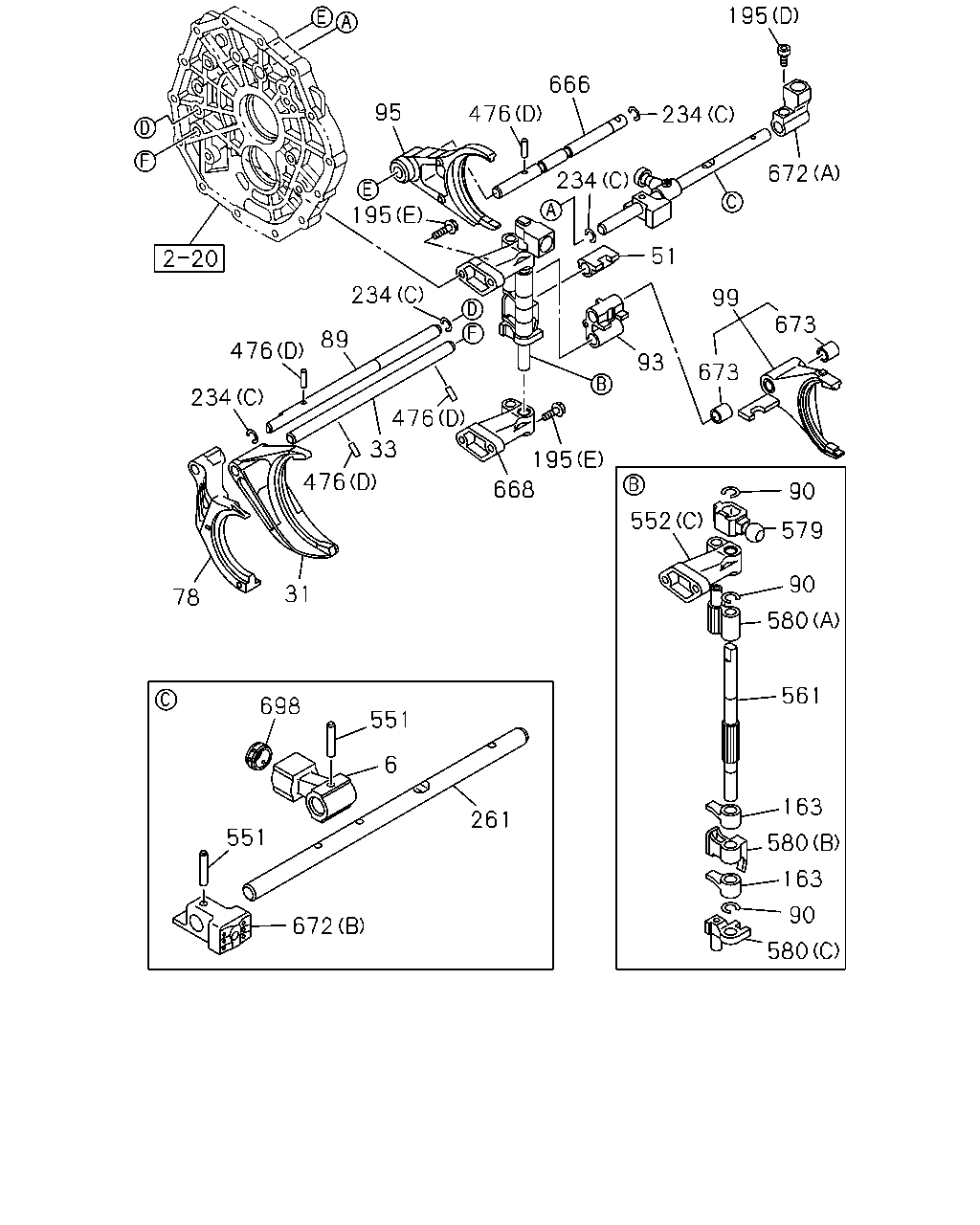

195 234 666 476 234 95 195 234 89 476 234 78 31 476 33 476 668 195 93 678 99 51 672 673 698 551 6 551 672 261 552 90 579 90 580 561 163 580 163 90 580

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	04.302 LEVER; RELAY	8-98095-658-1	01	1	1509-		●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97362-435-0	01	1	1509-		●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	1409-			●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	1409-				●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97362-441-0	01	1	1509-		●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1409-			●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98203-156-0	01	1	1409-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1409-				●	●	●
51	04.303 BLOCK; SHIFT,1ST & 2ND 04.302	8-98186-703-0	01	1	1509-		●
78	04.302 ARM; SHIFT,REV	8-97362-434-1	01	1	1509-		●
78	04.302 ARM; SHIFT,REV	8-98203-149-0	01	1	1409-	●
89	04.309 ROD; SHIFT,REV	8-98106-032-0	01	1	1509-		●
90	04.307 RING; SNAP,SHIFT ROD ID=12	8-94460-357-0	03	1	1509-		●
93	04.303 BLOCK; SHIFT,REV & 5TH	8-98106-035-0	01	1	1509-		●
95	04.302 ARM; SHIFT,5TH	8-97362-436-1	01	1	1509-		●
99	04.302 ARM; SHIFT,4TH & 3RD 04.303	8-97362-439-2	01	1	1509-		●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	1409-			●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	1409-				●	●	●
163	04.302 LEVER; SELECT,INTERNAL	8-98052-461-0	02	1	1509-		●
195	04.105 BOLT (D) M8X8.5 TAPER	8-97250-975-0	01	1	1509-		●
195	04.105 BOLT (E) M8X30 FLANGE	8-98034-764-0	04	1	1509-		●
195	04.105 BOLT (A)	8-97164-962-0	02	1	1409-	●
195	04.105 BOLT (B)	8-98203-146-0	04	1	1409-	●
195	04.105 BOLT (C)	8-98203-167-0	02	1	1409-	●
234	04.311 RING; SNAP 04.307 (C) ID=12	8-94460-357-0	04	1	1509-		●
234	04.311 RING; SNAP (A)	8-98203-175-0	01	1	1409-	●
234	04.311 RING; SNAP (B)	8-98203-176-0	01	1	1409-	●
261	04.309 ROD; GEAR CONT	8-97362-444-0	01	1	1509-		●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	1409-			●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	1409-				●	●	●
476	04.311 PIN; SHIFT ROD 04.303 (D) D=4.2 L=25	8-94171-541-0	04	1	1509-		●
476	04.311 PIN; SHIFT ROD 04.303 (A)	8-97164-925-0	02	1	1409-	●
476	04.311 PIN; SHIFT ROD (B)	8-98203-172-0	02	1	1409-	●
476	04.311 PIN; SHIFT ROD (C)	8-98203-173-0	02	1	1409-	●
551	04.303 PIN; SPRING D=4.2 L=25	8-94171-541-0	02	1	1509-		●
552	04.105 BRACKET (C)	8-97362-465-1	01	1	1509-		●
552	04.105 BRACKET (A)	8-98203-147-0	01	1	1409-	●
552	04.105 BRACKET (B)	8-98203-151-0	01	1	1409-	●
561	04.309 ROD; SHIFT	8-98095-659-1	01	1	1509-		●
561	04.309 ROD; SHIFT 4X2(TFB***)	8-98203-163-0	01	1	1409-	●
561	04.309 ROD; SHIFT 4X4(TFS***)	8-98203-162-0	01	1	1409-	●
579	04.303 BLOCK; SHIFT,ROD GUIDE	8-98095-657-0	01	1	1509-		●
580	04.303 BLOCK; INTERLOCK (A)	8-97362-461-1	01	1	1509-		●
580	04.303 BLOCK; INTERLOCK (B)	8-98052-462-0	01	1	1509-		●
580	04.303 BLOCK; INTERLOCK (C)	8-98186-700-0	01	1	1509-		●
666	04.309 ROD; GEAR SHIFT,3RD,4TH & 4TH	8-97362-442-2	01	1	1509-		●
668	04.309 BRACKET; SHIFT ROD 04.105	8-97362-465-1	01	1	1509-		●
672	04.303 BLOCK; SHIFT,T/M CONTROL (A)	8-97362-467-0	01	1	1509-		●
672	04.303 BLOCK; SHIFT,T/M CONTROL (B)	8-98095-689-1	01	1	1509-		●
673	04.309 BEARING; SHIFT ARM 00.683	8-97362-853-0	02	1	1509-		●
698	04.303 SEAT; SHIFT CONT 04.307	8-98073-812-0	01	1	1509-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
