Sayfa 2-25A - Isuzu EPC

2-25A — SPEEDOMETER DRIVEN GEAR (#151768) — 184 parça

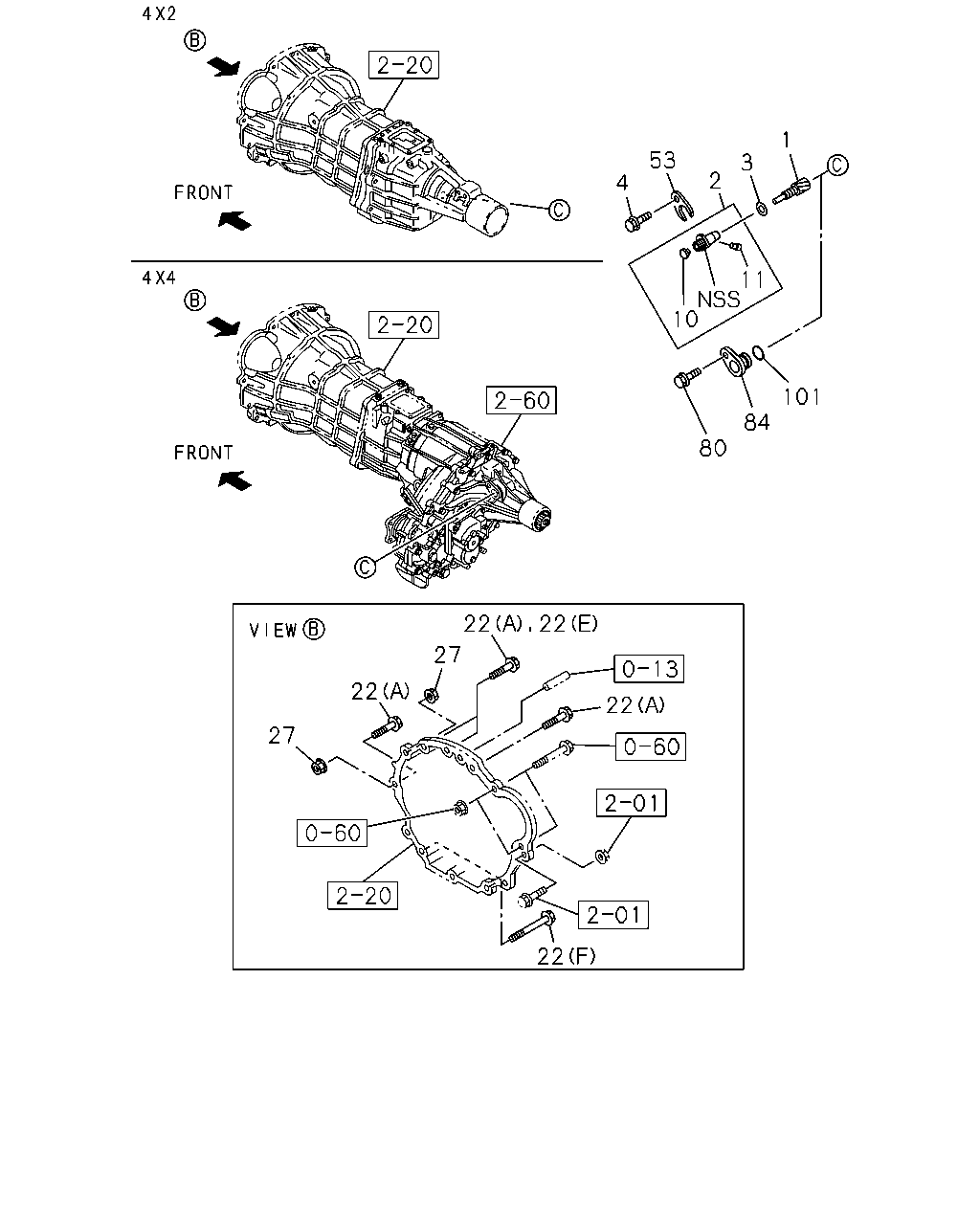

1 2 3 11 10 4 22 22 27 22 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=18	8-98123-464-0	01	1	1509-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97012-085-2	01	1	1409-		●
1	04.337 GEAR; DRIVEN,SPD Z=18	8-94473-304-2	01	1	1409-			●
1	04.337 GEAR; DRIVEN,SPD Z=19	8-94473-303-2	01	1	1409-				●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97238-583-0	01	1	1409-1508		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97238-583-0	01	1	1509-	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	1409-1508				●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97021-133-4	01	1	1409-1508		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	1509-				●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97021-133-4	01	1	1509-	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-94463-608-4	01	1	1409-			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97305-454-1	01	1	1409-1508		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97305-454-1	01	1	1509-	●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1409-1508			●	●	●
3	04.338 GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1409-1508		●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1509-			●	●	●
3	04.338 GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1509-	●	●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1409-1508				●	●
4	04.338 BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1409-1508		●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1509-				●	●
4	04.338 BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1509-	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1409-			●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1409-1508			●	●	●
10	04.338 SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1409-1508		●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1509-			●	●	●
10	04.338 SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1509-	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	1409-1508			●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1409-1508		●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	1509-			●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1509-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 04.510 (B) M10X35 FLANGE	0-28051-035-0	02	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	03	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (C) M10X45 FLANGE	0-28051-045-0	01	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (D) M12X35 FLANGE	0-28051-235-0	01	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	04	1	1409-		●		●	●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X60 FLANGE	0-28051-060-0	02	1	1409-		●		●	●
22	00.685 BOLT; TRANS CASE TO ENG (E) M12X40 FLANGE	0-28051-240-0	01	1	1409-		●		●	●
22	00.685 BOLT; TRANS CASE TO ENG 00.724 (G) M12X50 FLANGE	0-28051-250-0	08	1	1409-1508						●
22	00.685 BOLT; TRANS CASE TO ENG 00.724 (G) M12X50 FLANGE	0-28051-250-0	08	1	1509-	●					●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-		●	●	●	●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	1409-1508						●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	1509-	●					●

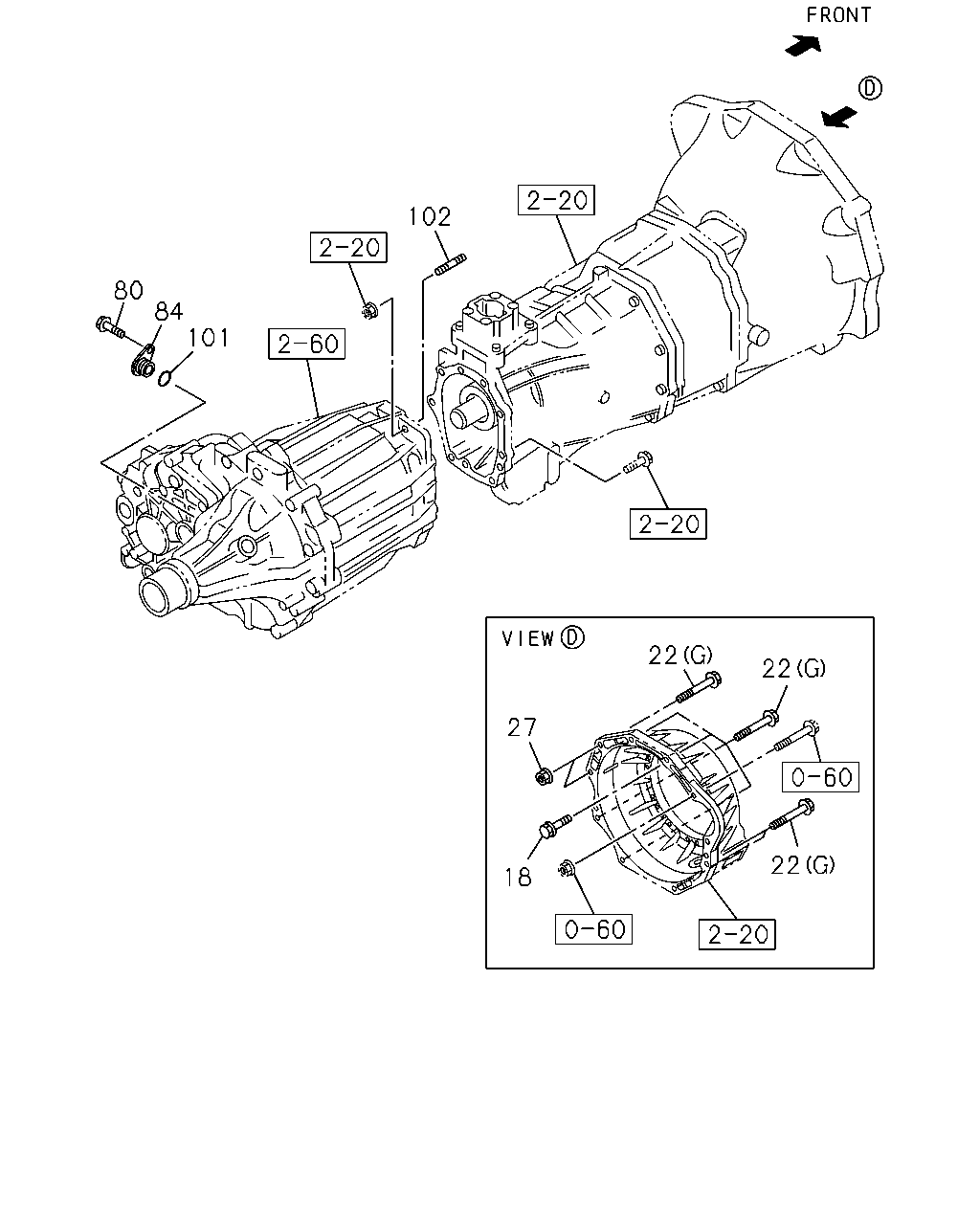

4 53 3 2 1 11 10 80 84 101 22 22 22 27 22 27 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=18	8-98123-464-0	01	1	1509-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97012-085-2	01	1	1409-		●
1	04.337 GEAR; DRIVEN,SPD Z=18	8-94473-304-2	01	1	1409-			●
1	04.337 GEAR; DRIVEN,SPD Z=19	8-94473-303-2	01	1	1409-				●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97238-583-0	01	1	1409-1508		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97238-583-0	01	1	1509-	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	1409-1508				●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97021-133-4	01	1	1409-1508		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	1509-				●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97021-133-4	01	1	1509-	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-94463-608-4	01	1	1409-			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97305-454-1	01	1	1409-1508		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97305-454-1	01	1	1509-	●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1409-1508			●	●	●
3	04.338 GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1409-1508		●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1509-			●	●	●
3	04.338 GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1509-	●	●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1409-1508				●	●
4	04.338 BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1409-1508		●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1509-				●	●
4	04.338 BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1509-	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1409-			●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1409-1508			●	●	●
10	04.338 SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1409-1508		●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1509-			●	●	●
10	04.338 SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1509-	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	1409-1508			●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1409-1508		●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	1509-			●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1509-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 04.510 (B) M10X35 FLANGE	0-28051-035-0	02	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	03	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (C) M10X45 FLANGE	0-28051-045-0	01	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (D) M12X35 FLANGE	0-28051-235-0	01	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	04	1	1409-		●		●	●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X60 FLANGE	0-28051-060-0	02	1	1409-		●		●	●
22	00.685 BOLT; TRANS CASE TO ENG (E) M12X40 FLANGE	0-28051-240-0	01	1	1409-		●		●	●
22	00.685 BOLT; TRANS CASE TO ENG 00.724 (G) M12X50 FLANGE	0-28051-250-0	08	1	1409-1508						●
22	00.685 BOLT; TRANS CASE TO ENG 00.724 (G) M12X50 FLANGE	0-28051-250-0	08	1	1509-	●					●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-		●	●	●	●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	1409-1508						●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	1509-	●					●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	1409-1508				●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98035-572-0	01	1	1409-1508		●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	1509-				●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98035-572-0	01	1	1509-	●	●
80	04.329 BOLT; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1409-1508		●
80	04.329 BOLT; SPD SENSOR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1409-1508						●
80	04.329 BOLT; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1509-		●
80	04.329 BOLT; SPD SENSOR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1509-	●					●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1409-1508		●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1409-1508						●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1509-		●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1509-	●					●
101	04.338 GASKET; CAP 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1409-1508		●
101	04.338 GASKET; CAP 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1409-1508						●
101	04.338 GASKET; CAP 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1509-		●
101	04.338 GASKET; CAP 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1509-	●					●

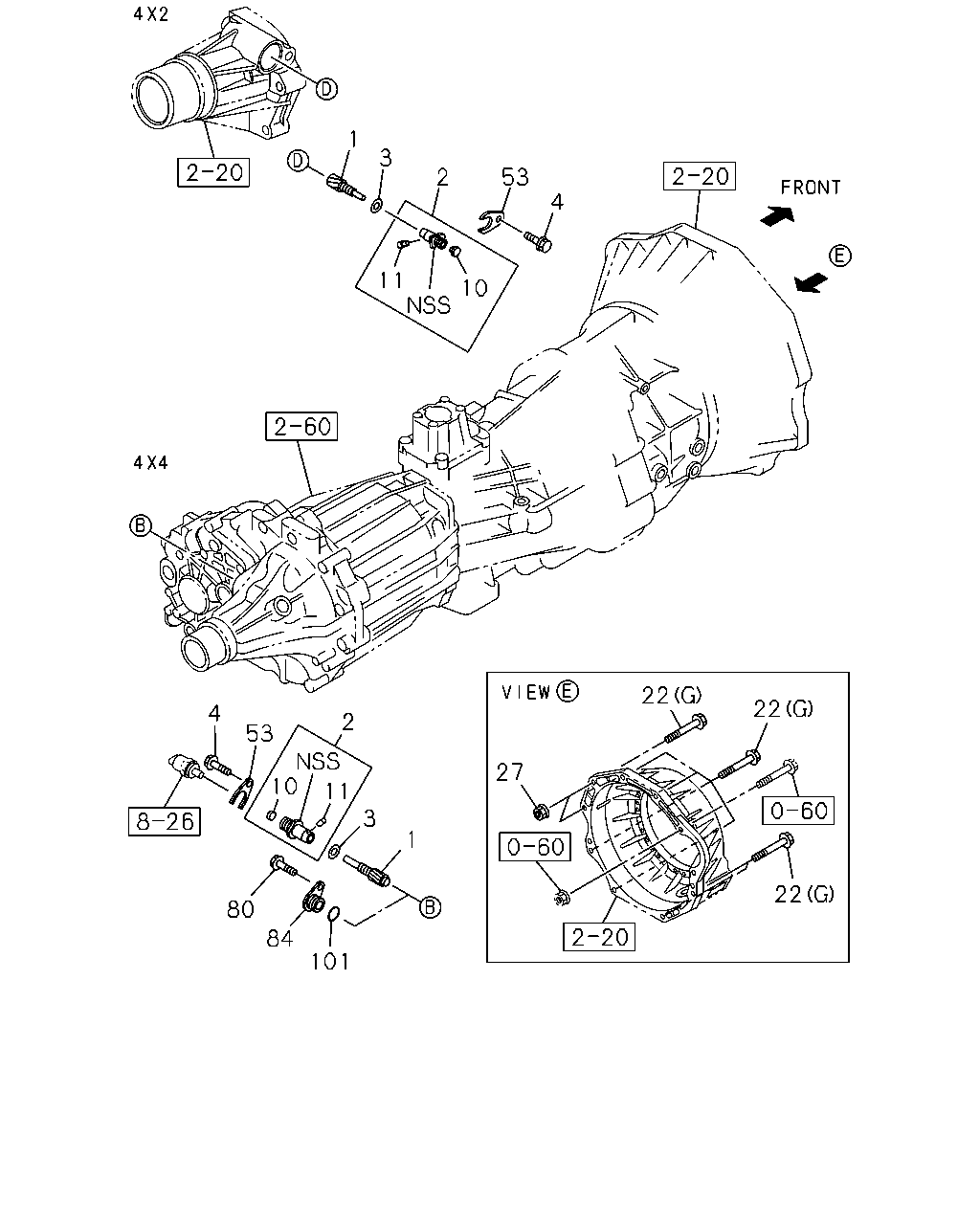

80 102 84 22 27 22 22 18 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
18	00.685 BOLT; CLU HSG TO TRANS	8-98203-121-0	05	1	1409-						●
22	00.685 BOLT; TRANS CASE TO ENG 04.510 (B) M10X35 FLANGE	0-28051-035-0	02	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	03	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (C) M10X45 FLANGE	0-28051-045-0	01	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (D) M12X35 FLANGE	0-28051-235-0	01	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	04	1	1409-		●		●	●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X60 FLANGE	0-28051-060-0	02	1	1409-		●		●	●
22	00.685 BOLT; TRANS CASE TO ENG (E) M12X40 FLANGE	0-28051-240-0	01	1	1409-		●		●	●
22	00.685 BOLT; TRANS CASE TO ENG 00.724 (G) M12X50 FLANGE	0-28051-250-0	08	1	1409-1508						●
22	00.685 BOLT; TRANS CASE TO ENG 00.724 (G) M12X50 FLANGE	0-28051-250-0	08	1	1509-	●					●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-		●	●	●	●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	1409-1508						●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	1509-	●					●
80	04.329 BOLT; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1409-1508		●
80	04.329 BOLT; SPD SENSOR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1409-1508						●
80	04.329 BOLT; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1509-		●
80	04.329 BOLT; SPD SENSOR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1509-	●					●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1409-1508		●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1409-1508						●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1509-		●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1509-	●					●
101	04.338 GASKET; CAP 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1409-1508		●
101	04.338 GASKET; CAP 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1409-1508						●
101	04.338 GASKET; CAP 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1509-		●
101	04.338 GASKET; CAP 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1509-	●					●
102	00.683 STUD; TRANS 4X4(TFS***) 04.510 M10X27 L=43.5	8-98035-677-0	01	1	1409-						●

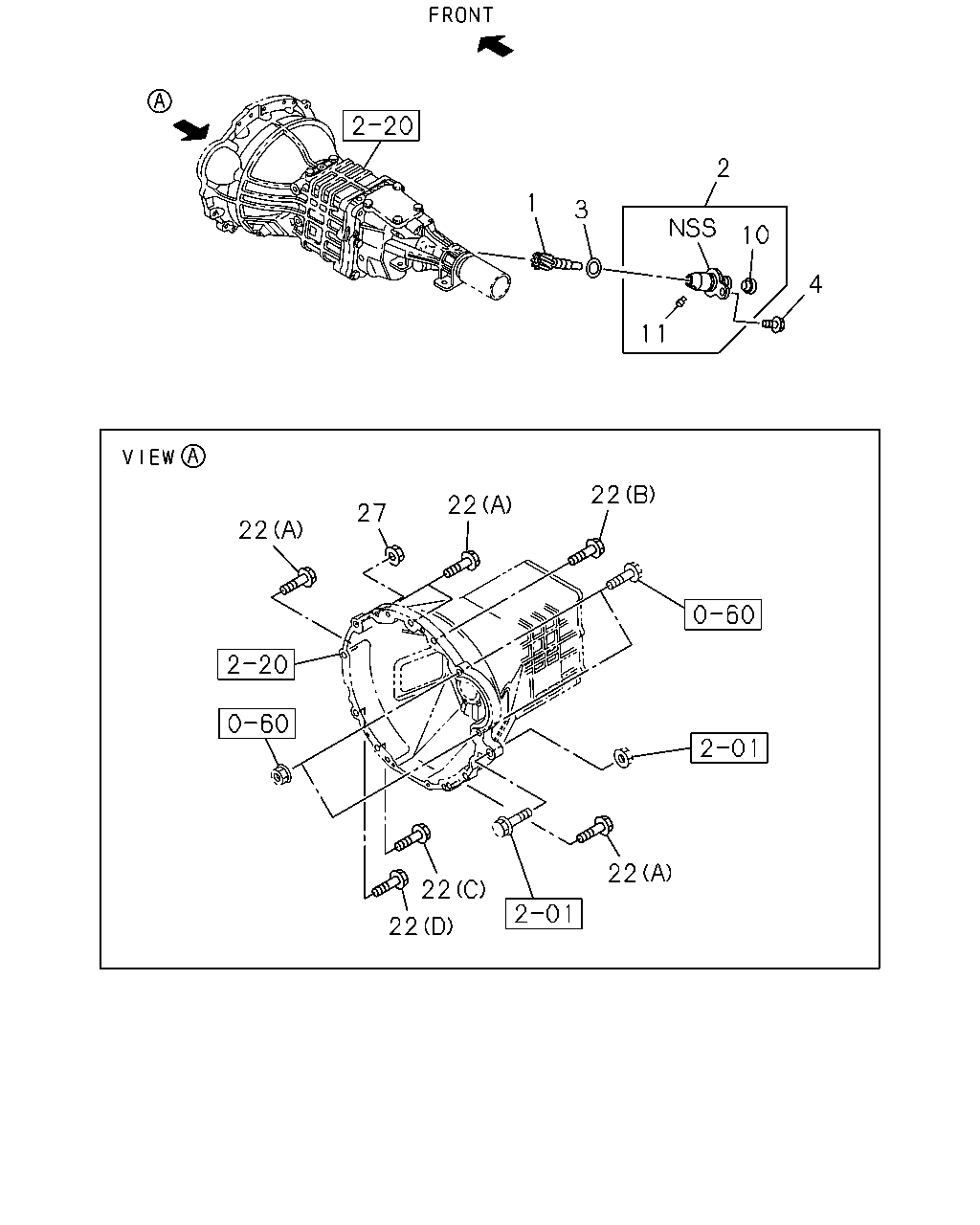

4 53 2 10 11 3 1 4 53 10 11 2 3 1 101 84 80 27 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=18	8-98123-464-0	01	1	1509-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97012-085-2	01	1	1409-		●
1	04.337 GEAR; DRIVEN,SPD Z=18	8-94473-304-2	01	1	1409-			●
1	04.337 GEAR; DRIVEN,SPD Z=19	8-94473-303-2	01	1	1409-				●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97238-583-0	01	1	1409-1508		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97238-583-0	01	1	1509-	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	1409-1508				●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97021-133-4	01	1	1409-1508		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	1509-				●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97021-133-4	01	1	1509-	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-94463-608-4	01	1	1409-			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97305-454-1	01	1	1409-1508		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97305-454-1	01	1	1509-	●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1409-1508			●	●	●
3	04.338 GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1409-1508		●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1509-			●	●	●
3	04.338 GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1509-	●	●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1409-1508				●	●
4	04.338 BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1409-1508		●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1509-				●	●
4	04.338 BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1509-	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1409-			●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1409-1508			●	●	●
10	04.338 SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1409-1508		●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1509-			●	●	●
10	04.338 SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1509-	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	1409-1508			●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1409-1508		●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	1509-			●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1509-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 04.510 (B) M10X35 FLANGE	0-28051-035-0	02	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	03	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (C) M10X45 FLANGE	0-28051-045-0	01	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (D) M12X35 FLANGE	0-28051-235-0	01	1	1409-			●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	04	1	1409-		●		●	●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X60 FLANGE	0-28051-060-0	02	1	1409-		●		●	●
22	00.685 BOLT; TRANS CASE TO ENG (E) M12X40 FLANGE	0-28051-240-0	01	1	1409-		●		●	●
22	00.685 BOLT; TRANS CASE TO ENG 00.724 (G) M12X50 FLANGE	0-28051-250-0	08	1	1409-1508						●
22	00.685 BOLT; TRANS CASE TO ENG 00.724 (G) M12X50 FLANGE	0-28051-250-0	08	1	1509-	●					●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-		●	●	●	●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	1409-1508						●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	1509-	●					●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	1409-1508				●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98035-572-0	01	1	1409-1508		●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	1509-				●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98035-572-0	01	1	1509-	●	●
80	04.329 BOLT; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1409-1508		●
80	04.329 BOLT; SPD SENSOR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1409-1508						●
80	04.329 BOLT; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1509-		●
80	04.329 BOLT; SPD SENSOR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1509-	●					●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1409-1508		●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1409-1508						●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1509-		●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1509-	●					●
101	04.338 GASKET; CAP 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1409-1508		●
101	04.338 GASKET; CAP 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1409-1508						●
101	04.338 GASKET; CAP 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1509-		●
101	04.338 GASKET; CAP 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1509-	●					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
