2-20B — MANUAL TRANSMISSION ASM AND CASE (#151767) — 19 parça

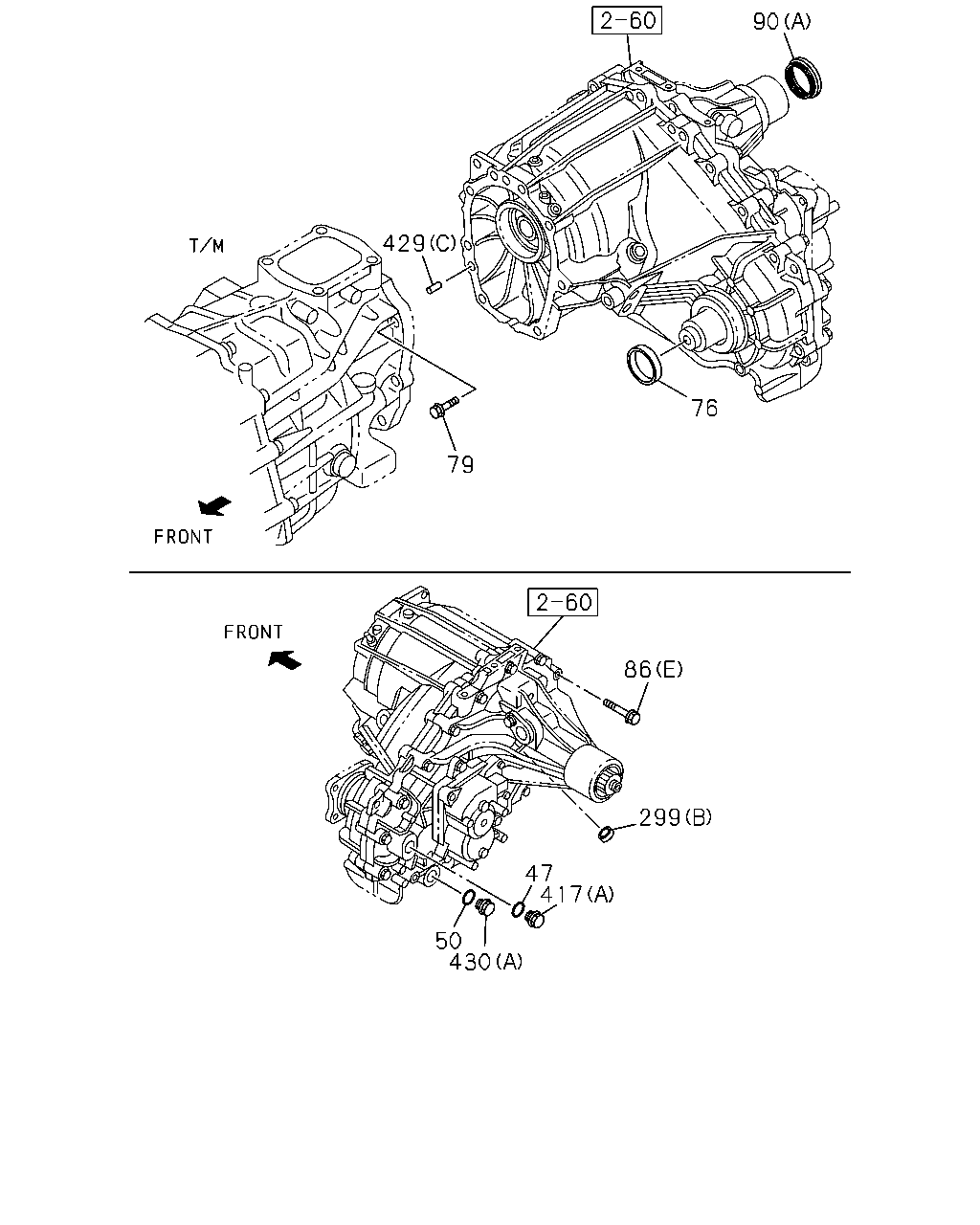

çizim 450033
90 429 79 76 86 299 417 47 430 50
BalonParca AdiParca NoAdetTipApplied Date
47 04.510 GASKET; FILLER PLUG,TRANSFER CAS
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17 		8-97115-712-0 01 1 1409-1508
47 04.510 GASKET; FILLER PLUG,TRANSFER CAS
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17 		8-97115-712-0 01 1 1509-
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17 		8-97115-712-0 01 1 1409-1508
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17 		8-97115-712-0 01 1 1509-
76 04.510 SEAL; OIL,TRANSFER CASE
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK 		8-97238-999-0 01 1 1409-1508
76 04.510 SEAL; OIL,TRANSFER CASE
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK 		8-97238-999-0 01 1 1509-
79 04.510 BOLT; TRANSFER CASE
4X4(TFS***) 00.685 M10X45 FLANGE 		0-28051-045-0 07 1 1409-
86 04.317 BOLT; RR COVER
4X4(TFS***) 09.173 (E) M8X45 FLANGE 		0-28050-845-0 16 1 1409-1508
86 04.317 BOLT; RR COVER
4X4(TFS***) 09.173 (E) M8X45 FLANGE 		0-28050-845-0 16 1 1509-
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK 		8-97046-705-3 01 1 1409-1508
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK 		8-97046-705-3 01 1 1509-
299 04.317 PLUG; SHIFTER ROD
4X4(TFS***) 00.034 (B) OD=15.6 		8-94173-641-0 02 1 1409-1508
299 04.317 PLUG; SHIFTER ROD
4X4(TFS***) 00.034 (B) OD=15.6 		8-94173-641-0 02 1 1509-
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) (A) 		8-97365-373-0 01 1 1409-1508
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) (A) 		8-97365-373-0 01 1 1509-
429 04.105 PIN; STRAIGHT
4X4(TFS***) 04.510 (C) OD=10 L=20 		8-97135-423-0 02 1 1409-1508
429 04.105 PIN; STRAIGHT
4X4(TFS***) 04.510 (C) OD=10 L=20 		8-97135-423-0 02 1 1509-
430 04.105 PLUG; OIL DRAIN
4X4(TFS***) (A) 		8-97365-374-0 01 1 1409-1508
430 04.105 PLUG; OIL DRAIN
4X4(TFS***) (A) 		8-97365-374-0 01 1 1509-
