◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06A - CLUTCH SLAVE CYLINDER ▶
2-06A — CLUTCH SLAVE CYLINDER (#151763) — 48 parça

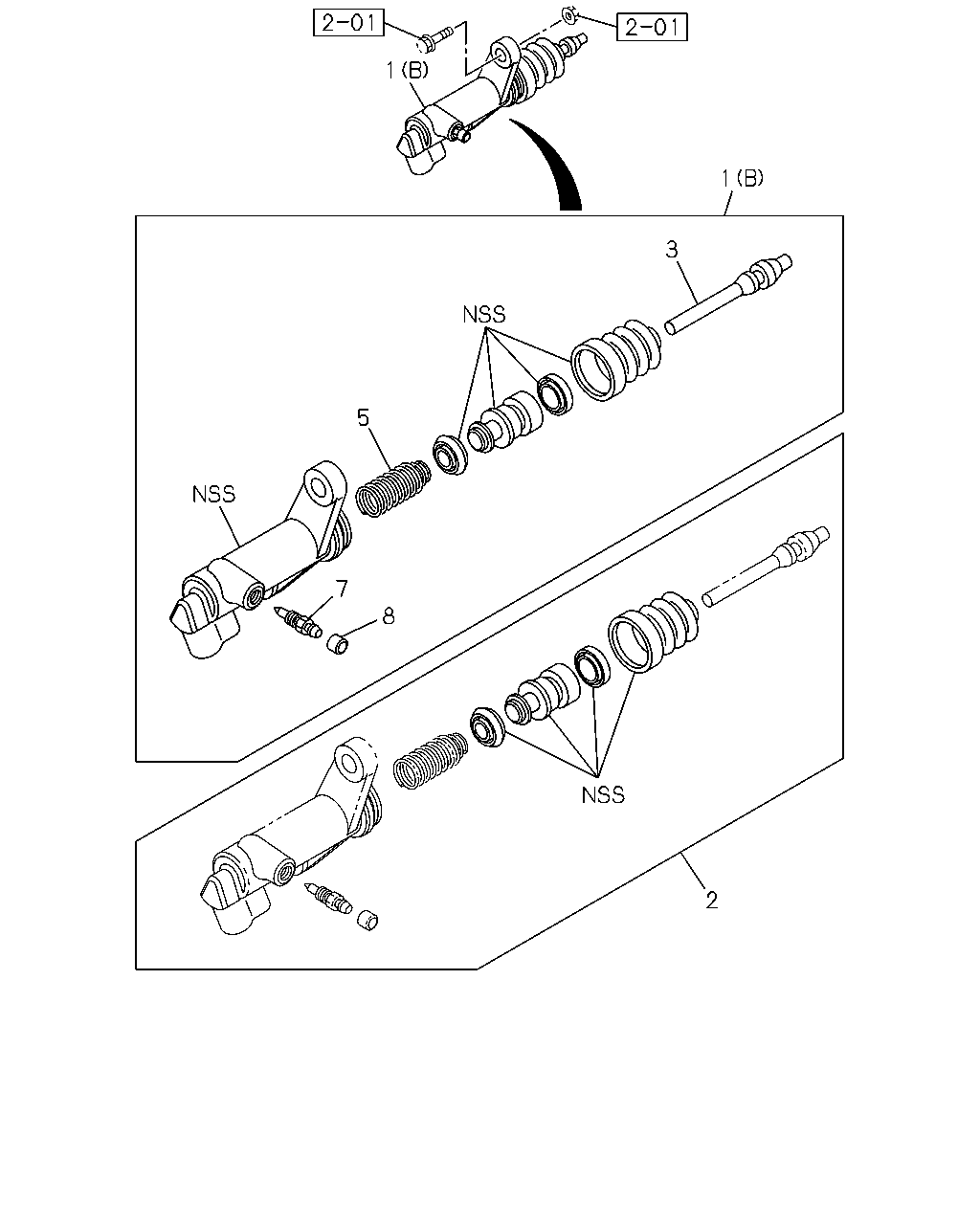

çizim 449564
1 3 1 2 7 8 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.780 CYLINDER; SLAVE,CLU
(A) 		8-97945-177-0 01 1 1409- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4X2(TFB***) (A) 		8-97945-177-0 01 1 1409- ●
1 00.780 CYLINDER; SLAVE,CLU
(C) 		8-97946-624-2 01 1 1409-1508 ●
1 00.780 CYLINDER; SLAVE,CLU
(C) 		8-97946-624-2 01 1 1509- ● ●
1 00.780 CYLINDER; SLAVE,CLU
4X4(TFS***) (B) 		8-97946-625-1 01 1 1409- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1409-1508 ● ● ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1509- ● ● ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-722-0 01 1 1409- ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-98187-063-0 01 1 1409-1508 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-98187-063-0 01 1 1509- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1409-1508 ● ● ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1509- ● ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1409-1508 ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1509- ● ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1409-1508 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1509- ● ● ● ● ● ●

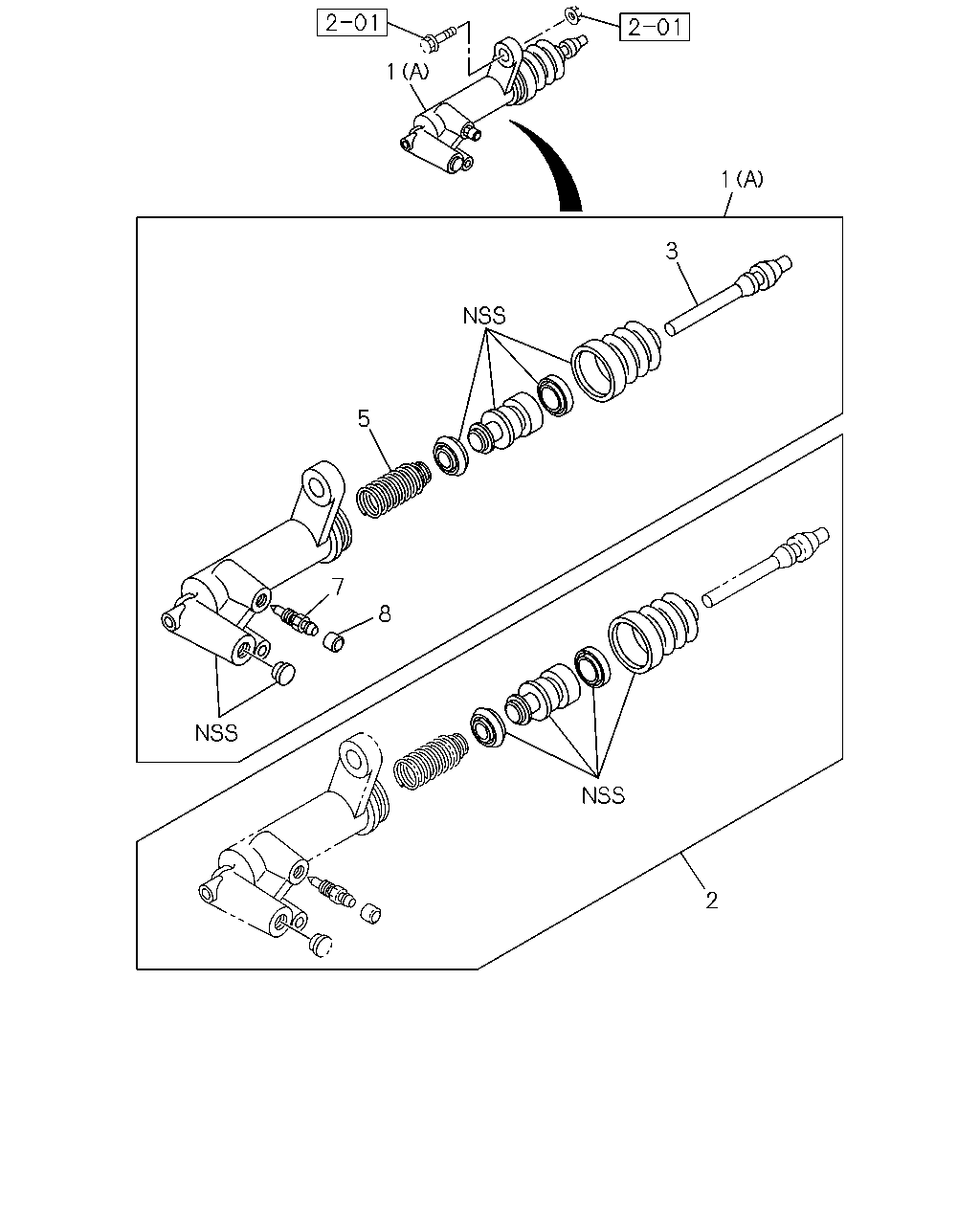

çizim 449959
1 1 3 5 8 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.780 CYLINDER; SLAVE,CLU
(A) 		8-97945-177-0 01 1 1409- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4X2(TFB***) (A) 		8-97945-177-0 01 1 1409- ●
1 00.780 CYLINDER; SLAVE,CLU
(C) 		8-97946-624-2 01 1 1409-1508 ●
1 00.780 CYLINDER; SLAVE,CLU
(C) 		8-97946-624-2 01 1 1509- ● ●
1 00.780 CYLINDER; SLAVE,CLU
4X4(TFS***) (B) 		8-97946-625-1 01 1 1409- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1409-1508 ● ● ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1509- ● ● ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-722-0 01 1 1409- ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-98187-063-0 01 1 1409-1508 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-98187-063-0 01 1 1509- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1409-1508 ● ● ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1509- ● ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1409-1508 ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1509- ● ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1409-1508 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1509- ● ● ● ● ● ●

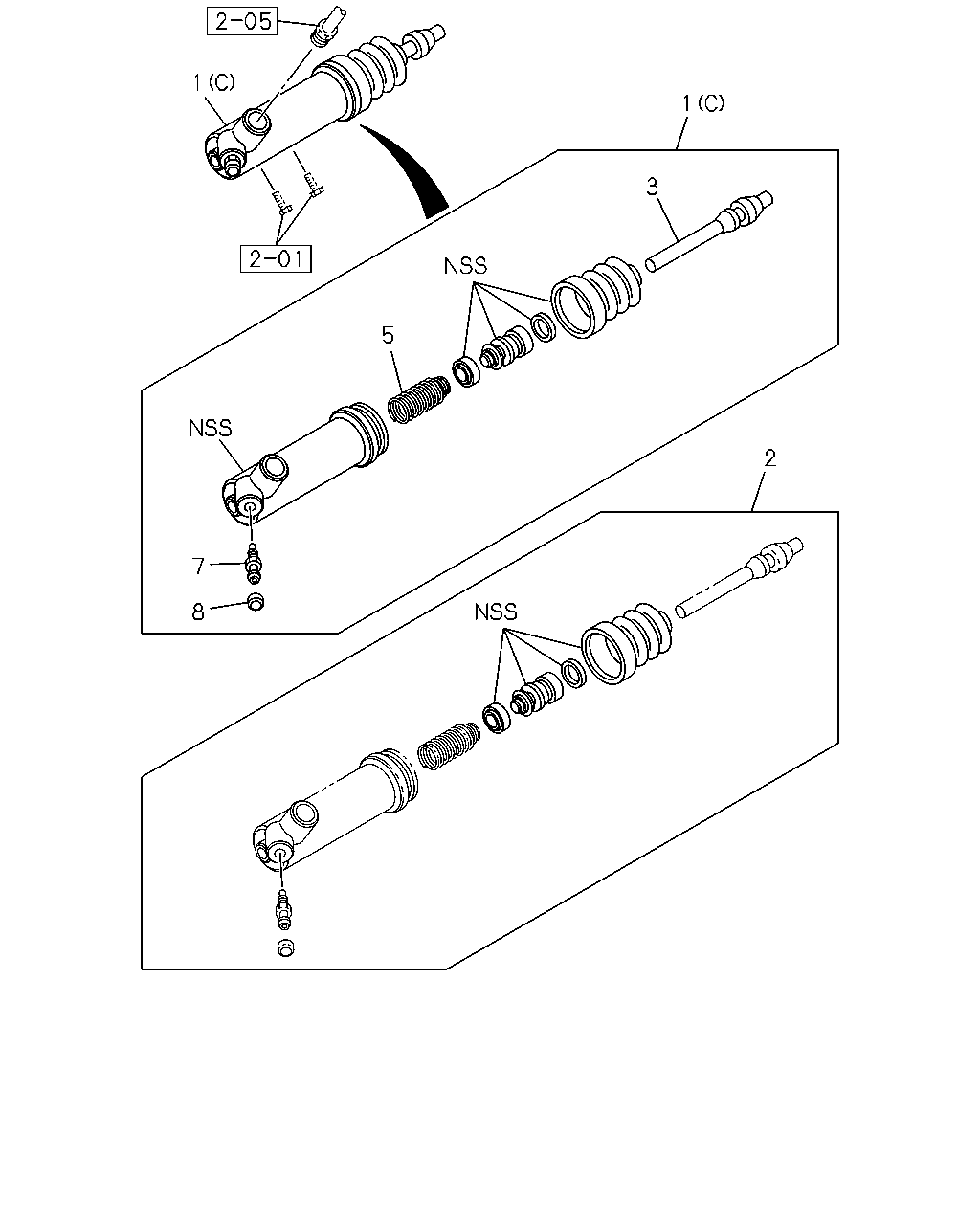

çizim 449960
1 5 3 1 2 7 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.780 CYLINDER; SLAVE,CLU
(A) 		8-97945-177-0 01 1 1409- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4X2(TFB***) (A) 		8-97945-177-0 01 1 1409- ●
1 00.780 CYLINDER; SLAVE,CLU
(C) 		8-97946-624-2 01 1 1409-1508 ●
1 00.780 CYLINDER; SLAVE,CLU
(C) 		8-97946-624-2 01 1 1509- ● ●
1 00.780 CYLINDER; SLAVE,CLU
4X4(TFS***) (B) 		8-97946-625-1 01 1 1409- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1409-1508 ● ● ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1509- ● ● ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-722-0 01 1 1409- ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-98187-063-0 01 1 1409-1508 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-98187-063-0 01 1 1509- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1409-1508 ● ● ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1509- ● ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1409-1508 ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1509- ● ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1409-1508 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1509- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
