2-01A — CLUTCH (#151760) — 80 parça

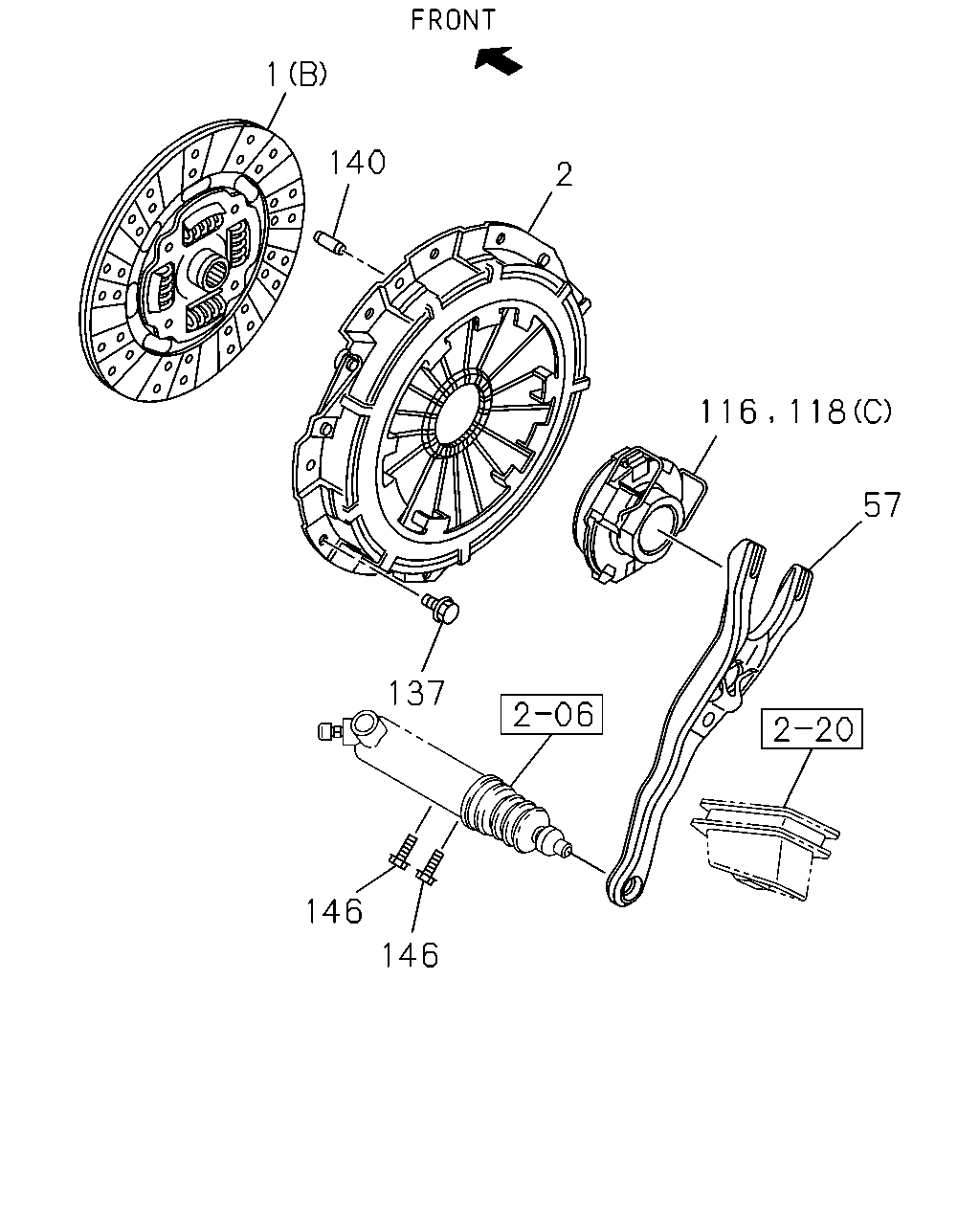

çizim 449838
118 116 57 146 146 137 2 140 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.886 DISC; CLUTCH
(B) 		8-98156-299-2 01 1 1509- ●
1 00.886 DISC; CLUTCH
(A) 		8-97941-521-0 01 1 1409- ● ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB) (A) 		8-97945-679-0 01 1 1409-1411 ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (A) 		8-97945-679-0 01 1 1412- ●
1 00.886 DISC; CLUTCH
4JK1-TCX ENG(LR0) (A) 		8-97500-685-0 01 1 1409- ●
1 00.886 DISC; CLUTCH
(B) 		8-98212-069-0 01 1 1409- ●
2 00.859 PLATE ASM; PRESSURE,CLU
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98283-194-0 01 1 1409-1501 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-98283-194-0 01 1 1502-1508 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-98283-194-0 01 1 1509- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97943-331-0 01 1 1409- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97947-516-0 01 1 1409- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97946-586-2 01 1 1409-1409 ●
2 00.859 PLATE ASM; PRESSURE,CLU
IDENTIFICATION LABEL FOR KD<6UT> 		8-97946-586-2 01 1 1409-1501 ●
57 00.795 FORK; SHIFT,CLU 8-94167-751-0 01 1 1409- ●
57 00.795 FORK; SHIFT,CLU 8-98019-105-0 01 1 1409-1411 ●
57 00.795 FORK; SHIFT,CLU 8-98019-105-0 01 1 1412- ●
57 00.795 FORK; SHIFT,CLU
CONGO EQUIPMENT(CDF) 		8-98019-105-0 01 1 1412- ●
57 00.795 FORK; SHIFT,CLU 8-97946-622-1 01 1 1409-1508 ●
57 00.795 FORK; SHIFT,CLU 8-97946-622-1 01 1 1509- ● ●
57 00.795 FORK; SHIFT,CLU 8-97365-654-0 01 1 1409-1411 ● ●
57 00.795 FORK; SHIFT,CLU 8-97365-654-0 01 1 1412- ●
57 00.795 FORK; SHIFT,CLU
EXC. CONGO EQUIPMENT(CDF) 		8-97365-654-0 01 1 1412- ●
116 00.799 BLOCK; SHIFT,CLU
NSK ID=44.1 OD=78 		8-98169-826-1 01 1 1409- ●
118 00.799 BEARING; CLU RELEASE
(C) NSK ID=44.1 OD=78 		8-98169-826-1 01 1 1509- ●
118 00.799 BEARING; CLU RELEASE
(A) NSK ID=56 OD=71.7 		8-97209-197-0 01 1 1409- ●
118 00.799 BEARING; CLU RELEASE
IDENTIFICATION LABEL FOR KD<6UT> (A) NSK ID=56 OD=71.7 		8-97333-487-0 01 1 1409- ●
118 00.799 BEARING; CLU RELEASE
(A) NSK ID=56 OD=71.7 		8-97333-487-0 01 1 1409- ●
118 00.799 BEARING; CLU RELEASE
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) NSK ID=44.1 OD=78 		8-98096-168-0 01 1 1409- ●
118 00.799 BEARING; CLU RELEASE
(B) NSK ID=44.1 OD=78 		8-98096-168-0 01 1 1409- ●
137 00.862 BOLT; CLU COVER
02.343 M8X16 FLANGE 		0-28050-816-0 06 1 1409- ● ● ● ●
137 00.862 BOLT; CLU COVER
02.343 M8X16 FLANGE 		0-28050-816-0 08 1 1409-1508 ●
137 00.862 BOLT; CLU COVER
02.343 M8X16 FLANGE 		0-28050-816-0 08 1 1509- ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=27 		8-97945-592-0 02 1 1410- ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 03 1 1409- ● ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=27 		8-97945-592-0 02 1 1409-1409 ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=27 		8-97945-592-0 04 1 1410-1508 ●
140 00.862 PIN; STRAIGHT
OD=6 L=27 		8-97945-592-0 04 1 1509- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M12X90 FLANGE 		0-28051-290-0 02 1 1409- ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1409-1508 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1509- ● ●

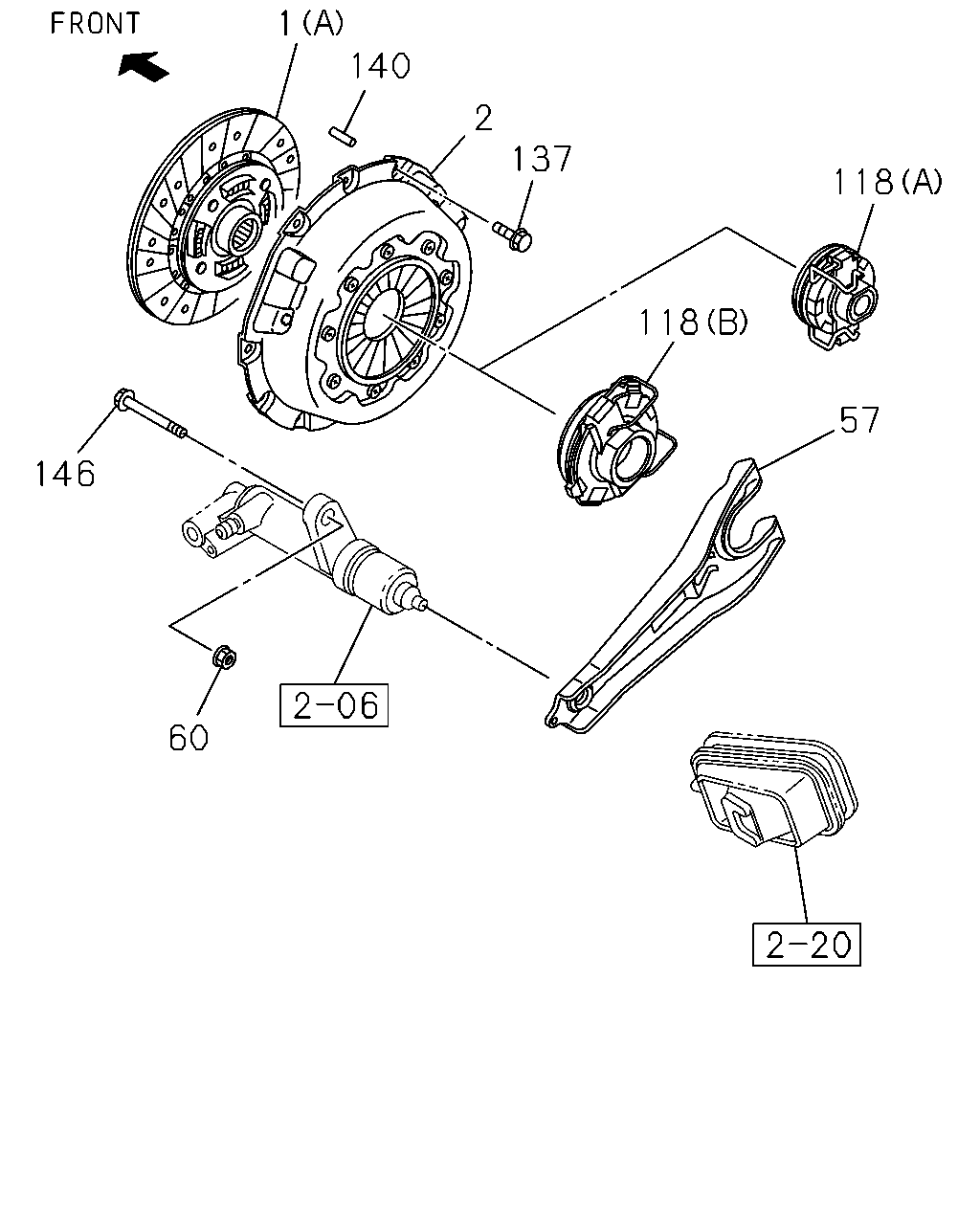

çizim 450252
57 118 118 137 2 140 1 146 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.886 DISC; CLUTCH
(B) 		8-98156-299-2 01 1 1509- ●
1 00.886 DISC; CLUTCH
(A) 		8-97941-521-0 01 1 1409- ● ● ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB) (A) 		8-97945-679-0 01 1 1409-1411 ●
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (A) 		8-97945-679-0 01 1 1412- ●
1 00.886 DISC; CLUTCH
4JK1-TCX ENG(LR0) (A) 		8-97500-685-0 01 1 1409- ●
1 00.886 DISC; CLUTCH
(B) 		8-98212-069-0 01 1 1409- ●
2 00.859 PLATE ASM; PRESSURE,CLU
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98283-194-0 01 1 1409-1501 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-98283-194-0 01 1 1502-1508 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-98283-194-0 01 1 1509- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97943-331-0 01 1 1409- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97947-516-0 01 1 1409- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97946-586-2 01 1 1409-1409 ●
2 00.859 PLATE ASM; PRESSURE,CLU
IDENTIFICATION LABEL FOR KD<6UT> 		8-97946-586-2 01 1 1409-1501 ●
57 00.795 FORK; SHIFT,CLU 8-94167-751-0 01 1 1409- ●
57 00.795 FORK; SHIFT,CLU 8-98019-105-0 01 1 1409-1411 ●
57 00.795 FORK; SHIFT,CLU 8-98019-105-0 01 1 1412- ●
57 00.795 FORK; SHIFT,CLU
CONGO EQUIPMENT(CDF) 		8-98019-105-0 01 1 1412- ●
57 00.795 FORK; SHIFT,CLU 8-97946-622-1 01 1 1409-1508 ●
57 00.795 FORK; SHIFT,CLU 8-97946-622-1 01 1 1509- ● ●
57 00.795 FORK; SHIFT,CLU 8-97365-654-0 01 1 1409-1411 ● ●
57 00.795 FORK; SHIFT,CLU 8-97365-654-0 01 1 1412- ●
57 00.795 FORK; SHIFT,CLU
EXC. CONGO EQUIPMENT(CDF) 		8-97365-654-0 01 1 1412- ●
60 00.780 NUT; SLAVE CYL
02.042 M12 FLANGE 		0-91180-112-0 01 1 1409- ● ● ● ●
118 00.799 BEARING; CLU RELEASE
(C) NSK ID=44.1 OD=78 		8-98169-826-1 01 1 1509- ●
118 00.799 BEARING; CLU RELEASE
(A) NSK ID=56 OD=71.7 		8-97209-197-0 01 1 1409- ●
118 00.799 BEARING; CLU RELEASE
IDENTIFICATION LABEL FOR KD<6UT> (A) NSK ID=56 OD=71.7 		8-97333-487-0 01 1 1409- ●
118 00.799 BEARING; CLU RELEASE
(A) NSK ID=56 OD=71.7 		8-97333-487-0 01 1 1409- ●
118 00.799 BEARING; CLU RELEASE
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) NSK ID=44.1 OD=78 		8-98096-168-0 01 1 1409- ●
118 00.799 BEARING; CLU RELEASE
(B) NSK ID=44.1 OD=78 		8-98096-168-0 01 1 1409- ●
137 00.862 BOLT; CLU COVER
02.343 M8X16 FLANGE 		0-28050-816-0 06 1 1409- ● ● ● ●
137 00.862 BOLT; CLU COVER
02.343 M8X16 FLANGE 		0-28050-816-0 08 1 1409-1508 ●
137 00.862 BOLT; CLU COVER
02.343 M8X16 FLANGE 		0-28050-816-0 08 1 1509- ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=27 		8-97945-592-0 02 1 1410- ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 03 1 1409- ● ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=27 		8-97945-592-0 02 1 1409-1409 ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=27 		8-97945-592-0 04 1 1410-1508 ●
140 00.862 PIN; STRAIGHT
OD=6 L=27 		8-97945-592-0 04 1 1509- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M12X90 FLANGE 		0-28051-290-0 02 1 1409- ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1409-1508 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1509- ● ●
