1-50 — EXHAUST PIPE AND SILENCER (#151758) — 148 parça

115 337 428 12 84 115 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	03.701 SILENCER ASM; EXH	8-98302-091-0	01	1	1509-	●
12	03.701 SILENCER ASM; EXH	8-98065-538-3	01	1	1409-		●
12	03.701 SILENCER ASM; EXH	8-98125-376-3	01	1	1409-1411			●
12	03.701 SILENCER ASM; EXH EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98125-376-3	01	1	1409-1411				●
12	03.701 SILENCER ASM; EXH	8-98125-376-3	01	1	1412-			●		●
12	03.701 SILENCER ASM; EXH EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98125-376-3	01	1	1412-				●
12	03.701 SILENCER ASM; EXH EURO4 SPECIFICATION<NT4>	8-98140-589-2	01	1	1409-				●
12	03.701 SILENCER ASM; EXH	8-98140-590-2	01	1	1409-						●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	1409-1411		●	●	●		●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	1412-1508		●	●	●	●	●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	1509-	●	●	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	1409-1411		●	●	●		●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	1412-1508		●	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	1509-	●	●	●	●	●	●
115	03.704 RUBBER; MTG,SILENCER 03.706 (A)	8-97289-169-0	01	1	1409-1411		●	●	●		●
115	03.704 RUBBER; MTG,SILENCER 03.706 (A)	8-97289-169-0	01	1	1412-1508		●	●	●	●	●
115	03.704 RUBBER; MTG,SILENCER 03.706 (A)	8-97289-169-0	01	1	1509-	●	●	●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-98124-470-0	02	1	1409-1411		●	●	●		●
115	03.704 RUBBER; MTG,SILENCER (B)	8-98124-470-0	02	1	1412-1508		●	●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-98124-470-0	02	1	1509-	●	●	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1409-1411		●	●	●		●
337	03.706 BOLT; RUBBER,SUPPORT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1412-1508		●	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1509-	●	●	●	●	●	●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE	8-98124-470-0	01	1	1409-1411		●	●	●		●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE	8-98124-470-0	01	1	1412-1508		●	●	●	●	●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE	8-98124-470-0	01	1	1509-	●	●	●	●	●	●

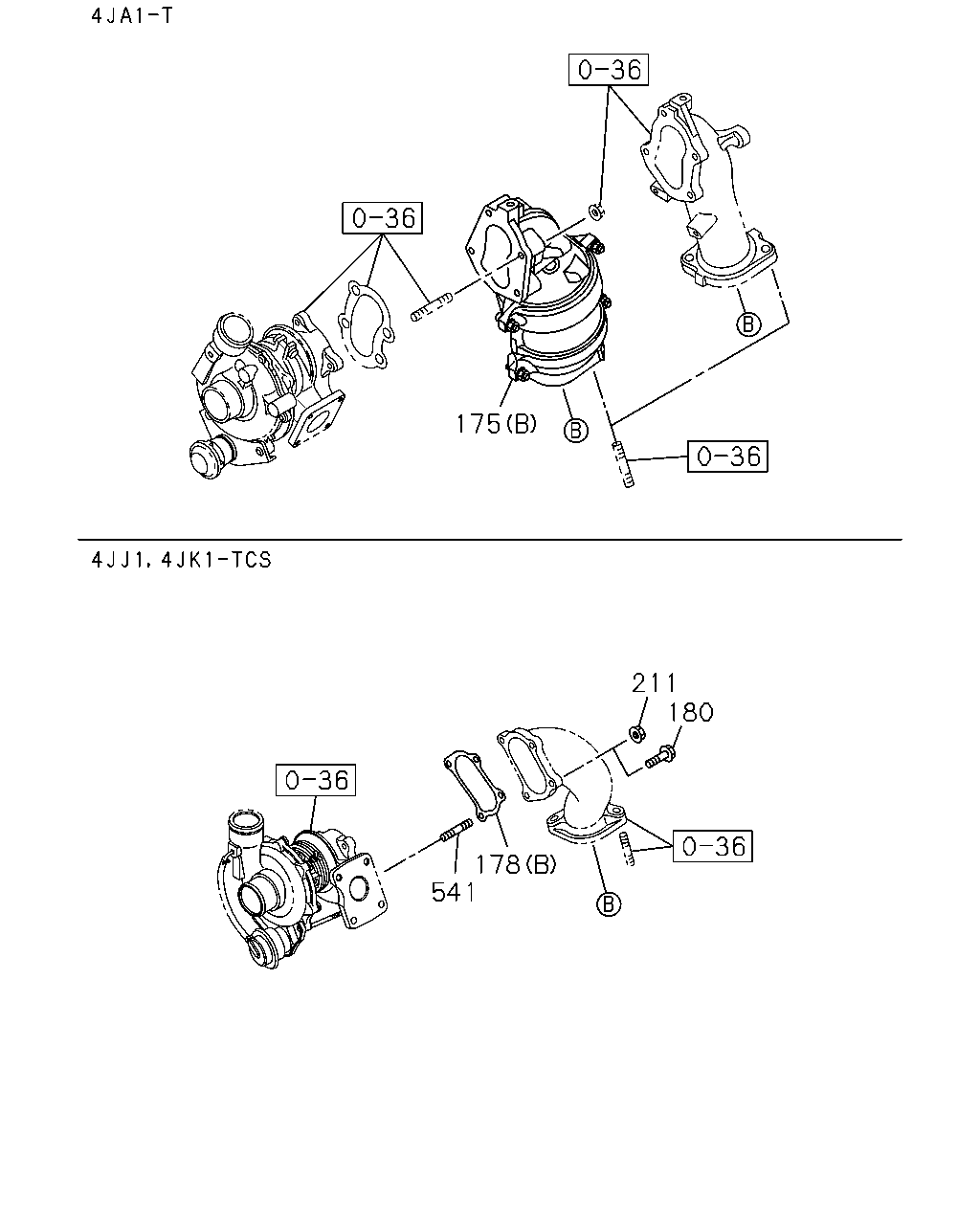

175 178 541 211 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
175	03.685 CONVERTER; CATALYST EURO2 SPECIFICATION<NT2> (B)	8-98195-457-1	01	1	1409-		●
175	03.685 CONVERTER; CATALYST EURO4 SPECIFICATION<NT4> (A)	8-98132-074-2	01	1	1409-				●
175	03.685 CONVERTER; CATALYST (C)	8-98177-633-4	01	1	1409-						●
178	03.611 GASKET; CONV TO MANIF (B)	8-97312-284-1	01	1	1409-1411			●
178	03.611 GASKET; CONV TO MANIF (B)	8-97312-284-1	01	1	1412-			●		●
178	03.611 GASKET; CONV TO MANIF (A)	8-98132-538-0	01	1	1409-1508				●
178	03.611 GASKET; CONV TO MANIF (A)	8-98132-538-0	01	1	1509-	●			●
178	03.611 GASKET; CONV TO MANIF (C)	8-98151-218-0	01	1	1409-						●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1409-1411			●	●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1412-1508			●	●	●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1509-	●		●	●	●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	03	1	1409-						●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1409-1411			●	●		●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1412-1508			●	●	●	●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1509-	●		●	●	●	●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1409-1411			●	●		●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1412-1508			●	●	●	●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1509-	●		●	●	●	●

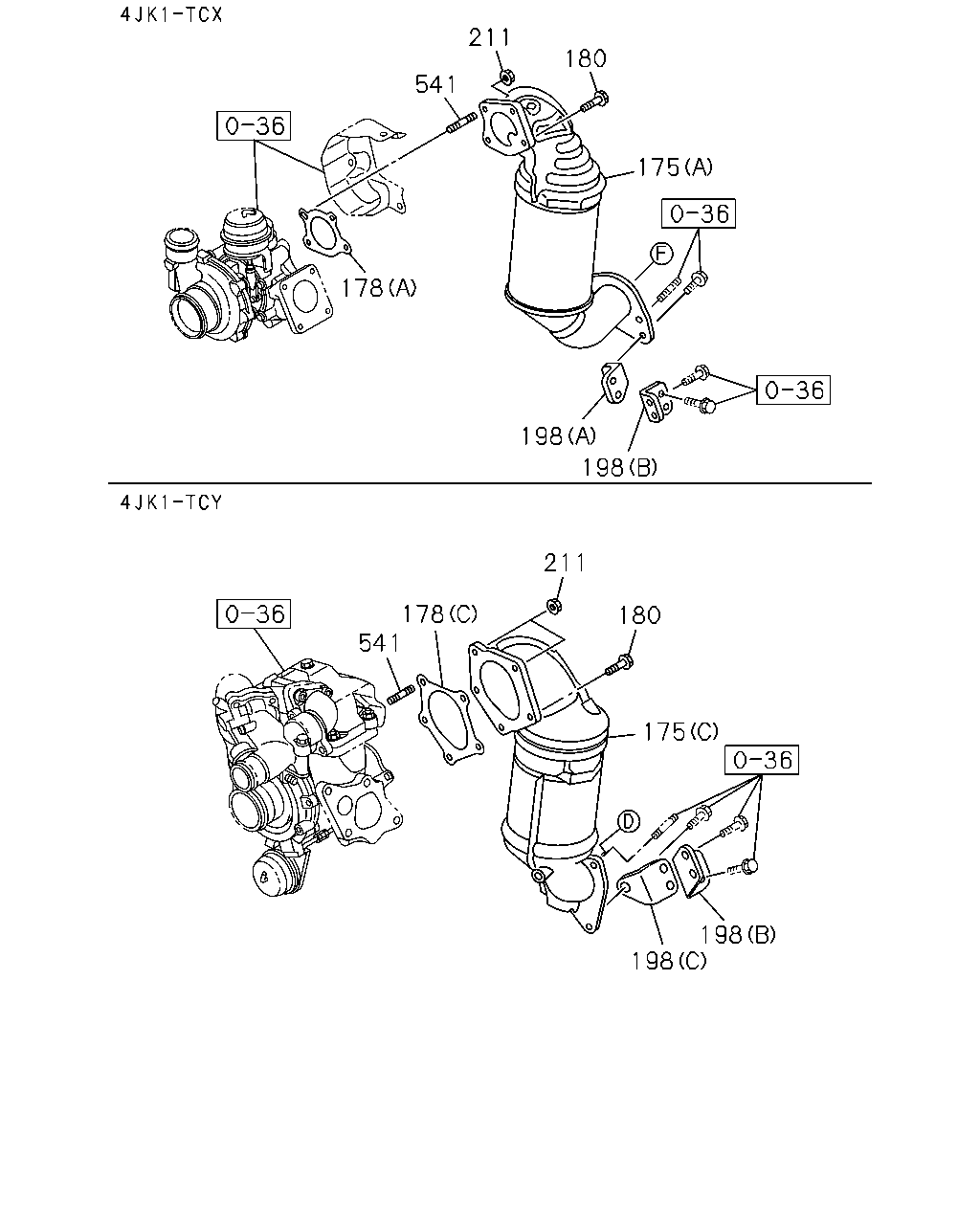

211 180 175 198 178 541 211 180 175 198 198 541 178 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
175	03.685 CONVERTER; CATALYST EURO2 SPECIFICATION<NT2> (B)	8-98195-457-1	01	1	1409-		●
175	03.685 CONVERTER; CATALYST EURO4 SPECIFICATION<NT4> (A)	8-98132-074-2	01	1	1409-				●
175	03.685 CONVERTER; CATALYST (C)	8-98177-633-4	01	1	1409-						●
178	03.611 GASKET; CONV TO MANIF (B)	8-97312-284-1	01	1	1409-1411			●
178	03.611 GASKET; CONV TO MANIF (B)	8-97312-284-1	01	1	1412-			●		●
178	03.611 GASKET; CONV TO MANIF (A)	8-98132-538-0	01	1	1409-1508				●
178	03.611 GASKET; CONV TO MANIF (A)	8-98132-538-0	01	1	1509-	●			●
178	03.611 GASKET; CONV TO MANIF (C)	8-98151-218-0	01	1	1409-						●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1409-1411			●	●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1412-1508			●	●	●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1509-	●		●	●	●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	03	1	1409-						●
198	03.685 BRACKET; CONV MTG EURO4 SPECIFICATION<NT4> (A)	8-98203-739-0	01	1	1409-				●
198	03.685 BRACKET; CONV MTG (C)	8-98196-697-1	01	1	1409-						●
198	03.685 BRACKET; CONV MTG EURO4 SPECIFICATION<NT4> (B)	8-98196-696-1	01	1	1409-				●
198	03.685 BRACKET; CONV MTG (B)	8-98196-696-1	01	1	1409-						●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1409-1411			●	●		●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1412-1508			●	●	●	●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1509-	●		●	●	●	●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1409-1411			●	●		●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1412-1508			●	●	●	●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1509-	●		●	●	●	●

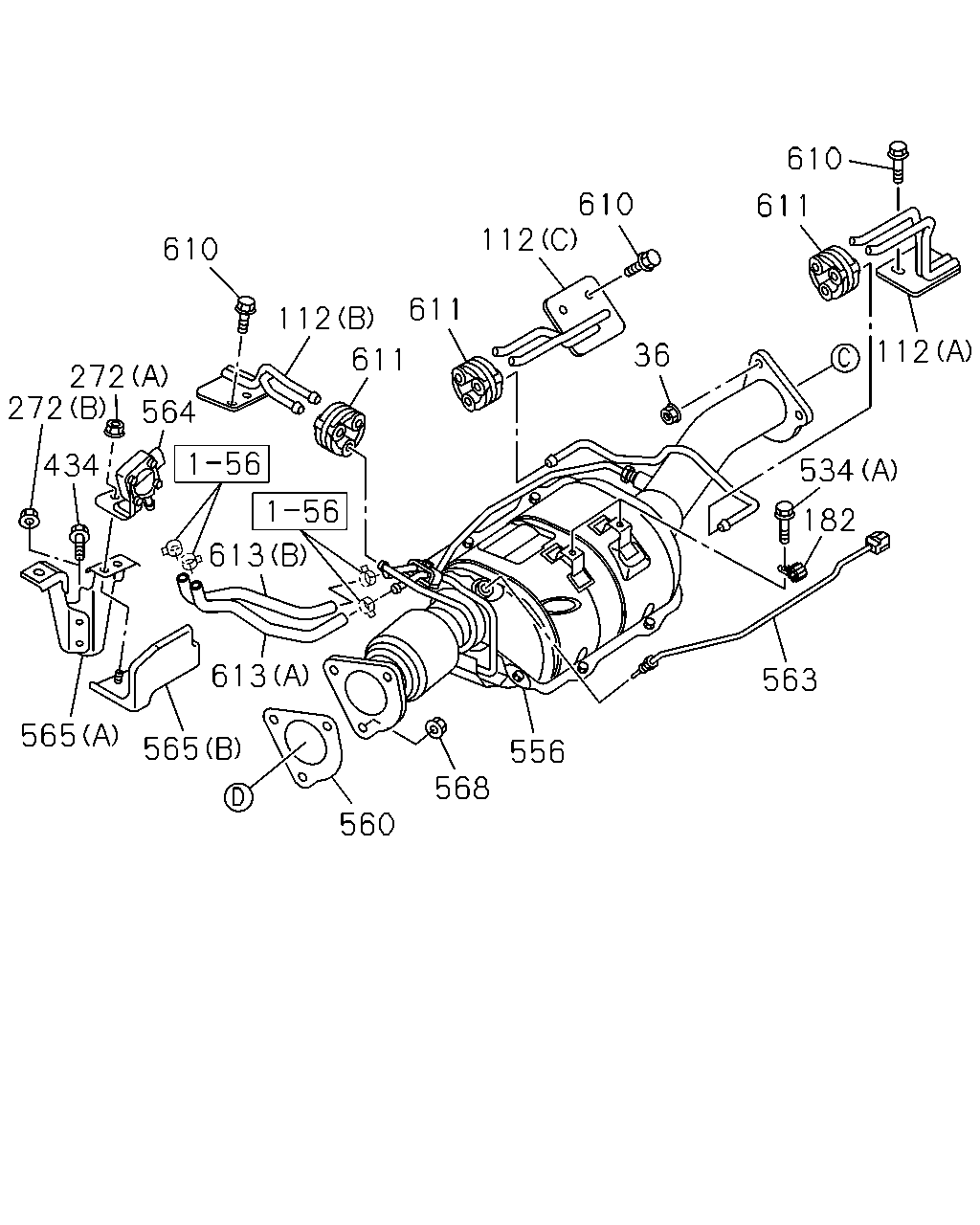

610 611 112 534 182 563 36 610 112 611 611 112 610 272 272 564 434 613 613 565 565 560 568 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1409-1411		●	●	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1412-1508		●	●	●	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1509-		●	●	●	●
36	03.613 NUT; EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> M10 FLANGE	8-97096-192-1	02	1	1509-	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	1409-						●
112	03.706 BRACKET; HANGER 4X2(TFB***) (A)	8-98196-457-1	01	1	1409-						●
112	03.706 BRACKET; HANGER (B)	8-98196-455-1	01	1	1409-						●
112	03.706 BRACKET; HANGER (C)	8-98196-456-2	01	1	1409-						●
112	03.706 BRACKET; HANGER 4X4(TFS***) (A)	8-98196-458-1	01	1	1409-						●
182	03.682 CLIP; HARNESS ID=7	8-98002-767-0	02	1	1409-						●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1409-						●
272	03.685 NUT; FLANGE 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1409-						●
434	03.613 BOLT; BRKT 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1409-						●
434	03.613 BOLT; BRKT 4X4(TFS***) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1409-						●
534	03.704 BOLT; CLIP 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1409-						●
534	03.704 BOLT; CLIP (B)	8-98182-197-0	01	1	1409-						●
556	03.701 DPD ASM	8-98177-632-4	01	1	1409-						●
560	03.611 GASKET; DPD	8-98151-231-0	01	1	1409-						●
563	01.150 SENSOR; TEMPERATURE,DPD	8-98206-094-0	01	1	1409-						●
564	01.150 SENSOR; PRESSURE,DPD 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-98260-258-0	01	1	1409-						●
564	01.150 SENSOR; PRESSURE,DPD 4X4(TFS***)	8-98260-258-0	01	1	1409-						●
564	01.150 SENSOR; PRESSURE,DPD 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC)	8-98260-259-0	01	1	1409-						●
565	03.706 BRACKET; SENSOR,PRESSURE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (A)	8-98175-943-0	01	1	1409-						●
565	03.706 BRACKET; SENSOR,PRESSURE 4X4(TFS***) (A)	8-98175-943-0	01	1	1409-						●
565	03.706 BRACKET; SENSOR,PRESSURE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B)	8-98178-091-0	01	1	1409-						●
565	03.706 BRACKET; SENSOR,PRESSURE 4X4(TFS***) (B)	8-98178-091-0	01	1	1409-						●
565	03.706 BRACKET; SENSOR,PRESSURE 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98178-092-0	01	1	1409-						●
565	03.706 BRACKET; SENSOR,PRESSURE 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98178-094-0	01	1	1409-						●
568	03.704 NUT; DPD 03.342 M10 FLANGE	8-97309-942-0	03	1	1409-						●
610	03.704 BOLT; HANGER	8-98196-310-0	06	1	1409-						●
611	03.706 INSULATOR; HANGER	8-97289-169-0	03	1	1409-						●
613	03.603 HOSE; RUBBER (A)	8-98178-495-2	01	1	1409-						●
613	03.603 HOSE; RUBBER (B)	8-98178-496-2	01	1	1409-						●

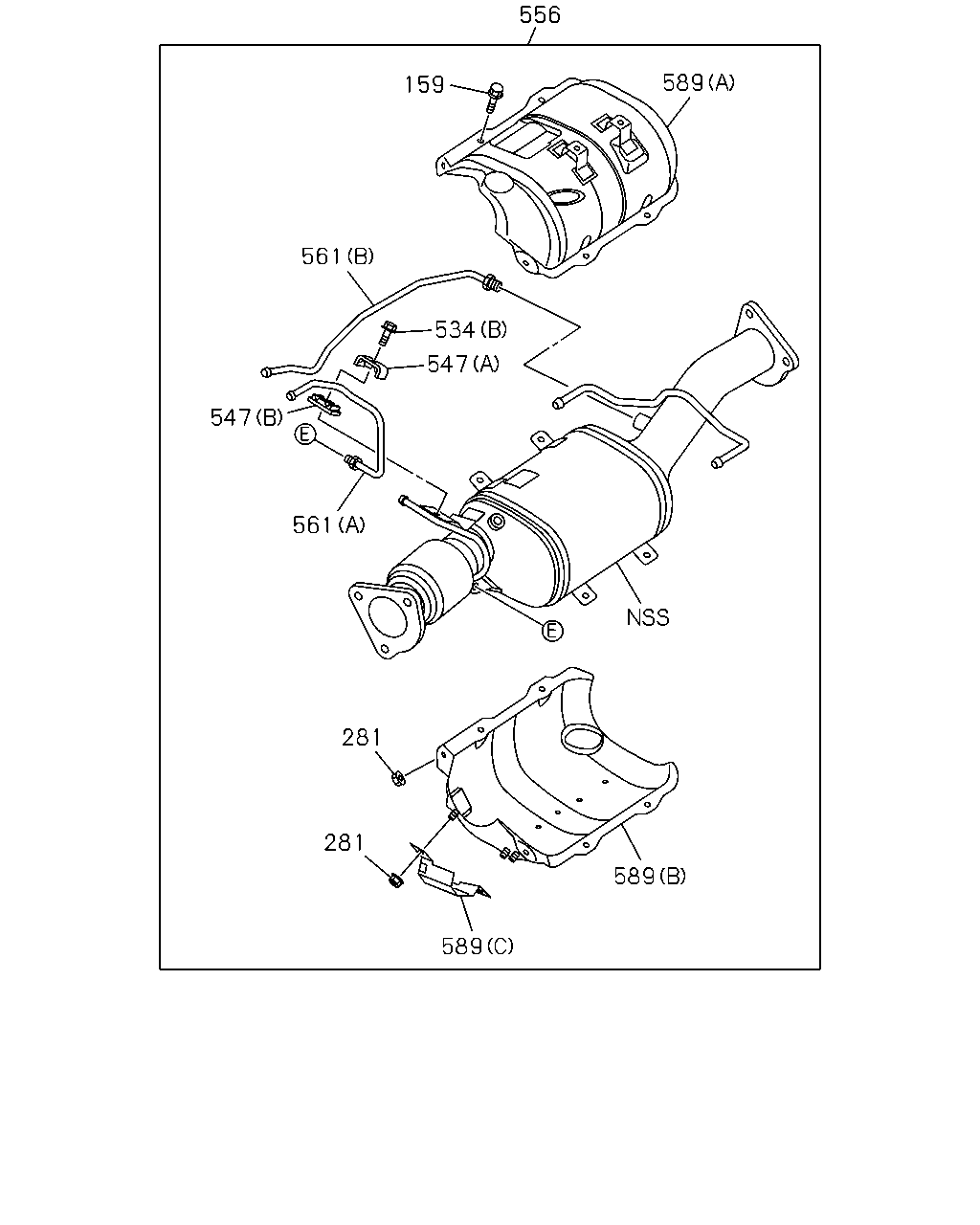

556 589 159 561 534 547 547 561 281 589 589 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	F
159	03.690 BOLT; HEAT PROTECTOR	8-98182-198-0	06	1	1409-	●
281	03.685 NUT; HEAT PROTECTOR M6 FLANGE	8-98194-567-0	09	1	1409-	●
534	03.704 BOLT; CLIP 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1409-	●
534	03.704 BOLT; CLIP (B)	8-98182-197-0	01	1	1409-	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	01	1	1409-	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	01	1	1409-	●
556	03.701 DPD ASM	8-98177-632-4	01	1	1409-	●
561	03.609 PIPE; DPD (A)	8-98181-832-0	01	1	1409-	●
561	03.609 PIPE; DPD (B)	8-98181-833-0	01	1	1409-	●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-98181-835-0	01	1	1409-	●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-98181-836-0	01	1	1409-	●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-98194-566-0	01	1	1409-	●

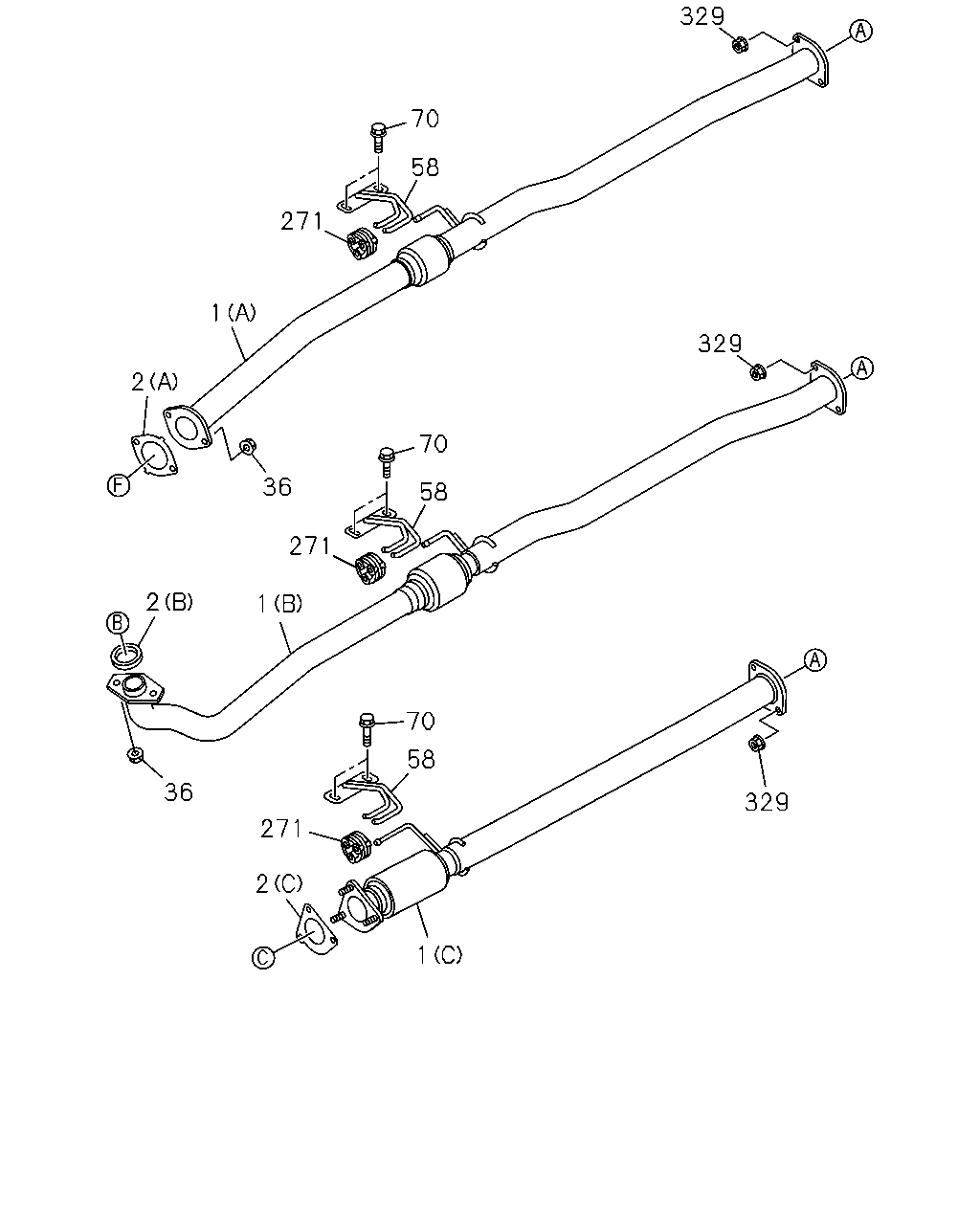

70 58 329 329 329 70 58 271 2 1 36 2 1 271 58 70 36 2 2 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.609 PIPE; EXH EURO4 SPECIFICATION<NT4> (B)	8-98065-528-1	01	1	1412-					●
1	03.609 PIPE; EXH (B)	8-98205-429-2	01	1	1409-		●
1	03.609 PIPE; EXH EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98276-228-1	01	1	1409-1503				●
1	03.609 PIPE; EXH EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98288-052-0	01	1	1504-1508				●
1	03.609 PIPE; EXH EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98288-052-0	01	1	1509-				●
1	03.609 PIPE; EXH (B)	8-98288-052-0	01	1	1509-	●
1	03.609 PIPE; EXH EURO4 SPECIFICATION<NT4> (A)	8-98140-583-1	01	1	1409-				●
1	03.609 PIPE; EXH (C)	8-98211-401-1	01	1	1409-						●
1	03.609 PIPE; EXH (B)	8-98065-530-1	01	1	1409-1411			●
1	03.609 PIPE; EXH (B)	8-98065-530-1	01	1	1412-			●
1	03.609 PIPE; EXH EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98065-530-1	01	1	1412-					●
2	03.611 GASKET; PIPE TO MANIF (B)	8-98017-270-0	01	1	1409-1411		●	●
2	03.611 GASKET; PIPE TO MANIF EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98017-270-0	01	1	1409-1411				●
2	03.611 GASKET; PIPE TO MANIF (B)	8-98017-270-0	01	1	1412-1508		●	●
2	03.611 GASKET; PIPE TO MANIF EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98017-270-0	01	1	1412-1508				●	●
2	03.611 GASKET; PIPE TO MANIF (B)	8-98017-270-0	01	1	1509-	●	●	●
2	03.611 GASKET; PIPE TO MANIF EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98017-270-0	01	1	1509-				●	●
2	03.611 GASKET; PIPE TO MANIF EURO4 SPECIFICATION<NT4> (A) ID=65	8-97263-052-0	01	1	1409-1411				●
2	03.611 GASKET; PIPE TO MANIF EURO4 SPECIFICATION<NT4> (A) ID=65	8-97263-052-0	01	1	1412-				●	●
2	03.611 GASKET; PIPE TO MANIF (C)	8-98151-231-0	01	1	1409-						●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1409-1411		●	●	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1412-1508		●	●	●	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1509-		●	●	●	●
36	03.613 NUT; EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> M10 FLANGE	8-97096-192-1	02	1	1509-	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	1409-						●
58	03.613 BRACKET; EXH PIPE,RR	8-97368-450-0	01	1	1409-1411		●	●	●		●
58	03.613 BRACKET; EXH PIPE,RR	8-97368-450-0	01	1	1412-1508		●	●	●	●	●
58	03.613 BRACKET; EXH PIPE,RR	8-97368-450-0	01	1	1509-	●	●	●	●	●	●
70	03.706 BOLT; BRKT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1409-1411		●	●	●		●
70	03.706 BOLT; BRKT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1412-1508		●	●	●	●	●
70	03.706 BOLT; BRKT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1509-	●	●	●	●	●	●
271	03.704 RUBBER; HANGER,RR PIPE 03.706	8-97289-169-0	01	1	1409-1411		●	●	●		●
271	03.704 RUBBER; HANGER,RR PIPE 03.706	8-97289-169-0	01	1	1412-1508		●	●	●	●	●
271	03.704 RUBBER; HANGER,RR PIPE 03.706	8-97289-169-0	01	1	1509-	●	●	●	●	●	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-1411		●	●	●		●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1412-1508		●	●	●	●	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-	●	●	●	●	●	●
