◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#151753) — 258 parça

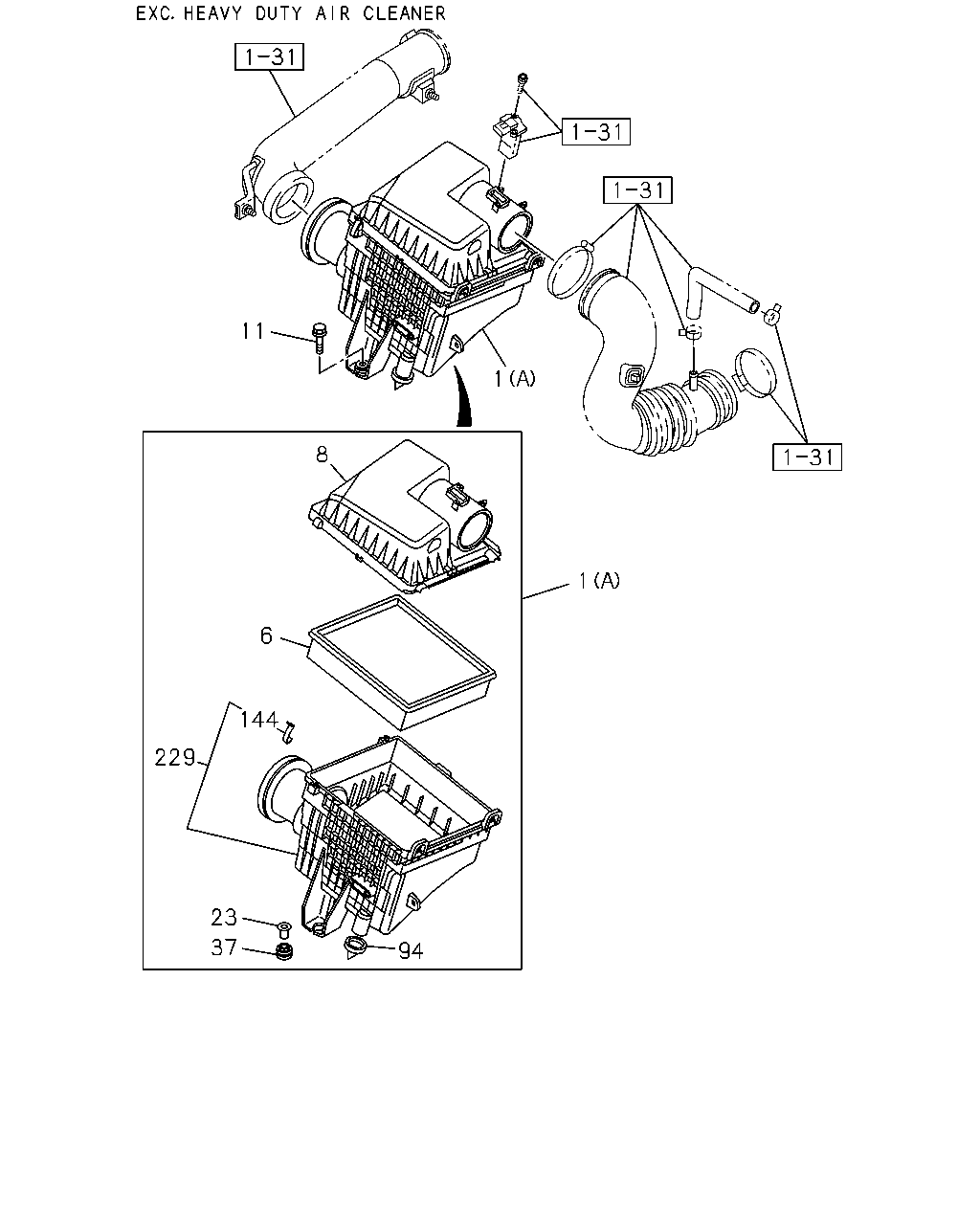

çizim 450087
11 1 1 8 6 144 229 23 37 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98104-506-4 01 1 1509- ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98104-505-5 01 1 1509- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (D) 		8-98272-514-0 01 1 1411- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98140-259-3 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98140-257-2 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
HIGH ALTITUDE COMPENSATOR<EE2> HEAVY DUTY AIR CLEANER<K46> (B) 		8-98114-220-4 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98114-220-4 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
HIGH ALTITUDE COMPENSATOR<EE2> EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98114-219-5 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98114-219-5 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
(C) 		8-98179-138-0 01 1 1409-1411 ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-98179-138-0 01 1 1412- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B) 		8-98103-917-4 01 1 1409-1411 ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B) 		8-98103-917-4 01 1 1412- ● ●
1 03.402 CLEANER ASM; AIR
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> (A) 		8-98103-916-5 01 1 1409-1411 ●
1 03.402 CLEANER ASM; AIR
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> (A) 		8-98103-916-5 01 1 1412- ● ●
6 03.410 FILTER; ACL 8-98140-266-0 01 1 1409-1411 ● ● ●
6 03.410 FILTER; ACL 8-98140-266-0 01 1 1412- ● ● ●
6 03.410 FILTER; ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98140-266-0 01 1 1412- ●
6 03.410 FILTER; ACL 8-98140-265-0 01 1 1409-1508 ●
6 03.410 FILTER; ACL 8-98140-265-0 01 1 1509- ● ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-387-0 01 1 1509- ●
8 03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-261-0 01 1 1509- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98281-551-0 01 1 1411- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-390-0 01 1 1409- ●
8 03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98141-386-0 01 1 1409- ●
8 03.410 COVER ASM; ACL
HIGH ALTITUDE COMPENSATOR<EE2> HEAVY DUTY AIR CLEANER<K46> 		8-98141-388-0 01 1 1409- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-388-0 01 1 1409- ●
8 03.410 COVER ASM; ACL
HIGH ALTITUDE COMPENSATOR<EE2> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98141-385-0 01 1 1409- ●
8 03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98141-385-0 01 1 1409- ●
8 03.410 COVER ASM; ACL 8-98189-413-0 01 1 1409-1411 ●
8 03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98189-413-0 01 1 1412- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98141-389-0 01 1 1409-1411 ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98141-389-0 01 1 1412- ● ●
8 03.410 COVER ASM; ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> 		8-98140-264-0 01 1 1409-1411 ●
8 03.410 COVER ASM; ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> 		8-98140-264-0 01 1 1412- ● ●
11 03.403 BOLT; ACL
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1409-1411 ● ● ● ●
11 03.403 BOLT; ACL
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1412-1508 ● ● ● ● ●
11 03.403 BOLT; ACL
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1509- ● ● ● ● ● ●
23 03.405 COLLAR; ACL STAY 8-98140-270-0 03 1 1409-1410 ● ● ●
23 03.405 COLLAR; ACL STAY
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-270-0 03 1 1409-1410 ●
23 03.405 COLLAR; ACL STAY 8-98140-270-0 03 1 1411-1411 ● ● ● ●
23 03.405 COLLAR; ACL STAY 8-98140-270-0 03 1 1412-1508 ● ● ● ●
23 03.405 COLLAR; ACL STAY
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98140-270-0 03 1 1412-1508 ●
23 03.405 COLLAR; ACL STAY 8-98140-270-0 03 1 1509- ● ● ● ● ●
23 03.405 COLLAR; ACL STAY
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98140-270-0 03 1 1509- ●
37 03.406 RUBBER; MTG,ACL 8-98140-269-0 03 1 1409-1410 ● ● ●
37 03.406 RUBBER; MTG,ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-269-0 03 1 1409-1410 ●
37 03.406 RUBBER; MTG,ACL 8-98140-269-0 03 1 1411-1411 ● ● ● ●
37 03.406 RUBBER; MTG,ACL 8-98140-269-0 03 1 1412-1508 ● ● ● ●
37 03.406 RUBBER; MTG,ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98140-269-0 03 1 1412-1508 ●
37 03.406 RUBBER; MTG,ACL 8-98140-269-0 03 1 1509- ● ● ● ● ●
37 03.406 RUBBER; MTG,ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98140-269-0 03 1 1509- ●
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 02 1 1409-1410 ● ● ●
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 02 1 1411-1508 ● ● ● ●
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-94447-157-0 02 1 1411-1508 ●
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 02 1 1509- ● ● ● ● ●
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-94447-157-0 02 1 1509- ●
94 03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1409-1411 ● ● ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 1409-1411 ●
94 03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1412-1412 ● ● ● ● ●
94 03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1501-1508 ● ● ● ●
94 03.415 VALVE; VACUATOR
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1501-1508 ●
94 03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1509- ● ● ● ● ●
94 03.415 VALVE; VACUATOR
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1509- ●
144 03.403 CLIP; ACL 8-97324-624-0 02 1 1409-1410 ● ● ●
144 03.403 CLIP; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97324-624-0 02 1 1409-1410 ●
144 03.403 CLIP; ACL 8-97324-624-0 02 1 1411-1411 ● ● ● ●
144 03.403 CLIP; ACL 8-97324-624-0 02 1 1412-1508 ● ● ● ●
144 03.403 CLIP; ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-97324-624-0 02 1 1412-1508 ●
144 03.403 CLIP; ACL 8-97324-624-0 02 1 1509- ● ● ● ● ●
144 03.403 CLIP; ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-97324-624-0 02 1 1509- ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-392-0 01 1 1509- ●
229 03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-268-0 01 1 1509- ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98277-106-0 01 1 1411- ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-391-0 01 1 1409-1411 ● ● ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-391-0 01 1 1412- ● ● ● ●
229 03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-267-0 01 1 1409-1411 ● ● ●
229 03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-267-0 01 1 1412- ● ● ● ●
229 03.406 BODY ASM; ACL 8-98189-414-0 01 1 1409-1411 ●
229 03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98189-414-0 01 1 1412- ●

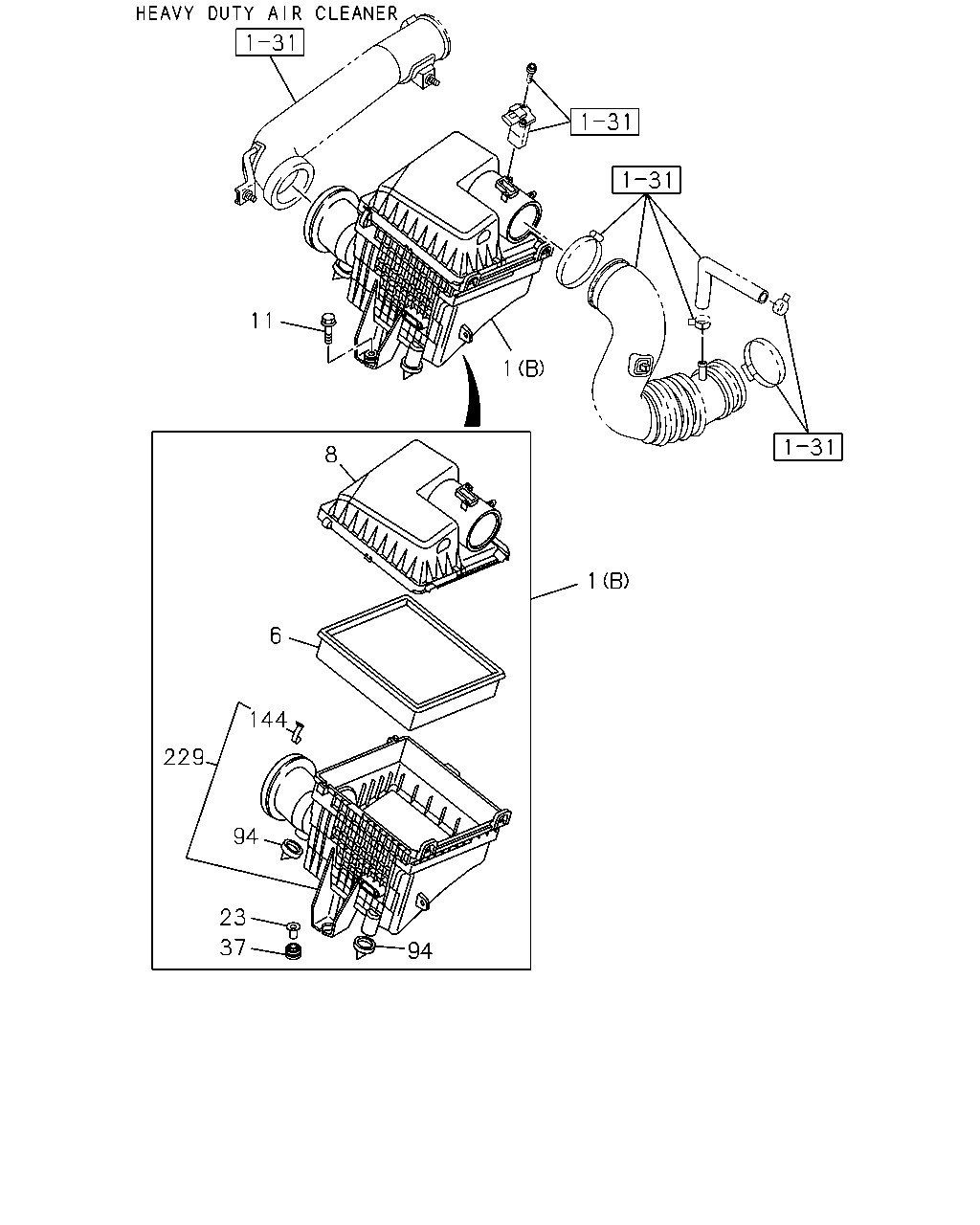

çizim 450121
11 1 8 1 6 144 229 94 23 37 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98104-506-4 01 1 1509- ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98104-505-5 01 1 1509- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (D) 		8-98272-514-0 01 1 1411- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98140-259-3 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98140-257-2 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
HIGH ALTITUDE COMPENSATOR<EE2> HEAVY DUTY AIR CLEANER<K46> (B) 		8-98114-220-4 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98114-220-4 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
HIGH ALTITUDE COMPENSATOR<EE2> EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98114-219-5 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98114-219-5 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
(C) 		8-98179-138-0 01 1 1409-1411 ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-98179-138-0 01 1 1412- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B) 		8-98103-917-4 01 1 1409-1411 ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B) 		8-98103-917-4 01 1 1412- ● ●
1 03.402 CLEANER ASM; AIR
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> (A) 		8-98103-916-5 01 1 1409-1411 ●
1 03.402 CLEANER ASM; AIR
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> (A) 		8-98103-916-5 01 1 1412- ● ●
6 03.410 FILTER; ACL 8-98140-266-0 01 1 1409-1411 ● ● ●
6 03.410 FILTER; ACL 8-98140-266-0 01 1 1412- ● ● ●
6 03.410 FILTER; ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98140-266-0 01 1 1412- ●
6 03.410 FILTER; ACL 8-98140-265-0 01 1 1409-1508 ●
6 03.410 FILTER; ACL 8-98140-265-0 01 1 1509- ● ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-387-0 01 1 1509- ●
8 03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-261-0 01 1 1509- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98281-551-0 01 1 1411- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-390-0 01 1 1409- ●
8 03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98141-386-0 01 1 1409- ●
8 03.410 COVER ASM; ACL
HIGH ALTITUDE COMPENSATOR<EE2> HEAVY DUTY AIR CLEANER<K46> 		8-98141-388-0 01 1 1409- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-388-0 01 1 1409- ●
8 03.410 COVER ASM; ACL
HIGH ALTITUDE COMPENSATOR<EE2> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98141-385-0 01 1 1409- ●
8 03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98141-385-0 01 1 1409- ●
8 03.410 COVER ASM; ACL 8-98189-413-0 01 1 1409-1411 ●
8 03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98189-413-0 01 1 1412- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98141-389-0 01 1 1409-1411 ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98141-389-0 01 1 1412- ● ●
8 03.410 COVER ASM; ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> 		8-98140-264-0 01 1 1409-1411 ●
8 03.410 COVER ASM; ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> 		8-98140-264-0 01 1 1412- ● ●
11 03.403 BOLT; ACL
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1409-1411 ● ● ● ●
11 03.403 BOLT; ACL
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1412-1508 ● ● ● ● ●
11 03.403 BOLT; ACL
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1509- ● ● ● ● ● ●
23 03.405 COLLAR; ACL STAY 8-98140-270-0 03 1 1409-1410 ● ● ●
23 03.405 COLLAR; ACL STAY
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-270-0 03 1 1409-1410 ●
23 03.405 COLLAR; ACL STAY 8-98140-270-0 03 1 1411-1411 ● ● ● ●
23 03.405 COLLAR; ACL STAY 8-98140-270-0 03 1 1412-1508 ● ● ● ●
23 03.405 COLLAR; ACL STAY
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98140-270-0 03 1 1412-1508 ●
23 03.405 COLLAR; ACL STAY 8-98140-270-0 03 1 1509- ● ● ● ● ●
23 03.405 COLLAR; ACL STAY
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98140-270-0 03 1 1509- ●
37 03.406 RUBBER; MTG,ACL 8-98140-269-0 03 1 1409-1410 ● ● ●
37 03.406 RUBBER; MTG,ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-269-0 03 1 1409-1410 ●
37 03.406 RUBBER; MTG,ACL 8-98140-269-0 03 1 1411-1411 ● ● ● ●
37 03.406 RUBBER; MTG,ACL 8-98140-269-0 03 1 1412-1508 ● ● ● ●
37 03.406 RUBBER; MTG,ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98140-269-0 03 1 1412-1508 ●
37 03.406 RUBBER; MTG,ACL 8-98140-269-0 03 1 1509- ● ● ● ● ●
37 03.406 RUBBER; MTG,ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98140-269-0 03 1 1509- ●
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 02 1 1409-1410 ● ● ●
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 02 1 1411-1508 ● ● ● ●
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-94447-157-0 02 1 1411-1508 ●
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 02 1 1509- ● ● ● ● ●
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-94447-157-0 02 1 1509- ●
94 03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1409-1411 ● ● ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 1409-1411 ●
94 03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1412-1412 ● ● ● ● ●
94 03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1501-1508 ● ● ● ●
94 03.415 VALVE; VACUATOR
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1501-1508 ●
94 03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1509- ● ● ● ● ●
94 03.415 VALVE; VACUATOR
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1509- ●
144 03.403 CLIP; ACL 8-97324-624-0 02 1 1409-1410 ● ● ●
144 03.403 CLIP; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97324-624-0 02 1 1409-1410 ●
144 03.403 CLIP; ACL 8-97324-624-0 02 1 1411-1411 ● ● ● ●
144 03.403 CLIP; ACL 8-97324-624-0 02 1 1412-1508 ● ● ● ●
144 03.403 CLIP; ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-97324-624-0 02 1 1412-1508 ●
144 03.403 CLIP; ACL 8-97324-624-0 02 1 1509- ● ● ● ● ●
144 03.403 CLIP; ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-97324-624-0 02 1 1509- ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-392-0 01 1 1509- ●
229 03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-268-0 01 1 1509- ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98277-106-0 01 1 1411- ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-391-0 01 1 1409-1411 ● ● ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-391-0 01 1 1412- ● ● ● ●
229 03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-267-0 01 1 1409-1411 ● ● ●
229 03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-267-0 01 1 1412- ● ● ● ●
229 03.406 BODY ASM; ACL 8-98189-414-0 01 1 1409-1411 ●
229 03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98189-414-0 01 1 1412- ●

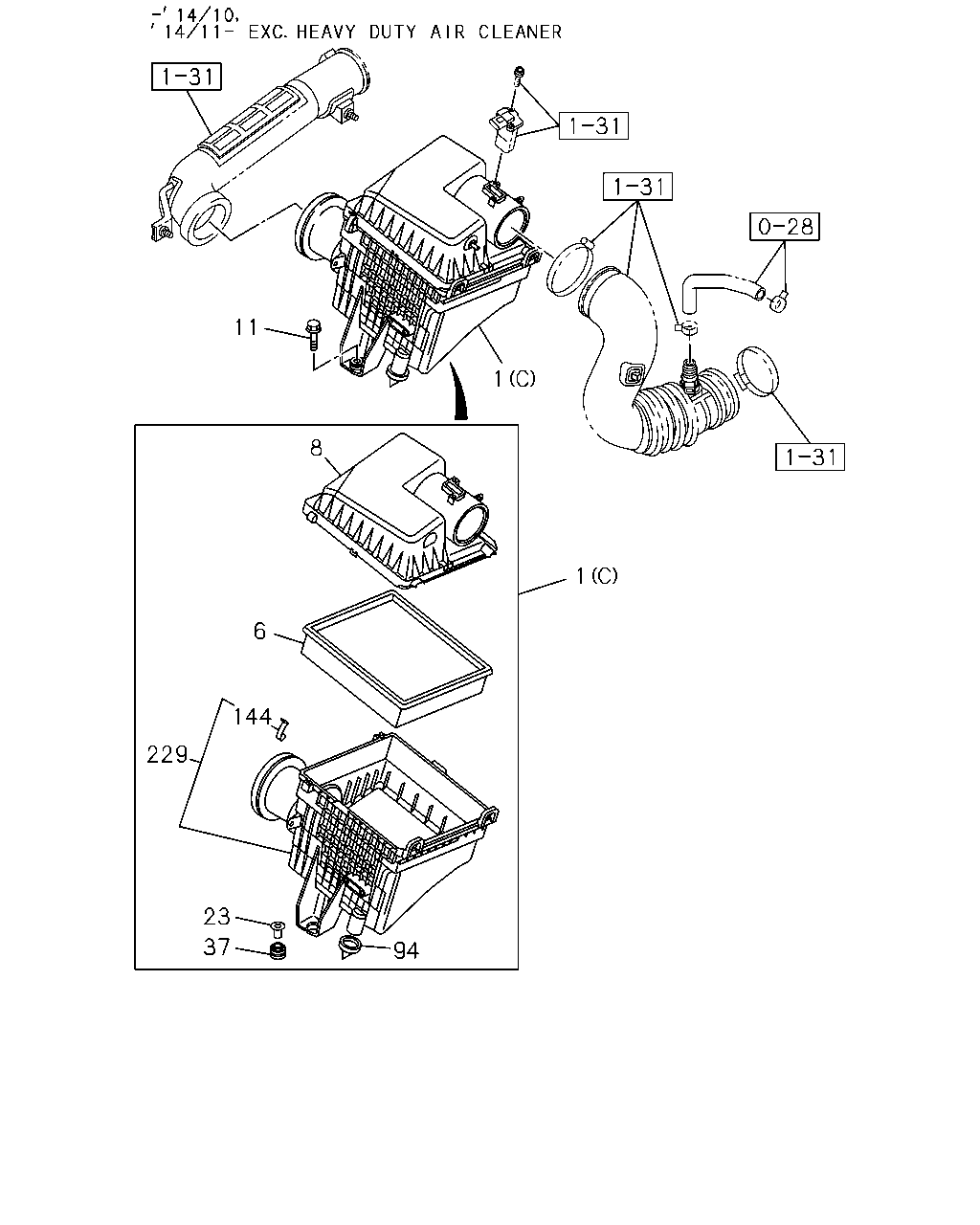

çizim 450122
11 1 1 8 6 144 229 23 37 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98104-506-4 01 1 1509- ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98104-505-5 01 1 1509- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (D) 		8-98272-514-0 01 1 1411- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98140-259-3 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98140-257-2 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
HIGH ALTITUDE COMPENSATOR<EE2> HEAVY DUTY AIR CLEANER<K46> (B) 		8-98114-220-4 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98114-220-4 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
HIGH ALTITUDE COMPENSATOR<EE2> EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98114-219-5 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98114-219-5 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
(C) 		8-98179-138-0 01 1 1409-1411 ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-98179-138-0 01 1 1412- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B) 		8-98103-917-4 01 1 1409-1411 ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B) 		8-98103-917-4 01 1 1412- ● ●
1 03.402 CLEANER ASM; AIR
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> (A) 		8-98103-916-5 01 1 1409-1411 ●
1 03.402 CLEANER ASM; AIR
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> (A) 		8-98103-916-5 01 1 1412- ● ●
6 03.410 FILTER; ACL 8-98140-266-0 01 1 1409-1411 ● ● ●
6 03.410 FILTER; ACL 8-98140-266-0 01 1 1412- ● ● ●
6 03.410 FILTER; ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98140-266-0 01 1 1412- ●
6 03.410 FILTER; ACL 8-98140-265-0 01 1 1409-1508 ●
6 03.410 FILTER; ACL 8-98140-265-0 01 1 1509- ● ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-387-0 01 1 1509- ●
8 03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-261-0 01 1 1509- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98281-551-0 01 1 1411- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-390-0 01 1 1409- ●
8 03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98141-386-0 01 1 1409- ●
8 03.410 COVER ASM; ACL
HIGH ALTITUDE COMPENSATOR<EE2> HEAVY DUTY AIR CLEANER<K46> 		8-98141-388-0 01 1 1409- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-388-0 01 1 1409- ●
8 03.410 COVER ASM; ACL
HIGH ALTITUDE COMPENSATOR<EE2> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98141-385-0 01 1 1409- ●
8 03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98141-385-0 01 1 1409- ●
8 03.410 COVER ASM; ACL 8-98189-413-0 01 1 1409-1411 ●
8 03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98189-413-0 01 1 1412- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98141-389-0 01 1 1409-1411 ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98141-389-0 01 1 1412- ● ●
8 03.410 COVER ASM; ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> 		8-98140-264-0 01 1 1409-1411 ●
8 03.410 COVER ASM; ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> 		8-98140-264-0 01 1 1412- ● ●
11 03.403 BOLT; ACL
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1409-1411 ● ● ● ●
11 03.403 BOLT; ACL
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1412-1508 ● ● ● ● ●
11 03.403 BOLT; ACL
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1509- ● ● ● ● ● ●
23 03.405 COLLAR; ACL STAY 8-98140-270-0 03 1 1409-1410 ● ● ●
23 03.405 COLLAR; ACL STAY
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-270-0 03 1 1409-1410 ●
23 03.405 COLLAR; ACL STAY 8-98140-270-0 03 1 1411-1411 ● ● ● ●
23 03.405 COLLAR; ACL STAY 8-98140-270-0 03 1 1412-1508 ● ● ● ●
23 03.405 COLLAR; ACL STAY
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98140-270-0 03 1 1412-1508 ●
23 03.405 COLLAR; ACL STAY 8-98140-270-0 03 1 1509- ● ● ● ● ●
23 03.405 COLLAR; ACL STAY
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98140-270-0 03 1 1509- ●
37 03.406 RUBBER; MTG,ACL 8-98140-269-0 03 1 1409-1410 ● ● ●
37 03.406 RUBBER; MTG,ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-269-0 03 1 1409-1410 ●
37 03.406 RUBBER; MTG,ACL 8-98140-269-0 03 1 1411-1411 ● ● ● ●
37 03.406 RUBBER; MTG,ACL 8-98140-269-0 03 1 1412-1508 ● ● ● ●
37 03.406 RUBBER; MTG,ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98140-269-0 03 1 1412-1508 ●
37 03.406 RUBBER; MTG,ACL 8-98140-269-0 03 1 1509- ● ● ● ● ●
37 03.406 RUBBER; MTG,ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98140-269-0 03 1 1509- ●
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 02 1 1409-1410 ● ● ●
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 02 1 1411-1508 ● ● ● ●
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-94447-157-0 02 1 1411-1508 ●
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 02 1 1509- ● ● ● ● ●
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-94447-157-0 02 1 1509- ●
94 03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1409-1411 ● ● ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 1409-1411 ●
94 03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1412-1412 ● ● ● ● ●
94 03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1501-1508 ● ● ● ●
94 03.415 VALVE; VACUATOR
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1501-1508 ●
94 03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1509- ● ● ● ● ●
94 03.415 VALVE; VACUATOR
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1509- ●
144 03.403 CLIP; ACL 8-97324-624-0 02 1 1409-1410 ● ● ●
144 03.403 CLIP; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97324-624-0 02 1 1409-1410 ●
144 03.403 CLIP; ACL 8-97324-624-0 02 1 1411-1411 ● ● ● ●
144 03.403 CLIP; ACL 8-97324-624-0 02 1 1412-1508 ● ● ● ●
144 03.403 CLIP; ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-97324-624-0 02 1 1412-1508 ●
144 03.403 CLIP; ACL 8-97324-624-0 02 1 1509- ● ● ● ● ●
144 03.403 CLIP; ACL
EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-97324-624-0 02 1 1509- ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-392-0 01 1 1509- ●
229 03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-268-0 01 1 1509- ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98277-106-0 01 1 1411- ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-391-0 01 1 1409-1411 ● ● ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-391-0 01 1 1412- ● ● ● ●
229 03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-267-0 01 1 1409-1411 ● ● ●
229 03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-267-0 01 1 1412- ● ● ● ●
229 03.406 BODY ASM; ACL 8-98189-414-0 01 1 1409-1411 ●
229 03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98189-414-0 01 1 1412- ●

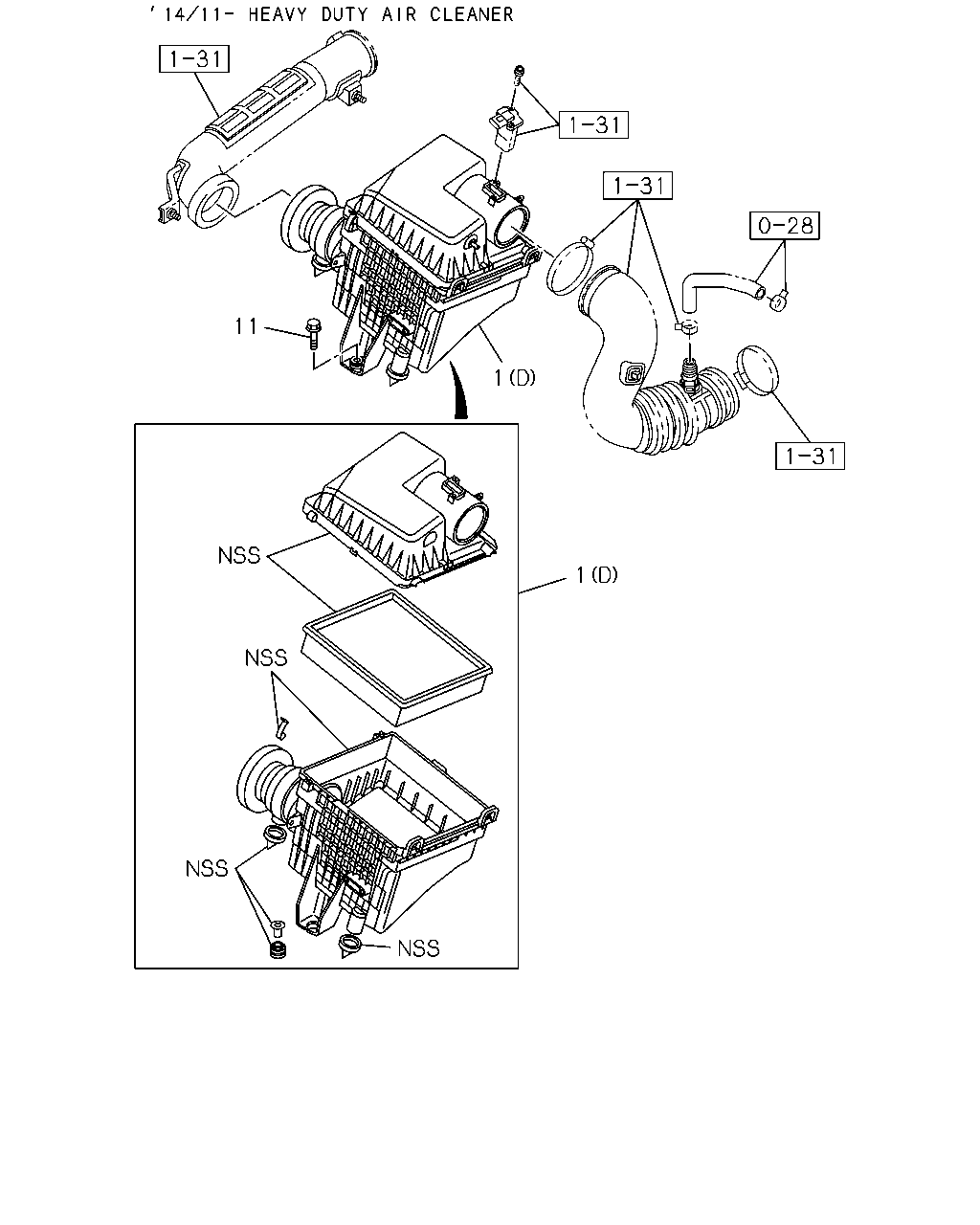

çizim 471937
11 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98104-506-4 01 1 1509- ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98104-505-5 01 1 1509- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (D) 		8-98272-514-0 01 1 1411- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98140-259-3 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98140-257-2 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
HIGH ALTITUDE COMPENSATOR<EE2> HEAVY DUTY AIR CLEANER<K46> (B) 		8-98114-220-4 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98114-220-4 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
HIGH ALTITUDE COMPENSATOR<EE2> EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98114-219-5 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98114-219-5 01 1 1409- ●
1 03.402 CLEANER ASM; AIR
(C) 		8-98179-138-0 01 1 1409-1411 ●
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-98179-138-0 01 1 1412- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B) 		8-98103-917-4 01 1 1409-1411 ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B) 		8-98103-917-4 01 1 1412- ● ●
1 03.402 CLEANER ASM; AIR
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> (A) 		8-98103-916-5 01 1 1409-1411 ●
1 03.402 CLEANER ASM; AIR
EXC. HIGH ALTITUDE COMPENSATOR<EE2>, HEAVY DUTY AIR CLEANER<K46> (A) 		8-98103-916-5 01 1 1412- ● ●
11 03.403 BOLT; ACL
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1409-1411 ● ● ● ●
11 03.403 BOLT; ACL
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1412-1508 ● ● ● ● ●
11 03.403 BOLT; ACL
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1509- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
