1-11 — RADIATOR HOSE AND SUB TANK (#151752) — 96 parça

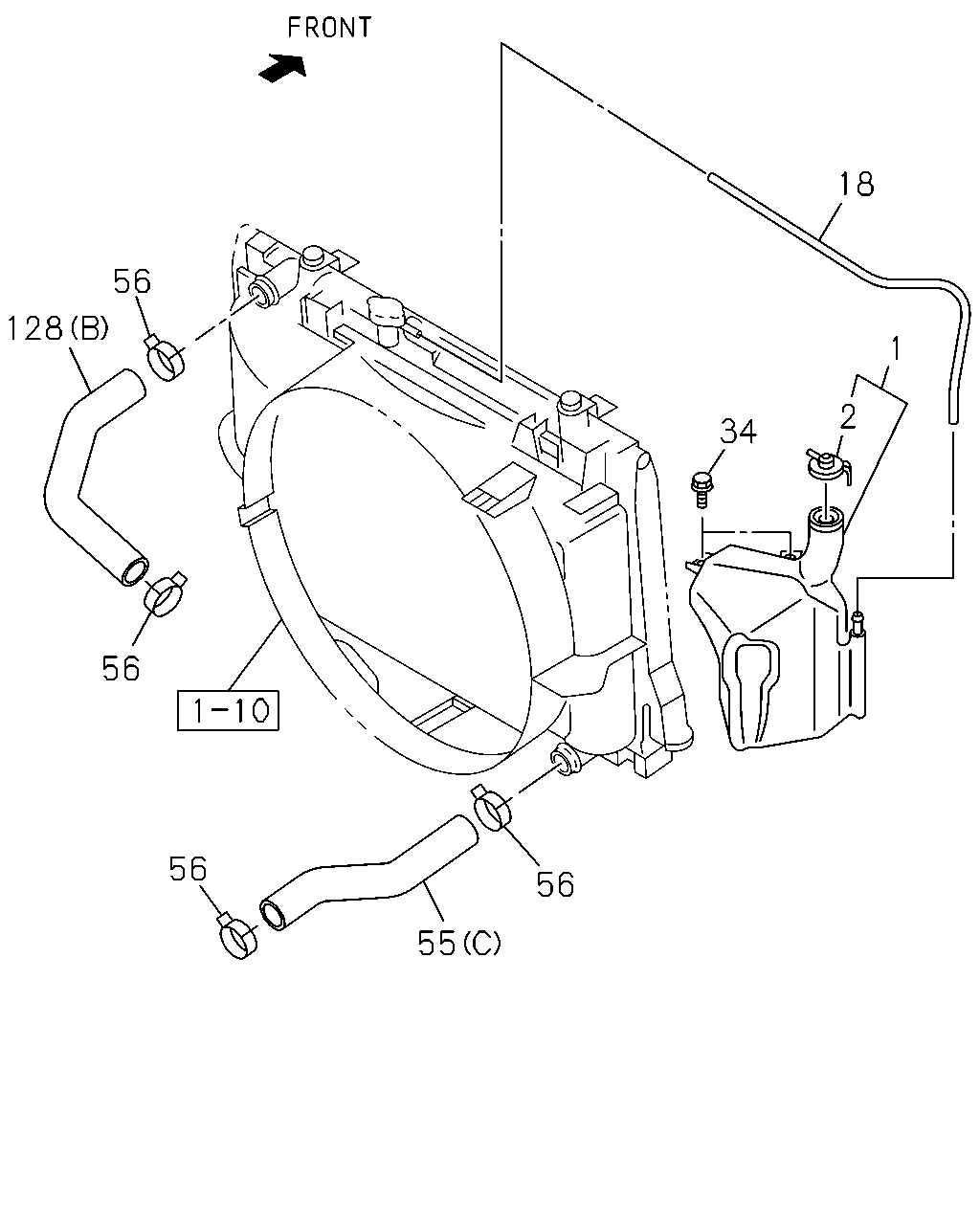

çizim 449980
34 2 1 18 56 128 56 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD 8-98095-701-2 01 1 1409-1411 ● ● ● ●
1 01.219 TANK; SURGE,RAD 8-98095-701-2 01 1 1412-1508 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD 8-98095-701-2 01 1 1509- ● ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-98189-898-0 01 1 1409-1411 ● ● ● ●
2 01.203 CAP; SURGE TANK 8-98189-898-0 01 1 1412-1508 ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-98189-898-0 01 1 1509- ● ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580 		8-98102-344-2 01 1 1409-1411 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580 		8-98102-344-2 01 1 1412-1508 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580 		8-98102-344-2 01 1 1509- ● ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 02 1 1409-1411 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 02 1 1412-1508 ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 02 1 1509- ● ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-98093-327-1 01 1 1409- ●
55 01.173 HOSE; WATER,RAD OUTLET
PROVISIONAL PACKAGE SPEC(BCC) (D) 		8-98222-236-0 01 1 1409-1411 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
PROVISIONAL PACKAGE SPEC(BCC) (D) 		8-98222-236-0 01 1 1412-1412 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
PROVISIONAL PACKAGE SPEC(BCC) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (D) 		8-98222-236-0 01 1 1412-1412 ●
55 01.173 HOSE; WATER,RAD OUTLET
PROVISIONAL PACKAGE SPEC(BCC) (D) 		8-98222-236-0 01 1 1501-1508 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
PROVISIONAL PACKAGE SPEC(BCC) TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) (D) 		8-98222-236-0 01 1 1501-1508 ●
55 01.173 HOSE; WATER,RAD OUTLET
PROVISIONAL PACKAGE SPEC(BCC) (D) 		8-98222-236-0 01 1 1509- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
PROVISIONAL PACKAGE SPEC(BCC) TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) (D) 		8-98222-236-0 01 1 1509- ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98093-324-2 01 1 1409-1411 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98093-324-2 01 1 1412-1412 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98093-324-2 01 1 1412-1412 ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98093-324-2 01 1 1501-1508 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98093-324-2 01 1 1501-1508 ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98093-324-2 01 1 1509- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98093-324-2 01 1 1509- ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98093-325-1 01 1 1409-1411 ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98093-325-1 01 1 1412-1412 ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. PROVISIONAL PACKAGE SPEC(BCC), TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98093-325-1 01 1 1412-1412 ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. PROVISIONAL PACKAGE SPEC(BCC), TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) (A) 		8-98093-325-1 01 1 1501- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-98179-012-1 01 1 1409- ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1409-1411 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1409-1411 ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
M/T MUA 5 SPEED 5H(MWQ) ID=40.5 		8-97313-472-0 02 1 1409-1411 ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1412-1505 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1412-1505 ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
M/T MUA 5 SPEED 5H(MWQ) ID=40.5 		8-97313-472-0 02 1 1412-1505 ●
56 01.166 CLIP; WATER HOSE,RAD
EXC. PROVISIONAL PACKAGE SPEC(BCC) ID=40.5 		8-97313-472-0 02 1 1412-1505 ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 04 1 1506-1508 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 04 1 1509- ● ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-98093-326-0 01 1 1409- ●
128 01.159 HOSE; WATER,RAD INL
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98090-629-2 01 1 1409-1411 ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98090-629-2 01 1 1409-1411 ● ●
128 01.159 HOSE; WATER,RAD INL
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98090-629-2 01 1 1412-1505 ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98090-629-2 01 1 1412-1505 ● ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98090-629-2 01 1 1506-1508 ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98090-629-2 01 1 1509- ● ● ● ● ●

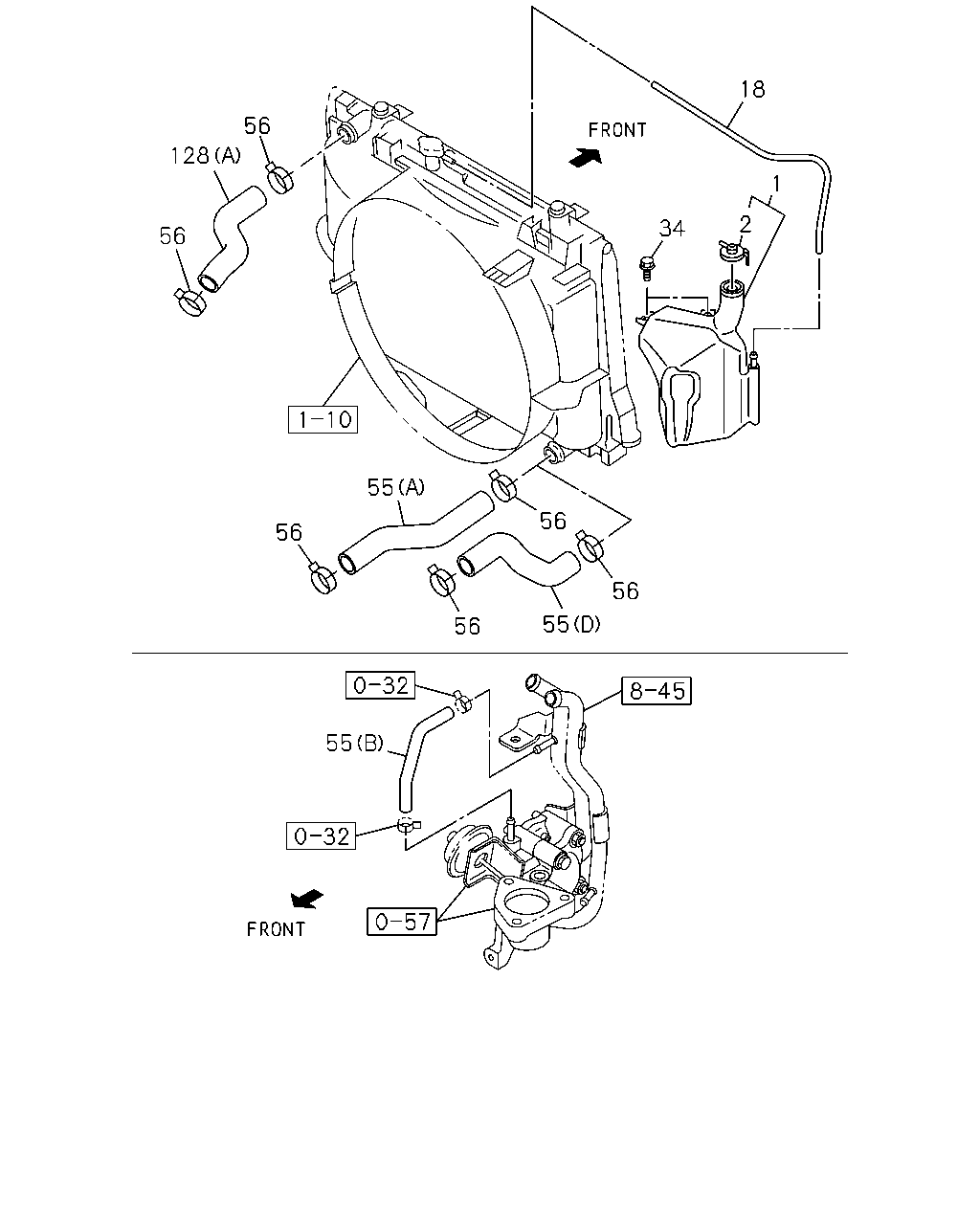

çizim 450017
56 128 56 55 56 56 55 56 56 34 18 1 2 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD 8-98095-701-2 01 1 1409-1411 ● ● ● ●
1 01.219 TANK; SURGE,RAD 8-98095-701-2 01 1 1412-1508 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD 8-98095-701-2 01 1 1509- ● ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-98189-898-0 01 1 1409-1411 ● ● ● ●
2 01.203 CAP; SURGE TANK 8-98189-898-0 01 1 1412-1508 ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-98189-898-0 01 1 1509- ● ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580 		8-98102-344-2 01 1 1409-1411 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580 		8-98102-344-2 01 1 1412-1508 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580 		8-98102-344-2 01 1 1509- ● ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 02 1 1409-1411 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 02 1 1412-1508 ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 02 1 1509- ● ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-98093-327-1 01 1 1409- ●
55 01.173 HOSE; WATER,RAD OUTLET
PROVISIONAL PACKAGE SPEC(BCC) (D) 		8-98222-236-0 01 1 1409-1411 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
PROVISIONAL PACKAGE SPEC(BCC) (D) 		8-98222-236-0 01 1 1412-1412 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
PROVISIONAL PACKAGE SPEC(BCC) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (D) 		8-98222-236-0 01 1 1412-1412 ●
55 01.173 HOSE; WATER,RAD OUTLET
PROVISIONAL PACKAGE SPEC(BCC) (D) 		8-98222-236-0 01 1 1501-1508 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
PROVISIONAL PACKAGE SPEC(BCC) TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) (D) 		8-98222-236-0 01 1 1501-1508 ●
55 01.173 HOSE; WATER,RAD OUTLET
PROVISIONAL PACKAGE SPEC(BCC) (D) 		8-98222-236-0 01 1 1509- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
PROVISIONAL PACKAGE SPEC(BCC) TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) (D) 		8-98222-236-0 01 1 1509- ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98093-324-2 01 1 1409-1411 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98093-324-2 01 1 1412-1412 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98093-324-2 01 1 1412-1412 ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98093-324-2 01 1 1501-1508 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98093-324-2 01 1 1501-1508 ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98093-324-2 01 1 1509- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98093-324-2 01 1 1509- ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98093-325-1 01 1 1409-1411 ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98093-325-1 01 1 1412-1412 ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. PROVISIONAL PACKAGE SPEC(BCC), TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98093-325-1 01 1 1412-1412 ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. PROVISIONAL PACKAGE SPEC(BCC), TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) (A) 		8-98093-325-1 01 1 1501- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-98179-012-1 01 1 1409- ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1409-1411 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1409-1411 ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
M/T MUA 5 SPEED 5H(MWQ) ID=40.5 		8-97313-472-0 02 1 1409-1411 ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1412-1505 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1412-1505 ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
M/T MUA 5 SPEED 5H(MWQ) ID=40.5 		8-97313-472-0 02 1 1412-1505 ●
56 01.166 CLIP; WATER HOSE,RAD
EXC. PROVISIONAL PACKAGE SPEC(BCC) ID=40.5 		8-97313-472-0 02 1 1412-1505 ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 04 1 1506-1508 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 04 1 1509- ● ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-98093-326-0 01 1 1409- ●
128 01.159 HOSE; WATER,RAD INL
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98090-629-2 01 1 1409-1411 ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98090-629-2 01 1 1409-1411 ● ●
128 01.159 HOSE; WATER,RAD INL
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98090-629-2 01 1 1412-1505 ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98090-629-2 01 1 1412-1505 ● ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98090-629-2 01 1 1506-1508 ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98090-629-2 01 1 1509- ● ● ● ● ●
