1-01 — ACCELERATOR PEDAL AND CONTROL (#151750) — 21 parça

54 659 10 10 18 19 35 242 32 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	03.451 PEDAL ASM; ACCEL	8-98091-230-0	01	1	1409-	●
10	03.451 PEDAL ASM; ACCEL	8-98067-748-1	01	1	1409-1411		●	●	●
10	03.451 PEDAL ASM; ACCEL	8-98067-748-1	01	1	1412-1508		●	●	●	●
10	03.451 PEDAL ASM; ACCEL	8-98067-748-1	01	1	1509-		●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97257-598-0	01	1	1409-	●
18	03.459 NUT; JOINT LK 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1409-	●
19	03.452 BRACKET; ACCEL PEDAL	8-98203-947-0	01	1	1409-	●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-97332-617-0	01	1	1409-	●
35	03.459 STOPPER; ACCEL PEDAL 04.634	8-97302-035-0	01	1	1409-	●
54	03.430 CABLE; ENG CONT	8-98091-237-1	01	1	1409-	●
242	03.483 NUT; ACCEL PEDAL 01.062 M6 FLANGE	0-91180-106-0	02	1	1409-1411	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 01.062 M6 FLANGE	0-91180-106-0	02	1	1412-1505	●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-	●	●	●	●	●	●
659	03.483 CLIP; ACCEL CONT CABLE ID=6 & 11	8-97368-292-0	01	1	1409-	●

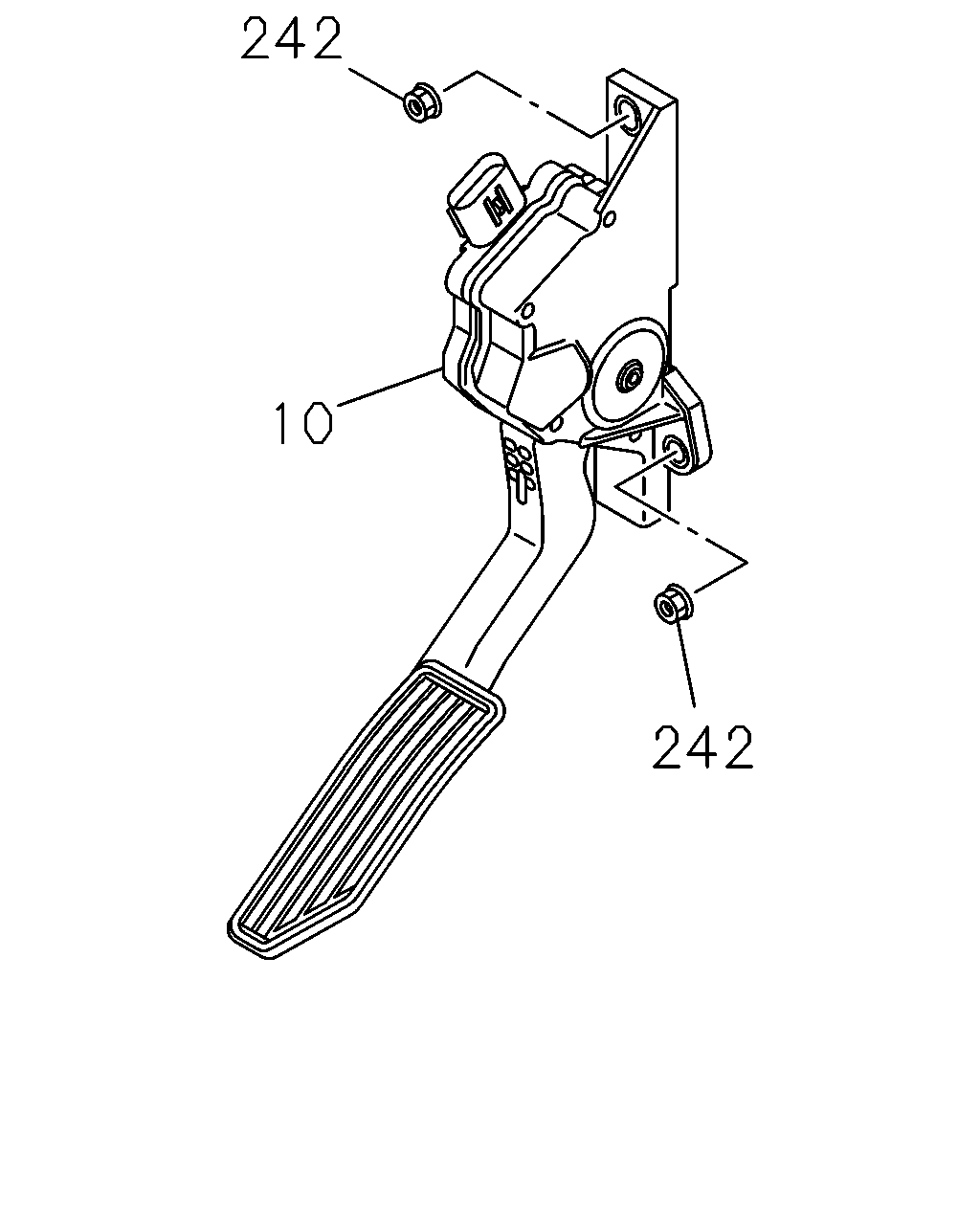

242 10 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	03.451 PEDAL ASM; ACCEL	8-98091-230-0	01	1	1409-	●
10	03.451 PEDAL ASM; ACCEL	8-98067-748-1	01	1	1409-1411		●	●	●
10	03.451 PEDAL ASM; ACCEL	8-98067-748-1	01	1	1412-1508		●	●	●	●
10	03.451 PEDAL ASM; ACCEL	8-98067-748-1	01	1	1509-		●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 01.062 M6 FLANGE	0-91180-106-0	02	1	1409-1411	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 01.062 M6 FLANGE	0-91180-106-0	02	1	1412-1505	●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-	●	●	●	●	●	●
