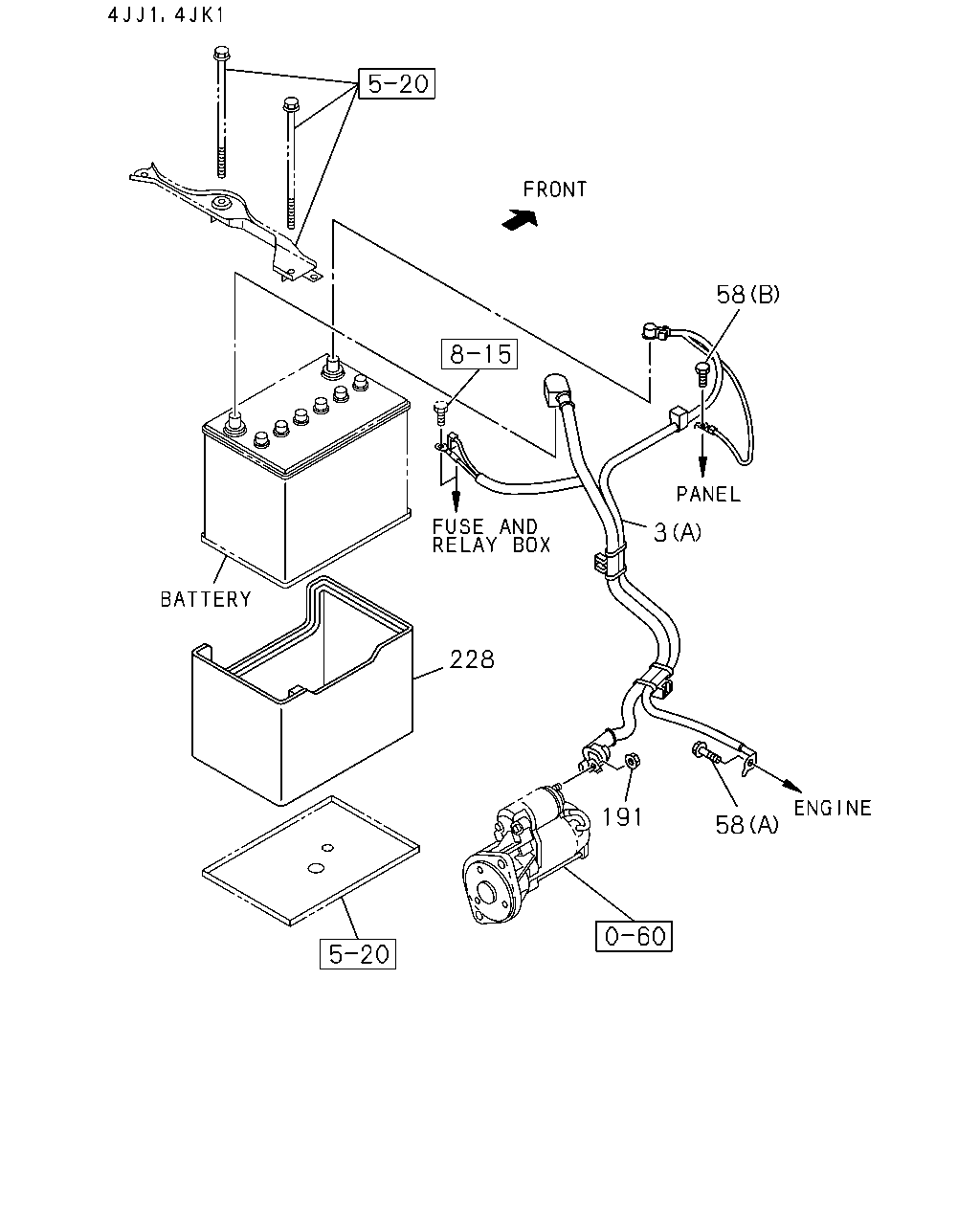

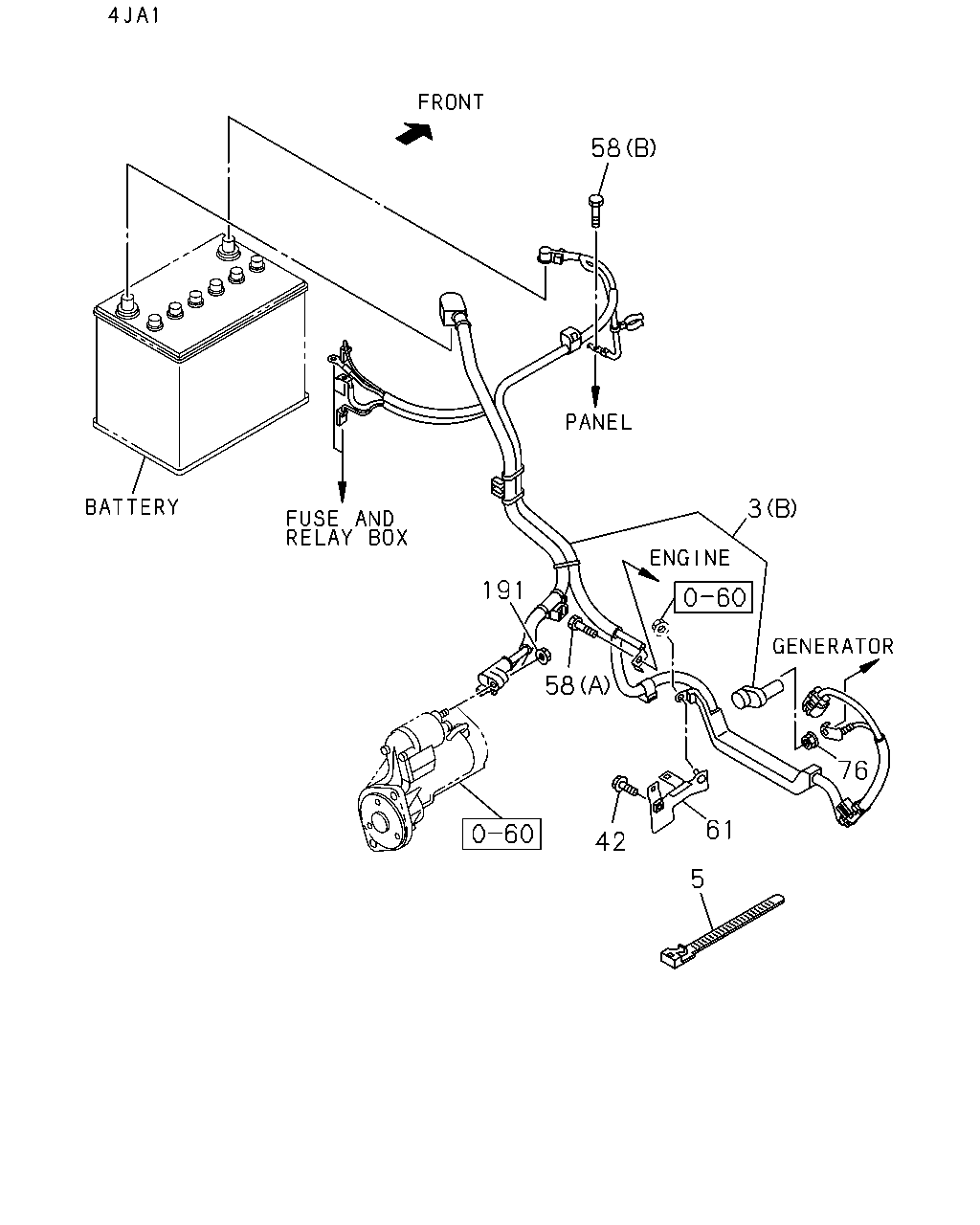

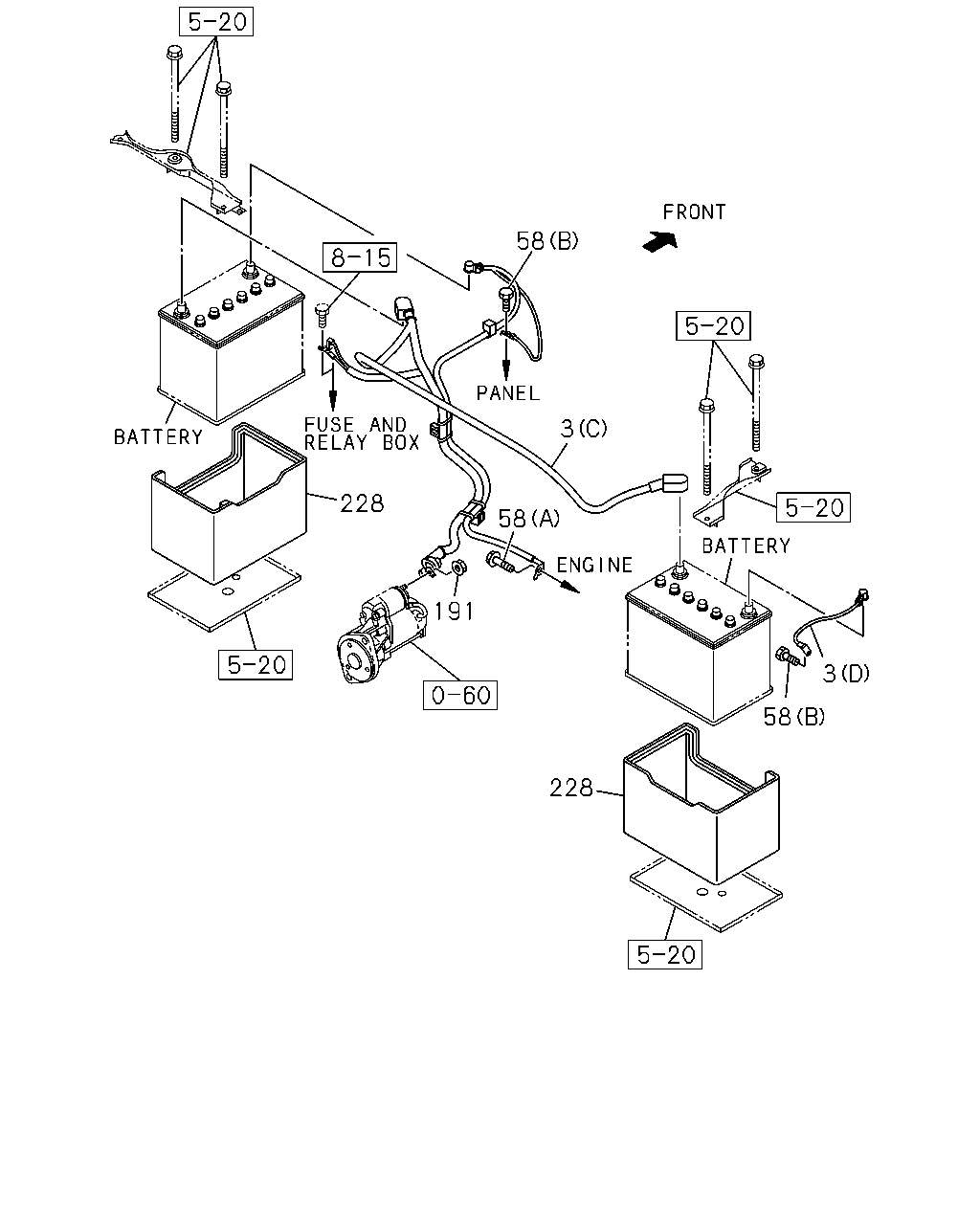

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#151742) — 106 parça

3 58 228 191 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1) HIGH RIDE SUSPENSION(7YC) (B)	8-98238-431-1	01	1	1409-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98238-430-1	01	1	1409-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (B)	8-98230-233-1	01	1	1409-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98160-808-3	01	1	1409-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1) (A)	8-98238-380-2	01	1	1409-1411		●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1) (A)	8-98238-380-2	01	1	1412-1508		●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1) (A)	8-98238-380-2	01	1	1509-		●	●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L(TQ8) (A)	8-98160-809-3	01	1	1409-1411		●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L(TQ8) (A)	8-98160-809-3	01	1	1412-1508		●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L(TQ8) (A)	8-98160-809-3	01	1	1509-		●	●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (D)	8-98129-414-1	01	1	1409-	●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C)	8-98238-432-1	01	1	1409-	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE	0-28651-020-0	01	1	1409-1505	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	1409-1505		●	●	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	1506-1508	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	1509-	●	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1409-1501	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1409-1501		●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1409-1501		●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-1505	●
58	02.343 BOLT; CABLE,BATTERY 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-1505		●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-1505		●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-1508	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-1508	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-1508						●
58	02.343 BOLT; CABLE,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1509-	●	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1509-	●	●	●	●	●	●
191	08.155 NUT; STARTER BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-1505	●
191	08.155 NUT; STARTER 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-1505		●	●	●
191	08.155 NUT; STARTER 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●	●	●	●	●
191	08.155 NUT; STARTER 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●	●	●	●	●
228	03.602 SHIELD; BATTERY BATTERY 80D26L(TM1)	8-98154-328-0	01	1	1409-				●
228	03.602 SHIELD; BATTERY BATTERY 95D31L(TQ8)	8-98154-327-0	01	1	1409-				●
228	03.602 SHIELD; BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-98154-328-0	02	1	1409-				●

58 191 58 3 61 5 42 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1) HIGH RIDE SUSPENSION(7YC) (B)	8-98238-431-1	01	1	1409-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98238-430-1	01	1	1409-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (B)	8-98230-233-1	01	1	1409-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98160-808-3	01	1	1409-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1) (A)	8-98238-380-2	01	1	1409-1411		●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1) (A)	8-98238-380-2	01	1	1412-1508		●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1) (A)	8-98238-380-2	01	1	1509-		●	●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L(TQ8) (A)	8-98160-809-3	01	1	1409-1411		●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L(TQ8) (A)	8-98160-809-3	01	1	1412-1508		●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L(TQ8) (A)	8-98160-809-3	01	1	1509-		●	●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (D)	8-98129-414-1	01	1	1409-	●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C)	8-98238-432-1	01	1	1409-	●	●	●	●
5	02.559 CLIP; BATTERY CABLE TO BODY HIGH RIDE SUSPENSION(7YC) 03.162 L=140	5-09707-031-1	01	1	1409-	●
42	02.343 BOLT; BRKT,BATTERY CABLE BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) M6X16 FLANGE	0-28650-616-0	01	1	1409-1505	●
42	02.343 BOLT; BRKT,BATTERY CABLE M6X16 FLANGE	0-28650-616-0	01	1	1506-	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE	0-28651-020-0	01	1	1409-1505	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	1409-1505		●	●	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	1506-1508	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	1509-	●	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1409-1501	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1409-1501		●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1409-1501		●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-1505	●
58	02.343 BOLT; CABLE,BATTERY 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-1505		●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-1505		●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-1508	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-1508	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-1508						●
58	02.343 BOLT; CABLE,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1509-	●	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1509-	●	●	●	●	●	●
61	02.333 BRACKET; BATTERY CABLE BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8)	8-97260-935-2	01	1	1409-1505	●
61	02.333 BRACKET; BATTERY CABLE	8-97260-935-2	01	1	1506-	●
76	02.343 NUT; BATTERY CABLE BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-1505	●
76	02.343 NUT; BATTERY CABLE 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●
191	08.155 NUT; STARTER BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-1505	●
191	08.155 NUT; STARTER 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-1505		●	●	●
191	08.155 NUT; STARTER 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●	●	●	●	●
191	08.155 NUT; STARTER 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●	●	●	●	●

58 3 58 191 228 228 58 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1) HIGH RIDE SUSPENSION(7YC) (B)	8-98238-431-1	01	1	1409-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98238-430-1	01	1	1409-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (B)	8-98230-233-1	01	1	1409-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98160-808-3	01	1	1409-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1) (A)	8-98238-380-2	01	1	1409-1411		●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1) (A)	8-98238-380-2	01	1	1412-1508		●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1) (A)	8-98238-380-2	01	1	1509-		●	●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L(TQ8) (A)	8-98160-809-3	01	1	1409-1411		●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L(TQ8) (A)	8-98160-809-3	01	1	1412-1508		●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L(TQ8) (A)	8-98160-809-3	01	1	1509-		●	●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (D)	8-98129-414-1	01	1	1409-	●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C)	8-98238-432-1	01	1	1409-	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE	0-28651-020-0	01	1	1409-1505	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	1409-1505		●	●	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	1506-1508	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	1509-	●	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1409-1501	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1409-1501		●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1409-1501		●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-1505	●
58	02.343 BOLT; CABLE,BATTERY 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-1505		●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-1505		●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-1508	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-1508	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-1508						●
58	02.343 BOLT; CABLE,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1509-	●	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1509-	●	●	●	●	●	●
191	08.155 NUT; STARTER BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-1505	●
191	08.155 NUT; STARTER 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-1505		●	●	●
191	08.155 NUT; STARTER 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●	●	●	●	●
191	08.155 NUT; STARTER 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●	●	●	●	●
228	03.602 SHIELD; BATTERY BATTERY 80D26L(TM1)	8-98154-328-0	01	1	1409-				●
228	03.602 SHIELD; BATTERY BATTERY 95D31L(TQ8)	8-98154-327-0	01	1	1409-				●
228	03.602 SHIELD; BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-98154-328-0	02	1	1409-				●
