◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#151741) — 382 parça

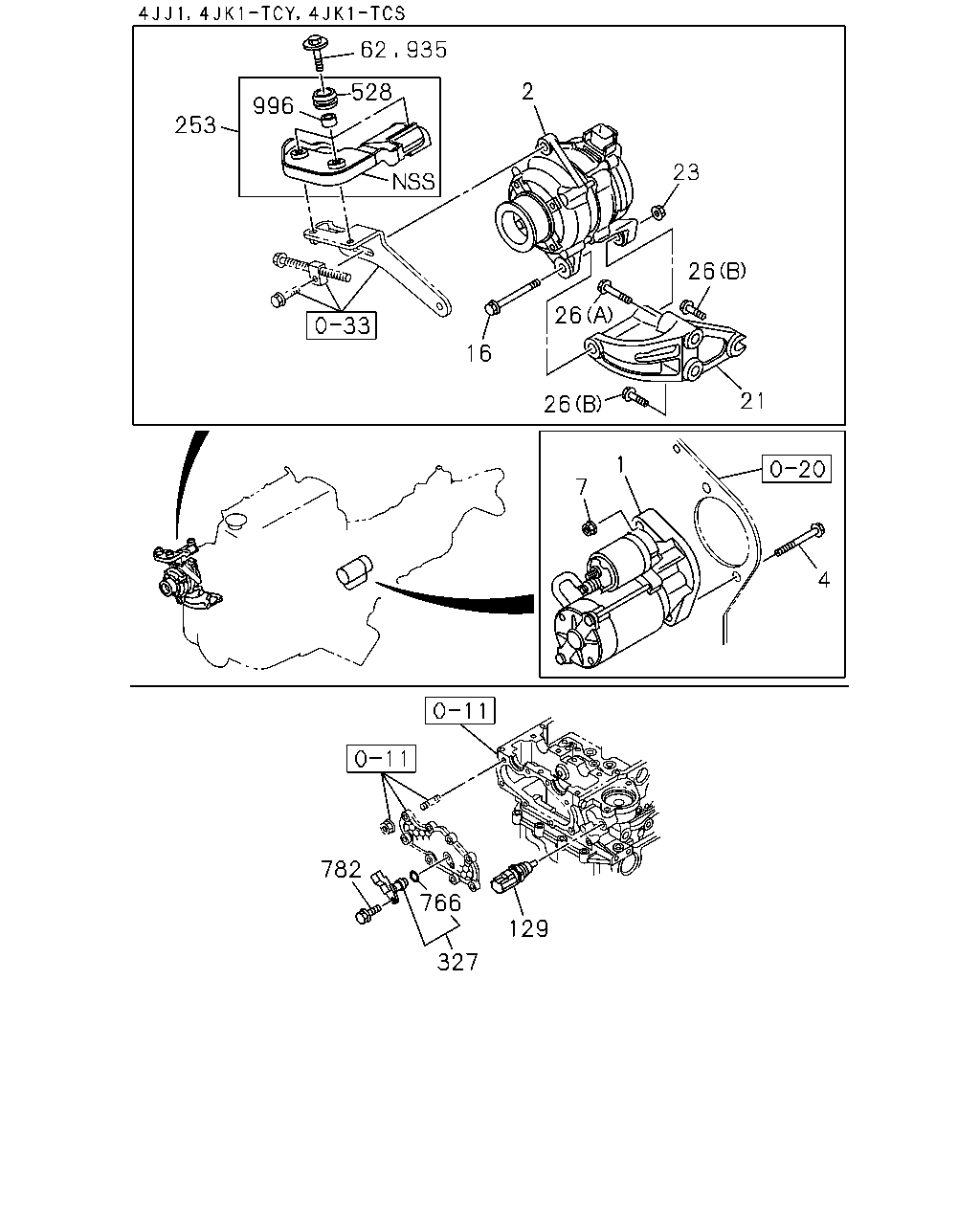

çizim 448328
23 26 21 4 1 7 26 26 16 2 935 996 528 253 129 766 782 327 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 1409- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1409-1411 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1412-1508 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1509- ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 2.3KW 		8-98183-655-0 01 1 1409-1409 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98183-655-0 01 1 1410- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97245-850-2 01 1 1409- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98225-813-0 01 1 1412-1504 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98225-813-0 01 1 1412-1504 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98225-813-0 01 1 1505-1508 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98225-813-0 01 1 1509- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98225-813-0 01 1 1409-1411 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98225-813-0 01 1 1409-1411 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-1 01 1 1409-1411 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-1 01 1 1412-1504 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1505- ● ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1409-1411 ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1409-1411 ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1409-1411 ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1412-1508 ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1412-1508 ● ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1412-1508 ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1509- ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1509- ● ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1509- ● ● ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 1409-1411 ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1412-1412 ● ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 1412-1412 ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1501-1508 ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1509- ● ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X70 FLANGE 		8-98183-142-0 02 1 1409- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1409-1411 ● ● ●
7 02.042 NUT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12 FLANGE 		0-91180-112-0 02 1 1409-1411 ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1412-1502 ● ● ● ●
7 02.042 NUT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12 FLANGE 		0-91180-112-0 02 1 1412-1502 ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1503-1503 ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1504-1508 ● ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1509- ● ● ● ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1409- ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1409-1411 ● ●
16 02.277 BOLT; GEN
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) M10X125 FLANGE 		8-97226-470-1 01 1 1412-1508 ●
16 02.277 BOLT; GEN
EXC. PROVISIONAL PACKAGE SPEC(BCC) M10X125 FLANGE 		8-97226-470-1 01 1 1412-1508 ● ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1509- ● ● ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1409-1411 ●
16 02.277 BOLT; GEN
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> M10X95 FLANGE 		8-98236-407-0 01 1 1412-1508 ● ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1412-1508 ●
16 02.277 BOLT; GEN
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> M10X95 FLANGE 		8-98236-407-0 01 1 1509- ● ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1509- ● ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 1409- ●
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1409-1411 ● ●
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1412- ● ● ●
21 02.277 BRACKET; GEN 8-98275-351-0 01 1 1409-1508 ●
21 02.277 BRACKET; GEN 8-98275-351-0 01 1 1509- ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1410-1411 ● ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1412-1508 ● ● ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ● ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1409-1409 ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 04.085 M10 FLANGE 		0-91180-210-0 01 1 1409-1409 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1410- ● ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 04.085 M10 FLANGE 		0-91180-210-0 01 1 1410- ●
26 02.277 BOLT; GEN BRKT
00.685 (A) M10X60 FLANGE 		0-28051-060-0 01 1 1409-1411 ● ●
26 02.277 BOLT; GEN BRKT
00.685 (A) M10X60 FLANGE 		0-28051-060-0 01 1 1412- ● ● ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1409-1411 ● ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1412- ● ● ●
26 02.277 BOLT; GEN BRKT
09.171 (D) M10X25 FLANGE 		0-28051-025-0 01 1 1409-1508 ●
26 02.277 BOLT; GEN BRKT
09.171 (D) M10X25 FLANGE 		0-28051-025-0 01 1 1509- ● ●
26 02.277 BOLT; GEN BRKT
04.510 (E) M10X35 FLANGE 		0-28051-035-0 01 1 1409-1508 ●
26 02.277 BOLT; GEN BRKT
04.510 (E) M10X35 FLANGE 		0-28051-035-0 01 1 1509- ● ●
26 02.277 BOLT; GEN BRKT
00.685 (C) M10X45 FLANGE 		0-28051-045-0 01 1 1409-1508 ●
26 02.277 BOLT; GEN BRKT
00.685 (C) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
62 02.277 BOLT; PROTECTOR
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-407-0 03 1 1409-1411 ●
62 02.277 BOLT; PROTECTOR
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-407-0 03 1 1412- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1409-1411 ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1412-1412 ● ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1501-1508 ● ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1509- ● ● ● ● ●
253 02.277 PROTECTOR; HEAT,GEN 8-98157-835-2 01 1 1409-1411 ● ●
253 02.277 PROTECTOR; HEAT,GEN
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-98157-835-2 01 1 1412- ●
253 02.277 PROTECTOR; HEAT,GEN
EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-98157-835-2 01 1 1412- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1409-1411 ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1412- ● ● ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1409-1508 ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1509- ● ●
528 02.270 BUSHING 8-98158-298-0 03 1 1409-1411 ● ●
528 02.270 BUSHING
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-98158-298-0 03 1 1412- ●
528 02.270 BUSHING
EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-98158-298-0 03 1 1412- ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1409-1411 ● ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1412-1508 ● ● ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1509- ● ● ● ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1409-1411 ● ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1412-1508 ● ● ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1509- ● ● ● ● ●
935 02.042 BOLT; PROTECTOR
02.277 		8-97383-407-0 03 1 1409-1411 ●
935 02.042 BOLT; PROTECTOR
IDENTIFICATION LABEL FOR KD<6UT> 02.277 		8-97383-407-0 03 1 1409-1411 ●
935 02.042 BOLT; PROTECTOR
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 02.277 		8-97383-407-0 03 1 1412- ● ● ●
996 02.042 MOUNT; PROTECTOR 8-98158-299-0 03 1 1409-1411 ● ●
996 02.042 MOUNT; PROTECTOR
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-98158-299-0 03 1 1412- ●
996 02.042 MOUNT; PROTECTOR
EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-98158-299-0 03 1 1412- ● ●

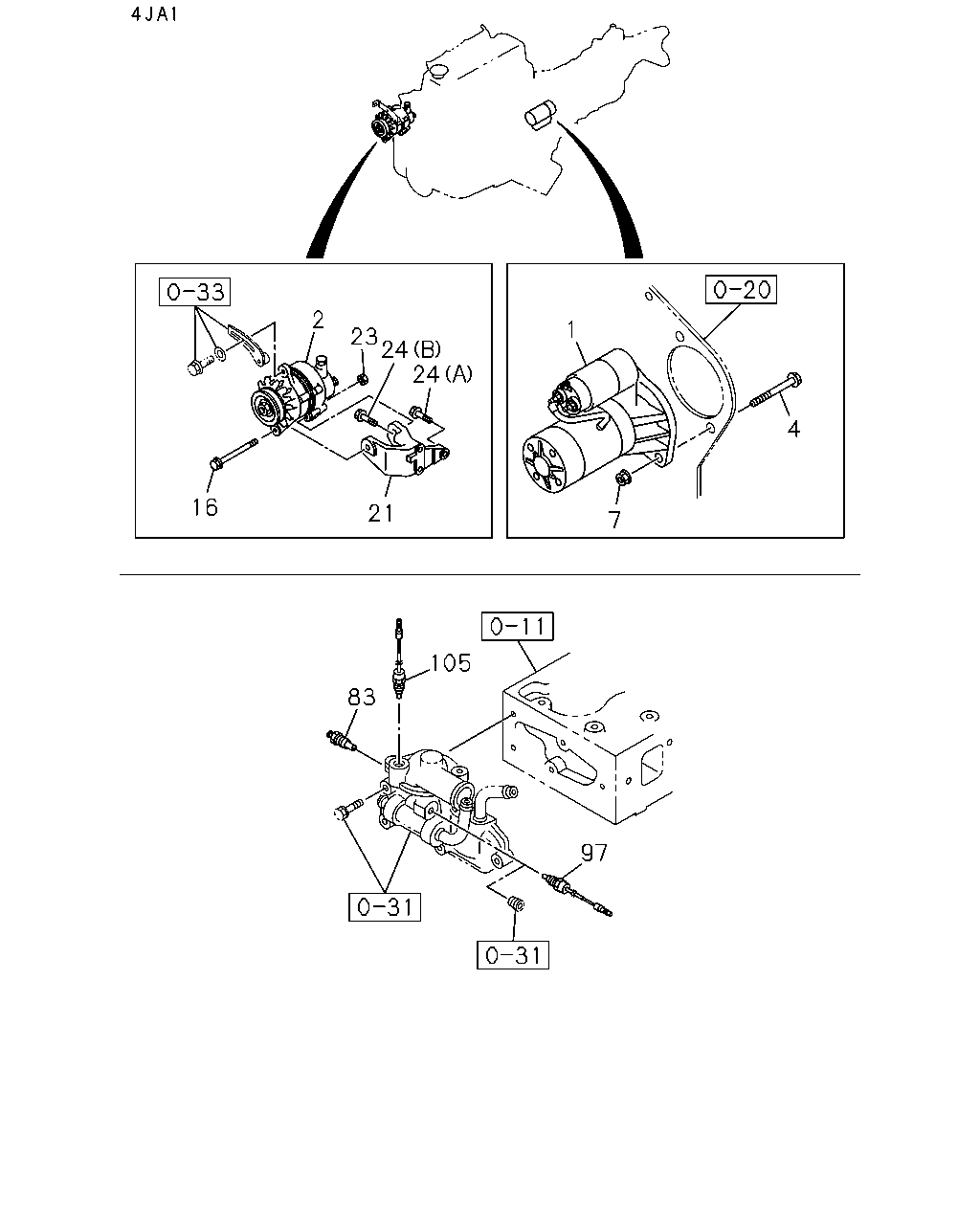

çizim 448453
4 1 7 24 24 23 2 16 21 83 97 105
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 1409- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1409-1411 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1412-1508 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1509- ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 2.3KW 		8-98183-655-0 01 1 1409-1409 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98183-655-0 01 1 1410- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97245-850-2 01 1 1409- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98225-813-0 01 1 1412-1504 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98225-813-0 01 1 1412-1504 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98225-813-0 01 1 1505-1508 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98225-813-0 01 1 1509- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98225-813-0 01 1 1409-1411 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98225-813-0 01 1 1409-1411 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-1 01 1 1409-1411 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-1 01 1 1412-1504 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1505- ● ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1409-1411 ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1409-1411 ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1409-1411 ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1412-1508 ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1412-1508 ● ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1412-1508 ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1509- ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1509- ● ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1509- ● ● ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 1409-1411 ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1412-1412 ● ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 1412-1412 ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1501-1508 ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1509- ● ● ●

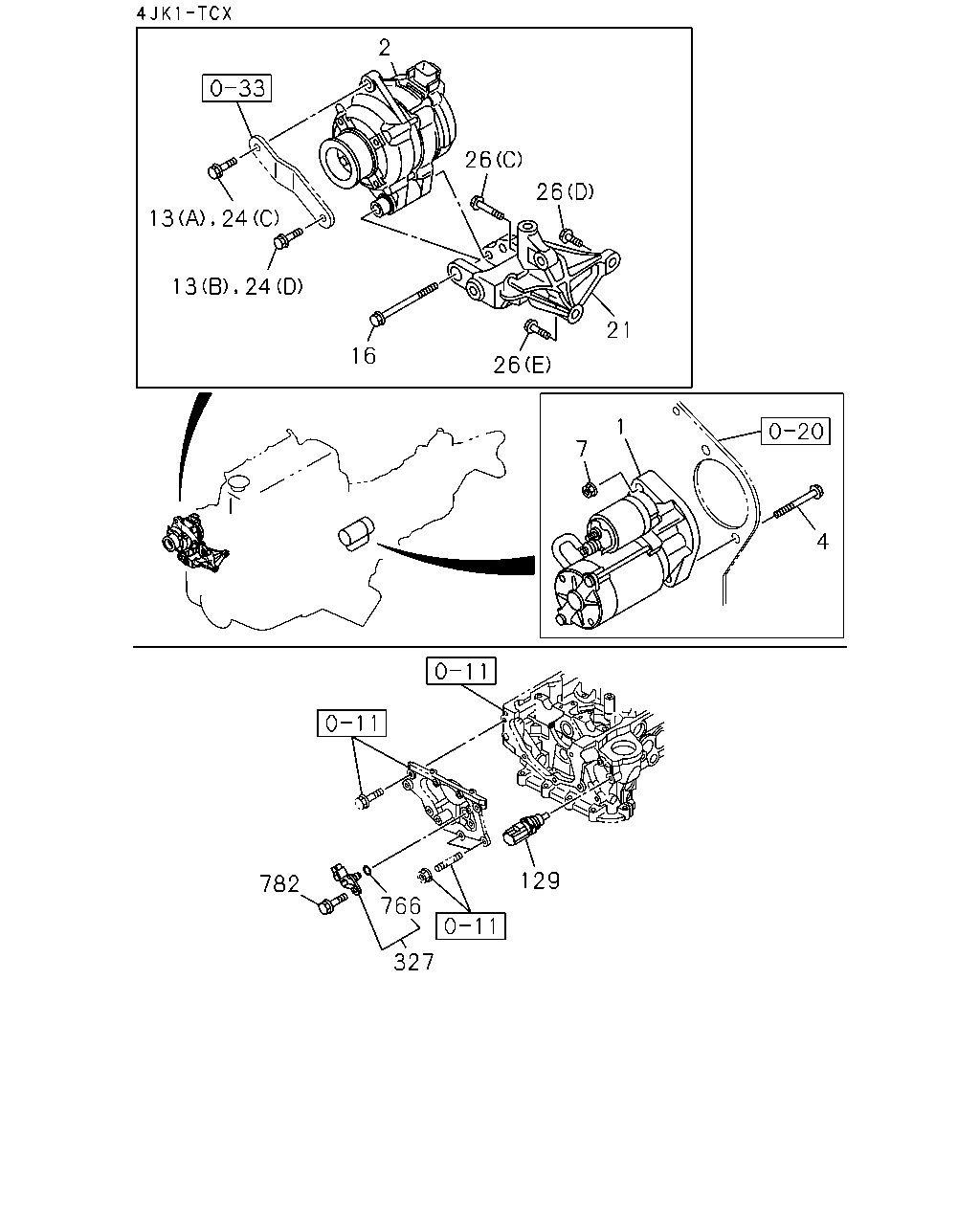

4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X70 FLANGE 		8-98183-142-0 02 1 1409- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1409-1411 ● ● ●
7 02.042 NUT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12 FLANGE 		0-91180-112-0 02 1 1409-1411 ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1412-1502 ● ● ● ●
7 02.042 NUT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12 FLANGE 		0-91180-112-0 02 1 1412-1502 ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1503-1503 ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1504-1508 ● ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1509- ● ● ● ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1409- ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1409-1411 ● ●
16 02.277 BOLT; GEN
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) M10X125 FLANGE 		8-97226-470-1 01 1 1412-1508 ●
16 02.277 BOLT; GEN
EXC. PROVISIONAL PACKAGE SPEC(BCC) M10X125 FLANGE 		8-97226-470-1 01 1 1412-1508 ● ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1509- ● ● ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1409-1411 ●
16 02.277 BOLT; GEN
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> M10X95 FLANGE 		8-98236-407-0 01 1 1412-1508 ● ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1412-1508 ●
16 02.277 BOLT; GEN
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> M10X95 FLANGE 		8-98236-407-0 01 1 1509- ● ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1509- ● ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 1409- ●
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1409-1411 ● ●
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1412- ● ● ●
21 02.277 BRACKET; GEN 8-98275-351-0 01 1 1409-1508 ●
21 02.277 BRACKET; GEN 8-98275-351-0 01 1 1509- ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1410-1411 ● ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1412-1508 ● ● ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ● ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1409-1409 ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 04.085 M10 FLANGE 		0-91180-210-0 01 1 1409-1409 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1410- ● ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 04.085 M10 FLANGE 		0-91180-210-0 01 1 1410- ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 1409- ●
24 02.277 BOLT; GEN BRKT
17.185 (B) M10X70 W/LK WASHER 		0-50541-070-0 02 1 1409- ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 1409-1508 ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 1509- ● ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 1409-1508 ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 1509- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 1409- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 1409- ●
97 01.150 SWITCH; THERMO,EGR CONT
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-94457-511-0 01 1 1409- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 1409- ●

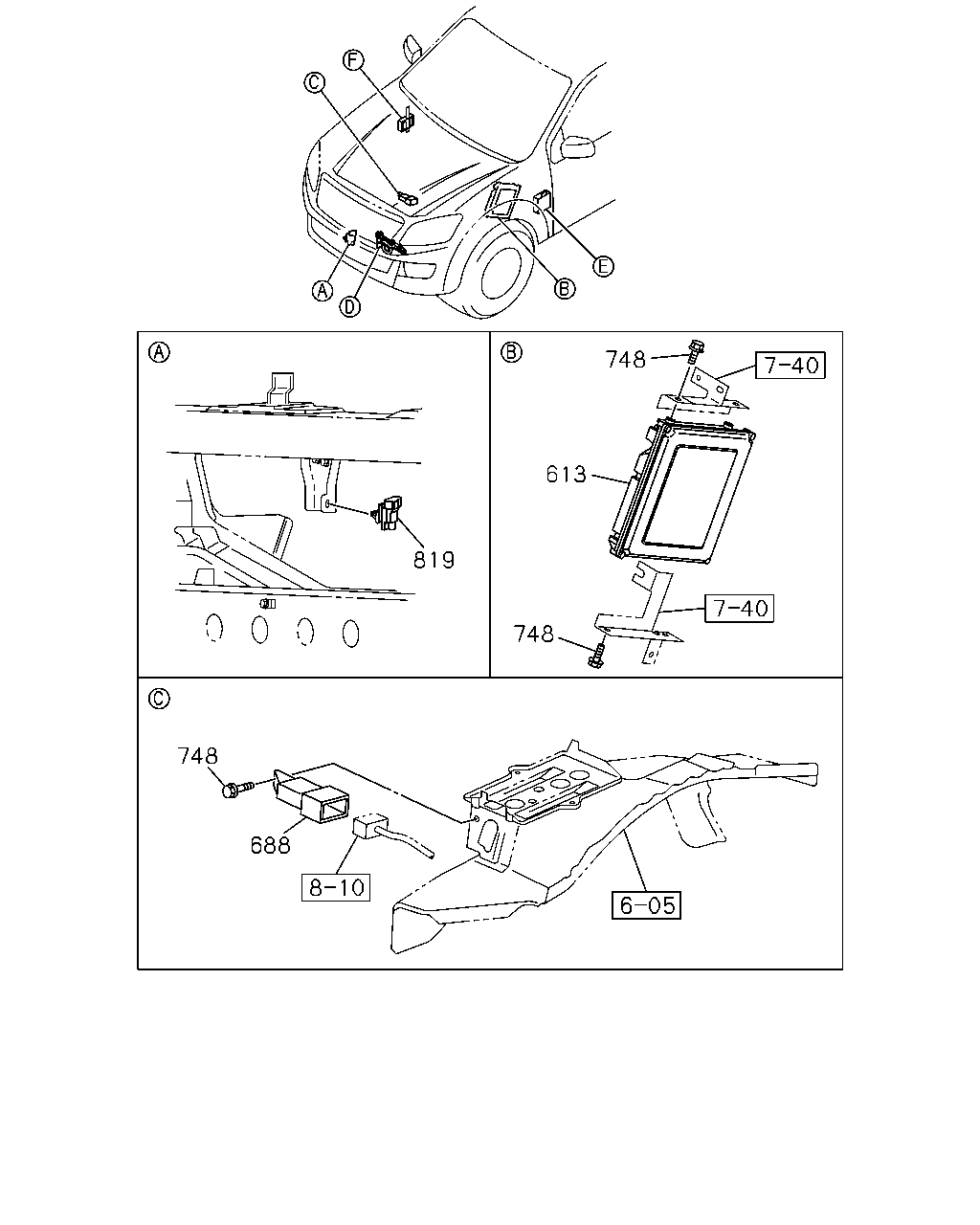

çizim 448556
819 613 748 748 748 688
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98329-831-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98329-829-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4>,HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98329-830-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98273-833-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98304-374-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98308-066-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,IMMOBILIZER SYSTEM<7KC> 		8-98320-105-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98223-020-4 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98304-375-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98304-390-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30> 		8-98223-026-4 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98273-835-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98304-376-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98308-067-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98223-022-4 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,HIGH RIDE SUSPENSION(7YC) 		8-98223-023-4 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98304-377-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98304-391-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30> 		8-98223-030-4 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,HIGH RIDE S USPENSION(7YC) 		8-98223-031-4 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,IMMOBILIZER SYSTEM<7KC> 		8-98308-065-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,IMMOBILIZER SYSTEM<7KC> 		8-98297-162-0 01 1 1411- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),AUT O CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98288-112-0 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),AUT O CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98288-112-0 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),AUT O CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98288-113-0 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EURO1 SPECIFICATION<NT1> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),AUT O CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98288-115-0 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),AUT O CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98288-117-0 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EURO1 SPECIFICATION<NT1> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),AUT O CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98288-114-0 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),AUT O CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98288-116-0 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98223-044-6 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98223-044-6 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98223-045-6 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30> 		8-98223-039-6 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30> 		8-98223-039-6 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98223-040-6 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98223-040-6 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98223-041-6 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30> 		8-98223-058-6 01 1 1409-1503 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30> 		8-98223-058-6 01 1 1409-1503 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98223-062-6 01 1 1409-1503 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98223-062-6 01 1 1409-1503 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98223-062-7 01 1 1504-1508 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98223-062-8 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98223-062-8 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98223-065-8 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98273-839-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98273-837-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98223-038-6 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30> 		8-98223-035-6 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98223-036-6 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30> 		8-98223-051-3 01 1 1409-1503 ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98223-054-3 01 1 1409-1503 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98273-844-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98273-844-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC) 		8-98273-845-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98273-840-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98273-840-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC) 		8-98273-841-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH ALTITUDE COMPENSATOR<EE2> EURO2 SPECIFICATION<NT2> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),AUT O CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98210-710-0 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) HIGH ALTITUDE COMPENSATOR<EE2> EURO2 SPECIFICATION<NT2> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),AUT O CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98210-709-0 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH ALTITUDE COMPENSATOR<EE2> EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),AUT O CRUISE CONT<K30> 		8-98258-320-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) HIGH ALTITUDE COMPENSATOR<EE2> EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),AUT O CRUISE CONT<K30> 		8-98258-320-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),HIG H ALTITUDE COMPENSATOR<EE2>,AUTO CRUISE CONT<K30> 		8-98224-139-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),HIG H ALTITUDE COMPENSATOR<EE2>,AUTO CRUISE CONT<K30> 		8-98224-139-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),HIG H ALTITUDE COMPENSATOR<EE2>,AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC) 		8-98224-138-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),HIG H ALTITUDE COMPENSATOR<EE2>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>, HIGH RIDE SUSPENSION(7YC) 		8-98268-826-0 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) HIGH ALTITUDE COMPENSATOR<EE2> AUTO CRUISE CONT<K30> EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC) 		8-98258-329-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) HIGH ALTITUDE COMPENSATOR<EE2> EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),AUT O CRUISE CONT<K30> 		8-98269-512-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),HIG H ALTITUDE COMPENSATOR<EE2> 		8-98224-142-3 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),HIG H ALTITUDE COMPENSATOR<EE2>,AUTO CRUISE CONT<K30> 		8-98224-141-3 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EURO5 SPECIFICATION<NT5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),HIG H ALTITUDE COMPENSATOR<EE2>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98268-828-1 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH ALTITUDE COMPENSATOR<EE2> AUTO CRUISE CONT<K30> EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC) 		8-98258-328-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) HIGH ALTITUDE COMPENSATOR<EE2> AUTO CRUISE CONT<K30> EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC) 		8-98258-328-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),HIG H ALTITUDE COMPENSATOR<EE2> 		8-98224-140-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),HIG H ALTITUDE COMPENSATOR<EE2> 		8-98224-140-2 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PROVISIONAL PACKAGE SPEC(BCC),HIG H ALTITUDE COMPENSATOR<EE2>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98268-827-0 01 1 1409- ●
688 02.510 CONTROLLER; GLOW PLUG 8-98176-474-0 01 1 1409- ●
748 02.500 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1409-1411 ● ● ●
748 02.500 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1412-1508 ● ● ● ●
748 02.500 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1509- ● ● ● ● ●
748 02.500 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1409- ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98008-687-0 01 1 1409- ● ● ●

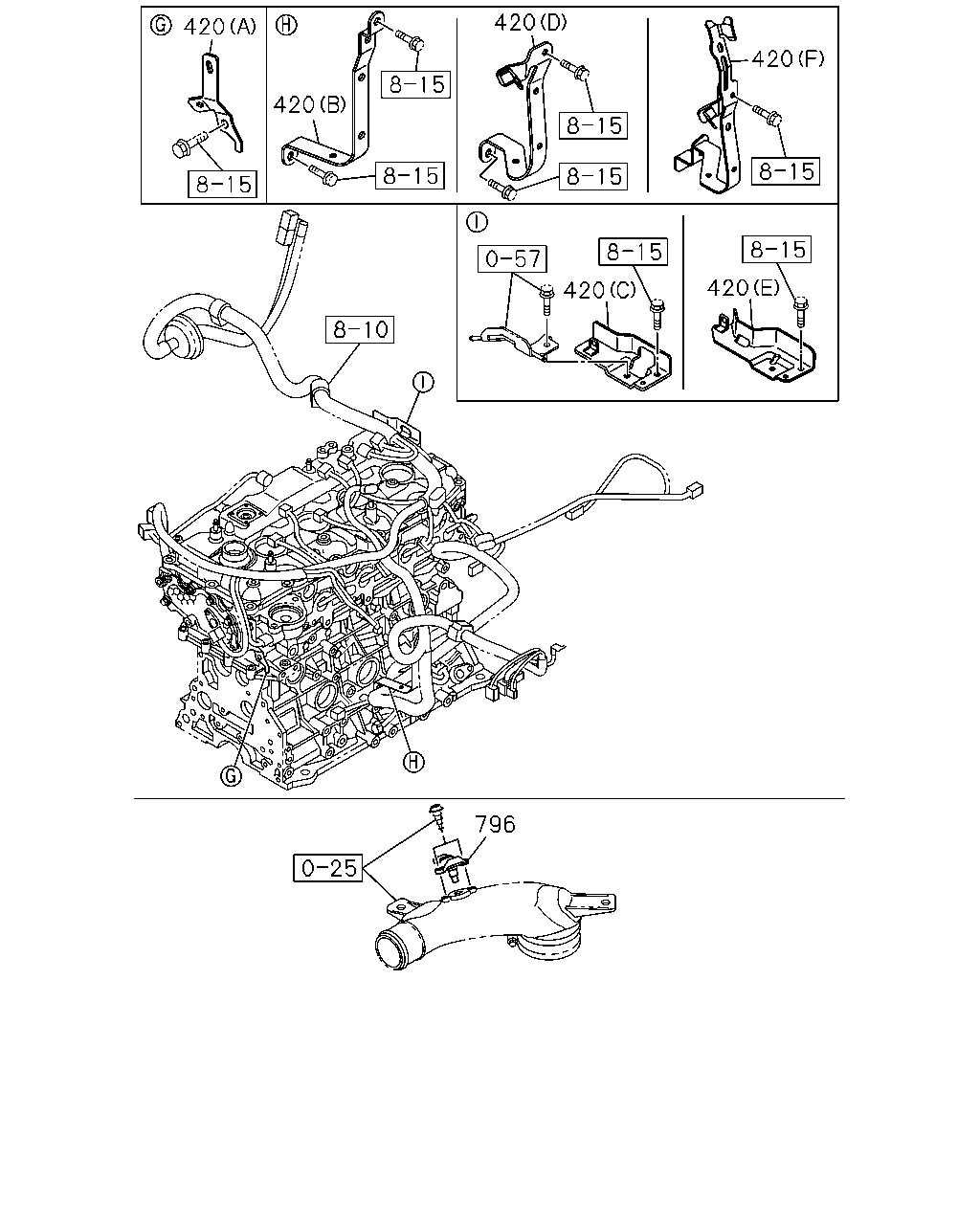

çizim 449730
420 420 420 420 420 420 796
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
420 02.183 BRACKET; HARNESS
(C) 		8-98132-063-0 01 1 1409-1411 ●
420 02.183 BRACKET; HARNESS
(C) 		8-98132-063-0 01 1 1412- ● ●
420 02.183 BRACKET; HARNESS
(B) 		8-98165-075-0 01 1 1409-1411 ●
420 02.183 BRACKET; HARNESS
(B) 		8-98165-075-0 01 1 1412- ● ●
420 02.183 BRACKET; HARNESS
(E) 		8-98228-383-0 01 1 1409-1508 ●
420 02.183 BRACKET; HARNESS
(E) 		8-98228-383-0 01 1 1509- ● ●
420 02.183 BRACKET; HARNESS
(D) 		8-98166-379-0 01 1 1409- ●
420 02.183 BRACKET; HARNESS
(A) 		8-98132-062-1 01 1 1409-1411 ● ●
420 02.183 BRACKET; HARNESS
(A) 		8-98132-062-1 01 1 1412- ● ● ●
420 02.183 BRACKET; HARNESS
(F) 		8-98226-846-1 01 1 1409-1508 ●
420 02.183 BRACKET; HARNESS
(F) 		8-98226-846-1 01 1 1509- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1409-1508 ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1509- ● ● ●

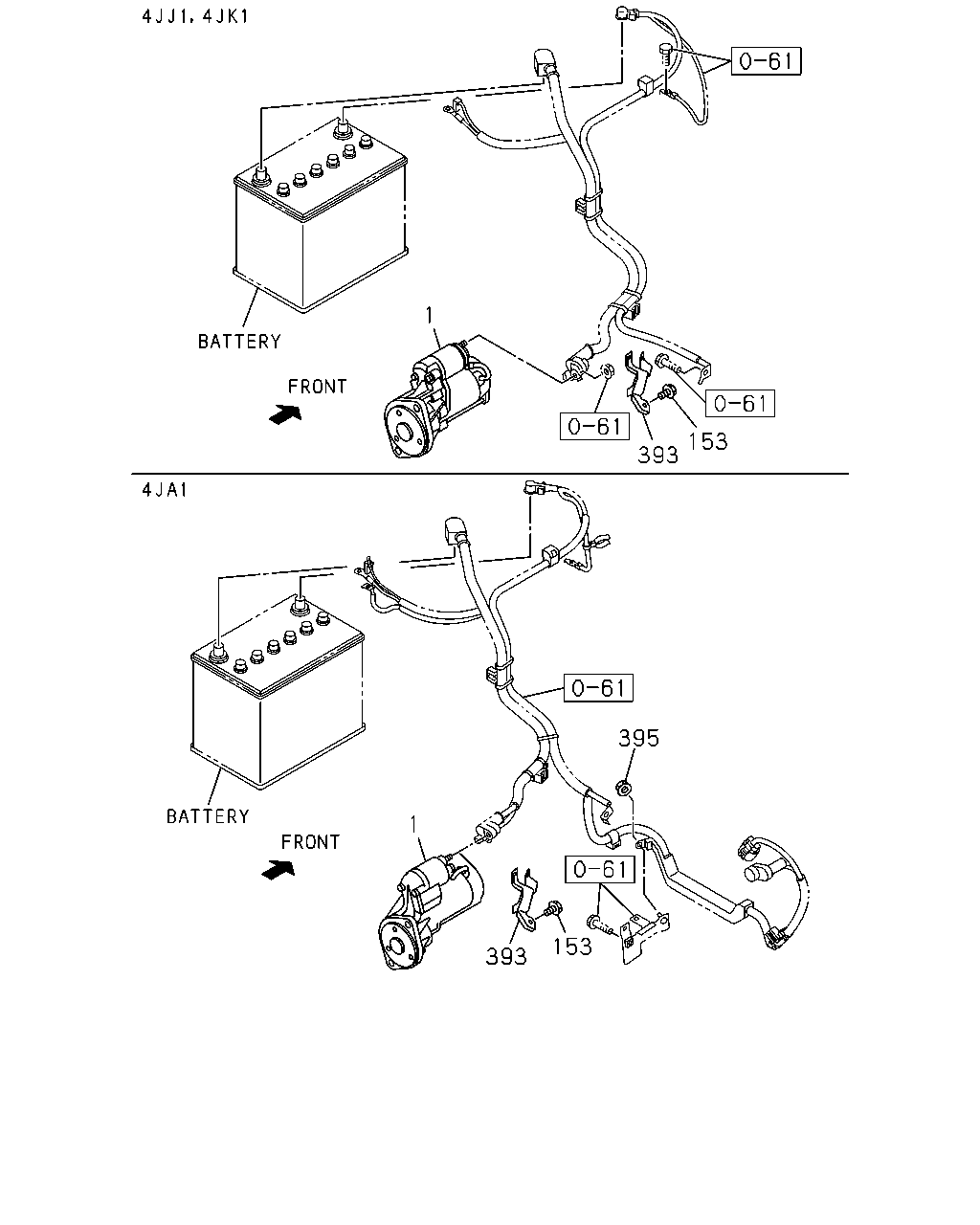

çizim 449731
1 393 153 395 153 1 393
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 1409- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1409-1411 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1412-1508 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1509- ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 2.3KW 		8-98183-655-0 01 1 1409-1409 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98183-655-0 01 1 1410- ●
153 02.510 BOLT; BRKT FIX
03.604 M6X10 FLANGE 		8-98043-527-0 01 1 1409-1411 ● ● ●
153 02.510 BOLT; BRKT FIX
03.604 M6X10 FLANGE 		8-98043-527-0 01 1 1412-1508 ● ● ● ●
153 02.510 BOLT; BRKT FIX
03.604 M6X10 FLANGE 		8-98043-527-0 01 1 1509- ● ● ● ● ●
153 02.510 BOLT; BRKT FIX
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 1409- ●
393 02.343 BRACKET; HARNESS TO BODY 8-98102-992-4 01 1 1409-1411 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY 8-98102-992-4 01 1 1412-1508 ● ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY 8-98102-992-4 01 1 1509- ● ● ● ● ● ●
395 02.343 NUT; BRKT FIX
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 16.320 M6 FLANGE 		8-98049-362-0 01 1 1409-1505 ●
395 02.343 NUT; BRKT FIX
16.320 M6 FLANGE 		8-98049-362-0 01 1 1506- ●
çizim 449772
13 24 13 24 16 26 21 26 26 2 129 782 7 1 4 766 327
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 1409- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1409-1411 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1412-1508 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1509- ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 2.3KW 		8-98183-655-0 01 1 1409-1409 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98183-655-0 01 1 1410- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97245-850-2 01 1 1409- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98225-813-0 01 1 1412-1504 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98225-813-0 01 1 1412-1504 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98225-813-0 01 1 1505-1508 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98225-813-0 01 1 1509- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98225-813-0 01 1 1409-1411 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98225-813-0 01 1 1409-1411 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-1 01 1 1409-1411 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-1 01 1 1412-1504 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1505- ● ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1409-1411 ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1409-1411 ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1409-1411 ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1412-1508 ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1412-1508 ● ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1412-1508 ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1509- ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1509- ● ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1509- ● ● ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 1409-1411 ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1412-1412 ● ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 1412-1412 ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1501-1508 ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1509- ● ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X70 FLANGE 		8-98183-142-0 02 1 1409- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1409-1411 ● ● ●
7 02.042 NUT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12 FLANGE 		0-91180-112-0 02 1 1409-1411 ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1412-1502 ● ● ● ●
7 02.042 NUT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12 FLANGE 		0-91180-112-0 02 1 1412-1502 ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1503-1503 ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1504-1508 ● ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1509- ● ● ● ● ●
13 02.100 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> 03.275 (A) M8X25 FLANGE 		0-28050-825-0 01 1 1409-1411 ●
13 02.100 BOLT; BRKT
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> 03.275 (A) M8X25 FLANGE 		0-28050-825-0 01 1 1412-1508 ● ● ●
13 02.100 BOLT; BRKT
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> 03.275 (A) M8X25 FLANGE 		0-28050-825-0 01 1 1509- ● ● ● ●
13 02.100 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 1409-1411 ●
13 02.100 BOLT; BRKT
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 1412-1508 ● ● ●
13 02.100 BOLT; BRKT
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 1509- ● ● ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1409- ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1409-1411 ● ●
16 02.277 BOLT; GEN
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) M10X125 FLANGE 		8-97226-470-1 01 1 1412-1508 ●
16 02.277 BOLT; GEN
EXC. PROVISIONAL PACKAGE SPEC(BCC) M10X125 FLANGE 		8-97226-470-1 01 1 1412-1508 ● ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1509- ● ● ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1409-1411 ●
16 02.277 BOLT; GEN
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> M10X95 FLANGE 		8-98236-407-0 01 1 1412-1508 ● ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1412-1508 ●
16 02.277 BOLT; GEN
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> M10X95 FLANGE 		8-98236-407-0 01 1 1509- ● ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1509- ● ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 1409- ●
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1409-1411 ● ●
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1412- ● ● ●
21 02.277 BRACKET; GEN 8-98275-351-0 01 1 1409-1508 ●
21 02.277 BRACKET; GEN 8-98275-351-0 01 1 1509- ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 1409- ●
24 02.277 BOLT; GEN BRKT
17.185 (B) M10X70 W/LK WASHER 		0-50541-070-0 02 1 1409- ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 1409-1508 ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 1509- ● ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 1409-1508 ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 1509- ● ●
26 02.277 BOLT; GEN BRKT
00.685 (A) M10X60 FLANGE 		0-28051-060-0 01 1 1409-1411 ● ●
26 02.277 BOLT; GEN BRKT
00.685 (A) M10X60 FLANGE 		0-28051-060-0 01 1 1412- ● ● ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1409-1411 ● ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1412- ● ● ●
26 02.277 BOLT; GEN BRKT
09.171 (D) M10X25 FLANGE 		0-28051-025-0 01 1 1409-1508 ●
26 02.277 BOLT; GEN BRKT
09.171 (D) M10X25 FLANGE 		0-28051-025-0 01 1 1509- ● ●
26 02.277 BOLT; GEN BRKT
04.510 (E) M10X35 FLANGE 		0-28051-035-0 01 1 1409-1508 ●
26 02.277 BOLT; GEN BRKT
04.510 (E) M10X35 FLANGE 		0-28051-035-0 01 1 1509- ● ●
26 02.277 BOLT; GEN BRKT
00.685 (C) M10X45 FLANGE 		0-28051-045-0 01 1 1409-1508 ●
26 02.277 BOLT; GEN BRKT
00.685 (C) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1409-1411 ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1412-1412 ● ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1501-1508 ● ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1509- ● ● ● ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1409-1411 ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1412- ● ● ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1409-1508 ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1509- ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1409-1411 ● ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1412-1508 ● ● ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1509- ● ● ● ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1409-1411 ● ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1412-1508 ● ● ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1509- ● ● ● ● ●

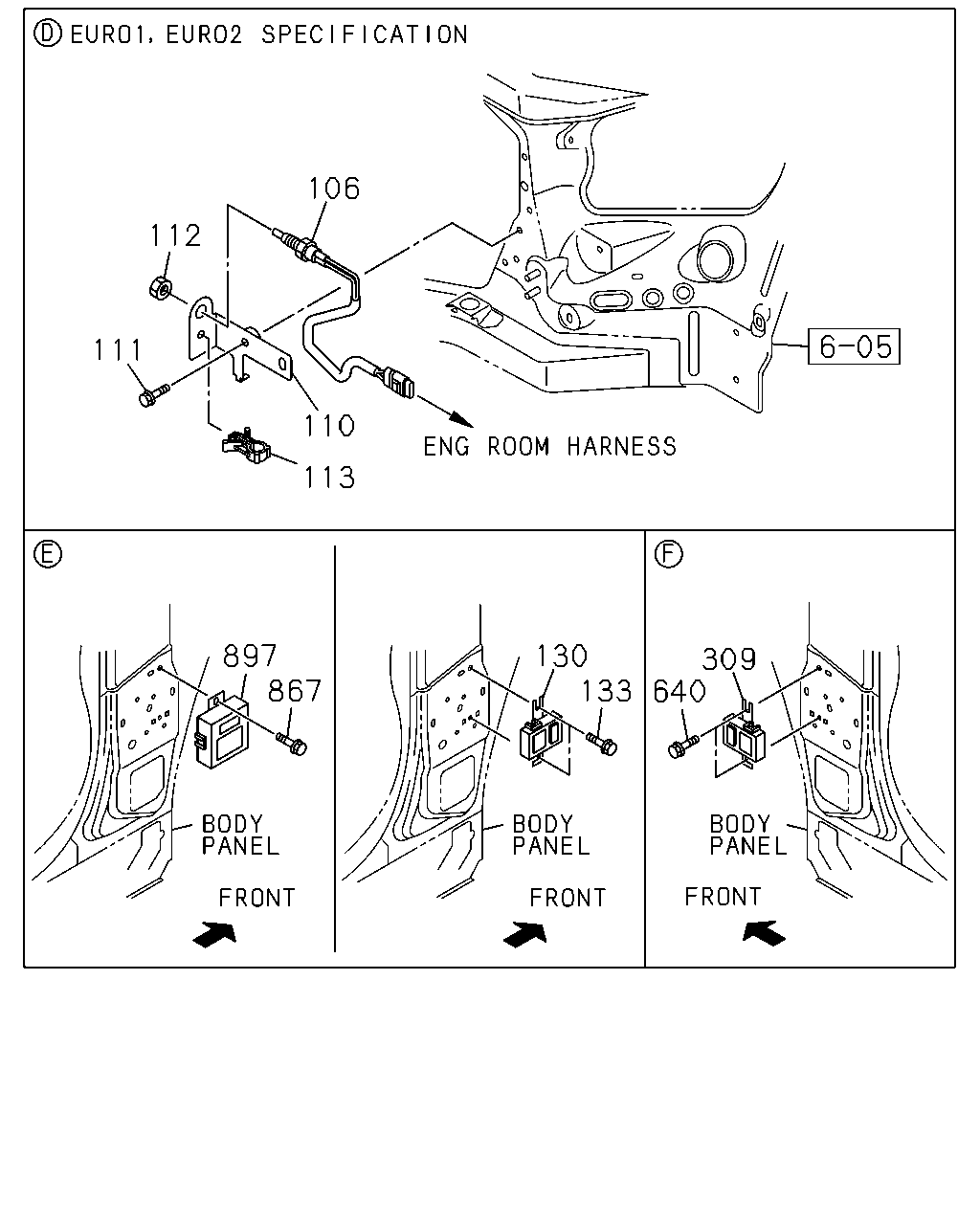

çizim 449787
112 110 111 113 309 130 133 640 897 867 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
106 01.150 SWITCH; THERMO,AIR
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97043-749-0 01 1 1409- ●
110 01.251 BRACKET; THERMO SW CONNECTOR
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98205-050-0 01 1 1409- ●
111 01.251 BOLT; SWITCH BRKT
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409- ●
112 01.251 NUT; SWITCH BRKT
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.785 M16 		0-91111-516-0 01 1 1409- ●
113 02.559 CLIP; THERMO SWITCH
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 04.785 ID=9.6 		8-94147-870-0 01 1 1409- ●
130 02.510 CONTROLLER; EGR
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98205-418-1 01 1 1409- ●
133 02.500 BOLT; EGR CONTROLLER
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1409- ●
309 02.510 TIMER; AFTER GLOW,QOS 8-97361-319-3 01 1 1409- ●
640 02.510 BOLT; BRKT,QOS GLOW TIMER
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1409- ●
867 02.559 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1409-1411 ● ●
867 02.559 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1412-1508 ● ● ●
867 02.559 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1509- ● ● ● ●
897 02.510 DRM 8-98221-054-4 01 1 1409-1411 ● ●
897 02.510 DRM 8-98221-054-4 01 1 1412-1508 ● ● ●
897 02.510 DRM 8-98221-054-4 01 1 1509- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
