Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#151738) — 574 parça

29 29 58 57 26 28 28 118 313 48 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	1409-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 (C) ID=11	5-09623-002-0	02	1	1409-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (A) ID=8.3 OD=15.0	8-98065-992-0	02	1	1409-1508		●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (A) ID=8.3 OD=15.0	8-98065-992-0	02	1	1509-		●	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1409-1508		●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1509-		●	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (D) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1409-1508		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (D) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1509-		●		●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1409-	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1409-1411	●	●	●		●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1412-1508	●	●	●		●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1509-	●	●	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1409-1411		●	●		●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1412-1508		●	●		●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1509-		●	●	●	●	●
48	01.531 CLIP; OIL PIPE ID=7 & 9 L=25	1-09701-228-3	01	1	1409-	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	1409-	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1409-1411		●	●		●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-2	01	1	1412-1508		●	●		●	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1509-		●	●	●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1409-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1409-1411		●	●		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1412-1508		●	●		●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1509-		●	●	●	●	●
118	01.531 BRACKET; CLIP,OIL PIPE	8-97350-307-2	01	1	1409-	●
219	01.531 BOLT; CLIP FIX,OIL PIPE 03.162 M6X35 FLANGE	0-28650-635-0	01	1	1409-	●
313	01.540 BOLT; PIPE BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1409-	●

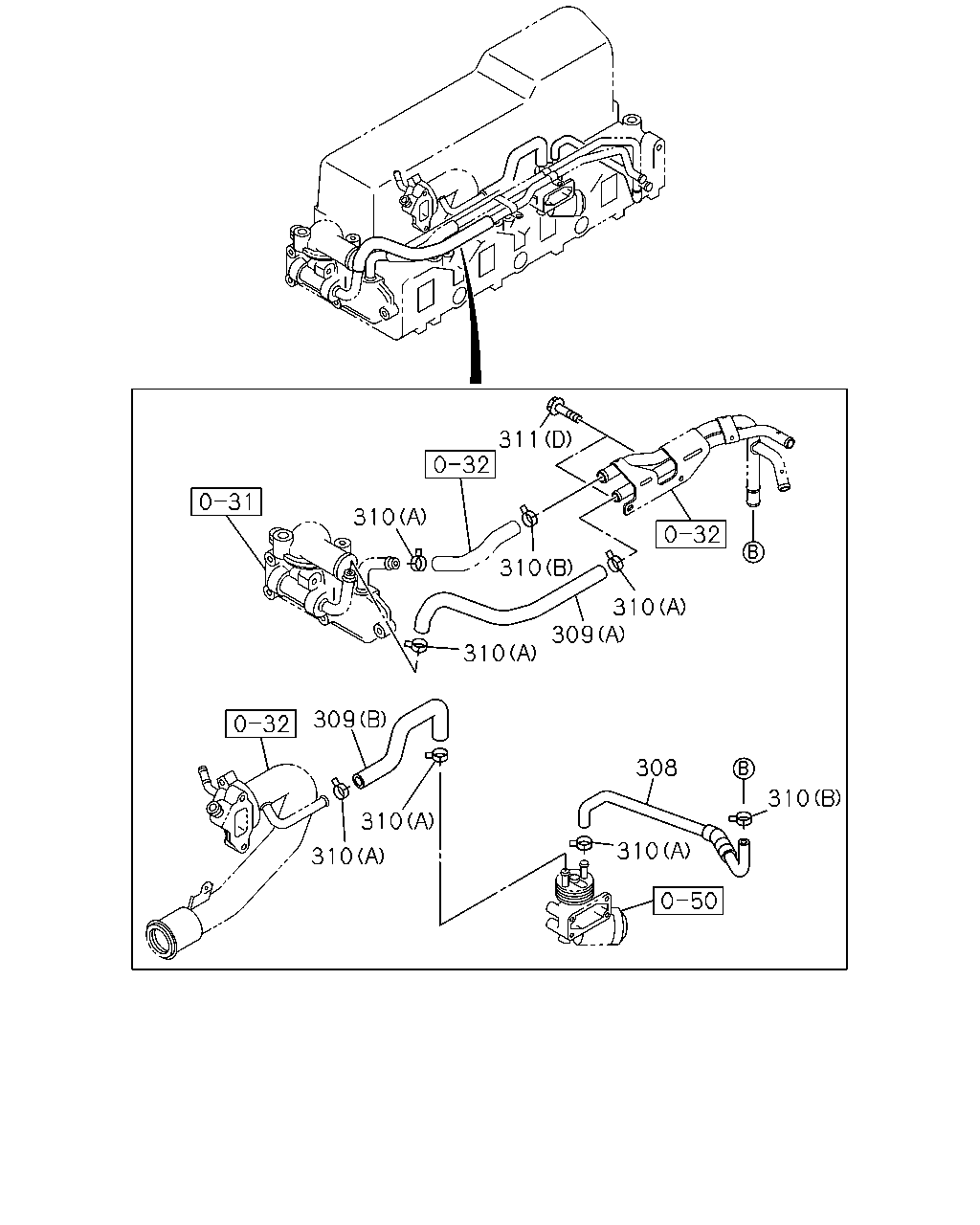

311 310 310 310 309 310 309 308 310 310 310 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
308	01.540 HOSE; OIL COOLER FEED	8-97362-329-3	01	1	1409-	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97213-919-2	01	1	1409-	●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-97256-047-1	01	1	1409-	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	1409-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	1409-	●
311	01.531 BOLT; PIPE FIX 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	1409-	●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1409-1411					●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1412-					●	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411			●		●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411			●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-			●		●	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-			●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1409-1508		●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1509-		●		●
311	01.531 BOLT; PIPE FIX 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	1409-			●

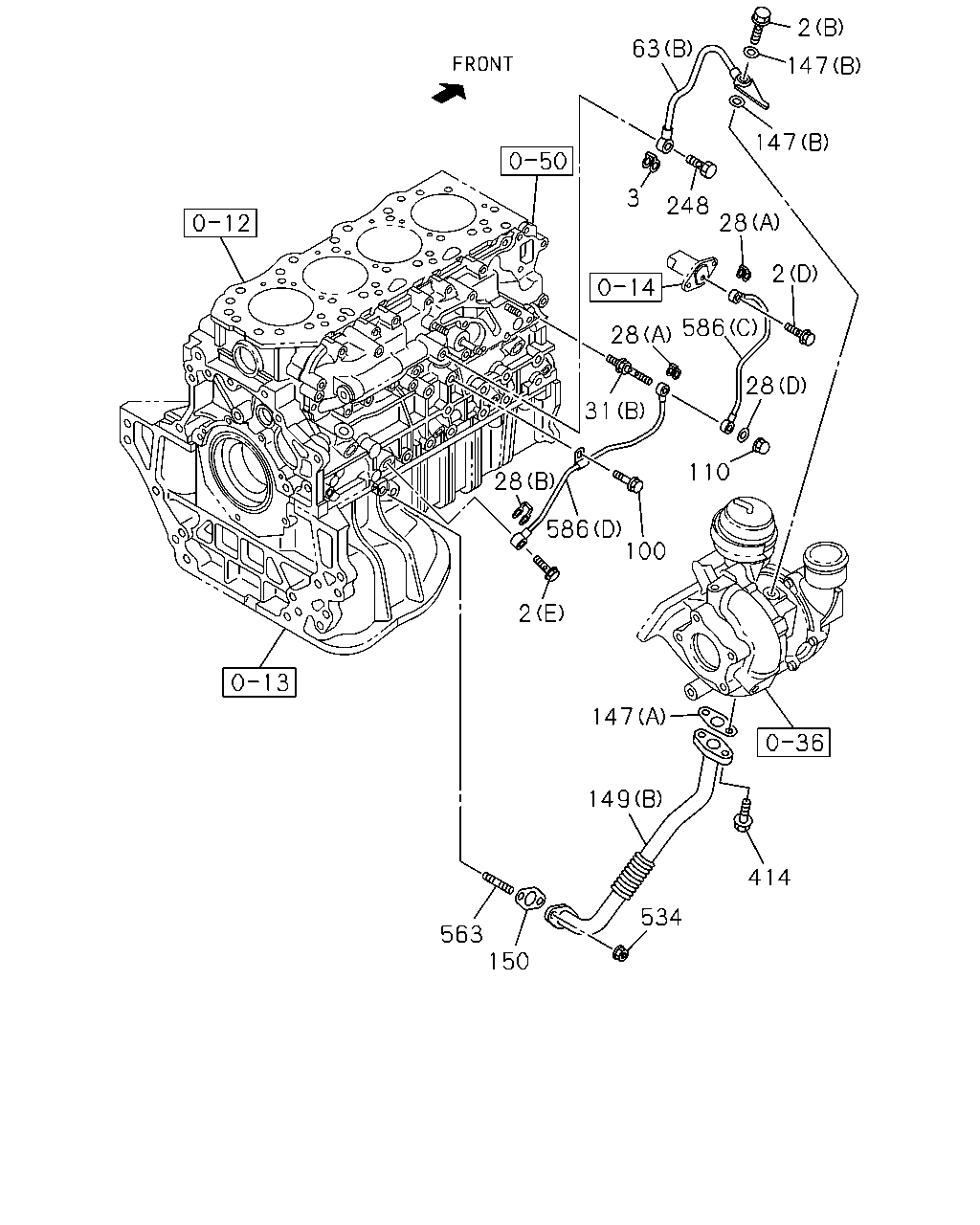

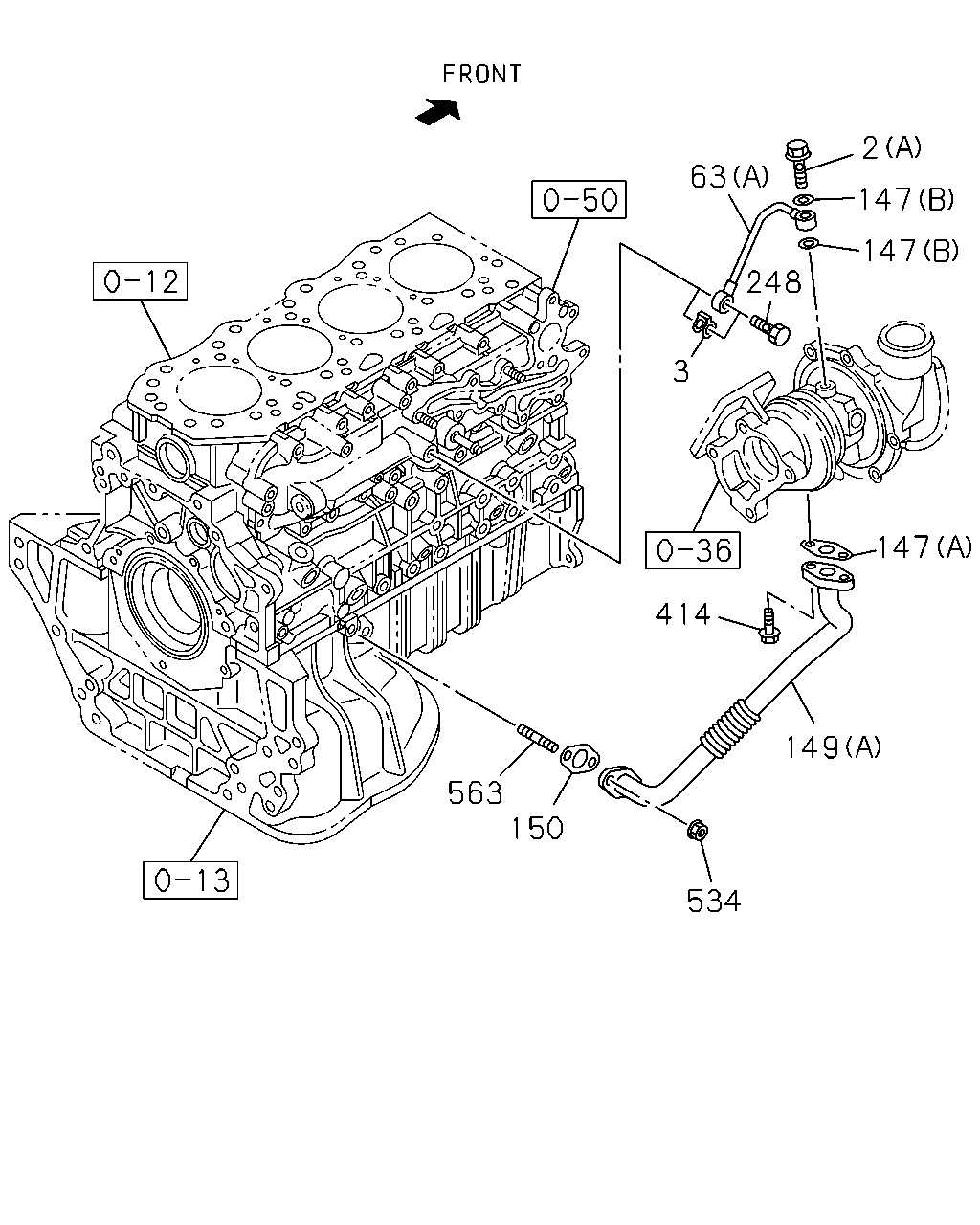

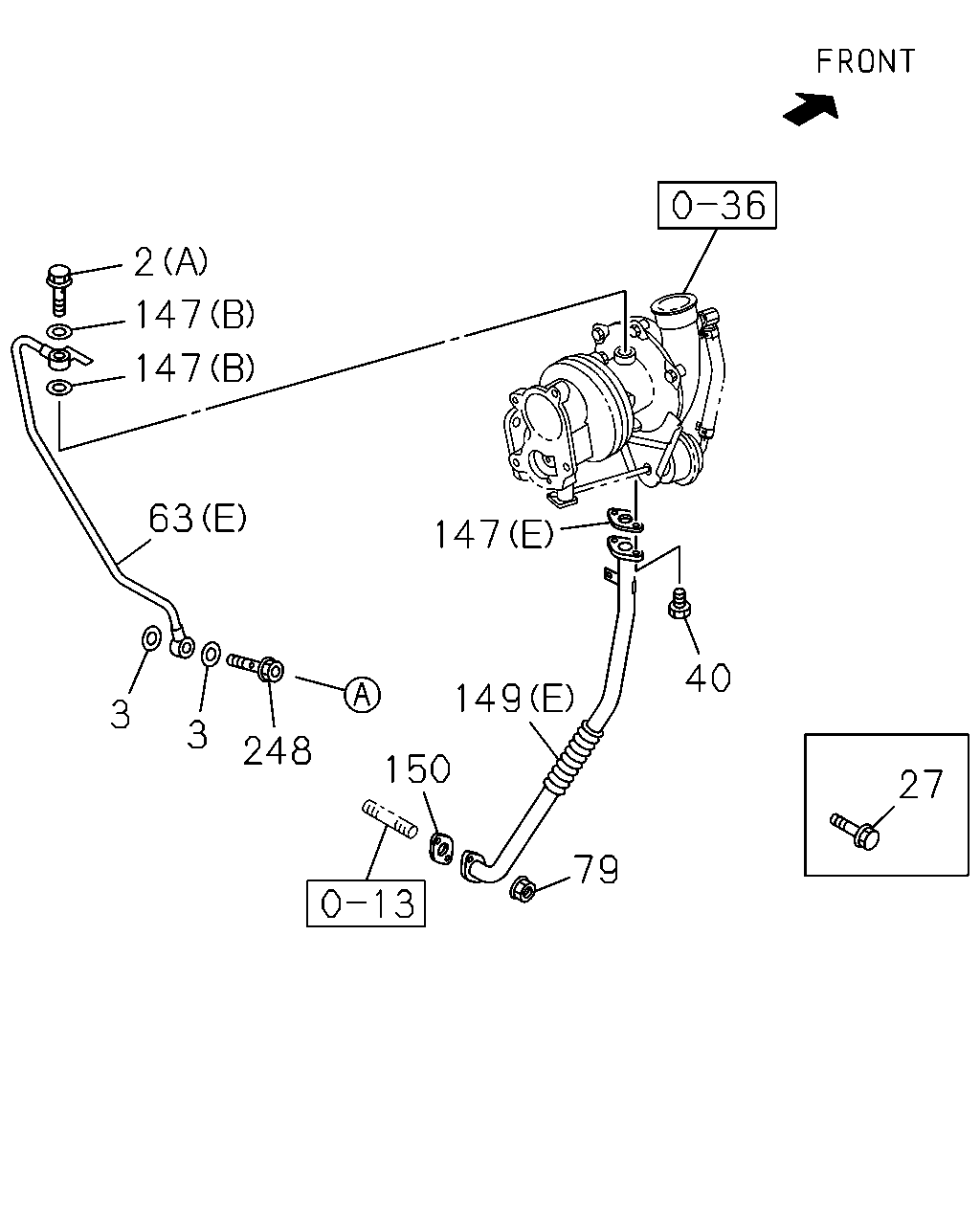

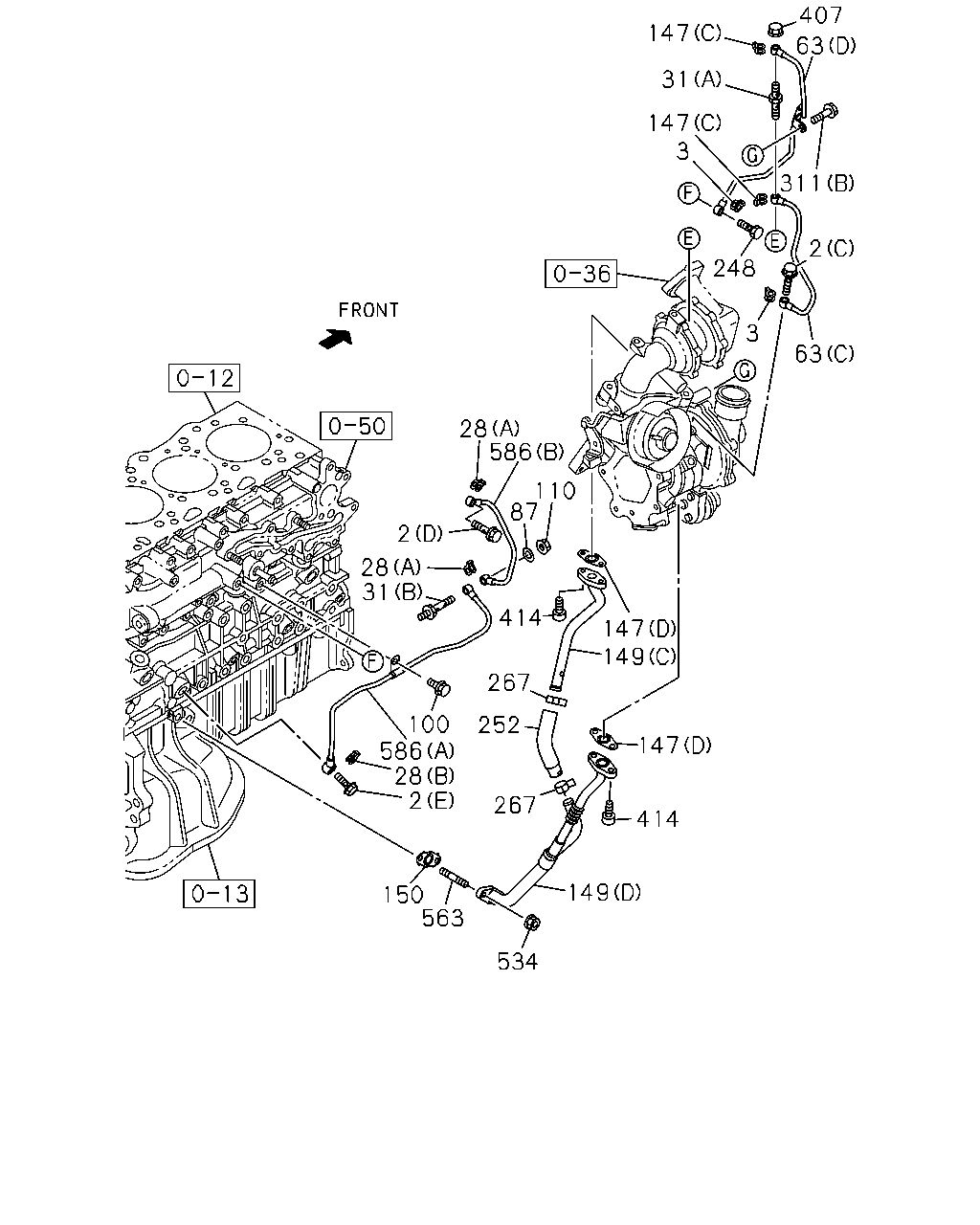

2 147 147 147 63 40 27 79 149 150 248 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	01.531 BOLT; EYE,OIL PIPE (A) M10X27 FLANGE	8-94443-535-0	01	1	1409-1411	●				●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X27 FLANGE	8-94443-535-0	01	1	1412-	●				●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M10X25 FLANGE	8-98151-063-1	01	1	1409-1508		●
2	01.531 BOLT; EYE,OIL PIPE (B) M10X25 FLANGE	8-98151-063-1	01	1	1509-		●		●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27	8-98186-729-0	01	1	1409-			●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M14X27 FLANGE	1-09675-086-0	01	1	1409-1508		●	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M14X27 FLANGE	1-09675-086-0	01	1	1509-		●	●	●
2	01.531 BOLT; EYE,OIL PIPE (D) M8X23 FLANGE	8-98108-689-0	01	1	1409-1508		●	●
2	01.531 BOLT; EYE,OIL PIPE (D) M8X23 FLANGE	8-98108-689-0	01	1	1509-		●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1409-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1409-1411		●			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1412-1508		●			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1509-		●		●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	02	1	1409-			●
27	01.531 BOLT; OIL PIPE FIX 03.407 M8X10 FLANGE	0-28050-810-0	01	1	1409-	●
40	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1409-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (E)	8-97350-308-0	01	1	1409-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98132-013-0	01	1	1409-1411					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98132-013-0	01	1	1412-					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-98132-014-1	01	1	1409-1508		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-98132-014-1	01	1	1509-		●		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (D)	8-98178-927-1	01	1	1409-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (C)	8-98178-928-0	01	1	1409-			●
79	01.531 NUT; OIL DRAIN PIPE 04.634 M8 FLANGE	8-97581-233-0	02	1	1409-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (E)	8-94362-672-1	01	1	1409-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1409-1411	●	●			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1412-1508	●	●			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1509-	●	●		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1409-1411		●			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1412-1508		●			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1509-		●		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=16	8-98029-475-0	02	1	1409-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1409-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (A)	8-98189-782-0	01	1	1412-						●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (E)	8-97333-749-1	01	1	1409-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (A)	8-98219-824-0	01	1	1409-					●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-98156-381-0	01	1	1409-1508		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-98156-381-0	01	1	1509-		●		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (D)	8-98151-189-0	01	1	1409-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (C)	8-98151-190-2	01	1	1409-			●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	1409-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1409-1411		●	●		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1412-1508		●	●		●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1509-		●	●	●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	1409-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1409-1411		●			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1412-1508		●			●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1509-		●		●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M10X24	8-98178-353-1	01	1	1409-			●

331 330 331 47 47 332 47 44 46 47 47 567 458

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
44	01.531 BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	1409-	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 FLANGE	8-98137-710-0	01	1	1409-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1409-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1409-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1409-	●
330	03.278 HOSE; VAC PUMP,RETURN	8-98189-794-0	01	1	1409-	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	01	1	1409-	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	01	1	1409-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97942-810-0	01	1	1409-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	1409-1411			●		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	1412-			●		●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1409-1508		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1509-		●		●
458	01.426 CAP; RUBBER HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 01.780 ID=4	8-94217-809-0	01	1	1409-	●
567	01.531 CLIP; PIPE HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 03.145 ID=8	8-94107-762-0	01	1	1409-	●

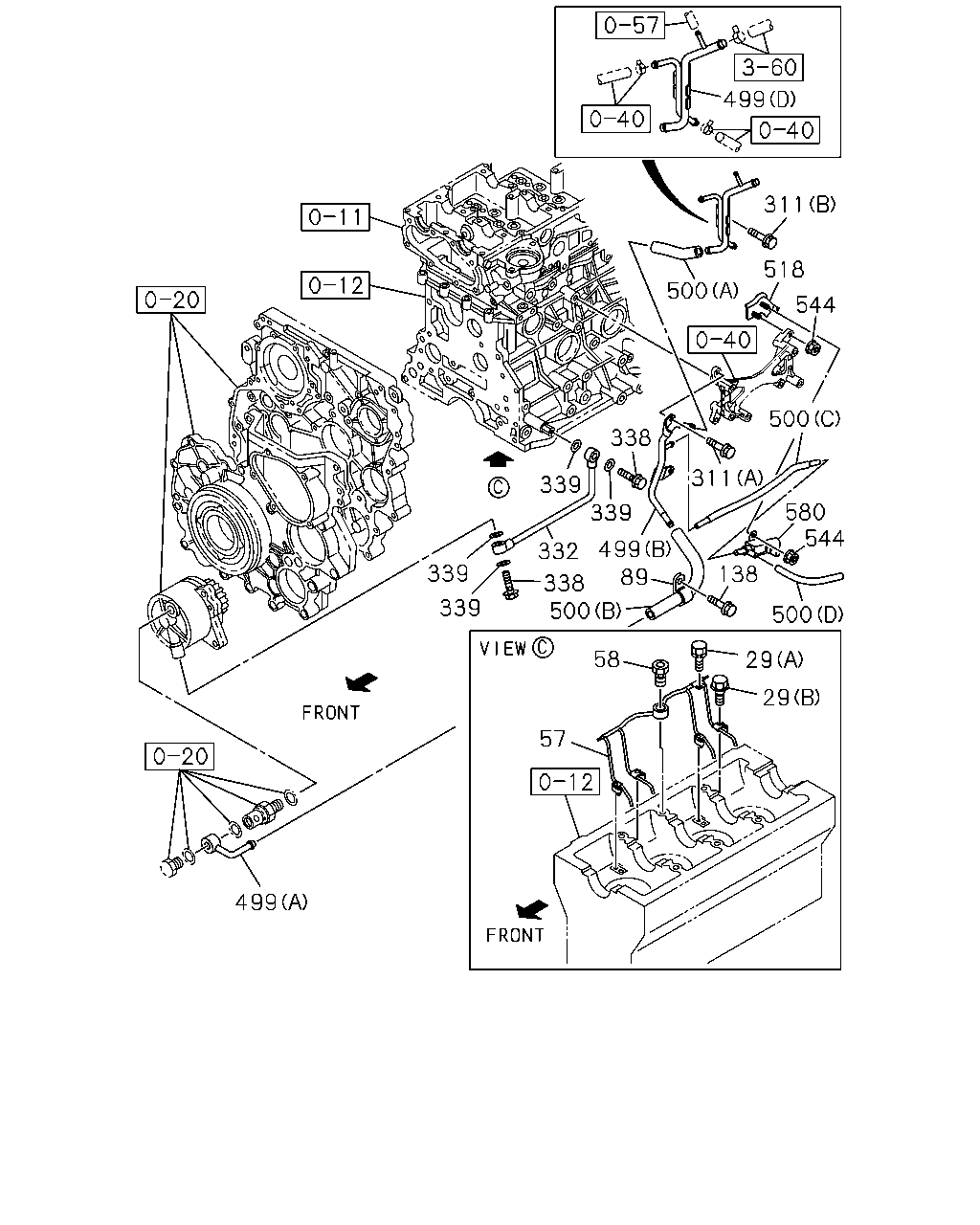

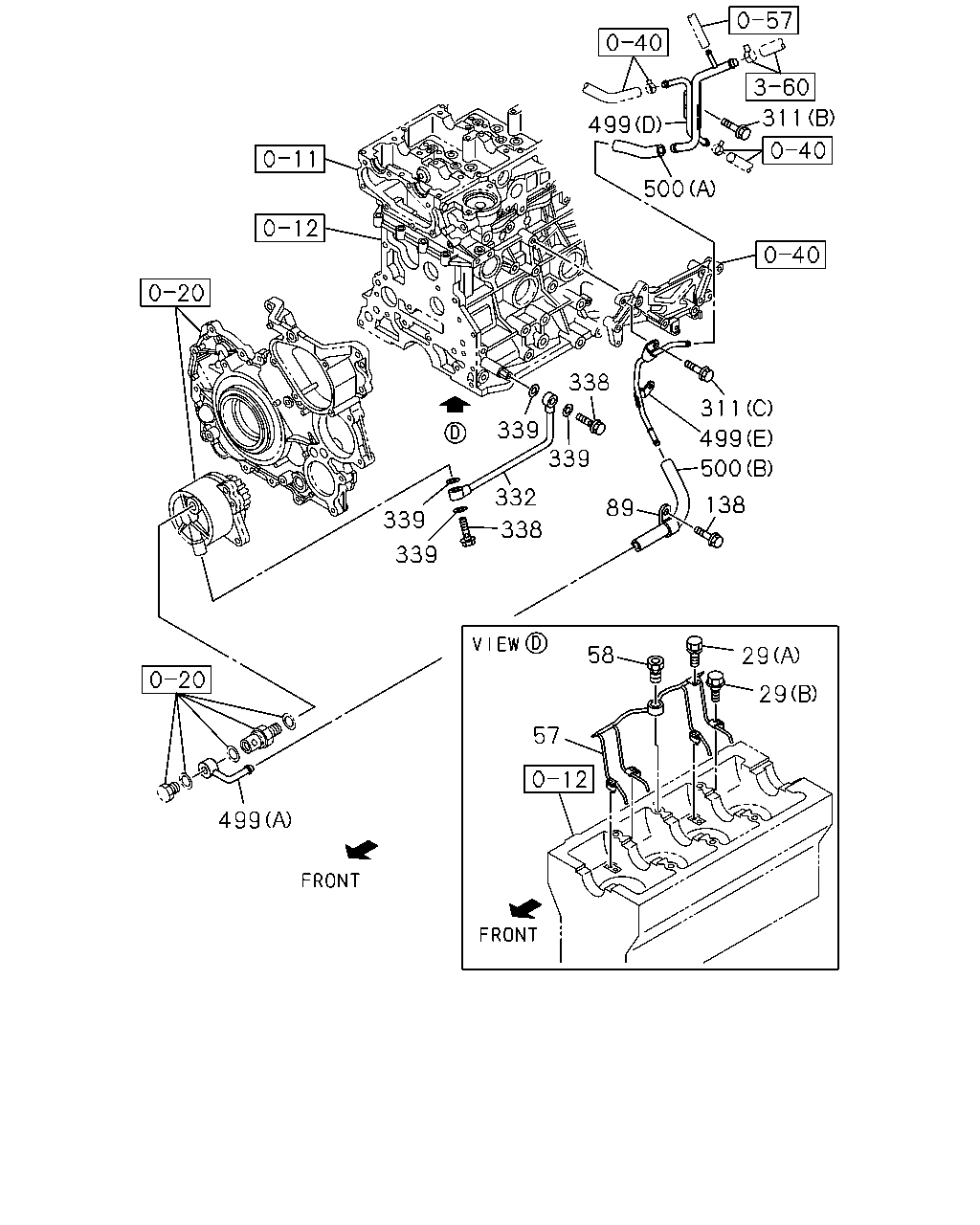

311 518 500 544 500 311 580 544 500 138 338 339 339 499 332 338 339 339 500 58 29 29 57 499 499 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1409-	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1409-1411	●	●	●		●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1412-1508	●	●	●		●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1509-	●	●	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1409-1411		●	●		●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1412-1508		●	●		●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1509-		●	●	●	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	1409-	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1409-1411		●	●		●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-2	01	1	1412-1508		●	●		●	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1509-		●	●	●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1409-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1409-1411		●	●		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1412-1508		●	●		●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1509-		●	●	●	●	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1409-1411		●	●		●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1412-1508		●	●		●	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1509-		●	●	●	●	●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1409-1411		●	●		●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1412-1508		●	●		●	●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-		●	●	●	●	●
311	01.531 BOLT; PIPE FIX 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	1409-	●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1409-1411					●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1412-					●	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411			●		●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411			●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-			●		●	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-			●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1409-1508		●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1509-		●		●
311	01.531 BOLT; PIPE FIX 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	1409-			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97942-810-0	01	1	1409-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	1409-1411			●		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	1412-			●		●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1409-1508		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1509-		●		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1409-1411		●	●		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1412-1508		●	●		●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1509-		●	●	●	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1409-1411		●	●		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1412-1508		●	●		●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1509-		●	●	●	●	●
499	04.681 PIPE; VACUUM EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-98187-442-0	01	1	1412-						●
499	04.681 PIPE; VACUUM (C)	8-98132-059-3	01	1	1412-						●
499	04.681 PIPE; VACUUM EMISSION SYSTEM R15-04<K75> (C)	8-98258-938-0	01	1	1409-1508		●
499	04.681 PIPE; VACUUM EMISSION SYSTEM R15-04<K75> (C)	8-98258-938-0	01	1	1509-		●		●
499	04.681 PIPE; VACUUM (B)	8-98132-057-0	01	1	1409-1411					●
499	04.681 PIPE; VACUUM (B)	8-98132-057-0	01	1	1412-					●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION<NT2> (B)	8-98132-057-0	01	1	1412-						●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1409-1411		●	●		●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1412-1508		●	●		●	●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1509-		●	●	●	●	●
499	04.681 PIPE; VACUUM (D)	8-98132-058-2	01	1	1409-1508		●	●		●
499	04.681 PIPE; VACUUM (D)	8-98132-058-2	01	1	1509-		●	●	●	●
499	04.681 PIPE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (F)	8-98228-436-0	01	1	1409-1508		●
499	04.681 PIPE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (F)	8-98228-436-0	01	1	1509-		●		●
499	04.681 PIPE; VACUUM (E)	8-98172-379-0	01	1	1409-			●
500	04.681 HOSE; VACUUM 03.675 (D)	8-97369-589-0	01	1	1409-1411					●
500	04.681 HOSE; VACUUM 03.675 (D)	8-97369-589-0	01	1	1412-					●
500	04.681 HOSE; VACUUM EURO2 SPECIFICATION<NT2> 03.675 (D)	8-97369-589-0	01	1	1412-						●
500	04.681 HOSE; VACUUM (C)	8-98136-853-0	01	1	1409-1411					●
500	04.681 HOSE; VACUUM (C)	8-98136-853-0	01	1	1412-					●
500	04.681 HOSE; VACUUM EURO2 SPECIFICATION<NT2> (C)	8-98136-853-0	01	1	1412-						●
500	04.681 HOSE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (E)	8-98228-430-0	01	1	1409-1508		●
500	04.681 HOSE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (E)	8-98228-430-0	01	1	1509-		●		●
500	04.681 HOSE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (F)	8-98228-438-0	01	1	1409-1508		●
500	04.681 HOSE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (F)	8-98228-438-0	01	1	1509-		●		●
500	04.681 HOSE; VACUUM (B)	0-08508-230-0	01	1	1409-1411			●		●
500	04.681 HOSE; VACUUM (B)	0-08508-230-0	01	1	1412-			●		●	●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1409-1411		●	●		●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1412-1508		●	●		●	●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1509-		●	●	●	●	●
500	04.681 HOSE; VACUUM (C)	8-98228-437-0	01	1	1409-1508		●
500	04.681 HOSE; VACUUM (C)	8-98228-437-0	01	1	1509-		●		●
518	01.531 BRACKET; VSV	8-98132-061-1	01	1	1409-1411					●
518	01.531 BRACKET; VSV	8-98132-061-1	01	1	1412-					●
518	01.531 BRACKET; VSV EURO2 SPECIFICATION<NT2>	8-98132-061-1	01	1	1412-						●
544	01.540 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1409-1411					●
544	01.540 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1412-					●
544	01.540 NUT; BRKT EURO2 SPECIFICATION<NT2> 01.062 M8 FLANGE	0-91180-108-0	02	1	1412-						●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	1409-1411					●
580	01.531 VALVE; VAC SW EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 03.670	8-97352-145-0	01	1	1409-1411		●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	1412-1508					●
580	01.531 VALVE; VAC SW EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 03.670	8-97352-145-0	01	1	1412-1508		●
580	01.531 VALVE; VAC SW EURO2 SPECIFICATION<NT2> 03.670	8-97352-145-0	01	1	1412-1508						●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	1509-				●	●
580	01.531 VALVE; VAC SW EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 03.670	8-97352-145-0	01	1	1509-		●
580	01.531 VALVE; VAC SW EURO2 SPECIFICATION<NT2> 03.670	8-97352-145-0	01	1	1509-						●

563 150 534 414 3 248 63 2 147 147 147 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	01.531 BOLT; EYE,OIL PIPE (A) M10X27 FLANGE	8-94443-535-0	01	1	1409-1411	●				●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X27 FLANGE	8-94443-535-0	01	1	1412-	●				●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M10X25 FLANGE	8-98151-063-1	01	1	1409-1508		●
2	01.531 BOLT; EYE,OIL PIPE (B) M10X25 FLANGE	8-98151-063-1	01	1	1509-		●		●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27	8-98186-729-0	01	1	1409-			●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M14X27 FLANGE	1-09675-086-0	01	1	1409-1508		●	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M14X27 FLANGE	1-09675-086-0	01	1	1509-		●	●	●
2	01.531 BOLT; EYE,OIL PIPE (D) M8X23 FLANGE	8-98108-689-0	01	1	1409-1508		●	●
2	01.531 BOLT; EYE,OIL PIPE (D) M8X23 FLANGE	8-98108-689-0	01	1	1509-		●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1409-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1409-1411		●			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1412-1508		●			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1509-		●		●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	02	1	1409-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (E)	8-97350-308-0	01	1	1409-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98132-013-0	01	1	1409-1411					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98132-013-0	01	1	1412-					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-98132-014-1	01	1	1409-1508		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-98132-014-1	01	1	1509-		●		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (D)	8-98178-927-1	01	1	1409-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (C)	8-98178-928-0	01	1	1409-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (E)	8-94362-672-1	01	1	1409-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1409-1411	●	●			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1412-1508	●	●			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1509-	●	●		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1409-1411		●			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1412-1508		●			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1509-		●		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=16	8-98029-475-0	02	1	1409-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1409-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (A)	8-98189-782-0	01	1	1412-						●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (E)	8-97333-749-1	01	1	1409-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (A)	8-98219-824-0	01	1	1409-					●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-98156-381-0	01	1	1409-1508		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-98156-381-0	01	1	1509-		●		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (D)	8-98151-189-0	01	1	1409-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (C)	8-98151-190-2	01	1	1409-			●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	1409-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1409-1411		●	●		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1412-1508		●	●		●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1509-		●	●	●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	1409-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1409-1411		●			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1412-1508		●			●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1509-		●		●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M10X24	8-98178-353-1	01	1	1409-			●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1409-1411		●			●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1412-1508		●			●	●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1509-		●		●	●	●
414	01.531 BOLT; OIL PIPE 00.724 M6X16 HEX SOCKET	0-58330-616-0	04	1	1409-			●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1409-1411		●	●		●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1508		●	●		●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-		●	●	●	●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1409-1411		●	●		●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1412-1508		●	●		●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1509-		●	●	●	●	●

500 311 580 581 500 339 339 338 332 338 500 339 339 57 58 29 29 499 311 311 499 138 89 500 499 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1409-	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1409-1411	●	●	●		●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1412-1508	●	●	●		●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1509-	●	●	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1409-1411		●	●		●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1412-1508		●	●		●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1509-		●	●	●	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	1409-	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1409-1411		●	●		●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-2	01	1	1412-1508		●	●		●	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1509-		●	●	●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1409-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1409-1411		●	●		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1412-1508		●	●		●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1509-		●	●	●	●	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1409-1411		●	●		●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1412-1508		●	●		●	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1509-		●	●	●	●	●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1409-1411		●	●		●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1412-1508		●	●		●	●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-		●	●	●	●	●
311	01.531 BOLT; PIPE FIX 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	1409-	●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1409-1411					●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1412-					●	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411			●		●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411			●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-			●		●	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-			●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1409-1508		●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1509-		●		●
311	01.531 BOLT; PIPE FIX 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	1409-			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97942-810-0	01	1	1409-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	1409-1411			●		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	1412-			●		●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1409-1508		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1509-		●		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1409-1411		●	●		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1412-1508		●	●		●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1509-		●	●	●	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1409-1411		●	●		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1412-1508		●	●		●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1509-		●	●	●	●	●
499	04.681 PIPE; VACUUM EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-98187-442-0	01	1	1412-						●
499	04.681 PIPE; VACUUM (C)	8-98132-059-3	01	1	1412-						●
499	04.681 PIPE; VACUUM EMISSION SYSTEM R15-04<K75> (C)	8-98258-938-0	01	1	1409-1508		●
499	04.681 PIPE; VACUUM EMISSION SYSTEM R15-04<K75> (C)	8-98258-938-0	01	1	1509-		●		●
499	04.681 PIPE; VACUUM (B)	8-98132-057-0	01	1	1409-1411					●
499	04.681 PIPE; VACUUM (B)	8-98132-057-0	01	1	1412-					●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION<NT2> (B)	8-98132-057-0	01	1	1412-						●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1409-1411		●	●		●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1412-1508		●	●		●	●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1509-		●	●	●	●	●
499	04.681 PIPE; VACUUM (D)	8-98132-058-2	01	1	1409-1508		●	●		●
499	04.681 PIPE; VACUUM (D)	8-98132-058-2	01	1	1509-		●	●	●	●
499	04.681 PIPE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (F)	8-98228-436-0	01	1	1409-1508		●
499	04.681 PIPE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (F)	8-98228-436-0	01	1	1509-		●		●
499	04.681 PIPE; VACUUM (E)	8-98172-379-0	01	1	1409-			●
500	04.681 HOSE; VACUUM 03.675 (D)	8-97369-589-0	01	1	1409-1411					●
500	04.681 HOSE; VACUUM 03.675 (D)	8-97369-589-0	01	1	1412-					●
500	04.681 HOSE; VACUUM EURO2 SPECIFICATION<NT2> 03.675 (D)	8-97369-589-0	01	1	1412-						●
500	04.681 HOSE; VACUUM (C)	8-98136-853-0	01	1	1409-1411					●
500	04.681 HOSE; VACUUM (C)	8-98136-853-0	01	1	1412-					●
500	04.681 HOSE; VACUUM EURO2 SPECIFICATION<NT2> (C)	8-98136-853-0	01	1	1412-						●
500	04.681 HOSE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (E)	8-98228-430-0	01	1	1409-1508		●
500	04.681 HOSE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (E)	8-98228-430-0	01	1	1509-		●		●
500	04.681 HOSE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (F)	8-98228-438-0	01	1	1409-1508		●
500	04.681 HOSE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (F)	8-98228-438-0	01	1	1509-		●		●
500	04.681 HOSE; VACUUM (B)	0-08508-230-0	01	1	1409-1411			●		●
500	04.681 HOSE; VACUUM (B)	0-08508-230-0	01	1	1412-			●		●	●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1409-1411		●	●		●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1412-1508		●	●		●	●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1509-		●	●	●	●	●
500	04.681 HOSE; VACUUM (C)	8-98228-437-0	01	1	1409-1508		●
500	04.681 HOSE; VACUUM (C)	8-98228-437-0	01	1	1509-		●		●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	1409-1411					●
580	01.531 VALVE; VAC SW EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 03.670	8-97352-145-0	01	1	1409-1411		●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	1412-1508					●
580	01.531 VALVE; VAC SW EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 03.670	8-97352-145-0	01	1	1412-1508		●
580	01.531 VALVE; VAC SW EURO2 SPECIFICATION<NT2> 03.670	8-97352-145-0	01	1	1412-1508						●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	1509-				●	●
580	01.531 VALVE; VAC SW EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 03.670	8-97352-145-0	01	1	1509-		●
580	01.531 VALVE; VAC SW EURO2 SPECIFICATION<NT2> 03.670	8-97352-145-0	01	1	1509-						●
581	01.531 BOLT; VSV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1409-1508		●
581	01.531 BOLT; VSV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-		●		●

63 2 147 3 248 28 2 586 28 31 28 110 28 586 100 2 147 149 414 534 150 563 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	01.531 BOLT; EYE,OIL PIPE (A) M10X27 FLANGE	8-94443-535-0	01	1	1409-1411	●				●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X27 FLANGE	8-94443-535-0	01	1	1412-	●				●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M10X25 FLANGE	8-98151-063-1	01	1	1409-1508		●
2	01.531 BOLT; EYE,OIL PIPE (B) M10X25 FLANGE	8-98151-063-1	01	1	1509-		●		●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27	8-98186-729-0	01	1	1409-			●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M14X27 FLANGE	1-09675-086-0	01	1	1409-1508		●	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M14X27 FLANGE	1-09675-086-0	01	1	1509-		●	●	●
2	01.531 BOLT; EYE,OIL PIPE (D) M8X23 FLANGE	8-98108-689-0	01	1	1409-1508		●	●
2	01.531 BOLT; EYE,OIL PIPE (D) M8X23 FLANGE	8-98108-689-0	01	1	1509-		●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1409-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1409-1411		●			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1412-1508		●			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1509-		●		●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	02	1	1409-			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 (C) ID=11	5-09623-002-0	02	1	1409-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (A) ID=8.3 OD=15.0	8-98065-992-0	02	1	1409-1508		●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (A) ID=8.3 OD=15.0	8-98065-992-0	02	1	1509-		●	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1409-1508		●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1509-		●	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (D) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1409-1508		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (D) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1509-		●		●
31	01.540 NIPPLE; OIL PIPE (A)	8-98178-328-2	01	1	1409-			●
31	01.540 NIPPLE; OIL PIPE (B)	8-98186-104-0	01	1	1409-1508		●	●
31	01.540 NIPPLE; OIL PIPE (B)	8-98186-104-0	01	1	1509-		●	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (E)	8-97350-308-0	01	1	1409-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98132-013-0	01	1	1409-1411					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98132-013-0	01	1	1412-					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-98132-014-1	01	1	1409-1508		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-98132-014-1	01	1	1509-		●		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (D)	8-98178-927-1	01	1	1409-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (C)	8-98178-928-0	01	1	1409-			●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1409-1508		●	●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-		●	●	●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1409-1508		●	●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1509-		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (E)	8-94362-672-1	01	1	1409-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1409-1411	●	●			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1412-1508	●	●			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1509-	●	●		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1409-1411		●			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1412-1508		●			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1509-		●		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=16	8-98029-475-0	02	1	1409-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1409-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (A)	8-98189-782-0	01	1	1412-						●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (E)	8-97333-749-1	01	1	1409-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (A)	8-98219-824-0	01	1	1409-					●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-98156-381-0	01	1	1409-1508		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-98156-381-0	01	1	1509-		●		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (D)	8-98151-189-0	01	1	1409-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (C)	8-98151-190-2	01	1	1409-			●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	1409-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1409-1411		●	●		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1412-1508		●	●		●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1509-		●	●	●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	1409-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1409-1411		●			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1412-1508		●			●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1509-		●		●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M10X24	8-98178-353-1	01	1	1409-			●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1409-1411		●			●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1412-1508		●			●	●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1509-		●		●	●	●
414	01.531 BOLT; OIL PIPE 00.724 M6X16 HEX SOCKET	0-58330-616-0	04	1	1409-			●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1409-1411		●	●		●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1508		●	●		●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-		●	●	●	●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1409-1411		●	●		●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1412-1508		●	●		●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1509-		●	●	●	●	●
586	01.519 PIPE; OIL,TENSIONER (D)	8-98228-274-0	01	1	1409-1508		●
586	01.519 PIPE; OIL,TENSIONER (D)	8-98228-274-0	01	1	1509-		●		●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98186-102-2	01	1	1409-			●
586	01.519 PIPE; OIL,TENSIONER (C)	8-98251-165-0	01	1	1409-1508		●
586	01.519 PIPE; OIL,TENSIONER (C)	8-98251-165-0	01	1	1509-		●		●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98186-103-2	01	1	1409-			●

499 500 311 338 339 332 338 339 339 339 89 138 500 499 311 499 58 29 29 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1409-	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1409-1411	●	●	●		●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1412-1508	●	●	●		●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1509-	●	●	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1409-1411		●	●		●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1412-1508		●	●		●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1509-		●	●	●	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	1409-	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1409-1411		●	●		●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-2	01	1	1412-1508		●	●		●	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1509-		●	●	●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1409-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1409-1411		●	●		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1412-1508		●	●		●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1509-		●	●	●	●	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1409-1411		●	●		●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1412-1508		●	●		●	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1509-		●	●	●	●	●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1409-1411		●	●		●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1412-1508		●	●		●	●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-		●	●	●	●	●
311	01.531 BOLT; PIPE FIX 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	1409-	●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1409-1411					●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1412-					●	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411			●		●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411			●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-			●		●	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-			●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1409-1508		●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1509-		●		●
311	01.531 BOLT; PIPE FIX 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	1409-			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97942-810-0	01	1	1409-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	1409-1411			●		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	1412-			●		●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1409-1508		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1509-		●		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1409-1411		●	●		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1412-1508		●	●		●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1509-		●	●	●	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1409-1411		●	●		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1412-1508		●	●		●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1509-		●	●	●	●	●
499	04.681 PIPE; VACUUM EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-98187-442-0	01	1	1412-						●
499	04.681 PIPE; VACUUM (C)	8-98132-059-3	01	1	1412-						●
499	04.681 PIPE; VACUUM EMISSION SYSTEM R15-04<K75> (C)	8-98258-938-0	01	1	1409-1508		●
499	04.681 PIPE; VACUUM EMISSION SYSTEM R15-04<K75> (C)	8-98258-938-0	01	1	1509-		●		●
499	04.681 PIPE; VACUUM (B)	8-98132-057-0	01	1	1409-1411					●
499	04.681 PIPE; VACUUM (B)	8-98132-057-0	01	1	1412-					●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION<NT2> (B)	8-98132-057-0	01	1	1412-						●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1409-1411		●	●		●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1412-1508		●	●		●	●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1509-		●	●	●	●	●
499	04.681 PIPE; VACUUM (D)	8-98132-058-2	01	1	1409-1508		●	●		●
499	04.681 PIPE; VACUUM (D)	8-98132-058-2	01	1	1509-		●	●	●	●
499	04.681 PIPE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (F)	8-98228-436-0	01	1	1409-1508		●
499	04.681 PIPE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (F)	8-98228-436-0	01	1	1509-		●		●
499	04.681 PIPE; VACUUM (E)	8-98172-379-0	01	1	1409-			●
500	04.681 HOSE; VACUUM 03.675 (D)	8-97369-589-0	01	1	1409-1411					●
500	04.681 HOSE; VACUUM 03.675 (D)	8-97369-589-0	01	1	1412-					●
500	04.681 HOSE; VACUUM EURO2 SPECIFICATION<NT2> 03.675 (D)	8-97369-589-0	01	1	1412-						●
500	04.681 HOSE; VACUUM (C)	8-98136-853-0	01	1	1409-1411					●
500	04.681 HOSE; VACUUM (C)	8-98136-853-0	01	1	1412-					●
500	04.681 HOSE; VACUUM EURO2 SPECIFICATION<NT2> (C)	8-98136-853-0	01	1	1412-						●
500	04.681 HOSE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (E)	8-98228-430-0	01	1	1409-1508		●
500	04.681 HOSE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (E)	8-98228-430-0	01	1	1509-		●		●
500	04.681 HOSE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (F)	8-98228-438-0	01	1	1409-1508		●
500	04.681 HOSE; VACUUM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (F)	8-98228-438-0	01	1	1509-		●		●
500	04.681 HOSE; VACUUM (B)	0-08508-230-0	01	1	1409-1411			●		●
500	04.681 HOSE; VACUUM (B)	0-08508-230-0	01	1	1412-			●		●	●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1409-1411		●	●		●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1412-1508		●	●		●	●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1509-		●	●	●	●	●
500	04.681 HOSE; VACUUM (C)	8-98228-437-0	01	1	1409-1508		●
500	04.681 HOSE; VACUUM (C)	8-98228-437-0	01	1	1509-		●		●

407 63 147 31 147 3 311 248 2 3 63 28 586 87 110 2 28 31 414 147 149 147 414 149 534 563 150 2 267 252 267 100 586 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	01.531 BOLT; EYE,OIL PIPE (A) M10X27 FLANGE	8-94443-535-0	01	1	1409-1411	●				●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X27 FLANGE	8-94443-535-0	01	1	1412-	●				●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M10X25 FLANGE	8-98151-063-1	01	1	1409-1508		●
2	01.531 BOLT; EYE,OIL PIPE (B) M10X25 FLANGE	8-98151-063-1	01	1	1509-		●		●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27	8-98186-729-0	01	1	1409-			●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M14X27 FLANGE	1-09675-086-0	01	1	1409-1508		●	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M14X27 FLANGE	1-09675-086-0	01	1	1509-		●	●	●
2	01.531 BOLT; EYE,OIL PIPE (D) M8X23 FLANGE	8-98108-689-0	01	1	1409-1508		●	●
2	01.531 BOLT; EYE,OIL PIPE (D) M8X23 FLANGE	8-98108-689-0	01	1	1509-		●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1409-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1409-1411		●			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1412-1508		●			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1509-		●		●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	02	1	1409-			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 (C) ID=11	5-09623-002-0	02	1	1409-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (A) ID=8.3 OD=15.0	8-98065-992-0	02	1	1409-1508		●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (A) ID=8.3 OD=15.0	8-98065-992-0	02	1	1509-		●	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1409-1508		●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1509-		●	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (D) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1409-1508		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (D) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1509-		●		●
31	01.540 NIPPLE; OIL PIPE (A)	8-98178-328-2	01	1	1409-			●
31	01.540 NIPPLE; OIL PIPE (B)	8-98186-104-0	01	1	1409-1508		●	●
31	01.540 NIPPLE; OIL PIPE (B)	8-98186-104-0	01	1	1509-		●	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (E)	8-97350-308-0	01	1	1409-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98132-013-0	01	1	1409-1411					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98132-013-0	01	1	1412-					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-98132-014-1	01	1	1409-1508		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-98132-014-1	01	1	1509-		●		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (D)	8-98178-927-1	01	1	1409-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (C)	8-98178-928-0	01	1	1409-			●
87	01.531 GASKET; JOINT BOLT 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1409-			●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1409-1508		●	●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-		●	●	●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1409-1508		●	●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1509-		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (E)	8-94362-672-1	01	1	1409-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1409-1411	●	●			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1412-1508	●	●			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1509-	●	●		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1409-1411		●			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1412-1508		●			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1509-		●		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=16	8-98029-475-0	02	1	1409-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1409-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (A)	8-98189-782-0	01	1	1412-						●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (E)	8-97333-749-1	01	1	1409-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (A)	8-98219-824-0	01	1	1409-					●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-98156-381-0	01	1	1409-1508		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-98156-381-0	01	1	1509-		●		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (D)	8-98151-189-0	01	1	1409-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (C)	8-98151-190-2	01	1	1409-			●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	1409-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1409-1411		●	●		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1412-1508		●	●		●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1509-		●	●	●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	1409-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1409-1411		●			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1412-1508		●			●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1509-		●		●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M10X24	8-98178-353-1	01	1	1409-			●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN	8-98177-334-2	01	1	1409-			●
267	01.531 CLIP; HOSE 01.540 ID=18.9	8-94478-875-0	02	1	1409-			●
311	01.531 BOLT; PIPE FIX 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	1409-	●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1409-1411					●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1412-					●	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411			●		●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411			●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-			●		●	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-			●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1409-1508		●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1509-		●		●
311	01.531 BOLT; PIPE FIX 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	1409-			●
407	01.531 NUT; CAP,TURBOCHARGER OIL FEED P M8 CAP NUT FLANGE	8-98251-964-0	01	1	1409-			●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1409-1411		●			●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1412-1508		●			●	●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1509-		●		●	●	●
414	01.531 BOLT; OIL PIPE 00.724 M6X16 HEX SOCKET	0-58330-616-0	04	1	1409-			●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1409-1411		●	●		●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1508		●	●		●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-		●	●	●	●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1409-1411		●	●		●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1412-1508		●	●		●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1509-		●	●	●	●	●
586	01.519 PIPE; OIL,TENSIONER (D)	8-98228-274-0	01	1	1409-1508		●
586	01.519 PIPE; OIL,TENSIONER (D)	8-98228-274-0	01	1	1509-		●		●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98186-102-2	01	1	1409-			●
586	01.519 PIPE; OIL,TENSIONER (C)	8-98251-165-0	01	1	1409-1508		●
586	01.519 PIPE; OIL,TENSIONER (C)	8-98251-165-0	01	1	1509-		●		●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98186-103-2	01	1	1409-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
