Sayfa 0-50 - Isuzu EPC

0-50 — OIL COOLER AND OIL FILTER (#151736) — 186 parça

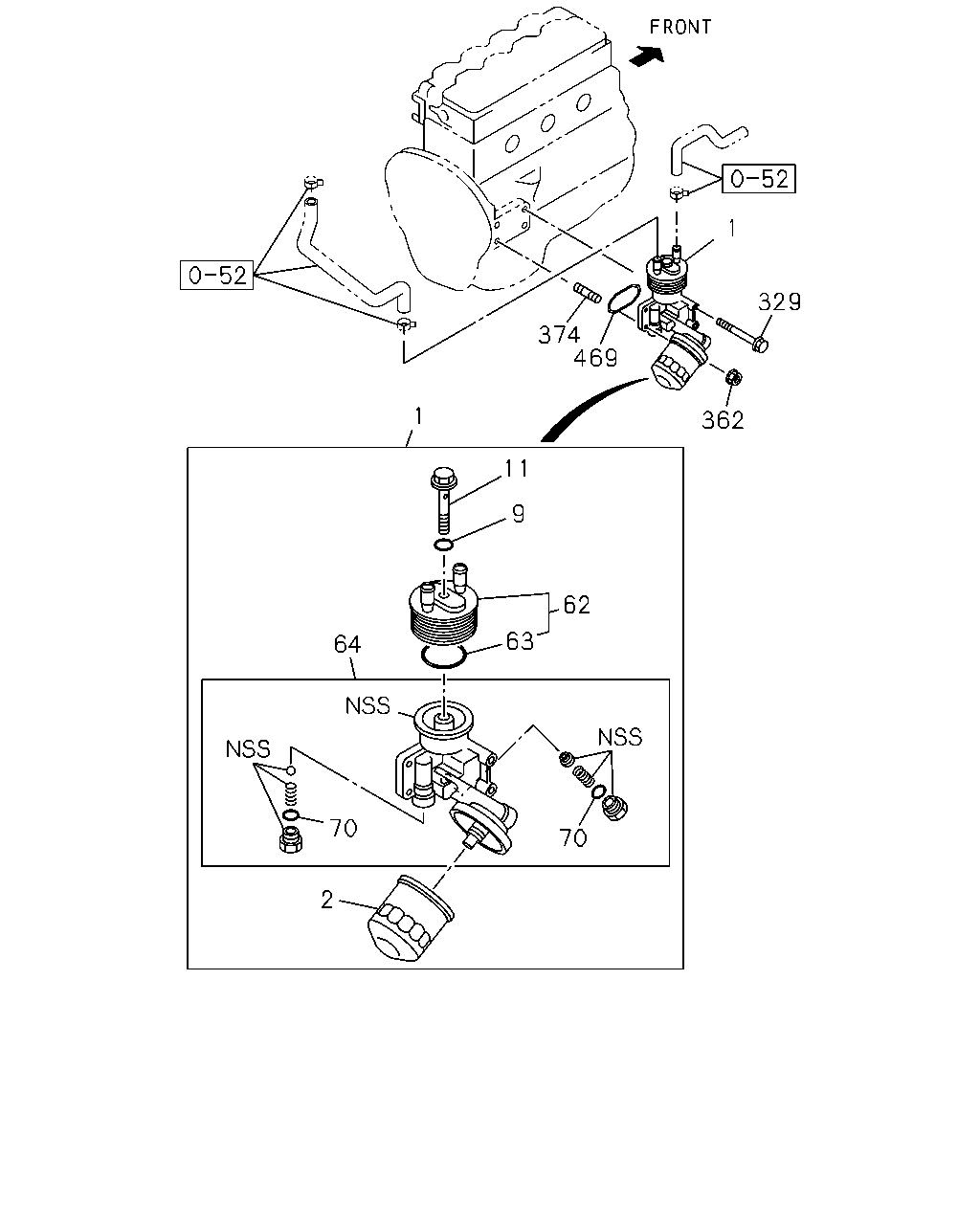

70 2 64 63 70 62 9 11 1 374 469 362 329 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.540 FILTER & COOLER ASM; OIL	8-97373-137-1	01	1	1409-	●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	1409-	●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1409-1411		●	●	●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1412-1508		●	●	●	●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1509-		●	●	●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97288-938-0	01	1	1409-	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1409-1411		●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1412-1508		●	●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1509-		●	●	●	●	●
11	01.840 BOLT; CENTER	8-97288-935-0	01	1	1409-	●
62	01.540 COOLER ASM; OIL	8-97319-556-1	01	1	1409-	●
62	01.540 COOLER ASM; OIL EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98226-843-0	01	1	1409-1508			●
62	01.540 COOLER ASM; OIL EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98226-843-0	01	1	1509-			●
62	01.540 COOLER ASM; OIL	8-98226-843-0	01	1	1509-						●
62	01.540 COOLER ASM; OIL	8-98124-173-1	01	1	1409-1411		●
62	01.540 COOLER ASM; OIL	8-98124-173-1	01	1	1412-		●			●
62	01.540 COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98251-175-0	01	1	1409-			●
62	01.540 COOLER ASM; OIL	8-98185-691-0	01	1	1409-				●
63	01.550 GASKET; COOLER TO BRKT	8-94450-917-0	01	1	1409-	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97373-138-0	01	1	1409-	●
70	01.844 GASKET; PLUG,OIL FILTER	8-97914-706-0	02	1	1409-	●
329	01.840 BOLT; OIL FILTER 01.062 M8X95 FLANGE	1-09044-075-1	02	1	1409-	●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	1409-	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1409-1411		●	●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1508		●	●	●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-		●	●	●	●	●
374	01.840 STUD; OIL FILTER 03.275 M8X25 L=37	0-41010-825-0	02	1	1409-	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98087-965-0	01	1	1409-	●

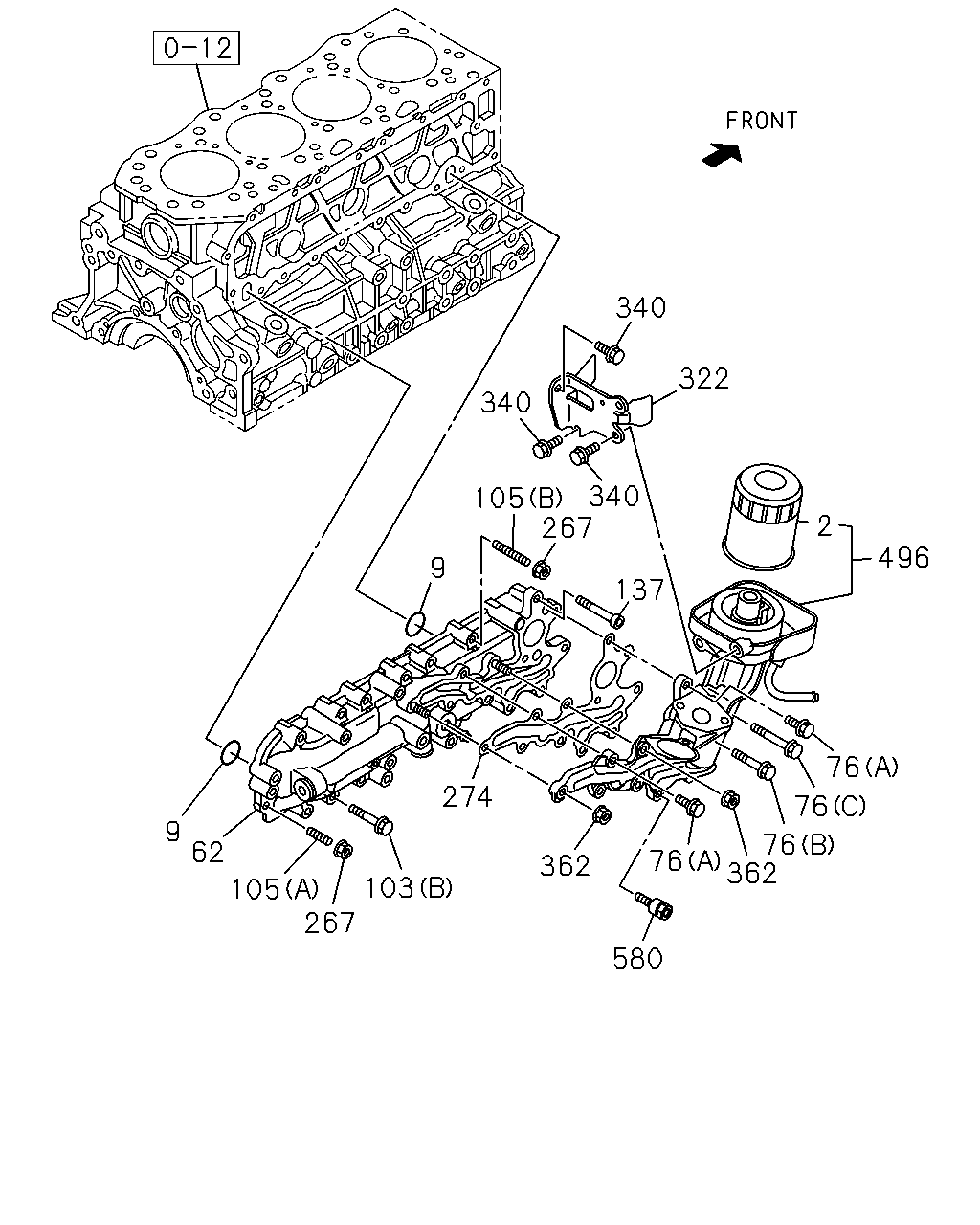

340 340 322 105 9 340 267 137 2 496 76 76 362 76 362 580 103 267 105 62 9 274 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	1409-	●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1409-1411		●	●	●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1412-1508		●	●	●	●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1509-		●	●	●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97288-938-0	01	1	1409-	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1409-1411		●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1412-1508		●	●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1509-		●	●	●	●	●
62	01.540 COOLER ASM; OIL	8-97319-556-1	01	1	1409-	●
62	01.540 COOLER ASM; OIL EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98226-843-0	01	1	1409-1508			●
62	01.540 COOLER ASM; OIL EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98226-843-0	01	1	1509-			●
62	01.540 COOLER ASM; OIL	8-98226-843-0	01	1	1509-						●
62	01.540 COOLER ASM; OIL	8-98124-173-1	01	1	1409-1411		●
62	01.540 COOLER ASM; OIL	8-98124-173-1	01	1	1412-		●			●
62	01.540 COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98251-175-0	01	1	1409-			●
62	01.540 COOLER ASM; OIL	8-98185-691-0	01	1	1409-				●
76	01.840 BOLT; OIL FILTER 03.275 (A) M8X25 FLANGE	0-28050-825-0	07	1	1409-1411		●
76	01.840 BOLT; OIL FILTER 03.275 (A) M8X25 FLANGE	0-28050-825-0	07	1	1412-		●			●
76	01.840 BOLT; OIL FILTER 09.173 (B) M8X45 FLANGE	0-28050-845-0	01	1	1409-1411		●		●
76	01.840 BOLT; OIL FILTER 09.173 (B) M8X45 FLANGE	0-28050-845-0	01	1	1412-		●		●	●
76	01.840 BOLT; OIL FILTER 04.686 (C) M8X60 FLANGE	0-28050-860-0	01	1	1409-1411		●		●
76	01.840 BOLT; OIL FILTER 04.686 (C) M8X60 FLANGE	0-28050-860-0	01	1	1412-		●		●	●
76	01.840 BOLT; OIL FILTER 00.386 (D) M8X100 FLANGE	0-28050-800-0	01	1	1409-1508			●
76	01.840 BOLT; OIL FILTER 00.386 (D) M8X100 FLANGE	0-28050-800-0	01	1	1509-			●			●
76	01.840 BOLT; OIL FILTER 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1409-1508			●
76	01.840 BOLT; OIL FILTER 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1509-			●			●
76	01.840 BOLT; OIL FILTER 01.252 (E) M8X80 FLANGE	0-28050-880-0	02	1	1409-1508			●
76	01.840 BOLT; OIL FILTER 01.252 (E) M8X80 FLANGE	0-28050-880-0	02	1	1509-			●			●
76	01.840 BOLT; OIL FILTER 03.275 (A) M8X25 FLANGE	0-28050-825-0	06	1	1409-				●
103	01.540 BOLT; OIL COOLER 09.173 (B) M8X45 FLANGE	0-28050-845-0	15	1	1409-1411		●		●
103	01.540 BOLT; OIL COOLER 09.173 (B) M8X45 FLANGE	0-28050-845-0	15	1	1412-		●		●	●
103	01.540 BOLT; OIL COOLER 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1409-1508			●
103	01.540 BOLT; OIL COOLER 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1509-			●			●
103	01.540 BOLT; OIL COOLER 09.173 (B) M8X45 FLANGE	0-28050-845-0	13	1	1409-1508			●
103	01.540 BOLT; OIL COOLER 09.173 (B) M8X45 FLANGE	0-28050-845-0	13	1	1509-			●			●
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	01	1	1409-1411		●		●
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	01	1	1412-		●		●	●
105	01.540 STUD; OIL COOLER 01.252 (B) M8X45 L=57	0-41010-845-0	01	1	1409-1411		●		●
105	01.540 STUD; OIL COOLER 01.252 (B) M8X45 L=57	0-41010-845-0	01	1	1412-		●		●	●
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1409-1508			●
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1509-			●			●
137	01.840 BOLT 00.206 M8X60 HEX SOCKET	0-58330-860-0	03	1	1409-1411		●		●
137	01.840 BOLT 00.206 M8X60 HEX SOCKET	0-58330-860-0	03	1	1412-		●		●	●
267	01.840 NUT; OIL COOLER 01.540 M8 FLANGE	0-91180-208-0	02	1	1409-1411		●	●	●
267	01.840 NUT; OIL COOLER 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1508		●	●	●	●
267	01.840 NUT; OIL COOLER 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-		●	●	●	●	●
274	01.844 GASKET; OIL FILTER	8-98124-080-1	01	1	1409-1411		●		●
274	01.844 GASKET; OIL FILTER	8-98124-080-1	01	1	1412-		●		●	●
274	01.844 GASKET; OIL FILTER	8-98226-841-0	01	1	1409-1508			●
274	01.844 GASKET; OIL FILTER	8-98226-841-0	01	1	1509-			●			●
322	01.840 BRACKET; OIL FILTER	8-98132-020-1	01	1	1409-1411		●		●
322	01.840 BRACKET; OIL FILTER	8-98132-020-1	01	1	1412-		●		●	●
340	01.840 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1409-1411		●		●
340	01.840 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1412-		●		●	●
340	01.840 BOLT; BRKT 00.685 M8X40 FLANGE	0-28650-840-0	01	1	1409-1508			●
340	01.840 BOLT; BRKT 00.685 M8X40 FLANGE	0-28650-840-0	01	1	1509-			●			●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	1409-	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1409-1411		●	●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1508		●	●	●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-		●	●	●	●	●
496	01.835 FILTER ASM; OIL	8-98186-452-1	01	1	1409-1411		●		●
496	01.835 FILTER ASM; OIL	8-98186-452-1	01	1	1412-		●		●	●
496	01.835 FILTER ASM; OIL	8-98226-423-1	01	1	1409-1508			●
496	01.835 FILTER ASM; OIL	8-98226-423-1	01	1	1509-			●			●
580	01.540 ADAPTER	8-98181-435-0	01	1	1409-				●

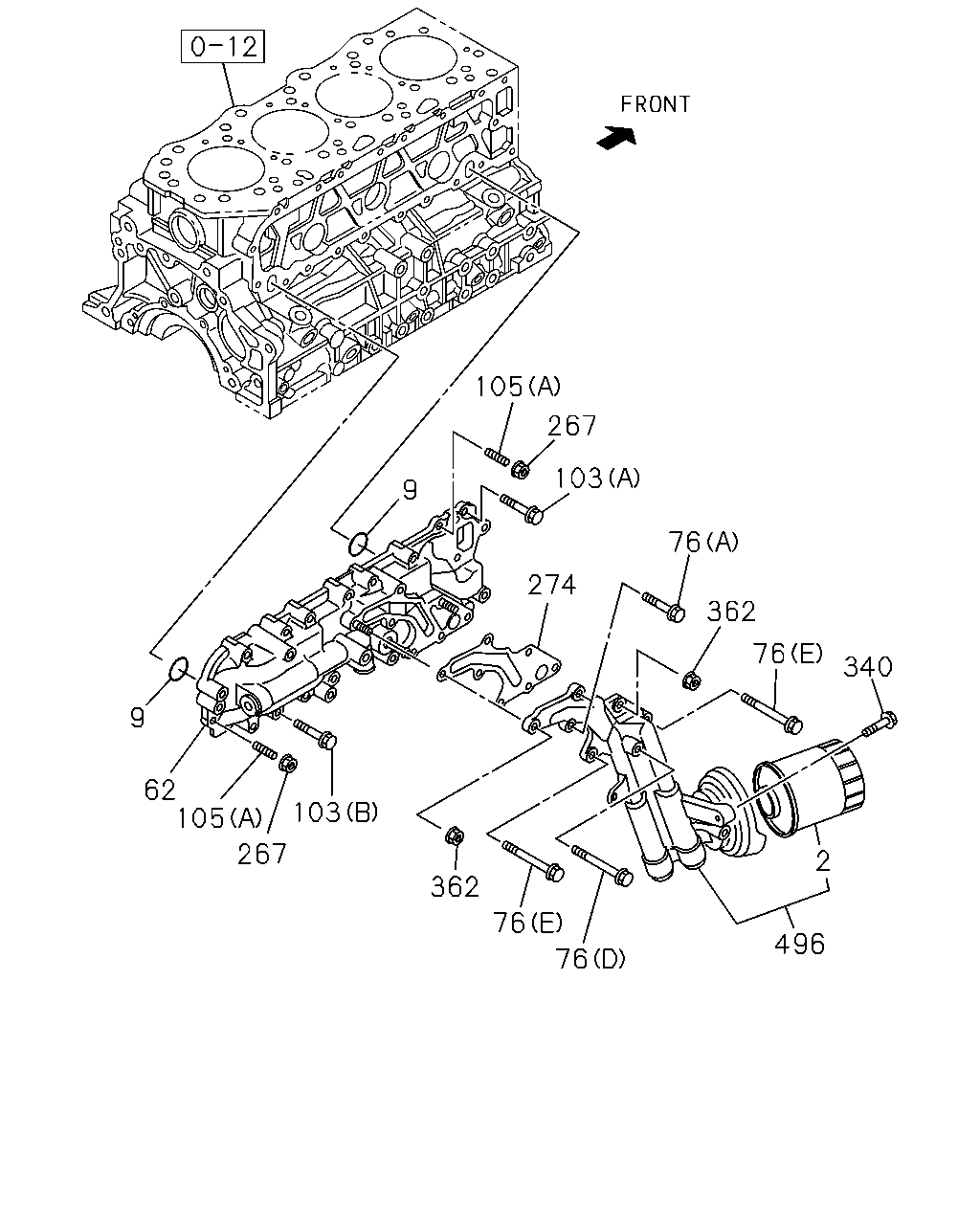

105 103 76 362 76 340 496 76 76 362 267 105 62 9 103 2 274 9 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	1409-	●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1409-1411		●	●	●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1412-1508		●	●	●	●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1509-		●	●	●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97288-938-0	01	1	1409-	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1409-1411		●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1412-1508		●	●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1509-		●	●	●	●	●
62	01.540 COOLER ASM; OIL	8-97319-556-1	01	1	1409-	●
62	01.540 COOLER ASM; OIL EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98226-843-0	01	1	1409-1508			●
62	01.540 COOLER ASM; OIL EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98226-843-0	01	1	1509-			●
62	01.540 COOLER ASM; OIL	8-98226-843-0	01	1	1509-						●
62	01.540 COOLER ASM; OIL	8-98124-173-1	01	1	1409-1411		●
62	01.540 COOLER ASM; OIL	8-98124-173-1	01	1	1412-		●			●
62	01.540 COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98251-175-0	01	1	1409-			●
62	01.540 COOLER ASM; OIL	8-98185-691-0	01	1	1409-				●
76	01.840 BOLT; OIL FILTER 03.275 (A) M8X25 FLANGE	0-28050-825-0	07	1	1409-1411		●
76	01.840 BOLT; OIL FILTER 03.275 (A) M8X25 FLANGE	0-28050-825-0	07	1	1412-		●			●
76	01.840 BOLT; OIL FILTER 09.173 (B) M8X45 FLANGE	0-28050-845-0	01	1	1409-1411		●		●
76	01.840 BOLT; OIL FILTER 09.173 (B) M8X45 FLANGE	0-28050-845-0	01	1	1412-		●		●	●
76	01.840 BOLT; OIL FILTER 04.686 (C) M8X60 FLANGE	0-28050-860-0	01	1	1409-1411		●		●
76	01.840 BOLT; OIL FILTER 04.686 (C) M8X60 FLANGE	0-28050-860-0	01	1	1412-		●		●	●
76	01.840 BOLT; OIL FILTER 00.386 (D) M8X100 FLANGE	0-28050-800-0	01	1	1409-1508			●
76	01.840 BOLT; OIL FILTER 00.386 (D) M8X100 FLANGE	0-28050-800-0	01	1	1509-			●			●
76	01.840 BOLT; OIL FILTER 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1409-1508			●
76	01.840 BOLT; OIL FILTER 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1509-			●			●
76	01.840 BOLT; OIL FILTER 01.252 (E) M8X80 FLANGE	0-28050-880-0	02	1	1409-1508			●
76	01.840 BOLT; OIL FILTER 01.252 (E) M8X80 FLANGE	0-28050-880-0	02	1	1509-			●			●
76	01.840 BOLT; OIL FILTER 03.275 (A) M8X25 FLANGE	0-28050-825-0	06	1	1409-				●
103	01.540 BOLT; OIL COOLER 09.173 (B) M8X45 FLANGE	0-28050-845-0	15	1	1409-1411		●		●
103	01.540 BOLT; OIL COOLER 09.173 (B) M8X45 FLANGE	0-28050-845-0	15	1	1412-		●		●	●
103	01.540 BOLT; OIL COOLER 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1409-1508			●
103	01.540 BOLT; OIL COOLER 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1509-			●			●
103	01.540 BOLT; OIL COOLER 09.173 (B) M8X45 FLANGE	0-28050-845-0	13	1	1409-1508			●
103	01.540 BOLT; OIL COOLER 09.173 (B) M8X45 FLANGE	0-28050-845-0	13	1	1509-			●			●
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	01	1	1409-1411		●		●
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	01	1	1412-		●		●	●
105	01.540 STUD; OIL COOLER 01.252 (B) M8X45 L=57	0-41010-845-0	01	1	1409-1411		●		●
105	01.540 STUD; OIL COOLER 01.252 (B) M8X45 L=57	0-41010-845-0	01	1	1412-		●		●	●
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1409-1508			●
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1509-			●			●
267	01.840 NUT; OIL COOLER 01.540 M8 FLANGE	0-91180-208-0	02	1	1409-1411		●	●	●
267	01.840 NUT; OIL COOLER 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1508		●	●	●	●
267	01.840 NUT; OIL COOLER 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-		●	●	●	●	●
274	01.844 GASKET; OIL FILTER	8-98124-080-1	01	1	1409-1411		●		●
274	01.844 GASKET; OIL FILTER	8-98124-080-1	01	1	1412-		●		●	●
274	01.844 GASKET; OIL FILTER	8-98226-841-0	01	1	1409-1508			●
274	01.844 GASKET; OIL FILTER	8-98226-841-0	01	1	1509-			●			●
340	01.840 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1409-1411		●		●
340	01.840 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1412-		●		●	●
340	01.840 BOLT; BRKT 00.685 M8X40 FLANGE	0-28650-840-0	01	1	1409-1508			●
340	01.840 BOLT; BRKT 00.685 M8X40 FLANGE	0-28650-840-0	01	1	1509-			●			●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	1409-	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1409-1411		●	●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1508		●	●	●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-		●	●	●	●	●
496	01.835 FILTER ASM; OIL	8-98186-452-1	01	1	1409-1411		●		●
496	01.835 FILTER ASM; OIL	8-98186-452-1	01	1	1412-		●		●	●
496	01.835 FILTER ASM; OIL	8-98226-423-1	01	1	1409-1508			●
496	01.835 FILTER ASM; OIL	8-98226-423-1	01	1	1509-			●			●

496 342 343 343 343 343 278 201 278 342 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E	F
201	01.540 PIPE; VINYL,OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC)	8-98199-904-0	01	1	1409-1411	●	●
201	01.540 PIPE; VINYL,OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC)	8-98199-904-0	01	1	1412-1508	●	●		●
201	01.540 PIPE; VINYL,OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC)	8-98199-904-0	01	1	1509-	●	●		●	●
278	01.540 CLAMP; RUBBER HOSE EXC. PROVISIONAL PACKAGE SPEC(BCC) 03.162 ID=14	8-97173-221-0	02	1	1409-1411	●	●
278	01.540 CLAMP; RUBBER HOSE EXC. PROVISIONAL PACKAGE SPEC(BCC) 03.162 ID=14	8-97173-221-0	02	1	1412-1508	●	●		●
278	01.540 CLAMP; RUBBER HOSE EXC. PROVISIONAL PACKAGE SPEC(BCC) 03.162 ID=14	8-97173-221-0	02	1	1509-	●	●		●	●
342	03.675 HOSE; OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) (B)	8-98200-230-1	01	1	1410-1411	●
342	03.675 HOSE; OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) (B)	8-98200-230-1	01	1	1412-	●			●
342	03.675 HOSE; OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98199-910-0	01	1	1409-1411	●	●
342	03.675 HOSE; OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98199-910-0	01	1	1412-1508	●	●		●
342	03.675 HOSE; OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98199-910-0	01	1	1509-	●	●		●	●
343	01.540 CLIP; HOSE,OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) 02.559 (A) ID=16	8-97040-812-0	01	1	1410-1411	●
343	01.540 CLIP; HOSE,OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) 02.559 (A) ID=16	8-97040-812-0	01	1	1412-	●			●
343	01.540 CLIP; HOSE,OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) (B)	8-98074-648-0	02	1	1410-1411	●
343	01.540 CLIP; HOSE,OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) (B)	8-98074-648-0	02	1	1412-	●			●
343	01.540 CLIP; HOSE,OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) (C)	8-98074-650-0	01	1	1410-1411	●
343	01.540 CLIP; HOSE,OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) (C)	8-98074-650-0	01	1	1412-	●			●
462	01.540 CLIP; HOSE,DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) 04.681	8-97025-737-1	01	1	1409-1411	●	●
462	01.540 CLIP; HOSE,DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) 04.681	8-97025-737-1	01	1	1412-1508	●	●		●
462	01.540 CLIP; HOSE,DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) 04.681	8-97025-737-1	01	1	1509-	●	●		●	●
496	01.835 FILTER ASM; OIL	8-98186-452-1	01	1	1409-1411	●		●
496	01.835 FILTER ASM; OIL	8-98186-452-1	01	1	1412-	●		●	●
496	01.835 FILTER ASM; OIL	8-98226-423-1	01	1	1409-1508		●
496	01.835 FILTER ASM; OIL	8-98226-423-1	01	1	1509-		●			●

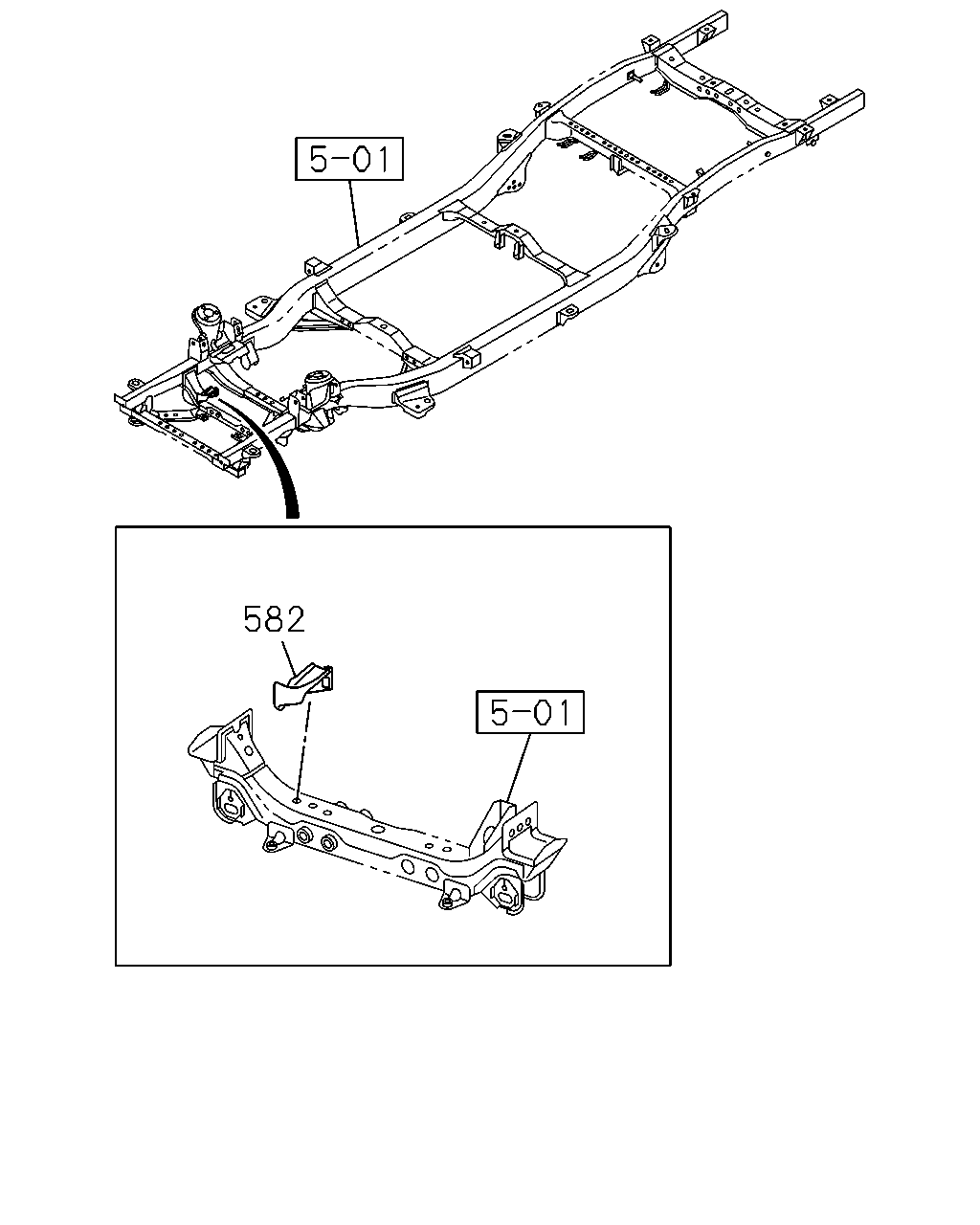

582

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E	F
582	01.540 TRAY; OIL 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) HIGH RIDE SUSPENSION(7YC)	8-98236-541-1	01	1	1409-1411	●	●	●
582	01.540 TRAY; OIL 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC)	8-98236-541-1	01	1	1409-1411	●	●	●
582	01.540 TRAY; OIL 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) HIGH RIDE SUSPENSION(7YC)	8-98236-541-1	01	1	1412-1508	●	●	●	●
582	01.540 TRAY; OIL 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC)	8-98236-541-1	01	1	1412-1508	●	●	●	●
582	01.540 TRAY; OIL 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) HIGH RIDE SUSPENSION(7YC)	8-98236-541-1	01	1	1509-	●	●	●	●	●
582	01.540 TRAY; OIL 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC)	8-98236-541-1	01	1	1509-	●	●	●	●	●
582	01.540 TRAY; OIL 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) EXC. HIGH RIDE SUSPENSION(7YC)	8-98236-542-1	01	1	1409-1411	●	●	●
582	01.540 TRAY; OIL 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) EXC. HIGH RIDE SUSPENSION(7YC)	8-98236-542-1	01	1	1412-1508	●	●	●	●
582	01.540 TRAY; OIL 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) EXC. HIGH RIDE SUSPENSION(7YC)	8-98236-542-1	01	1	1509-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
