◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#151734) — 709 parça

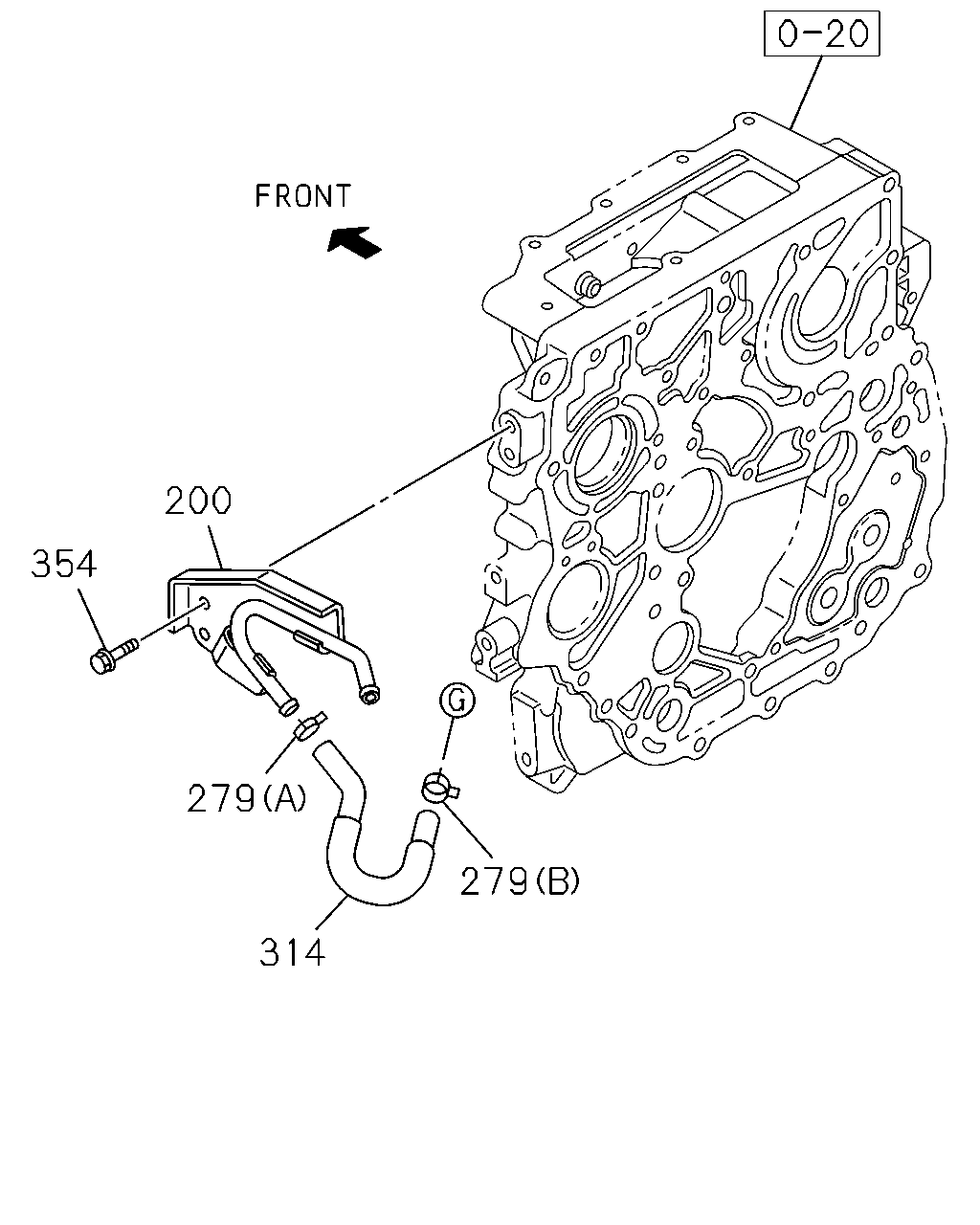

çizim 448449
200 354 279 314 279
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
200 03.330 PIPE; FUEL FEED 8-98132-088-0 01 1 1409-1411 ● ●
200 03.330 PIPE; FUEL FEED 8-98132-088-0 01 1 1412-1508 ● ● ●
200 03.330 PIPE; FUEL FEED 8-98132-088-0 01 1 1509- ● ● ● ●
279 03.162 CLIP; FUEL HOSE
(B) ID=17.8 		8-97944-611-0 01 1 1409-1411 ● ●
279 03.162 CLIP; FUEL HOSE
(B) ID=17.8 		8-97944-611-0 01 1 1412-1508 ● ● ●
279 03.162 CLIP; FUEL HOSE
(B) ID=17.8 		8-97944-611-0 01 1 1509- ● ● ● ●
279 03.162 CLIP; FUEL HOSE
01.762 (A) ID=16 		8-98030-682-0 01 1 1409-1411 ● ●
279 03.162 CLIP; FUEL HOSE
01.762 (A) ID=16 		8-98030-682-0 01 1 1412-1508 ● ● ●
279 03.162 CLIP; FUEL HOSE
01.762 (A) ID=16 		8-98030-682-0 01 1 1509- ● ● ● ●
314 03.163 HOSE; INLET,FUEL 8-98175-561-0 01 1 1409-1411 ● ●
314 03.163 HOSE; INLET,FUEL 8-98175-561-0 01 1 1412-1508 ● ● ●
314 03.163 HOSE; INLET,FUEL 8-98175-561-0 01 1 1509- ● ● ● ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1409-1411 ● ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1412-1508 ● ● ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1509- ● ● ● ●

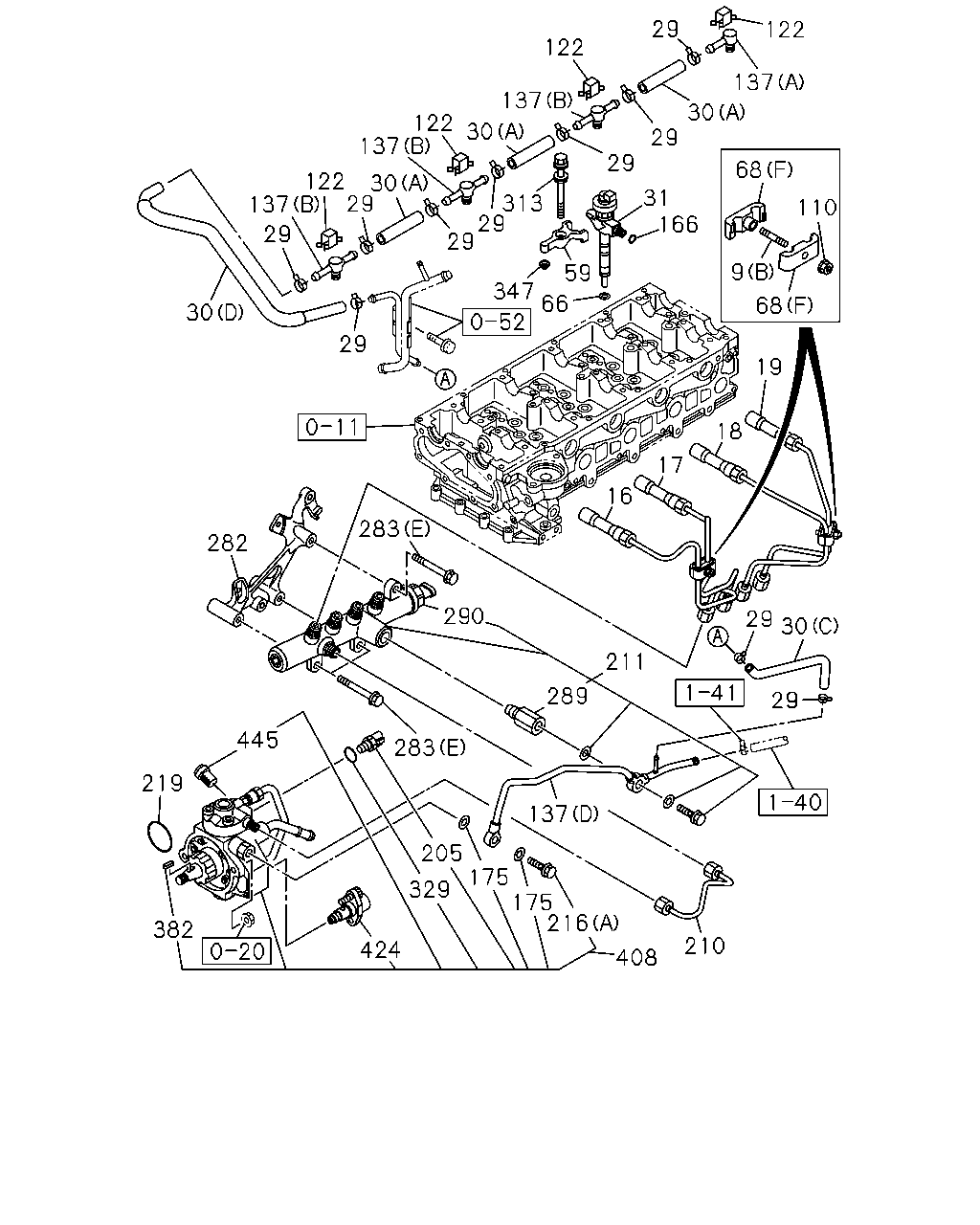

çizim 448721
122 137 29 30 68 110 9 68 19 18 17 16 29 30 29 211 210 408 216 175 175 137 289 283 205 329 424 382 219 445 282 283 290 29 30 29 137 122 29 30 137 122 30 137 122 29 29 31 166 313 29 29 59 66 347
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 03.340 STUD; CLIP
03.162 (A) M6X25 L=36 		8-97214-234-1 02 1 1409-1411 ●
9 03.340 STUD; CLIP
03.162 (A) M6X25 L=36 		8-97214-234-1 02 1 1412- ● ●
9 03.340 STUD; CLIP
00.413 (B) M6X30 L=38 		0-41010-630-0 02 1 1409-1508 ● ●
9 03.340 STUD; CLIP
00.413 (B) M6X30 L=38 		0-41010-630-0 02 1 1509- ● ● ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 1409- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1409-1411 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1412- ● ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1409-1508 ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1509- ● ●
16 03.330 PIPE; INJ NO.1 8-98158-729-0 01 1 1409- ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 1409- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1409-1411 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1412- ● ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1409-1508 ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1509- ● ●
17 03.330 PIPE; INJ NO.2 8-98158-730-0 01 1 1409- ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 1409- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1409-1411 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1412- ● ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1409-1508 ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1509- ● ●
18 03.330 PIPE; INJ NO.3 8-98158-731-0 01 1 1409- ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 1409- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1409-1411 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1412- ● ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1409-1508 ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1509- ● ●
19 03.330 PIPE; INJ NO.4 8-98158-732-0 01 1 1409- ●
29 03.162 CLIP; HOSE
03.163 ID=11 		8-97173-219-0 02 1 1409- ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1409-1411 ● ● ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1412-1508 ● ● ● ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1509- ● ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=320 		8-98135-263-1 01 1 1409- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98168-394-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98168-394-0 01 1 1412- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 01 1 1412- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1409-1411 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1412-1508 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1509- ● ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1409-1508 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1509- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) 		8-98189-998-0 01 1 1409-1508 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) 		8-98189-998-0 01 1 1509- ● ● ●
31 03.332 NOZZLE ASM; INJ 8-98106-693-2 04 1 1509- ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98119-228-3 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98106-694-1 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 1409- ●
31 03.332 NOZZLE ASM; INJ 8-98203-849-0 04 1 1409- ●
31 03.332 NOZZLE ASM; INJ 8-98246-130-0 04 1 1409- ●
31 03.332 NOZZLE ASM; INJ 8-98260-109-0 04 1 1409- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 1409- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1409-1411 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1412-1508 ● ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1509- ● ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1409- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1409-1411 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1412-1508 ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1509- ● ● ● ● ●
68 03.162 CLIP; INJ PIPE
03.634 (D) 		1-09701-240-0 04 1 1409- ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98227-926-0 01 1 1409- ●
68 03.162 CLIP; INJ PIPE
(A) 		8-97213-481-0 04 1 1409-1411 ●
68 03.162 CLIP; INJ PIPE
(A) 		8-97213-481-0 04 1 1412- ● ●
68 03.162 CLIP; INJ PIPE
(F) ID=11 & 11 L=19 		8-98148-996-2 04 1 1409-1508 ●
68 03.162 CLIP; INJ PIPE
(F) ID=11 & 11 L=19 		8-98148-996-2 04 1 1509- ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-118-3 02 1 1409- ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 02 1 1409- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1409-1411 ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1412-1508 ● ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1509- ● ● ● ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1409-1411 ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1412-1508 ● ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1509- ● ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98132-085-0 01 1 1409-1411 ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98132-085-0 01 1 1412- ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1409-1411 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1412-1508 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1509- ● ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1409-1411 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1412-1508 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1509- ● ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98158-737-1 01 1 1409-1508 ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98158-737-1 01 1 1509- ● ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1409-1411 ● ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1412-1508 ● ● ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1509- ● ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1409-1411 ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1412-1505 ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 1-15619-508-0 02 1 1506-1508 ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 1-15619-508-0 02 1 1509- ● ● ● ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1409-1411 ● ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1412-1508 ● ● ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1509- ● ● ● ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1409-1411 ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1412- ● ●
210 03.330 PIPE; INJ,C/R 8-98233-237-0 01 1 1409-1508 ●
210 03.330 PIPE; INJ,C/R 8-98233-237-0 01 1 1509- ● ●
210 03.330 PIPE; INJ,C/R 8-98158-733-0 01 1 1409- ●
211 03.331 RAIL ASM; COMMON 8-98132-055-1 01 1 1409-1411 ●
211 03.331 RAIL ASM; COMMON 8-98132-055-1 01 1 1412- ● ●
211 03.331 RAIL ASM; COMMON 8-98228-475-0 01 1 1409-1508 ●
211 03.331 RAIL ASM; COMMON 8-98228-475-0 01 1 1509- ● ●
211 03.331 RAIL ASM; COMMON 8-98151-214-0 01 1 1409- ●
216 03.162 BOLT; EYE
(B) 		8-98043-033-0 01 1 1409- ●
216 03.162 BOLT; EYE
03.280 (A) 		9-88130-088-0 01 1 1409-1409 ● ● ●
216 03.162 BOLT; EYE
(A) 		8-98209-777-0 01 1 1410-1411 ● ● ●
216 03.162 BOLT; EYE
(A) 		8-98209-777-0 01 1 1412-1508 ● ● ● ●
216 03.162 BOLT; EYE
(A) 		8-98209-777-0 01 1 1509- ● ● ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1409-1411 ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1412-1508 ● ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1509- ● ● ● ● ●
282 03.163 BRACKET; COMMON RAIL 8-98132-056-0 01 1 1409-1411 ●
282 03.163 BRACKET; COMMON RAIL 8-98132-056-0 01 1 1412- ● ●
282 03.163 BRACKET; COMMON RAIL 8-98205-942-0 01 1 1409-1508 ●
282 03.163 BRACKET; COMMON RAIL 8-98205-942-0 01 1 1509- ● ●
282 03.163 BRACKET; COMMON RAIL 8-98158-715-2 01 1 1409- ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 1409-1411 ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 1412- ● ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1409-1411 ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1412- ● ●
283 03.330 BOLT; COMMON RAIL
(E) M8X66 FLANGE 		8-98228-566-0 03 1 1409-1508 ●
283 03.330 BOLT; COMMON RAIL
(E) M8X66 FLANGE 		8-98228-566-0 03 1 1509- ● ●
283 03.330 BOLT; COMMON RAIL
(C) M8X25 FLANGE 		8-98174-080-0 03 1 1409- ●
283 03.330 BOLT; COMMON RAIL
(D) M8X40 FLANGE 		8-98174-180-0 04 1 1409- ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1409-1411 ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1412-1508 ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1509- ● ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98138-695-0 01 1 1409- ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1409-1411 ● ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1412-1508 ● ● ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1509- ● ● ● ●
290 03.331 SENSOR; PRESS 8-98178-706-0 01 1 1409- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 1409-1411 ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 1412- ● ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98228-637-0 04 1 1409-1508 ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98228-637-0 04 1 1509- ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1409-1409 ● ● ●
347 03.332 PIN 8-98165-035-0 04 1 1409-1411 ● ● ●
347 03.332 PIN 8-98165-035-0 04 1 1412-1508 ● ● ● ●
347 03.332 PIN 8-98165-035-0 04 1 1509- ● ● ● ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1409-1409 ● ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1410-1411 ● ● ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1412-1508 ● ● ● ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1509- ● ● ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-2 01 1 1409-1411 ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-3 01 1 1412-1508 ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-3 01 1 1509- ● ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98151-213-2 01 1 1409- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1409-1411 ● ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1412-1508 ● ● ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1509- ● ● ● ● ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1409-1409 ● ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1410-1411 ● ● ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1412-1508 ● ● ● ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1509- ● ● ● ● ●

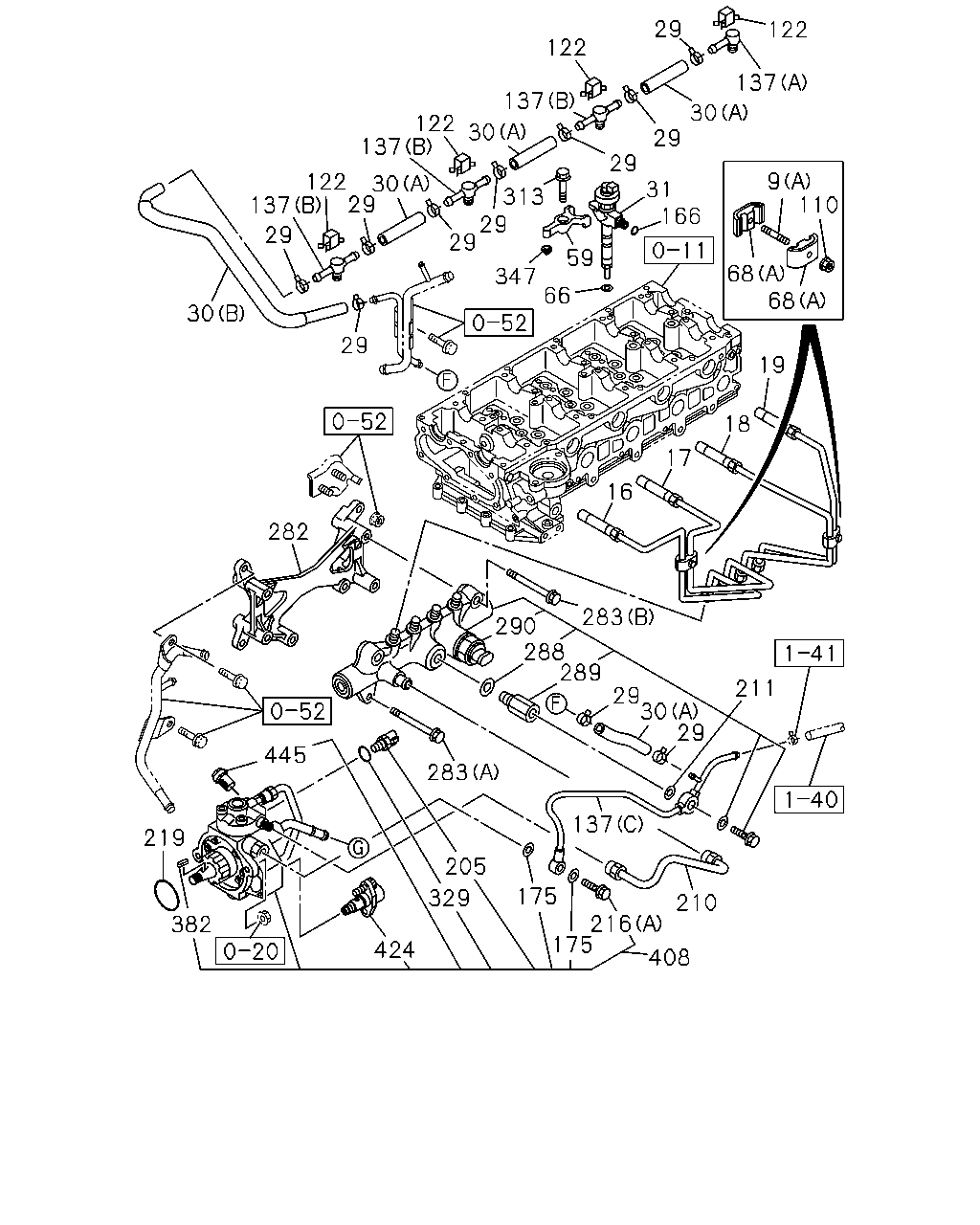

çizim 448839
122 29 122 137 30 137 30 122 137 122 137 29 30 29 29 30 29 29 313 29 29 31 347 59 66 166 9 110 68 68 19 18 17 16 283 288 289 29 290 211 282 445 283 205 329 424 382 219 137 175 175 408 216 210 30 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 03.340 STUD; CLIP
03.162 (A) M6X25 L=36 		8-97214-234-1 02 1 1409-1411 ●
9 03.340 STUD; CLIP
03.162 (A) M6X25 L=36 		8-97214-234-1 02 1 1412- ● ●
9 03.340 STUD; CLIP
00.413 (B) M6X30 L=38 		0-41010-630-0 02 1 1409-1508 ● ●
9 03.340 STUD; CLIP
00.413 (B) M6X30 L=38 		0-41010-630-0 02 1 1509- ● ● ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 1409- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1409-1411 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1412- ● ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1409-1508 ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1509- ● ●
16 03.330 PIPE; INJ NO.1 8-98158-729-0 01 1 1409- ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 1409- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1409-1411 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1412- ● ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1409-1508 ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1509- ● ●
17 03.330 PIPE; INJ NO.2 8-98158-730-0 01 1 1409- ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 1409- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1409-1411 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1412- ● ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1409-1508 ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1509- ● ●
18 03.330 PIPE; INJ NO.3 8-98158-731-0 01 1 1409- ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 1409- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1409-1411 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1412- ● ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1409-1508 ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1509- ● ●
19 03.330 PIPE; INJ NO.4 8-98158-732-0 01 1 1409- ●
29 03.162 CLIP; HOSE
03.163 ID=11 		8-97173-219-0 02 1 1409- ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1409-1411 ● ● ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1412-1508 ● ● ● ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1509- ● ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=320 		8-98135-263-1 01 1 1409- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98168-394-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98168-394-0 01 1 1412- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 01 1 1412- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1409-1411 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1412-1508 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1509- ● ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1409-1508 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1509- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) 		8-98189-998-0 01 1 1409-1508 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) 		8-98189-998-0 01 1 1509- ● ● ●
31 03.332 NOZZLE ASM; INJ 8-98106-693-2 04 1 1509- ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98119-228-3 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98106-694-1 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 1409- ●
31 03.332 NOZZLE ASM; INJ 8-98203-849-0 04 1 1409- ●
31 03.332 NOZZLE ASM; INJ 8-98246-130-0 04 1 1409- ●
31 03.332 NOZZLE ASM; INJ 8-98260-109-0 04 1 1409- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 1409- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1409-1411 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1412-1508 ● ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1509- ● ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1409- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1409-1411 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1412-1508 ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1509- ● ● ● ● ●
68 03.162 CLIP; INJ PIPE
03.634 (D) 		1-09701-240-0 04 1 1409- ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98227-926-0 01 1 1409- ●
68 03.162 CLIP; INJ PIPE
(A) 		8-97213-481-0 04 1 1409-1411 ●
68 03.162 CLIP; INJ PIPE
(A) 		8-97213-481-0 04 1 1412- ● ●
68 03.162 CLIP; INJ PIPE
(F) ID=11 & 11 L=19 		8-98148-996-2 04 1 1409-1508 ●
68 03.162 CLIP; INJ PIPE
(F) ID=11 & 11 L=19 		8-98148-996-2 04 1 1509- ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-118-3 02 1 1409- ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 02 1 1409- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1409-1411 ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1412-1508 ● ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1509- ● ● ● ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1409-1411 ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1412-1508 ● ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1509- ● ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98132-085-0 01 1 1409-1411 ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98132-085-0 01 1 1412- ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1409-1411 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1412-1508 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1509- ● ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1409-1411 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1412-1508 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1509- ● ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98158-737-1 01 1 1409-1508 ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98158-737-1 01 1 1509- ● ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1409-1411 ● ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1412-1508 ● ● ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1509- ● ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1409-1411 ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1412-1505 ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 1-15619-508-0 02 1 1506-1508 ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 1-15619-508-0 02 1 1509- ● ● ● ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1409-1411 ● ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1412-1508 ● ● ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1509- ● ● ● ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1409-1411 ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1412- ● ●
210 03.330 PIPE; INJ,C/R 8-98233-237-0 01 1 1409-1508 ●
210 03.330 PIPE; INJ,C/R 8-98233-237-0 01 1 1509- ● ●
210 03.330 PIPE; INJ,C/R 8-98158-733-0 01 1 1409- ●
211 03.331 RAIL ASM; COMMON 8-98132-055-1 01 1 1409-1411 ●
211 03.331 RAIL ASM; COMMON 8-98132-055-1 01 1 1412- ● ●
211 03.331 RAIL ASM; COMMON 8-98228-475-0 01 1 1409-1508 ●
211 03.331 RAIL ASM; COMMON 8-98228-475-0 01 1 1509- ● ●
211 03.331 RAIL ASM; COMMON 8-98151-214-0 01 1 1409- ●
216 03.162 BOLT; EYE
(B) 		8-98043-033-0 01 1 1409- ●
216 03.162 BOLT; EYE
03.280 (A) 		9-88130-088-0 01 1 1409-1409 ● ● ●
216 03.162 BOLT; EYE
(A) 		8-98209-777-0 01 1 1410-1411 ● ● ●
216 03.162 BOLT; EYE
(A) 		8-98209-777-0 01 1 1412-1508 ● ● ● ●
216 03.162 BOLT; EYE
(A) 		8-98209-777-0 01 1 1509- ● ● ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1409-1411 ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1412-1508 ● ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1509- ● ● ● ● ●
282 03.163 BRACKET; COMMON RAIL 8-98132-056-0 01 1 1409-1411 ●
282 03.163 BRACKET; COMMON RAIL 8-98132-056-0 01 1 1412- ● ●
282 03.163 BRACKET; COMMON RAIL 8-98205-942-0 01 1 1409-1508 ●
282 03.163 BRACKET; COMMON RAIL 8-98205-942-0 01 1 1509- ● ●
282 03.163 BRACKET; COMMON RAIL 8-98158-715-2 01 1 1409- ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 1409-1411 ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 1412- ● ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1409-1411 ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1412- ● ●
283 03.330 BOLT; COMMON RAIL
(E) M8X66 FLANGE 		8-98228-566-0 03 1 1409-1508 ●
283 03.330 BOLT; COMMON RAIL
(E) M8X66 FLANGE 		8-98228-566-0 03 1 1509- ● ●
283 03.330 BOLT; COMMON RAIL
(C) M8X25 FLANGE 		8-98174-080-0 03 1 1409- ●
283 03.330 BOLT; COMMON RAIL
(D) M8X40 FLANGE 		8-98174-180-0 04 1 1409- ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1409-1411 ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1412- ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1409-1411 ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1412-1508 ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1509- ● ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98138-695-0 01 1 1409- ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1409-1411 ● ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1412-1508 ● ● ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1509- ● ● ● ●
290 03.331 SENSOR; PRESS 8-98178-706-0 01 1 1409- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 1409-1411 ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 1412- ● ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98228-637-0 04 1 1409-1508 ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98228-637-0 04 1 1509- ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1409-1409 ● ● ●
347 03.332 PIN 8-98165-035-0 04 1 1409-1411 ● ● ●
347 03.332 PIN 8-98165-035-0 04 1 1412-1508 ● ● ● ●
347 03.332 PIN 8-98165-035-0 04 1 1509- ● ● ● ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1409-1409 ● ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1410-1411 ● ● ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1412-1508 ● ● ● ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1509- ● ● ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-2 01 1 1409-1411 ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-3 01 1 1412-1508 ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-3 01 1 1509- ● ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98151-213-2 01 1 1409- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1409-1411 ● ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1412-1508 ● ● ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1509- ● ● ● ● ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1409-1409 ● ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1410-1411 ● ● ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1412-1508 ● ● ● ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1509- ● ● ● ● ●

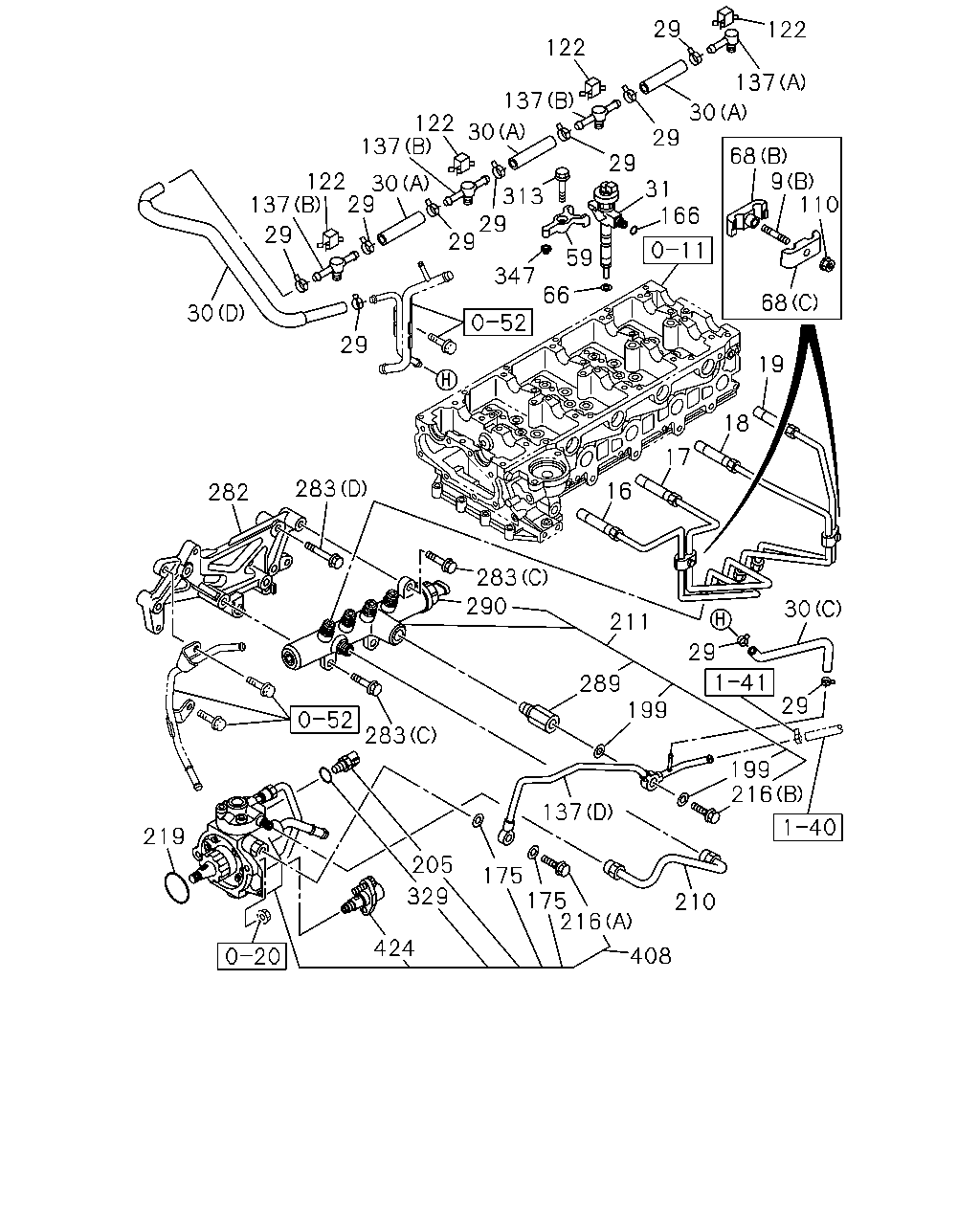

çizim 449085
122 137 30 68 9 110 68 19 18 17 16 211 29 30 29 199 216 199 289 210 408 216 175 175 137 329 424 205 283 219 290 283 283 282 30 29 66 347 59 166 31 29 29 29 122 137 30 313 29 29 122 137 30 29 122 137 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 03.340 STUD; CLIP
03.162 (A) M6X25 L=36 		8-97214-234-1 02 1 1409-1411 ●
9 03.340 STUD; CLIP
03.162 (A) M6X25 L=36 		8-97214-234-1 02 1 1412- ● ●
9 03.340 STUD; CLIP
00.413 (B) M6X30 L=38 		0-41010-630-0 02 1 1409-1508 ● ●
9 03.340 STUD; CLIP
00.413 (B) M6X30 L=38 		0-41010-630-0 02 1 1509- ● ● ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 1409- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1409-1411 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1412- ● ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1409-1508 ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1509- ● ●
16 03.330 PIPE; INJ NO.1 8-98158-729-0 01 1 1409- ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 1409- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1409-1411 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1412- ● ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1409-1508 ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1509- ● ●
17 03.330 PIPE; INJ NO.2 8-98158-730-0 01 1 1409- ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 1409- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1409-1411 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1412- ● ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1409-1508 ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1509- ● ●
18 03.330 PIPE; INJ NO.3 8-98158-731-0 01 1 1409- ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 1409- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1409-1411 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1412- ● ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1409-1508 ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1509- ● ●
19 03.330 PIPE; INJ NO.4 8-98158-732-0 01 1 1409- ●
29 03.162 CLIP; HOSE
03.163 ID=11 		8-97173-219-0 02 1 1409- ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1409-1411 ● ● ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1412-1508 ● ● ● ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1509- ● ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=320 		8-98135-263-1 01 1 1409- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98168-394-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98168-394-0 01 1 1412- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 01 1 1412- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1409-1411 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1412-1508 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1509- ● ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1409-1508 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1509- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) 		8-98189-998-0 01 1 1409-1508 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) 		8-98189-998-0 01 1 1509- ● ● ●
31 03.332 NOZZLE ASM; INJ 8-98106-693-2 04 1 1509- ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98119-228-3 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98106-694-1 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 1409- ●
31 03.332 NOZZLE ASM; INJ 8-98203-849-0 04 1 1409- ●
31 03.332 NOZZLE ASM; INJ 8-98246-130-0 04 1 1409- ●
31 03.332 NOZZLE ASM; INJ 8-98260-109-0 04 1 1409- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 1409- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1409-1411 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1412-1508 ● ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1509- ● ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1409- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1409-1411 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1412-1508 ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1509- ● ● ● ● ●
68 03.162 CLIP; INJ PIPE
03.634 (D) 		1-09701-240-0 04 1 1409- ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98227-926-0 01 1 1409- ●
68 03.162 CLIP; INJ PIPE
(A) 		8-97213-481-0 04 1 1409-1411 ●
68 03.162 CLIP; INJ PIPE
(A) 		8-97213-481-0 04 1 1412- ● ●
68 03.162 CLIP; INJ PIPE
(F) ID=11 & 11 L=19 		8-98148-996-2 04 1 1409-1508 ●
68 03.162 CLIP; INJ PIPE
(F) ID=11 & 11 L=19 		8-98148-996-2 04 1 1509- ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-118-3 02 1 1409- ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 02 1 1409- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1409-1411 ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1412-1508 ● ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1509- ● ● ● ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1409-1411 ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1412-1508 ● ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1509- ● ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98132-085-0 01 1 1409-1411 ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98132-085-0 01 1 1412- ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1409-1411 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1412-1508 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1509- ● ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1409-1411 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1412-1508 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1509- ● ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98158-737-1 01 1 1409-1508 ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98158-737-1 01 1 1509- ● ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1409-1411 ● ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1412-1508 ● ● ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1509- ● ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1409-1411 ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1412-1505 ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 1-15619-508-0 02 1 1506-1508 ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 1-15619-508-0 02 1 1509- ● ● ● ● ●
199 03.332 GASKET; EYE BOLT 8-97602-218-0 02 1 1409- ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1409-1411 ● ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1412-1508 ● ● ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1509- ● ● ● ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1409-1411 ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1412- ● ●
210 03.330 PIPE; INJ,C/R 8-98233-237-0 01 1 1409-1508 ●
210 03.330 PIPE; INJ,C/R 8-98233-237-0 01 1 1509- ● ●
210 03.330 PIPE; INJ,C/R 8-98158-733-0 01 1 1409- ●
211 03.331 RAIL ASM; COMMON 8-98132-055-1 01 1 1409-1411 ●
211 03.331 RAIL ASM; COMMON 8-98132-055-1 01 1 1412- ● ●
211 03.331 RAIL ASM; COMMON 8-98228-475-0 01 1 1409-1508 ●
211 03.331 RAIL ASM; COMMON 8-98228-475-0 01 1 1509- ● ●
211 03.331 RAIL ASM; COMMON 8-98151-214-0 01 1 1409- ●
216 03.162 BOLT; EYE
(B) 		8-98043-033-0 01 1 1409- ●
216 03.162 BOLT; EYE
03.280 (A) 		9-88130-088-0 01 1 1409-1409 ● ● ●
216 03.162 BOLT; EYE
(A) 		8-98209-777-0 01 1 1410-1411 ● ● ●
216 03.162 BOLT; EYE
(A) 		8-98209-777-0 01 1 1412-1508 ● ● ● ●
216 03.162 BOLT; EYE
(A) 		8-98209-777-0 01 1 1509- ● ● ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1409-1411 ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1412-1508 ● ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1509- ● ● ● ● ●
282 03.163 BRACKET; COMMON RAIL 8-98132-056-0 01 1 1409-1411 ●
282 03.163 BRACKET; COMMON RAIL 8-98132-056-0 01 1 1412- ● ●
282 03.163 BRACKET; COMMON RAIL 8-98205-942-0 01 1 1409-1508 ●
282 03.163 BRACKET; COMMON RAIL 8-98205-942-0 01 1 1509- ● ●
282 03.163 BRACKET; COMMON RAIL 8-98158-715-2 01 1 1409- ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 1409-1411 ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 1412- ● ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1409-1411 ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1412- ● ●
283 03.330 BOLT; COMMON RAIL
(E) M8X66 FLANGE 		8-98228-566-0 03 1 1409-1508 ●
283 03.330 BOLT; COMMON RAIL
(E) M8X66 FLANGE 		8-98228-566-0 03 1 1509- ● ●
283 03.330 BOLT; COMMON RAIL
(C) M8X25 FLANGE 		8-98174-080-0 03 1 1409- ●
283 03.330 BOLT; COMMON RAIL
(D) M8X40 FLANGE 		8-98174-180-0 04 1 1409- ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1409-1411 ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1412-1508 ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1509- ● ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98138-695-0 01 1 1409- ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1409-1411 ● ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1412-1508 ● ● ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1509- ● ● ● ●
290 03.331 SENSOR; PRESS 8-98178-706-0 01 1 1409- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 1409-1411 ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 1412- ● ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98228-637-0 04 1 1409-1508 ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98228-637-0 04 1 1509- ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1409-1409 ● ● ●
347 03.332 PIN 8-98165-035-0 04 1 1409-1411 ● ● ●
347 03.332 PIN 8-98165-035-0 04 1 1412-1508 ● ● ● ●
347 03.332 PIN 8-98165-035-0 04 1 1509- ● ● ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-2 01 1 1409-1411 ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-3 01 1 1412-1508 ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-3 01 1 1509- ● ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98151-213-2 01 1 1409- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1409-1411 ● ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1412-1508 ● ● ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1509- ● ● ● ● ●

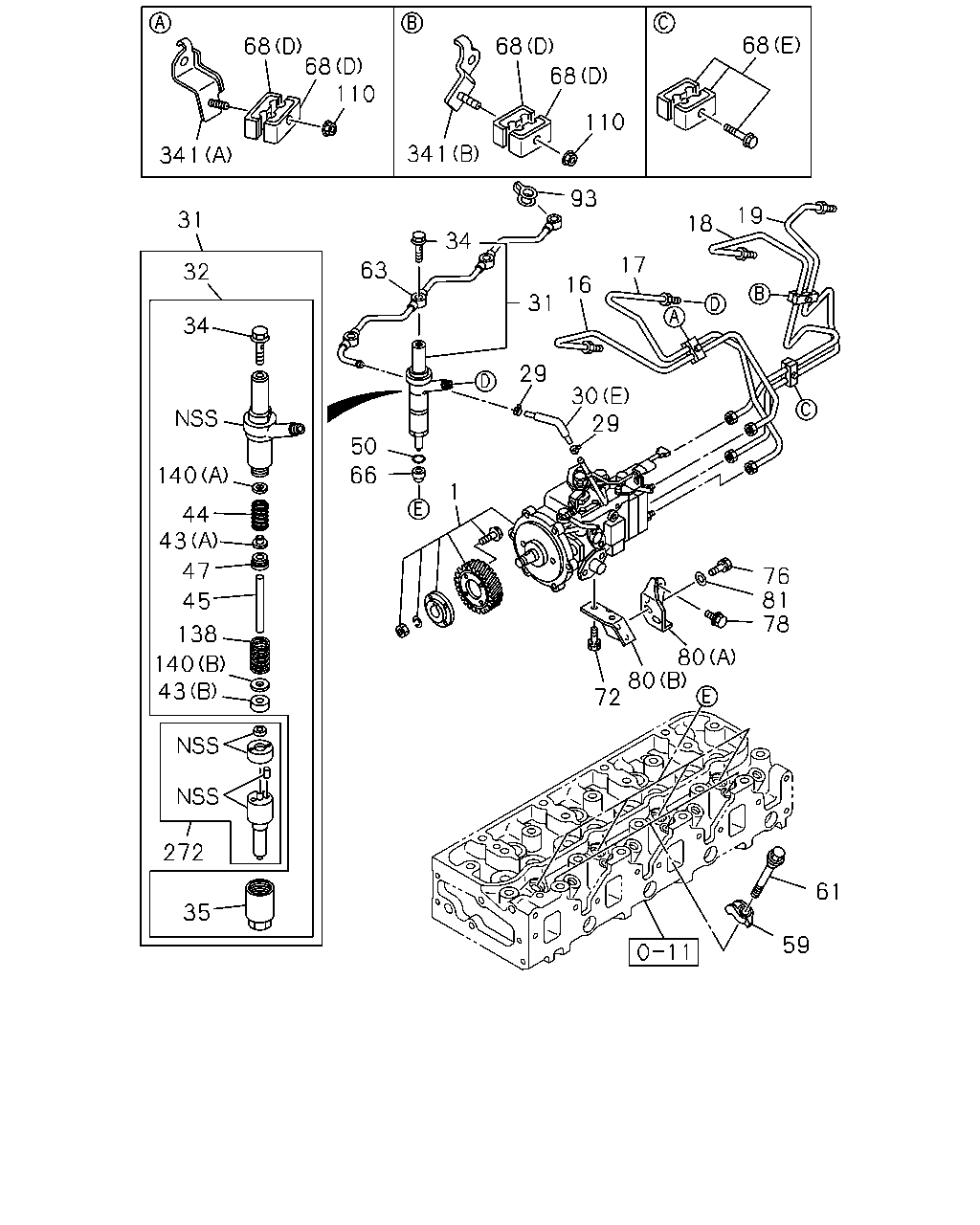

çizim 449469
68 68 341 110 68 68 110 68 341 34 93 17 18 19 16 31 29 30 29 63 31 32 34 50 66 72 80 80 76 81 78 61 59 272 140 44 43 47 45 138 140 43 35 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 		8-98002-138-0 01 1 1409- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 		8-97350-394-3 01 1 1409- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 		8-97350-398-3 01 1 1409- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2> 		8-98002-137-1 01 1 1409- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 		8-97350-393-4 01 1 1409- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1> 		8-97350-396-4 01 1 1409- ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 1409- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1409-1411 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1412- ● ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1409-1508 ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1509- ● ●
16 03.330 PIPE; INJ NO.1 8-98158-729-0 01 1 1409- ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 1409- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1409-1411 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1412- ● ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1409-1508 ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1509- ● ●
17 03.330 PIPE; INJ NO.2 8-98158-730-0 01 1 1409- ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 1409- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1409-1411 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1412- ● ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1409-1508 ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1509- ● ●
18 03.330 PIPE; INJ NO.3 8-98158-731-0 01 1 1409- ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 1409- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1409-1411 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1412- ● ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1409-1508 ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1509- ● ●
19 03.330 PIPE; INJ NO.4 8-98158-732-0 01 1 1409- ●
29 03.162 CLIP; HOSE
03.163 ID=11 		8-97173-219-0 02 1 1409- ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1409-1411 ● ● ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1412-1508 ● ● ● ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1509- ● ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=320 		8-98135-263-1 01 1 1409- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98168-394-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98168-394-0 01 1 1412- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 01 1 1412- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1409-1411 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1412-1508 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1509- ● ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1409-1508 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1509- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) 		8-98189-998-0 01 1 1409-1508 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) 		8-98189-998-0 01 1 1509- ● ● ●
31 03.332 NOZZLE ASM; INJ 8-98106-693-2 04 1 1509- ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98119-228-3 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98106-694-1 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 1409- ●
31 03.332 NOZZLE ASM; INJ 8-98203-849-0 04 1 1409- ●
31 03.332 NOZZLE ASM; INJ 8-98246-130-0 04 1 1409- ●
31 03.332 NOZZLE ASM; INJ 8-98260-109-0 04 1 1409- ●
32 03.332 HOLDER ASM; NOZZLE 8-97217-835-0 04 1 1409- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 1409- ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.00 		8-97223-343-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.02 		8-97223-344-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.04 		8-97223-345-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.06 		8-97223-346-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.08 		8-97223-347-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.10 		8-97223-348-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.12 		8-97223-349-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.14 		8-97223-350-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.16 		8-97223-351-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.18 		8-97223-352-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.20 		8-97223-353-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.22 		8-97223-354-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.24 		8-97223-355-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.26 		8-97223-356-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.28 		8-97223-357-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.30 		8-97223-358-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.32 		8-97223-359-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.34 		8-97223-360-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.36 		8-97223-361-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.38 		8-97223-362-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.40 		8-97223-363-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.42 		8-97223-364-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.44 		8-97223-365-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.46 		8-97223-366-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.48 		8-97223-367-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.50 		8-97223-368-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.52 		8-97223-369-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.54 		8-97223-370-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.56 		8-97223-371-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.58 		8-97223-372-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.60 		8-97223-373-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.62 		8-97223-374-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.64 		8-97223-375-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.66 		8-97223-376-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.68 		8-97223-377-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.70 		8-97223-378-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.72 		8-97223-379-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.74 		8-97223-380-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.76 		8-97223-381-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.78 		8-97223-382-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.80 		8-97223-383-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.82 		8-97223-384-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.84 		8-97223-385-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.86 		8-97223-386-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.88 		8-97223-387-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.90 		8-97223-388-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.92 		8-97223-389-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.94 		8-97223-390-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.96 		8-97223-391-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.98 		8-97223-392-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=3.00 		8-97223-393-0 04 1 1409- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) 		8-97361-697-0 04 1 1409- ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.25 		8-97355-112-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.26 		8-97355-113-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.27 		8-97355-114-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.28 		8-97355-115-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.29 		8-97355-116-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.30 		8-97355-117-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.31 		8-97355-118-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.32 		8-97355-119-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.33 		8-97355-120-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.34 		8-97355-121-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.35 		8-97355-122-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.36 		8-97355-123-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.37 		8-97355-124-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.38 		8-97355-125-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.39 		8-97355-126-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.40 		8-97355-127-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.41 		8-97355-128-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.42 		8-97355-129-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.43 		8-97355-130-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.44 		8-97355-131-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.45 		8-97355-132-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.46 		8-97355-133-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.47 		8-97355-134-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.48 		8-97355-135-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.49 		8-97355-136-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.50 		8-97355-137-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.51 		8-97355-138-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.52 		8-97355-139-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.53 		8-97355-140-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.54 		8-97355-141-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.55 		8-97355-142-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.56 		8-97355-143-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.57 		8-97355-144-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.58 		8-97355-145-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.59 		8-97355-146-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.60 		8-97355-147-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.61 		8-97355-148-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.62 		8-97355-149-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.63 		8-97355-150-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.64 		8-97355-151-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.65 		8-97355-152-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.66 		8-97355-153-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.67 		8-97355-154-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.68 		8-97355-155-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.69 		8-97355-156-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.70 		8-97355-157-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.71 		8-97355-158-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.72 		8-97355-159-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.73 		8-97355-160-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.74 		8-97355-161-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.75 		8-97355-162-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.76 		8-97355-163-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.77 		8-97355-164-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.78 		8-97355-165-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.79 		8-97355-166-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.80 		8-97355-167-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.81 		8-97355-168-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.82 		8-97355-169-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.83 		8-97355-170-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.84 		8-97355-171-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.85 		8-97355-172-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.86 		8-97355-173-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.87 		8-97355-174-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.88 		8-97355-175-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.89 		8-97355-176-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.90 		8-97355-177-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.91 		8-97355-178-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.92 		8-97355-179-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.93 		8-97355-180-0 04 1 1409- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.94 		8-97355-182-0 04 1 1409- ●
47 03.332 SPACER; NOZZLE SPRING,NOZZLE HOL 8-97223-340-0 04 1 1409- ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97287-402-2 04 1 1409- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 1409- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1409-1411 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1412-1508 ● ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1509- ● ● ● ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 1409- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 1409- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1409- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1409-1411 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1412-1508 ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98181-540-0 04 1 1509- ● ● ● ● ●
68 03.162 CLIP; INJ PIPE
03.634 (D) 		1-09701-240-0 04 1 1409- ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98227-926-0 01 1 1409- ●
68 03.162 CLIP; INJ PIPE
(A) 		8-97213-481-0 04 1 1409-1411 ●
68 03.162 CLIP; INJ PIPE
(A) 		8-97213-481-0 04 1 1412- ● ●
68 03.162 CLIP; INJ PIPE
(F) ID=11 & 11 L=19 		8-98148-996-2 04 1 1409-1508 ●
68 03.162 CLIP; INJ PIPE
(F) ID=11 & 11 L=19 		8-98148-996-2 04 1 1509- ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-118-3 02 1 1409- ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 02 1 1409- ●
72 03.330 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER 		0-50551-020-0 02 1 1409- ●
76 03.330 BOLT; BRKT TO BRKT
09.008 M8X25 W/LK WASHER 		0-50540-825-0 02 1 1409- ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
80 03.306 BRACKET; PUMP
(A) 		8-97368-670-0 01 1 1409- ●
80 03.306 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 1409- ●
81 03.330 WASHER; PL,BRKT TO PUMP
02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 1409- ●
93 03.162 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97375-236-0 04 1 1409- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1409-1411 ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1412-1508 ● ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1509- ● ● ● ● ● ●
138 03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER 8-94174-141-0 04 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=1.20 		1-15349-004-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.52 		1-15349-044-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.54 		1-15349-045-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.56 		1-15349-046-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.58 		1-15349-047-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.60 		1-15349-048-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.70 		1-15349-049-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.10 		8-97116-029-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.20 		8-97116-032-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.30 		8-97116-033-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.40 		8-97116-034-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.50 		8-97116-035-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.51 		8-97116-036-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.52 		8-97116-037-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.53 		8-97116-038-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.54 		8-97116-039-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.55 		8-97116-040-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.56 		8-97116-041-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.57 		8-97116-042-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.58 		8-97116-043-0 AR 1 1409- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.59 		8-97116-044-0 AR 1 1409- ●
272 03.332 NOZZLE KIT; INJ 8-97362-572-0 04 1 1409- ●
341 03.330 BRACKET; CLIP,INJ PIPE
(B) 		8-97333-806-1 01 1 1409- ●
341 03.330 BRACKET; CLIP,INJ PIPE
(A) 		8-97365-211-1 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
