Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#151732) — 519 parça

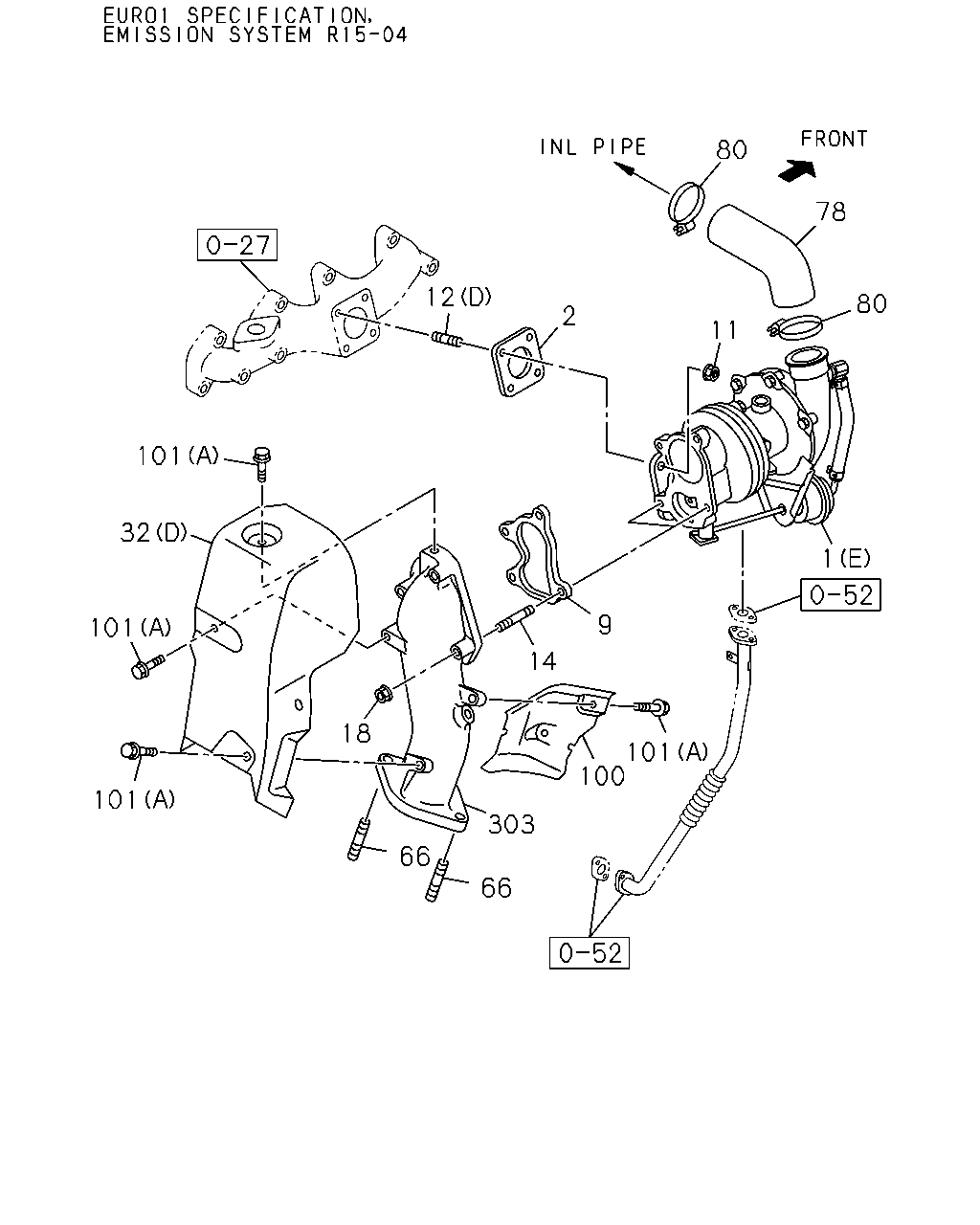

66 66 100 303 18 14 101 101 32 101 12 2 11 78 80 80 9 101 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM (B)	8-98235-627-1	01	1	1509-	●
1	03.342 TURBOCHARGER ASM (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1412-		●
1	03.342 TURBOCHARGER ASM (E)	8-97240-210-2	01	1	1409-			●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98235-629-1	01	1	1409-				●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98235-628-1	01	1	1409-				●
1	03.342 TURBOCHARGER ASM (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98204-327-0	01	1	1409-					●
1	03.342 TURBOCHARGER ASM (C)	8-98150-688-3	01	1	1409-						●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> EXC. PROVISIONAL PACKAGE SPEC(BCC) (D)	8-98270-437-0	01	1	1409-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1409-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1409-1411				●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1412-1508		●		●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1509-	●	●		●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1409-						●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97139-726-0	01	1	1409-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1409-			●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1409-1411				●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1412-1508		●		●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1509-	●	●		●	●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1409-						●
12	03.342 STUD; TURBOCHARGER (D) M8X20 L=31	8-97378-060-0	04	1	1409-			●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1409-1411				●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1412-1508		●		●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1509-	●	●		●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1409-1411				●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1412-1508		●		●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1509-	●	●		●	●
12	03.342 STUD; TURBOCHARGER (C) M10X28.5 L=41.5	8-97378-063-0	06	1	1409-						●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2> M8X43 L=54	8-97378-067-0	04	1	1409-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 03.601 M8X25 L=36	8-97378-062-0	04	1	1409-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1409-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (D)	8-97087-029-0	01	1	1409-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1409-1508				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1509-	●			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98159-563-1	01	1	1409-						●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98159-564-2	01	1	1409-						●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1409-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1409-1411				●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1412-1508		●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1509-	●	●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1409-						●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	1409-			●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-98179-013-1	01	1	1409-						●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER ID=45.5-56.5	8-97131-943-0	02	1	1409-			●
100	03.417 PROTECTOR; HEAT,EXH MANIF EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>	8-97038-109-1	01	1	1409-			●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1409-			●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1409-			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1409-1508				●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1509-	●			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1409-						●
303	03.440 ADAPTER; THROTTLE BODY,EXH EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>	8-98189-770-0	01	1	1409-			●

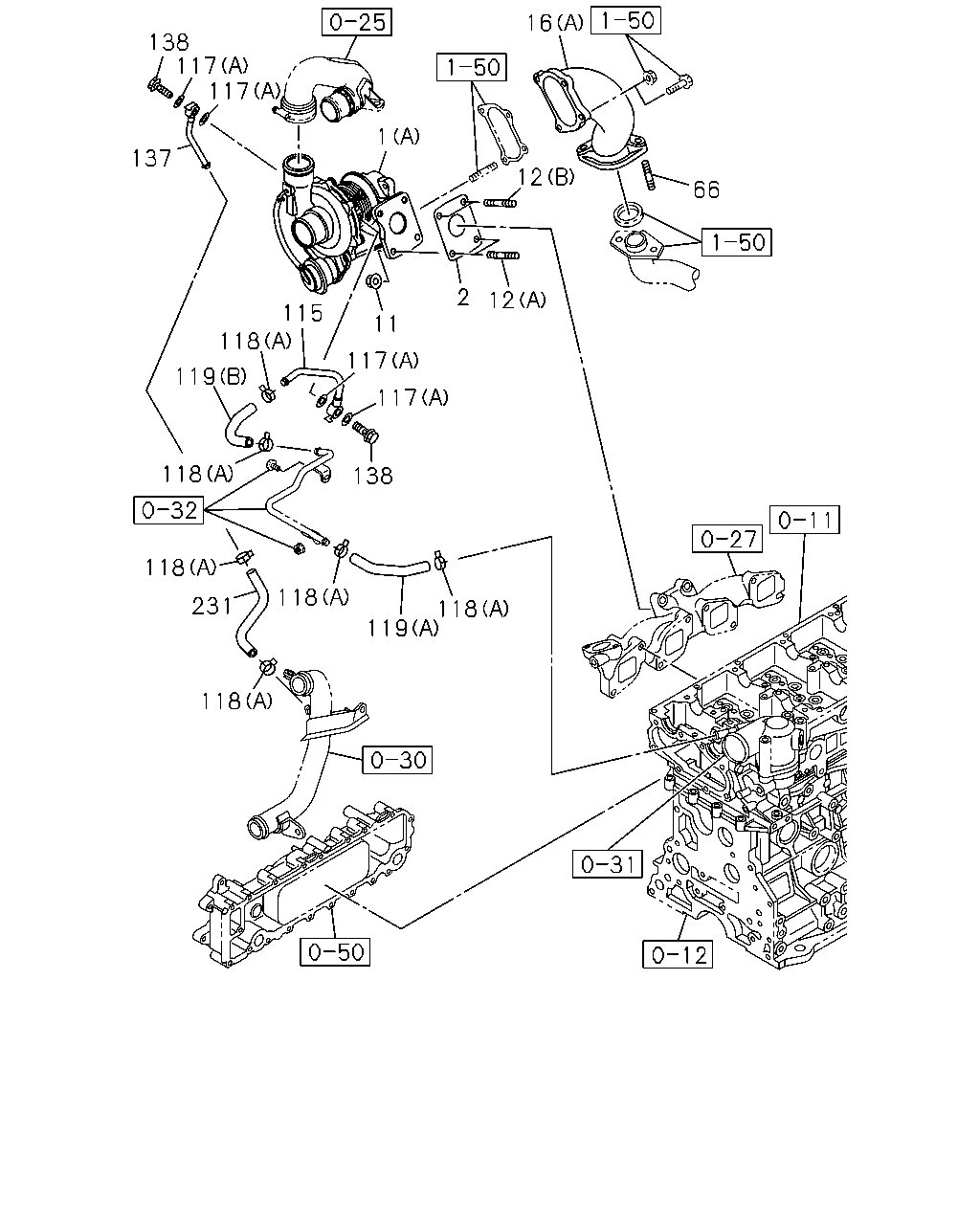

16 66 12 12 2 1 117 117 138 137 115 11 117 117 118 119 138 118 118 118 118 119 231 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM (B)	8-98235-627-1	01	1	1509-	●
1	03.342 TURBOCHARGER ASM (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1412-		●
1	03.342 TURBOCHARGER ASM (E)	8-97240-210-2	01	1	1409-			●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98235-629-1	01	1	1409-				●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98235-628-1	01	1	1409-				●
1	03.342 TURBOCHARGER ASM (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98204-327-0	01	1	1409-					●
1	03.342 TURBOCHARGER ASM (C)	8-98150-688-3	01	1	1409-						●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> EXC. PROVISIONAL PACKAGE SPEC(BCC) (D)	8-98270-437-0	01	1	1409-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1409-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1409-1411				●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1412-1508		●		●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1509-	●	●		●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1409-						●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1409-			●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1409-1411				●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1412-1508		●		●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1509-	●	●		●	●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1409-						●
12	03.342 STUD; TURBOCHARGER (D) M8X20 L=31	8-97378-060-0	04	1	1409-			●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1409-1411				●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1412-1508		●		●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1509-	●	●		●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1409-1411				●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1412-1508		●		●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1509-	●	●		●	●
12	03.342 STUD; TURBOCHARGER (C) M10X28.5 L=41.5	8-97378-063-0	06	1	1409-						●
16	03.609 ADAPTER; EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98250-275-0	01	1	1409-1508				●
16	03.609 ADAPTER; EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98250-275-0	01	1	1509-				●
16	03.609 ADAPTER; EXH PIPE (B)	8-98250-275-0	01	1	1509-	●
16	03.609 ADAPTER; EXH PIPE (A)	8-98132-080-0	01	1	1409-1411					●
16	03.609 ADAPTER; EXH PIPE (A)	8-98132-080-0	01	1	1412-		●			●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1409-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1409-1411				●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1412-1508		●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1509-	●	●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1409-						●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98132-443-0	01	1	1409-1411					●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98132-443-0	01	1	1412-		●			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1409-1411					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1412-		●			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.724 (B) ID=47.7	1-09623-465-0	01	1	1409-						●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 08.846 (B) ID=20.8	8-97944-127-0	04	1	1510-	●			●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1510-						●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1409-						●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1409-1411				●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1412-1508		●		●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1509-	●	●		●	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8	8-97944-127-0	04	1	1409-1509				●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1409-1509						●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.846 (B) ID=20.8	8-97944-127-0	06	1	1510-	●			●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=26.2	8-98202-540-0	02	1	1409-1509				●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1409-1509						●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C) ID=26.2	8-98202-540-0	02	1	1510-	●			●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1510-						●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1409-1411				●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1412-1508		●		●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1509-	●	●		●	●
119	03.342 HOSE; WATER,TURBOCHARGER (C)	8-98159-560-1	01	1	1409-						●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1409-1411					●	●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1412-		●			●	●
119	03.342 HOSE; WATER,TURBOCHARGER (D)	8-98239-061-0	01	1	1409-1508				●
119	03.342 HOSE; WATER,TURBOCHARGER (D)	8-98239-061-0	01	1	1509-	●			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98132-444-1	01	1	1409-1411					●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98132-444-1	01	1	1412-		●			●
138	03.342 BOLT; EYE,WATER PIPE M14X31 EYE-BOLT	8-98037-067-0	02	1	1409-1411					●
138	03.342 BOLT; EYE,WATER PIPE M14X31 EYE-BOLT	8-98037-067-0	02	1	1412-		●			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1409-1411					●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1412-		●			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98228-462-0	01	1	1409-1508				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98228-462-0	01	1	1509-	●			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98164-651-1	01	1	1409-						●

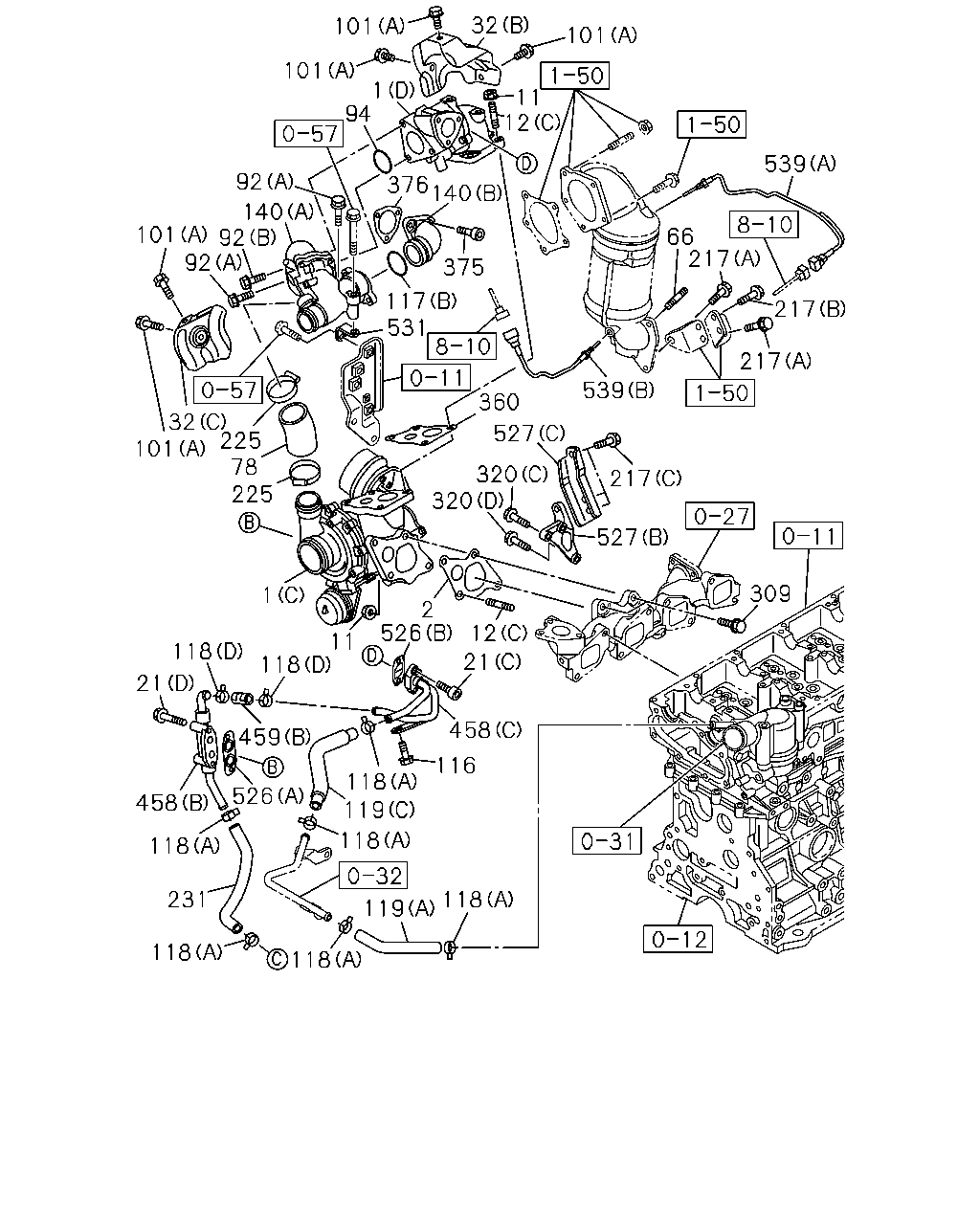

101 32 16 66 320 12 320 527 12 2 11 1 458 526 21 118 119 118 118 231 118 118 118 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM (B)	8-98235-627-1	01	1	1509-	●
1	03.342 TURBOCHARGER ASM (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1412-		●
1	03.342 TURBOCHARGER ASM (E)	8-97240-210-2	01	1	1409-			●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98235-629-1	01	1	1409-				●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98235-628-1	01	1	1409-				●
1	03.342 TURBOCHARGER ASM (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98204-327-0	01	1	1409-					●
1	03.342 TURBOCHARGER ASM (C)	8-98150-688-3	01	1	1409-						●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> EXC. PROVISIONAL PACKAGE SPEC(BCC) (D)	8-98270-437-0	01	1	1409-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1409-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1409-1411				●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1412-1508		●		●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1509-	●	●		●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1409-						●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1409-			●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1409-1411				●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1412-1508		●		●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1509-	●	●		●	●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1409-						●
12	03.342 STUD; TURBOCHARGER (D) M8X20 L=31	8-97378-060-0	04	1	1409-			●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1409-1411				●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1412-1508		●		●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1509-	●	●		●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1409-1411				●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1412-1508		●		●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1509-	●	●		●	●
12	03.342 STUD; TURBOCHARGER (C) M10X28.5 L=41.5	8-97378-063-0	06	1	1409-						●
16	03.609 ADAPTER; EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98250-275-0	01	1	1409-1508				●
16	03.609 ADAPTER; EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98250-275-0	01	1	1509-				●
16	03.609 ADAPTER; EXH PIPE (B)	8-98250-275-0	01	1	1509-	●
16	03.609 ADAPTER; EXH PIPE (A)	8-98132-080-0	01	1	1409-1411					●
16	03.609 ADAPTER; EXH PIPE (A)	8-98132-080-0	01	1	1412-		●			●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1409-1508				●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1509-	●			●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1409-						●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1409-						●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION<NT4> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1409-1509				●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1409-1509						●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION<NT4> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1510-	●			●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1510-						●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (D)	8-97087-029-0	01	1	1409-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1409-1508				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1509-	●			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98159-563-1	01	1	1409-						●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98159-564-2	01	1	1409-						●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1409-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1409-1411				●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1412-1508		●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1509-	●	●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1409-						●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1409-			●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1409-			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1409-1508				●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1509-	●			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1409-						●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 08.846 (B) ID=20.8	8-97944-127-0	04	1	1510-	●			●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1510-						●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1409-						●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1409-1411				●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1412-1508		●		●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1509-	●	●		●	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8	8-97944-127-0	04	1	1409-1509				●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1409-1509						●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.846 (B) ID=20.8	8-97944-127-0	06	1	1510-	●			●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=26.2	8-98202-540-0	02	1	1409-1509				●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1409-1509						●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C) ID=26.2	8-98202-540-0	02	1	1510-	●			●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1510-						●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1409-1411				●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1412-1508		●		●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1509-	●	●		●	●
119	03.342 HOSE; WATER,TURBOCHARGER (C)	8-98159-560-1	01	1	1409-						●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1409-1411					●	●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1412-		●			●	●
119	03.342 HOSE; WATER,TURBOCHARGER (D)	8-98239-061-0	01	1	1409-1508				●
119	03.342 HOSE; WATER,TURBOCHARGER (D)	8-98239-061-0	01	1	1509-	●			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1409-1411					●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1412-		●			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98228-462-0	01	1	1409-1508				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98228-462-0	01	1	1509-	●			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98164-651-1	01	1	1409-						●
320	03.342 BOLT; BRKT,TURBOCHARGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1409-1508				●
320	03.342 BOLT; BRKT,TURBOCHARGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1509-	●			●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.670 (B) M8X18 FLANGE	8-97378-076-0	01	1	1409-1508				●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.670 (B) M8X18 FLANGE	8-97378-076-0	01	1	1509-	●			●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.403 (C) M8X30 FLANGE	0-28650-830-0	02	1	1409-						●
320	03.342 BOLT; BRKT,TURBOCHARGER 02.277 (D) M10X35 FLANGE	0-28651-035-0	01	1	1409-						●
458	03.373 PIPE; WATER,TURBOCHARGER (A)	8-98184-505-0	01	1	1409-1508				●
458	03.373 PIPE; WATER,TURBOCHARGER (A)	8-98184-505-0	01	1	1509-	●			●
458	03.373 PIPE; WATER,TURBOCHARGER (C)	8-98151-200-0	01	1	1409-						●
458	03.373 PIPE; WATER,TURBOCHARGER (B)	8-98151-201-0	01	1	1409-						●
526	03.342 GASKET; PLATE (B)	8-98178-929-1	01	1	1409-						●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1409-1508				●		●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1509-	●			●		●
527	03.373 BRACKET; TURBOCHARGER (A)	8-98156-388-0	01	1	1409-1508				●
527	03.373 BRACKET; TURBOCHARGER (A)	8-98156-388-0	01	1	1509-	●			●
527	03.373 BRACKET; TURBOCHARGER (C)	8-98151-382-0	01	1	1409-						●
527	03.373 BRACKET; TURBOCHARGER (B)	8-98182-781-0	01	1	1409-						●

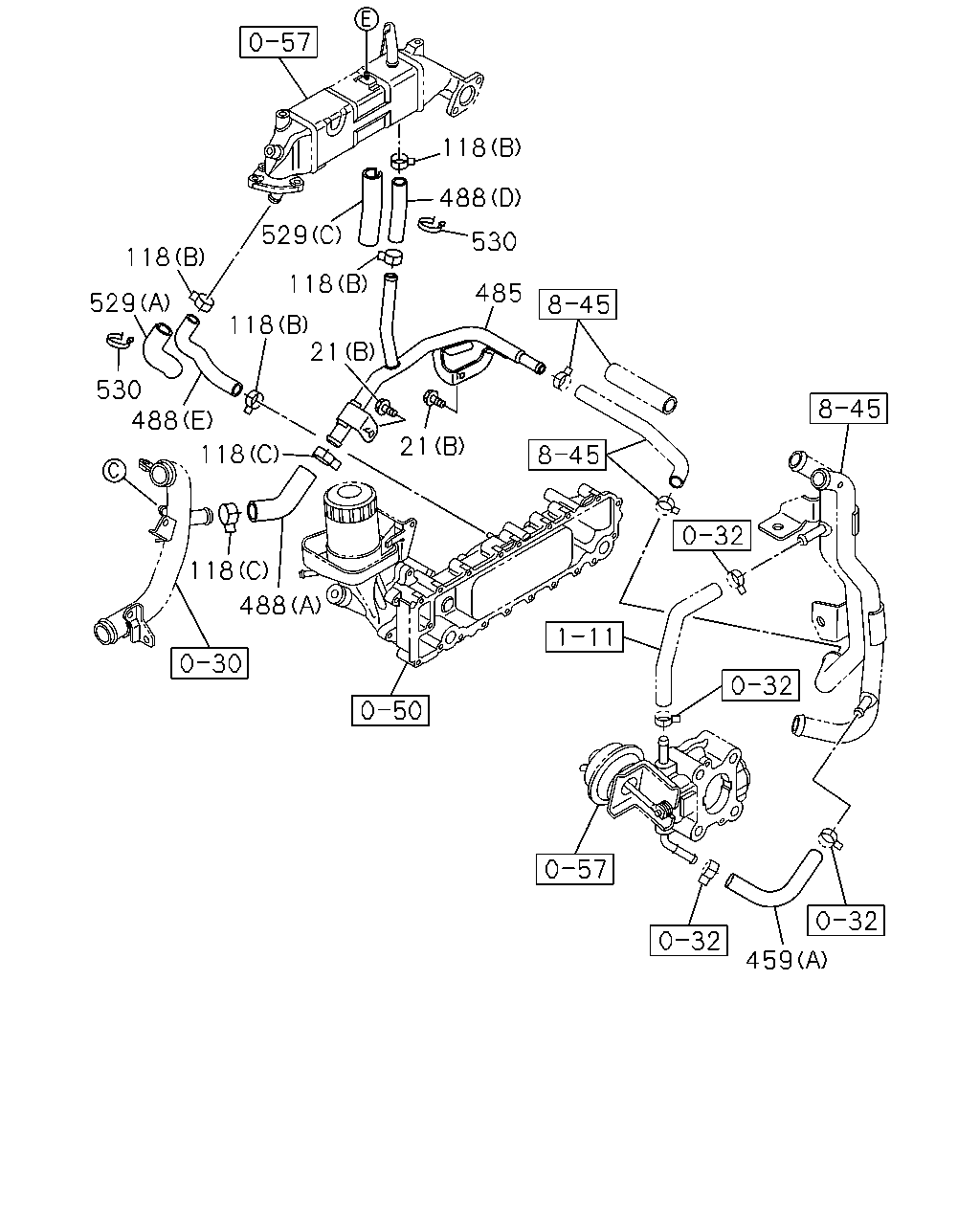

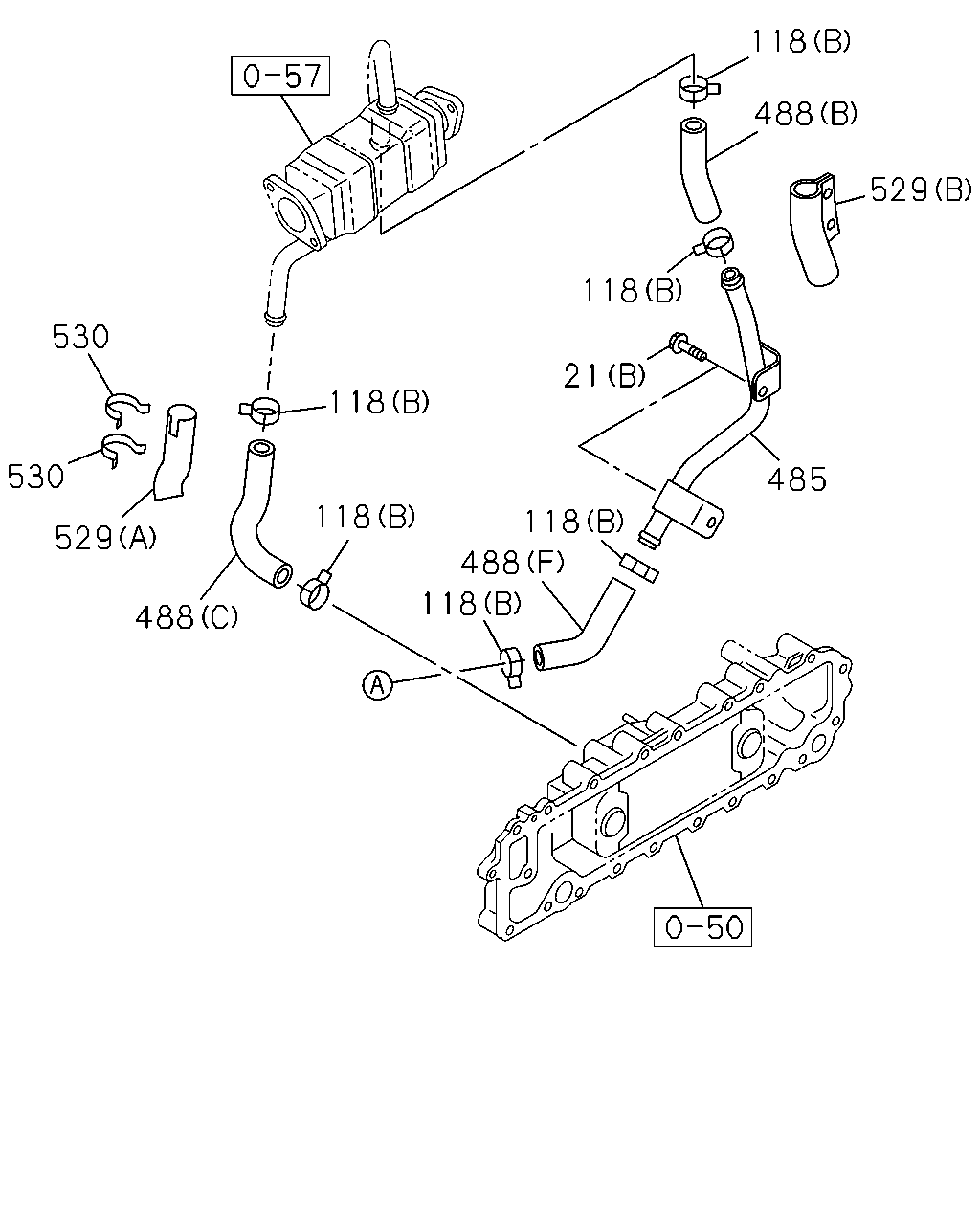

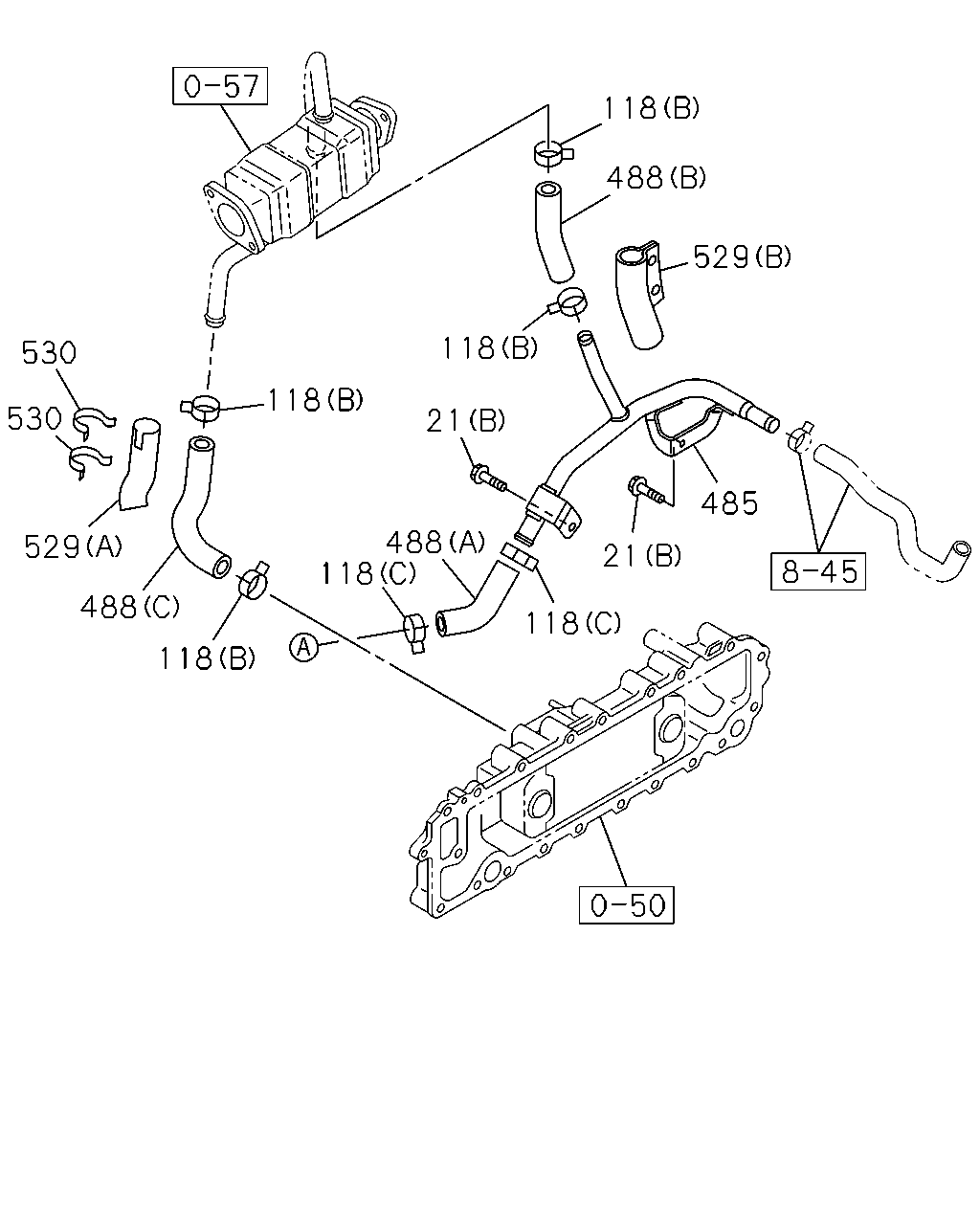

118 488 529 118 21 118 530 530 529 488 118 118 488 118 21 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	F
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1409-1508			●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1509-	●		●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1409-					●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1409-					●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION<NT4> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1409-1509			●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1409-1509					●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION<NT4> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1510-	●		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1510-					●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 08.846 (B) ID=20.8	8-97944-127-0	04	1	1510-	●		●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1510-					●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1409-					●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1409-1411			●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1412-1508		●	●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1509-	●	●	●	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8	8-97944-127-0	04	1	1409-1509			●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1409-1509					●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.846 (B) ID=20.8	8-97944-127-0	06	1	1510-	●		●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=26.2	8-98202-540-0	02	1	1409-1509			●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1409-1509					●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C) ID=26.2	8-98202-540-0	02	1	1510-	●		●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1510-					●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION<NT4> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98228-429-0	01	1	1510-	●		●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION<NT4>	8-98241-644-0	01	1	1409-1509			●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98241-644-0	01	1	1510-	●		●
485	01.097 PIPE; WATER EGR	8-98172-521-4	01	1	1409-					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.846 (F)	8-98132-368-0	01	1	1510-	●		●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98215-481-0	01	1	1409-			●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-98239-031-0	01	1	1409-			●
488	03.163 HOSE; RUBBER (D)	0-03616-100-0	01	1	1409-					●
488	03.163 HOSE; RUBBER (E)	8-98179-011-2	01	1	1409-					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A)	8-98132-446-0	01	1	1409-1509			●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1409-1509					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98132-446-0	01	1	1510-	●		●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1510-					●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (B)	8-98228-426-0	01	1	1409-			●
529	03.374 INSULATOR; HOSE (C)	8-98190-325-0	01	1	1409-					●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (A)	8-98031-883-0	01	1	1409-1509			●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	01	1	1409-1509					●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (A)	8-98031-883-0	01	1	1510-	●		●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	01	1	1510-					●
530	03.374 CLIP; INSULATOR EURO4 SPECIFICATION<NT4> 01.540	8-97101-337-0	02	1	1409-			●
530	03.374 CLIP; INSULATOR 01.540	8-97101-337-0	04	1	1409-					●

32 101 11 140 12 376 375 66 539 217 217 217 309 527 217 527 320 320 360 539 21 2 12 526 11 118 118 1 225 78 225 101 32 531 117 140 92 101 92 92 101 101 1 94 458 116 118 119 118 119 118 118 118 231 118 458 526 459 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM (B)	8-98235-627-1	01	1	1509-	●
1	03.342 TURBOCHARGER ASM (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1412-		●
1	03.342 TURBOCHARGER ASM (E)	8-97240-210-2	01	1	1409-			●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98235-629-1	01	1	1409-				●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98235-628-1	01	1	1409-				●
1	03.342 TURBOCHARGER ASM (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98204-327-0	01	1	1409-					●
1	03.342 TURBOCHARGER ASM (C)	8-98150-688-3	01	1	1409-						●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> EXC. PROVISIONAL PACKAGE SPEC(BCC) (D)	8-98270-437-0	01	1	1409-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1409-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1409-1411				●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1412-1508		●		●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1509-	●	●		●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1409-						●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1409-			●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1409-1411				●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1412-1508		●		●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1509-	●	●		●	●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1409-						●
12	03.342 STUD; TURBOCHARGER (D) M8X20 L=31	8-97378-060-0	04	1	1409-			●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1409-1411				●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1412-1508		●		●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1509-	●	●		●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1409-1411				●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1412-1508		●		●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1509-	●	●		●	●
12	03.342 STUD; TURBOCHARGER (C) M10X28.5 L=41.5	8-97378-063-0	06	1	1409-						●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1409-1508				●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1509-	●			●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1409-						●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1409-						●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION<NT4> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1409-1509				●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1409-1509						●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION<NT4> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1510-	●			●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1510-						●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (D)	8-97087-029-0	01	1	1409-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1409-1508				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1509-	●			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98159-563-1	01	1	1409-						●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98159-564-2	01	1	1409-						●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1409-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1409-1411				●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1412-1508		●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1509-	●	●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1409-						●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	1409-			●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-98179-013-1	01	1	1409-						●
92	03.417 BOLT; INL PIPE 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1409-						●
92	03.417 BOLT; INL PIPE 04.686 (B) M8X60 FLANGE	0-28050-860-0	01	1	1409-						●
94	01.531 GASKET; INL PIPE 03.162 ID=49.7	1-09623-541-0	01	1	1409-						●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1409-			●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1409-			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1409-1508				●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1509-	●			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1409-						●
116	03.342 BOLT; WATER PIPE 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1409-						●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1409-1411					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1412-		●			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.724 (B) ID=47.7	1-09623-465-0	01	1	1409-						●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 08.846 (B) ID=20.8	8-97944-127-0	04	1	1510-	●			●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1510-						●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1409-						●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1409-1411				●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1412-1508		●		●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1509-	●	●		●	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8	8-97944-127-0	04	1	1409-1509				●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1409-1509						●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.846 (B) ID=20.8	8-97944-127-0	06	1	1510-	●			●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=26.2	8-98202-540-0	02	1	1409-1509				●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1409-1509						●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C) ID=26.2	8-98202-540-0	02	1	1510-	●			●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1510-						●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1409-1411				●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1412-1508		●		●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1509-	●	●		●	●
119	03.342 HOSE; WATER,TURBOCHARGER (C)	8-98159-560-1	01	1	1409-						●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1409-1411					●	●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1412-		●			●	●
119	03.342 HOSE; WATER,TURBOCHARGER (D)	8-98239-061-0	01	1	1409-1508				●
119	03.342 HOSE; WATER,TURBOCHARGER (D)	8-98239-061-0	01	1	1509-	●			●
140	03.417 PIPE; AIR PIPE (A)	8-98151-283-0	01	1	1409-						●
140	03.417 PIPE; AIR PIPE (B)	8-98162-352-0	01	1	1409-						●
217	03.417 BOLT; BRKT (C) M10X25 FLANGE	8-98189-923-0	03	1	1409-						●
217	03.417 BOLT; BRKT EURO4 SPECIFICATION<NT4> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1409-1509				●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1409-1509						●
217	03.417 BOLT; BRKT EURO4 SPECIFICATION<NT4> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1510-	●			●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1510-						●
217	03.417 BOLT; BRKT EURO4 SPECIFICATION<NT4> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1409-1509				●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1409-1509						●
217	03.417 BOLT; BRKT EURO4 SPECIFICATION<NT4> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1510-	●			●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1510-						●
225	03.616 CLIP; CONN HOSE 03.407 ID=60-65	8-98096-418-0	02	1	1409-						●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1409-1411					●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1412-		●			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98228-462-0	01	1	1409-1508				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98228-462-0	01	1	1509-	●			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98164-651-1	01	1	1409-						●
309	03.342 BOLT; TURBOCHARGER M10X30 FLANGE	8-98173-443-0	02	1	1409-						●
320	03.342 BOLT; BRKT,TURBOCHARGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1409-1508				●
320	03.342 BOLT; BRKT,TURBOCHARGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1509-	●			●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.670 (B) M8X18 FLANGE	8-97378-076-0	01	1	1409-1508				●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.670 (B) M8X18 FLANGE	8-97378-076-0	01	1	1509-	●			●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.403 (C) M8X30 FLANGE	0-28650-830-0	02	1	1409-						●
320	03.342 BOLT; BRKT,TURBOCHARGER 02.277 (D) M10X35 FLANGE	0-28651-035-0	01	1	1409-						●
360	03.342 GASKET; ADAPTER TO TURBOCHARGER	8-98151-216-0	01	1	1409-						●
375	03.342 BOLT; FLANGE 01.428 M6X25 HEX SOCKET	0-58330-625-0	03	1	1409-						●
376	03.342 GASKET; FLANGE CONNECTOR	8-98089-661-0	01	1	1409-						●
458	03.373 PIPE; WATER,TURBOCHARGER (A)	8-98184-505-0	01	1	1409-1508				●
458	03.373 PIPE; WATER,TURBOCHARGER (A)	8-98184-505-0	01	1	1509-	●			●
458	03.373 PIPE; WATER,TURBOCHARGER (C)	8-98151-200-0	01	1	1409-						●
458	03.373 PIPE; WATER,TURBOCHARGER (B)	8-98151-201-0	01	1	1409-						●
459	03.341 HOSE; WATER (A) L=100 SERVICED BY L=3000	0-03657-300-0	01	1	1409-						●
459	03.341 HOSE; WATER (B)	8-98159-561-0	01	1	1409-						●
526	03.342 GASKET; PLATE (B)	8-98178-929-1	01	1	1409-						●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1409-1508				●		●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1509-	●			●		●
527	03.373 BRACKET; TURBOCHARGER (A)	8-98156-388-0	01	1	1409-1508				●
527	03.373 BRACKET; TURBOCHARGER (A)	8-98156-388-0	01	1	1509-	●			●
527	03.373 BRACKET; TURBOCHARGER (C)	8-98151-382-0	01	1	1409-						●
527	03.373 BRACKET; TURBOCHARGER (B)	8-98182-781-0	01	1	1409-						●
531	03.616 BRACKET; DUCT	8-98158-725-0	01	1	1409-						●
539	03.337 SENSOR; TURBOCHARGER (A)	8-98031-605-1	01	1	1409-						●
539	03.337 SENSOR; TURBOCHARGER (B)	8-98199-353-0	01	1	1409-						●

118 488 485 530 529 118 118 21 21 488 530 529 118 118 188 459 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	F
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1409-1508			●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1509-	●		●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1409-					●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1409-					●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION<NT4> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1409-1509			●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1409-1509					●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION<NT4> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1510-	●		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1510-					●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 08.846 (B) ID=20.8	8-97944-127-0	04	1	1510-	●		●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1510-					●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1409-					●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1409-1411			●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1412-1508		●	●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1509-	●	●	●	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8	8-97944-127-0	04	1	1409-1509			●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1409-1509					●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.846 (B) ID=20.8	8-97944-127-0	06	1	1510-	●		●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=26.2	8-98202-540-0	02	1	1409-1509			●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1409-1509					●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C) ID=26.2	8-98202-540-0	02	1	1510-	●		●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1510-					●
459	03.341 HOSE; WATER (A) L=100 SERVICED BY L=3000	0-03657-300-0	01	1	1409-					●
459	03.341 HOSE; WATER (B)	8-98159-561-0	01	1	1409-					●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION<NT4> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98228-429-0	01	1	1510-	●		●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION<NT4>	8-98241-644-0	01	1	1409-1509			●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98241-644-0	01	1	1510-	●		●
485	01.097 PIPE; WATER EGR	8-98172-521-4	01	1	1409-					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.846 (F)	8-98132-368-0	01	1	1510-	●		●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98215-481-0	01	1	1409-			●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-98239-031-0	01	1	1409-			●
488	03.163 HOSE; RUBBER (D)	0-03616-100-0	01	1	1409-					●
488	03.163 HOSE; RUBBER (E)	8-98179-011-2	01	1	1409-					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A)	8-98132-446-0	01	1	1409-1509			●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1409-1509					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98132-446-0	01	1	1510-	●		●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1510-					●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (B)	8-98228-426-0	01	1	1409-			●
529	03.374 INSULATOR; HOSE (C)	8-98190-325-0	01	1	1409-					●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (A)	8-98031-883-0	01	1	1409-1509			●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	01	1	1409-1509					●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (A)	8-98031-883-0	01	1	1510-	●		●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	01	1	1510-					●
530	03.374 CLIP; INSULATOR EURO4 SPECIFICATION<NT4> 01.540	8-97101-337-0	02	1	1409-			●
530	03.374 CLIP; INSULATOR 01.540	8-97101-337-0	04	1	1409-					●

101 101 99 66 18 14 14 2 12 80 80 78 11 9 1 66

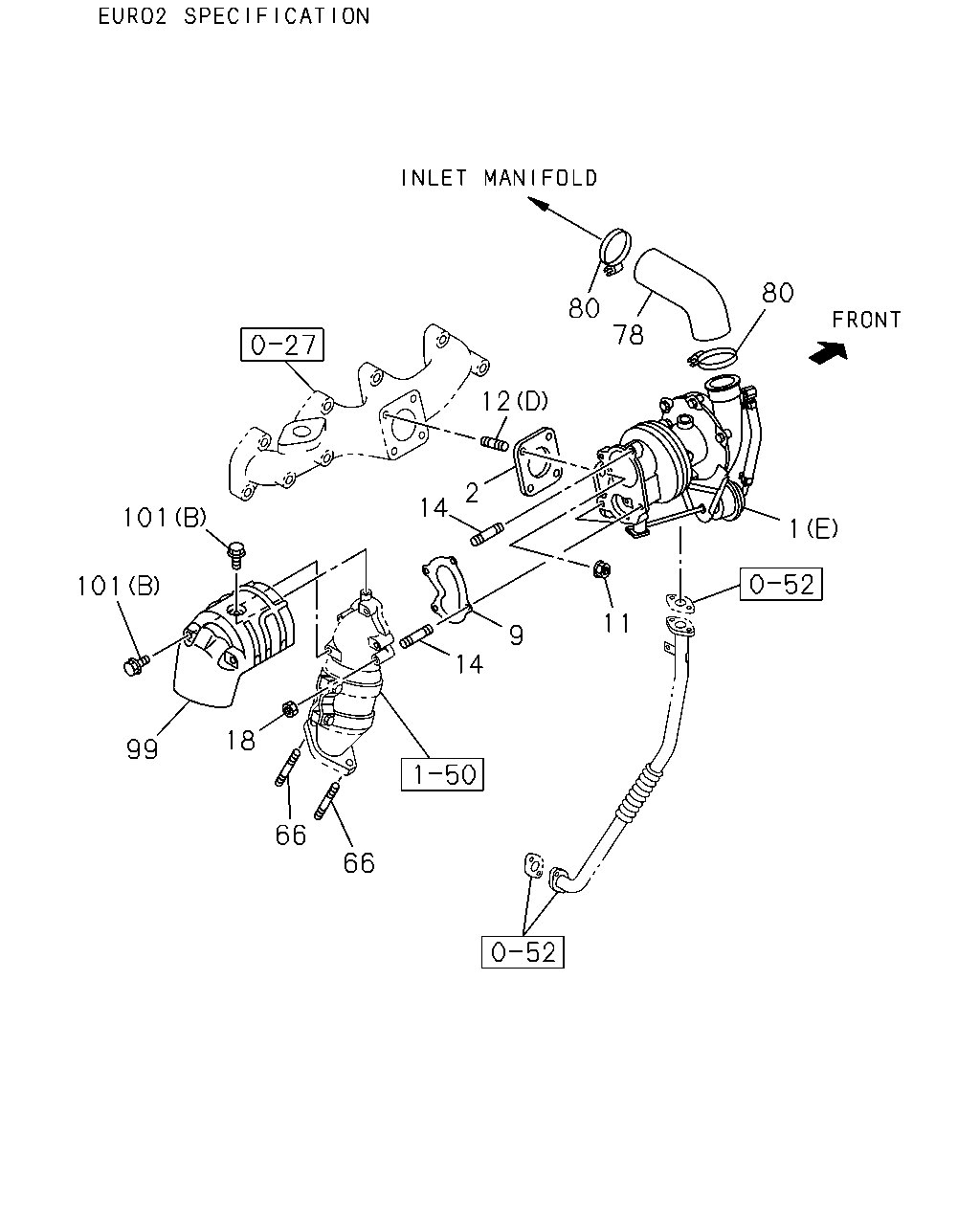

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM (B)	8-98235-627-1	01	1	1509-	●
1	03.342 TURBOCHARGER ASM (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1412-		●
1	03.342 TURBOCHARGER ASM (E)	8-97240-210-2	01	1	1409-			●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98235-629-1	01	1	1409-				●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98235-628-1	01	1	1409-				●
1	03.342 TURBOCHARGER ASM (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98204-327-0	01	1	1409-					●
1	03.342 TURBOCHARGER ASM (C)	8-98150-688-3	01	1	1409-						●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> EXC. PROVISIONAL PACKAGE SPEC(BCC) (D)	8-98270-437-0	01	1	1409-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1409-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1409-1411				●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1412-1508		●		●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1509-	●	●		●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1409-						●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97139-726-0	01	1	1409-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1409-			●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1409-1411				●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1412-1508		●		●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1509-	●	●		●	●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1409-						●
12	03.342 STUD; TURBOCHARGER (D) M8X20 L=31	8-97378-060-0	04	1	1409-			●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1409-1411				●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1412-1508		●		●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1509-	●	●		●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1409-1411				●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1412-1508		●		●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1509-	●	●		●	●
12	03.342 STUD; TURBOCHARGER (C) M10X28.5 L=41.5	8-97378-063-0	06	1	1409-						●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2> M8X43 L=54	8-97378-067-0	04	1	1409-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 03.601 M8X25 L=36	8-97378-062-0	04	1	1409-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1409-			●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1409-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1409-1411				●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1412-1508		●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1509-	●	●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1409-						●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	1409-			●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-98179-013-1	01	1	1409-						●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER ID=45.5-56.5	8-97131-943-0	02	1	1409-			●
99	03.602 PROTECTOR; HEAT EURO2 SPECIFICATION<NT2>	8-97318-472-0	01	1	1409-			●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1409-			●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1409-			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1409-1508				●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1509-	●			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1409-						●

485 21 118 488 118 118 118 488 529 530 530 118 488 529 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	F
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1409-1508			●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1509-	●		●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1409-					●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1409-					●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION<NT4> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1409-1509			●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1409-1509					●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION<NT4> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1510-	●		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1510-					●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 08.846 (B) ID=20.8	8-97944-127-0	04	1	1510-	●		●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1510-					●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1409-					●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1409-1411			●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1412-1508		●	●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1509-	●	●	●	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8	8-97944-127-0	04	1	1409-1509			●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1409-1509					●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.846 (B) ID=20.8	8-97944-127-0	06	1	1510-	●		●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (C) ID=26.2	8-98202-540-0	02	1	1409-1509			●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1409-1509					●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C) ID=26.2	8-98202-540-0	02	1	1510-	●		●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1510-					●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION<NT4> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65)	8-98228-429-0	01	1	1510-	●		●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION<NT4>	8-98241-644-0	01	1	1409-1509			●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98241-644-0	01	1	1510-	●		●
485	01.097 PIPE; WATER EGR	8-98172-521-4	01	1	1409-					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 08.846 (F)	8-98132-368-0	01	1	1510-	●		●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98215-481-0	01	1	1409-			●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-98239-031-0	01	1	1409-			●
488	03.163 HOSE; RUBBER (D)	0-03616-100-0	01	1	1409-					●
488	03.163 HOSE; RUBBER (E)	8-98179-011-2	01	1	1409-					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A)	8-98132-446-0	01	1	1409-1509			●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1409-1509					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98132-446-0	01	1	1510-	●		●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1510-					●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (B)	8-98228-426-0	01	1	1409-			●
529	03.374 INSULATOR; HOSE (C)	8-98190-325-0	01	1	1409-					●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (A)	8-98031-883-0	01	1	1409-1509			●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	01	1	1409-1509					●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (A)	8-98031-883-0	01	1	1510-	●		●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	01	1	1510-					●
530	03.374 CLIP; INSULATOR EURO4 SPECIFICATION<NT4> 01.540	8-97101-337-0	02	1	1409-			●
530	03.374 CLIP; INSULATOR 01.540	8-97101-337-0	04	1	1409-					●

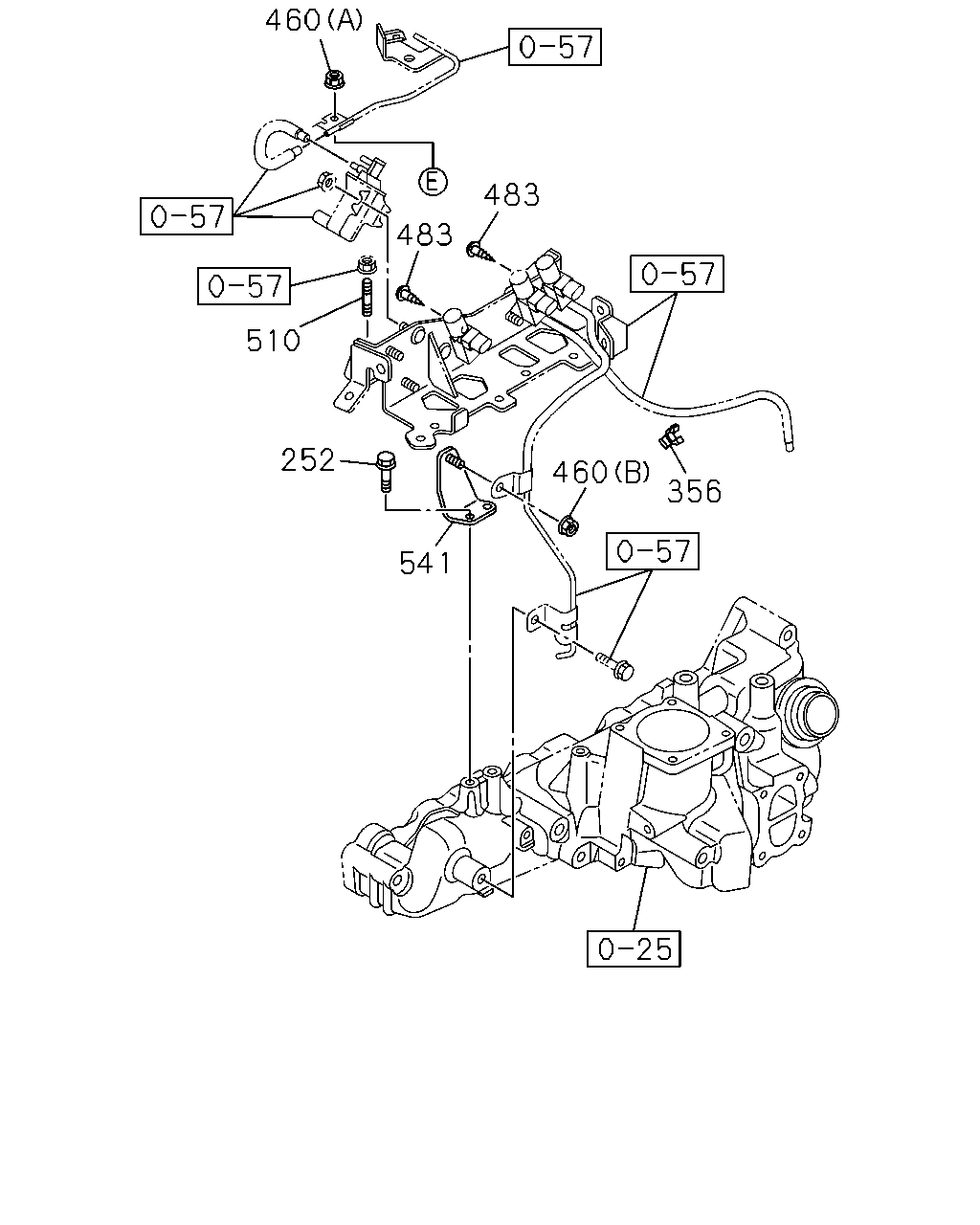

356 460 483 483 510 252 460 541

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	F
252	03.417 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1409-	●
356	03.417 CLIP; HOSE,VAC	8-98202-335-0	01	1	1409-	●
460	03.374 NUT; PIPE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1409-	●
460	03.374 NUT; PIPE 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1409-	●
483	01.531 SCREW 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	1409-	●
510	03.417 STUD; BRKT 02.510 M8X20 L=32	0-41010-820-0	01	1	1409-	●
541	03.616 BRACKET; HOSE	8-98164-824-0	01	1	1409-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
