0-33 — FAN AND FAN BELT (#151731) — 143 parça

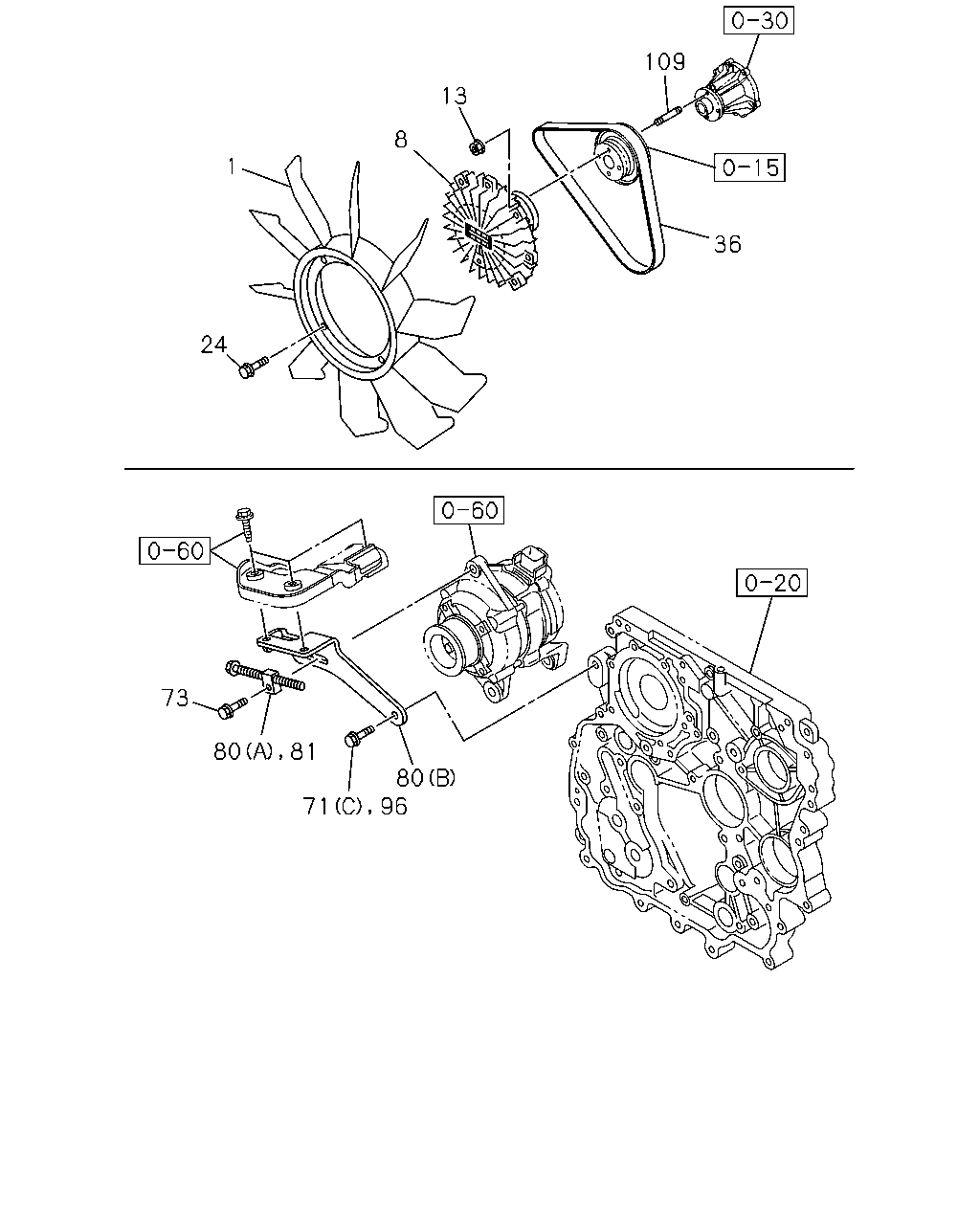

çizim 448281
109 36 13 8 1 24 73 80 81 71 96 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.064 FAN; COOLING 8-97318-963-1 01 1 1409- ●
1 01.064 FAN; COOLING 8-98162-703-0 01 1 1409-1411 ● ● ●
1 01.064 FAN; COOLING 8-98162-703-0 01 1 1412-1508 ● ● ● ●
1 01.064 FAN; COOLING 8-98162-703-0 01 1 1509- ● ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 1409- ●
8 01.064 CLUTCH; COOLING FAN 8-98119-213-1 01 1 1409-1411 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-98119-213-1 01 1 1412-1508 ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-98119-213-1 01 1 1509- ● ● ● ● ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-98049-362-0 04 1 1409-1411 ● ● ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-98049-362-0 04 1 1412-1508 ● ● ● ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-98049-362-0 04 1 1509- ● ● ● ● ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 1409-1411 ● ● ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 1412-1508 ● ● ● ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 1509- ● ● ● ● ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 1409- ●
36 01.066 BELT; COOLING FAN
EXC. IDENTIFICATION LABEL FOR KD<6UT> L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1409-1409 ●
36 01.066 BELT; COOLING FAN
L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1410-1411 ●
36 01.066 BELT; COOLING FAN
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1412-1508 ● ●
36 01.066 BELT; COOLING FAN
L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1412-1508 ●
36 01.066 BELT; COOLING FAN
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1509- ● ●
36 01.066 BELT; COOLING FAN
L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1509- ● ●
36 01.066 BELT; COOLING FAN
EXC. IDENTIFICATION LABEL FOR KD<6UT> L=1036 		8-98132-367-0 01 1 1409-1409 ●
36 01.066 BELT; COOLING FAN
L=1036 		8-98132-367-0 01 1 1410-1411 ● ●
36 01.066 BELT; COOLING FAN
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) L=1036 		8-98132-367-0 01 1 1412-1508 ●
36 01.066 BELT; COOLING FAN
EXC. PROVISIONAL PACKAGE SPEC(BCC) L=1036 		8-98132-367-0 01 1 1412-1508 ● ●
36 01.066 BELT; COOLING FAN
L=1036 		8-98132-367-0 01 1 1509- ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
02.277 (B) M8X40 FLANGE 		0-28050-840-0 01 1 1409- ●
71 02.317 BOLT; ADJ PLATE,GEN
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 1409- ●
71 02.317 BOLT; ADJ PLATE,GEN
01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1409-1411 ●
71 02.317 BOLT; ADJ PLATE,GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1409-1411 ●
71 02.317 BOLT; ADJ PLATE,GEN
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1412- ● ● ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1409-1411 ● ●
73 02.277 BOLT; GEN TO ADJ PLATE
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1412-1508 ●
73 02.277 BOLT; GEN TO ADJ PLATE
EXC. PROVISIONAL PACKAGE SPEC(BCC) 01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1412-1508 ● ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1509- ● ● ●
80 02.317 PLATE; ADJ
02.277 (C) 		8-97306-546-0 01 1 1409- ●
80 02.317 PLATE; ADJ
(B) 		8-98132-102-4 01 1 1409-1411 ● ●
80 02.317 PLATE; ADJ
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-98132-102-4 01 1 1412- ●
80 02.317 PLATE; ADJ
EXC. PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-98132-102-4 01 1 1412- ● ●
80 02.317 PLATE; ADJ
(D) 		8-98228-448-0 01 1 1409-1411 ●
80 02.317 PLATE; ADJ
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98228-448-0 01 1 1412-1508 ● ●
80 02.317 PLATE; ADJ
(D) 		8-98228-448-0 01 1 1412-1508 ●
80 02.317 PLATE; ADJ
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98228-448-0 01 1 1509- ● ●
80 02.317 PLATE; ADJ
(D) 		8-98228-448-0 01 1 1509- ● ●
80 02.317 PLATE; ADJ
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97944-144-1 01 1 1409-1411 ●
80 02.317 PLATE; ADJ
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97944-144-1 01 1 1412- ● ●
81 02.317 PIECE; SLIDING 8-97944-144-1 01 1 1409-1411 ●
81 02.317 PIECE; SLIDING
IDENTIFICATION LABEL FOR KD<6UT> 		8-97944-144-1 01 1 1409-1411 ●
81 02.317 PIECE; SLIDING
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-97944-144-1 01 1 1412- ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1409-1411 ●
96 02.317 BOLT; ADJ PLATE
EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1412- ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1409- ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1409-1411 ● ● ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1412-1508 ● ● ● ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1509- ● ● ● ● ●

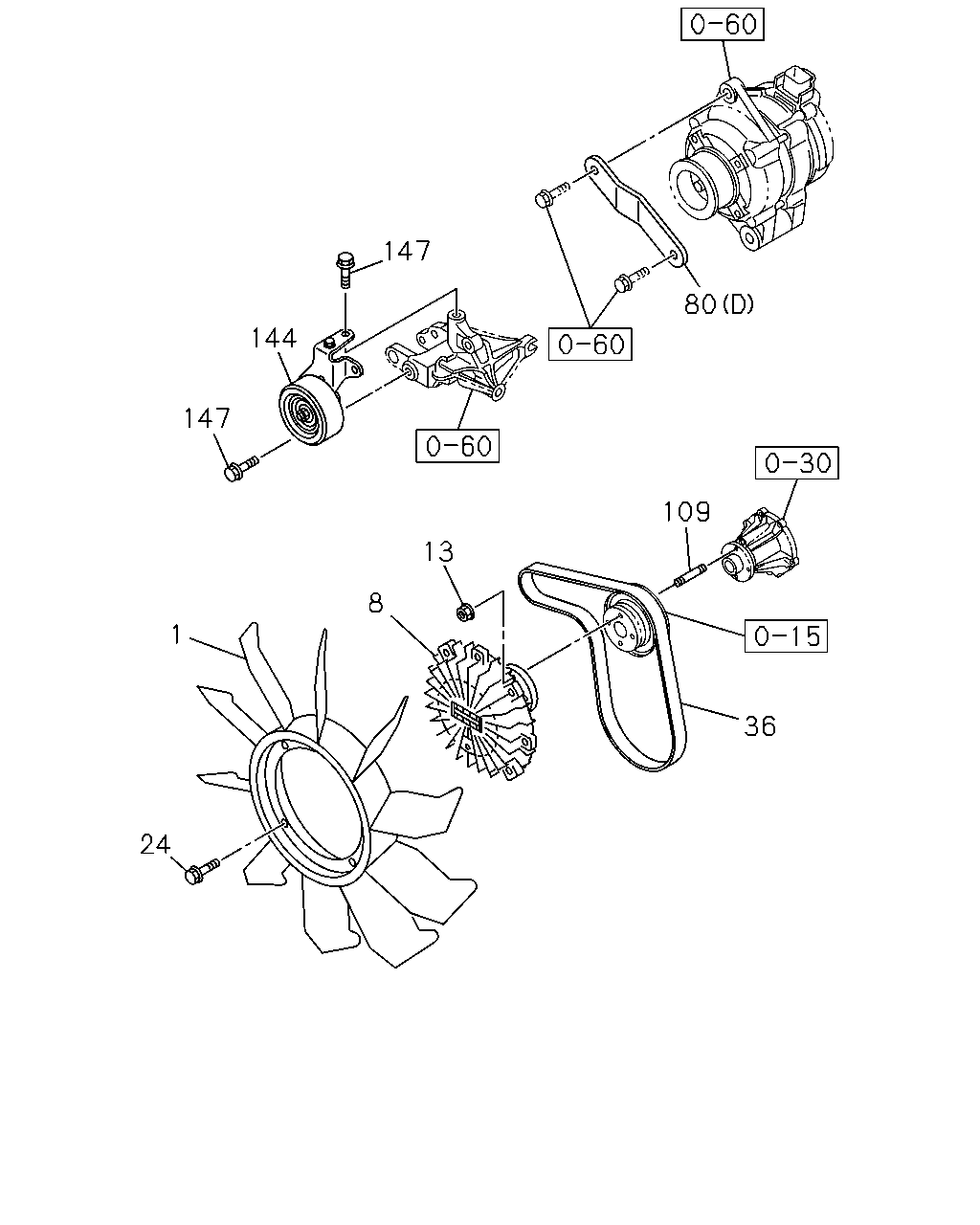

çizim 448282
144 147 147 1 24 8 13 80 109 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.064 FAN; COOLING 8-97318-963-1 01 1 1409- ●
1 01.064 FAN; COOLING 8-98162-703-0 01 1 1409-1411 ● ● ●
1 01.064 FAN; COOLING 8-98162-703-0 01 1 1412-1508 ● ● ● ●
1 01.064 FAN; COOLING 8-98162-703-0 01 1 1509- ● ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 1409- ●
8 01.064 CLUTCH; COOLING FAN 8-98119-213-1 01 1 1409-1411 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-98119-213-1 01 1 1412-1508 ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-98119-213-1 01 1 1509- ● ● ● ● ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-98049-362-0 04 1 1409-1411 ● ● ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-98049-362-0 04 1 1412-1508 ● ● ● ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-98049-362-0 04 1 1509- ● ● ● ● ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 1409-1411 ● ● ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 1412-1508 ● ● ● ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 1509- ● ● ● ● ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 1409- ●
36 01.066 BELT; COOLING FAN
EXC. IDENTIFICATION LABEL FOR KD<6UT> L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1409-1409 ●
36 01.066 BELT; COOLING FAN
L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1410-1411 ●
36 01.066 BELT; COOLING FAN
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1412-1508 ● ●
36 01.066 BELT; COOLING FAN
L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1412-1508 ●
36 01.066 BELT; COOLING FAN
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1509- ● ●
36 01.066 BELT; COOLING FAN
L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1509- ● ●
36 01.066 BELT; COOLING FAN
EXC. IDENTIFICATION LABEL FOR KD<6UT> L=1036 		8-98132-367-0 01 1 1409-1409 ●
36 01.066 BELT; COOLING FAN
L=1036 		8-98132-367-0 01 1 1410-1411 ● ●
36 01.066 BELT; COOLING FAN
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) L=1036 		8-98132-367-0 01 1 1412-1508 ●
36 01.066 BELT; COOLING FAN
EXC. PROVISIONAL PACKAGE SPEC(BCC) L=1036 		8-98132-367-0 01 1 1412-1508 ● ●
36 01.066 BELT; COOLING FAN
L=1036 		8-98132-367-0 01 1 1509- ● ● ●
80 02.317 PLATE; ADJ
02.277 (C) 		8-97306-546-0 01 1 1409- ●
80 02.317 PLATE; ADJ
(B) 		8-98132-102-4 01 1 1409-1411 ● ●
80 02.317 PLATE; ADJ
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-98132-102-4 01 1 1412- ●
80 02.317 PLATE; ADJ
EXC. PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-98132-102-4 01 1 1412- ● ●
80 02.317 PLATE; ADJ
(D) 		8-98228-448-0 01 1 1409-1411 ●
80 02.317 PLATE; ADJ
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98228-448-0 01 1 1412-1508 ● ●
80 02.317 PLATE; ADJ
(D) 		8-98228-448-0 01 1 1412-1508 ●
80 02.317 PLATE; ADJ
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98228-448-0 01 1 1509- ● ●
80 02.317 PLATE; ADJ
(D) 		8-98228-448-0 01 1 1509- ● ●
80 02.317 PLATE; ADJ
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97944-144-1 01 1 1409-1411 ●
80 02.317 PLATE; ADJ
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97944-144-1 01 1 1412- ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1409- ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1409-1411 ● ● ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1412-1508 ● ● ● ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1509- ● ● ● ● ●
144 01.060 TENSIONER; DRIVE BELT 8-98276-119-0 01 1 1409-1508 ●
144 01.060 TENSIONER; DRIVE BELT 8-98276-119-0 01 1 1509- ● ●
147 01.060 BOLT; BELT TENSIONER
02.343 M10X20 FLANGE 		0-28651-020-0 03 1 1409-1508 ●
147 01.060 BOLT; BELT TENSIONER
02.343 M10X20 FLANGE 		0-28651-020-0 03 1 1509- ● ●

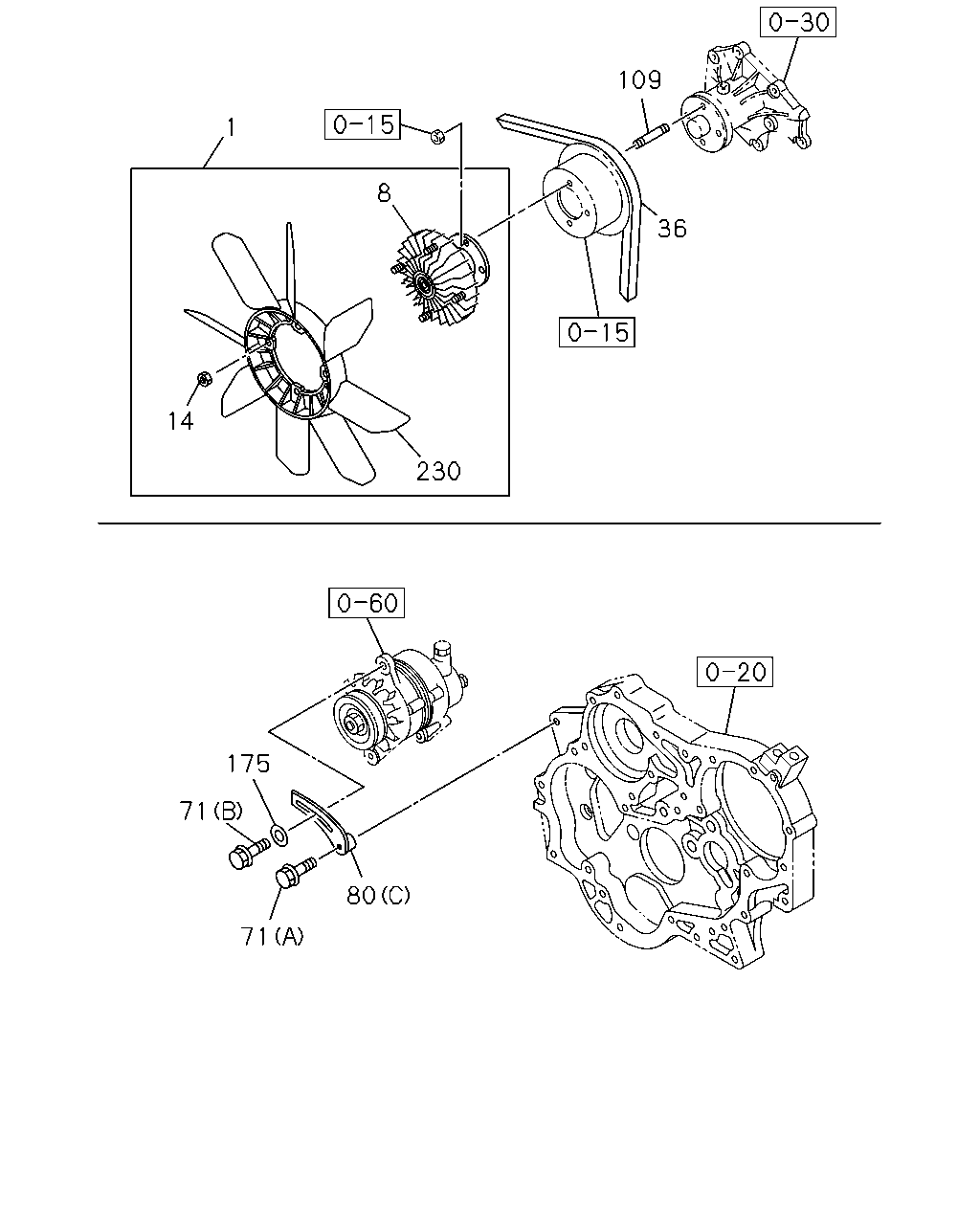

çizim 448800
36 109 8 1 14 230 175 71 71 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.064 FAN; COOLING 8-97318-963-1 01 1 1409- ●
1 01.064 FAN; COOLING 8-98162-703-0 01 1 1409-1411 ● ● ●
1 01.064 FAN; COOLING 8-98162-703-0 01 1 1412-1508 ● ● ● ●
1 01.064 FAN; COOLING 8-98162-703-0 01 1 1509- ● ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 1409- ●
8 01.064 CLUTCH; COOLING FAN 8-98119-213-1 01 1 1409-1411 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-98119-213-1 01 1 1412-1508 ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-98119-213-1 01 1 1509- ● ● ● ● ●
14 01.062 NUT; FAN TO CLU 8-98012-835-0 04 1 1409- ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 1409- ●
36 01.066 BELT; COOLING FAN
EXC. IDENTIFICATION LABEL FOR KD<6UT> L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1409-1409 ●
36 01.066 BELT; COOLING FAN
L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1410-1411 ●
36 01.066 BELT; COOLING FAN
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1412-1508 ● ●
36 01.066 BELT; COOLING FAN
L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1412-1508 ●
36 01.066 BELT; COOLING FAN
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1509- ● ●
36 01.066 BELT; COOLING FAN
L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1509- ● ●
36 01.066 BELT; COOLING FAN
EXC. IDENTIFICATION LABEL FOR KD<6UT> L=1036 		8-98132-367-0 01 1 1409-1409 ●
36 01.066 BELT; COOLING FAN
L=1036 		8-98132-367-0 01 1 1410-1411 ● ●
36 01.066 BELT; COOLING FAN
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) L=1036 		8-98132-367-0 01 1 1412-1508 ●
36 01.066 BELT; COOLING FAN
EXC. PROVISIONAL PACKAGE SPEC(BCC) L=1036 		8-98132-367-0 01 1 1412-1508 ● ●
36 01.066 BELT; COOLING FAN
L=1036 		8-98132-367-0 01 1 1509- ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
02.277 (B) M8X40 FLANGE 		0-28050-840-0 01 1 1409- ●
71 02.317 BOLT; ADJ PLATE,GEN
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 1409- ●
71 02.317 BOLT; ADJ PLATE,GEN
01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1409-1411 ●
71 02.317 BOLT; ADJ PLATE,GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1409-1411 ●
71 02.317 BOLT; ADJ PLATE,GEN
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1412- ● ● ●
80 02.317 PLATE; ADJ
02.277 (C) 		8-97306-546-0 01 1 1409- ●
80 02.317 PLATE; ADJ
(B) 		8-98132-102-4 01 1 1409-1411 ● ●
80 02.317 PLATE; ADJ
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-98132-102-4 01 1 1412- ●
80 02.317 PLATE; ADJ
EXC. PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-98132-102-4 01 1 1412- ● ●
80 02.317 PLATE; ADJ
(D) 		8-98228-448-0 01 1 1409-1411 ●
80 02.317 PLATE; ADJ
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98228-448-0 01 1 1412-1508 ● ●
80 02.317 PLATE; ADJ
(D) 		8-98228-448-0 01 1 1412-1508 ●
80 02.317 PLATE; ADJ
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98228-448-0 01 1 1509- ● ●
80 02.317 PLATE; ADJ
(D) 		8-98228-448-0 01 1 1509- ● ●
80 02.317 PLATE; ADJ
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97944-144-1 01 1 1409-1411 ●
80 02.317 PLATE; ADJ
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97944-144-1 01 1 1412- ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1409- ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1409-1411 ● ● ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1412-1508 ● ● ● ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1509- ● ● ● ● ●
175 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 1409- ●
230 01.055 FAN; COOLING 8-97921-857-1 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
