◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#151729) — 59 parça

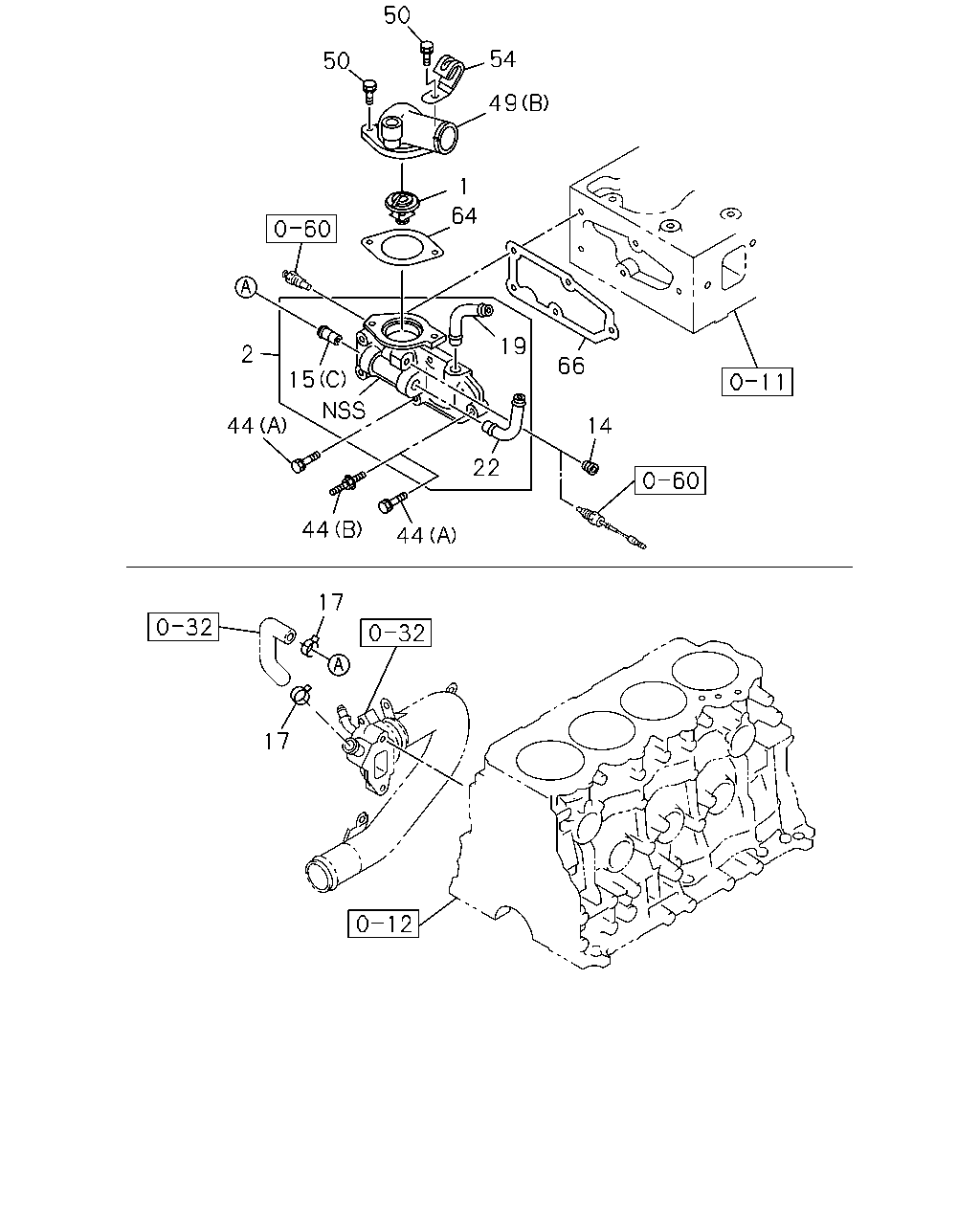

çizim 448233
66 14 19 22 64 1 49 54 50 50 2 15 44 44 44 17 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.246 THERMOSTAT
82 CELSIUS 		8-97361-770-0 01 1 1409- ●
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-1 01 1 1409-1411 ● ● ●
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-2 01 1 1412-1508 ● ● ● ●
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-2 01 1 1509- ● ● ● ● ●
2 01.251 HOUSING; THERMOSTAT 8-97372-994-1 01 1 1409- ●
14 01.252 PLUG; SW
EMISSION SYSTEM R15-04<K75> 01.073 PT3/8 		5-09605-005-0 01 1 1409- ●
15 01.251 PIPE; BYPASS
(C) 		8-94343-211-1 01 1 1409- ●
15 01.251 PIPE; BYPASS
(A) 		8-98165-517-1 01 1 1409-1411 ● ●
15 01.251 PIPE; BYPASS
(A) 		8-98165-517-1 01 1 1412- ● ● ●
15 01.251 PIPE; BYPASS
(B) 		8-98165-518-0 01 1 1409-1411 ● ●
15 01.251 PIPE; BYPASS
(B) 		8-98165-518-0 01 1 1412- ● ● ●
17 01.166 CLIP; WATER HOSE
ID=20.8 		8-94125-862-1 02 1 1409- ●
19 01.252 PIPE; HSG TO HTR 8-94478-870-1 01 1 1409- ●
22 03.278 PIPE; HTR,RETURN 8-94478-869-2 01 1 1409- ●
44 01.252 BOLT; HSG TO HD
09.171 (A) M8X30 W/LK WASHER 		0-50540-830-0 04 1 1409- ●
44 01.252 BOLT; HSG TO HD
(B) M8X28,M8X34 L=69 		8-94479-011-1 01 1 1409- ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97352-105-0 01 1 1409- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-98120-945-0 01 1 1409-1411 ● ● ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-98120-945-0 01 1 1412-1412 ● ● ● ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97355-456-7 01 1 1501-1508 ● ● ● ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97355-456-7 01 1 1509- ● ● ● ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1409- ●
50 01.252 BOLT; OUTLET PIPE
M8X80 FLANGE 		0-28050-880-0 02 1 1409-1411 ● ● ●
50 01.252 BOLT; OUTLET PIPE
M8X80 FLANGE 		0-28050-880-0 02 1 1412-1508 ● ● ● ●
50 01.252 BOLT; OUTLET PIPE
M8X80 FLANGE 		0-28050-880-0 02 1 1509- ● ● ● ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
01.150 ID=12 		8-97367-983-1 01 1 1409- ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252 		8-94365-674-2 01 1 1409- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97212-537-1 01 1 1409- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98114-587-0 01 1 1409-1411 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98114-587-0 01 1 1412-1508 ● ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98114-587-0 01 1 1509- ● ● ● ● ●

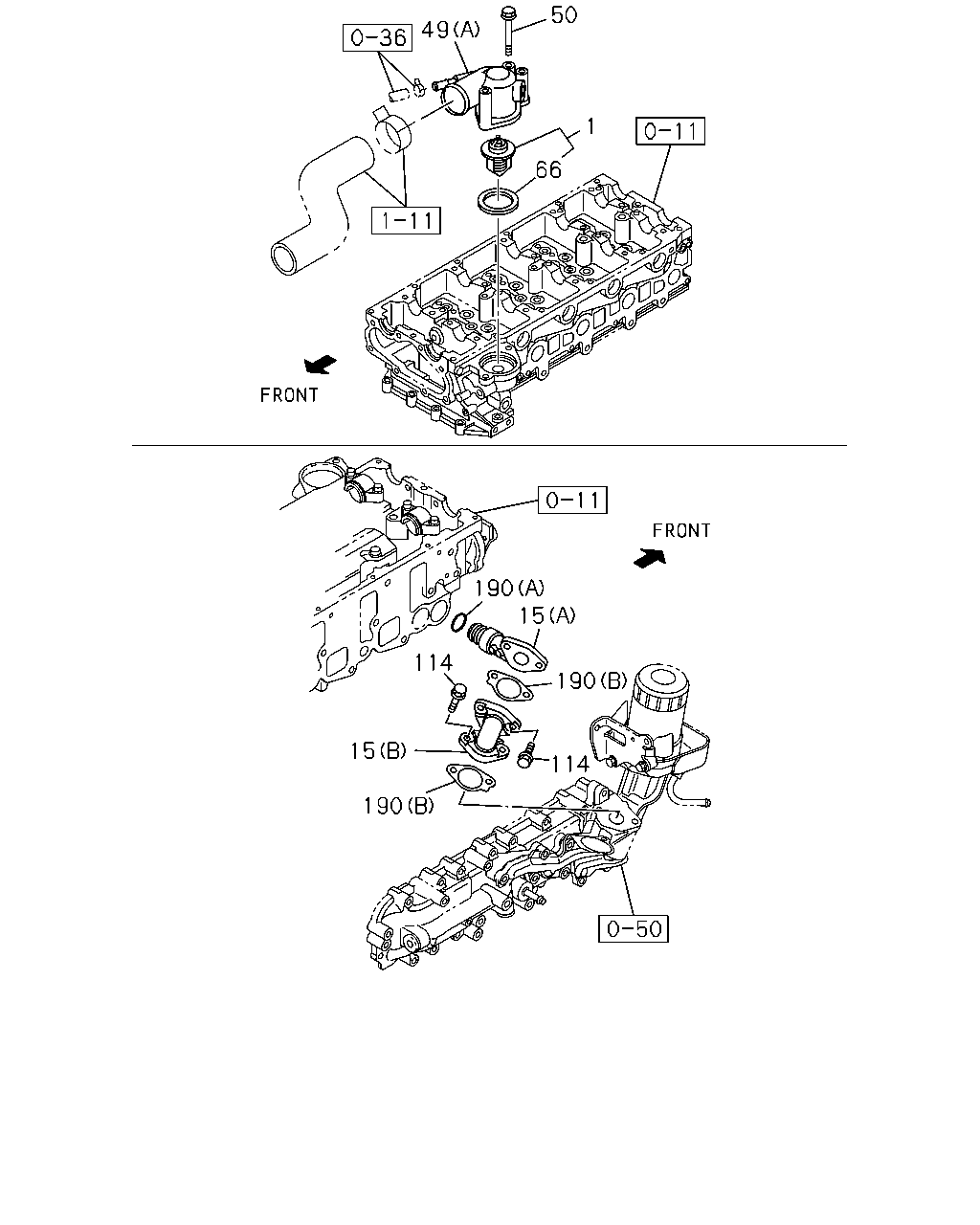

çizim 448242
49 50 1 66 190 15 190 114 190 15 114
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.246 THERMOSTAT
82 CELSIUS 		8-97361-770-0 01 1 1409- ●
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-1 01 1 1409-1411 ● ● ●
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-2 01 1 1412-1508 ● ● ● ●
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-2 01 1 1509- ● ● ● ● ●
15 01.251 PIPE; BYPASS
(C) 		8-94343-211-1 01 1 1409- ●
15 01.251 PIPE; BYPASS
(A) 		8-98165-517-1 01 1 1409-1411 ● ●
15 01.251 PIPE; BYPASS
(A) 		8-98165-517-1 01 1 1412- ● ● ●
15 01.251 PIPE; BYPASS
(B) 		8-98165-518-0 01 1 1409-1411 ● ●
15 01.251 PIPE; BYPASS
(B) 		8-98165-518-0 01 1 1412- ● ● ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97352-105-0 01 1 1409- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-98120-945-0 01 1 1409-1411 ● ● ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-98120-945-0 01 1 1412-1412 ● ● ● ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97355-456-7 01 1 1501-1508 ● ● ● ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97355-456-7 01 1 1509- ● ● ● ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1409- ●
50 01.252 BOLT; OUTLET PIPE
M8X80 FLANGE 		0-28050-880-0 02 1 1409-1411 ● ● ●
50 01.252 BOLT; OUTLET PIPE
M8X80 FLANGE 		0-28050-880-0 02 1 1412-1508 ● ● ● ●
50 01.252 BOLT; OUTLET PIPE
M8X80 FLANGE 		0-28050-880-0 02 1 1509- ● ● ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97212-537-1 01 1 1409- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98114-587-0 01 1 1409-1411 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98114-587-0 01 1 1412-1508 ● ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98114-587-0 01 1 1509- ● ● ● ● ●
114 01.097 BOLT; BYPASS PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1409-1411 ● ●
114 01.097 BOLT; BYPASS PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1412- ● ● ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		0-95690-226-0 01 1 1409-1411 ● ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		0-95690-226-0 01 1 1412- ● ● ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98197-538-0 02 1 1409-1411 ● ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98197-538-0 02 1 1412- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
