◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#151728) — 68 parça

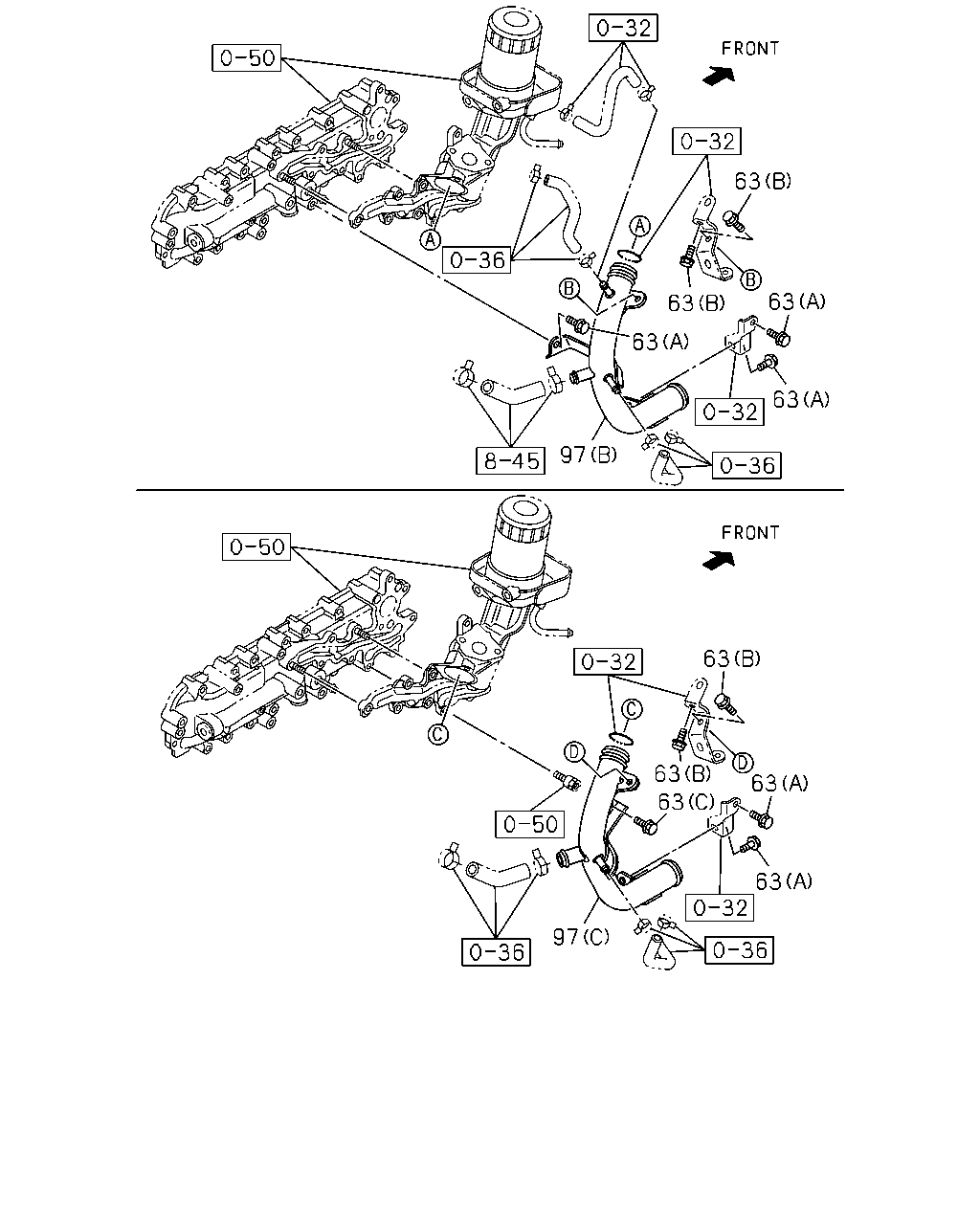

çizim 448217
63 63 63 63 97 63 63 63 63 63 63 97
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
63 01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 1409-1411 ●
63 01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 1412- ● ●
63 01.073 BOLT; INL PIPE
04.338 (B) M8X20 FLANGE 		0-28050-820-0 02 1 1409-1411 ● ●
63 01.073 BOLT; INL PIPE
04.338 (B) M8X20 FLANGE 		0-28050-820-0 02 1 1412- ● ● ●
63 01.073 BOLT; INL PIPE
02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 1409- ●
63 01.073 BOLT; INL PIPE
01.252 (D) M8X80 FLANGE 		0-28050-880-0 01 1 1409-1508 ●
63 01.073 BOLT; INL PIPE
01.252 (D) M8X80 FLANGE 		0-28050-880-0 01 1 1509- ● ●
63 01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1409-1508 ● ●
63 01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1509- ● ● ●
97 01.097 PIPE; WATER
EURO4 SPECIFICATION<NT4> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98228-419-1 01 1 1510- ● ●
97 01.097 PIPE; WATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98228-423-0 01 1 1409-1508 ●
97 01.097 PIPE; WATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98228-423-0 01 1 1509- ●
97 01.097 PIPE; WATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98228-423-0 01 1 1509- ●
97 01.097 PIPE; WATER
EURO4 SPECIFICATION<NT4> (A) 		8-98228-420-1 01 1 1409-1509 ●
97 01.097 PIPE; WATER
EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98228-420-1 01 1 1510- ● ●
97 01.097 PIPE; WATER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98228-422-0 01 1 1409-1508 ●
97 01.097 PIPE; WATER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98228-422-0 01 1 1509-1509 ● ●
97 01.097 PIPE; WATER
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98228-422-0 01 1 1510- ● ●
97 01.097 PIPE; WATER
(B) 		8-98132-029-0 01 1 1409-1411 ●
97 01.097 PIPE; WATER
(B) 		8-98132-029-0 01 1 1412- ● ●
97 01.097 PIPE; WATER
(C) 		8-98181-124-0 01 1 1409- ●

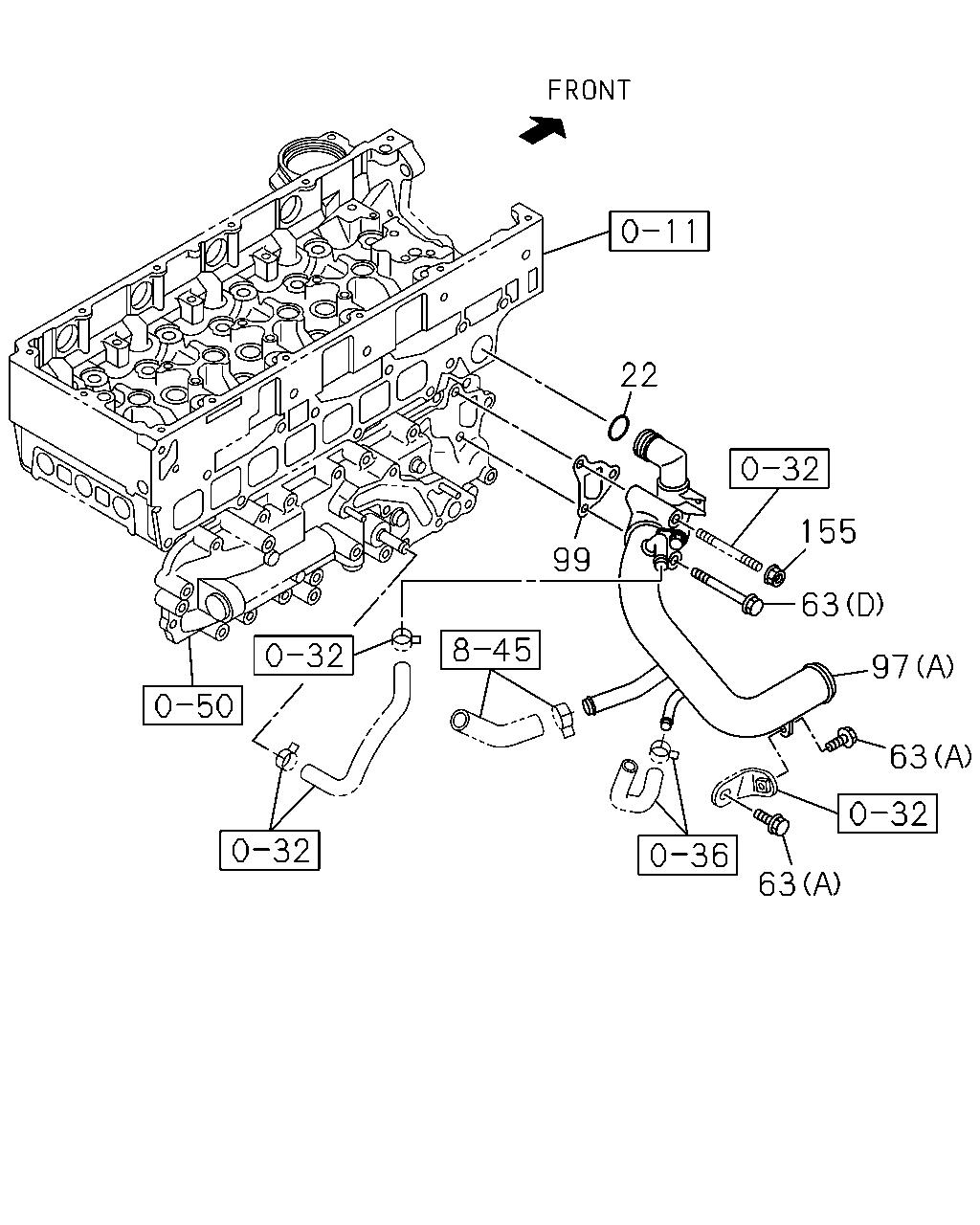

çizim 448218
155 63 97 63 63 99 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 01.079 GASKET
01.159 		0-95690-226-0 01 1 1409-1508 ●
22 01.079 GASKET
01.159 		0-95690-226-0 01 1 1509- ● ●
63 01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 1409-1411 ●
63 01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 1412- ● ●
63 01.073 BOLT; INL PIPE
04.338 (B) M8X20 FLANGE 		0-28050-820-0 02 1 1409-1411 ● ●
63 01.073 BOLT; INL PIPE
04.338 (B) M8X20 FLANGE 		0-28050-820-0 02 1 1412- ● ● ●
63 01.073 BOLT; INL PIPE
02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 1409- ●
63 01.073 BOLT; INL PIPE
01.252 (D) M8X80 FLANGE 		0-28050-880-0 01 1 1409-1508 ●
63 01.073 BOLT; INL PIPE
01.252 (D) M8X80 FLANGE 		0-28050-880-0 01 1 1509- ● ●
63 01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1409-1508 ● ●
63 01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1509- ● ● ●
97 01.097 PIPE; WATER
EURO4 SPECIFICATION<NT4> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98228-419-1 01 1 1510- ● ●
97 01.097 PIPE; WATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98228-423-0 01 1 1409-1508 ●
97 01.097 PIPE; WATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-98228-423-0 01 1 1509- ●
97 01.097 PIPE; WATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98228-423-0 01 1 1509- ●
97 01.097 PIPE; WATER
EURO4 SPECIFICATION<NT4> (A) 		8-98228-420-1 01 1 1409-1509 ●
97 01.097 PIPE; WATER
EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98228-420-1 01 1 1510- ● ●
97 01.097 PIPE; WATER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98228-422-0 01 1 1409-1508 ●
97 01.097 PIPE; WATER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98228-422-0 01 1 1509-1509 ● ●
97 01.097 PIPE; WATER
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98228-422-0 01 1 1510- ● ●
97 01.097 PIPE; WATER
(B) 		8-98132-029-0 01 1 1409-1411 ●
97 01.097 PIPE; WATER
(B) 		8-98132-029-0 01 1 1412- ● ●
97 01.097 PIPE; WATER
(C) 		8-98181-124-0 01 1 1409- ●
99 01.097 GASKET; WATER PIPE 8-98233-994-0 01 1 1409-1508 ●
99 01.097 GASKET; WATER PIPE 8-98233-994-0 01 1 1509- ● ●
155 01.097 NUT; PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1409-1508 ●
155 01.097 NUT; PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1509- ● ●

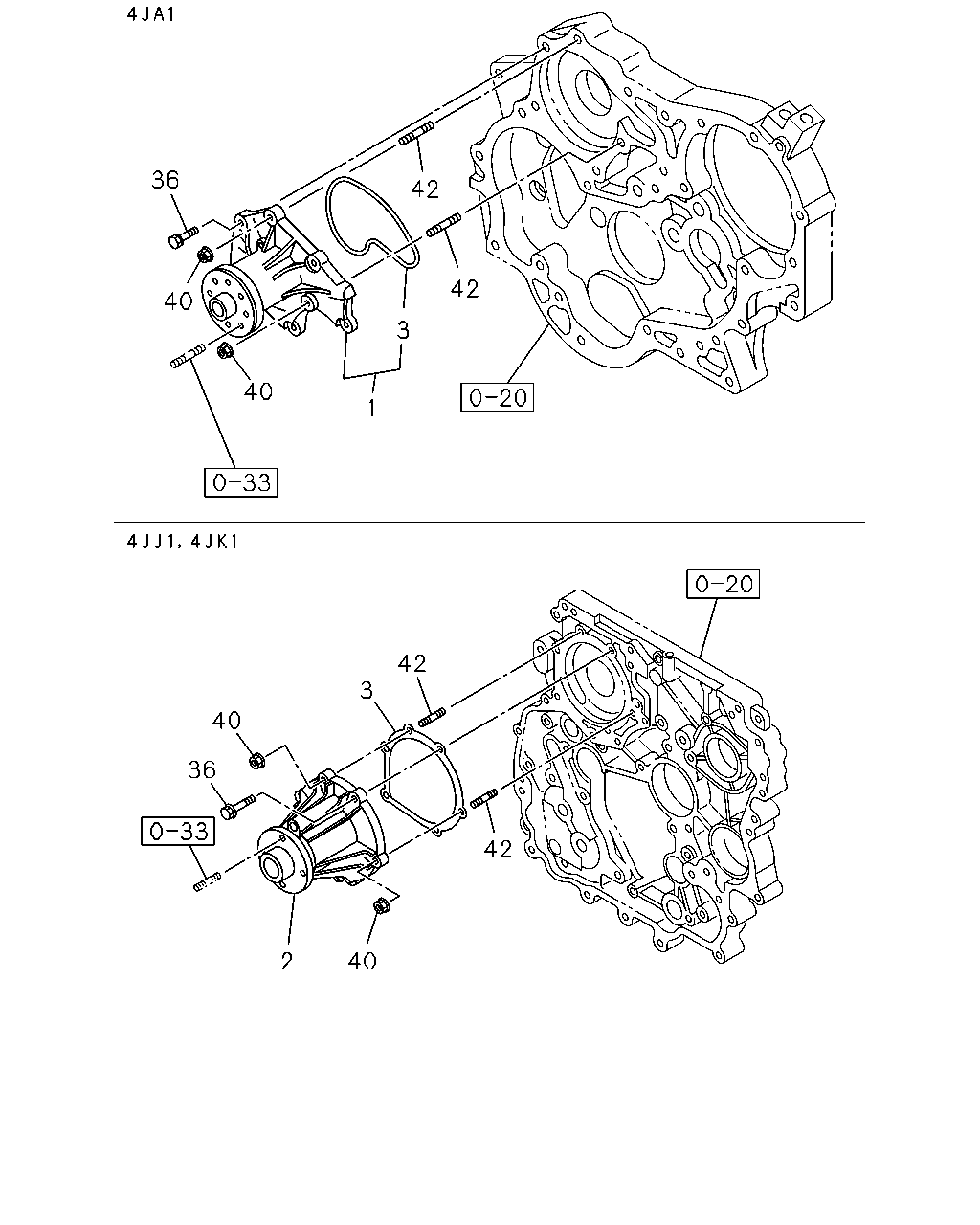

çizim 448228
42 42 40 2 36 40 3 40 40 36 42 42 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.069 PUMP ASM; WATER,W/GASKET 8-97105-012-5 01 1 1409- ●
2 01.069 PUMP ASM; WATER 8-97312-147-4 01 1 1409-1411 ● ● ●
2 01.069 PUMP ASM; WATER 8-97312-147-4 01 1 1412-1508 ● ● ● ●
2 01.069 PUMP ASM; WATER 8-97312-147-4 01 1 1509- ● ● ● ● ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94178-081-1 01 1 1409- ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-156-0 01 1 1409-1411 ● ● ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-156-0 01 1 1412-1508 ● ● ● ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-156-0 01 1 1509- ● ● ● ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER 		5-09000-084-1 05 1 1409- ●
36 00.386 BOLT; WATER PUMP TO C/BL
M8X50 FLANGE 		0-28050-850-0 04 1 1409-1411 ● ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
M8X50 FLANGE 		0-28050-850-0 04 1 1412-1508 ● ● ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
M8X50 FLANGE 		0-28050-850-0 04 1 1509- ● ● ● ● ●
40 07.874 NUT; WATER PUMP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1409- ●
40 07.874 NUT; WATER PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 1409-1411 ● ● ●
40 07.874 NUT; WATER PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 1412-1508 ● ● ● ●
40 07.874 NUT; WATER PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 1509- ● ● ● ● ●
42 01.073 STUD; WATER PUMP
M8X22 L=34 		0-41010-822-0 02 1 1409- ●
42 01.073 STUD; WATER PUMP
M8X22 L=40 		0-49140-822-0 02 1 1409-1411 ● ● ●
42 01.073 STUD; WATER PUMP
M8X22 L=40 		0-49140-822-0 02 1 1412-1508 ● ● ● ●
42 01.073 STUD; WATER PUMP
M8X22 L=40 		0-49140-822-0 02 1 1509- ● ● ● ● ●
