Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#151722) — 325 parça

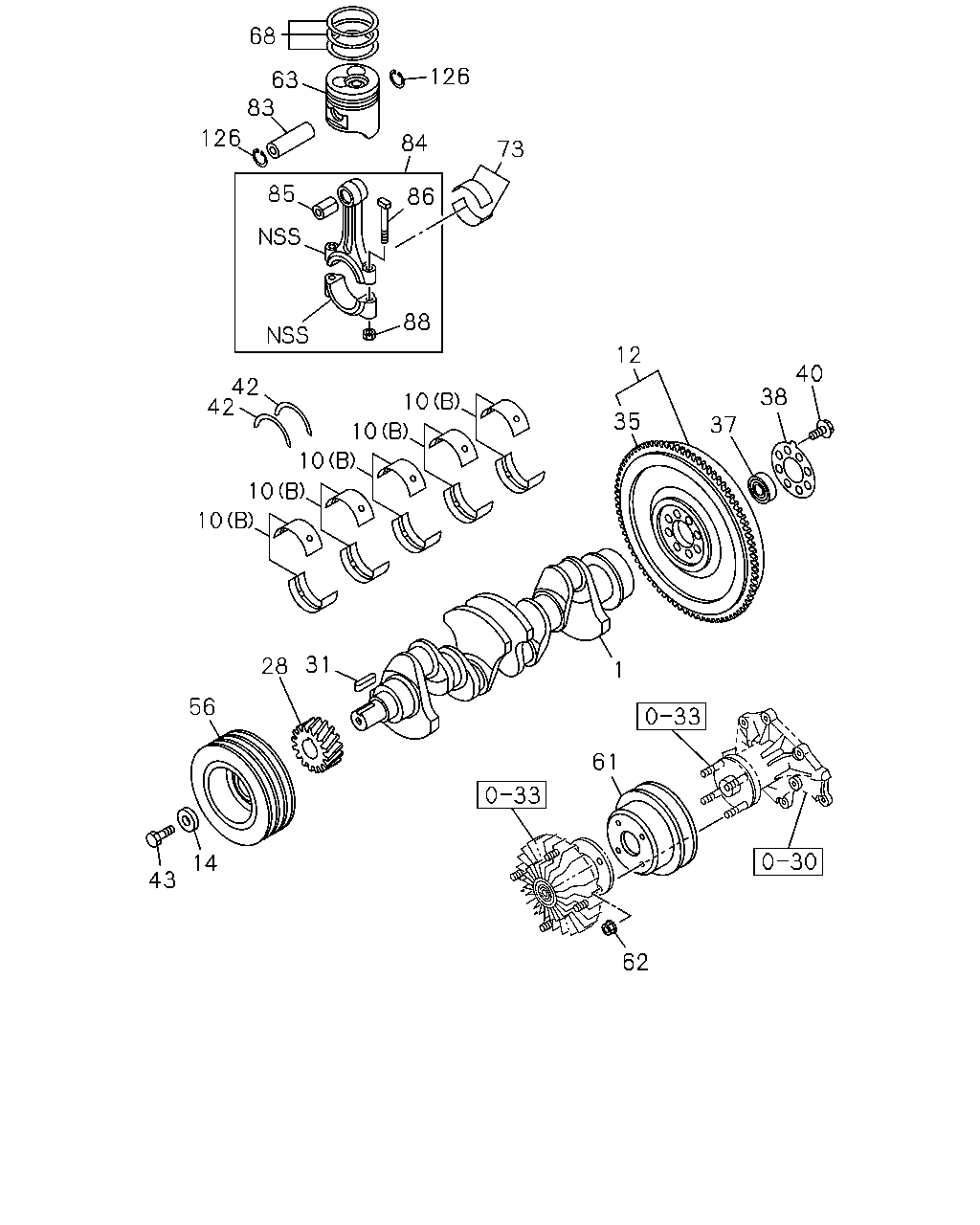

40 38 37 35 12 10 10 10 10 10 42 42 73 84 86 126 63 83 68 126 88 85 31 28 56 14 43 61 1 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.646 CRANKSHAFT	8-97190-927-1	01	1	1409-	●
1	00.646 CRANKSHAFT THAILAND	8-97311-632-1	01	1	1409-1508		●
1	00.646 CRANKSHAFT THAILAND	8-97311-632-1	01	1	1509-		●	●
1	00.646 CRANKSHAFT JAPAN	8-97388-828-4	01	1	1409-1508		●
1	00.646 CRANKSHAFT JAPAN	8-97388-828-4	01	1	1509-		●	●
1	00.646 CRANKSHAFT	8-98131-999-1	01	1	1409-1411				●	●
1	00.646 CRANKSHAFT	8-98131-999-1	01	1	1412-				●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 5	8-97387-970-0	05	1	1409-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 4	8-97387-971-0	05	1	1409-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 3	8-97387-972-0	05	1	1409-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 2	8-97387-973-0	05	1	1409-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 1	8-97387-974-0	05	1	1409-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) GREEN	8-97388-502-0	05	1	1409-1411		●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) GREEN	8-97388-502-0	05	1	1412-1508		●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) GREEN	8-97388-502-0	05	1	1509-		●	●	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLACK	8-97388-503-0	05	1	1409-1411		●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLACK	8-97388-503-0	05	1	1412-1508		●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLACK	8-97388-503-0	05	1	1509-		●	●	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLUE	8-97388-504-0	05	1	1409-1411		●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLUE	8-97388-504-0	05	1	1412-1508		●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLUE	8-97388-504-0	05	1	1509-		●	●	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) YELLOW	8-97388-505-0	05	1	1409-1411		●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) YELLOW	8-97388-505-0	05	1	1412-1508		●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) YELLOW	8-97388-505-0	05	1	1509-		●	●	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) RED	8-97388-506-0	05	1	1409-1411		●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) RED	8-97388-506-0	05	1	1412-1508		●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) RED	8-97388-506-0	05	1	1509-		●	●	●	●	●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	1409-	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-98077-180-0	01	1	1409-1411		●		●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-98077-180-0	01	1	1412-		●		●		●
12	00.666 FLYWHEEL M/T AISIN 6 SPEED(RNU)	8-98186-653-1	01	1	1409-1409					●
12	00.666 FLYWHEEL M/T AISIN 6 SPEED(RNU)	8-98283-475-0	01	1	1410-1508					●
12	00.666 FLYWHEEL M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)	8-98283-475-0	01	1	1509-			●		●
12	00.666 FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98132-505-0	01	1	1409-1508				●	●
12	00.666 FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98132-505-0	01	1	1509-			●	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1409-1411	●	●		●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1412-1508	●	●		●	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1509-	●	●	●	●	●	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	1409-	●
28	00.728 GEAR; CR/SHF Z=44	8-97312-199-1	01	1	1409-1411		●		●	●
28	00.728 GEAR; CR/SHF Z=44	8-97312-199-1	01	1	1412-1508		●		●	●	●
28	00.728 GEAR; CR/SHF Z=44	8-97312-199-1	01	1	1509-		●	●	●	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729 JAPAN	8-94201-641-0	01	1	1409-1411	●	●		●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729 JAPAN	8-94201-641-0	01	1	1412-1508	●	●		●	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729 JAPAN	8-94201-641-0	01	1	1509-	●	●	●	●	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729 THAILAND	9-08030-743-0	01	1	1409-1411		●		●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729 THAILAND	9-08030-743-0	01	1	1412-1508		●		●	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729 THAILAND	9-08030-743-0	01	1	1509-		●	●	●	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	1409-	●
35	00.673 GEAR; RING M/T MUA 5 SPEED 5H(MWQ) Z=108	8-97912-516-1	01	1	1409-1411		●		●
35	00.673 GEAR; RING M/T MUA 5 SPEED 5H(MWQ) Z=108	8-97912-516-1	01	1	1412-		●		●		●
35	00.673 GEAR; RING A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU) Z=122	8-94364-395-1	01	1	1409-1508				●	●
35	00.673 GEAR; RING A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU) Z=122	8-94364-395-1	01	1	1509-				●	●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	1509-			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	1409-	●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1409-	●
38	00.862 WASHER; FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98195-090-0	01	1	1409-1508				●
38	00.862 WASHER; FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98195-090-0	01	1	1509-			●	●
38	00.862 WASHER; FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98132-506-0	01	1	1409-					●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 00.669	8-94133-970-1	01	1	1409-1411		●		●	●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 00.669	8-94133-970-1	01	1	1412-1508		●		●	●	●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 00.669	8-94133-970-1	01	1	1509-		●	●	●	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	1409-	●
40	00.669 BOLT; FLYWHEEL A/T 5 SPEED-AISIN(MA1) M13X78	8-97080-561-1	08	1	1409-1508				●	●
40	00.669 BOLT; FLYWHEEL A/T 5 SPEED-AISIN(MA1) M13X78	8-97080-561-1	08	1	1509-			●	●	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) M13X36	8-97941-069-0	08	1	1409-1411		●		●	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) M13X36	8-97941-069-0	08	1	1412-1508		●		●	●	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) M13X36	8-97941-069-0	08	1	1509-		●	●	●	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-751-0	02	1	1409-	●
42	00.095 WASHER; THRUST,CR/SHF	8-97354-055-1	02	1	1409-1411		●		●	●
42	00.095 WASHER; THRUST,CR/SHF	8-97354-055-1	02	1	1412-1508		●		●	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-97354-055-1	02	1	1509-		●	●	●	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	1409-	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	8-97373-852-1	01	1	1409-1411		●		●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	8-97373-852-1	01	1	1412-1508		●		●	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	8-97373-852-1	01	1	1509-		●	●	●	●	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97306-533-5	01	1	1409-	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98183-902-0	01	1	1409-1411		●		●	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98183-902-0	01	1	1412-1508		●		●	●	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98183-902-0	01	1	1509-		●	●	●	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	1409-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98131-628-0	01	1	1409-1411		●		●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98131-628-0	01	1	1412-1508		●		●	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98131-628-0	01	1	1509-		●	●	●	●	●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	1409-	●
63	00.629 PISTON GRADE=A	8-98133-458-1	04	1	1509-			●
63	00.629 PISTON GRADE=B	8-98133-459-1	04	1	1509-			●
63	00.629 PISTON GRADE=C	8-98133-460-1	04	1	1509-			●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97942-985-0	04	1	1409-	●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97942-986-0	04	1	1409-	●
63	00.629 PISTON GRADE=A	8-98028-116-0	04	1	1409-		●
63	00.629 PISTON GRADE=B	8-98028-117-0	04	1	1409-		●
63	00.629 PISTON GRADE=C	8-98028-118-0	04	1	1409-		●
63	00.629 PISTON GRADE=A	8-98132-548-1	04	1	1409-1411				●
63	00.629 PISTON GRADE=A	8-98132-548-1	04	1	1412-				●		●
63	00.629 PISTON GRADE=B	8-98132-549-1	04	1	1409-1411				●
63	00.629 PISTON GRADE=B	8-98132-549-1	04	1	1412-				●		●
63	00.629 PISTON GRADE=C	8-98132-550-1	04	1	1409-1411				●
63	00.629 PISTON GRADE=C	8-98132-550-1	04	1	1412-				●		●
63	00.629 PISTON GRADE=A	8-98180-017-1	04	1	1409-					●
63	00.629 PISTON GRADE=B	8-98180-018-1	04	1	1409-					●
63	00.629 PISTON GRADE=C	8-98180-019-1	04	1	1409-					●
68	00.643 RING SET; PISTON,STANDARD	8-98171-044-0	04	1	1509-			●
68	00.643 RING SET; PISTON,STANDARD OVSI=0.25 ALSO INCLUDED IN LINER SET.	8-98171-045-0	04	1	1510-			●
68	00.643 RING SET; PISTON,STANDARD OVSI=0.50 ALSO INCLUDED IN LINER SET.	8-98171-046-0	04	1	1510-			●
68	00.643 RING SET; PISTON,STANDARD OVSI=0.75 ALSO INCLUDED IN LINER SET.	8-98171-047-0	04	1	1510-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97319-087-1	04	1	1409-	●
68	00.643 RING SET; PISTON,STANDARD	8-98171-040-0	04	1	1409-1411		●		●	●
68	00.643 RING SET; PISTON,STANDARD	8-98171-040-0	04	1	1412-		●		●	●	●
68	00.643 RING SET; PISTON,STANDARD OVSI=0.25 ALSO INCLUDED IN LINER SET.	8-98171-041-0	04	1	1510-		●		●	●	●
68	00.643 RING SET; PISTON,STANDARD OVSI=0.50 ALSO INCLUDED IN LINER SET.	8-98171-042-0	04	1	1510-		●		●	●	●
68	00.643 RING SET; PISTON,STANDARD OVSI=0.75 ALSO INCLUDED IN LINER SET.	8-98171-043-0	04	1	1510-		●		●	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-98188-893-0	04	1	1507-					●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1409-	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	1409-1411		●		●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	1412-1506		●		●	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	1507-1508		●		●		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	1509-		●	●	●		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	1409-	●
83	00.636 PIN; PISTON	8-98150-333-0	04	1	1409-1411		●		●	●
83	00.636 PIN; PISTON	8-98150-333-0	04	1	1412-1508		●		●	●	●
83	00.636 PIN; PISTON	8-98150-333-0	04	1	1509-		●	●	●	●	●
84	00.603 ROD ASM; CONN	8-98012-611-2	04	1	1409-	●
84	00.603 ROD ASM; CONN	8-97357-716-3	04	1	1409-1411		●		●	●
84	00.603 ROD ASM; CONN	8-97357-716-3	04	1	1412-1508		●		●	●	●
84	00.603 ROD ASM; CONN	8-97357-716-3	04	1	1509-		●	●	●	●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97352-889-0	04	1	1409-	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1409-1411		●			●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1412-		●			●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1409-1508				●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1509-			●	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	1409-	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1409-1411		●			●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1412-		●			●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1409-1508				●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1509-			●	●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	1409-	●
126	00.639 RING; SNAP,PISTON PIN ID=33.9 ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	1409-	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	1409-1411		●		●	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	1412-1508		●		●	●	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	1509-		●	●	●	●	●

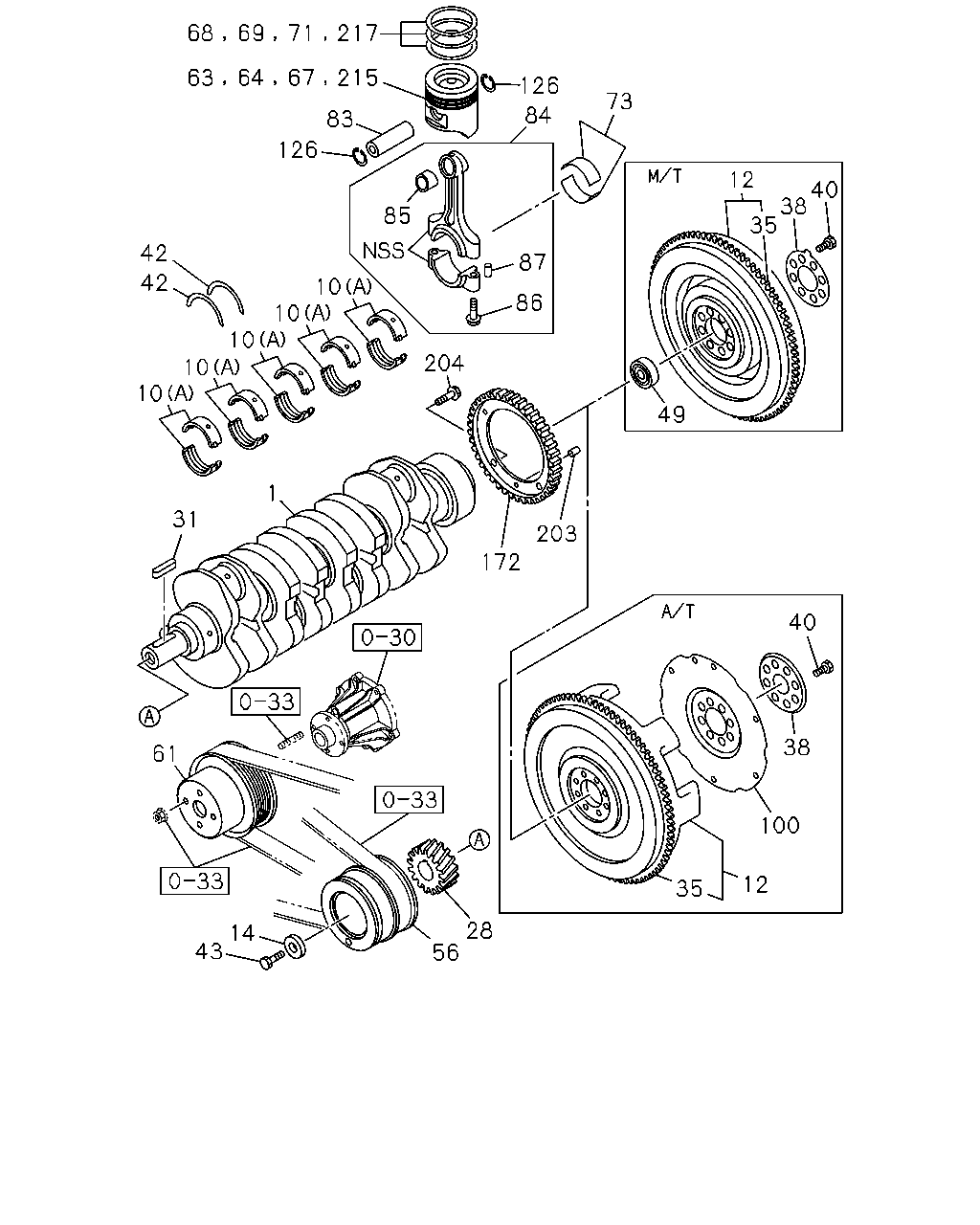

40 38 35 12 73 84 126 215 217 71 69 68 67 64 63 83 126 42 42 10 10 10 10 10 1 31 203 172 61 28 49 87 86 100 38 40 12 35 56 14 43 85 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.646 CRANKSHAFT	8-97190-927-1	01	1	1409-	●
1	00.646 CRANKSHAFT THAILAND	8-97311-632-1	01	1	1409-1508		●
1	00.646 CRANKSHAFT THAILAND	8-97311-632-1	01	1	1509-		●	●
1	00.646 CRANKSHAFT JAPAN	8-97388-828-4	01	1	1409-1508		●
1	00.646 CRANKSHAFT JAPAN	8-97388-828-4	01	1	1509-		●	●
1	00.646 CRANKSHAFT	8-98131-999-1	01	1	1409-1411				●	●
1	00.646 CRANKSHAFT	8-98131-999-1	01	1	1412-				●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 5	8-97387-970-0	05	1	1409-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 4	8-97387-971-0	05	1	1409-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 3	8-97387-972-0	05	1	1409-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 2	8-97387-973-0	05	1	1409-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 1	8-97387-974-0	05	1	1409-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) GREEN	8-97388-502-0	05	1	1409-1411		●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) GREEN	8-97388-502-0	05	1	1412-1508		●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) GREEN	8-97388-502-0	05	1	1509-		●	●	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLACK	8-97388-503-0	05	1	1409-1411		●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLACK	8-97388-503-0	05	1	1412-1508		●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLACK	8-97388-503-0	05	1	1509-		●	●	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLUE	8-97388-504-0	05	1	1409-1411		●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLUE	8-97388-504-0	05	1	1412-1508		●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLUE	8-97388-504-0	05	1	1509-		●	●	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) YELLOW	8-97388-505-0	05	1	1409-1411		●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) YELLOW	8-97388-505-0	05	1	1412-1508		●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) YELLOW	8-97388-505-0	05	1	1509-		●	●	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) RED	8-97388-506-0	05	1	1409-1411		●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) RED	8-97388-506-0	05	1	1412-1508		●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) RED	8-97388-506-0	05	1	1509-		●	●	●	●	●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	1409-	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-98077-180-0	01	1	1409-1411		●		●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-98077-180-0	01	1	1412-		●		●		●
12	00.666 FLYWHEEL M/T AISIN 6 SPEED(RNU)	8-98186-653-1	01	1	1409-1409					●
12	00.666 FLYWHEEL M/T AISIN 6 SPEED(RNU)	8-98283-475-0	01	1	1410-1508					●
12	00.666 FLYWHEEL M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)	8-98283-475-0	01	1	1509-			●		●
12	00.666 FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98132-505-0	01	1	1409-1508				●	●
12	00.666 FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98132-505-0	01	1	1509-			●	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1409-1411	●	●		●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1412-1508	●	●		●	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1509-	●	●	●	●	●	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	1409-	●
28	00.728 GEAR; CR/SHF Z=44	8-97312-199-1	01	1	1409-1411		●		●	●
28	00.728 GEAR; CR/SHF Z=44	8-97312-199-1	01	1	1412-1508		●		●	●	●
28	00.728 GEAR; CR/SHF Z=44	8-97312-199-1	01	1	1509-		●	●	●	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729 JAPAN	8-94201-641-0	01	1	1409-1411	●	●		●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729 JAPAN	8-94201-641-0	01	1	1412-1508	●	●		●	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729 JAPAN	8-94201-641-0	01	1	1509-	●	●	●	●	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729 THAILAND	9-08030-743-0	01	1	1409-1411		●		●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729 THAILAND	9-08030-743-0	01	1	1412-1508		●		●	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729 THAILAND	9-08030-743-0	01	1	1509-		●	●	●	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	1409-	●
35	00.673 GEAR; RING M/T MUA 5 SPEED 5H(MWQ) Z=108	8-97912-516-1	01	1	1409-1411		●		●
35	00.673 GEAR; RING M/T MUA 5 SPEED 5H(MWQ) Z=108	8-97912-516-1	01	1	1412-		●		●		●
35	00.673 GEAR; RING A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU) Z=122	8-94364-395-1	01	1	1409-1508				●	●
35	00.673 GEAR; RING A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU) Z=122	8-94364-395-1	01	1	1509-				●	●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	1509-			●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1409-	●
38	00.862 WASHER; FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98195-090-0	01	1	1409-1508				●
38	00.862 WASHER; FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98195-090-0	01	1	1509-			●	●
38	00.862 WASHER; FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98132-506-0	01	1	1409-					●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 00.669	8-94133-970-1	01	1	1409-1411		●		●	●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 00.669	8-94133-970-1	01	1	1412-1508		●		●	●	●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 00.669	8-94133-970-1	01	1	1509-		●	●	●	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	1409-	●
40	00.669 BOLT; FLYWHEEL A/T 5 SPEED-AISIN(MA1) M13X78	8-97080-561-1	08	1	1409-1508				●	●
40	00.669 BOLT; FLYWHEEL A/T 5 SPEED-AISIN(MA1) M13X78	8-97080-561-1	08	1	1509-			●	●	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) M13X36	8-97941-069-0	08	1	1409-1411		●		●	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) M13X36	8-97941-069-0	08	1	1412-1508		●		●	●	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) M13X36	8-97941-069-0	08	1	1509-		●	●	●	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-751-0	02	1	1409-	●
42	00.095 WASHER; THRUST,CR/SHF	8-97354-055-1	02	1	1409-1411		●		●	●
42	00.095 WASHER; THRUST,CR/SHF	8-97354-055-1	02	1	1412-1508		●		●	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-97354-055-1	02	1	1509-		●	●	●	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	1409-	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	8-97373-852-1	01	1	1409-1411		●		●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	8-97373-852-1	01	1	1412-1508		●		●	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	8-97373-852-1	01	1	1509-		●	●	●	●	●
49	00.669 BEARING; PILOT M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 00.096 NSK	8-97920-344-2	01	1	1409-1411		●		●	●
49	00.669 BEARING; PILOT M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 00.096 NSK	8-97920-344-2	01	1	1412-1508		●		●	●	●
49	00.669 BEARING; PILOT M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 00.096 NSK	8-97920-344-2	01	1	1509-		●	●	●	●	●
49	00.669 BEARING; PILOT M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) NACHI	8-97922-552-1	01	1	1409-1411		●		●	●
49	00.669 BEARING; PILOT M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) NACHI	8-97922-552-1	01	1	1412-1508		●		●	●	●
49	00.669 BEARING; PILOT M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) NACHI	8-97922-552-1	01	1	1509-		●	●	●	●	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97306-533-5	01	1	1409-	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98183-902-0	01	1	1409-1411		●		●	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98183-902-0	01	1	1412-1508		●		●	●	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98183-902-0	01	1	1509-		●	●	●	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	1409-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98131-628-0	01	1	1409-1411		●		●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98131-628-0	01	1	1412-1508		●		●	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98131-628-0	01	1	1509-		●	●	●	●	●
63	00.629 PISTON GRADE=A	8-98133-458-1	04	1	1509-			●
63	00.629 PISTON GRADE=B	8-98133-459-1	04	1	1509-			●
63	00.629 PISTON GRADE=C	8-98133-460-1	04	1	1509-			●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97942-985-0	04	1	1409-	●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97942-986-0	04	1	1409-	●
63	00.629 PISTON GRADE=A	8-98028-116-0	04	1	1409-		●
63	00.629 PISTON GRADE=B	8-98028-117-0	04	1	1409-		●
63	00.629 PISTON GRADE=C	8-98028-118-0	04	1	1409-		●
63	00.629 PISTON GRADE=A	8-98132-548-1	04	1	1409-1411				●
63	00.629 PISTON GRADE=A	8-98132-548-1	04	1	1412-				●		●
63	00.629 PISTON GRADE=B	8-98132-549-1	04	1	1409-1411				●
63	00.629 PISTON GRADE=B	8-98132-549-1	04	1	1412-				●		●
63	00.629 PISTON GRADE=C	8-98132-550-1	04	1	1409-1411				●
63	00.629 PISTON GRADE=C	8-98132-550-1	04	1	1412-				●		●
63	00.629 PISTON GRADE=A	8-98180-017-1	04	1	1409-					●
63	00.629 PISTON GRADE=B	8-98180-018-1	04	1	1409-					●
63	00.629 PISTON GRADE=C	8-98180-019-1	04	1	1409-					●
64	00.629 PISTON; O/S=0.50	8-98132-711-1	04	1	1509-			●
64	00.629 PISTON; O/S=0.50	8-98028-031-0	04	1	1409-		●
64	00.629 PISTON; O/S=0.50	8-98132-708-1	04	1	1409-1411				●
64	00.629 PISTON; O/S=0.50	8-98132-708-1	04	1	1412-				●		●
64	00.629 PISTON; O/S=0.50	8-98180-506-1	04	1	1409-					●
67	00.629 PISTON; O/S=0.25	8-98132-710-1	04	1	1509-			●
67	00.629 PISTON; O/S=0.25	8-98028-030-0	04	1	1409-		●
67	00.629 PISTON; O/S=0.25	8-98132-707-1	04	1	1409-1411				●
67	00.629 PISTON; O/S=0.25	8-98132-707-1	04	1	1412-				●		●
67	00.629 PISTON; O/S=0.25	8-98180-505-1	04	1	1409-					●
68	00.643 RING SET; PISTON,STANDARD	8-98171-044-0	04	1	1509-			●
68	00.643 RING SET; PISTON,STANDARD OVSI=0.25 ALSO INCLUDED IN LINER SET.	8-98171-045-0	04	1	1510-			●
68	00.643 RING SET; PISTON,STANDARD OVSI=0.50 ALSO INCLUDED IN LINER SET.	8-98171-046-0	04	1	1510-			●
68	00.643 RING SET; PISTON,STANDARD OVSI=0.75 ALSO INCLUDED IN LINER SET.	8-98171-047-0	04	1	1510-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97319-087-1	04	1	1409-	●
68	00.643 RING SET; PISTON,STANDARD	8-98171-040-0	04	1	1409-1411		●		●	●
68	00.643 RING SET; PISTON,STANDARD	8-98171-040-0	04	1	1412-		●		●	●	●
68	00.643 RING SET; PISTON,STANDARD OVSI=0.25 ALSO INCLUDED IN LINER SET.	8-98171-041-0	04	1	1510-		●		●	●	●
68	00.643 RING SET; PISTON,STANDARD OVSI=0.50 ALSO INCLUDED IN LINER SET.	8-98171-042-0	04	1	1510-		●		●	●	●
68	00.643 RING SET; PISTON,STANDARD OVSI=0.75 ALSO INCLUDED IN LINER SET.	8-98171-043-0	04	1	1510-		●		●	●	●
69	00.643 RING SET; PISTON,O/S=0.50	8-98171-046-0	04	1	1509-			●
69	00.643 RING SET; PISTON,O/S=0.50	8-98171-042-0	04	1	1409-1411		●		●	●
69	00.643 RING SET; PISTON,O/S=0.50	8-98171-042-0	04	1	1412-		●		●	●	●
71	00.643 RING SET; PISTON,O/S=0.25	8-98171-045-0	04	1	1509-			●
71	00.643 RING SET; PISTON,O/S=0.25	8-98171-041-0	04	1	1409-1411		●		●	●
71	00.643 RING SET; PISTON,O/S=0.25	8-98171-041-0	04	1	1412-		●		●	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-98188-893-0	04	1	1507-					●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1409-	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	1409-1411		●		●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	1412-1506		●		●	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	1507-1508		●		●		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	1509-		●	●	●		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	1409-	●
83	00.636 PIN; PISTON	8-98150-333-0	04	1	1409-1411		●		●	●
83	00.636 PIN; PISTON	8-98150-333-0	04	1	1412-1508		●		●	●	●
83	00.636 PIN; PISTON	8-98150-333-0	04	1	1509-		●	●	●	●	●
84	00.603 ROD ASM; CONN	8-98012-611-2	04	1	1409-	●
84	00.603 ROD ASM; CONN	8-97357-716-3	04	1	1409-1411		●		●	●
84	00.603 ROD ASM; CONN	8-97357-716-3	04	1	1412-1508		●		●	●	●
84	00.603 ROD ASM; CONN	8-97357-716-3	04	1	1509-		●	●	●	●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97352-889-0	04	1	1409-	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1409-1411		●			●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1412-		●			●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1409-1508				●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1509-			●	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	1409-	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1409-1411		●			●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1412-		●			●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1409-1508				●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1509-			●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1409-1411		●			●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1412-		●			●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1409-1508				●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1509-			●	●
100	00.666 PLATE; FLEX A/T 5 SPEED-AISIN(MA1)	8-98192-379-0	01	1	1409-1508				●	●
100	00.666 PLATE; FLEX A/T 5 SPEED-AISIN(MA1)	8-98192-379-0	01	1	1509-			●	●	●
126	00.639 RING; SNAP,PISTON PIN ID=33.9 ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	1409-	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	1409-1411		●		●	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	1412-1508		●		●	●	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	1509-		●	●	●	●	●
172	02.383 ROTOR; CRANK SENSOR	8-97312-337-0	01	1	1409-1411		●			●
172	02.383 ROTOR; CRANK SENSOR	8-97312-337-0	01	1	1412-		●			●	●
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1409-1508				●
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1509-			●	●
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	1409-1411		●		●	●
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	1412-1508		●		●	●	●
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	1509-		●	●	●	●	●
204	01.150 BOLT; ROTOR	8-97944-142-1	03	1	1409-1411		●		●	●
204	01.150 BOLT; ROTOR	8-97944-142-1	03	1	1412-1508		●		●	●	●
204	01.150 BOLT; ROTOR	8-97944-142-1	03	1	1509-		●	●	●	●	●
215	00.629 PISTON; O/S=0.75	8-98132-712-1	04	1	1509-			●
215	00.629 PISTON; O/S=0.75	8-98028-032-0	04	1	1409-		●
215	00.629 PISTON; O/S=0.75	8-98132-709-1	04	1	1409-1411				●
215	00.629 PISTON; O/S=0.75	8-98132-709-1	04	1	1412-				●		●
215	00.629 PISTON; O/S=0.75	8-98180-507-1	04	1	1409-					●
217	00.643 RING SET; PISTON,O/S=0.75	8-98171-047-0	04	1	1509-			●
217	00.643 RING SET; PISTON,O/S=0.75	8-98171-043-0	04	1	1409-1411		●		●	●
217	00.643 RING SET; PISTON,O/S=0.75	8-98171-043-0	04	1	1412-		●		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
