◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#151716) — 228 parça

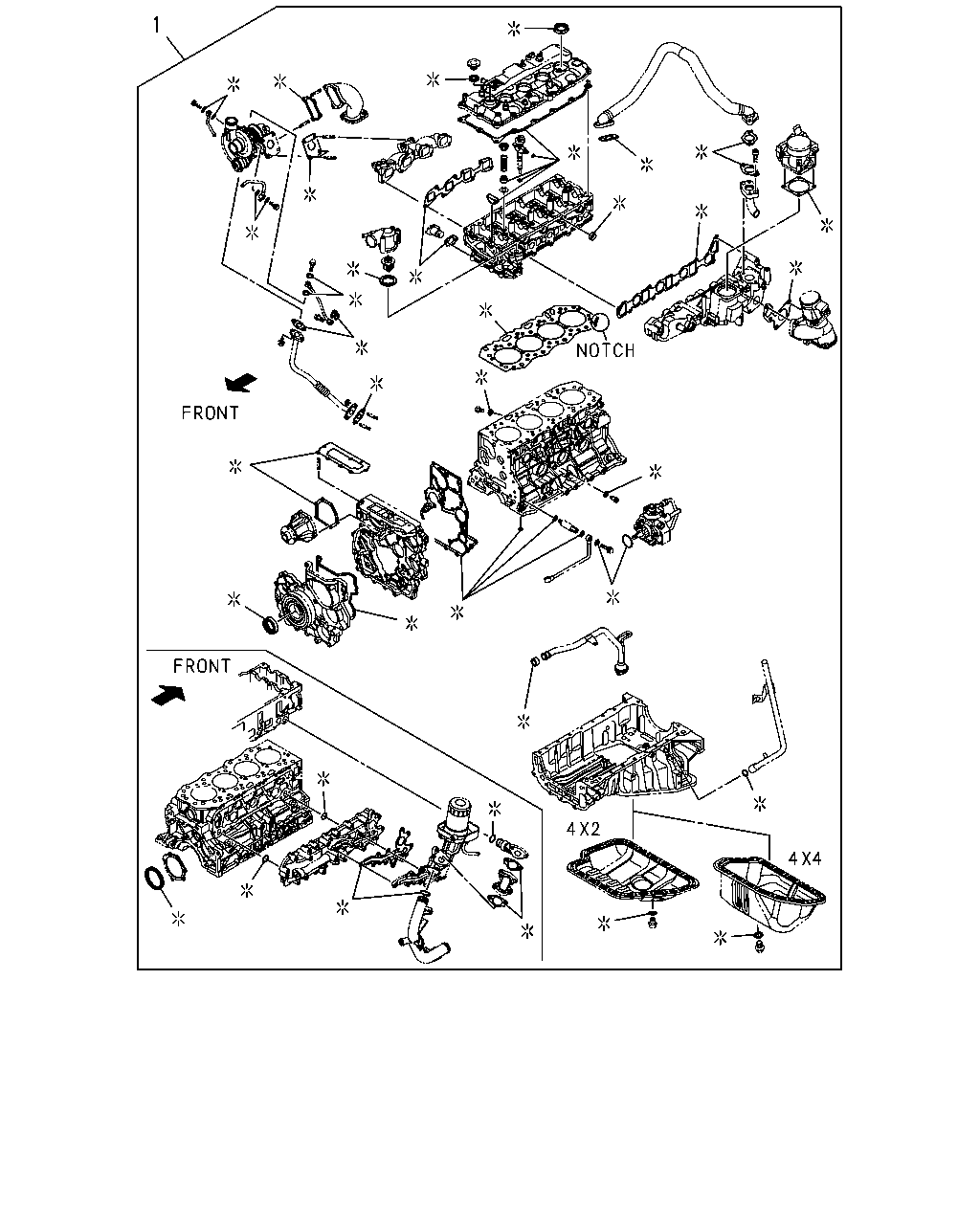

çizim 448003
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-832-1 01 1 1409-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-832-1 01 1 1412- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-833-1 01 1 1409-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-833-1 01 1 1412- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-834-1 01 1 1409-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-834-1 01 1 1412- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-4 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-4 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-4 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.11 1-HOLE 		5-87817-267-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.14 1-HOLE 		5-87817-452-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.14 1-HOLE 		5-87817-452-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.16 2-HOLE 		5-87817-268-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.19 2-HOLE 		5-87817-453-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.19 2-HOLE 		5-87817-453-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.21 3-HOLE 		5-87817-269-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.24 3-HOLE 		5-87817-454-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.24 3-HOLE 		5-87817-454-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.11 1-HOLE 		5-87817-270-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.14 1-HOLE 		5-87817-455-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.14 1-HOLE 		5-87817-455-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.16 2-HOLE 		5-87817-271-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.19 2-HOLE 		5-87817-456-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.19 2-HOLE 		5-87817-456-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.21 3-HOLE 		5-87817-272-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.24 3-HOLE 		5-87817-457-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.24 3-HOLE 		5-87817-457-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.11 1-HOLE 		5-87817-261-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.14 1-HOLE 		5-87817-446-0 01 1 1410- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.16 2-HOLE 		5-87817-262-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.19 2-HOLE 		5-87817-447-0 01 1 1410- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.21 3-HOLE 		5-87817-263-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.24 3-HOLE 		5-87817-448-0 01 1 1410- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-862-0 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-863-0 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-864-0 01 1 1409- ●

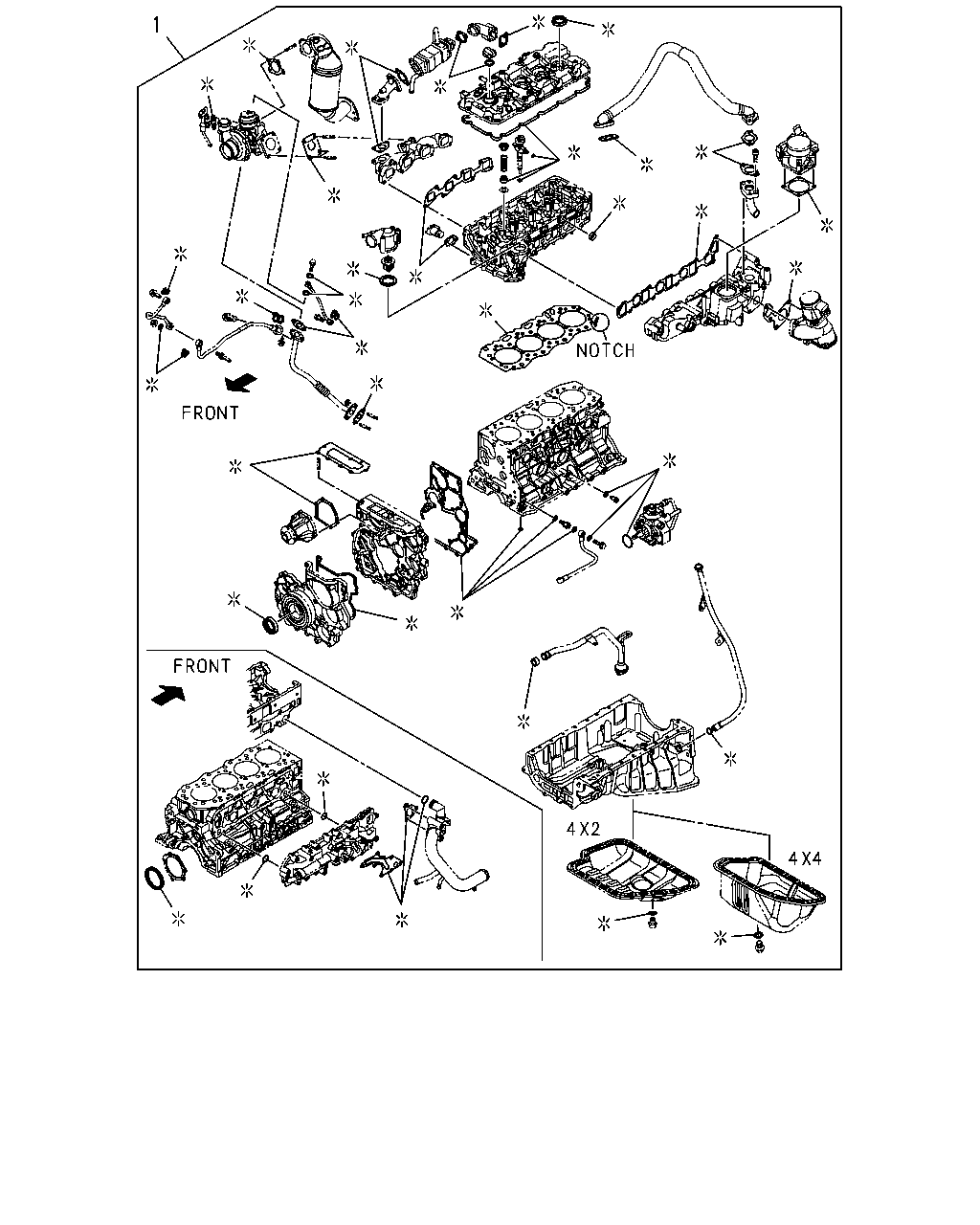

çizim 448813
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-832-1 01 1 1409-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-832-1 01 1 1412- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-833-1 01 1 1409-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-833-1 01 1 1412- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-834-1 01 1 1409-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-834-1 01 1 1412- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-4 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-4 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-4 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.11 1-HOLE 		5-87817-267-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.14 1-HOLE 		5-87817-452-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.14 1-HOLE 		5-87817-452-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.16 2-HOLE 		5-87817-268-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.19 2-HOLE 		5-87817-453-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.19 2-HOLE 		5-87817-453-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.21 3-HOLE 		5-87817-269-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.24 3-HOLE 		5-87817-454-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.24 3-HOLE 		5-87817-454-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.11 1-HOLE 		5-87817-270-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.14 1-HOLE 		5-87817-455-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.14 1-HOLE 		5-87817-455-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.16 2-HOLE 		5-87817-271-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.19 2-HOLE 		5-87817-456-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.19 2-HOLE 		5-87817-456-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.21 3-HOLE 		5-87817-272-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.24 3-HOLE 		5-87817-457-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.24 3-HOLE 		5-87817-457-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.11 1-HOLE 		5-87817-261-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.14 1-HOLE 		5-87817-446-0 01 1 1410- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.16 2-HOLE 		5-87817-262-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.19 2-HOLE 		5-87817-447-0 01 1 1410- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.21 3-HOLE 		5-87817-263-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.24 3-HOLE 		5-87817-448-0 01 1 1410- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-862-0 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-863-0 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-864-0 01 1 1409- ●

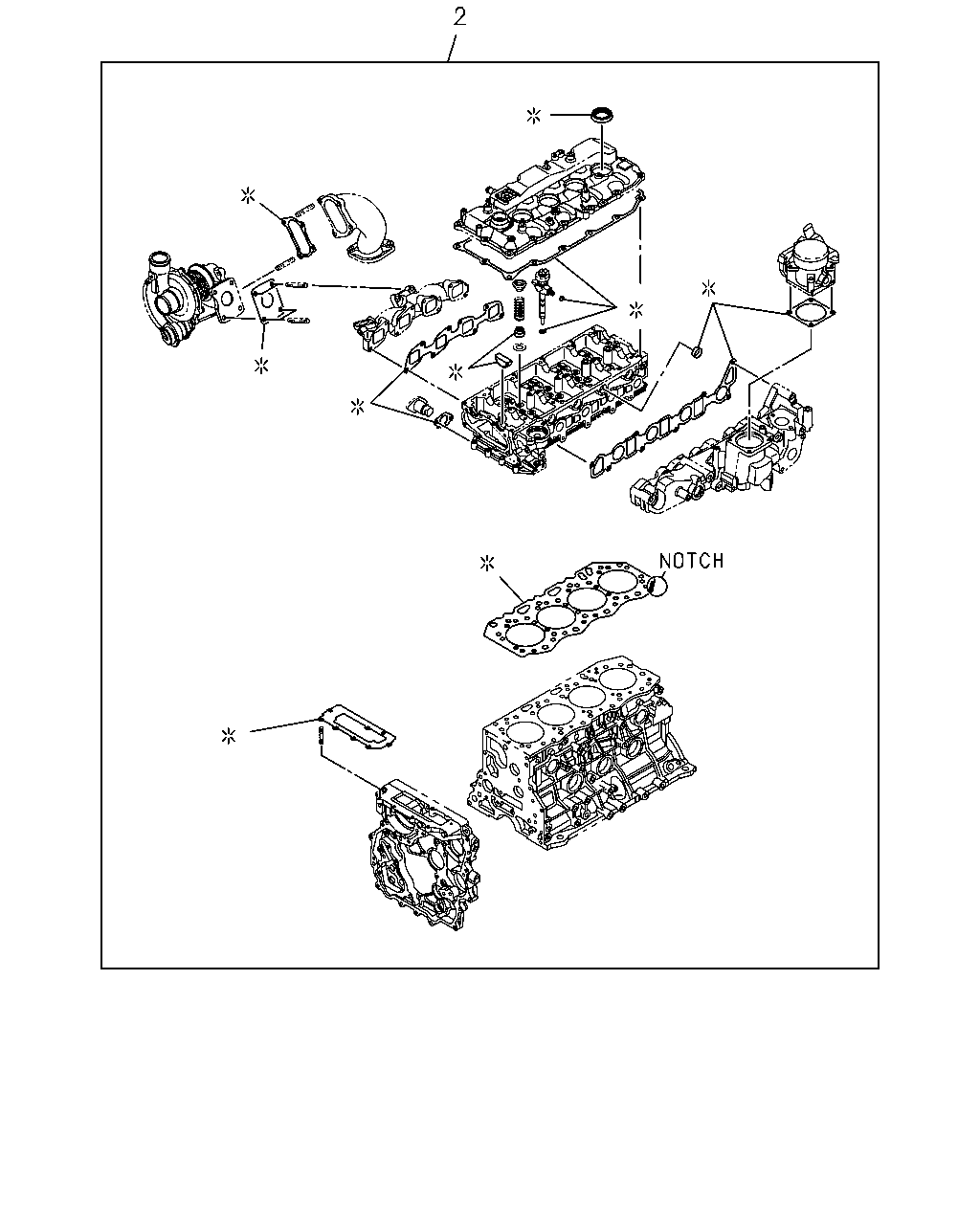

çizim 448830
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-844-1 01 1 1409-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-844-1 01 1 1412- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-845-1 01 1 1409-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-845-1 01 1 1412- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-846-1 01 1 1409-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-846-1 01 1 1412- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-5 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-5 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-5 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.11 1-HOLE 		5-87817-264-0 01 1 1409-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE 		5-87817-449-0 01 1 1410-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE 		5-87817-449-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.16 2-HOLE 		5-87817-265-0 01 1 1409-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE 		5-87817-450-0 01 1 1410-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE 		5-87817-450-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.21 3-HOLE 		5-87817-266-0 01 1 1409-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE 		5-87817-451-0 01 1 1410-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE 		5-87817-451-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-990-0 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-991-0 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-992-0 01 1 1409- ●

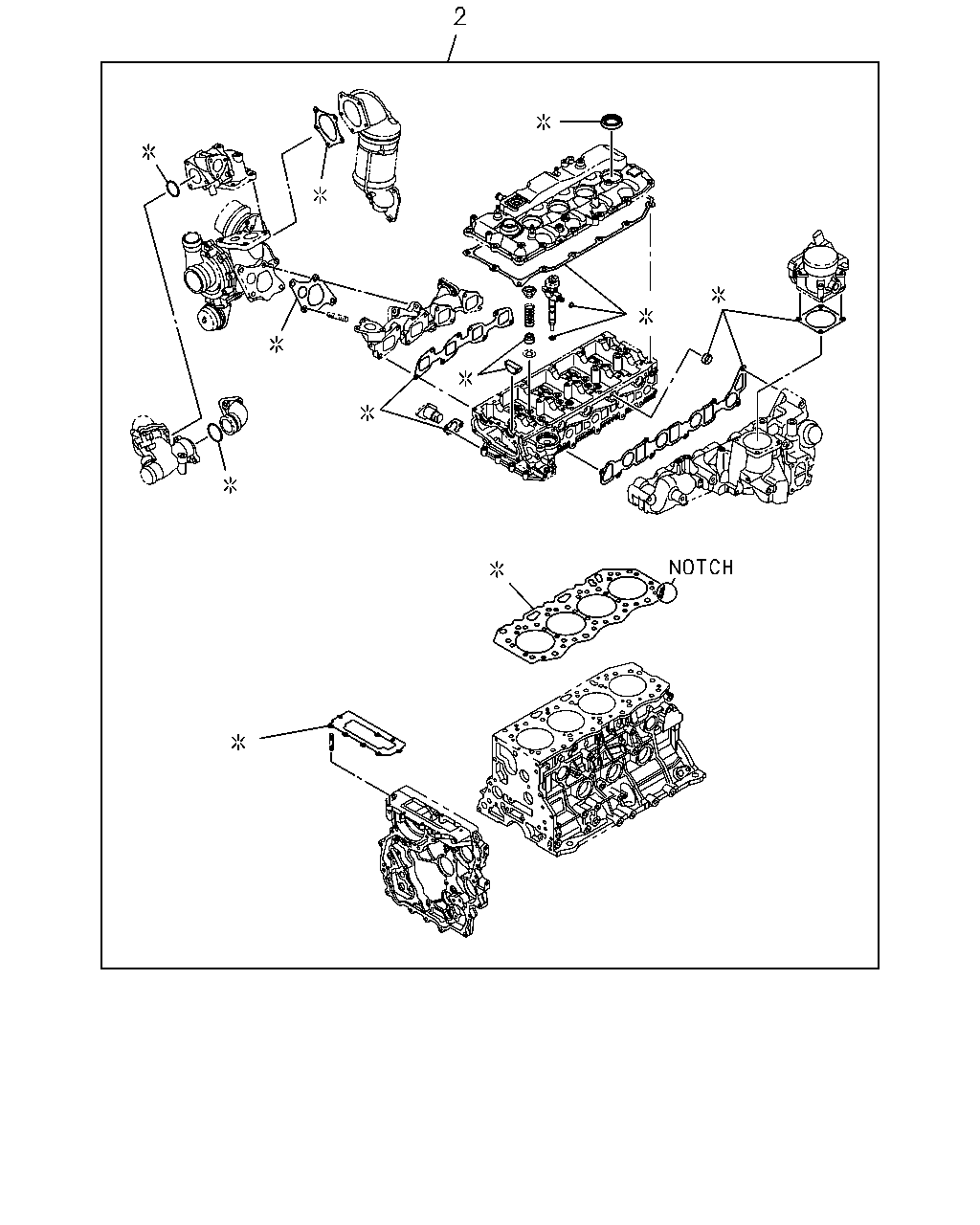

çizim 449241
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-844-1 01 1 1409-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-844-1 01 1 1412- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-845-1 01 1 1409-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-845-1 01 1 1412- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-846-1 01 1 1409-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-846-1 01 1 1412- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-5 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-5 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-5 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.11 1-HOLE 		5-87817-264-0 01 1 1409-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE 		5-87817-449-0 01 1 1410-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE 		5-87817-449-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.16 2-HOLE 		5-87817-265-0 01 1 1409-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE 		5-87817-450-0 01 1 1410-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE 		5-87817-450-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.21 3-HOLE 		5-87817-266-0 01 1 1409-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE 		5-87817-451-0 01 1 1410-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE 		5-87817-451-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-990-0 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-991-0 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-992-0 01 1 1409- ●

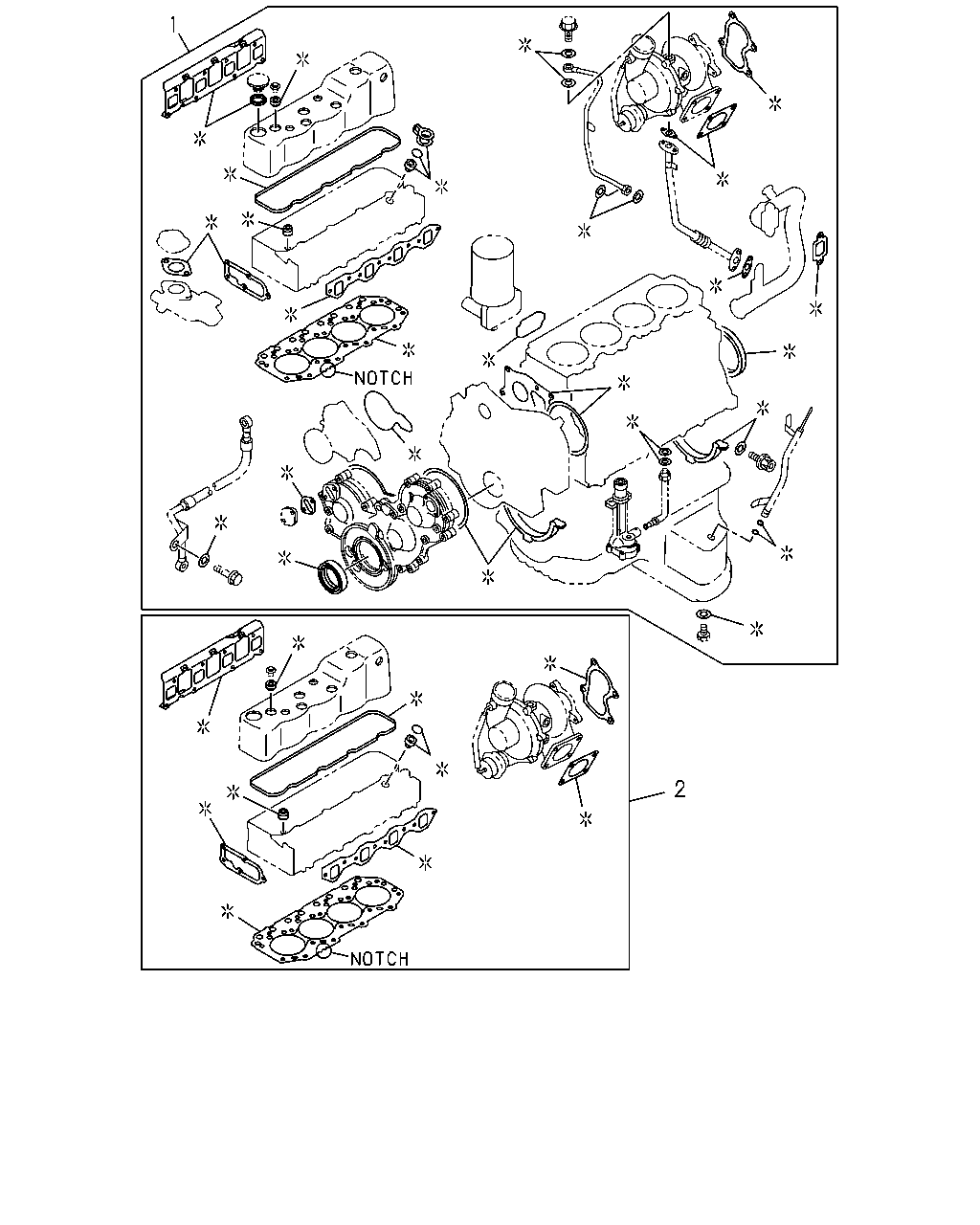

çizim 449275
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-832-1 01 1 1409-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-832-1 01 1 1412- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-833-1 01 1 1409-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-833-1 01 1 1412- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-834-1 01 1 1409-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-834-1 01 1 1412- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-4 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-4 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-4 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.11 1-HOLE 		5-87817-267-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.14 1-HOLE 		5-87817-452-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.14 1-HOLE 		5-87817-452-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.16 2-HOLE 		5-87817-268-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.19 2-HOLE 		5-87817-453-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.19 2-HOLE 		5-87817-453-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.21 3-HOLE 		5-87817-269-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.24 3-HOLE 		5-87817-454-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.24 3-HOLE 		5-87817-454-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.11 1-HOLE 		5-87817-270-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.14 1-HOLE 		5-87817-455-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.14 1-HOLE 		5-87817-455-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.16 2-HOLE 		5-87817-271-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.19 2-HOLE 		5-87817-456-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.19 2-HOLE 		5-87817-456-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.21 3-HOLE 		5-87817-272-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.24 3-HOLE 		5-87817-457-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.24 3-HOLE 		5-87817-457-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.11 1-HOLE 		5-87817-261-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.14 1-HOLE 		5-87817-446-0 01 1 1410- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.16 2-HOLE 		5-87817-262-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.19 2-HOLE 		5-87817-447-0 01 1 1410- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.21 3-HOLE 		5-87817-263-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.24 3-HOLE 		5-87817-448-0 01 1 1410- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-862-0 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-863-0 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-864-0 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-844-1 01 1 1409-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-844-1 01 1 1412- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-845-1 01 1 1409-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-845-1 01 1 1412- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-846-1 01 1 1409-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-846-1 01 1 1412- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-5 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-5 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-5 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.11 1-HOLE 		5-87817-264-0 01 1 1409-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE 		5-87817-449-0 01 1 1410-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE 		5-87817-449-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.16 2-HOLE 		5-87817-265-0 01 1 1409-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE 		5-87817-450-0 01 1 1410-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE 		5-87817-450-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.21 3-HOLE 		5-87817-266-0 01 1 1409-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE 		5-87817-451-0 01 1 1410-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE 		5-87817-451-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-990-0 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-991-0 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-992-0 01 1 1409- ●

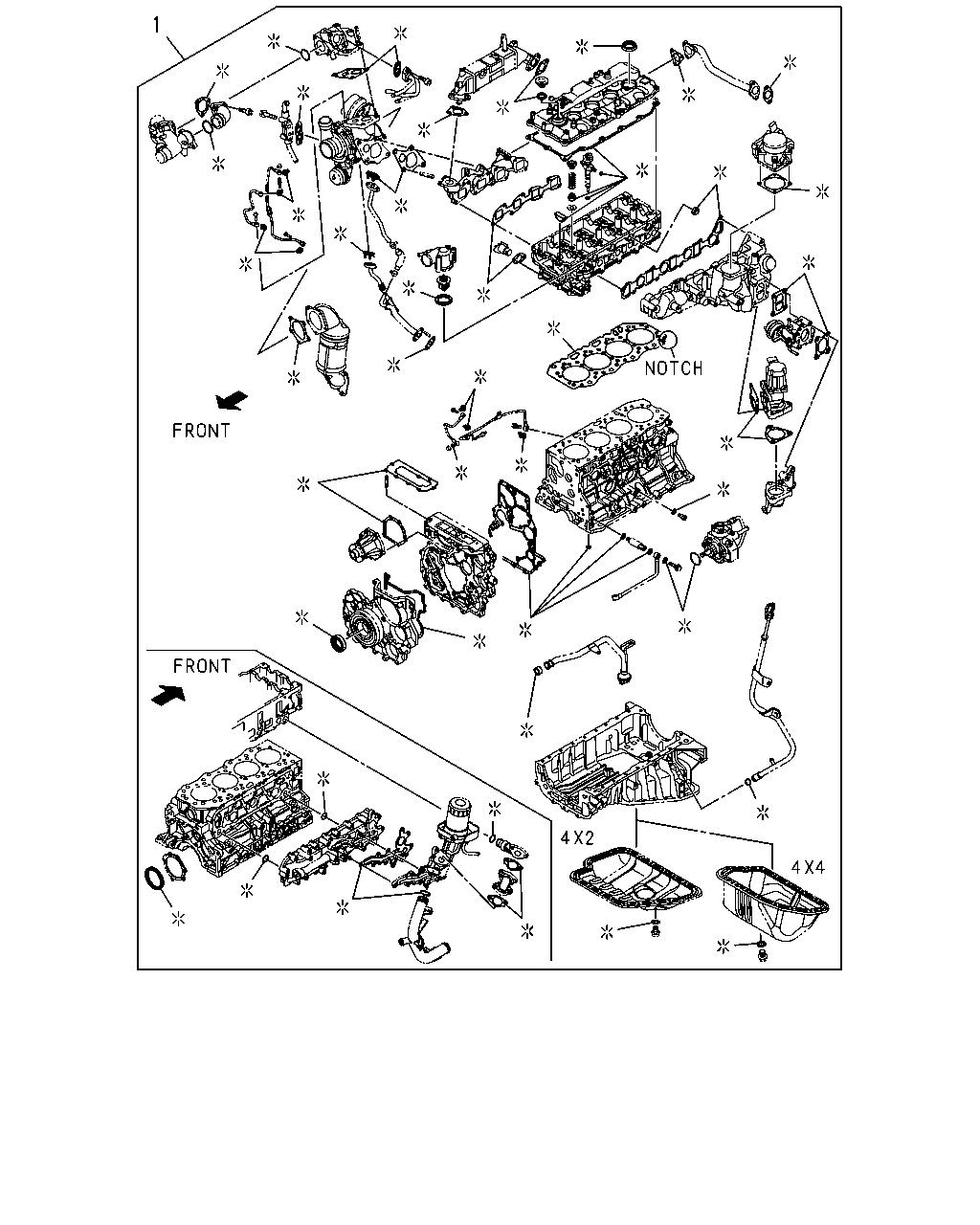

çizim 449627
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-832-1 01 1 1409-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-832-1 01 1 1412- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-833-1 01 1 1409-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-833-1 01 1 1412- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-834-1 01 1 1409-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-834-1 01 1 1412- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-4 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-4 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-4 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.11 1-HOLE 		5-87817-267-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.14 1-HOLE 		5-87817-452-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.14 1-HOLE 		5-87817-452-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.16 2-HOLE 		5-87817-268-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.19 2-HOLE 		5-87817-453-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.19 2-HOLE 		5-87817-453-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.21 3-HOLE 		5-87817-269-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.24 3-HOLE 		5-87817-454-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EMISSION SYSTEM R15-04<K75> T=1.24 3-HOLE 		5-87817-454-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.11 1-HOLE 		5-87817-270-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.14 1-HOLE 		5-87817-455-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.14 1-HOLE 		5-87817-455-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.16 2-HOLE 		5-87817-271-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.19 2-HOLE 		5-87817-456-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.19 2-HOLE 		5-87817-456-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.21 3-HOLE 		5-87817-272-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.24 3-HOLE 		5-87817-457-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> T=1.24 3-HOLE 		5-87817-457-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.11 1-HOLE 		5-87817-261-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.14 1-HOLE 		5-87817-446-0 01 1 1410- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.16 2-HOLE 		5-87817-262-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.19 2-HOLE 		5-87817-447-0 01 1 1410- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.21 3-HOLE 		5-87817-263-0 01 1 1409-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.24 3-HOLE 		5-87817-448-0 01 1 1410- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-862-0 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-863-0 01 1 1409- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-864-0 01 1 1409- ●

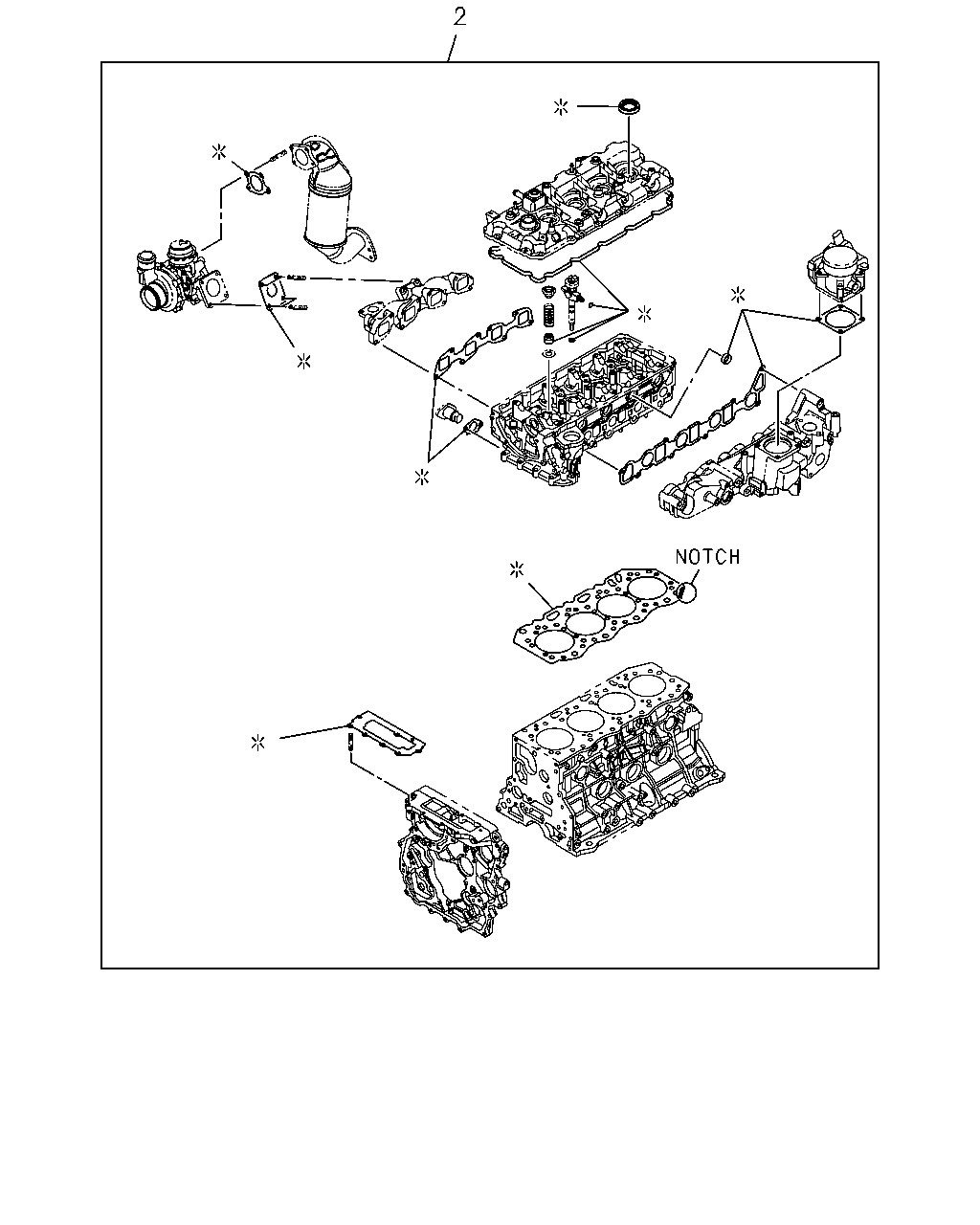

çizim 449666
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-844-1 01 1 1409-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-844-1 01 1 1412- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-845-1 01 1 1409-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-845-1 01 1 1412- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-846-1 01 1 1409-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-846-1 01 1 1412- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-5 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-5 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-5 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.11 1-HOLE 		5-87817-264-0 01 1 1409-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE 		5-87817-449-0 01 1 1410-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE 		5-87817-449-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.16 2-HOLE 		5-87817-265-0 01 1 1409-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE 		5-87817-450-0 01 1 1410-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE 		5-87817-450-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.21 3-HOLE 		5-87817-266-0 01 1 1409-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE 		5-87817-451-0 01 1 1410-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE 		5-87817-451-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-990-0 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-991-0 01 1 1409- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-992-0 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
