9-31 — REAR BODY; FLOOR AND FENDER (#151712) — 86 parça

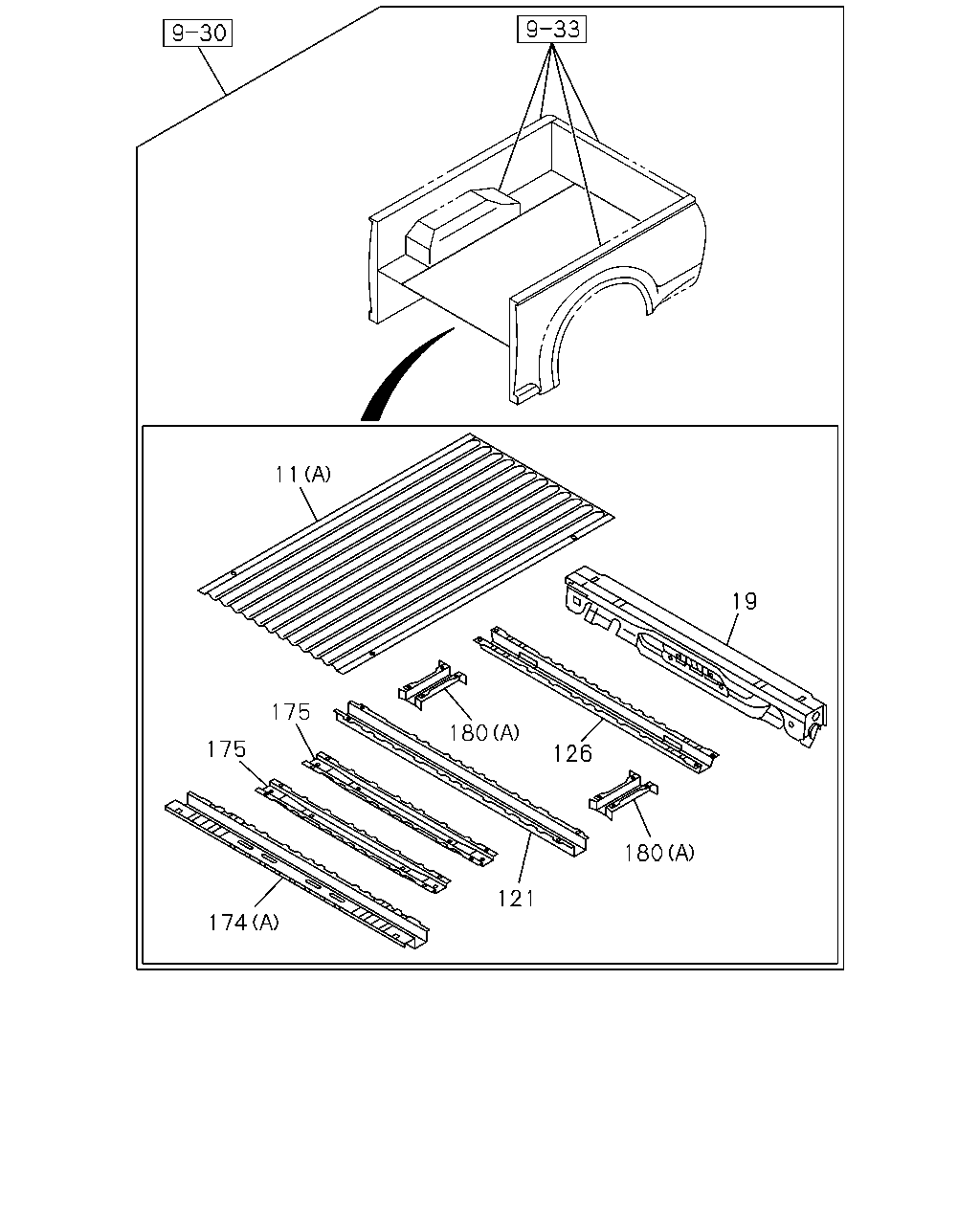

çizim 449002
11 19 180 126 180 121 175 175 174
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-154-1 01 1 1410- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98104-150-1 01 1 1410- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-159-2 01 1 1410- ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98210-518-0 01 1 1410- ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6) 		8-98210-518-0 01 1 1410- ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98139-247-6 01 1 1410- ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6) 		8-98139-247-6 01 1 1410- ● ●
121 17.208 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-194-2 01 1 1410- ● ● ● ● ● ●
126 17.505 BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-201-2 01 1 1410- ● ● ● ● ● ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98140-852-4 01 1 1410- ● ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98104-179-1 02 1 1410- ● ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-258-3 01 1 1410- ● ●
175 17.447 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-191-2 02 1 1410- ● ● ● ●
175 17.447 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-191-2 01 1 1410- ● ●
180 17.447 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-197-0 02 1 1410- ● ● ● ● ● ●
180 17.447 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-185-0 02 1 1410- ● ●

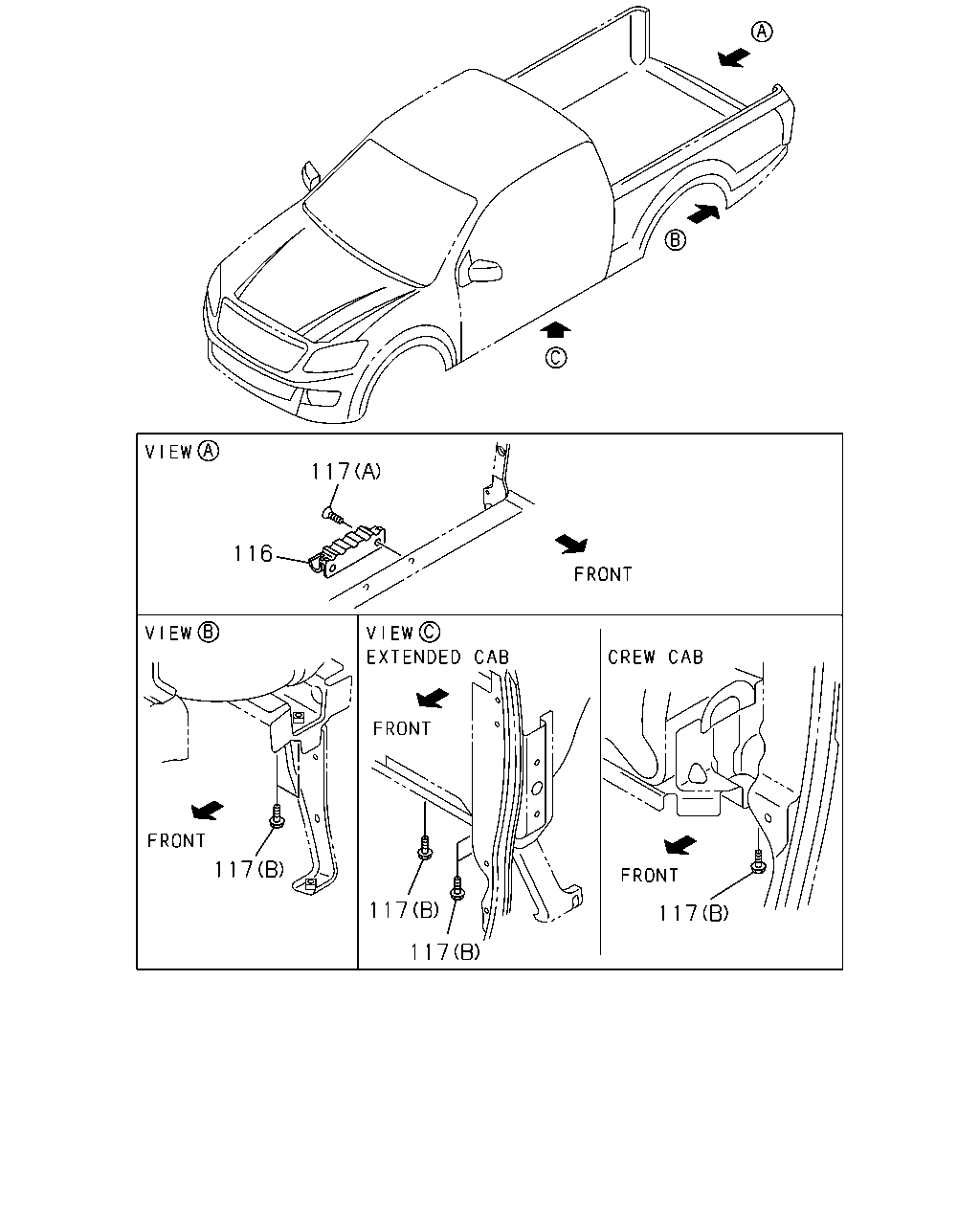

çizim 449431
117 116 117 117 117 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
116 17.400 SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-017-1 01 1 1410- ● ●
116 17.400 SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-017-1 01 1 1410- ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1410-1411 ● ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 08 1 1412- ● ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 10 1 1410- ● ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1410-1411 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 06 1 1412- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 17.208 (A) M8X22 		8-98050-437-0 02 1 1410- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22 		8-98050-437-0 02 1 1410- ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 12 1 1410-1411 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 12 1 1412- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1505 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ●
çizim 451438
117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1410-1411 ● ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 08 1 1412- ● ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 10 1 1410- ● ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1410-1411 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 06 1 1412- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 17.208 (A) M8X22 		8-98050-437-0 02 1 1410- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22 		8-98050-437-0 02 1 1410- ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 12 1 1410-1411 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 12 1 1412- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1505 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ●

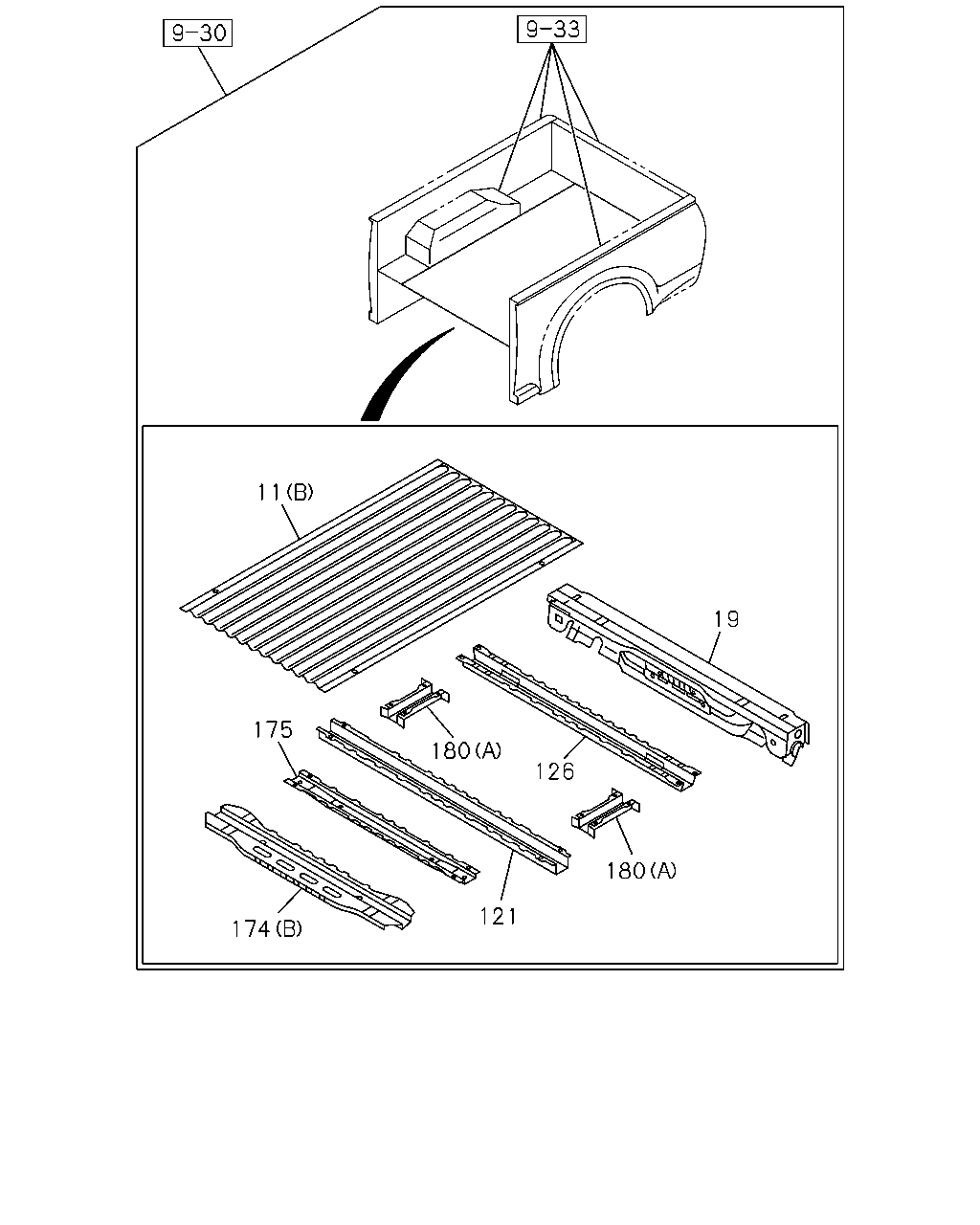

çizim 451483
11 19 126 180 175 180 121 174
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-154-1 01 1 1410- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98104-150-1 01 1 1410- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-159-2 01 1 1410- ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98210-518-0 01 1 1410- ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6) 		8-98210-518-0 01 1 1410- ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98139-247-6 01 1 1410- ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6) 		8-98139-247-6 01 1 1410- ● ●
121 17.208 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-194-2 01 1 1410- ● ● ● ● ● ●
126 17.505 BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-201-2 01 1 1410- ● ● ● ● ● ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98140-852-4 01 1 1410- ● ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98104-179-1 02 1 1410- ● ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-258-3 01 1 1410- ● ●
175 17.447 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-191-2 02 1 1410- ● ● ● ●
175 17.447 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-191-2 01 1 1410- ● ●
180 17.447 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-197-0 02 1 1410- ● ● ● ● ● ●
180 17.447 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-185-0 02 1 1410- ● ●

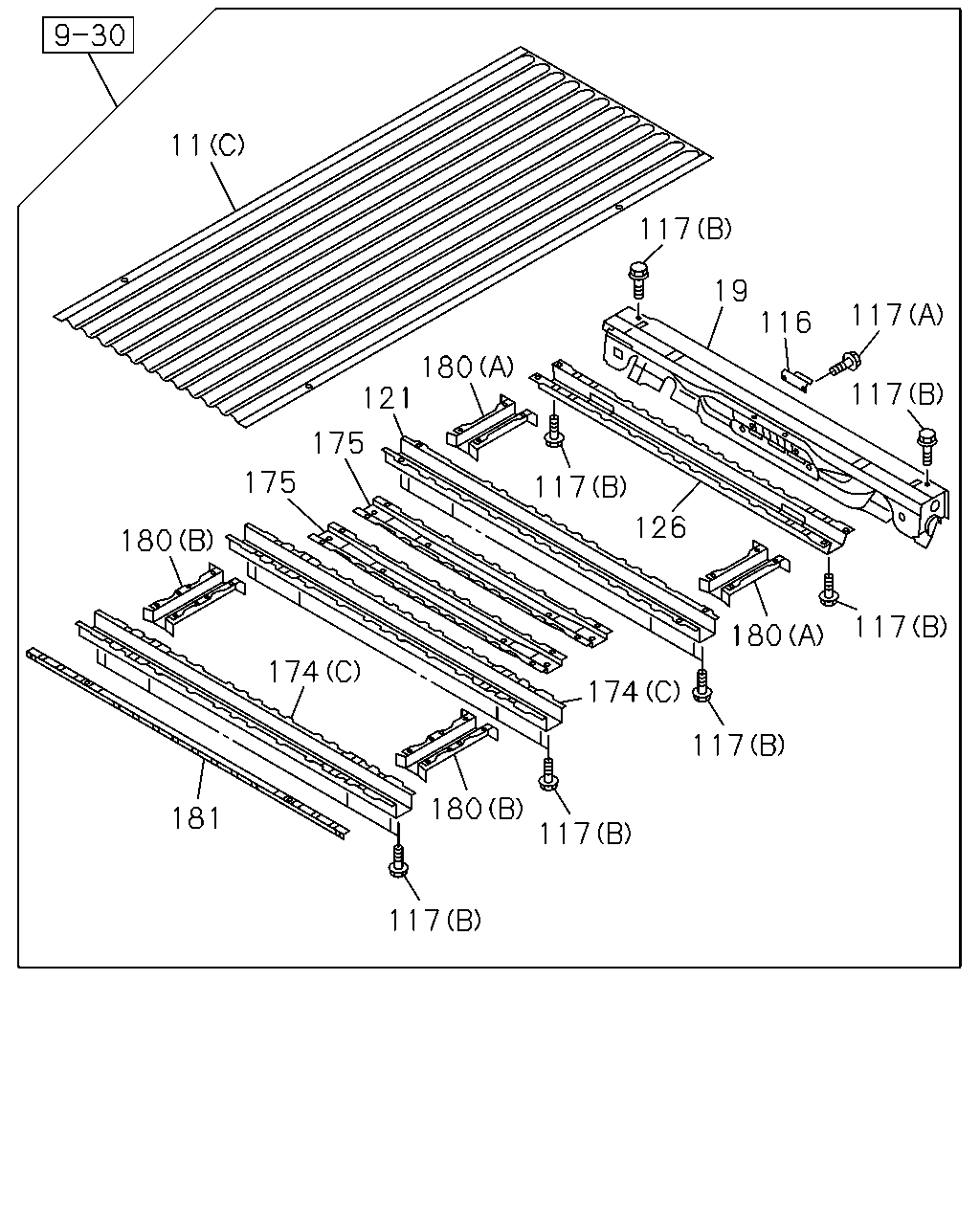

çizim 451524
11 117 117 19 117 116 117 180 126 117 180 121 175 175 180 174 174 117 180 117 117 181
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-154-1 01 1 1410- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98104-150-1 01 1 1410- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-159-2 01 1 1410- ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98210-518-0 01 1 1410- ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6) 		8-98210-518-0 01 1 1410- ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98139-247-6 01 1 1410- ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6) 		8-98139-247-6 01 1 1410- ● ●
116 17.400 SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-017-1 01 1 1410- ● ●
116 17.400 SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-017-1 01 1 1410- ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1410-1411 ● ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 08 1 1412- ● ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 10 1 1410- ● ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1410-1411 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 06 1 1412- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 17.208 (A) M8X22 		8-98050-437-0 02 1 1410- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22 		8-98050-437-0 02 1 1410- ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 12 1 1410-1411 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 12 1 1412- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1505 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ●
121 17.208 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-194-2 01 1 1410- ● ● ● ● ● ●
126 17.505 BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-201-2 01 1 1410- ● ● ● ● ● ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98140-852-4 01 1 1410- ● ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98104-179-1 02 1 1410- ● ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-258-3 01 1 1410- ● ●
175 17.447 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-191-2 02 1 1410- ● ● ● ●
175 17.447 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-191-2 01 1 1410- ● ●
180 17.447 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-197-0 02 1 1410- ● ● ● ● ● ●
180 17.447 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-185-0 02 1 1410- ● ●
181 17.447 EXTENSION; PUBX,SILL
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-171-1 01 1 1410- ● ●
