8-52 — PIPING; AIR CONDITIONING (#151702) — 34 parça
çizim 451670
53 66 66 147 67 67 67 147 67 202 122 146 146 123 123
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
53 09.220 PIPE; RECEIVER TANK TO EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) HIGH PRESSURE 		8-98129-150-4 01 1 1410- ● ● ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE 		8-98129-150-4 01 1 1410- ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1410- ● ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1410- ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98212-092-0 01 1 1410- ● ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE 		8-98212-092-0 01 1 1410- ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98164-687-0 01 1 1410- ● ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98164-687-0 01 1 1410- ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C) 		8-98164-688-0 01 1 1410- ● ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98164-688-0 01 1 1410- ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98193-624-0 02 1 1410- ● ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98193-624-0 02 1 1410- ● ●
122 09.225 GASKET
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98164-690-0 01 1 1410- ● ● ● ●
122 09.225 GASKET
AIR CONDITIONER MANUAL CONT(C60) 		8-98164-690-0 01 1 1410- ● ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98164-689-0 02 1 1410- ● ● ● ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60) 		8-98164-689-0 02 1 1410- ● ●
146 09.196 CLIP; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98193-622-0 02 1 1410- ● ● ● ●
146 09.196 CLIP; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60) 		8-98193-622-0 02 1 1410- ● ●
147 09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98193-623-0 01 1 1410- ● ● ● ●
147 09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98193-623-0 01 1 1410- ● ●
147 09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98193-625-0 01 1 1410- ● ● ● ●
147 09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98193-625-0 01 1 1410- ● ●
202 09.275 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98164-691-0 01 1 1410- ● ● ● ●
202 09.275 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONT(C60) 		8-98164-691-0 01 1 1410- ● ●

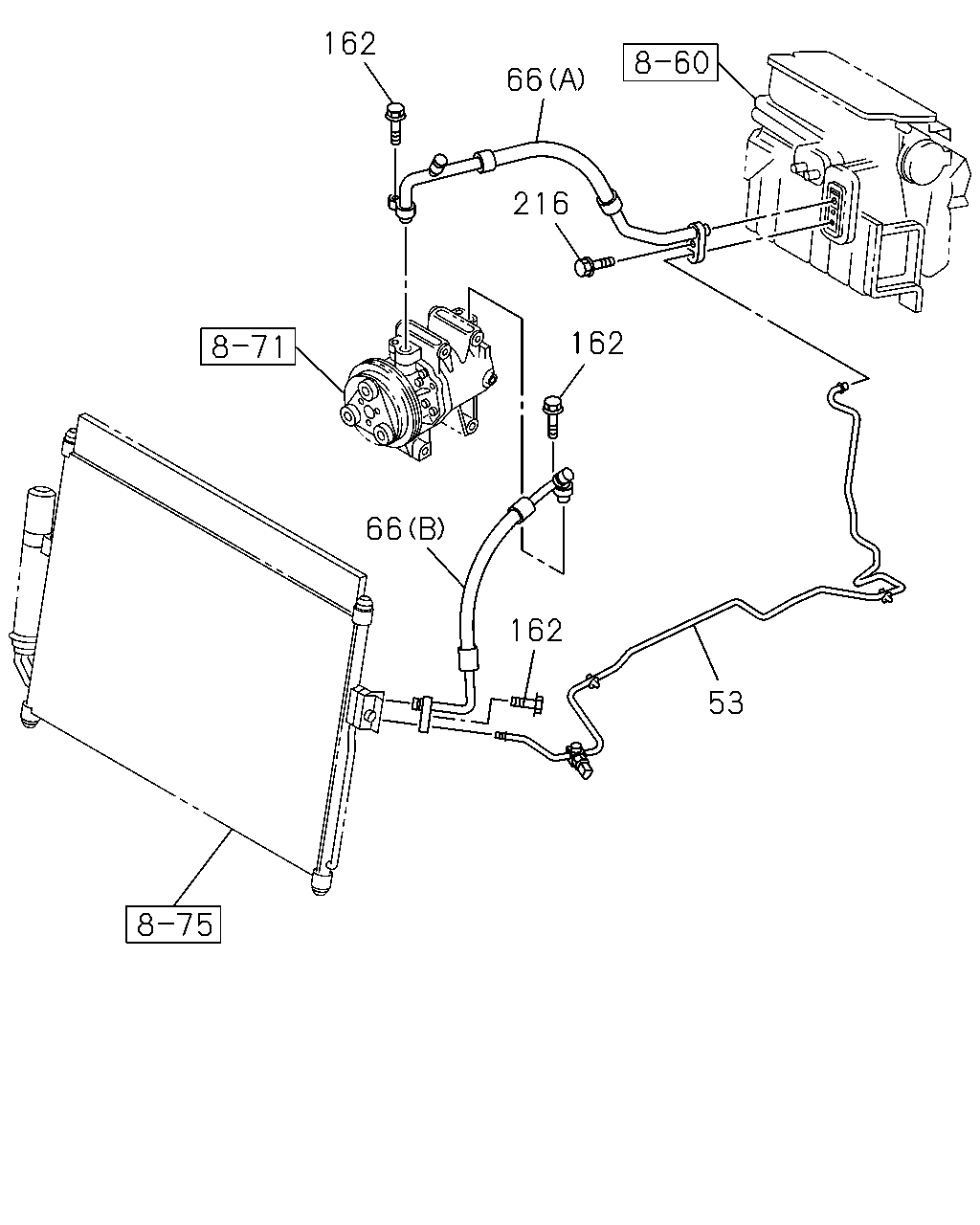

çizim 451970
53 162 66 162 216 66 162
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
53 09.220 PIPE; RECEIVER TANK TO EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) HIGH PRESSURE 		8-98129-150-4 01 1 1410- ● ● ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE 		8-98129-150-4 01 1 1410- ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1410- ● ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1410- ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98212-092-0 01 1 1410- ● ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE 		8-98212-092-0 01 1 1410- ● ●
162 09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1410- ● ● ● ●
162 09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1410- ● ●
216 09.173 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1410- ● ● ● ●
216 09.173 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1410- ● ●
