Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#151691) — 208 parça

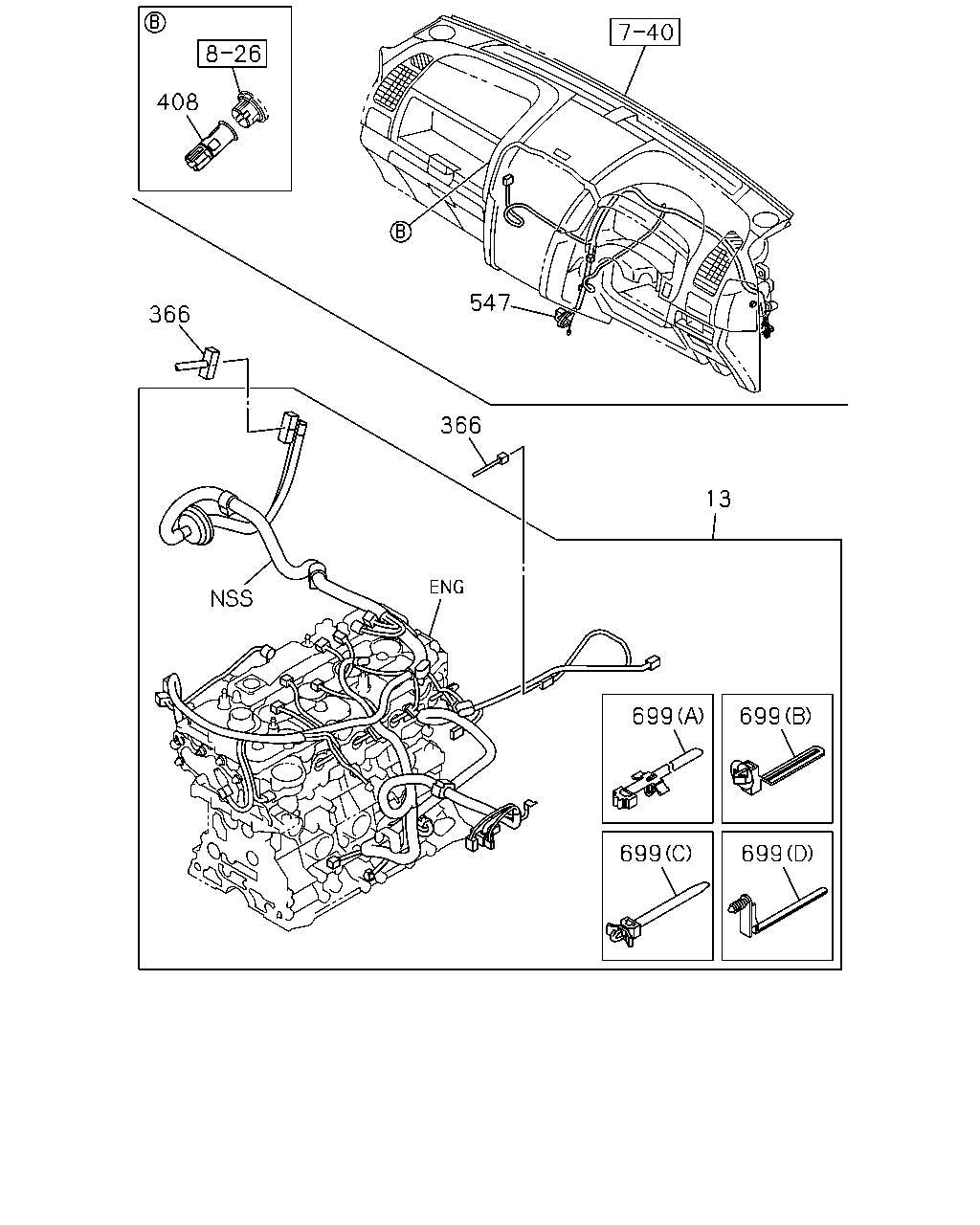

408 547 366 366 13 699 699 699 699

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	02.525 HARNESS; ENG M/T AISIN 6 SPEED(RNU)	8-98188-428-7	01	1	1410-	●	●	●
13	02.525 HARNESS; ENG A/T 5 SPEED-AISIN(MA1)	8-98260-548-0	01	1	1410-				●	●
13	02.525 HARNESS; ENG M/T AISIN 6 SPEED(RNU)	8-98260-549-0	01	1	1410-				●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM M/T AISIN 6 SPEED(RNU)	8-98218-218-2	01	1	1410-	●		●
366	02.525 HARNESS; CABLE,ENG ROOM M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98218-218-2	01	1	1410-		●
366	02.525 HARNESS; CABLE,ENG ROOM M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98191-587-8	01	1	1410-		●
366	02.525 HARNESS; CABLE,ENG ROOM EXC. SPEEDOMETER KILO&MILES<U19>	8-98218-216-2	01	1	1410-				●	●
366	02.525 HARNESS; CABLE,ENG ROOM INTERIOR BASIC(RBA) SPEEDOMETER KILO&MILES<U19>	8-98218-216-2	01	1	1410-				●	●
366	02.525 HARNESS; CABLE,ENG ROOM M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98218-216-2	01	1	1410-						●
366	02.525 HARNESS; CABLE,ENG ROOM INTERIOR CUSTOM(RBD) SPEEDOMETER KILO&MILES<U19>	8-98247-623-2	01	1	1410-				●	●
366	02.525 HARNESS; CABLE,ENG ROOM M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98191-585-8	01	1	1410-						●
408	02.575 SOCKET ASM; ACCESSORY ACCESSORY SOCKET FRT CONSOLE<KC5>	8-98123-115-0	01	1	1410-	●	●	●	●	●	●
547	02.480 HARNESS; CABLE,SRS	8-98159-336-4	01	1	1410-	●		●	●	●
547	02.480 HARNESS; CABLE,SRS AIR BAG DRIVER & PASSENGER(AK5)	8-98258-879-1	01	1	1410-		●				●
547	02.480 HARNESS; CABLE,SRS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98159-335-4	01	1	1410-		●				●
699	02.559 CLIP; ENG HARNESS M/T AISIN 6 SPEED(RNU) (A) L=170.3	1-09987-182-0	01	1	1410-	●	●	●
699	02.559 CLIP; ENG HARNESS M/T AISIN 6 SPEED(RNU) (B) L=155	8-97173-307-0	01	1	1410-	●	●	●
699	02.559 CLIP; ENG HARNESS M/T AISIN 6 SPEED(RNU) (B) L=140	8-97378-707-0	01	1	1410-	●	●	●
699	02.559 CLIP; ENG HARNESS M/T AISIN 6 SPEED(RNU) (C) L=146.2	8-98052-677-0	01	1	1410-	●	●	●
699	02.559 CLIP; ENG HARNESS M/T AISIN 6 SPEED(RNU) (D)	8-98182-511-0	03	1	1410-	●	●	●

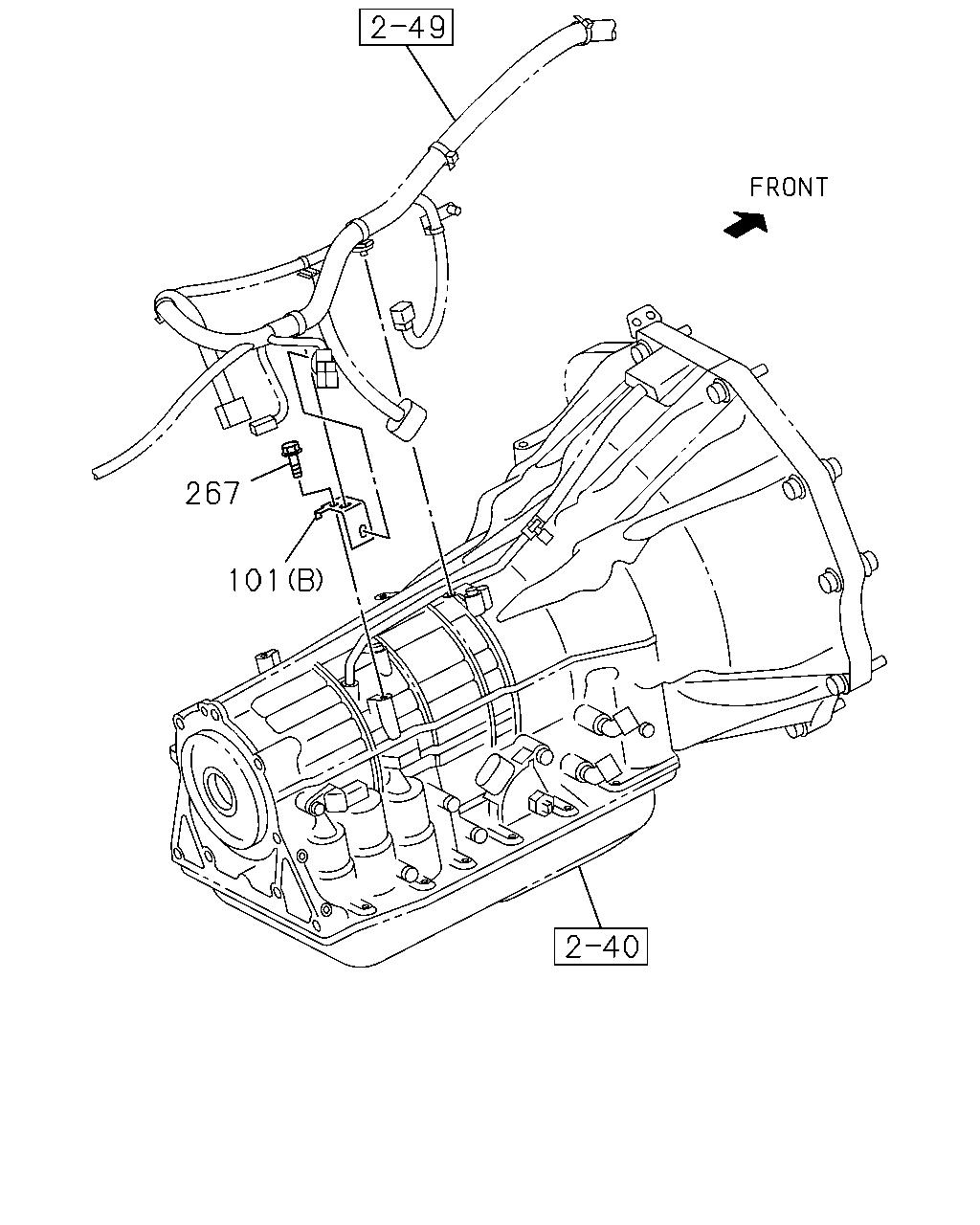

101 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
101	02.483 BRACKET; HARNESS CONNECTOR A/T 5 SPEED-AISIN(MA1) (B)	8-98182-490-1	01	1	1410-				●	●
101	02.483 BRACKET; HARNESS CONNECTOR (A)	8-98102-999-0	01	1	1410-	●	●	●	●	●	●
267	02.483 BOLT; BRKT A/T 5 SPEED-AISIN(MA1) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1410-				●	●

655

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	655	02.480 RETAINER 08.077	8-97182-405-0	01	1	1410-	●	●	●	●	●	●

4 734 750 749 751

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	02.483 BOX ASM; FUSE,HARNESS	8-98166-751-0	01	1	1410-	●	●	●	●	●	●
734	02.694 RELAY; ACC SOCKET 09.778 12V YAZAKI	8-97309-293-0	01	1	1410-	●	●	●	●	●	●
749	02.694 RELAY; POWER WINDOW 09.778 12V YAZAKI	8-97309-293-0	01	1	1410-	●	●	●	●	●	●
750	02.694 RELAY; RR DEFOGGER 09.778 12V YAZAKI	8-97309-293-0	01	1	1410-	●	●	●	●	●	●
751	02.694 RELAY; DEAD LOCK 02.485 12V YAZAKI	8-97309-292-0	01	1	1410-	●	●	●	●	●	●

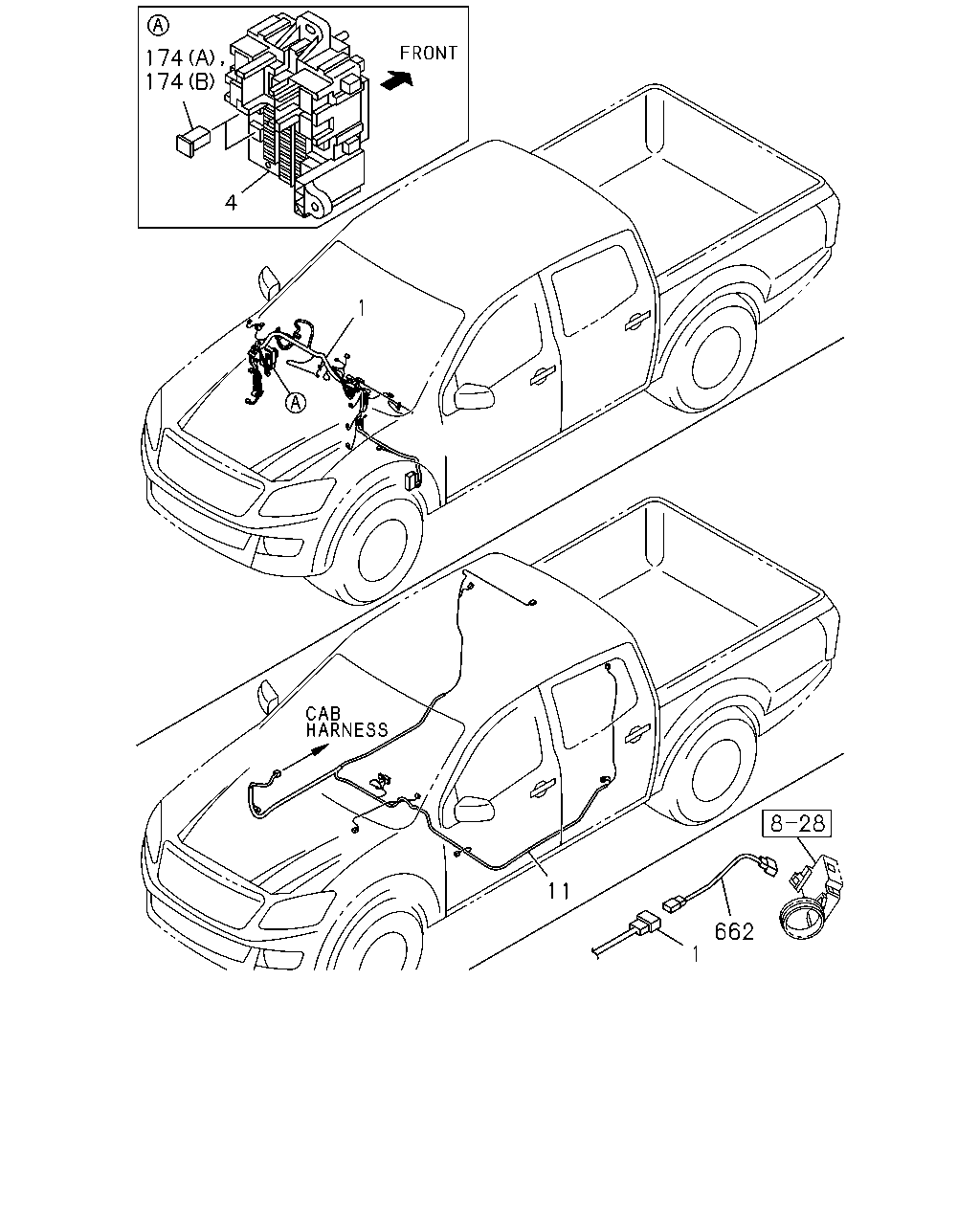

174 174 1 11 662 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.480 HARNESS; CAB INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. SPEEDOMETER KILO&MILES<U19>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98272-277-1	01	1	1410-	●		●	●	●
1	02.480 HARNESS; CAB INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98272-275-1	01	1	1410-1506	●		●	●	●
1	02.480 HARNESS; CAB AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98272-275-1	01	1	1410-1506		●				●
1	02.480 HARNESS; CAB INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK<AP5>, SPEEDOMETER KILO&MILES<U19>,REMOTE CONT DO OR LOCK W/ANTI THEFT<7KY>	8-98272-275-1	01	1	1507-	●		●	●	●
1	02.480 HARNESS; CAB INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) SPEEDOMETER KILO&MILES<U19> EXC. REMOTE CONT DOOR LOCK<AP5>, 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTE M CUSTOM<UW6>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98272-275-1	01	1	1507-	●			●
1	02.480 HARNESS; CAB AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98272-275-1	01	1	1507-		●				●
1	02.480 HARNESS; CAB INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) SPEEDOMETER KILO&MILES<U19> EXC. REMOTE CONT DOOR LOCK<AP5>, 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTE M BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY>	8-98272-275-1	01	1	1507-			●		●
1	02.480 HARNESS; CAB INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98272-276-1	01	1	1410-1506	●		●	●	●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUTO DOOR LOCK<AU4>	8-98272-276-1	01	1	1410-1506		●				●
1	02.480 HARNESS; CAB INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,SPEEDOMETER KILO&MILES<U19>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98272-276-1	01	1	1507-	●		●	●	●
1	02.480 HARNESS; CAB INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) SPEEDOMETER KILO&MILES<U19> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6>,REM OTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98272-276-1	01	1	1507-	●			●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUTO DOOR LOCK<AU4>	8-98272-276-1	01	1	1507-		●				●
1	02.480 HARNESS; CAB INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) SPEEDOMETER KILO&MILES<U19> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPE AKER SYSTEM CUSTOM<UW6>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98272-276-1	01	1	1507-			●		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) SPEEDOMETER KILO&MILES<U19> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-620-3	01	1	1410-1506	●		●	●	●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> SPEEDOMETER KILO&MILES<U19> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-620-3	01	1	1507-	●			●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> SPEEDOMETER KILO&MILES<U19> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-620-3	01	1	1507-			●		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. SPEEDOMETER KILO&MILES<U19>	8-98160-456-7	01	1	1410-1506	●		●	●	●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. SPEEDOMETER KILO&MILES<U19>	8-98160-456-7	01	1	1507-	●			●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. SPEEDOMETER KILO&MILES<U19>	8-98160-456-7	01	1	1507-			●		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98160-460-7	01	1	1410-1506	●		●	●	●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98160-460-7	01	1	1507-	●			●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98160-460-7	01	1	1507-			●		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) SPEEDOMETER KILO&MILES<U19> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-619-2	01	1	1410-1506	●		●	●	●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> SPEEDOMETER KILO&MILES<U19> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-619-2	01	1	1507-	●			●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> SPEEDOMETER KILO&MILES<U19> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98247-619-2	01	1	1507-			●		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. SPEEDOMETER KILO&MILES<U19>	8-98160-454-7	01	1	1410-1506	●		●	●	●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. SPEEDOMETER KILO&MILES<U19>	8-98160-454-7	01	1	1507-	●			●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. SPEEDOMETER KILO&MILES<U19>	8-98160-454-7	01	1	1507-			●		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98160-455-7	01	1	1410-1506	●		●	●	●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98160-455-7	01	1	1507-	●			●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98160-455-7	01	1	1507-			●		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-465-7	01	1	1410-1506	●		●	●	●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-465-7	01	1	1507-	●			●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-465-7	01	1	1507-			●		●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-462-7	01	1	1410-1506	●		●	●	●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-462-7	01	1	1507-	●			●
1	02.480 HARNESS; CAB INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-462-7	01	1	1507-			●		●
4	02.483 BOX ASM; FUSE,HARNESS	8-98166-751-0	01	1	1410-	●	●	●	●	●	●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1>	8-98160-563-7	01	1	1410-	●			●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1>	8-98160-564-7	01	1	1410-	●			●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1>	8-98160-567-7	01	1	1410-	●			●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5)	8-98160-558-5	01	1	1410-		●				●
11	02.480 HARNESS; BODY AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98160-559-6	01	1	1410-		●				●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HIGH RIDE SUSPENSION(7YC)	8-98160-639-8	01	1	1410-			●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-639-8	01	1	1410-					●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> HIGH RIDE SUSPENSION(7YC) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98160-642-8	01	1	1410-			●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98160-642-8	01	1	1410-					●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HIGH RIDE SUSPENSION(7YC) EXC. HEATER FRT SEAT<KA1>	8-98160-625-8	01	1	1410-			●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>	8-98160-625-8	01	1	1410-					●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HIGH RIDE SUSPENSION(7YC) EXC. HEATER FRT SEAT<KA1>,REMOTE CONTDOOR LOCK W/ANTI THEFT<7KY>	8-98160-626-8	01	1	1410-			●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. HEATER FRT SEAT<KA1>,REMOTE CONTDOOR LOCK W/ANTI THEFT<7KY>	8-98160-626-8	01	1	1410-					●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HIGH RIDE SUSPENSION(7YC) EXC. HEATER FRT SEAT<KA1>	8-98160-588-8	01	1	1410-			●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>	8-98160-588-8	01	1	1410-					●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. HEATER FRT SEAT<KA1>,REMOTE CONTDOOR LOCK W/ANTI THEFT<7KY>	8-98160-596-8	01	1	1410-			●		●
11	02.480 HARNESS; BODY FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1>	8-98160-613-8	01	1	1410-			●		●
174	08.965 FUSE; SLOW BLOW (C) 120A WHITE	1-82516-028-1	AR	1	1410-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW (B) 30A PINK	8-98079-191-0	AR	1	1410-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW (D) 40A GREEN	8-98079-192-0	AR	1	1410-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW (D) 50A RED	8-98079-193-0	AR	1	1410-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW (D) 60A YELLOW	8-97219-407-0	AR	1	1410-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW (E) 60A YELLOW	8-98197-288-0	AR	1	1410-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	AR	1	1410-1505	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	02	1	1506-	●	●	●	●	●	●
662	02.525 HARNESS; IMMOBILIZER	8-98163-074-0	01	1	1410-	●	●	●	●	●	●

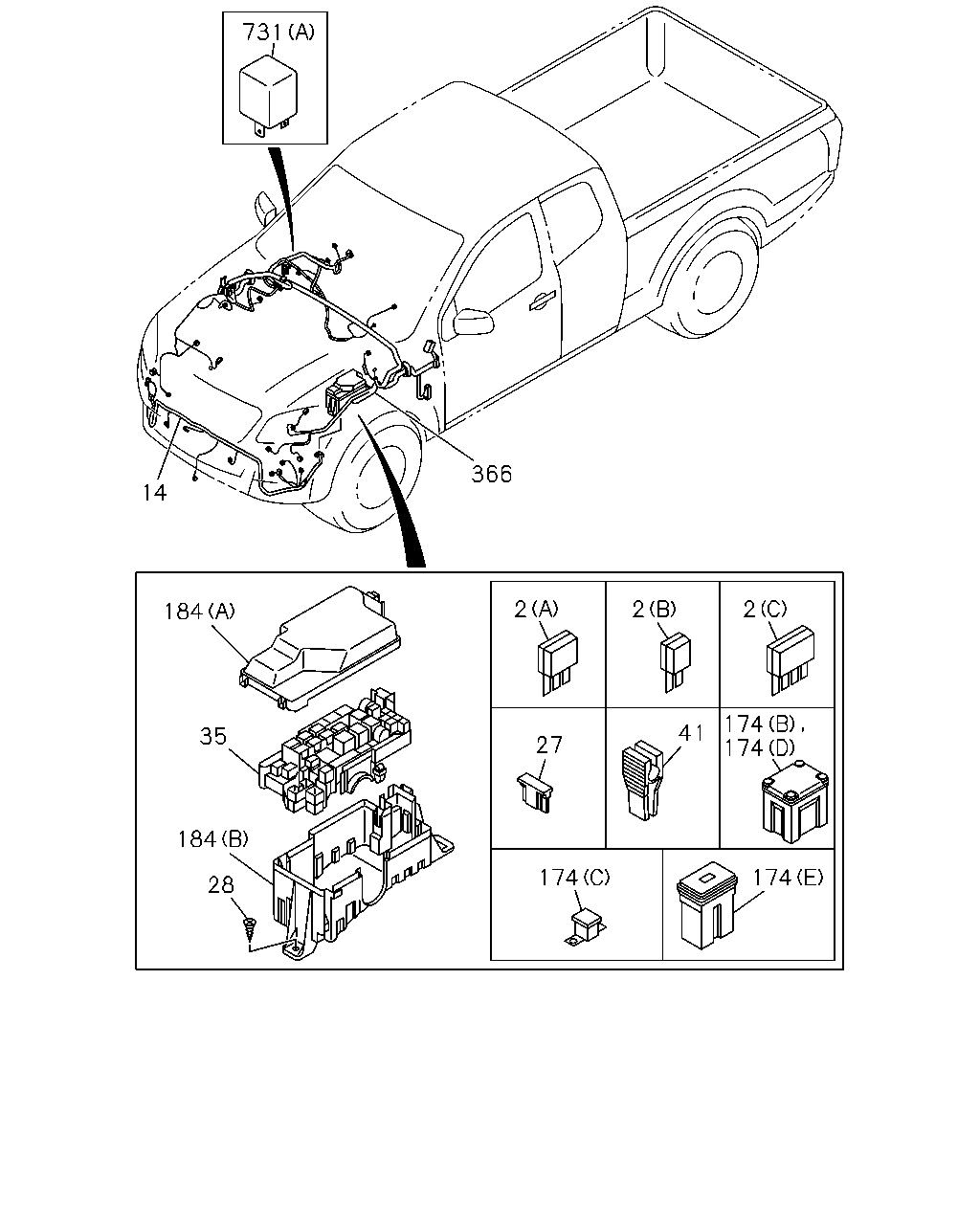

731 366 2 2 2 27 41 174 174 174 174 28 184 35 184 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	02.483 DIODE; CABLE HARNESS (C) BLACK 4P-1.5A	8-94381-730-0	AR	1	1410-	●	●	●	●	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1410-	●	●	●	●	●	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	1410-	●	●	●	●	●	●
14	02.727 HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH>	8-98159-353-1	01	1	1410-	●		●	●	●
14	02.727 HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98159-352-1	01	1	1410-	●		●	●	●
14	02.727 HARNESS; HEADLAMP REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>	8-98159-351-1	01	1	1410-	●		●	●	●
14	02.727 HARNESS; HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-350-1	01	1	1410-	●		●	●	●
14	02.727 HARNESS; HEADLAMP EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,HEADLAMPS PROJECT OR BEAM<8LH>	8-98159-342-1	01	1	1410-	●		●	●	●
14	02.727 HARNESS; HEADLAMP	8-98159-342-1	01	1	1410-		●				●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1410-	●	●	●	●	●	●
27	08.965 FUSE UNIT 02.485 15A BLUE	8-98054-258-0	AR	1	1410-	●	●	●	●	●	●
27	08.965 FUSE UNIT 02.485 20A YELLOW	8-98054-259-0	AR	1	1410-	●	●	●	●	●	●
28	02.483 SCREW; FUSE BOX	8-97249-192-0	02	1	1410-	●	●	●	●	●	●
35	02.530 BOX; RELAY & FUSE	8-98113-097-0	01	1	1410-	●	●	●	●	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1410-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW (C) 120A WHITE	1-82516-028-1	AR	1	1410-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW (B) 30A PINK	8-98079-191-0	AR	1	1410-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW (D) 40A GREEN	8-98079-192-0	AR	1	1410-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW (D) 50A RED	8-98079-193-0	AR	1	1410-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW (D) 60A YELLOW	8-97219-407-0	AR	1	1410-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW (E) 60A YELLOW	8-98197-288-0	AR	1	1410-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	AR	1	1410-1505	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	02	1	1506-	●	●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX (A)	8-98113-098-0	01	1	1410-	●	●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX (B)	8-98113-099-0	01	1	1410-	●	●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM M/T AISIN 6 SPEED(RNU)	8-98218-218-2	01	1	1410-	●		●
366	02.525 HARNESS; CABLE,ENG ROOM M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98218-218-2	01	1	1410-		●
366	02.525 HARNESS; CABLE,ENG ROOM M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98191-587-8	01	1	1410-		●
366	02.525 HARNESS; CABLE,ENG ROOM EXC. SPEEDOMETER KILO&MILES<U19>	8-98218-216-2	01	1	1410-				●	●
366	02.525 HARNESS; CABLE,ENG ROOM INTERIOR BASIC(RBA) SPEEDOMETER KILO&MILES<U19>	8-98218-216-2	01	1	1410-				●	●
366	02.525 HARNESS; CABLE,ENG ROOM M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98218-216-2	01	1	1410-						●
366	02.525 HARNESS; CABLE,ENG ROOM INTERIOR CUSTOM(RBD) SPEEDOMETER KILO&MILES<U19>	8-98247-623-2	01	1	1410-				●	●
366	02.525 HARNESS; CABLE,ENG ROOM M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98191-585-8	01	1	1410-						●
731	02.483 RELAY; DRL 02.485 (A) 12V YAZAKI	8-97309-292-0	01	1	1410-	●	●	●	●	●	●
731	02.483 RELAY; DRL 09.778 (B) 12V YAZAKI	8-97309-293-0	01	1	1410-	●	●	●	●	●	●

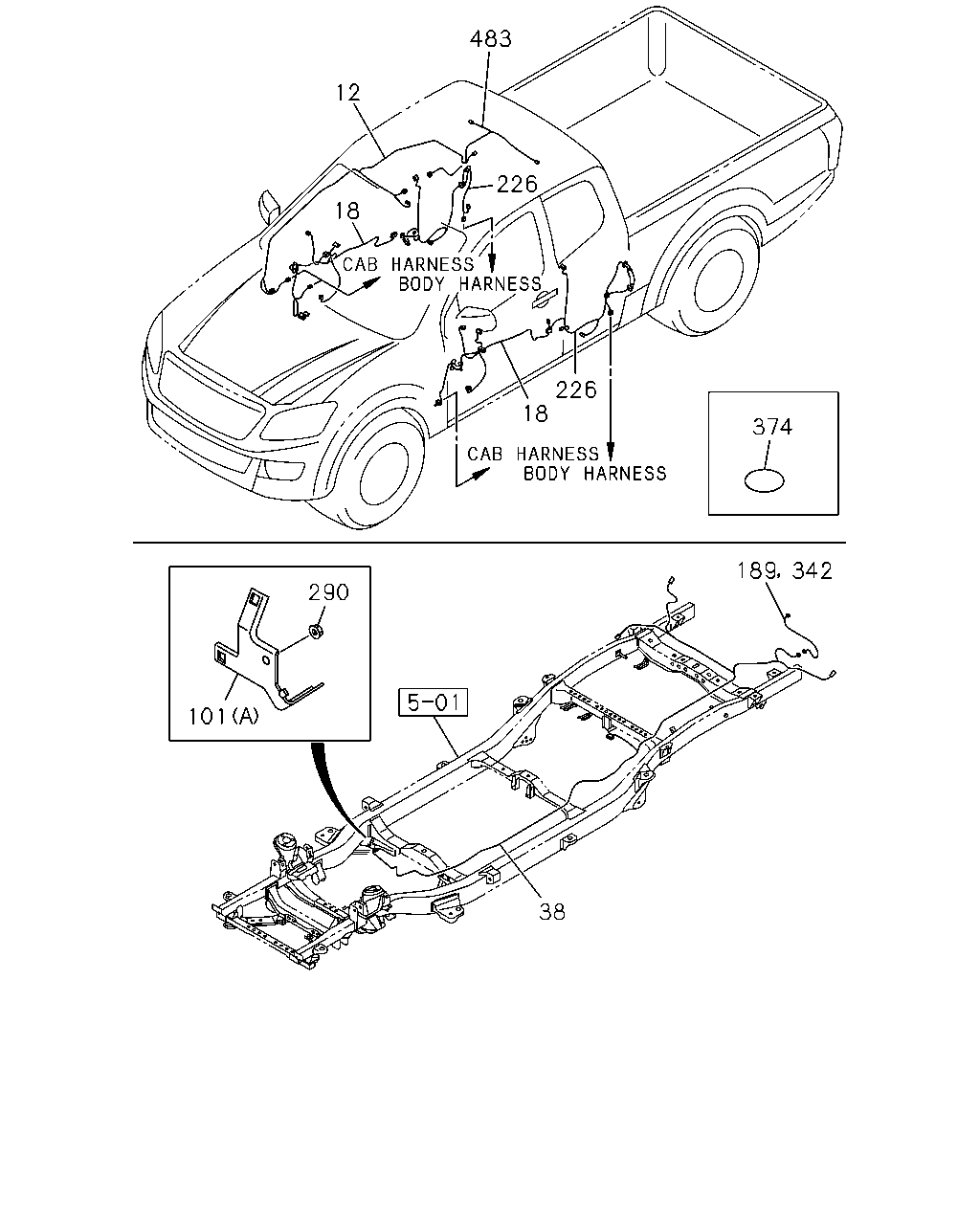

12 18 483 226 226 18 374 342 189 38 290 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	02.480 HARNESS; ROOF MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6>	8-98159-482-5	01	1	1410-	●		●	●	●
12	02.480 HARNESS; ROOF MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>	8-98159-481-4	01	1	1410-	●		●	●	●
12	02.480 HARNESS; ROOF HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74>	8-98159-484-5	01	1	1410-	●		●	●	●
12	02.480 HARNESS; ROOF HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6>	8-98159-483-4	01	1	1410-	●		●	●	●
12	02.480 HARNESS; ROOF 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>	8-98272-274-1	01	1	1410-	●		●	●	●
12	02.480 HARNESS; ROOF EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>	8-98159-480-4	01	1	1410-	●		●	●	●
12	02.480 HARNESS; ROOF AIR BAG DRIVER & PASSENGER(AK5)	8-98159-332-0	01	1	1410-		●				●
12	02.480 HARNESS; ROOF AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98159-333-4	01	1	1410-		●				●
18	02.480 HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-501-3	01	1	1410-	●		●	●	●
18	02.480 HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98230-581-1	01	1	1410-	●		●	●	●
18	02.480 HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98233-639-0	01	1	1410-	●		●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-485-4	01	1	1410-	●		●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98164-851-3	01	1	1410-	●		●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98159-487-4	01	1	1410-	●		●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-521-2	01	1	1410-	●		●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98159-521-2	01	1	1410-		●				●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98159-489-3	01	1	1410-	●		●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98159-489-3	01	1	1410-		●				●
18	02.480 HARNESS; DOOR DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>	8-98159-509-3	01	1	1410-	●		●	●	●
18	02.480 HARNESS; DOOR AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. AUTO DOOR LOCK<AU4>	8-98159-509-3	01	1	1410-		●				●
18	02.480 HARNESS; DOOR DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4>	8-98159-491-4	01	1	1410-	●		●	●	●
18	02.480 HARNESS; DOOR AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. AUTO DOOR LOCK<AU4>	8-98159-491-4	01	1	1410-		●				●
18	02.480 HARNESS; DOOR AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4>	8-98159-490-3	01	1	1410-		●				●
18	02.480 HARNESS; DOOR AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4>	8-98159-504-5	01	1	1410-		●				●
18	02.480 HARNESS; DOOR AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4>	8-98159-492-3	01	1	1410-		●				●
18	02.480 HARNESS; DOOR AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4>	8-98159-510-4	01	1	1410-		●				●
38	02.480 HARNESS; CHAS REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC)	8-98159-327-3	01	1	1410-	●		●
38	02.480 HARNESS; CHAS REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC)	8-98159-327-3	01	1	1410-	●		●
38	02.480 HARNESS; CHAS REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) REAR STEP BUMPER(VF6)	8-98159-327-3	01	1	1410-		●
38	02.480 HARNESS; CHAS REAR BODY DBL WALL CTR PULL(E63)	8-98159-327-3	01	1	1410-				●	●
38	02.480 HARNESS; CHAS REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98159-327-3	01	1	1410-						●
38	02.480 HARNESS; CHAS REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC)	8-98159-329-3	01	1	1410-	●		●
38	02.480 HARNESS; CHAS REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REAR STEP BUMPER(VF6)	8-98159-329-3	01	1	1410-		●
38	02.480 HARNESS; CHAS REAR BODY DELETE(8HH)	8-98159-326-3	01	1	1410-	●		●	●	●
38	02.480 HARNESS; CHAS RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) REAR BODY DELETE(8HH)	8-98159-326-3	01	1	1410-		●				●
101	02.483 BRACKET; HARNESS CONNECTOR A/T 5 SPEED-AISIN(MA1) (B)	8-98182-490-1	01	1	1410-				●	●
101	02.483 BRACKET; HARNESS CONNECTOR (A)	8-98102-999-0	01	1	1410-	●	●	●	●	●	●
189	02.480 HARNESS; EXT HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98140-863-0	01	1	1410-	●		●
189	02.480 HARNESS; EXT REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC)	8-98140-863-0	01	1	1410-	●		●
189	02.480 HARNESS; EXT REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6)	8-98140-863-0	01	1	1410-		●
189	02.480 HARNESS; EXT EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98140-863-0	01	1	1410-				●	●
189	02.480 HARNESS; EXT EXC. REAR STEP BUMPER(VF6)	8-98140-863-0	01	1	1410-						●
226	02.480 HARNESS; RR DOOR	8-98159-355-6	01	1	1410-	●			●
226	02.480 HARNESS; RR DOOR	8-98167-613-6	01	1	1410-	●			●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-531-3	01	1	1410-			●		●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-532-3	01	1	1410-			●		●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98159-527-3	01	1	1410-			●		●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98159-528-3	01	1	1410-			●		●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5>	8-98159-529-3	01	1	1410-			●		●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5>	8-98159-530-3	01	1	1410-			●		●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-525-3	01	1	1410-			●		●
226	02.480 HARNESS; RR DOOR AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-526-3	01	1	1410-			●		●
290	02.483 NUT; BRKT BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M6 FLANGE	0-91180-106-0	01	1	1410-	●	●	●	●	●	●
342	02.480 HARNESS; EXT,LICENSE LAMP REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98137-579-2	01	1	1410-	●		●	●	●
342	02.480 HARNESS; EXT,LICENSE LAMP REAR STEP BUMPER(VF6)	8-98137-579-2	01	1	1410-		●				●
374	02.530 PLUG; HARNESS CONNECTOR EXC. AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5> 02.559 D=58 BLACK	8-97302-191-0	02	1	1410-			●		●
483	02.480 HARNESS; EXT,RADIO HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>	8-98165-202-2	01	1	1410-	●		●	●	●
483	02.480 HARNESS; EXT,RADIO 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6>	8-98129-592-2	01	1	1410-	●		●	●	●

366 731 736 738 739 741 743 742 744 746 737 745 747 748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
366	02.525 HARNESS; CABLE,ENG ROOM M/T AISIN 6 SPEED(RNU)	8-98218-218-2	01	1	1410-	●		●
366	02.525 HARNESS; CABLE,ENG ROOM M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98218-218-2	01	1	1410-		●
366	02.525 HARNESS; CABLE,ENG ROOM M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98191-587-8	01	1	1410-		●
366	02.525 HARNESS; CABLE,ENG ROOM EXC. SPEEDOMETER KILO&MILES<U19>	8-98218-216-2	01	1	1410-				●	●
366	02.525 HARNESS; CABLE,ENG ROOM INTERIOR BASIC(RBA) SPEEDOMETER KILO&MILES<U19>	8-98218-216-2	01	1	1410-				●	●
366	02.525 HARNESS; CABLE,ENG ROOM M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98218-216-2	01	1	1410-						●
366	02.525 HARNESS; CABLE,ENG ROOM INTERIOR CUSTOM(RBD) SPEEDOMETER KILO&MILES<U19>	8-98247-623-2	01	1	1410-				●	●
366	02.525 HARNESS; CABLE,ENG ROOM M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL)	8-98191-585-8	01	1	1410-						●
731	02.483 RELAY; DRL 02.485 (A) 12V YAZAKI	8-97309-292-0	01	1	1410-	●	●	●	●	●	●
731	02.483 RELAY; DRL 09.778 (B) 12V YAZAKI	8-97309-293-0	01	1	1410-	●	●	●	●	●	●
736	02.694 RELAY; STARTER CUT 02.485 12V YAZAKI	8-97309-292-0	01	1	1410-	●	●	●	●	●	●
737	02.694 RELAY; DIMMER 02.485 12V YAZAKI	8-97309-292-0	01	1	1410-	●	●	●	●	●	●
738	02.694 RELAY; HEADLAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	1410-	●	●	●	●	●	●
739	02.694 RELAY; TAIL LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	1410-	●	●	●	●	●	●
741	02.694 RELAY; HORN 09.778 12V YAZAKI	8-97309-293-0	01	1	1410-	●	●	●	●	●	●
742	02.694 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	1410-	●	●	●	●	●	●
743	02.694 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	1410-	●	●	●	●	●	●
744	02.694 RELAY; RR FOG LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	1410-	●	●	●	●	●	●
745	02.694 RELAY; HEATER 03.670 12V YAZAKI	8-98146-834-0	01	1	1410-	●	●	●	●	●	●
746	02.694 RELAY; ECM,MAIN 03.670 12V YAZAKI	8-98146-834-0	01	1	1410-	●	●	●	●	●	●
747	02.694 RELAY; GLOW 02.100 12V YAZAKI	8-98146-837-0	01	1	1410-	●	●	●	●	●	●
748	02.694 RELAY; STARTER 02.100 12V YAZAKI	8-98146-837-0	01	1	1410-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
