◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51582 - TFR/TFS RHD EUROPE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#151689) — 104 parça
çizim 451401
150 148 148 201 197 196 199 198
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> REAR BODY DELETE(8HH) 		8-98043-066-0 01 1 1410- ● ● ● ● ● ●
150 02.664 NUT; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> REAR BODY DELETE(8HH) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1410- ● ● ● ● ● ●
196 02.679 LENS; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> REAR BODY DELETE(8HH) 		8-97369-448-0 01 1 1410- ● ● ● ● ● ●
197 02.679 GASKET; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> REAR BODY DELETE(8HH) 02.769 		8-97369-451-0 01 1 1410- ● ● ● ● ● ●
198 02.688 SCREW; LENS TO BODY
RR UNDERRUN PROTECTOR<6DY> REAR BODY DELETE(8HH) 		0-71190-416-0 02 1 1410- ● ● ● ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> REAR BODY DELETE(8HH) 		8-97369-446-0 02 1 1410- ● ● ● ● ● ●
201 08.991 BULB; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> REAR BODY DELETE(8HH) 12V 21W 		8-94124-074-0 01 1 1410- ● ● ● ● ● ●

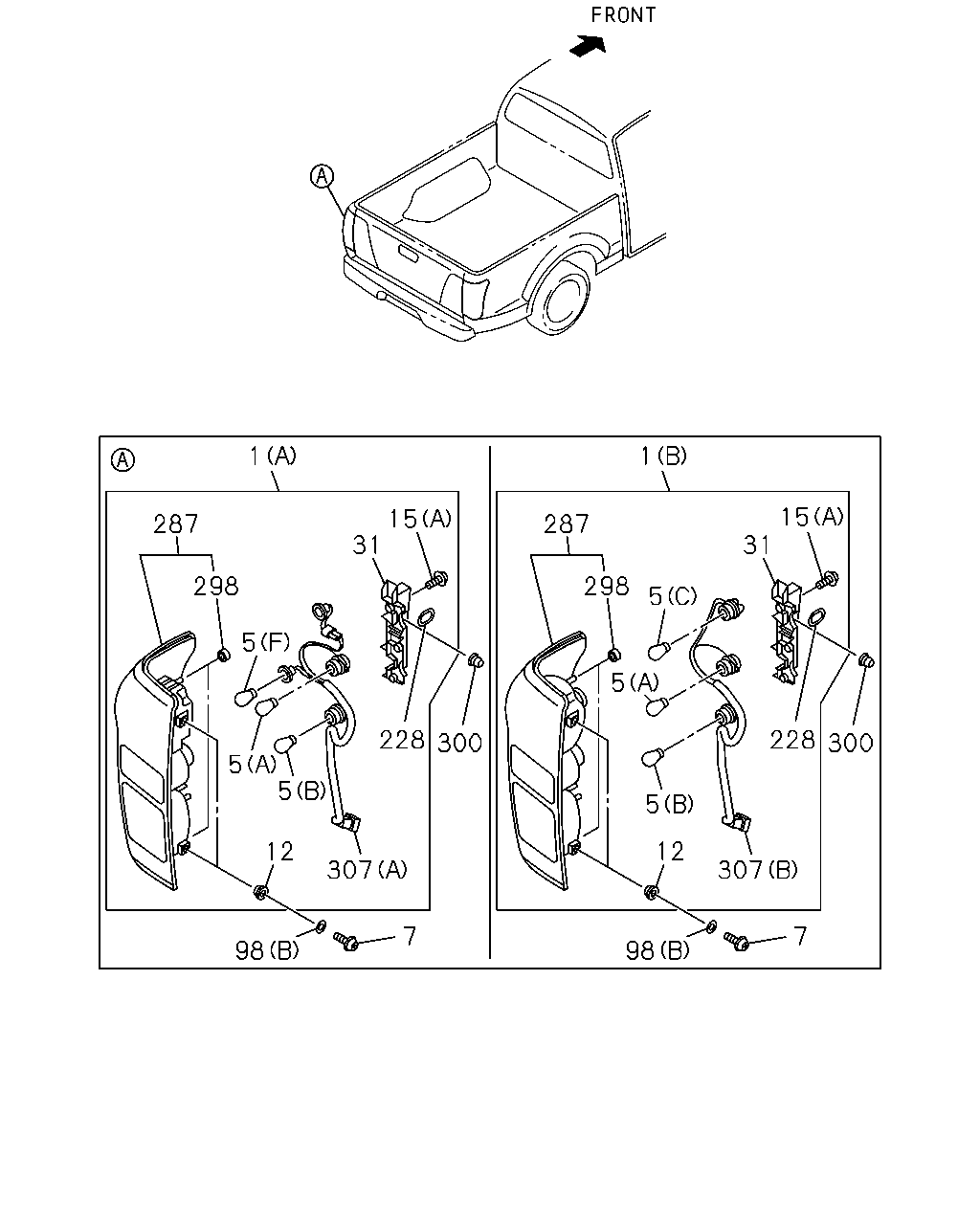

çizim 451910
287 1 1 15 31 298 5 5 228 300 5 12 307 98 7 287 298 5 31 15 5 228 300 5 12 307 98 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98233-090-2 01 1 1410- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98233-093-2 01 1 1410- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98125-403-3 01 1 1410- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98125-403-3 01 1 1410- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98125-404-3 01 1 1410- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98125-404-3 01 1 1410- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (C) 		8-97137-731-0 01 1 1410- ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (C) 		8-97137-732-0 01 1 1410- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W 		8-94124-595-0 01 1 1410- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W 		8-94124-595-0 01 1 1410- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W 		8-94124-074-0 04 1 1410- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (E) STOP 12V 21/5W 		8-94125-959-0 02 1 1410- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W 		8-94124-074-0 01 1 1410- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W 		8-94124-074-0 01 1 1410- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W 		8-97179-967-0 01 1 1410- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W 		8-97179-967-0 01 1 1410- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1410- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1410- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1410- ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1410- ● ●
7 02.664 SCREW; RR COMB LAMP
16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 1410-1502 ● ● ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 1503- ● ● ● ● ● ●
12 02.664 GROMMET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97349-413-0 02 1 1410- ● ● ● ● ● ●
12 02.664 GROMMET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97349-413-0 02 1 1410- ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DELETE(8HH) 02.587 (B) M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 1410- ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) M4X12 TAPPING 		8-97376-768-0 03 1 1410- ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) M4X12 TAPPING 		8-97376-768-0 03 1 1410- ● ● ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98193-892-0 01 1 1410- ● ● ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98193-893-0 01 1 1410- ● ● ● ● ● ●
98 02.708 WASHER
16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1410- ● ● ● ● ● ●
98 02.708 WASHER
08.054 (B) D=16 		8-94427-941-0 04 1 1410-1502 ● ● ● ● ● ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL(E63) 08.054 (B) D=16 		8-94427-941-0 04 1 1503- ● ● ● ● ● ●
228 02.689 CLIP; COVER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97376-769-0 01 1 1410- ● ● ● ● ● ●
228 02.689 CLIP; COVER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97376-769-0 01 1 1410- ● ● ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> 		8-98235-554-0 01 1 1410- ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> 		8-98235-557-0 01 1 1410- ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> 		8-98131-703-0 01 1 1410- ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) 		8-98131-703-0 01 1 1410- ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> 		8-98131-707-0 01 1 1410- ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) 		8-98131-707-0 01 1 1410- ● ●
298 02.727 CAP; BREATHER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97289-148-0 02 1 1410- ● ● ● ● ● ●
298 02.727 CAP; BREATHER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97289-148-0 02 1 1410- ● ● ● ● ● ●
300 16.494 HOLDER; LAMP 8-97372-854-0 02 1 1410-1502 ● ● ● ● ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97372-854-0 02 1 1503- ● ● ● ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98250-077-0 01 1 1410- ● ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98250-079-0 01 1 1410- ● ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98193-895-0 01 1 1410- ● ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98193-895-0 01 1 1410- ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98193-896-0 01 1 1410- ● ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98193-896-0 01 1 1410- ● ●
307 02.727 CORD ASM; LAMP
(C) 		8-98193-900-0 01 1 1410- ● ● ● ● ● ●
çizim 451949
1 5 5 15 6 3 5 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98233-090-2 01 1 1410- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98233-093-2 01 1 1410- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98125-403-3 01 1 1410- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98125-403-3 01 1 1410- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98125-404-3 01 1 1410- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98125-404-3 01 1 1410- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (C) 		8-97137-731-0 01 1 1410- ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (C) 		8-97137-732-0 01 1 1410- ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE(8HH) 02.689 		5-82236-001-0 01 1 1410- ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE(8HH) 02.689 		5-82236-002-0 01 1 1410- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W 		8-94124-595-0 01 1 1410- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W 		8-94124-595-0 01 1 1410- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W 		8-94124-074-0 04 1 1410- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (E) STOP 12V 21/5W 		8-94125-959-0 02 1 1410- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W 		8-94124-074-0 01 1 1410- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W 		8-94124-074-0 01 1 1410- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W 		8-97179-967-0 01 1 1410- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W 		8-97179-967-0 01 1 1410- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1410- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1410- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1410- ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1410- ● ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE(8HH) 		5-82235-001-0 01 1 1410- ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE(8HH) 		5-82235-002-0 01 1 1410- ● ● ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
REAR BODY DELETE(8HH) M5 FLANGE 		8-98049-363-0 08 1 1410- ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DELETE(8HH) 02.587 (B) M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 1410- ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) M4X12 TAPPING 		8-97376-768-0 03 1 1410- ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) M4X12 TAPPING 		8-97376-768-0 03 1 1410- ● ● ● ● ● ●

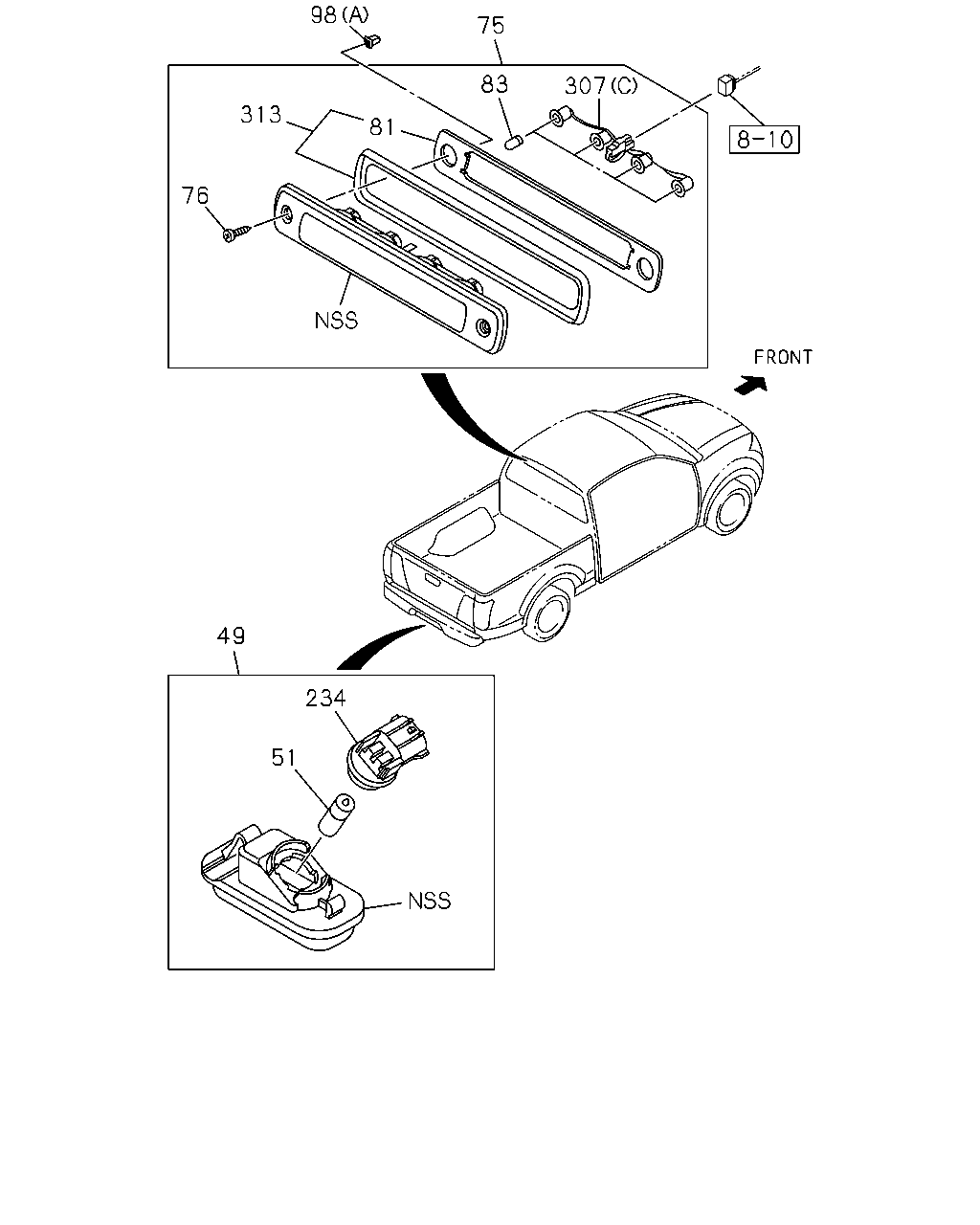

çizim 452007
98 313 76 81 83 75 307 49 234 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
49 02.700 LAMP; LICENSE PLATE 8-98224-482-0 02 1 1410- ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W 		8-94124-595-0 02 1 1410- ● ● ● ● ● ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED 8-98255-655-2 01 1 1410- ● ● ● ● ● ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED 8-98193-901-0 02 1 1410- ● ● ● ● ● ●
81 02.694 GASKET; STOP LAMP 8-98257-962-0 01 1 1410- ● ● ● ● ● ●
83 08.991 BULB; STOP LAMP,HIGHMOUNTED
12V 5W 		8-98193-898-0 04 1 1410- ● ● ● ● ● ●
98 02.708 WASHER
16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1410- ● ● ● ● ● ●
98 02.708 WASHER
08.054 (B) D=16 		8-94427-941-0 04 1 1410-1502 ● ● ● ● ● ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL(E63) 08.054 (B) D=16 		8-94427-941-0 04 1 1503- ● ● ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP 1-82119-148-0 02 1 1410- ● ● ● ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98250-077-0 01 1 1410- ● ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98250-079-0 01 1 1410- ● ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98193-895-0 01 1 1410- ● ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98193-895-0 01 1 1410- ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98193-896-0 01 1 1410- ● ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98193-896-0 01 1 1410- ● ●
307 02.727 CORD ASM; LAMP
(C) 		8-98193-900-0 01 1 1410- ● ● ● ● ● ●
313 02.708 RUBBER & GASKET
16.165 		8-98250-208-0 01 1 1410- ● ● ● ● ● ●
