Sayfa 7-50 - Isuzu EPC

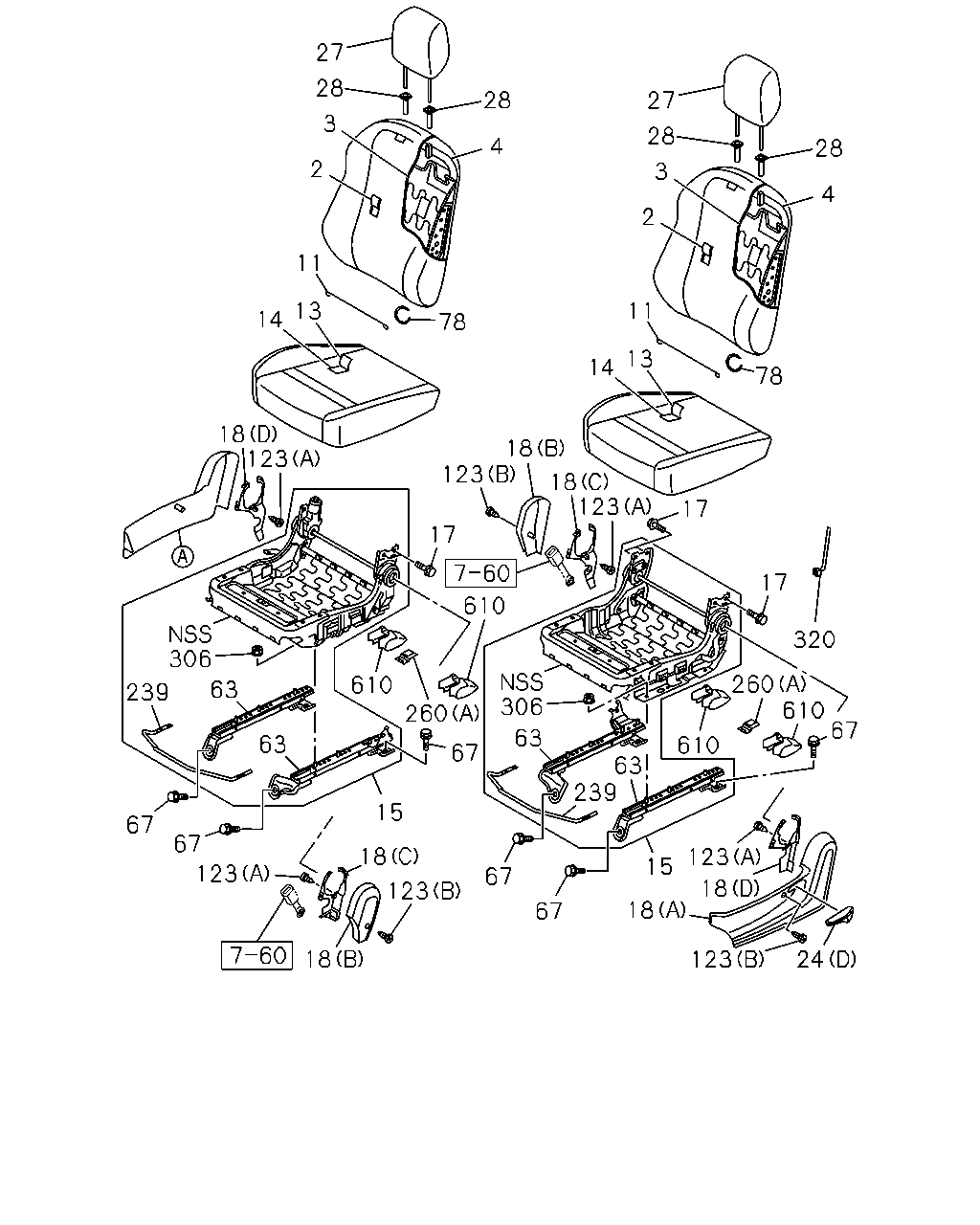

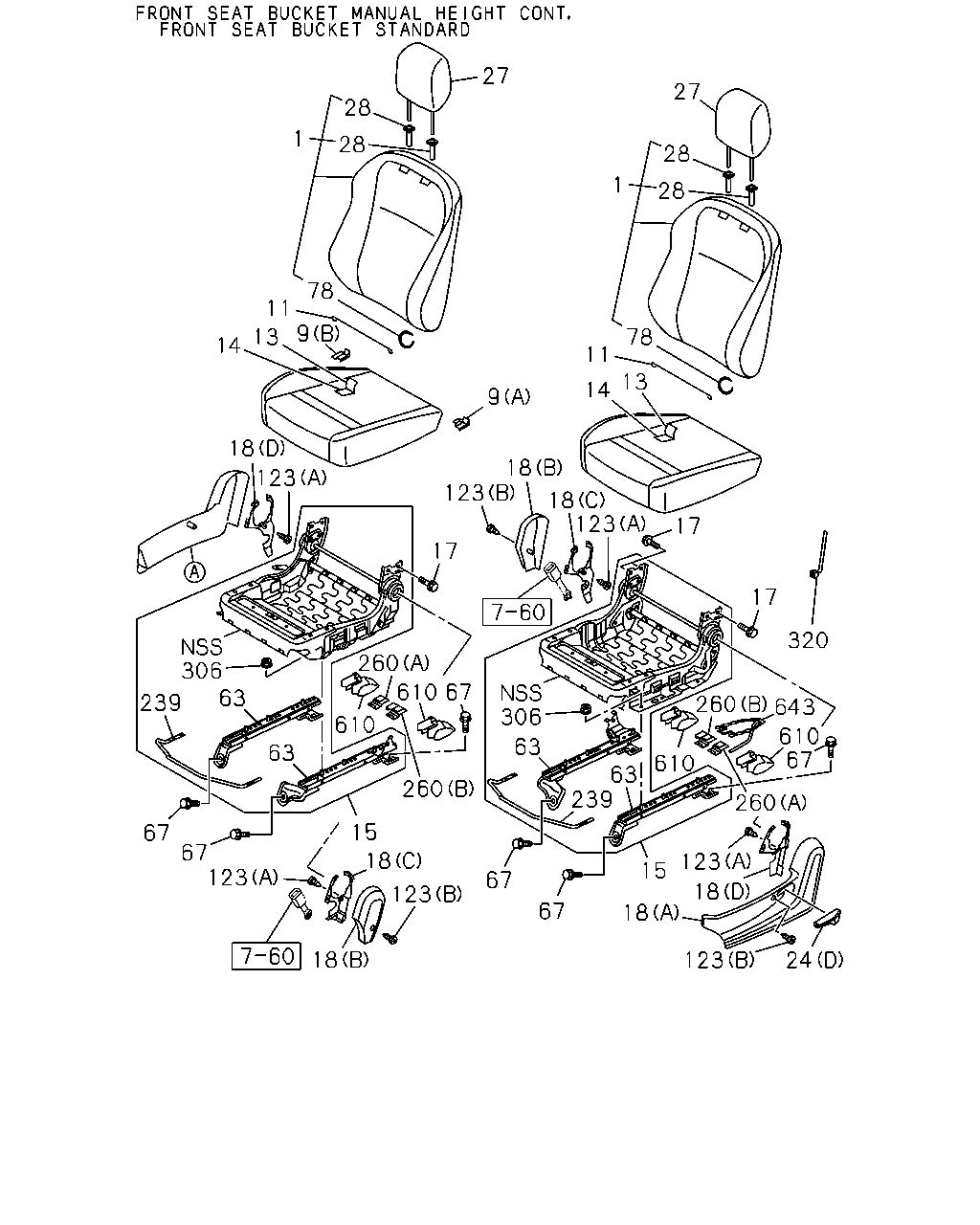

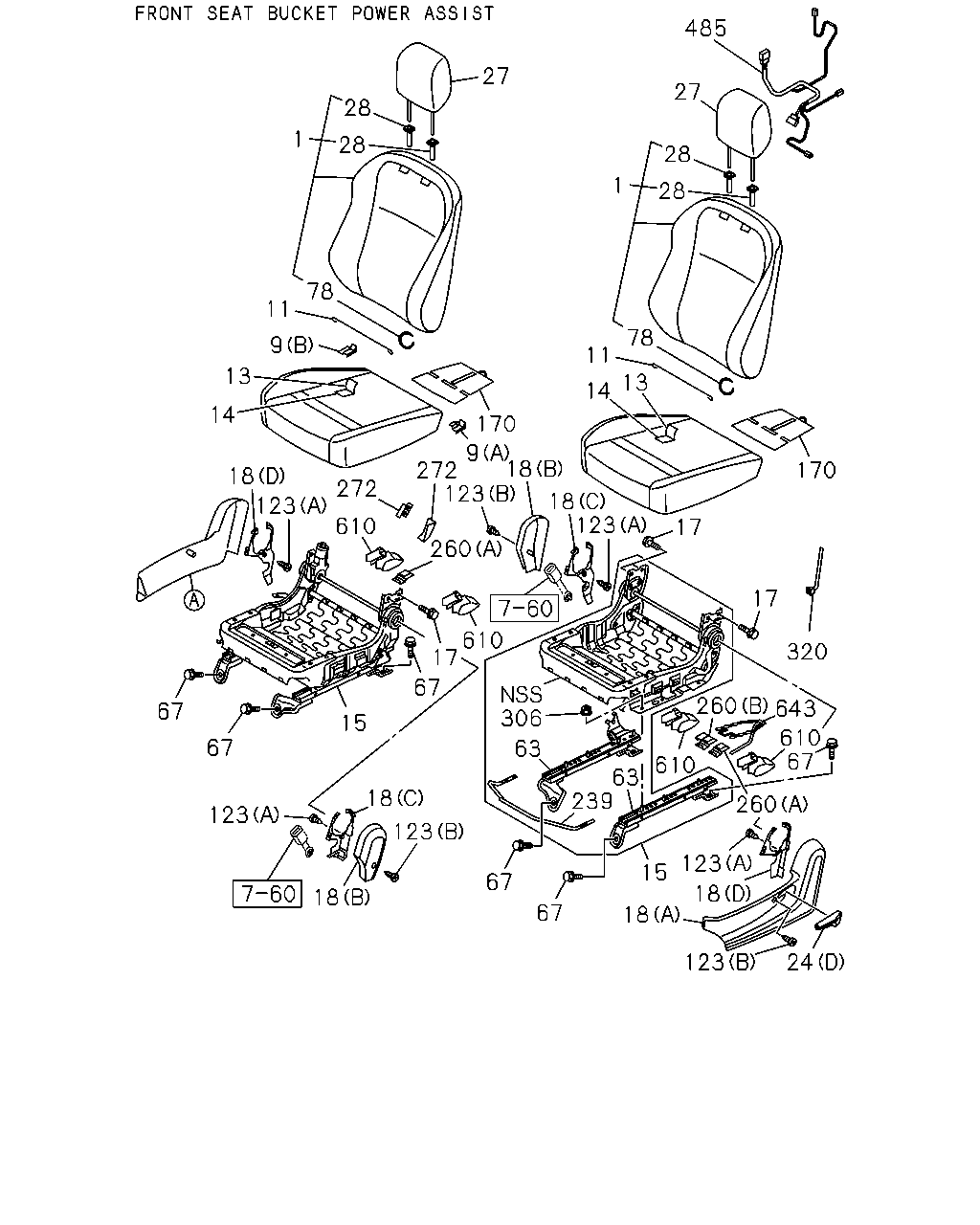

7-50 — FRONT SEAT (#151685) — 591 parça

485 27 28 28 1 11 14 13 78 170 17 17 320 643 260 610 67 260 610 63 239 63 306 67 67 15 18 123 18 24 123 123 18 18 123 67 67 15 67 17 610 123 18 18 170 9 272 123 260 610 272 123 18 14 13 9 11 78 28 28 1 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97465-176-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-174-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97465-171-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-169-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-412-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-412-0	01	1	1410-					●	●
1	16.720 BACK ASM; SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-417-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-417-0	01	1	1410-					●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-901-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-900-0	01	1	1410-	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) OUTER	8-98273-208-0	01	1	1410-	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) INNER	8-98273-212-0	01	1	1410-	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (A) INNER BLACK	8-97424-601-0	01	1	1410-1410	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (B) OUTER BLACK	8-97424-604-0	01	1	1410-1410	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (B) OUTER	8-98273-217-0	01	1	1410-	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (A) INNER	8-98273-219-0	01	1	1410-	●	●	●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	02	1	1410-1410	●	●	●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	02	1	1410-1410					●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	01	1	1411-	●	●	●	●	●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	01	1	1411-	●	●	●	●	●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	01	1	1410-1410	●	●	●		●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	01	1	1410-1410	●	●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-274-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97465-272-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-270-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-157-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97423-157-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-159-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97423-159-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-149-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97426-615-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-146-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-188-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-189-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-561-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-711-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-697-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98187-697-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-557-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION	8-98187-557-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1>	8-98187-702-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1>	8-98187-559-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER(AK5)	8-98187-558-0	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-718-2	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50>	8-98187-714-3	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98187-714-3	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1>	8-98187-716-3	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-567-2	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-568-2	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98187-715-3	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98187-715-3	01	1	1410-					●	●
17	16.682 BOLT; RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	08	1	1410-1410	●	●	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	08	1	1410-1410					●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1411-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1411-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	04	1	1410-1410	●	●	●		●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	04	1	1410-1410	●	●	●		●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-097-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-607-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-609-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-582-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-585-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-090-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (A) BLACK	8-97424-094-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1410-	●	●	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-591-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-591-0	01	1	1410-					●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (C) BLACK	8-97424-595-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1410-	●	●	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	02	1	1410-1410	●	●	●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	02	1	1410-1410					●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	01	1	1411-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	01	1	1411-	●	●	●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	02	1	1410-1410					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	02	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	02	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	01	1	1410-1410	●	●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	01	1	1410-1410	●	●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	01	1	1410-1410	●	●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	01	1	1410-1410	●	●	●		●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98224-309-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) OUTER	8-98224-309-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> INNER	8-98224-311-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) INNER	8-98224-311-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> INNER	8-98224-313-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) INNER	8-98220-096-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) OUTER	8-98220-097-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) OUTER	8-98224-186-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) INNER	8-98224-187-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98224-310-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) OUTER	8-98224-310-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE INNER	8-98224-312-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) INNER	8-98224-312-1	01	1	1410-					●	●
67	16.682 BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1410-	●	●	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	15	1	1410-1410	●	●	●	●
78	16.680 RING; SNAP AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.724	8-98220-068-0	15	1	1410-1410					●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	03	1	1411-	●	●	●	●
78	16.680 RING; SNAP AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.724	8-98220-068-0	03	1	1411-					●	●
78	16.680 RING; SNAP AIR BAG DRIVER & PASSENGER(AK5) 16.724	8-98220-068-0	24	1	1410-1410					●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1411-	●	●	●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	12	1	1411-					●	●
78	16.680 RING; SNAP AIR BAG DRIVER & PASSENGER(AK5) 16.724	8-98220-068-0	12	1	1411-					●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1410-1410	●	●	●		●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1410-1410	●	●	●		●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1411-	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1410-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	04	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	04	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	06	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	06	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-					●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
170	16.716 HEATER ASM; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1>	8-98224-219-0	01	1	1410-	●	●	●	●
170	16.716 HEATER ASM; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1>	8-98224-498-0	01	1	1410-	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	02	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	02	1	1410-1410					●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1411-	●	●	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1411-	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1411-					●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98220-104-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB>,SEAT TRIM BASECLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	02	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (A)	8-98224-267-0	02	1	1410-1410					●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A)	8-98224-267-0	02	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A)	8-98224-267-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS (A)	8-98224-267-0	01	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (A)	8-98224-267-0	01	1	1411-					●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (A)	8-98224-267-0	01	1	1411-					●	●
260	16.682 CLIP; HARNESS (B)	8-98224-497-0	01	1	1410-	●	●	●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (B)	8-98224-497-0	01	1	1410-					●	●
272	16.682 COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> INNER	8-98273-214-0	01	1	1410-	●	●	●	●
272	16.682 COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> OUTER	8-98273-216-0	01	1	1410-	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	14	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	14	1	1410-1410					●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1411-	●	●	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1411-	●	●	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1411-					●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	AR	1	1410-	●	●	●	●	●	●
485	16.682 HARNESS; FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> 16.716	8-98224-266-0	01	1	1410-	●	●	●	●
485	16.682 HARNESS; FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1>	8-98224-265-0	01	1	1410-	●	●	●	●
610	16.682 COVER; LEG,FRT SEAT BLACK	8-97416-785-4	04	1	1410-	●	●	●	●
643	16.682 SENSOR; REMINDER	8-98184-734-0	01	1	1410-	●	●	●	●
643	16.682 SENSOR; REMINDER AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98184-734-0	01	1	1410-					●	●

27 3 28 28 4 2 11 13 14 78 27 3 28 28 4 2 11 13 14 78 17 18 18 123 123 17 610 17 320 260 610 67 610 610 306 63 63 239 123 18 67 67 123 15 67 260 306 63 63 239 123 18 15 18 67 67 18 123 18 123 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.724 COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-177-0	02	1	1410-1410					●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-177-0	01	1	1411-					●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-177-0	01	1	1411-					●	●
3	16.720 PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER(AK5)	8-98187-524-0	02	1	1410-1410					●	●
3	16.720 PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER(AK5)	8-98187-524-0	01	1	1411-					●	●
3	16.720 PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER(AK5)	8-98187-524-0	01	1	1411-					●	●
4	16.720 FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-533-0	02	1	1410-1410					●	●
4	16.720 FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-533-0	01	1	1411-					●	●
4	16.720 FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-533-0	01	1	1411-					●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	02	1	1410-1410	●	●	●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	02	1	1410-1410					●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	01	1	1411-	●	●	●	●	●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	01	1	1411-	●	●	●	●	●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	01	1	1410-1410	●	●	●		●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	01	1	1410-1410	●	●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-274-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97465-272-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-270-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-157-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97423-157-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-159-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97423-159-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-149-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97426-615-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-146-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-188-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-189-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-561-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-711-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-697-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98187-697-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-557-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION	8-98187-557-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1>	8-98187-702-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1>	8-98187-559-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER(AK5)	8-98187-558-0	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-718-2	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50>	8-98187-714-3	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98187-714-3	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1>	8-98187-716-3	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-567-2	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-568-2	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98187-715-3	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98187-715-3	01	1	1410-					●	●
17	16.682 BOLT; RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	08	1	1410-1410	●	●	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	08	1	1410-1410					●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1411-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1411-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	04	1	1410-1410	●	●	●		●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	04	1	1410-1410	●	●	●		●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-097-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-607-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-609-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-582-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-585-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-090-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (A) BLACK	8-97424-094-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1410-	●	●	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-591-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-591-0	01	1	1410-					●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (C) BLACK	8-97424-595-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1410-	●	●	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	02	1	1410-1410	●	●	●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	02	1	1410-1410					●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	01	1	1411-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	01	1	1411-	●	●	●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	02	1	1410-1410					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	02	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	02	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	01	1	1410-1410	●	●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	01	1	1410-1410	●	●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	01	1	1410-1410	●	●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	01	1	1410-1410	●	●	●		●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98224-309-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) OUTER	8-98224-309-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> INNER	8-98224-311-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) INNER	8-98224-311-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> INNER	8-98224-313-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) INNER	8-98220-096-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) OUTER	8-98220-097-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) OUTER	8-98224-186-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) INNER	8-98224-187-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98224-310-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) OUTER	8-98224-310-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE INNER	8-98224-312-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) INNER	8-98224-312-1	01	1	1410-					●	●
67	16.682 BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1410-	●	●	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	15	1	1410-1410	●	●	●	●
78	16.680 RING; SNAP AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.724	8-98220-068-0	15	1	1410-1410					●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	03	1	1411-	●	●	●	●
78	16.680 RING; SNAP AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.724	8-98220-068-0	03	1	1411-					●	●
78	16.680 RING; SNAP AIR BAG DRIVER & PASSENGER(AK5) 16.724	8-98220-068-0	24	1	1410-1410					●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1411-	●	●	●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	12	1	1411-					●	●
78	16.680 RING; SNAP AIR BAG DRIVER & PASSENGER(AK5) 16.724	8-98220-068-0	12	1	1411-					●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1410-1410	●	●	●		●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1410-1410	●	●	●		●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1411-	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1410-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	04	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	04	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	06	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	06	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-					●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	02	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	02	1	1410-1410					●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1411-	●	●	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1411-	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1411-					●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98220-104-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB>,SEAT TRIM BASECLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	02	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (A)	8-98224-267-0	02	1	1410-1410					●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A)	8-98224-267-0	02	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A)	8-98224-267-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS (A)	8-98224-267-0	01	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (A)	8-98224-267-0	01	1	1411-					●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (A)	8-98224-267-0	01	1	1411-					●	●
260	16.682 CLIP; HARNESS (B)	8-98224-497-0	01	1	1410-	●	●	●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (B)	8-98224-497-0	01	1	1410-					●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	14	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	14	1	1410-1410					●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1411-	●	●	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1411-	●	●	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1411-					●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	AR	1	1410-	●	●	●	●	●	●
610	16.682 COVER; LEG,FRT SEAT BLACK	8-97416-785-4	04	1	1410-	●	●	●	●

27 27 28 28 1 78 13 14 11 17 17 320 643 610 67 260 610 260 123 18 18 15 63 239 63 306 67 67 24 123 123 18 15 260 18 123 67 67 67 610 260 610 63 63 306 239 123 18 9 123 17 123 18 18 9 13 14 11 78 28 28 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97465-176-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-174-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97465-171-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-169-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-412-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-412-0	01	1	1410-					●	●
1	16.720 BACK ASM; SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-417-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-417-0	01	1	1410-					●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-901-0	01	1	1410-	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-900-0	01	1	1410-	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) OUTER	8-98273-208-0	01	1	1410-	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) INNER	8-98273-212-0	01	1	1410-	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (A) INNER BLACK	8-97424-601-0	01	1	1410-1410	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (B) OUTER BLACK	8-97424-604-0	01	1	1410-1410	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (B) OUTER	8-98273-217-0	01	1	1410-	●	●	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (A) INNER	8-98273-219-0	01	1	1410-	●	●	●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	02	1	1410-1410	●	●	●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	02	1	1410-1410					●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	01	1	1411-	●	●	●	●	●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	01	1	1411-	●	●	●	●	●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	01	1	1410-1410	●	●	●		●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	01	1	1410-1410	●	●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-274-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97465-272-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-270-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-157-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97423-157-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-159-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97423-159-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-149-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97426-615-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97423-146-0	01	1	1410-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-188-0	01	1	1410-					●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97423-189-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-561-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-711-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-697-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98187-697-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-557-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION	8-98187-557-0	01	1	1410-					●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1>	8-98187-702-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1>	8-98187-559-0	01	1	1410-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER(AK5)	8-98187-558-0	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-718-2	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50>	8-98187-714-3	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98187-714-3	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1>	8-98187-716-3	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-567-2	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98187-568-2	01	1	1410-					●	●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98187-715-3	01	1	1410-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98187-715-3	01	1	1410-					●	●
17	16.682 BOLT; RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	08	1	1410-1410	●	●	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	08	1	1410-1410					●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1411-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1411-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	04	1	1410-1410	●	●	●		●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	04	1	1410-1410	●	●	●		●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-097-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-607-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-609-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-582-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-585-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-090-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (A) BLACK	8-97424-094-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1410-	●	●	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-591-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-591-0	01	1	1410-					●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (C) BLACK	8-97424-595-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1410-	●	●	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	02	1	1410-1410	●	●	●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	02	1	1410-1410					●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	01	1	1411-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	01	1	1411-	●	●	●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) LIGHT GRAY	8-97425-146-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1410-	●	●	●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	02	1	1410-1410					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	01	1	1411-					●	●
27	16.718 REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) LIGHT GRAY	8-97424-716-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	02	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 LOCK BLACK	8-97424-665-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	02	1	1410-1410	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1411-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.716 FREE BLACK	8-97424-666-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 LOCK BLACK	8-97424-499-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	02	1	1410-1410					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER(AK5) 16.716 FREE BLACK	8-97424-500-0	01	1	1411-					●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	01	1	1410-1410	●	●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	01	1	1410-1410	●	●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	01	1	1410-1410	●	●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	01	1	1410-1410	●	●	●		●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98224-309-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) OUTER	8-98224-309-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> INNER	8-98224-311-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) INNER	8-98224-311-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> INNER	8-98224-313-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) INNER	8-98220-096-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) OUTER	8-98220-097-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) OUTER	8-98224-186-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER(AK5) INNER	8-98224-187-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98224-310-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) OUTER	8-98224-310-1	01	1	1410-					●	●
63	16.682 ADJUSTER; SEAT SLIDE INNER	8-98224-312-1	01	1	1410-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) INNER	8-98224-312-1	01	1	1410-					●	●
67	16.682 BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1410-	●	●	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	15	1	1410-1410	●	●	●	●
78	16.680 RING; SNAP AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.724	8-98220-068-0	15	1	1410-1410					●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	03	1	1411-	●	●	●	●
78	16.680 RING; SNAP AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.724	8-98220-068-0	03	1	1411-					●	●
78	16.680 RING; SNAP AIR BAG DRIVER & PASSENGER(AK5) 16.724	8-98220-068-0	24	1	1410-1410					●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1411-	●	●	●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	12	1	1411-					●	●
78	16.680 RING; SNAP AIR BAG DRIVER & PASSENGER(AK5) 16.724	8-98220-068-0	12	1	1411-					●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1410-1410	●	●	●		●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1410-1410	●	●	●		●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1411-	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1410-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	04	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	04	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	06	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	06	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-					●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	02	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	02	1	1410-1410					●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1411-	●	●	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1411-	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1411-					●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1410-1410	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98220-104-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB>,SEAT TRIM BASECLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	02	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (A)	8-98224-267-0	02	1	1410-1410					●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A)	8-98224-267-0	02	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A)	8-98224-267-0	01	1	1410-1410	●	●	●	●
260	16.682 CLIP; HARNESS (A)	8-98224-267-0	01	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1411-	●	●	●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (A)	8-98224-267-0	01	1	1411-					●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (A)	8-98224-267-0	01	1	1411-					●	●
260	16.682 CLIP; HARNESS (B)	8-98224-497-0	01	1	1410-	●	●	●	●
260	16.682 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (B)	8-98224-497-0	01	1	1410-					●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	14	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	14	1	1410-1410					●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1411-	●	●	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1411-	●	●	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1411-					●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> M8 FLANGE	8-98220-087-0	07	1	1410-1410	●	●	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	AR	1	1410-	●	●	●	●	●	●
610	16.682 COVER; LEG,FRT SEAT BLACK	8-97416-785-4	04	1	1410-	●	●	●	●
643	16.682 SENSOR; REMINDER	8-98184-734-0	01	1	1410-	●	●	●	●
643	16.682 SENSOR; REMINDER AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98184-734-0	01	1	1410-					●	●

486 601 18 24 24 18 123 24 228 20 228 228 24 24 18 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-097-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-607-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-609-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-582-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-585-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-090-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1410-					●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (A) BLACK	8-97424-094-0	01	1	1410-	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1410-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1410-	●	●	●	●	●	●
20	16.682 CAP; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> BLACK	8-97424-598-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-591-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-591-0	01	1	1410-					●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> (C) BLACK	8-97424-595-0	01	1	1410-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1410-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1410-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	04	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	04	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	06	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	06	1	1410-1410					●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1411-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1411-					●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1410-1410	●	●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1410-1410	●	●	●	●
228	16.714 SCREW; KNOB SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) EXC. HEATER FRT SEAT<KA1> M5X10	8-98224-268-0	03	1	1410-	●	●	●	●
486	16.682 SWITCH; POWER SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98224-262-0	01	1	1410-	●	●	●	●
601	16.682 SCREW; SWITCH SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> M4X12	8-98224-269-0	02	1	1410-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
