◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51582 - TFR/TFS RHD EUROPE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#151680) — 52 parça

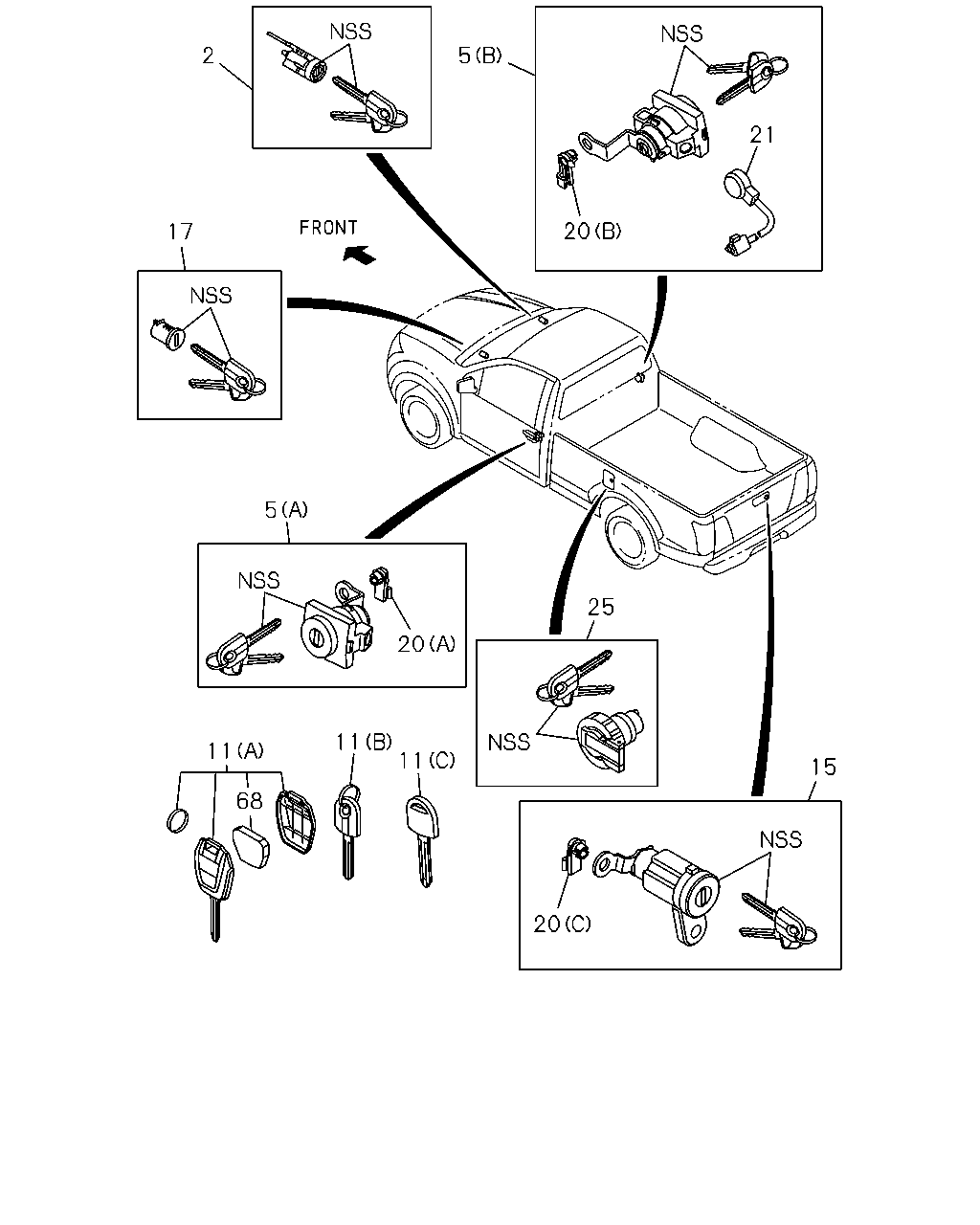

çizim 451063
2 5 20 21 17 5 20 25 11 11 11 68 20 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.188 BARREL ASM; W/KEY,STRG LOCK
REMOTE CONT DOOR LOCK<AP5> 		8-98274-647-0 01 1 1410- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98274-646-0 01 1 1410- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98274-646-0 01 1 1410- ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> (B) 		8-98274-651-0 01 1 1410- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
AUTO DOOR LOCK<AU4> (B) 		8-98274-651-0 01 1 1410- ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> (B) 		8-98274-649-0 01 1 1410- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B) 		8-98274-649-0 01 1 1410- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98274-649-0 01 1 1410- ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5> (A) 		8-98274-650-0 01 1 1410- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98274-650-0 01 1 1410- ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK<AP5> (A) REMOTE CONT DOOR LOCK W/IMMOBILIZER 		8-98274-338-0 AR 1 1410- ● ● ● ●
11 02.187 KEY; BLANK
(C) 		8-97350-352-0 AR 1 1410- ● ● ● ● ● ●
11 02.187 KEY; BLANK
(B) IMMOBILIZER 		8-98274-332-0 AR 1 1410- ● ● ● ● ● ●
15 16.650 CYLINDER ASM; W/KEY,TAIL GATE LO
LOCK END GATE<8CW> 		8-98274-653-0 01 1 1410- ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
LOCK GLOVE BOX<A99> 		8-98274-648-0 01 1 1410- ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO 8-98274-648-0 01 1 1410- ● ●
20 16.328 SNAP; DOOR LOCK CYL
(B) WHITE 		8-97350-044-0 01 1 1410- ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
LOCK END GATE<8CW> (C) 		8-97357-958-0 01 1 1410- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
EXC. REMOTE CONT DOOR LOCK<AP5> (A) YELLOW 		8-97350-043-0 01 1 1410- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
(A) YELLOW 		8-97350-043-0 01 1 1410- ● ●
21 16.328 SWITCH ASM; DOOR LOCK CYL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98162-756-0 01 1 1410- ● ● ● ●
21 16.328 SWITCH ASM; DOOR LOCK CYL
AUTO DOOR LOCK<AU4> 		8-98162-756-0 01 1 1410- ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98060-587-0 01 1 1410- ● ● ● ● ● ●
68 02.440 TRANSMITTER; DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> 		8-98102-844-1 01 1 1410- ● ● ● ●

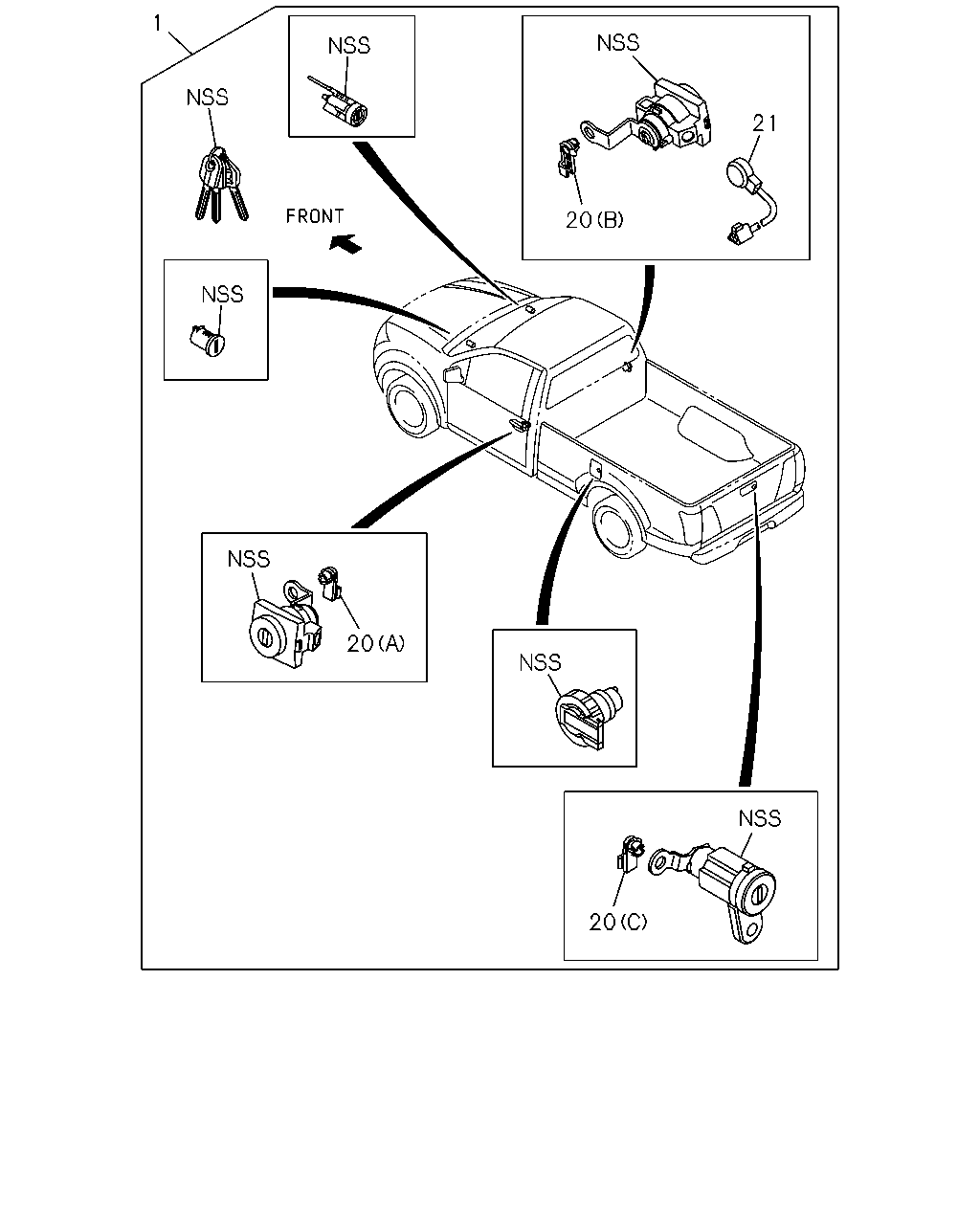

çizim 451150
1 20 21 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. LOCK END GATE<8CW> 		8-98274-602-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98274-587-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> EXC. FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW> 		8-98274-586-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> FUEL TANK CAP W/LOCK<N05> EXC. LOCK GLOVE BOX<A99>,LOCK END GATE<8CW> 		8-98274-617-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> LOCK END GATE<8CW> EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05> 		8-98274-616-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW> 		8-98274-613-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LO CK END GATE<8CW> 		8-98274-579-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> 		8-98274-579-0 01 1 1410- ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY> 		8-98274-580-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY>,LOCK END GATE <8CW> 		8-98274-578-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98274-578-0 01 1 1410- ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LOCK END GATE<8CW> 		8-98274-605-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98274-608-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY>,LOCK END GATE<8CW> 		8-98274-606-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK END GATE<8CW> 		8-98274-576-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. AUTO DOOR LOCK<AU4> 		8-98274-576-0 01 1 1410- ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05> 		8-98274-577-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW> 		8-98274-575-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05> 		8-98274-575-0 01 1 1410- ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, LOCK END GATE<8CW> 		8-98274-574-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05> 		8-98274-609-0 01 1 1410- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>,LOCK END GATE <8CW> 		8-98274-573-0 01 1 1410- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
(B) WHITE 		8-97350-044-0 01 1 1410- ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
LOCK END GATE<8CW> (C) 		8-97357-958-0 01 1 1410- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
EXC. REMOTE CONT DOOR LOCK<AP5> (A) YELLOW 		8-97350-043-0 01 1 1410- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
(A) YELLOW 		8-97350-043-0 01 1 1410- ● ●
21 16.328 SWITCH ASM; DOOR LOCK CYL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98162-756-0 01 1 1410- ● ● ● ●
21 16.328 SWITCH ASM; DOOR LOCK CYL
AUTO DOOR LOCK<AU4> 		8-98162-756-0 01 1 1410- ● ●
