◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51582 - TFR/TFS RHD EUROPE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#151678) — 22 parça

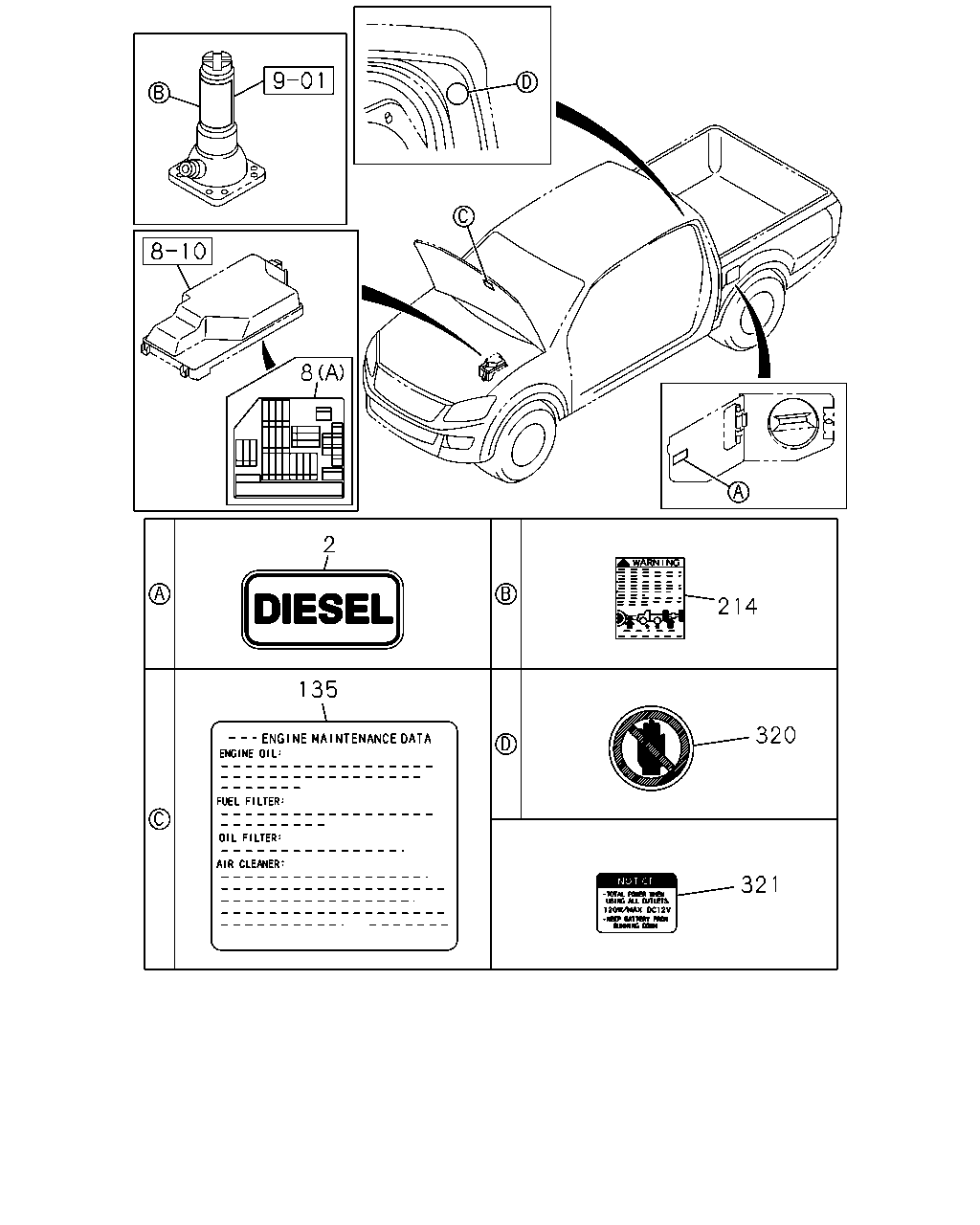

çizim 448591
8 2 135 214 320 321
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.680 LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL(E63) 		8-98147-133-0 01 1 1410-1510 ● ● ● ● ● ●
8 03.680 LABEL; FUSE
(A) 		8-98166-842-3 01 1 1410- ● ● ● ● ● ●
8 03.680 LABEL; FUSE
(B) 		8-98213-358-0 01 1 1410- ● ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE 8-98196-345-0 01 1 1410- ● ● ● ● ● ●
214 08.808 LABEL; JACK 8-98245-069-0 01 1 1410-1501 ● ● ● ● ● ●
214 08.808 LABEL; JACK 8-98304-658-0 01 1 1502- ● ● ● ● ● ●
320 08.808 LABEL; WARNING,DOOR 8-98183-175-0 01 1 1410-1501 ● ●
320 08.808 LABEL; WARNING,DOOR 8-98302-861-0 02 1 1502- ● ●
320 08.808 LABEL; WARNING,DOOR 8-98183-176-0 01 1 1410-1501 ● ●
321 08.808 LABEL; WARNING,POWER
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98183-494-1 01 1 1410- ● ● ● ● ● ●

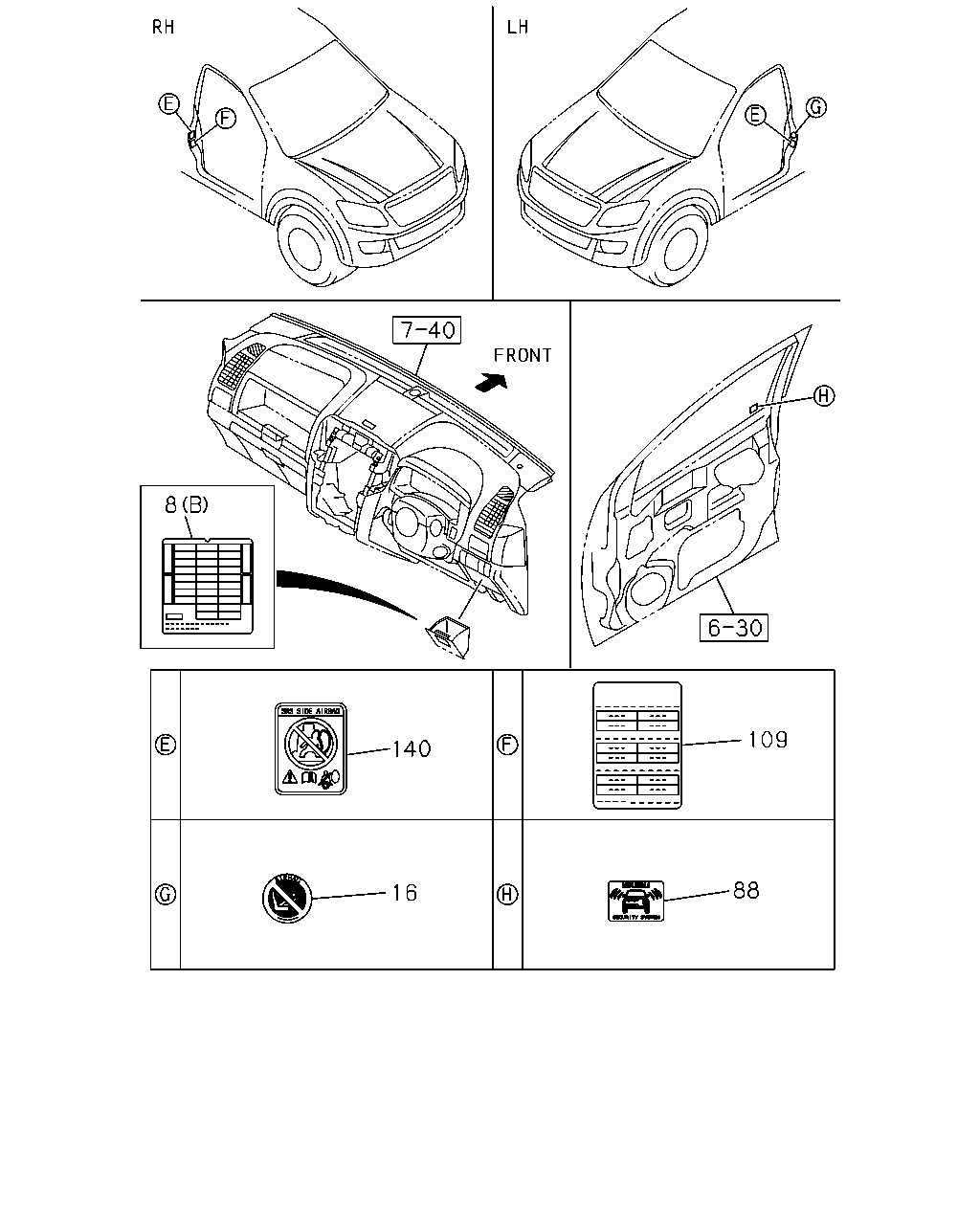

çizim 451146
8 140 16 88 109
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 03.680 LABEL; FUSE
(A) 		8-98166-842-3 01 1 1410- ● ● ● ● ● ●
8 03.680 LABEL; FUSE
(B) 		8-98213-358-0 01 1 1410- ● ● ● ● ● ●
16 08.808 PLATE; CAUTION,SIR 8-97378-569-0 01 1 1410- ● ● ● ● ● ●
88 08.808 LABEL; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98141-993-2 02 1 1410- ● ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
HIGH RIDE SUSPENSION(7YC) 		8-98102-346-1 01 1 1410- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16(QCQ),FRT&RR 255/65R17(QZX) 		8-98102-346-1 01 1 1410- ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98100-752-1 01 1 1410- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-98100-752-1 01 1 1410- ●
140 08.808 PLATE; CAUTION,SRS 8-98179-251-2 02 1 1410- ● ● ● ●
140 08.808 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98179-251-2 02 1 1410- ● ●

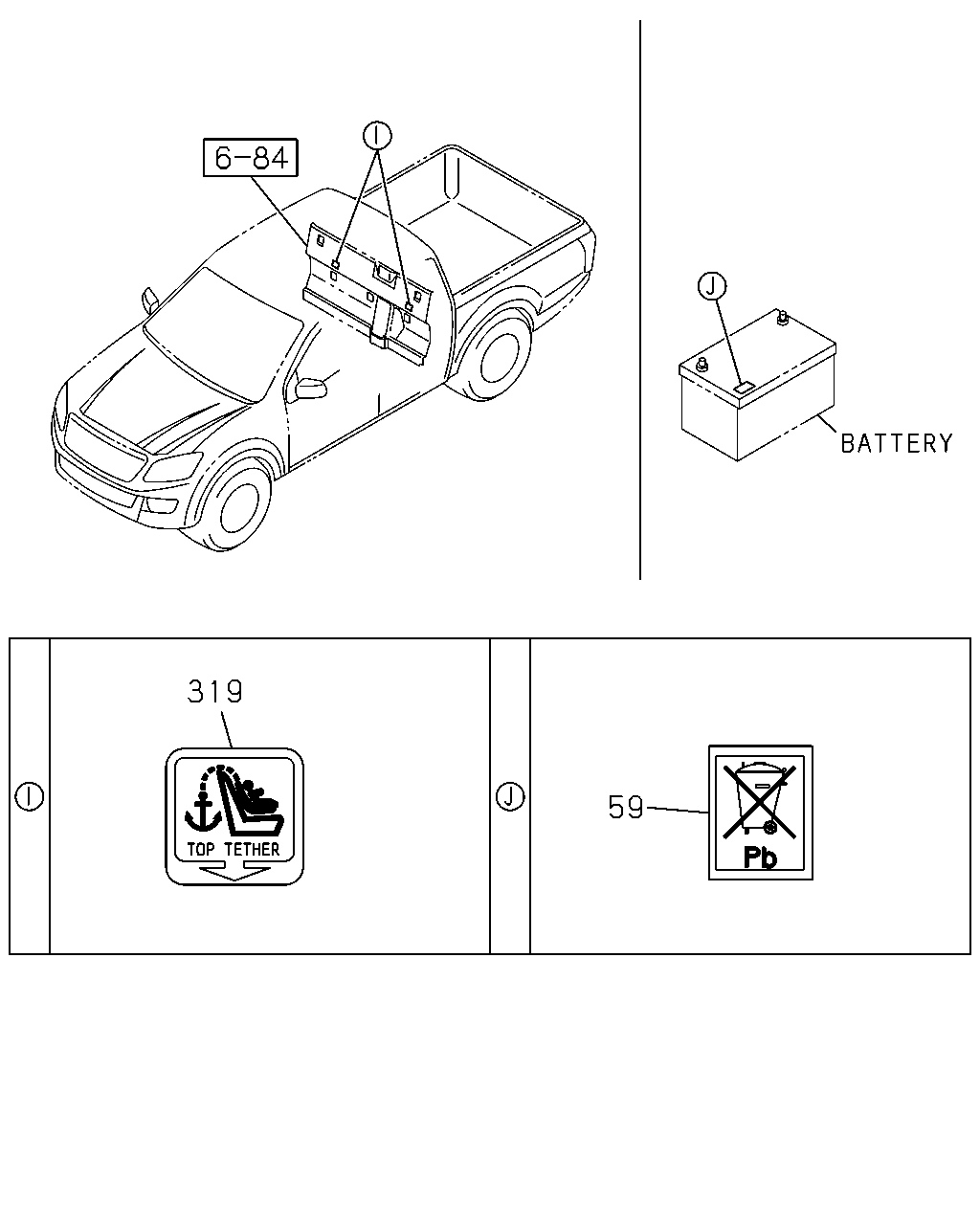

çizim 451187
59 319
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
59 08.808 PLATE; CAUTION,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98140-947-0 01 1 1410- ● ● ● ● ● ●
319 08.808 LABEL; TOP TETHER 8-98174-417-0 02 1 1410- ● ●
