◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51582 - TFR/TFS RHD EUROPE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#151676) — 40 parça

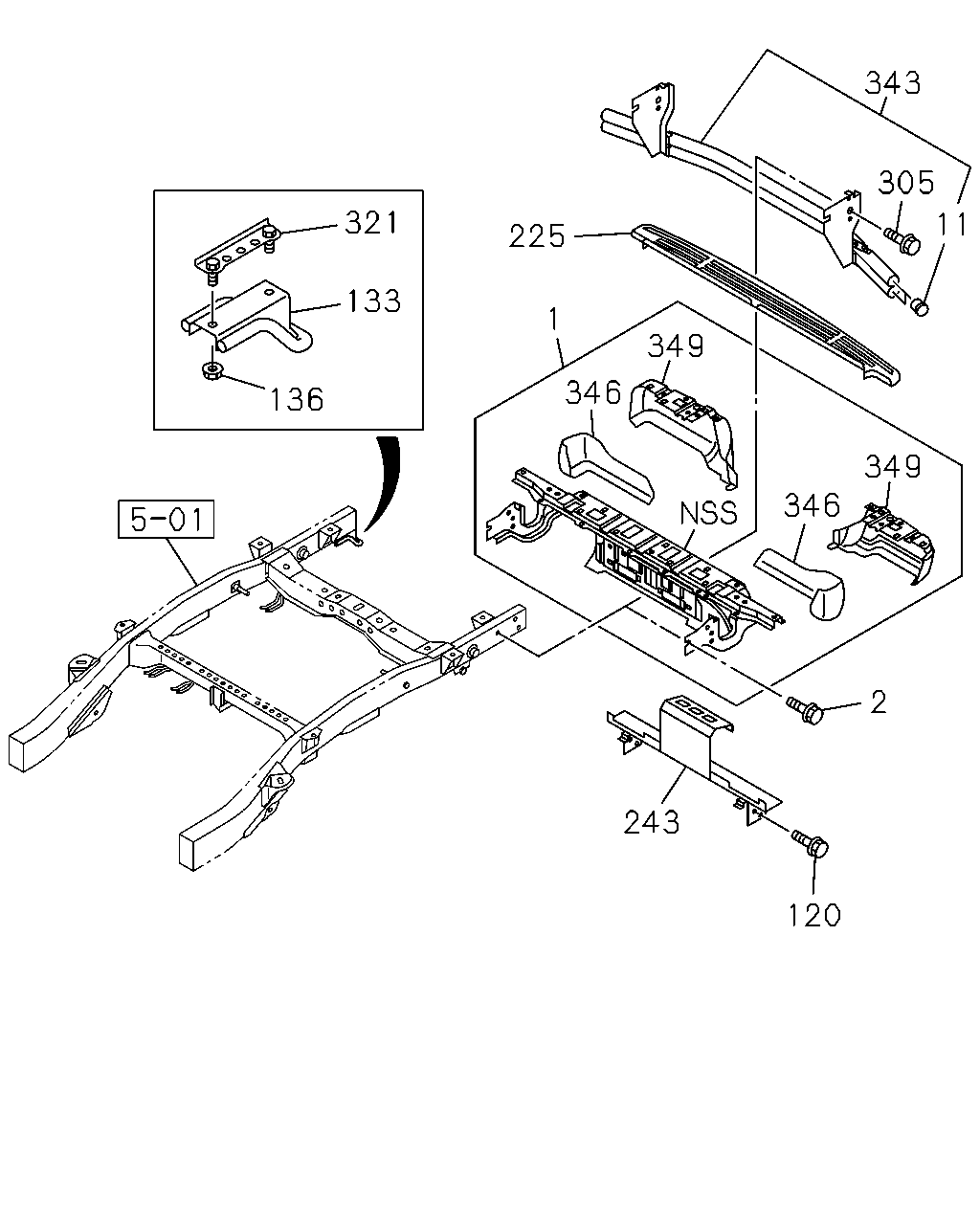

çizim 450943
136 133 321 225 349 346 243 120 2 346 349 305 343
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) HIGH RIDE SUSPENSION(7YC) BLACK 		8-98153-278-4 01 1 1410- ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) BLACK 		8-98153-278-4 01 1 1410- ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-98153-276-4 01 1 1410- ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) BLACK 		8-98153-276-4 01 1 1410- ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) HIGH RIDE SUSPENSION(7YC) PLATED 		8-98153-277-4 01 1 1410- ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) PLATED 		8-98153-277-4 01 1 1410- ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC) PLATED 		8-98153-275-4 01 1 1410- ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) M12X30 		8-98062-142-0 06 1 1410- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6) M12X30 		8-98062-142-0 06 1 1410- ● ●
11 07.829 CAP; RR BUMPER
RR UNDERRUN PROTECTOR<6DY> 07.890 		8-97351-695-0 04 1 1410- ● ● ● ● ● ●
120 07.800 BOLT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),RR UNDERRUN PROTECTOR<6DY> 06.509 M12X30 FLANGE 		0-28661-230-0 02 1 1410- ● ● ● ●
120 07.800 BOLT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),RR UNDERRUN PROTECTOR<6DY> 06.509 M12X30 FLANGE 		0-28661-230-0 02 1 1410- ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 		8-98107-434-0 01 1 1410- ● ● ●
136 07.068 NUT; HOOK
TOW HOOK RR ONLY<7TK> 04.085 M10 FLANGE 		0-91180-210-0 02 1 1410- ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98102-359-2 01 1 1410- ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6) 		8-98102-359-2 01 1 1410- ● ●
243 07.869 BRACKET
REAR BODY DELETE(8HH) 		8-98202-598-1 01 1 1410- ● ● ● ● ● ●
305 02.664 BOLT; GUARD
RR UNDERRUN PROTECTOR<6DY> 07.874 M12X30 		8-98062-142-0 04 1 1410- ● ● ● ● ● ●
321 07.068 BRACKET; HOOK
TOW HOOK RR ONLY<7TK> 		8-98123-937-0 01 1 1410- ● ● ●
343 07.070 GUARD ASM; RR
RR UNDERRUN PROTECTOR<6DY> 		8-98080-319-1 01 1 1410- ● ● ● ● ● ●
346 07.800 EXTENSION; RR BUMPER SIDE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) HIGH RIDE SUSPENSION(7YC) 		8-98238-289-0 01 1 1410- ● ●
346 07.800 EXTENSION; RR BUMPER SIDE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98238-289-0 01 1 1410- ● ●
346 07.800 EXTENSION; RR BUMPER SIDE
REAR STEP BUMPER(VF6) 		8-98238-289-0 01 1 1410- ●
346 07.800 EXTENSION; RR BUMPER SIDE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) HIGH RIDE SUSPENSION(7YC) 		8-98238-290-0 01 1 1410- ● ●
346 07.800 EXTENSION; RR BUMPER SIDE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98238-290-0 01 1 1410- ● ●
346 07.800 EXTENSION; RR BUMPER SIDE
REAR STEP BUMPER(VF6) 		8-98238-290-0 01 1 1410- ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) HIGH RIDE SUSPENSION(7YC) 		8-98238-279-0 01 1 1410- ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98238-279-0 01 1 1410- ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) HIGH RIDE SUSPENSION(7YC) 		8-98238-280-0 01 1 1410- ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98238-280-0 01 1 1410- ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98238-275-0 01 1 1410- ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98238-275-0 01 1 1410- ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98238-276-0 01 1 1410- ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98238-276-0 01 1 1410- ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) HIGH RIDE SUSPENSION(7YC) 		8-98238-277-0 01 1 1410- ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98238-277-0 01 1 1410- ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) HIGH RIDE SUSPENSION(7YC) 		8-98238-278-0 01 1 1410- ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98238-278-0 01 1 1410- ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98238-273-0 01 1 1410- ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98238-274-0 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
