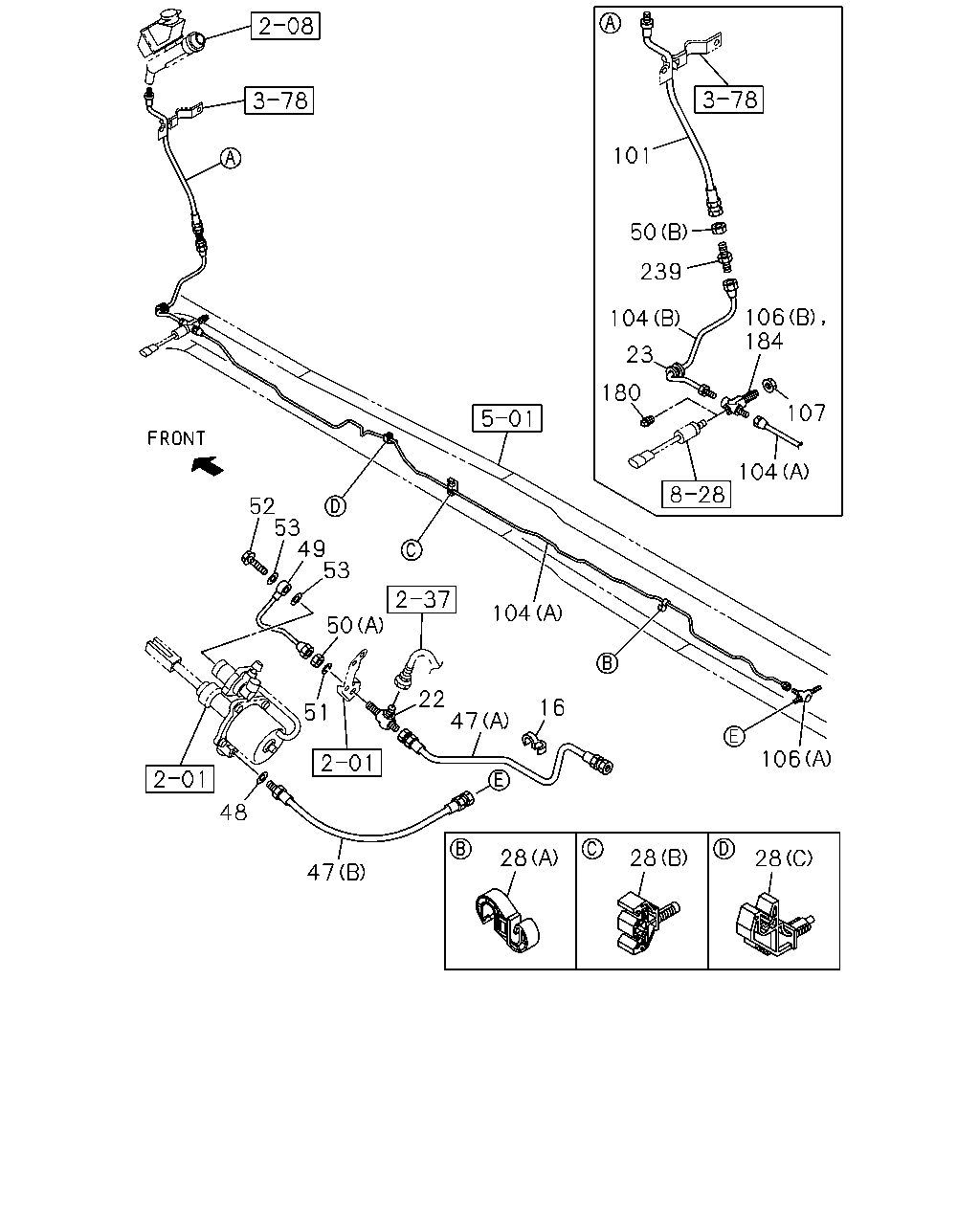

2-05 — CLUTCH PIPING
(#15167) — 33 parça
101
50
239
106
184
104
23
180
107
104
52
53
49
53
104
50
22
47
16
51
106
48
28
28
28
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; FLEX HOSE
ID=10 & 12
1-09709-278-1
01
1
0803-0901
16
CLIP; FLEX HOSE
ID=10 & 12
1-09709-278-1
01
1
0803-0901
16
CLIP; FLEX HOSE
ID=10 & 12
1-09709-278-1
01
1
0902-
16
CLIP; FLEX HOSE
MLD6W M/T(Y2C) ID=10 & 10
1-09709-277-1
01
1
0807-0901
16
CLIP; FLEX HOSE
MLD6W M/T(Y2C) ID=10 & 12
1-09709-278-1
02
1
0902-
22
UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY
0-92138-706-0
01
1
0803-
23
GROMMET; CLU PIPE
ID=15 OD=20 T=17.5
1-09332-130-0
01
1
0803-
28
CLIP; OIL PIPE
(C) ID=6.35
1-09701-247-1
01
1
0803-
28
CLIP; OIL PIPE
(A) ID=6.35 & 10.0
1-09709-274-1
03
1
0803-
28
CLIP; OIL PIPE
(A) ID=4.76 & 6.35
1-09709-304-0
01
1
0803-
28
CLIP; OIL PIPE
(B)
8-98012-254-1
02
1
0803-
47
HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=540
1-09363-612-1
01
1
0803-
47
HOSE; FLEX,CLU CONT
(B) L=470
8-98072-353-0
01
1
0803-
47
HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=640
1-09363-974-0
01
1
0803-
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
9-09571-410-0
02
1
0803-
49
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239
1-49117-401-0
01
1
0803-
50
NUT; UNION
(B) M12
0-91111-512-0
01
1
0803-
50
NUT; UNION
(A) M12
9-09840-280-0
01
1
0803-
50
NUT; UNION
(A) M12
9-09840-280-0
01
1
0803-
51
WASHER; LK
ID=12.2
0-91510-512-0
01
1
0803-
52
BOLT; EYE,AIR PIPE
M14X27 FLANGE
1-09675-086-0
01
1
0803-
53
GASKET; JOINT BOLT
ID=14.2 OD=19.2
1-09630-085-0
02
1
0803-1312
53
GASKET; JOINT BOLT
ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
101
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=500
8-98072-350-0
01
1
0803-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336
8-98067-058-0
01
1
0803-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) SERVICED BY L=2650
1-47428-743-0
01
1
0803-
106
UNION; OIL PIPE
(A) M12 2WAY
1-09654-059-2
01
1
0803-
106
UNION; OIL PIPE
(B) M12 3WAY
8-98051-113-0
01
1
0803-0910
107
NUT; UNION,OIL PIPE
M12
0-91111-512-0
01
1
0803-
180
PLUG; PIPE
EXC. H.S.A SYSTEM<6EP>
9-09204-510-0
01
1
0803-0805
180
PLUG; PIPE
9-09204-510-0
01
1
0806-0910
184
UNION; FLEX HOSE
8-98150-865-0
01
1
0911-
239
UNION; CLU HOSE
M12 L=66.5
0-92113-306-0
01
1
0803-
