Sayfa 6-35 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51582 - TFR/TFS RHD EUROPE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶

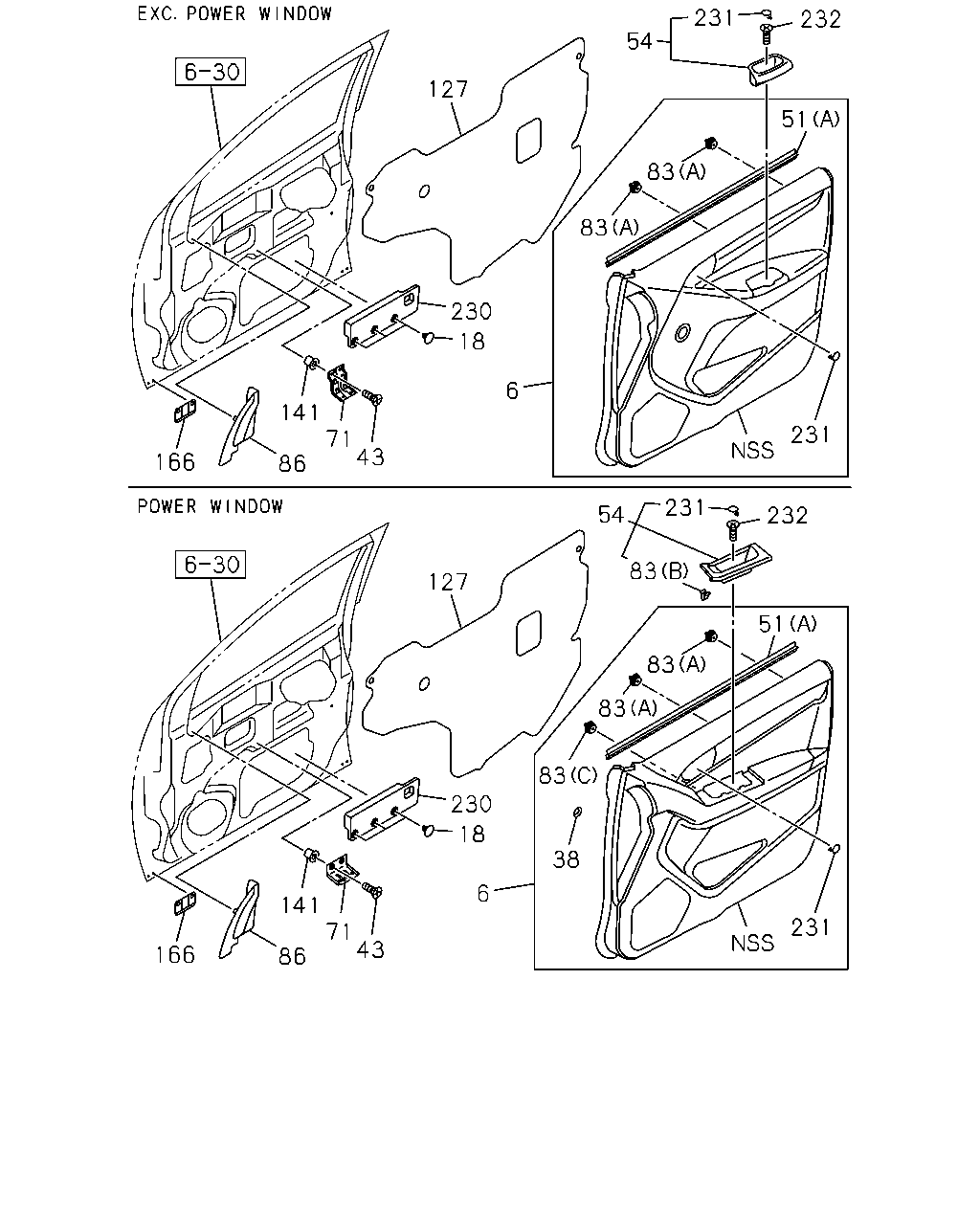

6-35 — FRONT DOOR TRIM (#151658) — 55 parça

231 232 54 51 83 83 127 230 231 18 6 43 71 141 86 166 231 232 54 83 51 83 83 83 38 231 6 230 127 18 43 71 141 86 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	16.165 TRIM; DOOR,UPR INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ> BLACK	8-97427-715-0	01	1	1410-	●	●	●	●
6	16.165 TRIM; DOOR,UPR POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) BLACK	8-97427-715-0	01	1	1410-					●	●
6	16.165 TRIM; DOOR,UPR INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ> BLACK	8-97427-717-0	01	1	1410-	●	●	●	●
6	16.165 TRIM; DOOR,UPR POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) BLACK	8-97427-717-0	01	1	1410-					●	●
6	16.165 TRIM; DOOR,UPR INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK	8-97419-359-6	01	1	1410-	●	●	●	●
6	16.165 TRIM; DOOR,UPR AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK	8-97419-359-6	01	1	1410-					●	●
6	16.165 TRIM; DOOR,UPR INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK	8-97419-386-6	01	1	1410-	●	●	●	●
6	16.165 TRIM; DOOR,UPR AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK	8-97419-386-6	01	1	1410-					●	●
6	16.165 TRIM; DOOR,UPR INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ> BLACK	8-97427-714-0	01	1	1410-	●	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ> BLACK	8-97427-716-0	01	1	1410-	●	●	●	●
6	16.165 TRIM; DOOR,UPR POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER(AK5) BLACK	8-97425-710-1	01	1	1410-					●	●
6	16.165 TRIM; DOOR,UPR POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER(AK5) BLACK	8-97425-714-1	01	1	1410-					●	●
6	16.165 TRIM; DOOR,UPR AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK	8-97416-740-7	01	1	1410-					●	●
6	16.165 TRIM; DOOR,UPR AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK	8-97416-742-7	01	1	1410-					●	●
18	16.165 CLIP; DOOR PAD 15.100 BLACK	8-94204-281-0	06	1	1410-	●	●	●	●
18	16.165 CLIP; DOOR PAD AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 15.100 BLACK	8-94204-281-0	06	1	1410-					●	●
38	16.183 STOPPER; DOOR SEAL,FRT POWER WINDOW SAFETY DOOR<ABZ> 01.269	8-98211-687-0	02	1	1410-	●	●	●	●
38	16.183 STOPPER; DOOR SEAL,FRT POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 01.269	8-98211-687-0	02	1	1410-					●	●
43	16.165 SCREW; DOOR POCKET 16.345 M5X14 TAPPING	8-98184-363-0	04	1	1410-	●	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-98109-544-3	01	1	1410-	●	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-98109-545-3	01	1	1410-	●	●	●	●	●	●

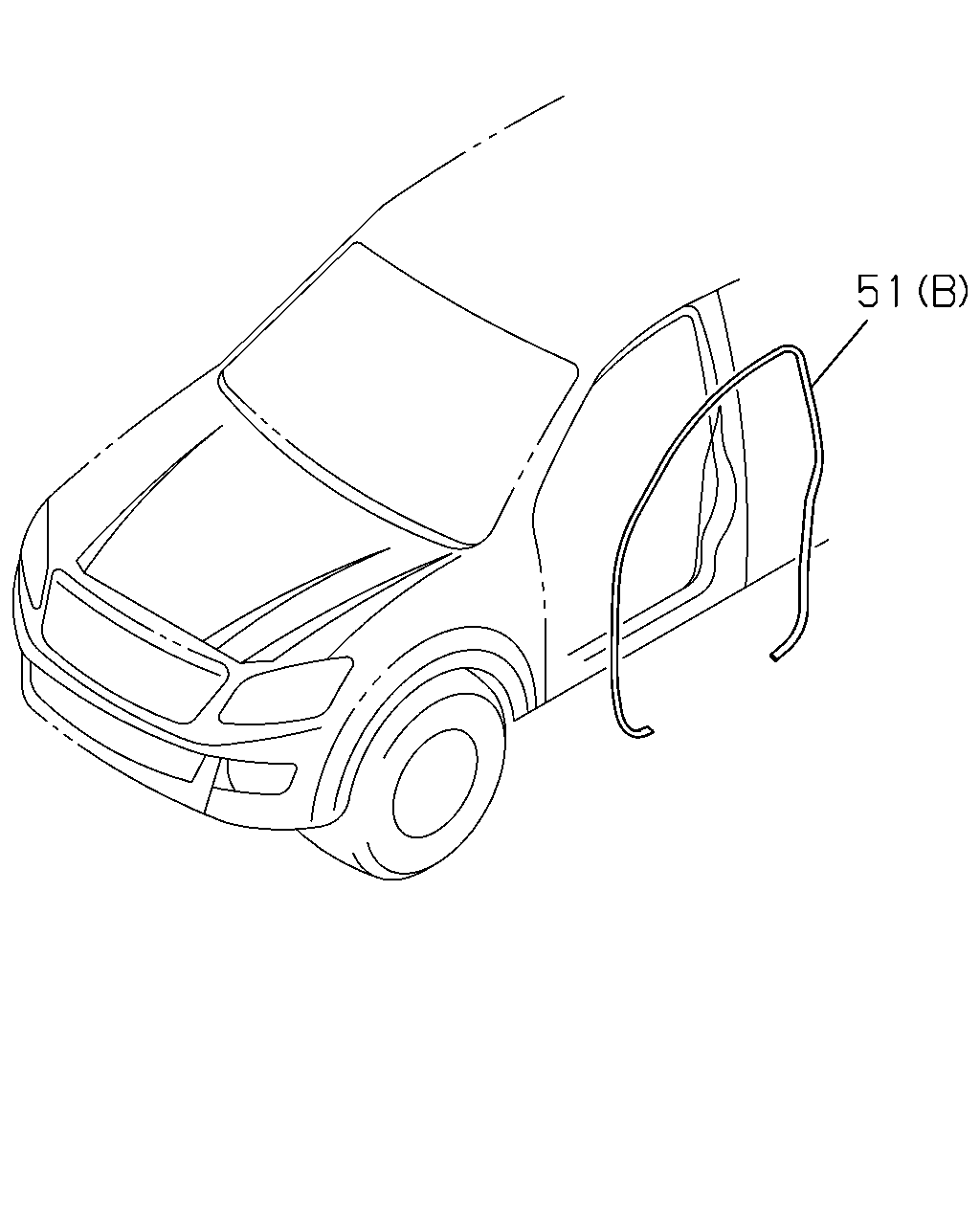

51	16.225 WEATHERSTRIP; FRONT DOOR (B)	8-98201-892-0	02	1	1410-		●		●	●	●
54	16.165 BOX; FRT DOOR POWER WINDOW SAFETY DOOR<ABZ> BLACK	8-97416-750-1	01	1	1410-	●	●	●	●	●	●
54	16.165 BOX; FRT DOOR POWER WINDOW SAFETY DOOR<ABZ> BLACK	8-97416-751-1	01	1	1410-	●	●	●	●	●	●
54	16.165 BOX; FRT DOOR EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK	8-97416-752-5	01	1	1410-	●	●	●	●	●	●
54	16.165 BOX; FRT DOOR EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK	8-97416-753-5	01	1	1410-	●	●	●	●	●	●
71	14.690 BRACKET; ARM REST POWER WINDOW SAFETY DOOR<ABZ>	8-98102-215-2	02	1	1410-	●	●	●	●	●	●
71	14.690 BRACKET; ARM REST EXC. POWER WINDOW SAFETY DOOR<ABZ>	8-98102-216-4	02	1	1410-	●	●	●	●	●	●
83	16.165 CLIP; DOOR TRIM POWER WINDOW SAFETY DOOR<ABZ> (A)	8-98160-729-0	16	1	1410-	●	●	●	●	●	●
83	16.165 CLIP; DOOR TRIM POWER WINDOW SAFETY DOOR<ABZ> (B)	8-98164-677-0	02	1	1410-	●	●	●	●	●	●
83	16.165 CLIP; DOOR TRIM POWER WINDOW SAFETY DOOR<ABZ> (C)	8-98166-326-0	02	1	1410-	●	●	●	●	●	●
83	16.165 CLIP; DOOR TRIM INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ> (A)	8-98160-729-0	18	1	1410-	●	●	●	●
83	16.165 CLIP; DOOR TRIM EXC. POWER WINDOW SAFETY DOOR<ABZ> (A)	8-98160-729-0	18	1	1410-					●	●
86	16.155 COVER ASM; DOOR POCKET BLACK	8-97416-748-3	01	1	1410-	●	●	●	●	●	●
86	16.155 COVER ASM; DOOR POCKET BLACK	8-97416-749-3	01	1	1410-	●	●	●	●	●	●
127	16.183 SEAL; DOOR INNER POWER WINDOW SAFETY DOOR<ABZ>	8-98192-454-1	01	1	1410-	●	●	●	●	●	●
127	16.183 SEAL; DOOR INNER POWER WINDOW SAFETY DOOR<ABZ>	8-98192-455-1	01	1	1410-	●	●	●	●	●	●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW SAFETY DOOR<ABZ>	8-98178-181-1	01	1	1410-	●	●	●	●
127	16.183 SEAL; DOOR INNER AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. POWER WINDOW SAFETY DOOR<ABZ>	8-98178-181-1	01	1	1410-					●	●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW SAFETY DOOR<ABZ>	8-98178-182-1	01	1	1410-	●	●	●	●
127	16.183 SEAL; DOOR INNER AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. POWER WINDOW SAFETY DOOR<ABZ>	8-98178-182-1	01	1	1410-					●	●
127	16.183 SEAL; DOOR INNER AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW SAFETY DOOR<ABZ>	8-98103-523-1	01	1	1410-					●	●
127	16.183 SEAL; DOOR INNER AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW SAFETY DOOR<ABZ>	8-98103-524-1	01	1	1410-					●	●
141	16.165 GROMMET; SCREW,LWR COVER 10.565	8-94152-494-0	04	1	1410-	●	●	●	●	●	●
166	16.155 PLUG; HOLE	8-98197-448-0	04	1	1410-	●	●	●	●	●	●
230	16.165 PAD; FRT DOOR	8-98156-031-3	01	1	1410-	●	●	●	●
230	16.165 PAD; FRT DOOR AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98156-031-3	01	1	1410-					●	●
230	16.165 PAD; FRT DOOR	8-98156-032-3	01	1	1410-	●	●	●	●
230	16.165 PAD; FRT DOOR AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)	8-98156-032-3	01	1	1410-					●	●
231	16.165 COVER; HOLDER,BOLT BLACK	8-97416-610-0	02	1	1410-	●	●	●	●	●	●
231	16.165 COVER; HOLDER,BOLT BLACK	8-97416-610-0	02	1	1410-	●	●	●	●	●	●
232	16.165 BOLT; DOOR TRIM 16.345 M5X14 TAPPING	8-98184-363-0	02	1	1410-	●	●	●	●	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-98109-544-3	01	1	1410-	●	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-98109-545-3	01	1	1410-	●	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (B)	8-98201-892-0	02	1	1410-		●		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
