51582 - TFR/TFS RHD EUROPE
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

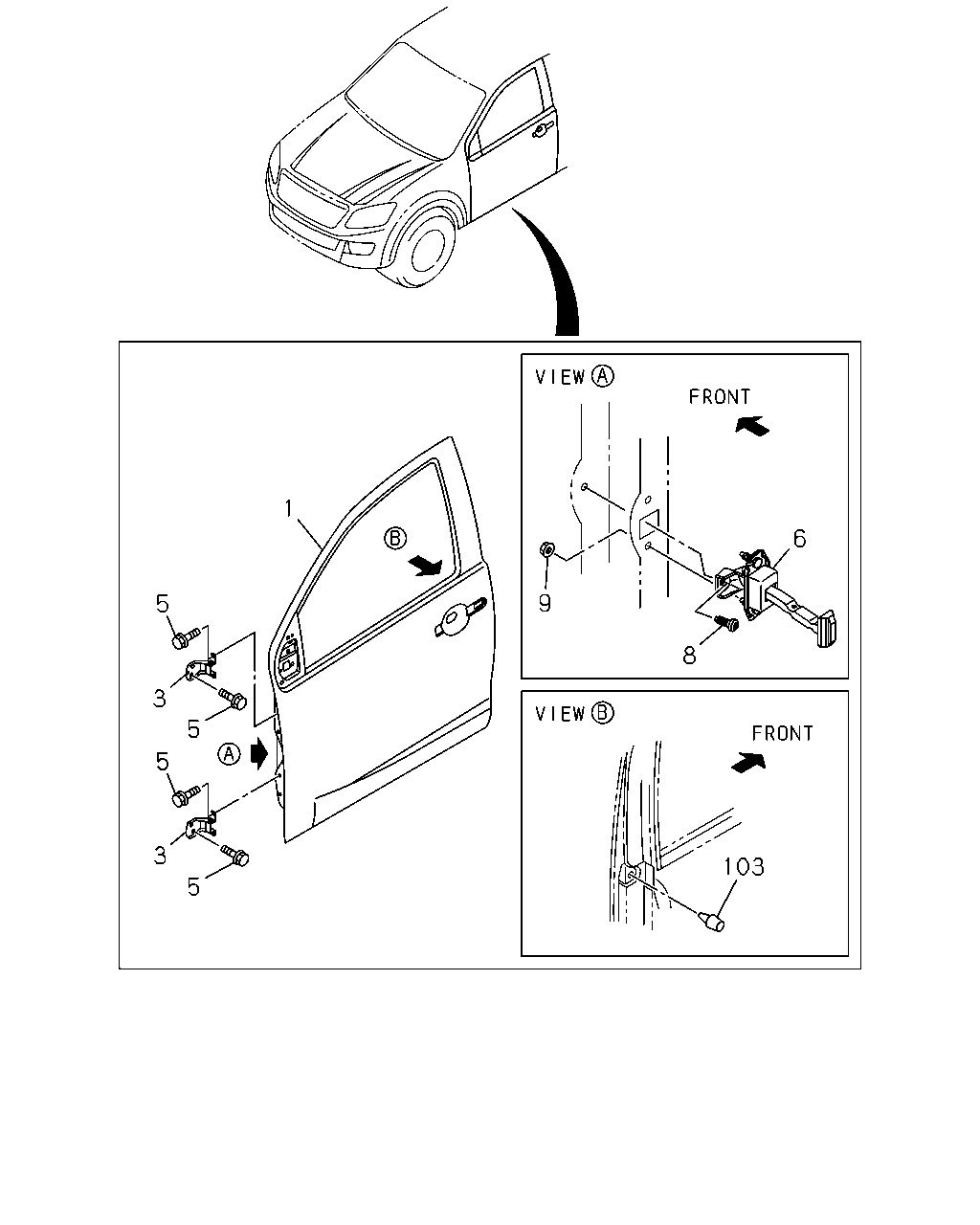

6-30 - FRONT DOOR AND HINGE
▶
6-30 — FRONT DOOR AND HINGE
(#151655) — 15 parça
Tümü
A - TFB5CF
B - TFB5WF
C - TFS5CF
D - TFS5WF
E - TFB5SF
F - TFS5SF
◀

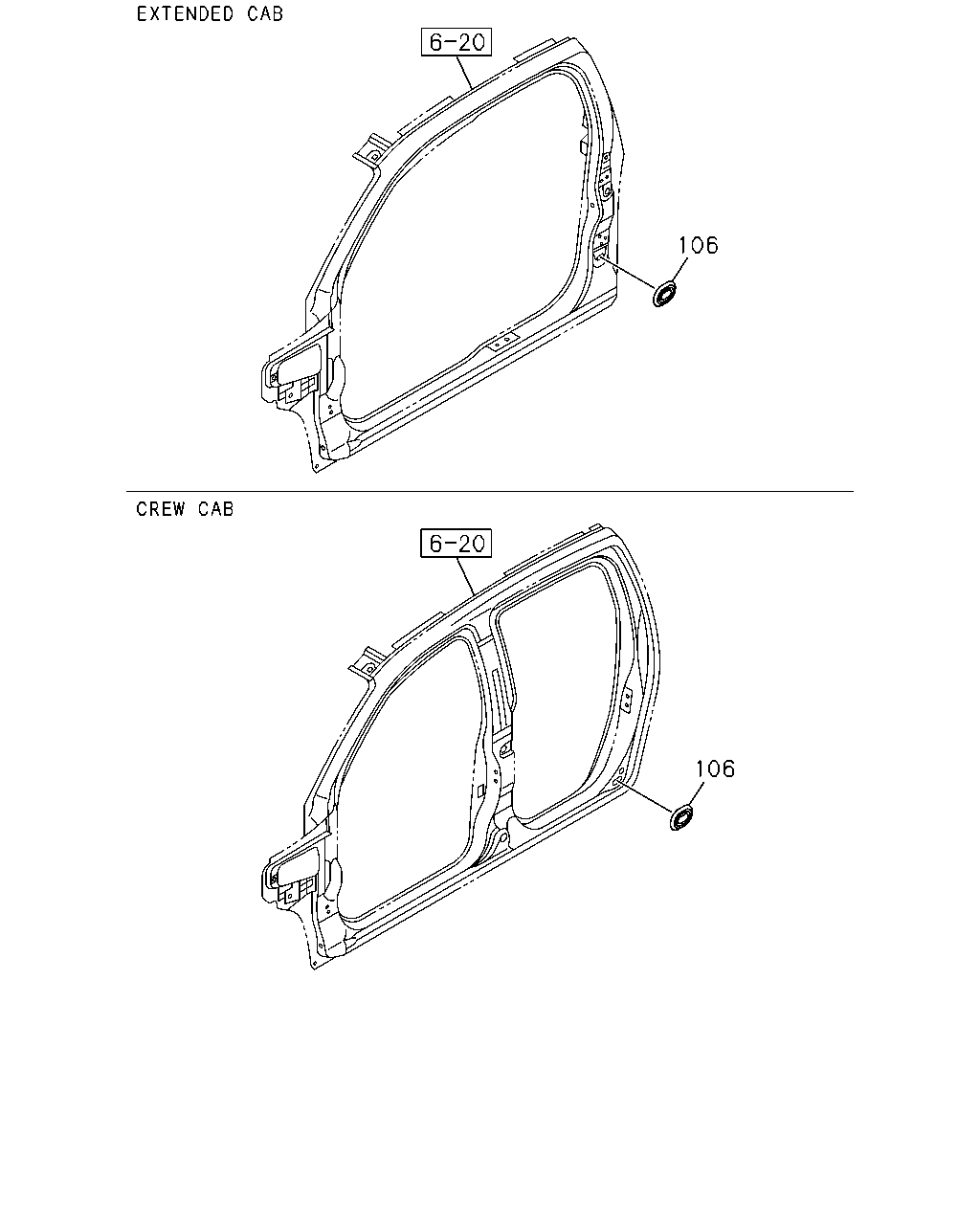

[630A] GROMMET (1 parça)
[630A] DOOR ASM AND OTHER PARTS (14 parça)
▶
106
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
106
16.165 GROMMET; PROTECTOR
16.570
8-94279-724-0
02
1
1410-
●
●
●
●
6
9
8
1
5
3
5
5
3
5
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>
8-98268-838-0
01
1
1410-
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>
8-98268-839-0
01
1
1410-
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9>
8-98268-840-0
01
1
1410-
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9>
8-98268-841-0
01
1
1410-
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-98268-836-0
01
1
1410-
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-98268-837-0
01
1
1410-
●
●
3
16.320 HINGE; DOOR FRT
UPR RH & LWR LH
8-98105-296-0
02
1
1410-
●
●
●
●
●
●
3
16.320 HINGE; DOOR FRT
LWR RH & UPR LH
8-98105-297-0
02
1
1410-
●
●
●
●
●
●
5
16.320 BOLT; HINGE
09.171 M8X23 FLANGE
8-98005-842-0
08
1
1410-
●
●
●
●
●
●
5
16.320 BOLT; HINGE
09.171 M8X23 FLANGE
8-98005-842-0
08
1
1410-
●
●
●
●
●
●
6
16.320 ARM; CHECK,FRT DOOR
8-98103-030-5
02
1
1410-
●
●
●
●
●
●
8
16.320 BOLT; CHECK ARM
M8X23
8-98166-694-0
02
1
1410-
●
●
●
●
●
●
9
16.320 NUT; CHECK ARM
M6 FLANGE
8-98049-362-0
04
1
1410-
●
●
●
●
●
●
103
16.165 PROTECTOR; FRT DOOR
8-98202-864-0
04
1
1410-
●
●
●
●
●
●
