◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51582 - TFR/TFS RHD EUROPE ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶

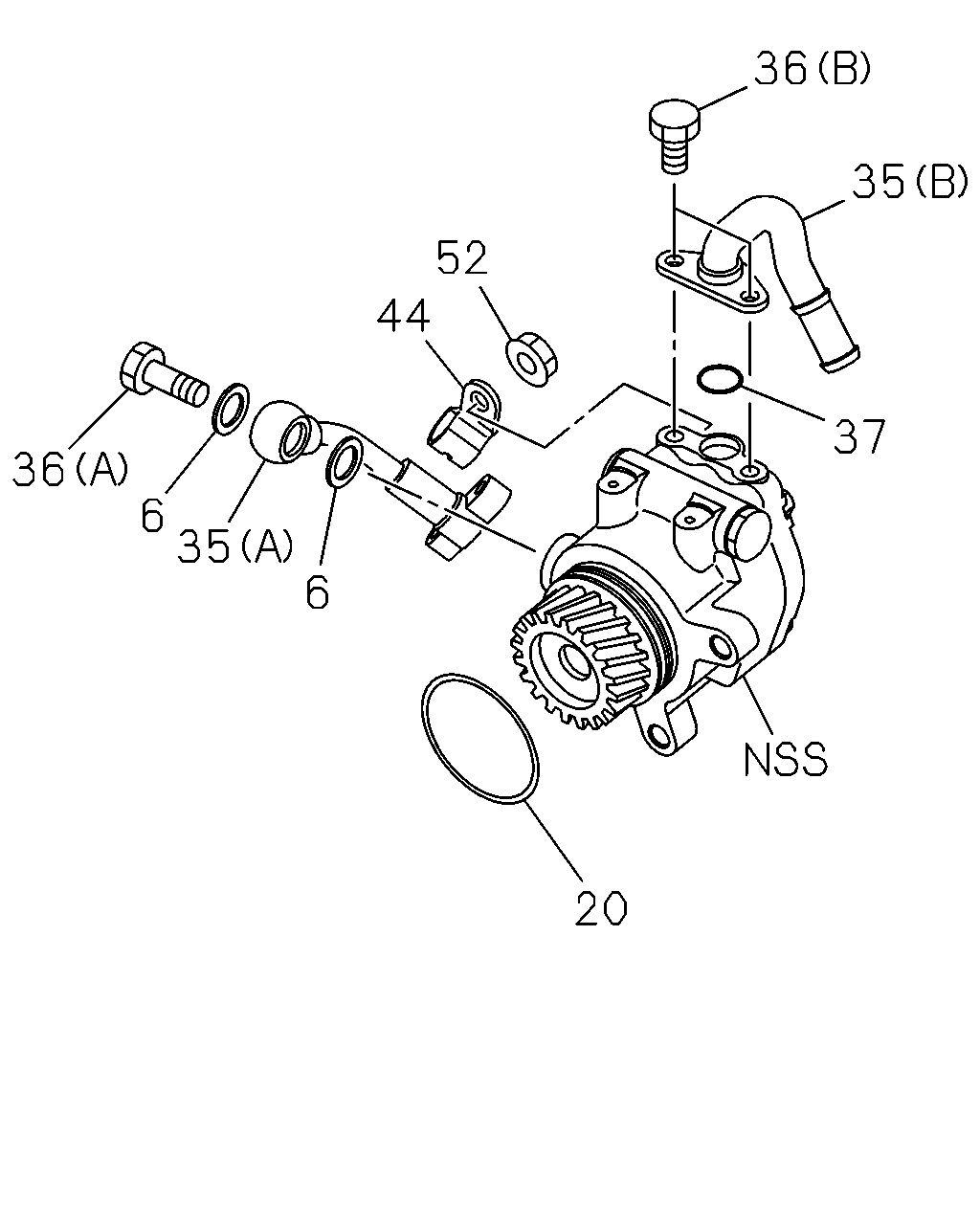

4-42 — POWER STEERING OIL PUMP (#151636) — 9 parça
çizim 450462
36 35 37 20 6 44 52 36 6 35
BalonParca AdiParca NoAdetTipApplied Date
6 06.635 WASHER; PL,OIL PUMP
ASM PART: A = 8-97946-164-0, 97946164 		8-98165-870-0 02 1 -
20 06.635 GASKET; FRT,OIL PUMP
ASM PART: A = 8-97946-164-0, 97946164 		8-98165-868-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(A) ASM PART: A = 8-97946-164-0, 97946164 		8-98165-869-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(B) ASM PART: A = 8-97946-164-0, 97946164 		8-98166-383-0 01 1 -
36 06.602 BOLT; CONN,PIPE
(A) ASM PART: A = 8-97946-164-0, 97946164 		8-98165-884-0 01 1 -
36 06.602 BOLT; CONN,PIPE
(B) ASM PART: A = 8-97946-164-0, 97946164 		8-98166-386-0 02 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-97946-164-0, 97946164 		8-98166-384-0 01 1 -
44 06.606 BRACKET; OIL PUMP,P/S & EDS
ASM PART: A = 8-97946-164-0, 97946164 		8-98165-885-0 01 1 -
52 06.635 NUT; OIL PUMP
ASM PART: A = 8-97946-164-0, 97946164 		8-98165-887-0 01 1 -
