Isuzu WW
▶
PICKUP
▶
TFR
▶
51582 - TFR/TFS RHD EUROPE
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

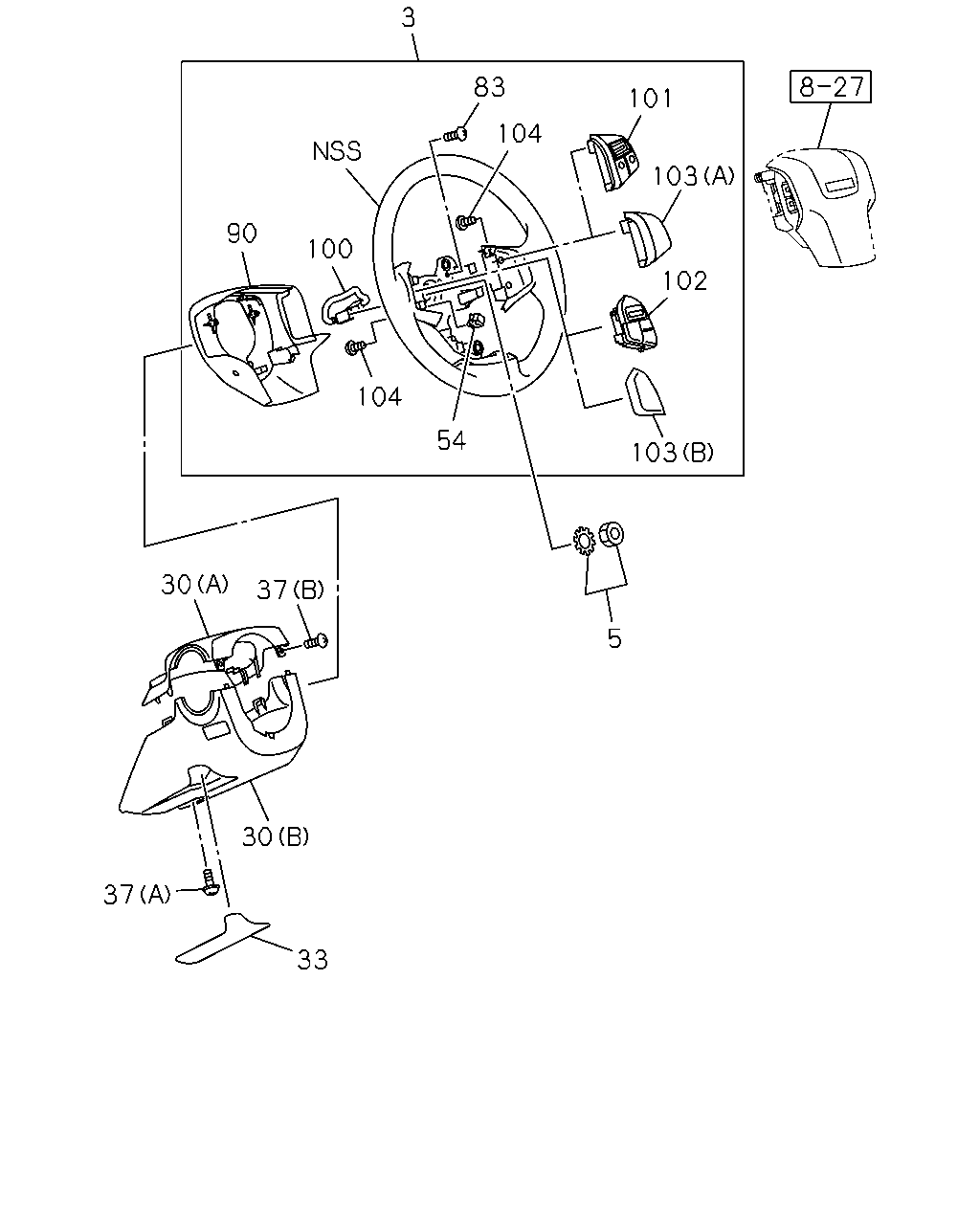

4-30 — STEERING WHEEL AND COWL
(#151630) — 23 parça
Tümü
A - TFB5CF
B - TFB5WF
C - TFS5CF
D - TFS5WF
E - TFB5SF
F - TFS5SF
3
83
104
101
103
102
103
54
104
100
90
5
37
30
30
33
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
3
06.513 WHEEL; STRG
AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> BLACK
8-97416-800-3
01
1
1410-
●
●
●
●
3
06.513 WHEEL; STRG
AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> BLACK
8-97416-801-3
01
1
1410-
●
●
●
●
3
06.513 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> EXC. AUTO CRUISE CONT<K30> BLACK
8-97416-802-3
01
1
1410-
●
●
●
●
3
06.513 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> EXC. AUTO CRUISE CONT<K30>,STEERING WHEEL RADIO CONTROLS<8NE> BLACK
8-97416-796-3
01
1
1410-
●
●
●
●
3
06.513 WHEEL; STRG
EXC. AUTO CRUISE CONT<K30>,STEERING WHEEL LEATHER<NP5>,STEERING WHEEL RADIO CONTROLS<8NE> BLACK
8-97416-797-3
01
1
1410-
●
●
●
●
3
06.513 WHEEL; STRG
BLACK
8-97416-797-3
01
1
1410-
●
●
5
06.515 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER
8-94455-487-1
01
1
1410-
●
●
●
●
●
●
30
06.518 COWL; STEERING
(A) BLACK
8-97416-863-4
01
1
1410-
●
●
●
●
●
●
30
06.518 COWL; STEERING
(B) BLACK
8-97417-527-6
01
1
1410-
●
●
●
●
●
●
33
06.518 COVER; STRG COWL
EXC. TILT STEERING<N33> BLACK
8-97421-052-0
01
1
1410-
●
●
●
●
●
●
37
06.518 SCREW; STRG COWL UPR
(A) M4X12 W/PL WASHER
0-36210-412-0
01
1
1410-
●
●
●
●
●
●
37
06.518 SCREW; STRG COWL UPR
08.083 (B) M5X16 TAPPING
8-98167-449-0
02
1
1410-
●
●
●
●
●
●
54
02.559 CLIP; HARNESS
8-98165-703-0
01
1
1410-
●
●
●
●
●
●
83
06.514 SCREW; LWR COVER TO WHEEL
09.242 M4X10 TAPPING
0-71240-410-0
02
1
1410-
●
●
●
●
●
●
90
06.578 COVER ASM; STRG WHEEL,LWR
06.514 BLACK
8-97416-856-1
01
1
1410-
●
●
●
●
●
●
100
06.513 HARNESS; STRG WHEEL
AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE>
8-98108-694-0
01
1
1410-
●
●
●
●
100
06.513 HARNESS; STRG WHEEL
AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE>
8-98108-693-0
01
1
1410-
●
●
●
●
100
06.513 HARNESS; STRG WHEEL
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> EXC. AUTO CRUISE CONT<K30>
8-98108-695-0
01
1
1410-
●
●
●
●
101
06.514 SWITCH ASM; CRUISE CONT,STRG WHE
AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5>
8-98108-691-0
01
1
1410-
●
●
●
●
102
06.514 SWITCH ASM; AUDIO CONT,STRG WHEE
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE>
8-98108-690-0
01
1
1410-
●
●
●
●
103
06.514 BEZEL; COVER,SWITCH HOLE
STEERING WHEEL LEATHER<NP5> EXC. AUTO CRUISE CONT<K30> (A) SILVER
8-97416-857-1
01
1
1410-
●
●
●
●
103
06.514 BEZEL; COVER,SWITCH HOLE
STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> (B) SILVER
8-97416-858-1
01
1
1410-
●
●
●
●
104
06.514 SCREW; SWITCH AND BEZEL
STEERING WHEEL LEATHER<NP5> 09.242 M4X10 TAPPING
0-71240-410-0
04
1
1410-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
