◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51582 - TFR/TFS RHD EUROPE ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-62 - TRANSFER SIDE CASE AND SHIFT LEVER ▶

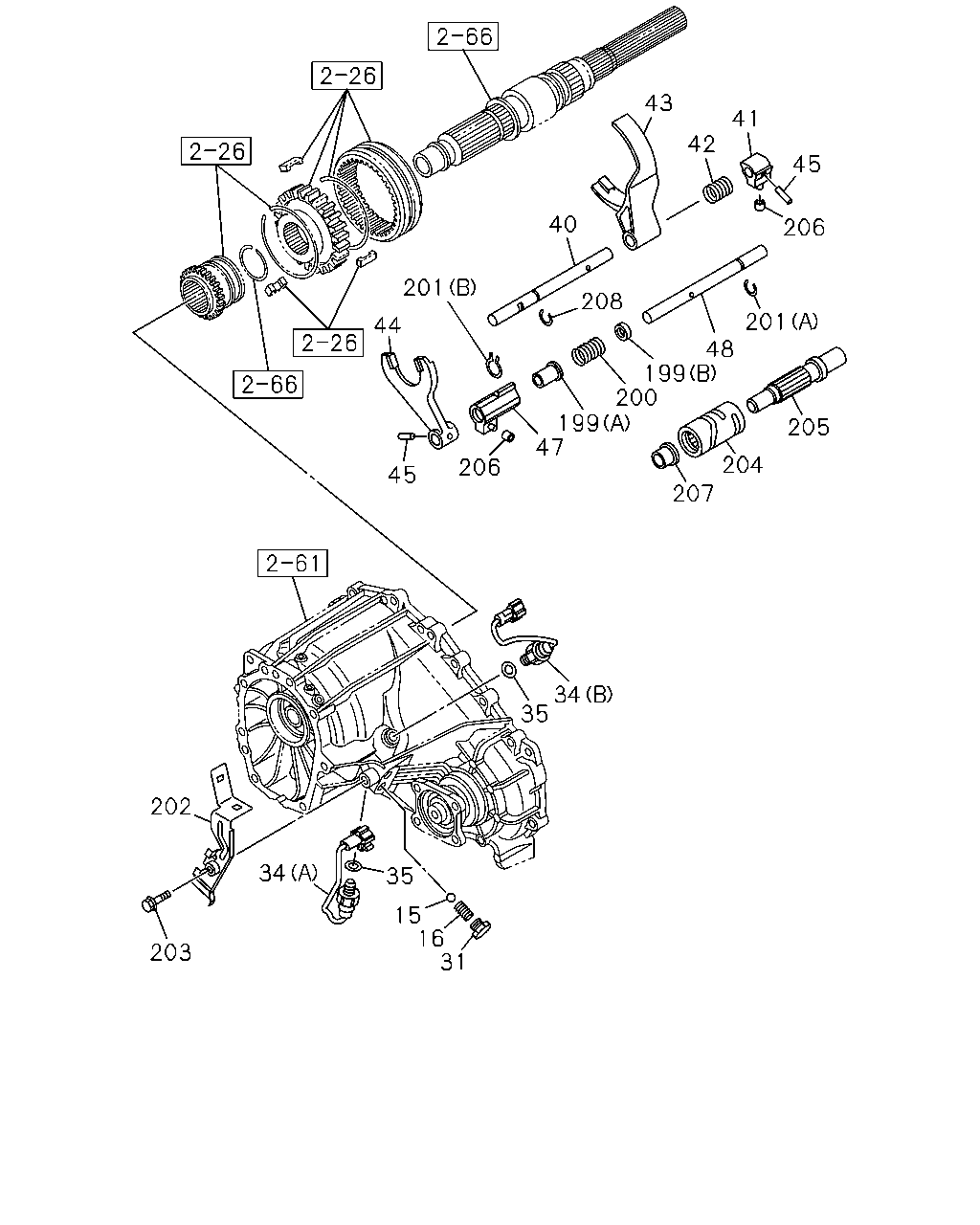

2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#151609) — 26 parça
çizim 450145
31 16 15 35 34 203 202 35 34 207 204 205 201 48 45 41 206 208 40 201 44 45 206 47 199 200 199 43 42
BalonParca AdiParca NoAdetTipApplied Date A B C
15 04.311 BALL; DETENT,SHIFT ROD,TRANSFER 8-94435-335-0 02 1 1410- ● ● ●
16 04.515 SPRING; DETENT,SHIFT ROD,TRANSFE
L=23.4 		8-97145-374-0 02 1 1410- ● ● ●
31 04.520 PLUG; DETENT BALL,TRANSFER
M12X9 		0-92002-412-0 02 1 1410- ● ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
(A) 		8-98181-233-0 01 1 1410- ● ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
(B) 		8-98181-234-0 01 1 1410- ● ● ●
35 04.075 GASKET; INDICATOR SWITCH,TRANSFE
08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 1410- ● ● ●
40 04.309 ROD; SHIFT,4X2-4X4,TRANSFER 8-97234-229-0 01 1 1410- ● ● ●
41 04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97234-233-1 01 1 1410- ● ● ●
42 04.515 SPRING; GEAR LOCK RELEASE,TRANSF 8-97239-010-1 01 1 1410- ● ● ●
43 04.555 ARM; SHIFT,4X2-4X4,TRANSFER 8-97234-231-0 01 1 1410- ● ● ●
44 04.555 ARM; SHIFT,HIGH-LOW,TRANSFER 8-97300-106-1 01 1 1410- ● ● ●
45 04.303 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 		8-94171-541-0 02 1 1410- ● ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-98161-034-0 01 1 1410- ● ● ●
48 04.309 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97234-230-0 01 1 1410- ● ● ●
199 04.419 COLLAR; TRANSFER CONTROL
(A) 		8-97234-662-1 01 1 1410- ● ● ●
199 04.419 COLLAR; TRANSFER CONTROL
(B) 		8-97234-663-1 01 1 1410- ● ● ●
200 04.198 SPRING; SHIFT HIGH-LOW 8-97239-011-0 01 1 1410- ● ● ●
201 04.525 RING; SNAP,SHIFT
04.307 (A) ID=12 		8-94460-357-0 01 1 1410- ● ● ●
201 04.525 RING; SNAP,SHIFT
(B) ID=23 		8-97305-011-1 01 1 1410- ● ● ●
202 04.525 BRACKET; SWITCH 8-98118-922-1 01 1 1410- ● ● ●
203 04.570 BOLT; BRACKET,SWITCH
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1410- ● ● ●
204 05.555 DRUM; SHIFT 8-98158-123-0 01 1 1410- ● ● ●
205 05.555 SHAFT; SHIFT DRUM 8-98063-364-1 01 1 1410- ● ● ●
206 05.555 ROLLER; GUIDE,SHIFT 8-97234-499-0 02 1 1410- ● ● ●
207 04.570 BUSH; CONTROL SHAFT 8-98158-124-0 01 1 1410- ● ● ●
208 04.525 RING; SNAP,SHIFT
04.307 ID=12 		8-94460-357-0 01 1 1410- ● ● ●
