2-49 — AUTO TRANS INHIBITOR SWITCH (#151603) — 26 parça

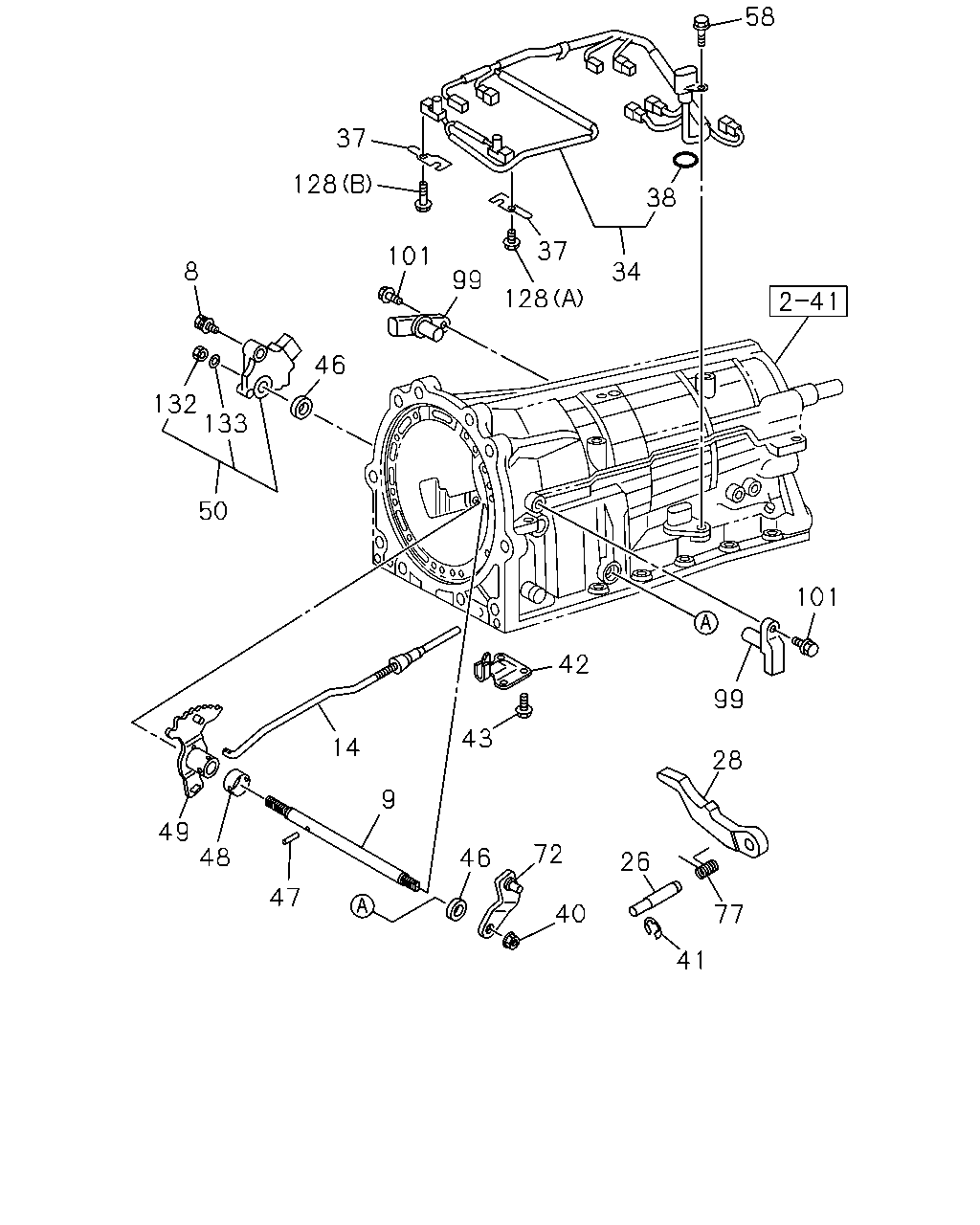

çizim 450265
58 38 34 37 128 99 101 128 37 46 133 8 132 50 42 43 101 99 28 26 77 41 40 72 46 9 14 47 48 49
BalonParca AdiParca NoAdetTipApplied Date
8 04.054 BOLT; NEUTRAL START SW,A/T
M8X30 		8-97130-929-0 01 1 1410-
9 04.275 SHAFT; MANUAL,A/T 8-98189-472-0 01 1 1410-
14 04.290 ROD ASM; PARKING,A/T 8-98189-508-0 01 1 1410-
26 04.294 SHAFT; PARKING PAWL,A/T 8-98189-505-0 01 1 1410-
28 04.294 PAWL; PARKING,A/T 8-98189-507-0 01 1 1410-
34 04.265 SOLENOID ASM; A/T 8-98189-470-0 01 1 1410-
37 04.275 CLAMP; SOLENOID,A/T 8-98189-741-0 02 1 1410-
38 04.265 GASKET; SOLENOID INNER
ID=22 		8-98189-471-0 01 1 1410-
40 04.037 NUT; LEVER TO SHAFT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1410-
41 04.290 RETAINER; SPR,SHAFT 5-34488-002-0 01 1 1410-
42 04.290 BRACKET; PARKING LOCK 8-98189-509-0 01 1 1410-
43 04.290 BOLT; BRKT
M6X14 		8-94479-978-0 03 1 1410-
46 04.282 SEAL; OIL
04.027 OD=22 		8-94479-740-0 02 1 1410-
47 04.275 PIN; ROLL SHAFT
04.052 D=4 		8-94257-081-0 01 1 1410-
48 04.008 COVER; SLEEVE 8-97362-483-0 01 1 1410-
49 04.279 LEVER ASM; CAM 8-98189-504-0 01 1 1410-
50 04.054 SWITCH; NEUTRAL,A/T 8-98189-469-0 01 1 1410-
58 04.260 BOLT; SOLENOID TO A/T
04.050 M6X16 		8-94479-712-0 01 1 1410-
72 04.035 LEVER; SELECT CONT 8-98077-401-0 01 1 1410-
77 04.295 SPRING; TORSION,PARKING BRK LK,A 8-98189-506-0 01 1 1410-
99 04.329 SENSOR; SPD 8-98189-474-0 02 1 1410-
101 04.329 BOLT; SPD SENSOR
04.290 M6X14 		8-94479-978-0 02 1 1410-
128 02.559 BOLT; CLAMP
04.265 (A) M6X36 		8-94473-630-0 04 1 1410-
128 02.559 BOLT; CLAMP
04.265 (B) M6X12 		8-94479-927-0 01 1 1410-
132 04.248 NUT; SWITCH
M16 		8-97354-883-0 01 1 1410-
133 04.248 WASHER; SWITCH
ID=16 		8-97354-889-0 01 1 1410-
