2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#151602) — 68 parça

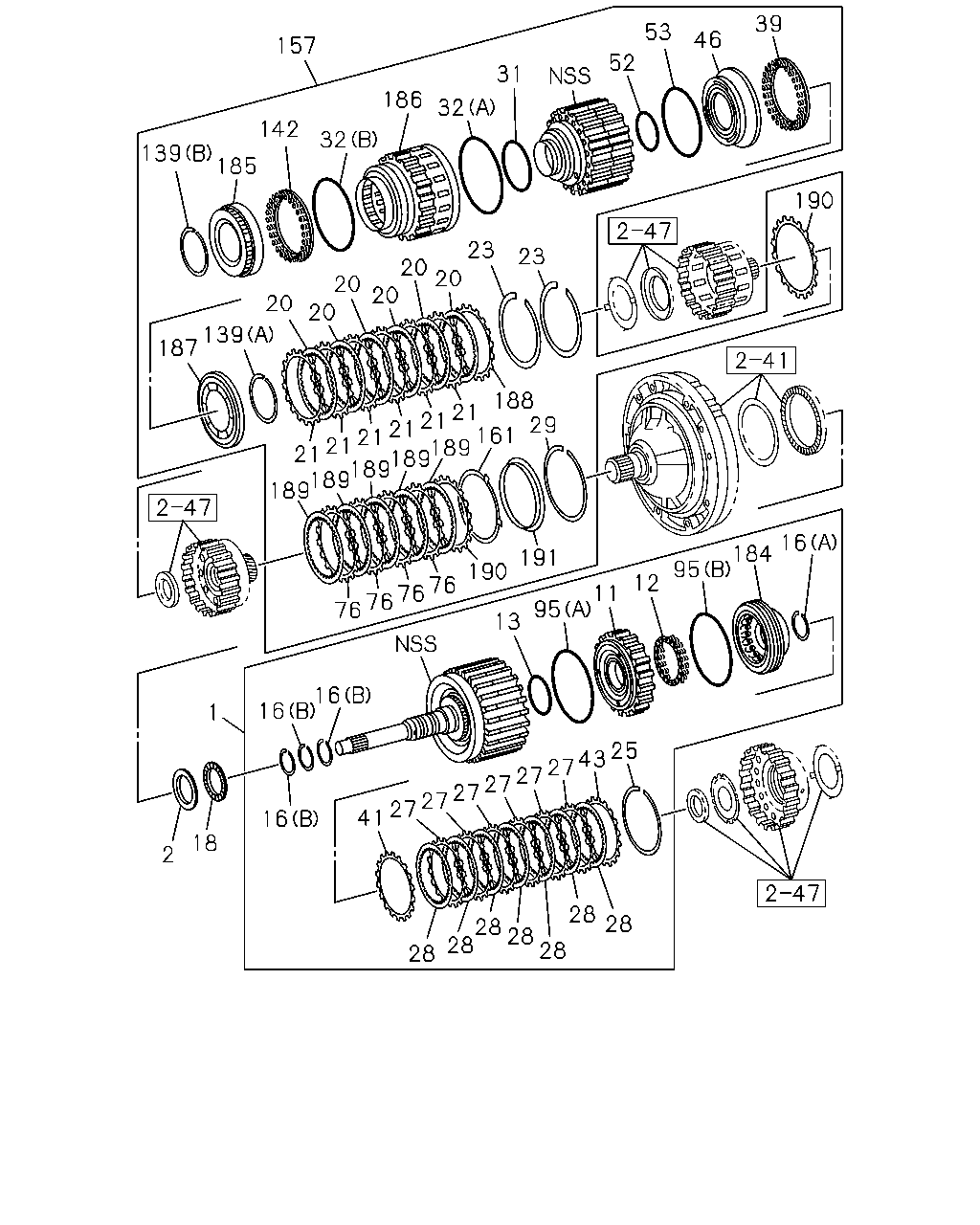

çizim 448539
39 190 46 53 52 31 186 32 32 142 185 139 157 23 23 20 20 20 20 20 20 139 187 188 21 21 21 21 21 21 29 161 189 189 189 189 189 16 184 95 12 11 95 13 16 16 1 2 16 18 25 43 27 27 27 27 27 27 41 28 28 28 28 28 28 28 191 190 76 76 76 76
BalonParca AdiParca NoAdetTipApplied Date
1 04.164 HUB ASM; CLU,INPUT SHAFT,A/T 8-98189-510-0 01 1 1410-
2 04.164 RACE; THRUST BRG,A/T 8-98189-534-0 01 1 1410-
11 04.166 PISTON ASM; CLU,A/T 8-98189-512-0 01 1 1410-
12 04.164 SPRING; CLU RETURN,A/T 8-98189-515-0 01 1 1410-
13 04.166 GASKET; INNER,CLU,A/T
ID=40 		8-98189-513-0 01 1 1410-
16 04.166 RING; SNAP,CLU,A/T
(A) ID=35 		8-98189-518-0 01 1 1410-
16 04.166 RING; SNAP,CLU,A/T
(B) ID=29 		8-98189-533-0 03 1 1410-
18 04.164 BEARING; THRUST,CLU,A/T 8-98189-535-0 01 1 1410-
20 04.163 DISC; CLU,A/T
OD=162 		8-98189-559-0 06 1 1410-
21 04.163 DISC ASM; CLU & FACING,A/T
ID=149 		8-98189-558-0 06 1 1410-
23 04.164 RING; RET,CLU,A/T
ID=160 		8-98189-576-0 02 1 1410-
25 04.164 RING; RET,BACKING PLATE,A/T
ID=115 		8-98189-532-0 01 1 1410-
27 04.163 DISC ASM; CLU & FACING,A/T
T=1.8 		8-98189-520-0 06 1 1410-
28 04.163 DISC; CLU,A/T
OD=120 		8-98189-519-0 07 1 1410-
29 04.164 RING; SNAP,CLU,A/T
ID=171 		8-98189-597-0 01 1 1410-
31 04.166 GASKET; CLU,INNER,A/T
ID=101 		8-98189-586-0 01 1 1410-
32 04.166 GASKET; CLU,OUTER,A/T
(A) ID=142 		8-98189-582-0 01 1 1410-
32 04.166 GASKET; CLU,OUTER,A/T
(B) ID=140 		8-98189-585-0 01 1 1410-
39 04.164 SPRING; DIRECT CLU RETURN 8-98189-543-0 01 1 1410-
41 04.164 FLANGE; DIRECT CLU
T=3.0 		8-98189-521-0 01 1 1410-
43 04.164 FLANGE; FWD CLU
T=3.0 		8-98189-521-0 AR 1 1410-
43 04.164 FLANGE; FWD CLU
T=3.1 		8-98189-522-0 AR 1 1410-
43 04.164 FLANGE; FWD CLU
T=3.2 		8-98189-523-0 AR 1 1410-
43 04.164 FLANGE; FWD CLU
T=3.3 		8-98189-524-0 AR 1 1410-
43 04.164 FLANGE; FWD CLU
T=3.4 		8-98189-525-0 AR 1 1410-
43 04.164 FLANGE; FWD CLU
T=3.5 		8-98189-526-0 AR 1 1410-
43 04.164 FLANGE; FWD CLU
T=3.6 		8-98189-527-0 AR 1 1410-
43 04.164 FLANGE; FWD CLU
T=3.7 		8-98189-528-0 AR 1 1410-
43 04.164 FLANGE; FWD CLU
T=3.8 		8-98189-529-0 AR 1 1410-
43 04.164 FLANGE; FWD CLU
T=3.9 		8-98189-530-0 AR 1 1410-
43 04.164 FLANGE; FWD CLU
T=4.0 		8-98189-531-0 AR 1 1410-
46 04.166 PISTON; DIRECT CLU,A/T 8-98189-540-0 01 1 1410-
52 04.167 GASKET; PISTON INNER,DIRECT CLU,
ID=75 		8-98189-542-0 01 1 1410-
53 04.167 GASKET; PISTON OUTER,DIRECT CLU,
ID=126.7 		8-98189-541-0 01 1 1410-
76 04.262 PLATE; 3RD CLU
T=2.4 		8-98189-591-0 04 1 1410-
95 04.166 GASKET; CLU HUB
(A) ID=108 		8-98189-514-0 01 1 1410-
95 04.166 GASKET; CLU HUB
(B) ID=107 		8-98189-517-0 01 1 1410-
139 04.164 RING; SNAP
(A) ID=64 		8-98189-557-0 01 1 1410-
139 04.164 RING; SNAP
(B) ID=79 		8-98189-589-0 01 1 1410-
142 04.167 SPRING; CLU 8-98189-587-0 01 1 1410-
157 04.166 CLUTCH ASM; A/T 8-98189-538-0 01 1 1410-
161 04.166 PLATE; CLU
T=1.5 		8-98189-595-0 01 1 1410-
184 04.166 BALANCER; CLUTCH NO 1 8-98189-516-0 01 1 1410-
185 04.166 BALANCER; CLUTCH NO 3 8-98189-588-0 01 1 1410-
186 04.166 PISTON; REVERSE CLUTCH 8-98189-579-0 01 1 1410-
187 04.166 BALANCER; CLUTCH NO 2 8-98189-556-0 01 1 1410-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.0 		8-98189-560-0 AR 1 1410-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.1 		8-98189-561-0 AR 1 1410-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.2 		8-98189-562-0 AR 1 1410-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.3 		8-98189-563-0 AR 1 1410-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.4 		8-98189-564-0 AR 1 1410-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.5 		8-98189-565-0 AR 1 1410-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.6 		8-98189-566-0 AR 1 1410-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.7 		8-98189-568-0 AR 1 1410-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.8 		8-98189-572-0 AR 1 1410-
189 04.163 DISC; CLUTCH NO 3
OD=162 		8-98189-590-0 05 1 1410-
190 04.164 FLANGE; CLUTCH
T=3.0 		8-98189-560-0 AR 1 1410-
190 04.164 FLANGE; CLUTCH
T=3.1 		8-98189-561-0 AR 1 1410-
190 04.164 FLANGE; CLUTCH
T=3.2 		8-98189-562-0 AR 1 1410-
190 04.164 FLANGE; CLUTCH
T=3.3 		8-98189-563-0 AR 1 1410-
190 04.164 FLANGE; CLUTCH
T=3.4 		8-98189-564-0 AR 1 1410-
190 04.164 FLANGE; CLUTCH
T=3.5 		8-98189-565-0 AR 1 1410-
190 04.164 FLANGE; CLUTCH
T=3.6 		8-98189-566-0 AR 1 1410-
190 04.164 FLANGE; CLUTCH
T=3.7 		8-98189-568-0 AR 1 1410-
190 04.164 FLANGE; CLUTCH
T=3.8 		8-98189-572-0 AR 1 1410-
190 04.164 FLANGE; CLUTCH
T=2.8 		8-98189-592-0 AR 1 1410-
190 04.164 FLANGE; CLUTCH
T=2.9 		8-98189-594-0 AR 1 1410-
191 04.166 SLEEVE; CLUTCH 8-98189-596-0 01 1 1410-
