2-30 — GEAR SHIFTER AND QUADRANT BOX (#151594) — 85 parça

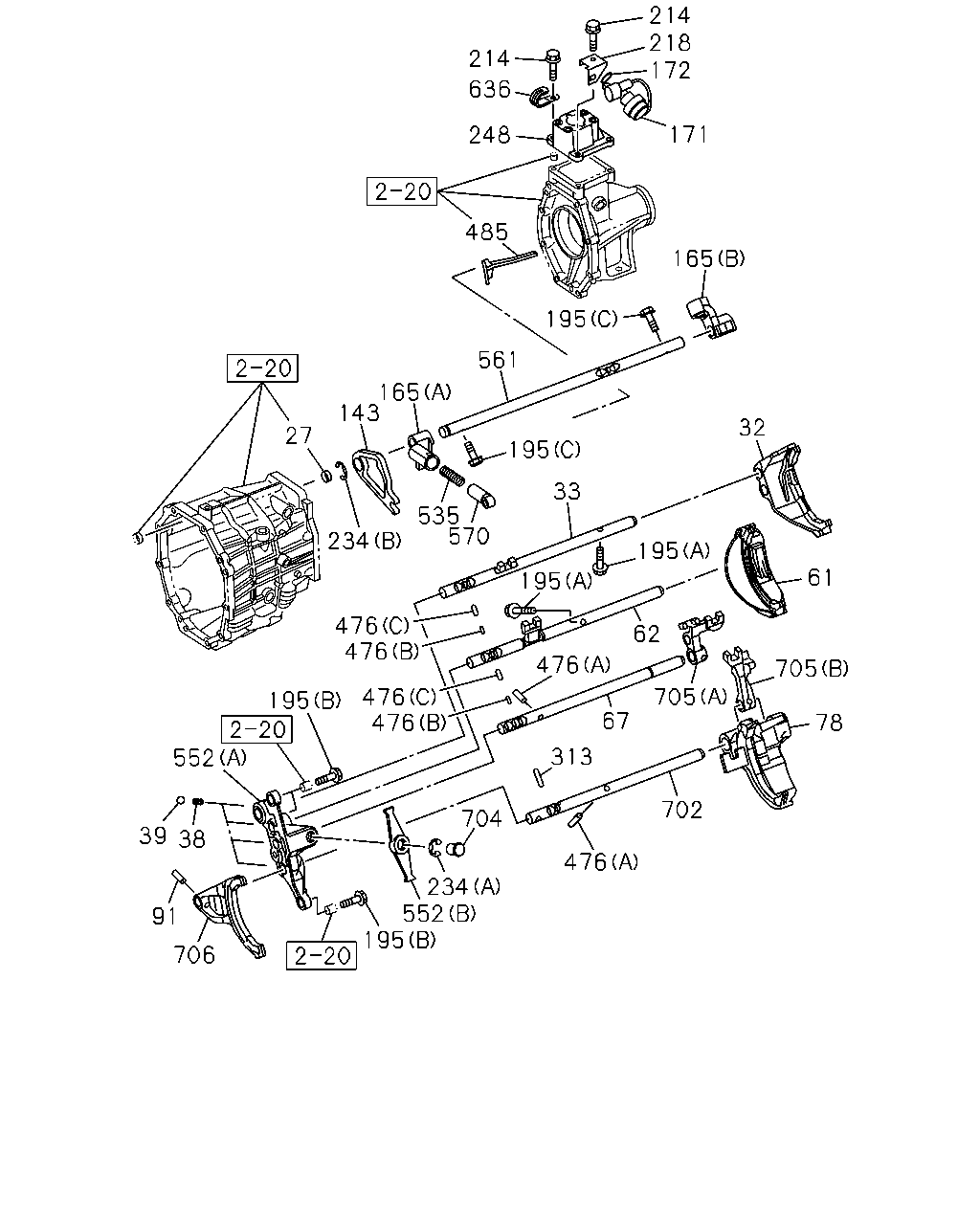

çizim 449284
214 214 636 248 171 172 218 485 195 165 561 165 143 27 195 32 33 535 234 570 476 476 476 476 195 195 476 67 62 61 705 78 705 702 313 476 704 234 552 195 706 91 39 38 195 552
BalonParca AdiParca NoAdetTipApplied Date
27 04.302 BUSHING; SHIFT ROD
04.317 		8-89048-304-0 01 1 1410-
32 04.303 ARM; SHIFT,1ST & 2ND 8-98203-153-0 01 1 1410-
33 04.309 ROD; SHIFT,LOW & 2ND 8-98203-156-0 01 1 1410-
38 04.311 SPRING; DETENT 8-98203-171-0 04 1 1410-
39 04.307 BALL; DETENT 8-97165-089-0 04 1 1410-
61 04.303 ARM; SHIFT,3RD & 4TH 8-98203-150-0 01 1 1410-
62 04.309 ROD; SHIFT,3RD & 4TH 8-98203-157-0 01 1 1410-
67 04.309 ROD; SHIFT,5TH & 6TH 8-98203-158-0 01 1 1410-
78 04.302 ARM; SHIFT,REV 8-98203-149-0 01 1 1410-
91 04.302 PIN; SPR,SHIFT ARM 8-97164-994-0 01 1 1410-
143 04.030 CAM; STOPPER,REV INHIBITOR 8-98203-148-0 01 1 1410-
165 04.302 LEVER; SHIFT
4X2(TFB***) (B) 		8-98203-142-0 01 1 1410-
165 04.302 LEVER; SHIFT
(A) 		8-98203-160-0 01 1 1410-
165 04.302 LEVER; SHIFT
4X4(TFS***) (C) 		8-98203-141-0 01 1 1410-
171 04.054 SWITCH; NEUTRAL 8-98203-248-0 01 1 1410-
172 04.054 GASKET; NEUTRAL SW 8-98210-376-0 01 1 1410-
195 04.105 BOLT
(A) 		8-97164-962-0 02 1 1410-
195 04.105 BOLT
(B) 		8-98203-146-0 04 1 1410-
195 04.105 BOLT
(C) 		8-98203-167-0 02 1 1410-
214 04.510 BOLT; CONT BOX,SUB TRANS
04.105 		8-98203-146-0 04 1 1410-
218 04.057 BRACKET; HARNESS CLIP,QUAD BOX 8-98203-245-0 01 1 1410-
234 04.311 RING; SNAP
(A) 		8-98203-175-0 01 1 1410-
234 04.311 RING; SNAP
(B) 		8-98203-176-0 01 1 1410-
248 04.105 RETAINER; CONT BOX 8-98203-143-0 01 1 1410-
313 04.309 ROLLER; SHAFT 8-98203-168-0 01 1 1410-
476 04.311 PIN; SHIFT ROD
04.303 (A) 		8-97164-925-0 02 1 1410-
476 04.311 PIN; SHIFT ROD
(B) 		8-98203-172-0 02 1 1410-
476 04.311 PIN; SHIFT ROD
(C) 		8-98203-173-0 02 1 1410-
485 04.105 TROUGH; OIL
4X2(TFB***) 		8-98203-178-0 01 1 1410-
535 04.302 SPRING; LEVER 8-98203-170-0 01 1 1410-
552 04.105 BRACKET
(A) 		8-98203-147-0 01 1 1410-
552 04.105 BRACKET
(B) 		8-98203-151-0 01 1 1410-
561 04.309 ROD; SHIFT
4X2(TFB***) 		8-98203-163-0 01 1 1410-
561 04.309 ROD; SHIFT
4X4(TFS***) 		8-98203-162-0 01 1 1410-
570 04.311 PIN; SHIFT LEVER 8-98203-166-0 01 1 1410-
636 04.057 BRACKET; CLIP
02.343 ID=22 L=35 		8-97375-643-0 01 1 1410-
702 04.309 ROD; REVERSE 8-98203-159-0 01 1 1410-
704 04.105 PIVOT 8-98203-152-0 01 1 1410-
705 04.309 HEAD; GEAR SHIFT
(B) 		8-98203-155-0 01 1 1410-
705 04.309 HEAD; GEAR SHIFT
(A) 		8-98236-473-0 01 1 1410-
706 04.309 FORK; GEAR SHIFT 8-98203-161-0 01 1 1410-
çizim 449649
411 398 222 637
BalonParca AdiParca NoAdetTipApplied Date
222 04.057 BRACKET; CLIP 8-98203-246-0 01 1 1410-
398 02.698 SWITCH; REV LAMP 8-98208-758-0 01 1 1410-
411 02.698 GASKET; REV LAMP SW
04.054 		8-98210-376-0 01 1 1410-
637 04.105 BOLT; BRACKET 8-98203-256-0 01 1 1410-

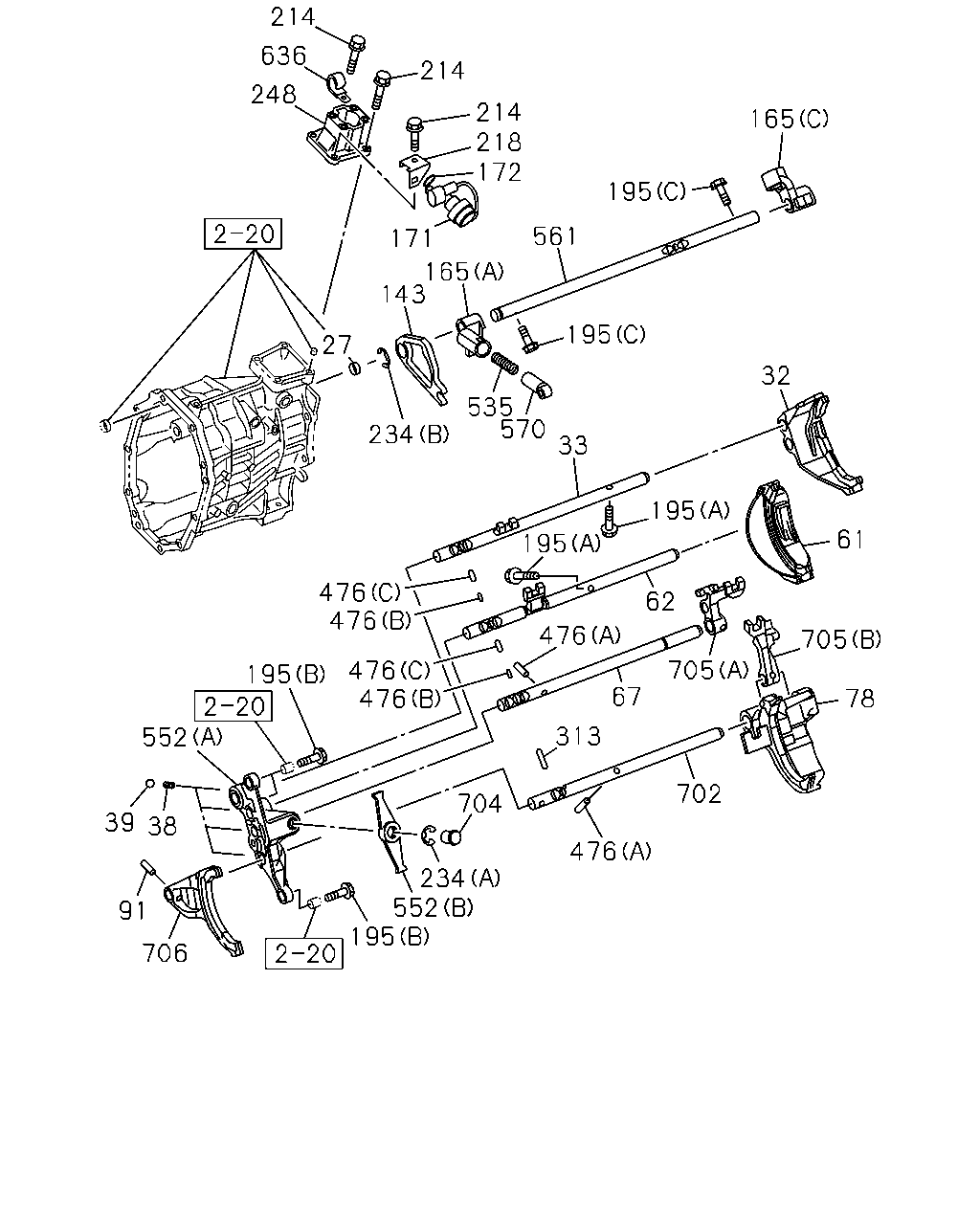

çizim 452018
706 195 552 234 704 476 702 78 705 705 67 313 91 39 38 552 195 476 476 476 476 476 62 61 195 195 33 570 535 234 195 165 195 561 165 143 171 172 218 214 214 214 636 248 27 32
BalonParca AdiParca NoAdetTipApplied Date
27 04.302 BUSHING; SHIFT ROD
04.317 		8-89048-304-0 01 1 1410-
32 04.303 ARM; SHIFT,1ST & 2ND 8-98203-153-0 01 1 1410-
33 04.309 ROD; SHIFT,LOW & 2ND 8-98203-156-0 01 1 1410-
38 04.311 SPRING; DETENT 8-98203-171-0 04 1 1410-
39 04.307 BALL; DETENT 8-97165-089-0 04 1 1410-
61 04.303 ARM; SHIFT,3RD & 4TH 8-98203-150-0 01 1 1410-
62 04.309 ROD; SHIFT,3RD & 4TH 8-98203-157-0 01 1 1410-
67 04.309 ROD; SHIFT,5TH & 6TH 8-98203-158-0 01 1 1410-
78 04.302 ARM; SHIFT,REV 8-98203-149-0 01 1 1410-
91 04.302 PIN; SPR,SHIFT ARM 8-97164-994-0 01 1 1410-
143 04.030 CAM; STOPPER,REV INHIBITOR 8-98203-148-0 01 1 1410-
165 04.302 LEVER; SHIFT
4X2(TFB***) (B) 		8-98203-142-0 01 1 1410-
165 04.302 LEVER; SHIFT
(A) 		8-98203-160-0 01 1 1410-
165 04.302 LEVER; SHIFT
4X4(TFS***) (C) 		8-98203-141-0 01 1 1410-
171 04.054 SWITCH; NEUTRAL 8-98203-248-0 01 1 1410-
172 04.054 GASKET; NEUTRAL SW 8-98210-376-0 01 1 1410-
195 04.105 BOLT
(A) 		8-97164-962-0 02 1 1410-
195 04.105 BOLT
(B) 		8-98203-146-0 04 1 1410-
195 04.105 BOLT
(C) 		8-98203-167-0 02 1 1410-
214 04.510 BOLT; CONT BOX,SUB TRANS
04.105 		8-98203-146-0 04 1 1410-
218 04.057 BRACKET; HARNESS CLIP,QUAD BOX 8-98203-245-0 01 1 1410-
234 04.311 RING; SNAP
(A) 		8-98203-175-0 01 1 1410-
234 04.311 RING; SNAP
(B) 		8-98203-176-0 01 1 1410-
248 04.105 RETAINER; CONT BOX 8-98203-143-0 01 1 1410-
313 04.309 ROLLER; SHAFT 8-98203-168-0 01 1 1410-
476 04.311 PIN; SHIFT ROD
04.303 (A) 		8-97164-925-0 02 1 1410-
476 04.311 PIN; SHIFT ROD
(B) 		8-98203-172-0 02 1 1410-
476 04.311 PIN; SHIFT ROD
(C) 		8-98203-173-0 02 1 1410-
535 04.302 SPRING; LEVER 8-98203-170-0 01 1 1410-
552 04.105 BRACKET
(A) 		8-98203-147-0 01 1 1410-
552 04.105 BRACKET
(B) 		8-98203-151-0 01 1 1410-
561 04.309 ROD; SHIFT
4X2(TFB***) 		8-98203-163-0 01 1 1410-
561 04.309 ROD; SHIFT
4X4(TFS***) 		8-98203-162-0 01 1 1410-
570 04.311 PIN; SHIFT LEVER 8-98203-166-0 01 1 1410-
636 04.057 BRACKET; CLIP
02.343 ID=22 L=35 		8-97375-643-0 01 1 1410-
702 04.309 ROD; REVERSE 8-98203-159-0 01 1 1410-
704 04.105 PIVOT 8-98203-152-0 01 1 1410-
705 04.309 HEAD; GEAR SHIFT
(B) 		8-98203-155-0 01 1 1410-
705 04.309 HEAD; GEAR SHIFT
(A) 		8-98236-473-0 01 1 1410-
706 04.309 FORK; GEAR SHIFT 8-98203-161-0 01 1 1410-
