◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51582 - TFR/TFS RHD EUROPE ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#151593) — 83 parça

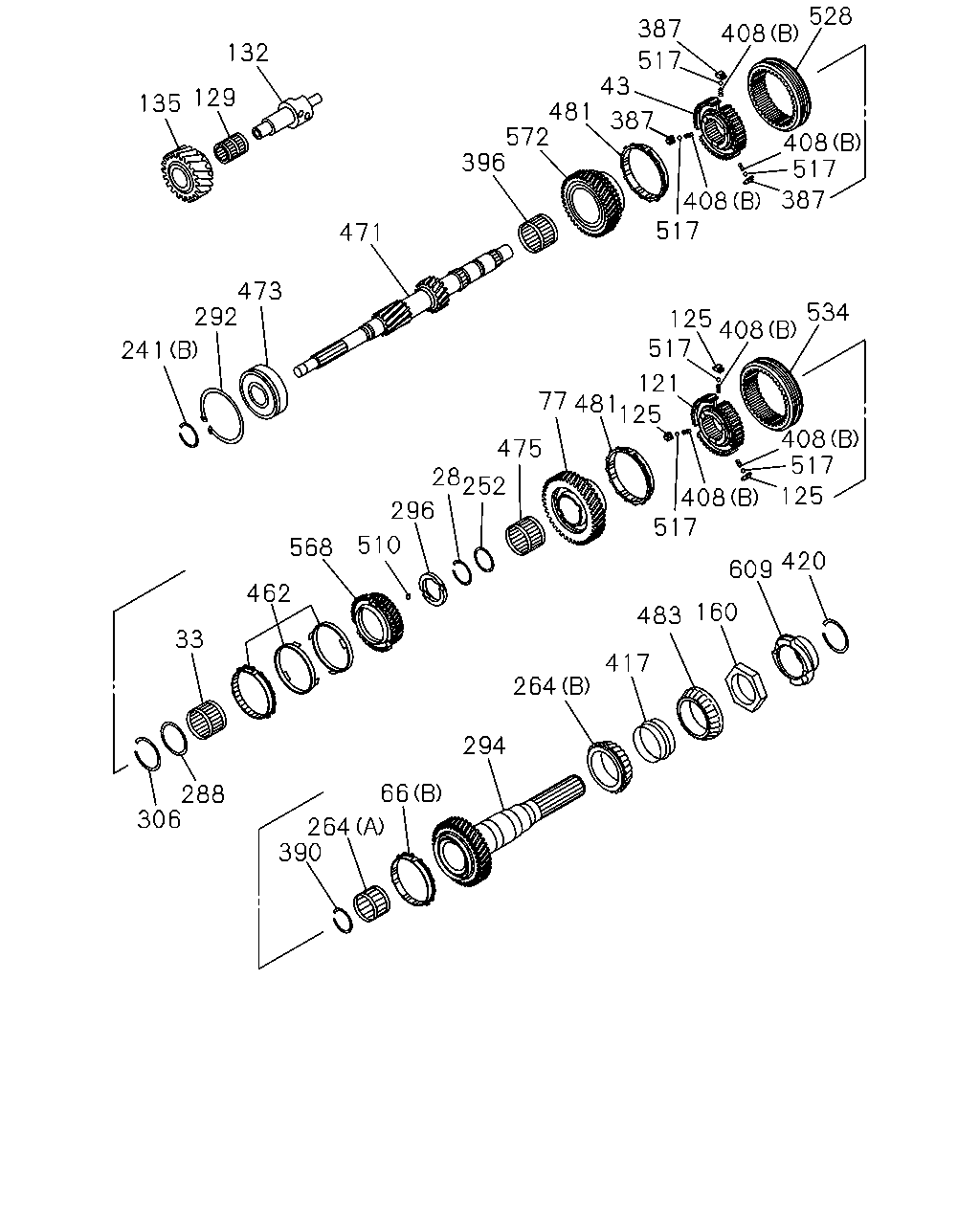

çizim 448988
132 129 135 241 292 473 471 396 572 481 43 517 387 408 528 408 517 387 408 517 33 462 568 306 288 510 296 28 252 475 77 481 125 121 517 125 408 534 408 408 517 125 517 420 609 160 483 417 264 294 66 264 390 387
BalonParca AdiParca NoAdetTipApplied Date A B
28 04.416 RING; SNAP,3RD GEAR 8-98203-222-0 01 1 1410- ●
33 04.352 BEARING; NEEDLE,3RD GEAR 8-98203-209-0 01 1 1410- ●
43 04.384 HUB; CLU,3RD & 4TH,MAIN 8-98203-188-0 01 1 1410- ●
66 04.383 RING; BLOCK,SYN
(A) 		8-98203-181-0 01 1 1410- ●
66 04.383 RING; BLOCK,SYN
(B) 		8-98203-194-0 01 1 1410- ●
77 04.421 GEAR; 6TH,MAINSHAFT 8-98203-231-0 01 1 1410- ●
121 04.384 HUB; CLU,6TH 8-98203-199-0 01 1 1410- ●
125 04.384 INSERT; 6TH SYN 8-98203-192-0 03 1 1410- ●
129 04.431 BEARING; NEEDLE,IDLER 8-98203-213-0 01 1 1410- ●
132 04.433 SHAFT; REV 8-98203-238-0 01 1 1410- ●
135 04.430 GEAR; REV IDLER 8-98203-240-0 01 1 1410- ●
160 04.525 NUT; OUTPUT SHAFT END 8-98203-252-0 01 1 1410- ●
241 04.416 RING; SNAP
(A) 		8-98203-218-0 01 1 1410- ●
241 04.416 RING; SNAP
(B) 		8-98203-223-0 01 1 1410- ●
252 04.412 SPACER 8-98203-226-0 01 1 1410- ●
264 04.520 BEARING; RR OUTPUT SHAFT,FRT
(A) 		8-98203-214-0 01 1 1410- ●
264 04.520 BEARING; RR OUTPUT SHAFT,FRT
(B) 		8-98203-216-0 01 1 1410- ●
288 04.399 SPACER; BRG,MAINSHAFT 8-98203-227-0 01 1 1410- ●
292 04.422 RING; SNAP,BRG OUTER 8-98203-225-0 01 1 1410- ●
294 04.530 SHAFT; OUTPUT
4X2(TFB***) 		8-98203-233-0 01 1 1410- ●
294 04.530 SHAFT; OUTPUT
4X4(TFS***) 		8-98203-232-0 01 1 1410- ●
296 04.406 WASHER; THRUST 8-98203-185-0 01 1 1410- ●
306 04.416 RING; SNAP,MAINSHAFT 8-98203-220-0 01 1 1410- ●
387 04.384 INSERT; SYN,4TH & 3RD 8-98203-192-0 03 1 1410- ●
390 04.383 RING; SNAP,CLU HUB 8-98203-221-0 01 1 1410- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT 8-98203-210-0 01 1 1410- ●
408 04.384 SPRING
(A) 		8-98203-195-0 03 1 1410- ●
408 04.384 SPRING
(B) 		8-98203-196-0 06 1 1410- ●
408 04.384 SPRING
(C) 		8-98203-198-0 01 1 1410- ●
417 04.384 SPACER; OUTPUT SHAFT
4X2(TFB***) 		8-98203-255-0 01 1 1410- ●
417 04.384 SPACER; OUTPUT SHAFT
4X4(TFS***) 		8-98203-254-0 01 1 1410- ●
420 04.416 RING; SNAP,OUTPUT SHAFT 8-98203-257-0 01 1 1410- ●
462 04.383 RING ASM; BLOCK,SYNCHRONIZER 8-98203-183-0 01 1 1410- ●
471 04.530 SHAFT; INPUT 8-98203-234-0 01 1 1410- ●
473 04.352 BEARING; INPUT SHAFT 8-98203-205-0 01 1 1410- ●
475 04.419 BEARING; 6TH 8-98203-211-0 01 1 1410- ●
481 04.383 RING; BLOCK 8-98203-193-0 02 1 1410- ●
483 04.352 BEARING; TAPER 8-98203-217-0 01 1 1410- ●
510 04.540 PIN; STRAIGHT,ANTI LASH 8-98203-228-0 01 1 1410- ●
517 04.384 BALL; SYNCHRO,INDEX 8-98203-204-0 09 1 1410- ●
528 04.384 SLEEVE; 6TH 8-98203-190-0 01 1 1410- ●
534 04.395 SLEEVE; HUB,4TH-3RD
04.384 		8-98203-190-0 01 1 1410- ●
568 04.415 GEAR; 3RD,INPUT SHAFT 8-98203-229-0 01 1 1410- ●
572 04.415 GEAR; 4TH,INPUT 8-98203-230-0 01 1 1410- ●
609 04.384 PIPE; OUTPUT SHAFT
4X2(TFB***) 		8-98203-250-0 01 1 1410- ●
609 04.384 PIPE; OUTPUT SHAFT
4X4(TFS***) 		8-98203-249-0 01 1 1410- ●

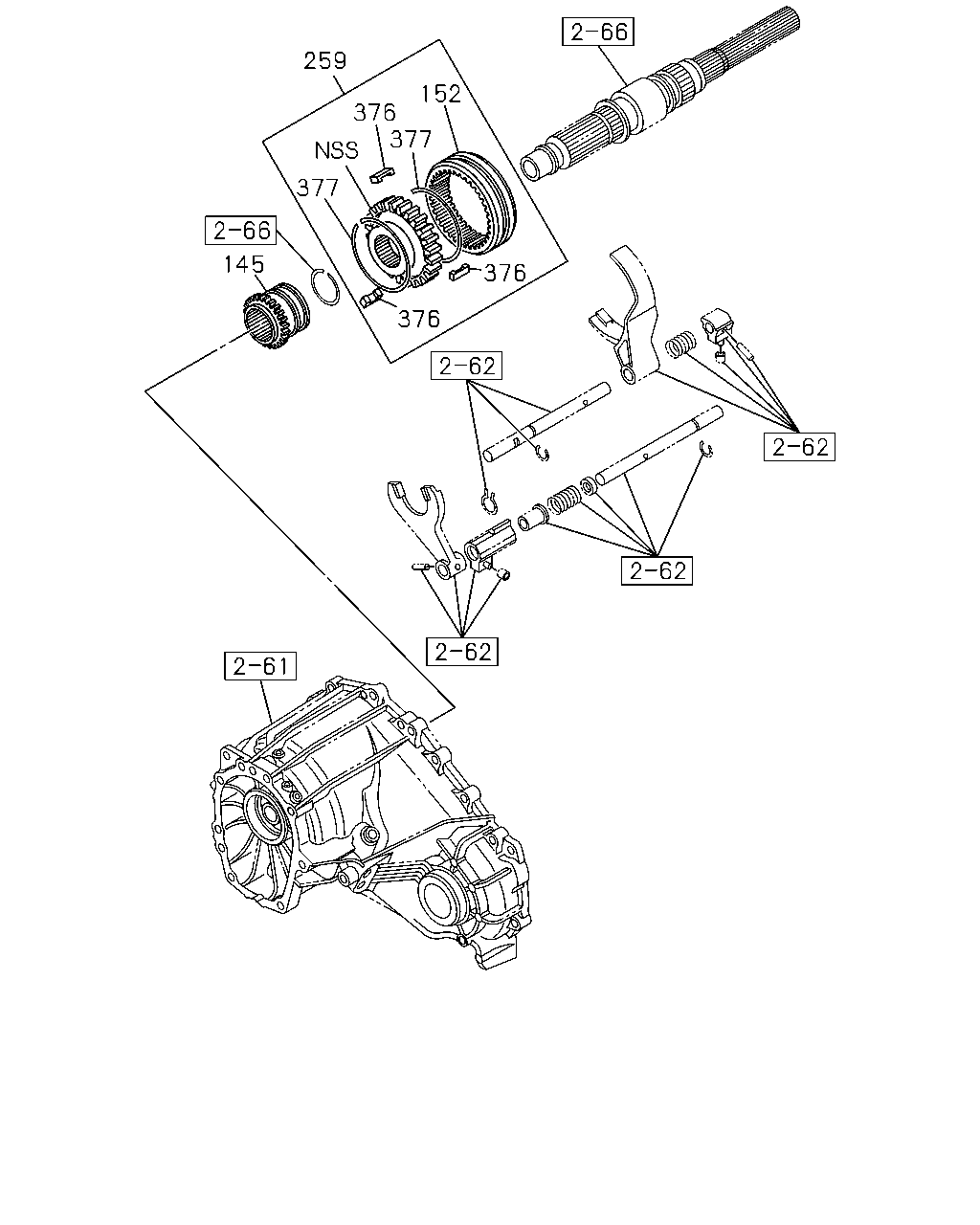

çizim 449877
259 376 152 377 377 376 376 145
BalonParca AdiParca NoAdetTipApplied Date A B
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***) 		8-98063-369-1 01 1 1410- ● ●
152 04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(TFS***) 		8-94363-060-0 01 1 1410- ● ●
259 04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(TFS***) 		8-97234-225-0 01 1 1410- ● ●
376 04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(TFS***) 		8-97238-590-0 03 1 1410- ● ●
377 04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(TFS***) 		8-94448-045-0 02 1 1410- ● ●

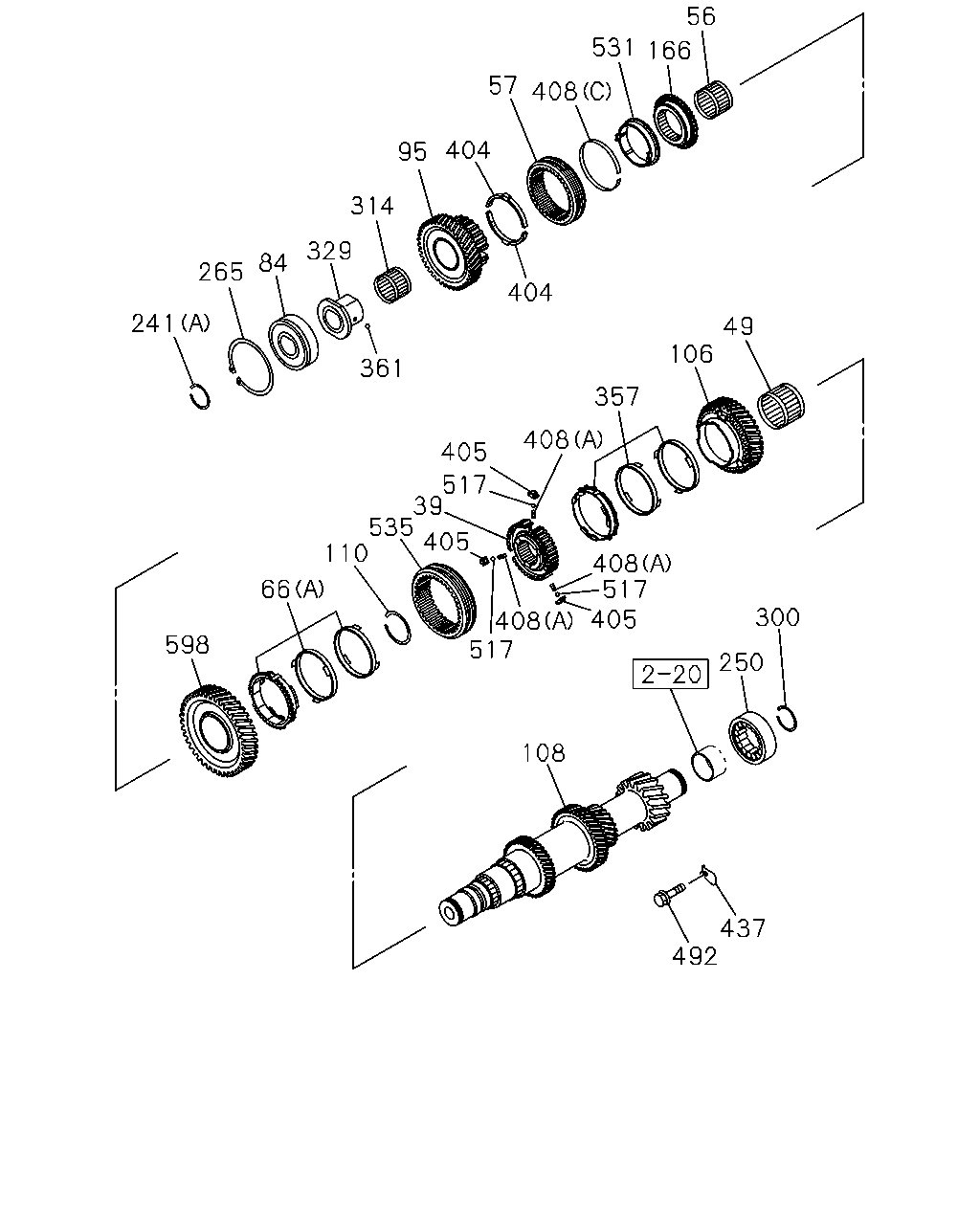

çizim 451992
241 265 84 329 314 95 404 57 408 531 166 56 404 361 598 66 110 535 39 517 405 408 357 408 517 405 408 517 300 250 108 492 437 49 106 405
BalonParca AdiParca NoAdetTipApplied Date A B
39 04.384 HUB; CLU,LOW & 2ND 8-98203-187-0 01 1 1410- ●
49 04.352 BEARING; NEEDLE,2ND GEAR 8-98203-208-0 01 1 1410- ●
56 04.419 BEARING; NEEDLE,1ST,REV 8-98203-207-0 01 1 1410- ●
57 04.419 SLEEVE; REV 8-98203-203-0 01 1 1410- ●
66 04.383 RING; BLOCK,SYN
(A) 		8-98203-181-0 01 1 1410- ●
66 04.383 RING; BLOCK,SYN
(B) 		8-98203-194-0 01 1 1410- ●
84 04.422 BEARING; COUNTER SHAFT,FRT 8-98203-206-0 01 1 1410- ●
95 04.417 GEAR; REV,COUNTER 8-98203-243-0 01 1 1410- ●
106 04.395 GEAR; 2ND,COUNTER 8-98203-237-0 01 1 1410- ●
108 04.428 SHAFT; COUNTER 8-98203-235-0 01 1 1410- ●
110 04.422 RING; SNAP,COUNTER BRG 8-98203-219-0 01 1 1410- ●
166 04.435 PIECE; DIST 8-98203-184-0 01 1 1410- ●
241 04.416 RING; SNAP
(A) 		8-98203-218-0 01 1 1410- ●
241 04.416 RING; SNAP
(B) 		8-98203-223-0 01 1 1410- ●
250 04.352 BEARING; COUNTER SHAFT RR 8-98203-215-0 01 1 1410- ●
265 04.525 RING; SNAP,BRG OUTER 8-98203-224-0 01 1 1410- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
04.416 		8-98203-218-0 01 1 1410- ●
314 04.419 BEARING; NEEDLE,REV GEAR 8-98203-212-0 01 1 1410- ●
329 04.352 COLLAR; BEARING 8-98203-186-0 01 1 1410- ●
357 04.383 RING 8-98203-182-0 01 1 1410- ●
361 04.419 BALL; LK,THRUST WASHER,REV GEAR
04.345 		8-89048-423-0 01 1 1410- ●
404 04.307 PLATE; THRUST 8-98203-202-0 02 1 1410- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-98203-191-0 03 1 1410- ●
408 04.384 SPRING
(A) 		8-98203-195-0 03 1 1410- ●
408 04.384 SPRING
(B) 		8-98203-196-0 06 1 1410- ●
408 04.384 SPRING
(C) 		8-98203-198-0 01 1 1410- ●
437 04.435 PLATE; LOCK 8-98203-107-0 01 1 1410- ●
492 04.435 BOLT; PLATE 8-98203-122-0 01 1 1410- ●
517 04.384 BALL; SYNCHRO,INDEX 8-98203-204-0 09 1 1410- ●
531 04.383 RING; BLOCK,REV 8-98203-197-0 01 1 1410- ●
535 04.395 SLEEVE; HUB,LOW-2ND 8-98203-189-0 01 1 1410- ●
598 04.421 GEAR; 1ST,COUNTER 8-98203-236-0 01 1 1410- ●
