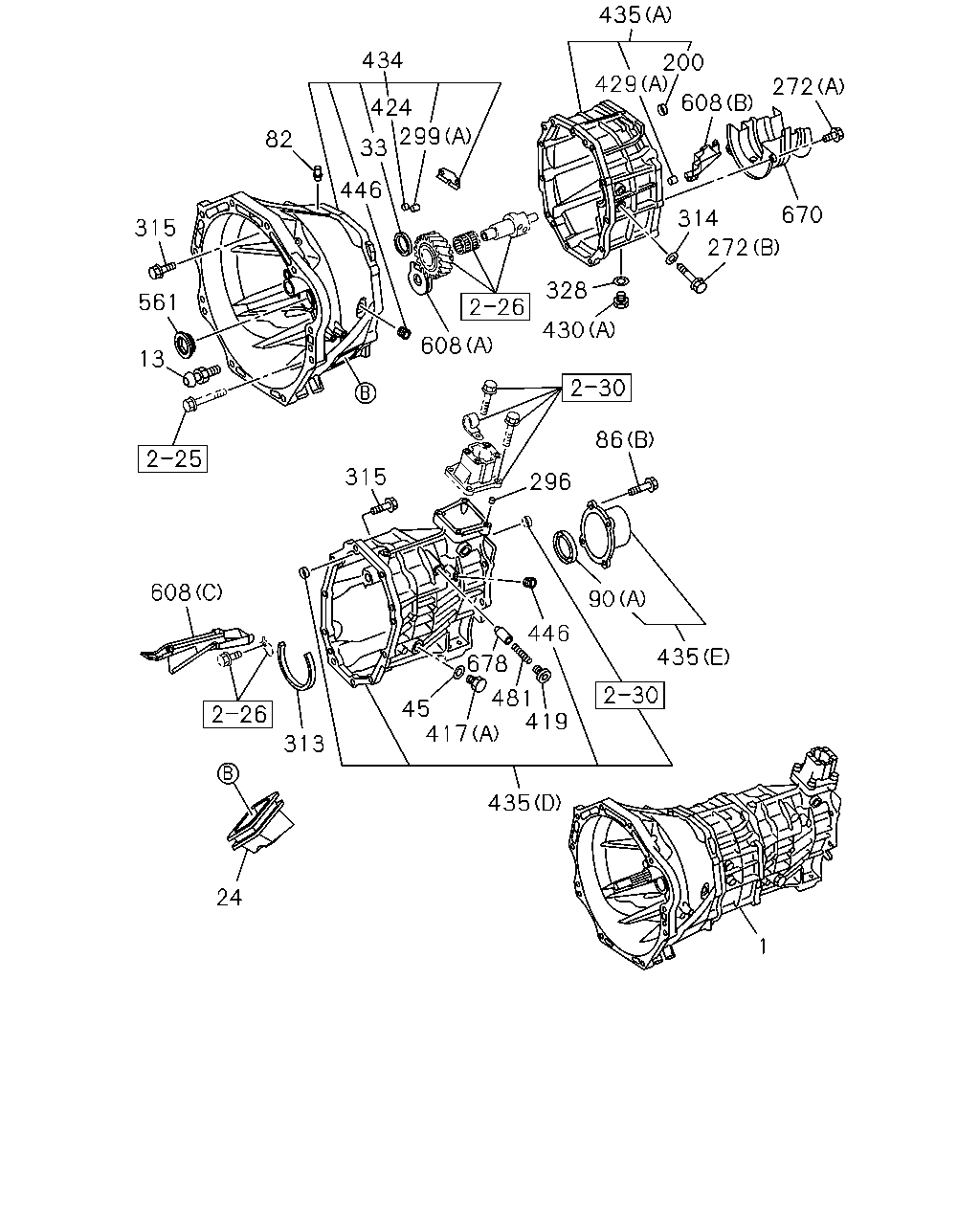

2-20 — MANUAL TRANSMISSION ASM AND CASE (#151591) — 119 parça

434 424 82 33 299 446 315 561 13 608 328 435 429 200 608 272 314 670 272 430 86 296 315 608 313 24 1 435 417 45 678 481 419 446 90 435

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-98147-061-2	01	1	1410-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98147-062-3	01	1	1410-	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1410-	●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1410-	●
33	04.318 SEAL; OIL,FRT COVER,T/M	8-98203-098-0	01	1	1410-	●
45	04.105 GASKET; FILLER PLUG 4X2(TFB***)	8-97164-900-0	02	1	1410-	●
45	04.105 GASKET; FILLER PLUG 4X4(TFS***)	8-97164-900-0	01	1	1410-	●
82	04.105 PLUG; SCREW,CASE	8-98203-115-0	01	1	1410-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) (A)	8-98203-180-0	08	1	1410-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) (B)	8-98203-112-0	04	1	1410-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1410-	●	●
90	04.318 SEAL; OIL,RR COVER (A)	8-98203-102-0	01	1	1410-	●
90	04.318 SEAL; OIL,RR COVER 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1410-	●	●
200	04.317 BUSHING; SHIFT FORK SHAFT	8-89048-304-0	01	1	1410-	●
272	00.683 BOLT (A)	8-89048-559-0	02	1	1410-	●
272	00.683 BOLT (B)	8-98203-117-0	01	1	1410-	●
296	04.510 PIN; QUAD BOX TO CASE	8-98203-099-0	02	1	1410-	●
299	04.317 PLUG; SHIFTER ROD (A)	8-98203-096-0	02	1	1410-	●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1410-	●	●
313	04.318 SEAL; OIL	8-98203-113-0	01	1	1410-	●
314	04.318 GASKET; CASE	8-98203-119-0	01	1	1410-	●
315	04.104 BOLT; CASE	8-98203-120-0	16	1	1410-	●
328	04.105 GASKET; PLUG	8-97164-900-0	01	1	1410-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (A)	8-98203-118-0	02	1	1410-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-98203-118-0	01	1	1410-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	1410-	●	●
419	04.317 PLUG; RR COVER 04.105	8-97164-926-0	01	1	1410-	●
424	04.384 RING; INSERT 04.510	8-98203-099-0	02	1	1410-	●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (A)	8-98203-096-0	04	1	1410-	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (A)	8-98203-096-0	02	1	1410-	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1410-	●	●
430	04.105 PLUG; OIL DRAIN (A)	8-97164-953-0	01	1	1410-	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	1410-	●	●
434	00.683 HOUSING; CLU	8-98203-097-0	01	1	1410-	●
435	04.103 CASE; TRANS 4X2(TFB***) (B)	8-98203-111-0	01	1	1410-	●
435	04.103 CASE; TRANS 4X2(TFB***) (C)	8-98203-177-0	01	1	1410-	●
435	04.103 CASE; TRANS (A)	8-98203-088-0	01	1	1410-	●
435	04.103 CASE; TRANS 4X4(TFS***) (E)	8-98203-101-0	01	1	1410-	●
435	04.103 CASE; TRANS 4X4(TFS***) (D)	8-98203-108-0	01	1	1410-	●
446	04.105 PLUG; CASE,TRANS 4X2(TFB***)	8-98203-100-0	01	1	1410-	●
446	04.105 PLUG; CASE,TRANS 4X4(TFS***)	8-98203-100-0	02	1	1410-	●
481	04.317 SPRING; SHIFTER ROD,OIL PUMP	8-98203-169-0	01	1	1410-	●
561	04.104 PLUG	8-98203-114-0	01	1	1410-	●
608	04.317 GUTTER; OIL (A)	8-98203-103-0	01	1	1410-	●
608	04.317 GUTTER; OIL (B)	8-98203-104-0	01	1	1410-	●
608	04.317 GUTTER; OIL (C)	8-98203-105-0	01	1	1410-	●
670	04.457 BAFFLE	8-98203-106-0	01	1	1410-	●
678	04.317 PIN	8-98203-165-0	01	1	1410-	●

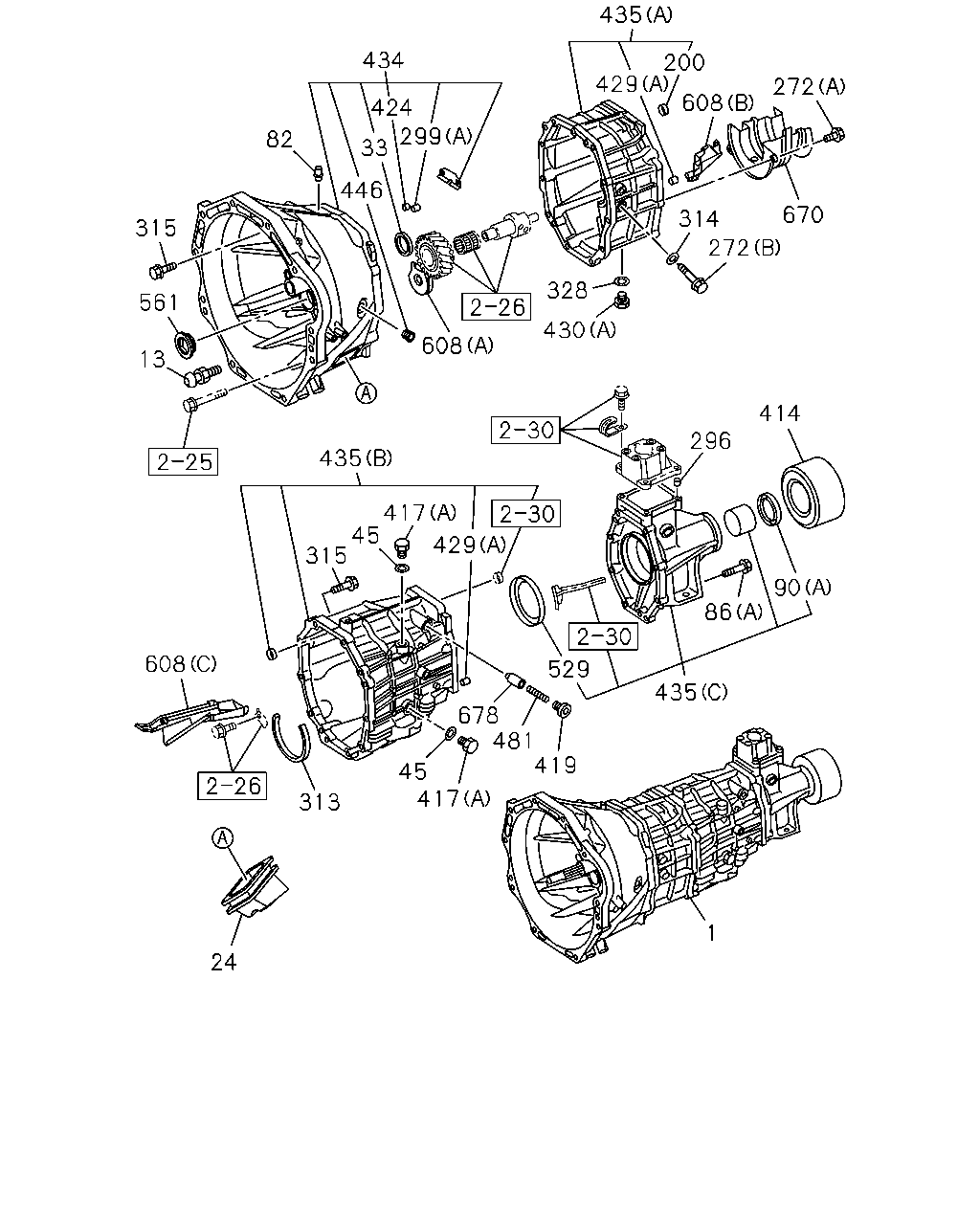

434 424 82 446 33 299 315 561 13 435 417 45 315 429 529 435 86 90 296 414 272 670 314 328 430 608 272 200 429 435 419 481 678 417 45 1 313 24 608 608

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-98147-061-2	01	1	1410-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98147-062-3	01	1	1410-	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1410-	●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1410-	●
33	04.318 SEAL; OIL,FRT COVER,T/M	8-98203-098-0	01	1	1410-	●
45	04.105 GASKET; FILLER PLUG 4X2(TFB***)	8-97164-900-0	02	1	1410-	●
45	04.105 GASKET; FILLER PLUG 4X4(TFS***)	8-97164-900-0	01	1	1410-	●
82	04.105 PLUG; SCREW,CASE	8-98203-115-0	01	1	1410-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) (A)	8-98203-180-0	08	1	1410-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) (B)	8-98203-112-0	04	1	1410-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1410-	●	●
90	04.318 SEAL; OIL,RR COVER (A)	8-98203-102-0	01	1	1410-	●
90	04.318 SEAL; OIL,RR COVER 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1410-	●	●
200	04.317 BUSHING; SHIFT FORK SHAFT	8-89048-304-0	01	1	1410-	●
272	00.683 BOLT (A)	8-89048-559-0	02	1	1410-	●
272	00.683 BOLT (B)	8-98203-117-0	01	1	1410-	●
296	04.510 PIN; QUAD BOX TO CASE	8-98203-099-0	02	1	1410-	●
299	04.317 PLUG; SHIFTER ROD (A)	8-98203-096-0	02	1	1410-	●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1410-	●	●
313	04.318 SEAL; OIL	8-98203-113-0	01	1	1410-	●
314	04.318 GASKET; CASE	8-98203-119-0	01	1	1410-	●
315	04.104 BOLT; CASE	8-98203-120-0	16	1	1410-	●
328	04.105 GASKET; PLUG	8-97164-900-0	01	1	1410-	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98203-251-0	01	1	1410-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (A)	8-98203-118-0	02	1	1410-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-98203-118-0	01	1	1410-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	1410-	●	●
419	04.317 PLUG; RR COVER 04.105	8-97164-926-0	01	1	1410-	●
424	04.384 RING; INSERT 04.510	8-98203-099-0	02	1	1410-	●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (A)	8-98203-096-0	04	1	1410-	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (A)	8-98203-096-0	02	1	1410-	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1410-	●	●
430	04.105 PLUG; OIL DRAIN (A)	8-97164-953-0	01	1	1410-	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	1410-	●	●
434	00.683 HOUSING; CLU	8-98203-097-0	01	1	1410-	●
435	04.103 CASE; TRANS 4X2(TFB***) (B)	8-98203-111-0	01	1	1410-	●
435	04.103 CASE; TRANS 4X2(TFB***) (C)	8-98203-177-0	01	1	1410-	●
435	04.103 CASE; TRANS (A)	8-98203-088-0	01	1	1410-	●
435	04.103 CASE; TRANS 4X4(TFS***) (E)	8-98203-101-0	01	1	1410-	●
435	04.103 CASE; TRANS 4X4(TFS***) (D)	8-98203-108-0	01	1	1410-	●
446	04.105 PLUG; CASE,TRANS 4X2(TFB***)	8-98203-100-0	01	1	1410-	●
446	04.105 PLUG; CASE,TRANS 4X4(TFS***)	8-98203-100-0	02	1	1410-	●
481	04.317 SPRING; SHIFTER ROD,OIL PUMP	8-98203-169-0	01	1	1410-	●
529	04.083 BRACKET; MISSION CASE 4X2(TFB***)	8-98203-179-0	01	1	1410-	●
561	04.104 PLUG	8-98203-114-0	01	1	1410-	●
608	04.317 GUTTER; OIL (A)	8-98203-103-0	01	1	1410-	●
608	04.317 GUTTER; OIL (B)	8-98203-104-0	01	1	1410-	●
608	04.317 GUTTER; OIL (C)	8-98203-105-0	01	1	1410-	●
670	04.457 BAFFLE	8-98203-106-0	01	1	1410-	●
678	04.317 PIN	8-98203-165-0	01	1	1410-	●

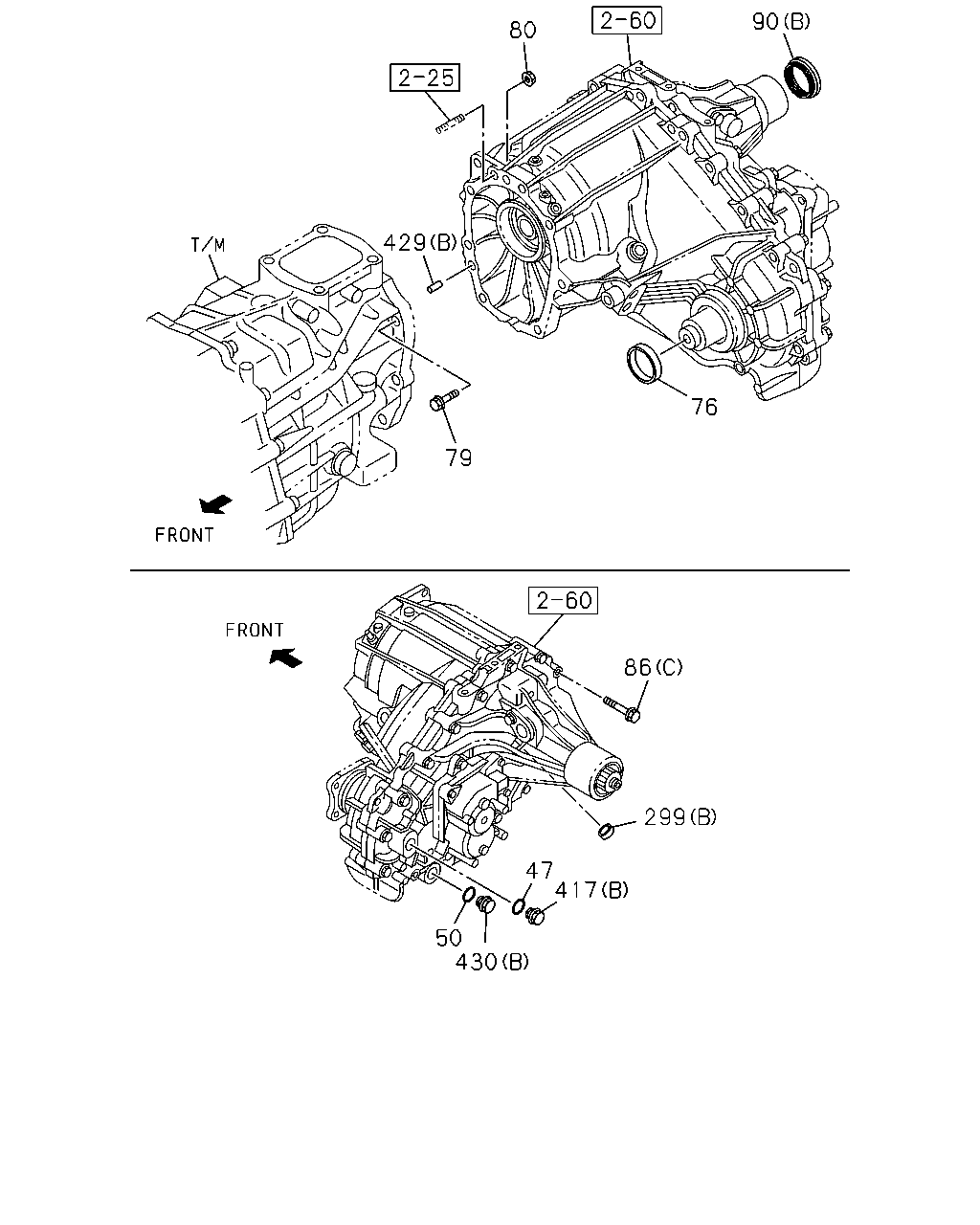

80 90 429 79 76 86 299 47 417 50 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	1410-	●	●
50	04.105 GASKET; DRAIN PLUG 4X4(TFS***) ID=17	8-97115-712-0	01	1	1410-	●	●
76	04.510 SEAL; OIL,TRANSFER CASE 4X4(TFS***) NOK	8-97238-999-0	01	1	1410-	●	●
79	04.510 BOLT; TRANSFER CASE 00.685 M10X45 FLANGE	0-28051-045-0	07	1	1410-		●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	1410-	●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	1410-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) (A)	8-98203-180-0	08	1	1410-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) (B)	8-98203-112-0	04	1	1410-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1410-	●	●
90	04.318 SEAL; OIL,RR COVER (A)	8-98203-102-0	01	1	1410-	●
90	04.318 SEAL; OIL,RR COVER 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1410-	●	●
299	04.317 PLUG; SHIFTER ROD (A)	8-98203-096-0	02	1	1410-	●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1410-	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (A)	8-98203-118-0	02	1	1410-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-98203-118-0	01	1	1410-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	1410-	●	●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (A)	8-98203-096-0	04	1	1410-	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (A)	8-98203-096-0	02	1	1410-	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1410-	●	●
430	04.105 PLUG; OIL DRAIN (A)	8-97164-953-0	01	1	1410-	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	1410-	●	●
