Isuzu WW
▶
TRUCKS
▶
FSR
▶
11139 - FSR-R(EU)EU4 EXC.SPA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

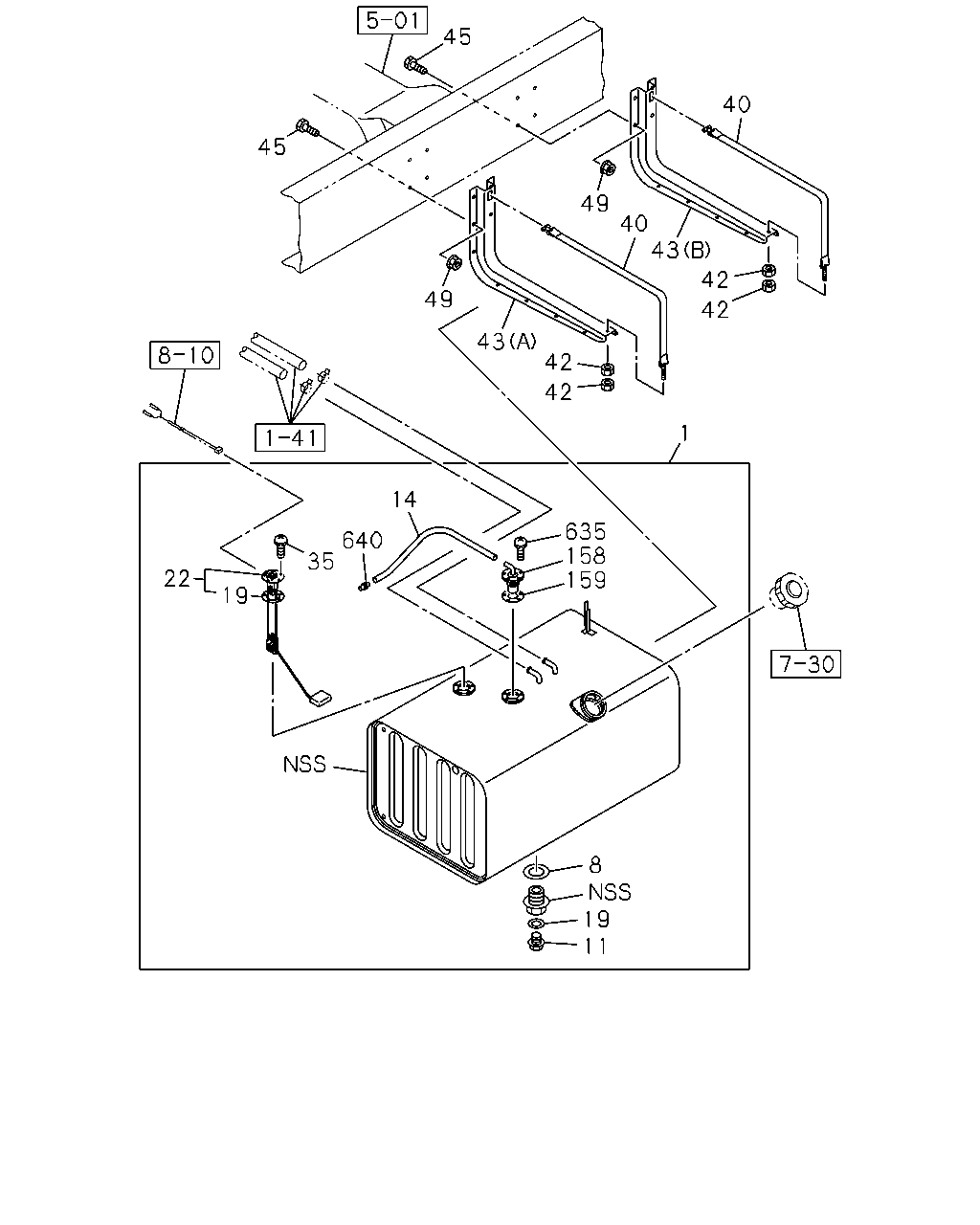

1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#15159) — 22 parça
45
40
45
49
40
43
42
49
42
43
42
42
1
14
635
158
159
640
35
22
19
8
19
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
820X500X400 140L
8-98113-920-0
01
1
0803-0808
1
TANK; FUEL
820X500X400 140L
8-98130-975-1
01
1
0809-1103
1
TANK; FUEL
820X500X400 140L
8-98170-957-1
01
1
1104-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=30
8-98067-041-0
01
1
0803-
11
PLUG; DRAIN,FUEL TANK
M18
8-98068-006-0
01
1
0803-
14
HOSE; BREATHER,OUTLET
L=460
8-98082-184-1
01
1
0803-0808
14
HOSE; BREATHER,OUTLET
L=430
8-98131-037-0
01
1
0809-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
0803-
22
UNIT; FUEL TANK
8-98113-181-0
01
1
0803-1103
22
UNIT; FUEL TANK
8-98099-319-0
01
1
1104-
35
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
0-36220-512-0
05
1
0803-
40
BELT; SUPPORT,FUEL TANK
L=925
8-98049-769-1
02
1
0803-
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
0803-
43
BRACKET; FUEL TANK
(B)
8-98049-768-1
01
1
0803-
43
BRACKET; FUEL TANK
(A)
8-98083-790-0
01
1
0803-1312
43
BRACKET; FUEL TANK
(A)
8-98127-229-0
01
1
1401-
45
BOLT; BRKT,FUEL TANK
M10X35 FLANGE
0-28651-035-0
08
1
0803-
49
NUT; BRKT
M10 FLANGE
0-91180-210-0
08
1
0803-
158
VALVE; ROLL OVER & FLOAT
8-98095-223-0
01
1
0803-
159
SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67
1-83149-003-0
01
1
0803-
635
SCREW; ROLL OVER & FLOAT VALVE
M5X10 W/LK WASHER
0-36220-510-0
05
1
0803-
640
VENTILATOR; HOSE,BREATHER
8-98092-398-0
01
1
0803-
