Isuzu WW
▶
PICKUP
▶
TFR
▶
51582 - TFR/TFS RHD EUROPE
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

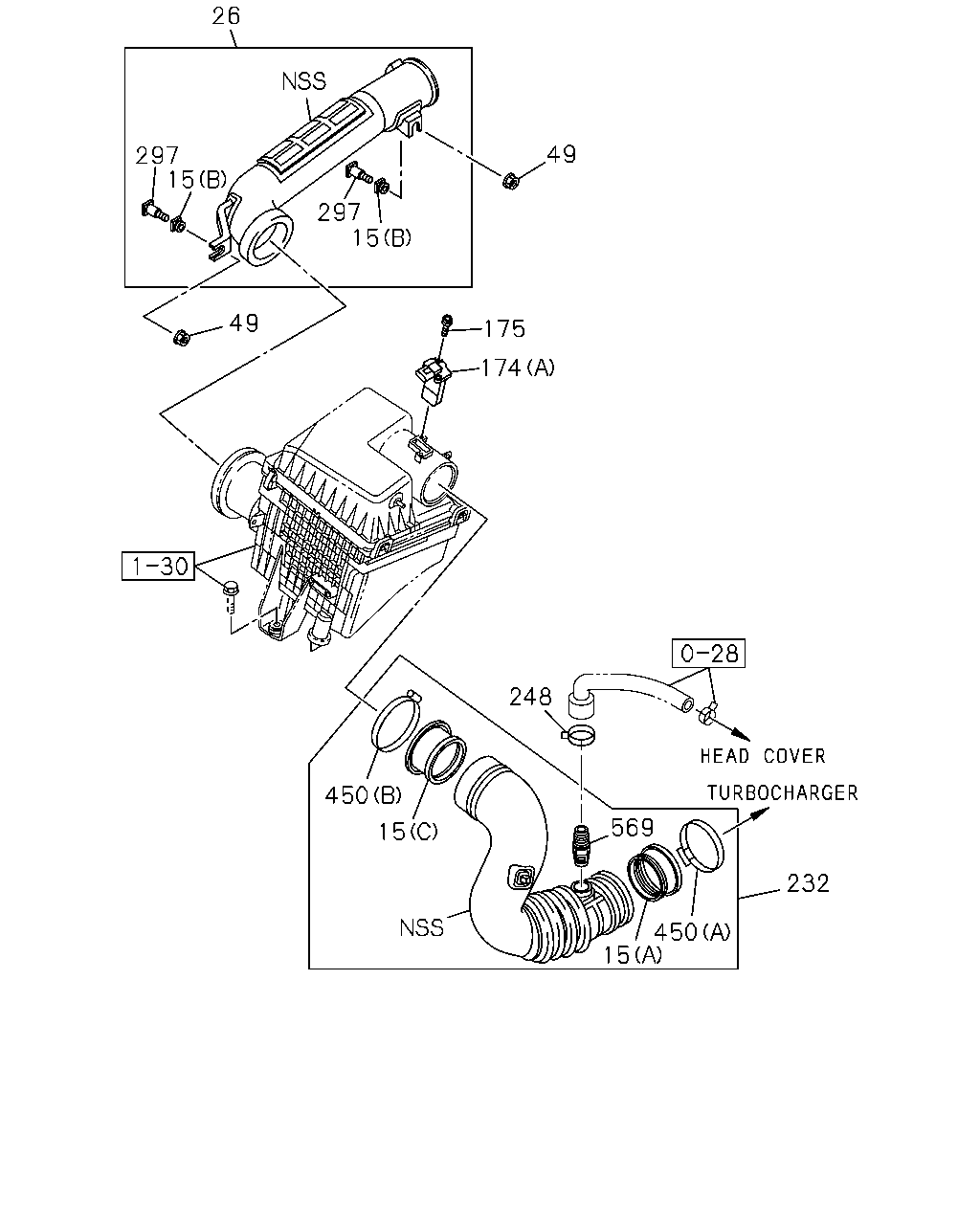

1-31 — AIR DUCT
(#151580) — 16 parça
◀
[131A] SENSOR (2 parça)
[131A] DUCT (14 parça)
▶
174
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
174
03.682 SENSOR; AIR FLOW CONT
(A)
8-97601-967-0
01
1
1410-
174
03.682 SENSOR; AIR FLOW CONT
(B)
8-98191-248-0
01
1
1410-
49
175
174
248
232
569
15
450
49
297
15
15
297
26
450
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
03.417 INSULATOR
(A)
8-98137-140-0
01
1
1410-
15
03.417 INSULATOR
(B)
8-98203-901-0
02
1
1410-
15
03.417 INSULATOR
(C)
8-98214-036-0
01
1
1410-
26
03.417 DUCT; AIR INT
8-98104-472-1
01
1
1410-
49
03.417 NUT; AIR DUCT
01.062 M6 FLANGE
0-91180-106-0
02
1
1410-
174
03.682 SENSOR; AIR FLOW CONT
(A)
8-97601-967-0
01
1
1410-
174
03.682 SENSOR; AIR FLOW CONT
(B)
8-98191-248-0
01
1
1410-
175
03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1410-
232
03.417 HOSE; CONN
8-98212-081-0
01
1
1410-
248
03.417 CLIP; RUBBER HOSE
03.342 ID=26.2
8-98202-540-0
01
1
1410-
297
03.417 BOLT; DUCT
8-98203-900-0
02
1
1410-
450
03.417 CLAMP; HOSE
(B)
8-98136-623-0
01
1
1410-
450
03.417 CLAMP; HOSE
(A)
8-98136-624-0
01
1
1410-
569
03.417 HEATER; PCV
8-98192-467-0
01
1
1410-
