0-66 — GENERATOR (#151575) — 14 parça

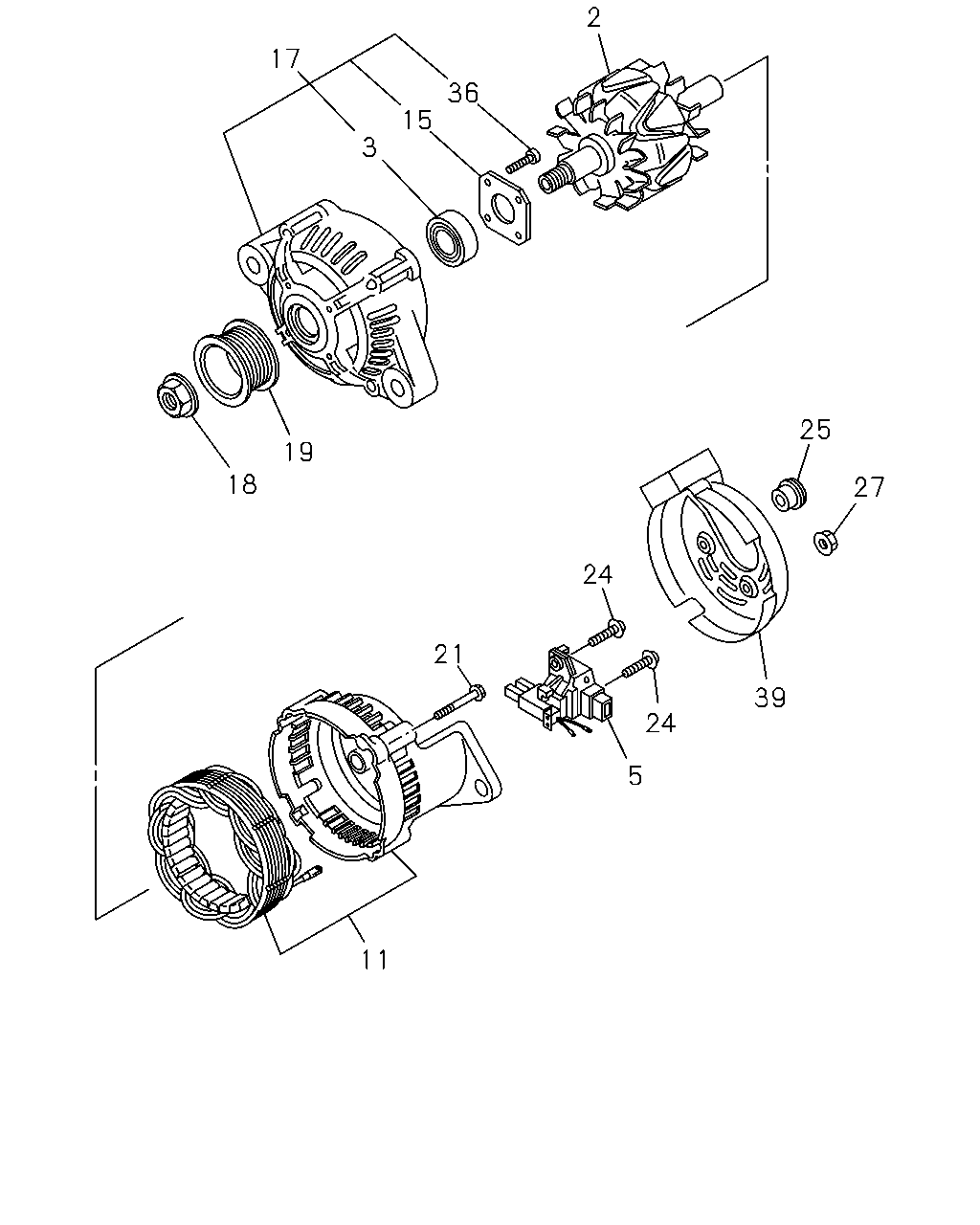

çizim 449782
2 36 15 3 17 19 18 11 21 24 24 5 39 27 25
BalonParca AdiParca NoAdetTipApplied Date
2 02.279 ROTOR; GEN
ASM PART: A = 8-98229-071-1, 98229071 		8-97378-924-0 01 1 -
3 02.306 BEARING; ROTOR,GEN
ASM PART: A = 8-98229-071-1, 98229071 		8-98228-965-0 01 1 -
5 02.291 HOLDER; BRUSH,GEN
ASM PART: A = 8-98229-071-1, 98229071 		8-97378-926-0 01 1 -
11 02.305 COVER; RR,GEN
ASM PART: A = 8-98229-071-1, 98229071 		8-98242-367-0 01 1 -
15 02.279 RETAINER; ROTOR,GEN
02.307 ASM PART: A = 8-98229-071-1, 98229071 		8-94406-982-0 01 1 -
17 02.305 COVER ASM; FRT,GEN
ASM PART: A = 8-98229-071-1, 98229071 		8-98229-789-0 01 1 -
18 02.274 NUT; PULLEY,GEN
02.280 ASM PART: A = 8-98229-071-1, 98229071 		8-94123-043-0 01 1 -
19 02.274 PULLEY; GEN
ASM PART: A = 8-98229-071-1, 98229071 		8-98000-022-0 01 1 -
21 02.316 BOLT; THROUGH,GEN
ASM PART: A = 8-98229-071-1, 98229071 		8-97319-752-0 04 1 -
24 02.307 SCREW; RECTIFIER,GEN
ASM PART: A = 8-98229-071-1, 98229071 		8-97032-313-0 03 1 -
25 02.313 BUSHING; INSULATION TERMINAL
ASM PART: A = 8-98229-071-1, 98229071 		8-98196-584-0 01 1 -
27 02.291 NUT; RECTIFIER,GEN
ASM PART: A = 8-98229-071-1, 98229071 		8-97319-772-0 03 1 -
36 02.277 SCREW; FRT COVER
ASM PART: A = 8-98229-071-1, 98229071 		8-97142-562-0 04 1 -
39 02.297 COVER; END,RR COVER,GEN
ASM PART: A = 8-98229-071-1, 98229071 		8-97378-928-0 01 1 -
