Isuzu WW
▶
PICKUP
▶
TFR
▶
51582 - TFR/TFS RHD EUROPE
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#151571) — 58 parça
◀

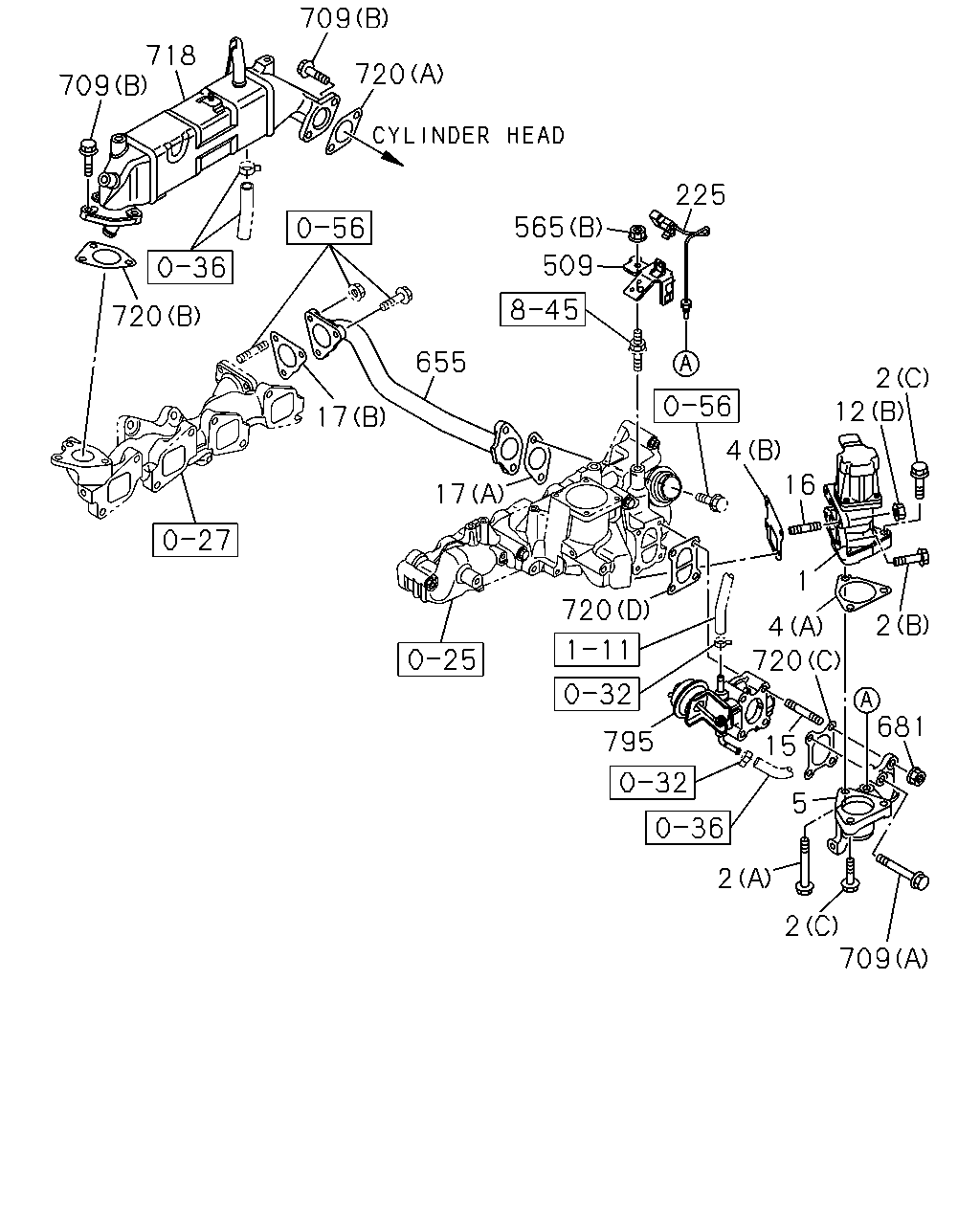

[057A] EGR VALVE AND EGR COOLER (27 parça)

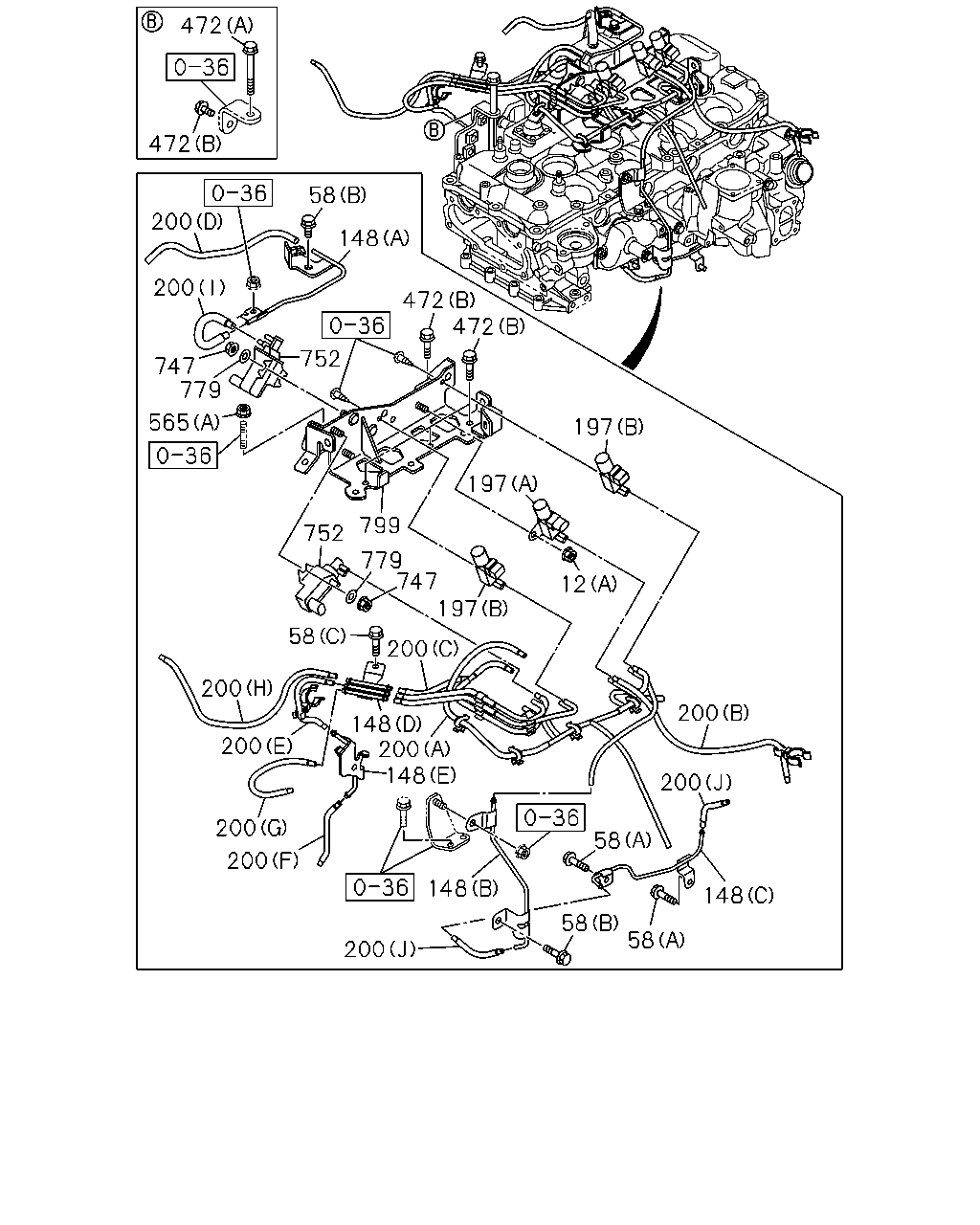

[057A] VACUUM HOSE AND SENSOR (31 parça)
▶
709
718
709
720
720
565
225
509
655
17
17
720
1
16
4
2
12
4
720
681
2
15
5
2
2
709
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.670 VALVE; EGR
8-98164-786-1
01
1
1410-
2
03.670 BOLT; EGR VLV
00.206 (A) M8X70 FLANGE
0-28050-870-0
01
1
1410-
2
03.670 BOLT; EGR VLV
06.216 (B) M8X25 FLANGE
0-28650-825-0
02
1
1410-
2
03.670 BOLT; EGR VLV
00.685 (C) M8X40 FLANGE
0-28650-840-0
02
1
1410-
4
03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-98167-347-0
01
1
1410-
4
03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-98167-348-0
01
1
1410-
5
03.670 ADAPTER ASM
8-98151-210-0
01
1
1410-
12
03.671 NUT; EGR VLV
01.062 (A) M8 FLANGE
0-91180-108-0
01
1
1410-
12
03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE
0-91180-208-0
02
1
1410-
15
03.670 STUD; EGR PIPE
03.275 M8X60 L=72
8-94156-940-0
02
1
1410-
16
03.275 STUD; EGR VLV
M8X25 L=37
0-41010-825-0
02
1
1410-
17
03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (A)
8-98150-745-0
01
1
1410-
17
03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-98191-943-0
01
1
1410-
225
03.670 SENSOR; THERMO,EGR
8-98238-241-0
01
1
1410-
509
03.671 BRACKET; HARNESS
8-98166-378-2
01
1
1410-
565
03.417 NUT; BRKT
01.062 (A) M8 FLANGE
0-91180-108-0
01
1
1410-
565
03.417 NUT; BRKT
01.540 (B) M8 FLANGE
0-91180-208-0
02
1
1410-
655
03.675 PIPE; EGR VLV
01.540
8-98151-211-0
01
1
1410-
681
03.671 NUT; EGR PIPE
01.540 M8 FLANGE
0-91180-208-0
02
1
1410-
709
03.670 BOLT; EGR COOLER
01.252 (A) M8X80 FLANGE
0-28050-880-0
02
1
1410-
709
03.670 BOLT; EGR COOLER
03.417 (B) M8X23 FLANGE
8-97378-077-0
05
1
1410-
718
03.337 COOLER; EGR
8-98151-206-1
01
1
1410-
720
03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (A)
8-97357-684-3
01
1
1410-
720
03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (B)
8-98063-284-1
01
1
1410-
720
03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (C)
8-98165-072-0
01
1
1410-
720
03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (D)
8-98165-073-0
01
1
1410-
795
03.670 VALVE; EGR COOLER BYPASS
8-98151-207-0
01
1
1410-
472
472
200
200
747
565
752
779
148
58
472
472
197
197
799
779
752
747
197
12
200
200
148
58
58
58
148
200
200
200
200
200
58
200
148
200
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
03.671 NUT; EGR VLV
01.062 (A) M8 FLANGE
0-91180-108-0
01
1
1410-
12
03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE
0-91180-208-0
02
1
1410-
58
03.417 BOLT; PIPE
09.242 (A) M6X16 FLANGE
0-28050-616-0
02
1
1410-
58
03.417 BOLT; PIPE
02.343 (B) M8X16 FLANGE
0-28050-816-0
02
1
1410-
58
03.417 BOLT; PIPE
03.275 (C) M8X25 FLANGE
0-28050-825-0
01
1
1410-
148
03.675 PIPE; VAC
(A)
8-98162-920-0
01
1
1410-
148
03.675 PIPE; VAC
(B)
8-98162-921-1
01
1
1410-
148
03.675 PIPE; VAC
(C)
8-98164-735-1
01
1
1410-
148
03.675 PIPE; VAC
(D)
8-98178-322-0
01
1
1410-
148
03.675 PIPE; VAC
(E)
8-98178-323-1
01
1
1410-
197
03.670 VALVE; VAC SWITCHING
(A)
8-94375-331-1
01
1
1410-
197
03.670 VALVE; VAC SWITCHING
(B)
8-94384-335-0
02
1
1410-
200
03.675 HOSE; VAC
(A)
8-98178-201-2
01
1
1410-
200
03.675 HOSE; VAC
(B)
8-98178-202-3
01
1
1410-
200
03.675 HOSE; VAC
(C)
8-98178-203-2
01
1
1410-
200
03.675 HOSE; VAC
(D)
8-98178-206-1
01
1
1410-
200
03.675 HOSE; VAC
(E)
8-98178-207-1
01
1
1410-
200
03.675 HOSE; VAC
(F)
8-98178-208-1
01
1
1410-
200
03.675 HOSE; VAC
(G)
8-98178-209-0
01
1
1410-
200
03.675 HOSE; VAC
(H)
8-98178-210-0
01
1
1410-
200
03.675 HOSE; VAC
(I)
8-98178-211-1
01
1
1410-
200
03.675 HOSE; VAC
(J)
8-98178-378-0
02
1
1410-
472
03.671 BOLT; BRKT
04.338 (B) M8X20 FLANGE
0-28050-820-0
05
1
1410-
472
03.671 BOLT; BRKT
00.206 (A) M8X70 FLANGE
0-28050-870-0
01
1
1410-
565
03.417 NUT; BRKT
01.062 (A) M8 FLANGE
0-91180-108-0
01
1
1410-
565
03.417 NUT; BRKT
01.540 (B) M8 FLANGE
0-91180-208-0
02
1
1410-
747
03.671 NUT; VAC REG VALVE
01.062 M8 FLANGE
0-91180-108-0
04
1
1410-
752
03.670 VALVE; EVRV
8-98116-260-0
02
1
1410-
779
03.671 WASHER; VALVE
06.168 ID=8.4 OD=18
0-91610-608-0
04
1
1410-
795
03.670 VALVE; EGR COOLER BYPASS
8-98151-207-0
01
1
1410-
799
03.670 BRACKET; VSV
8-98158-714-3
01
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
