Isuzu WW
▶
PICKUP
▶
TFR
▶
51582 - TFR/TFS RHD EUROPE
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#151553) — 43 parça
◀

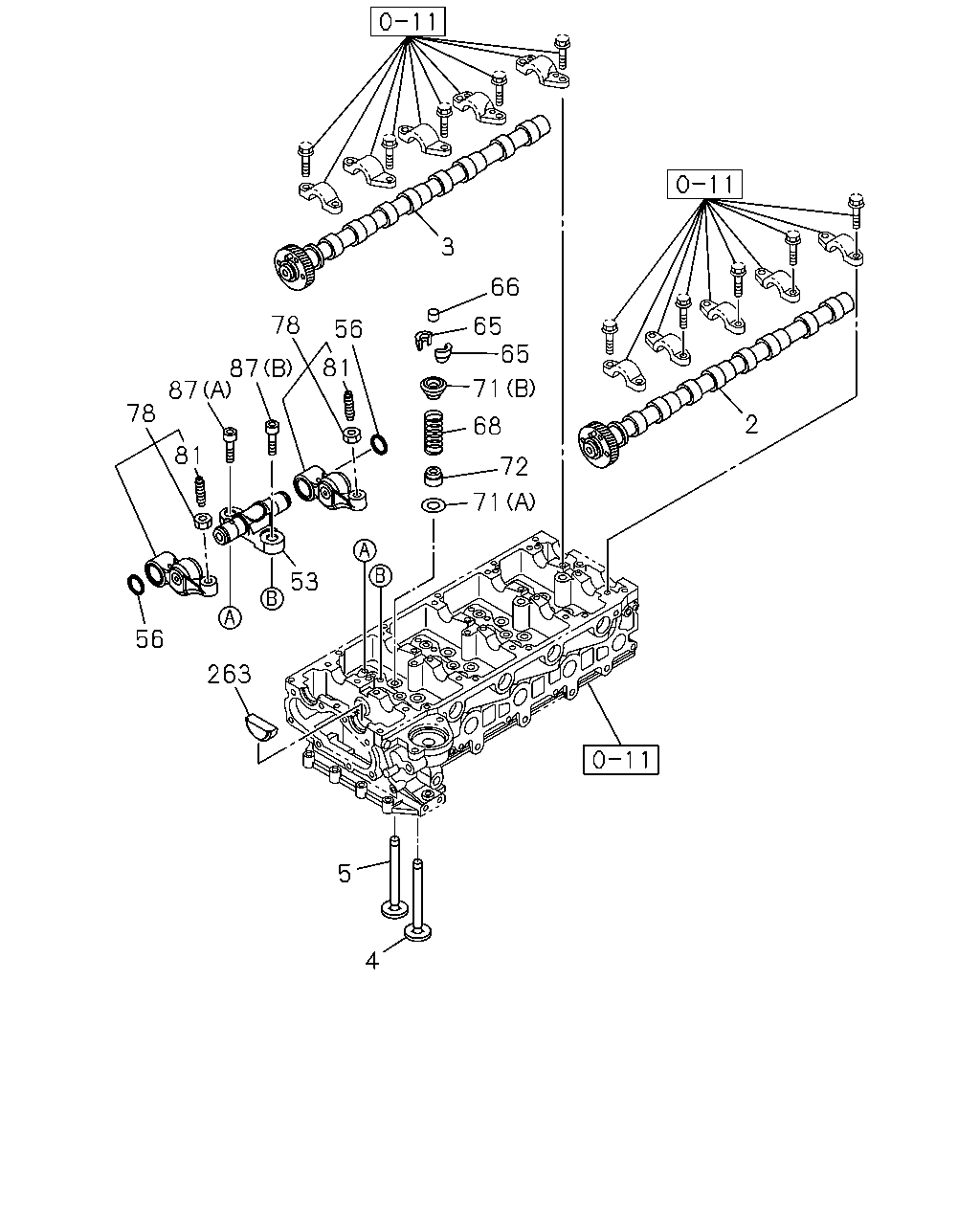

[014A] ROCKER ARM,VALVE AND CAMSHAFT (18 parça)

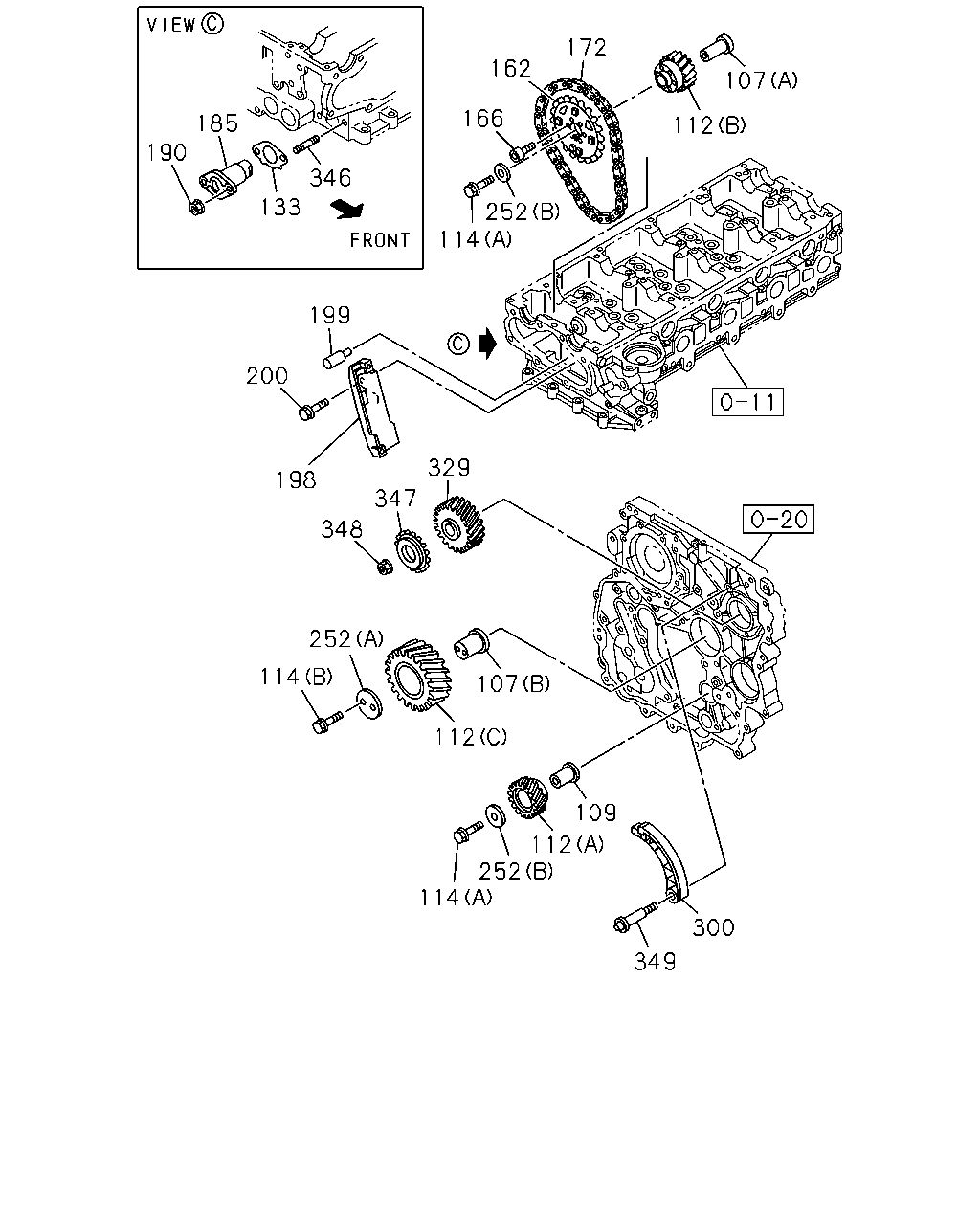

[014A] IDLE GEAR (25 parça)
▶
3
56
78
87
87
78
53
263
56
5
4
71
72
68
71
65
65
66
2
81
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
00.519 CAMSHAFT; INL
8-97328-642-8
01
1
1410-
3
00.519 CAMSHAFT; EXH
8-97328-644-8
01
1
1410-
4
00.296 VALVE; INL
8-97309-675-1
08
1
1410-
5
00.297 VALVE; EXH
8-97309-677-1
08
1
1410-
53
00.353 SHAFT; ROCKER ARM
INLET
8-97364-809-2
04
1
1410-
53
00.353 SHAFT; ROCKER ARM
EXHAUST
8-97364-811-2
04
1
1410-
56
00.349 RING; SNAP,ROCKER ARM
8-98109-470-0
16
1
1410-
65
00.310 COLLAR; SPLIT
8-94239-501-0
32
1
1410-
66
00.303 CAP; VLV STEM END
8-98147-945-0
16
1
1410-
68
00.303 SPRING; VLV
H=49 NATURAL
8-97311-669-0
16
1
1410-
71
00.309 SEAT; SPR
(A) OD=31
8-97144-584-0
16
1
1410-
71
00.309 SEAT; SPR
(B) OD=29.5
8-97311-668-0
16
1
1410-
72
00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97328-647-0
16
1
1410-
78
00.333 ARM; ROCKER
8-98029-537-6
16
1
1410-
81
00.429 SCREW; ADJ,ROCKER ARM
M8 L=22
8-98029-893-0
16
1
1410-
87
00.349 BOLT; ROCKER SHAFT
(B) M8X25 HEX SOCKET
0-58330-825-0
08
1
1410-
87
00.349 BOLT; ROCKER SHAFT
(A) M8X40 HEX SOCKET
0-58330-840-0
08
1
1410-
263
00.529 GASKET; CAM END
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97947-079-0
04
1
1410-
185
190
346
133
107
112
172
162
166
252
114
199
200
329
347
348
198
252
114
107
112
109
112
252
114
300
349
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
00.724 SHAFT; IDLE GEAR
(B)
8-97312-315-2
01
1
1410-
107
00.724 SHAFT; IDLE GEAR
(A)
8-97312-322-1
01
1
1410-
109
00.724 SHAFT; IDLE GEAR
8-97312-319-1
01
1
1410-
112
00.724 GEAR; IDLE
(C) Z=80
8-98021-050-2
01
1
1410-
112
00.724 GEAR; IDLE
(A) Z=34
8-98021-052-1
01
1
1410-
112
00.724 GEAR; IDLE
(B) Z=35
8-98021-053-3
01
1
1410-
114
00.724 BOLT; IDLE GEAR
(B) M10X60 FLANGE
0-28061-060-0
02
1
1410-
114
00.724 BOLT; IDLE GEAR
(A) M12X60 FLANGE
0-28161-260-0
02
1
1410-
133
00.356 GASKET; CHAIN TENSIONER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97312-336-0
01
1
1410-
162
00.736 SPROCKET; IDLE
8-97312-331-1
01
1
1410-
166
00.724 BOLT; SPROCKET TO LAYSHAFT
M6X16 HEX SOCKET
0-58330-616-0
06
1
1410-
172
00.724 CHAIN; TIMING,CM/SHF
8-98119-279-1
01
1
1410-
185
00.724 TENSIONER; CHAIN
8-98039-754-1
01
1
1410-
190
00.724 NUT; CHAIN TENSIONER
01.540 M6 FLANGE
0-91180-206-0
02
1
1410-
198
00.724 GUIDE; TIMING CHAIN
8-98173-188-0
01
1
1410-
199
00.724 JET; OIL,TIMING CHAIN
8-97356-061-1
01
1
1410-
200
00.724 BOLT; CHAIN GUIDE,LWR
01.064 M8X20
1-09070-120-1
02
1
1410-
252
00.724 FLANGE; IDLE SHAFT
(A)
8-97312-316-1
01
1
1410-
252
00.724 FLANGE; IDLE SHAFT
(B)
8-97312-323-1
02
1
1410-
300
00.724 LEVER; TENSION,TIMING CHAIN
8-98119-278-1
01
1
1410-
329
00.724 GEAR; INJ PUMP
Z=44
8-97312-298-3
01
1
1410-
346
00.429 STUD; CHAIN
01.062 M6X18 L=27
0-41010-618-0
02
1
1410-
347
00.429 SPROCKET; I/PUMP
8-97312-330-1
01
1
1410-
348
00.429 NUT; SPROCKET
M14 FLANGE
8-97312-423-2
01
1
1410-
349
00.429 PIVOT; CHAIN LEVER
8-97312-328-0
01
1
1410-
