Isuzu WW
▶
PICKUP
▶
TFR
▶
51582 - TFR/TFS RHD EUROPE
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

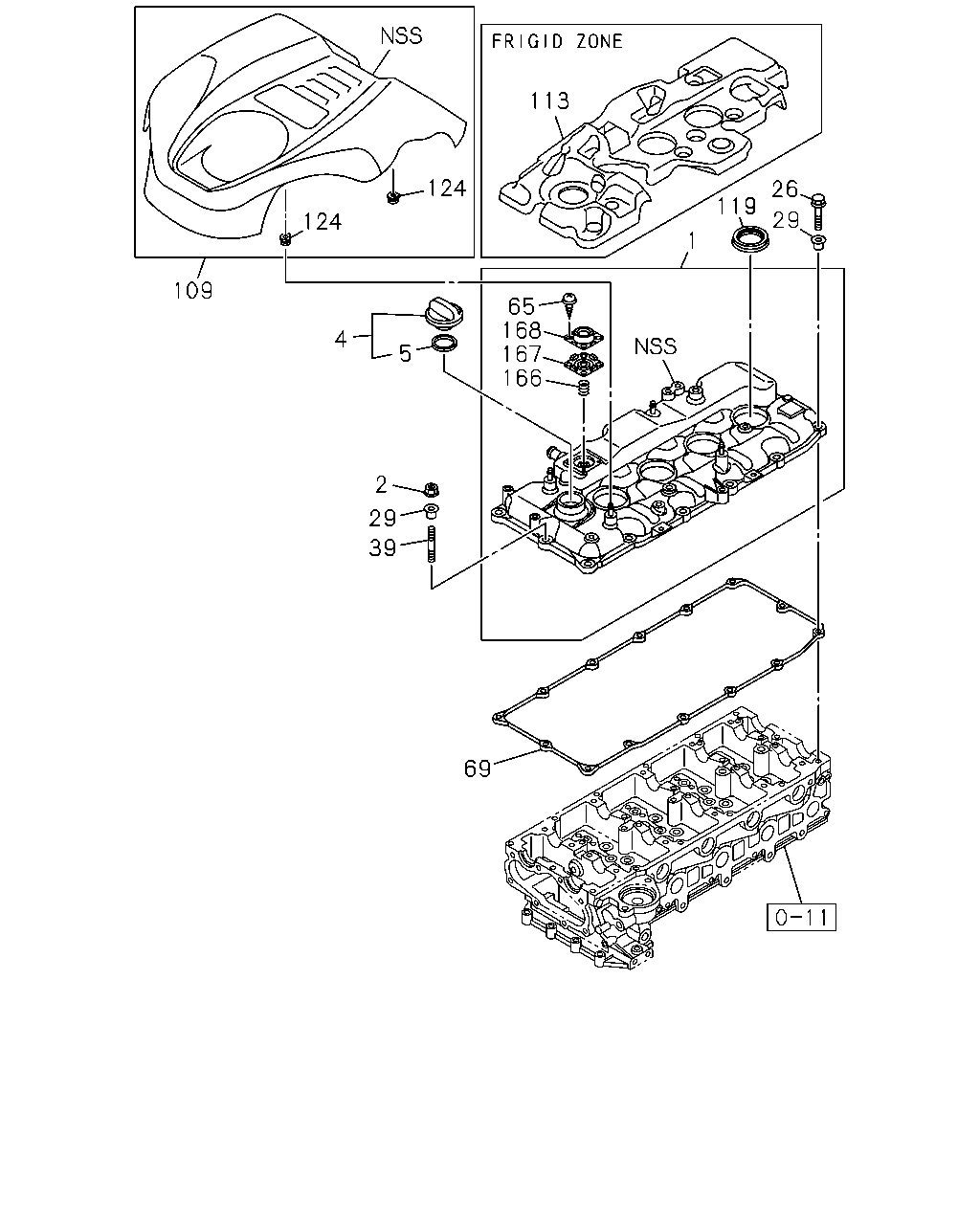

0-10 — CYLINDER HEAD COVER
(#151549) — 16 parça
69
29
26
119
113
65
1
166
167
168
2
39
29
5
4
124
109
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.386 COVER; CYL HD
8-98228-567-0
01
1
1410-
2
00.413 NUT; COVER,HD
01.540 M6 FLANGE
0-91180-206-0
01
1
1410-
4
01.758 CAP; OIL FILLER
8-98026-084-0
01
1
1410-
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-97918-298-0
01
1
1410-
26
08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE
0-28650-630-0
13
1
1410-
29
00.413 RUBBER; MTG,HD COVER
8-97361-811-1
14
1
1410-
39
00.413 STUD; COVER,HD
M6X30 L=38
0-41010-630-0
01
1
1410-
65
00.413 SCREW; ADAPTER
M5X10 W/LK WASHER
8-97366-592-0
04
1
1410-
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97945-338-0
01
1
1410-
109
00.386 COVER; ENG
8-98178-310-0
01
1
1410-
113
00.386 COVER; CYL HEAD COVER
FRIGID ZONE<YL3>
8-98190-662-1
01
1
1410-
119
00.386 COVER; SEAL,NOZZLE
8-98037-543-0
04
1
1410-
124
00.413 RUBBER; MTG,COVER
8-98269-869-0
04
1
1410-
166
00.283 SPRING; VENTILATOR
00.423
8-97365-998-0
01
1
1410-
167
00.283 DIAPHRAGM; VENTILATOR
8-98226-101-0
01
1
1410-
168
00.283 COVER; VENTILATOR
00.269
8-97365-992-0
01
1
1410-
