◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51581 - TFR/TFS LHD EUROPE ▶ 9 - Tools ▶ 9-33 - REAR BODY; GATE AND SIDE GUARD ▶
9-33 — REAR BODY; GATE AND SIDE GUARD (#151546) — 960 parça

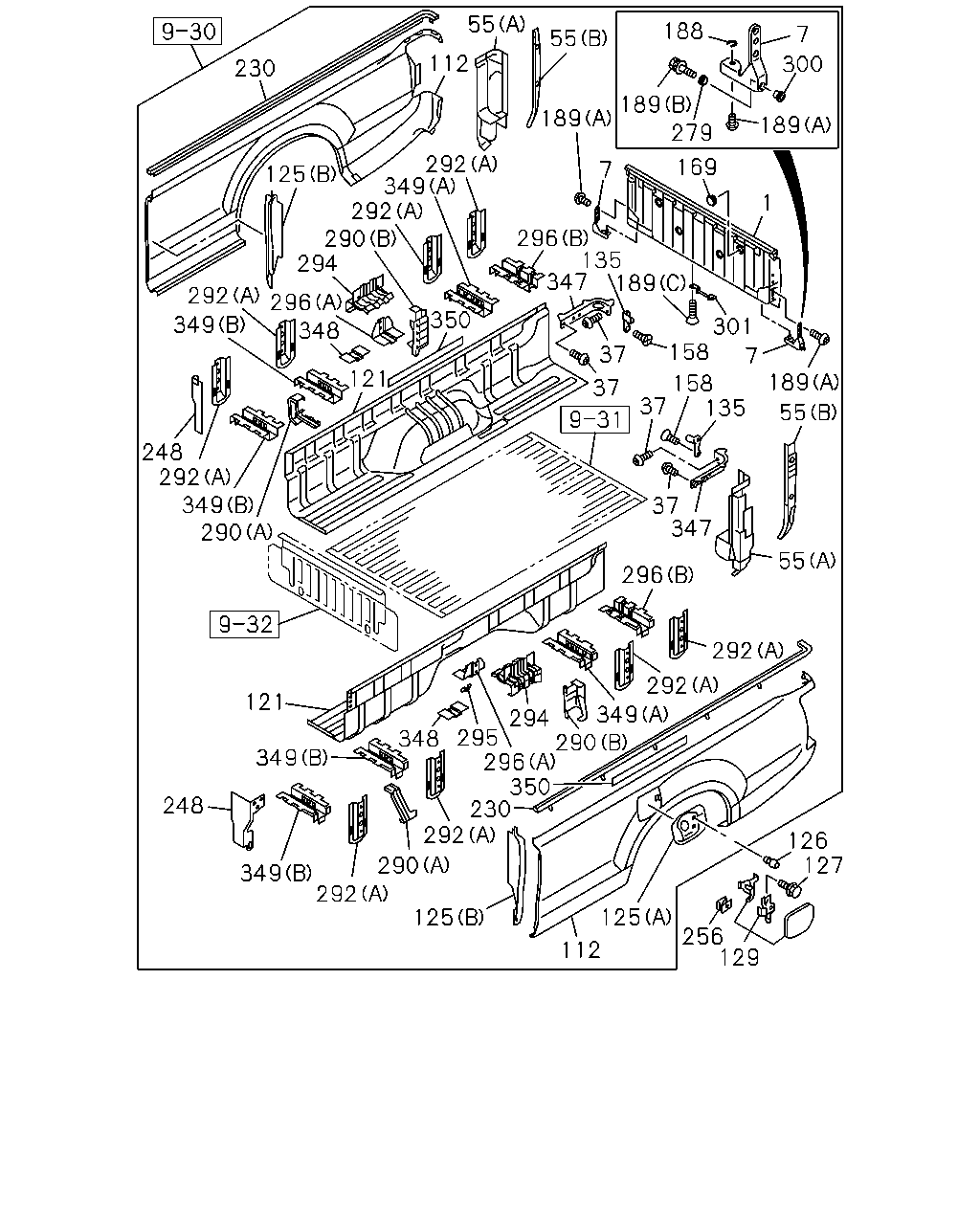

çizim 448587
230 55 112 55 189 125 292 349 292 290 294 296 292 349 348 350 121 248 292 349 290 188 7 300 189 189 279 169 1 7 296 135 347 189 301 37 37 158 158 7 189 55 135 37 37 347 55 296 121 349 348 295 294 292 292 349 290 296 350 230 292 290 292 349 248 125 112 125 129 256 127 126
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-362-9 01 1 1410- ● ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-362-9 01 1 1410- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) 		8-98198-539-2 01 1 1410- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98198-539-2 01 1 1410- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-948-0 01 1 1410- ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-949-0 01 1 1410- ● ● ● ● ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1410- ● ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1410- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1410-1505 ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1410-1505 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1410- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1410- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1410- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1410- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1410- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1410- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1410- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1410- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-558-9 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-558-9 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98205-935-1 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98205-935-1 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-548-9 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-549-7 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-553-8 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-555-6 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-316-6 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-318-6 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-608-4 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-609-4 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-868-4 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-869-4 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-234-7 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1410- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1410- ● ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1410- ● ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1410- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1410- ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1410- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1410- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1410- ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1410- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1410- ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1410- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1410- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1410- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1410- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1410- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1410- ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1410- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 1410- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1410- ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-110-0 04 1 1410- ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-97166-110-0 04 1 1410- ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1410- ● ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1410- ● ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1410- ● ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1410- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1410- ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-565-2 01 1 1410- ● ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-566-2 01 1 1410- ● ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-983-1 01 1 1410- ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-984-1 01 1 1410- ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-333-0 01 1 1410- ● ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-336-0 01 1 1410- ● ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98124-590-0 01 1 1410- ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98124-591-0 01 1 1410- ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1410- ● ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1410- ● ● ● ● ● ●

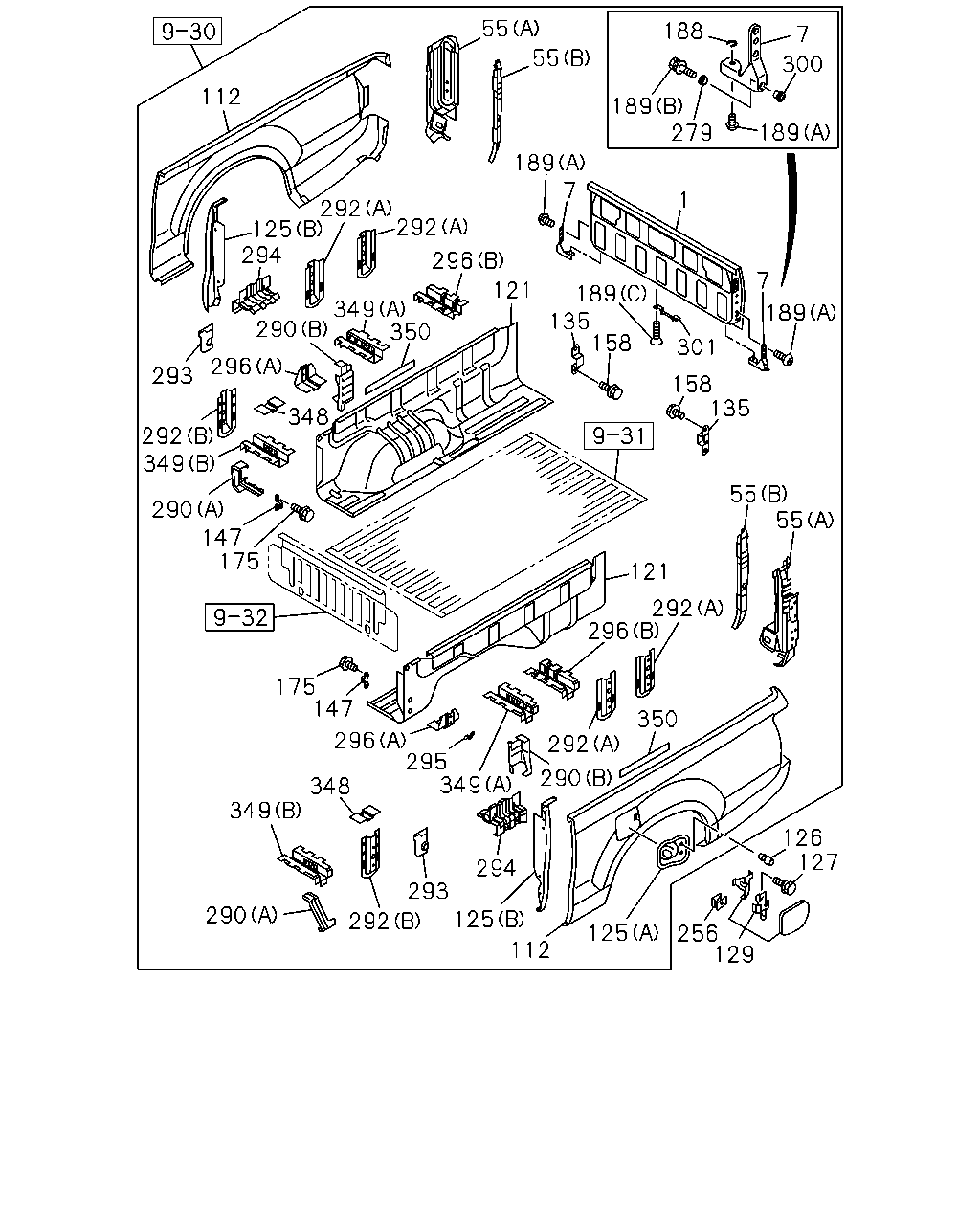

290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-543-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-544-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-134-1 01 1 1410- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98156-912-0 01 1 1410- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 04 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 08 1 1410- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-405-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1410- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-406-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1410- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1410- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1410- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1410- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1410- ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1410- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1410- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1410- ●

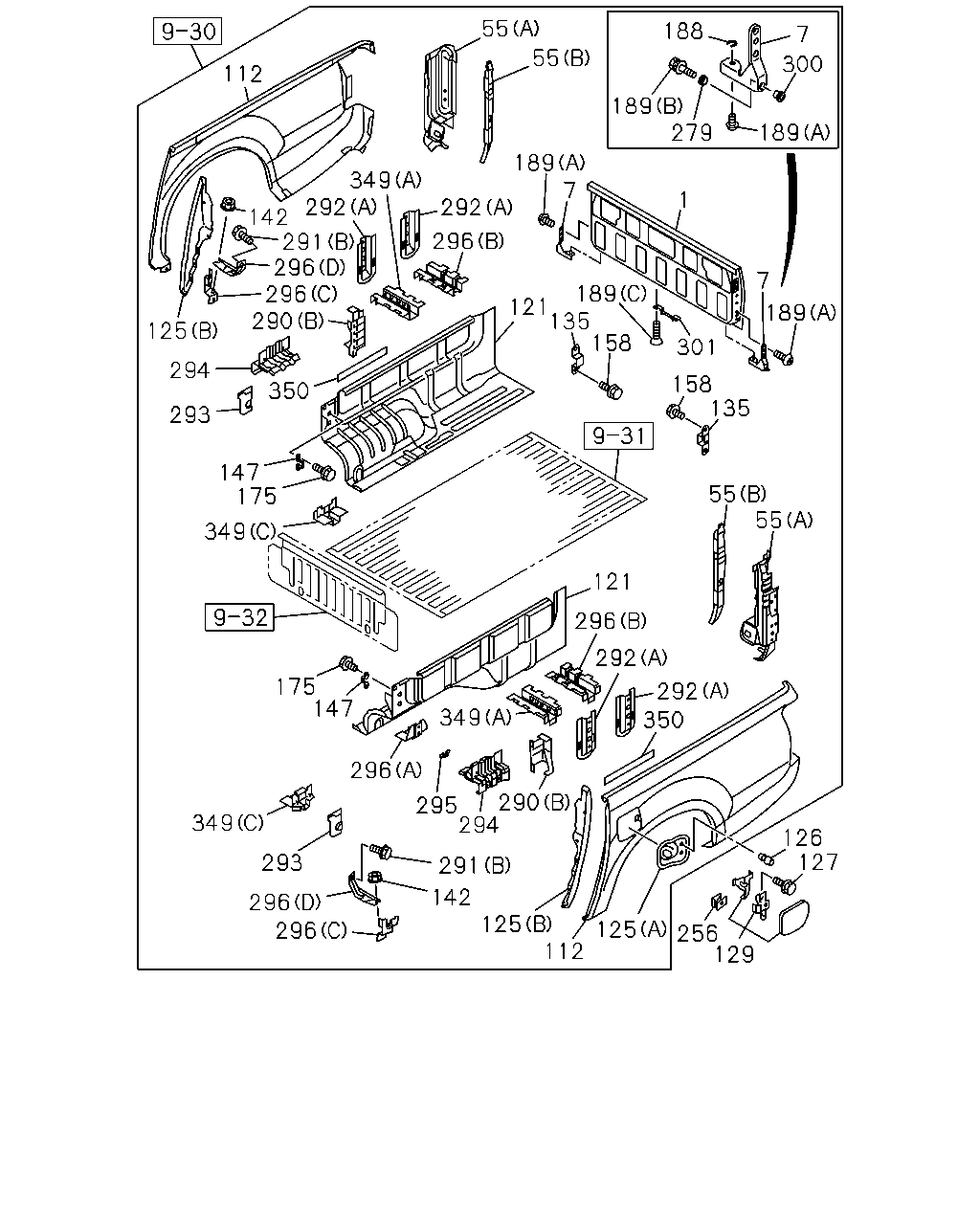

296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1410- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1410- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1506- ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1410- ● ● ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98053-899-0 01 1 1410- ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1410- ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-603-1 01 1 1410- ● ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-603-1 01 1 1410- ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-604-1 01 1 1410- ● ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-604-1 01 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) 		8-98104-619-0 01 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) 		8-98104-619-0 01 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-619-0 01 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-619-0 01 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-619-0 01 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-619-0 01 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-619-0 02 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-619-0 02 1 1410- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-613-2 02 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1410- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1410- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-650-1 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-650-1 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-651-1 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-651-1 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1410- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1410- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1410- ●
çizim 448880
55 188 55 112 125 292 294 292 189 189 7 279 189 300 293 290 296 292 349 296 189 7 1 7 121 158 189 135 350 348 349 290 175 147 301 135 158 55 121 55 292 96 175 147 296 295 349 292 290 350 348 349 298 290 292 294 125 112 256 126 127 129 125
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-362-9 01 1 1410- ● ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-362-9 01 1 1410- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) 		8-98198-539-2 01 1 1410- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98198-539-2 01 1 1410- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-948-0 01 1 1410- ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-949-0 01 1 1410- ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1410- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1410- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1410- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1410- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1410- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1410- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1410- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1410- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-558-9 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-558-9 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98205-935-1 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98205-935-1 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-548-9 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-549-7 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-553-8 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-555-6 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-316-6 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-318-6 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-608-4 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-609-4 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-868-4 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-869-4 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-234-7 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1410- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1410- ● ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1410- ● ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1410- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1410- ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1410- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1410- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1410- ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1410- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1410- ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1410- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1410- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1410- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1410- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1410- ●

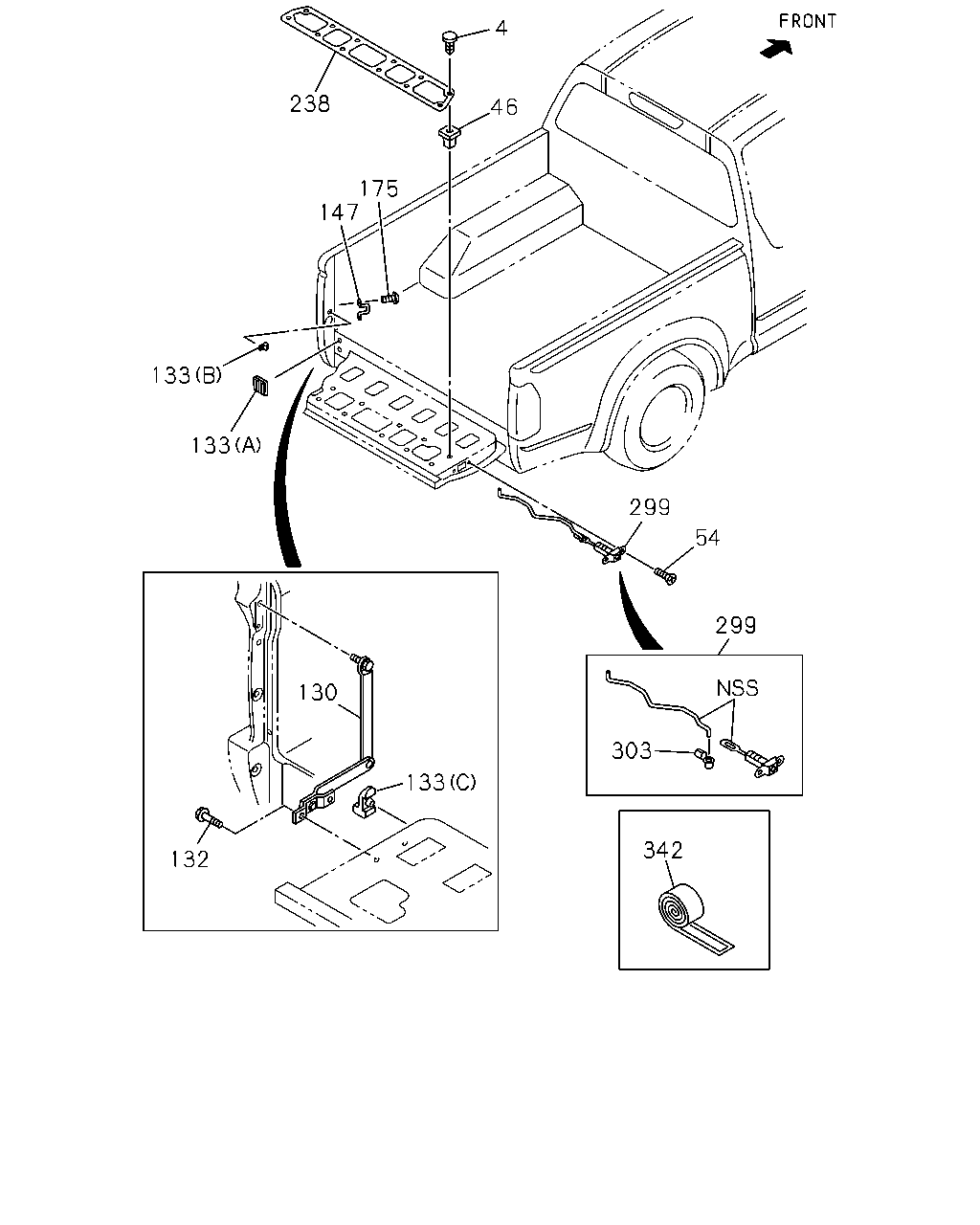

147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1410- ● ● ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1410- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1410- ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1410- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 1410- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1410- ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1410- ● ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1410- ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1410- ● ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1410- ● ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1410- ● ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1410- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1410- ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1410- ● ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1410- ● ● ● ● ● ●

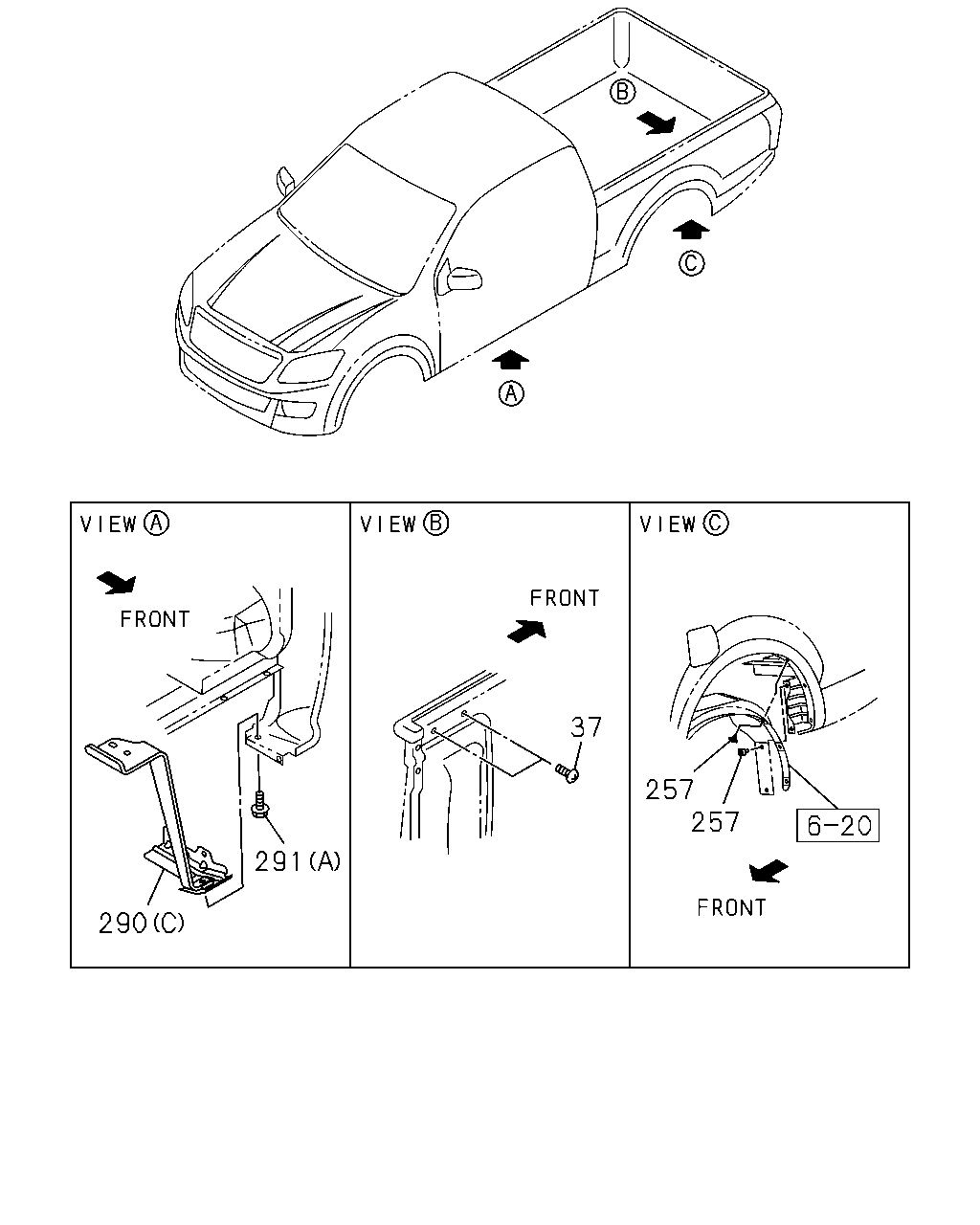

290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-543-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-544-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-134-1 01 1 1410- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98156-912-0 01 1 1410- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 04 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 08 1 1410- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-611-2 01 1 1410- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-611-2 01 1 1410- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1410- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-612-2 01 1 1410- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-612-2 01 1 1410- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1410- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-610-1 01 1 1410- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-611-1 01 1 1410- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-405-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1410- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-406-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1410- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1410- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1410- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1410- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1410- ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1410- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1410- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1410- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1410- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1506- ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1410- ● ● ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98053-899-0 01 1 1410- ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) 		8-98104-619-0 01 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) 		8-98104-619-0 01 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-619-0 01 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-619-0 01 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-619-0 01 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-619-0 01 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-619-0 02 1 1410- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-619-0 02 1 1410- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-613-2 02 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1410- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1410- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-650-1 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-650-1 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-651-1 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-651-1 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1410- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1410- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1410- ●
çizim 449108
112 142 125 294 293 350 290 296 296 291 292 349 55 55 147 296 296 189 189 279 189 300 7 188 349 175 121 189 135 158 301 158 189 7 1 175 147 296 121 55 55 135 349 293 296 296 295 294 291 142 125 112 125 256 129 126 127 350 292 296 349 290 292 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-362-9 01 1 1410- ● ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-362-9 01 1 1410- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) 		8-98198-539-2 01 1 1410- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98198-539-2 01 1 1410- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-948-0 01 1 1410- ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-949-0 01 1 1410- ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1410- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1410- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1410- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1410- ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1410- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1410- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1410- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1410- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1410- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-558-9 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-558-9 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98205-935-1 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98205-935-1 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-548-9 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-549-7 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-553-8 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-555-6 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1410- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-316-6 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-318-6 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-608-4 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-609-4 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1410- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1410- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-868-4 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-869-4 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-234-7 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1410- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1410- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1410- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1410- ● ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1410- ● ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1410- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1410- ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1410- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1410- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1410- ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1410- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1410- ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1410- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1410- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1410- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1410- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1410- ●
142 17.505 NUT
REAR BODY DBL WALL CTR PULL(E63) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1410- ● ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1410- ● ● ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1410- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1410- ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1410- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 1410- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1410- ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1410- ● ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1410- ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1410- ● ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1410- ● ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1410- ● ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1410- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1410- ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1410- ● ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1410- ● ● ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-543-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-544-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.540 (B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1410- ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1505 ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-134-1 01 1 1410- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98156-912-0 01 1 1410- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 02 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 04 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1410- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 08 1 1410- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-611-2 01 1 1410- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-611-2 01 1 1410- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1410- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-612-2 01 1 1410- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-612-2 01 1 1410- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1410- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-610-1 01 1 1410- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-611-1 01 1 1410- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-405-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1410- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98104-406-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1410- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1410- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1410- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1410- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1410- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1410- ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1410- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1410- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1410- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1410- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1410- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1410-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1506- ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1410- ● ● ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98053-899-0 01 1 1410- ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-613-2 02 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1410- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1410- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-650-1 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-650-1 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-651-1 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-651-1 01 1 1410- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 01 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1410- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1410- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1410- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1410- ●
çizim 449652
215 53 170 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
50 17.204 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98061-099-0 02 1 1410- ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98061-099-0 02 1 1410- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> 		8-98102-968-3 01 1 1410- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> 		8-98102-968-3 01 1 1410- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> 		8-98102-969-3 01 1 1410- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-969-3 01 1 1410- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20>,LOCK END GATE<8CW> 		8-98102-967-3 01 1 1410- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-967-3 01 1 1410- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20>,OUTER ROPEHOOKS<7MZ>,LOCK END GATE<8CW> 		8-98102-967-3 01 1 1410- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> DARK BLUE 		8-97416-517-3 01 1 1410- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> DARK BLUE 		8-97416-517-3 01 1 1410- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> BLACK 		8-97416-519-3 01 1 1410- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> BLACK 		8-97416-519-3 01 1 1410- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> WHITE 		8-97416-521-3 01 1 1410- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> WHITE 		8-97416-521-3 01 1 1410- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> SILVER 		8-97416-523-3 01 1 1410- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> SILVER 		8-97416-523-3 01 1 1410- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> GRAY 		8-97416-524-3 01 1 1410- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> GRAY 		8-97416-524-3 01 1 1410- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> DARK GREEN 		8-97416-527-3 01 1 1410- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> DARK GREEN 		8-97416-527-3 01 1 1410- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> LIGHT BEIGE 		8-97421-143-3 01 1 1410- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> LIGHT BEIGE 		8-97421-143-3 01 1 1410- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR FJORD BLUE MET(545) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> LIGHT BLUE 		8-97424-561-3 01 1 1410- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR FJORD BLUE MET(545) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> LIGHT BLUE 		8-97424-561-3 01 1 1410- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR VENETIAN RED MICA(546) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> RED 		8-97424-562-3 01 1 1410- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR VENETIAN RED MICA(546) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> RED 		8-97424-562-3 01 1 1410- ●
170 17.635 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) 09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 1410- ● ●
170 17.635 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 1410- ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> M6X14 FLANGE 		8-97247-698-0 01 1 1410- ● ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> EXC. OUTER ROPE HOOKS<7MZ> M6X14 FLANGE 		8-97247-698-0 01 1 1410- ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> 10.765 M6X8 FLANGE 		8-98048-996-0 01 1 1410- ● ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> EXC. OUTER ROPE HOOKS<7MZ> 10.765 M6X8 FLANGE 		8-98048-996-0 01 1 1410- ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1410-1505 ● ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. OUTER ROPE HOOKS<7MZ> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1410-1505 ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1410-1505 ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1506- ● ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1506- ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1506- ●
çizim 451679
4 46 238 175 147 133 133 299 54 299 303 342 133 130 132
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 17.185 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M4X10 		8-97043-528-0 12 1 1410- ● ● ●
4 17.185 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M4X10 		8-97043-528-0 12 1 1410- ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
REAR BODY DBL WALL CTR PULL(E63) 		8-98165-002-2 12 1 1410- ● ● ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98165-002-2 12 1 1410- ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) M8X20 		8-97247-699-0 04 1 1410- ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X20 		8-97247-699-0 04 1 1410- ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-461-1 01 1 1410- ● ● ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-462-1 01 1 1410- ● ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1410- ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97302-185-2 02 1 1410- ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98110-231-2 02 1 1410- ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98134-726-1 01 1 1410- ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),OUTER ROPE HOOKS<7MZ> (A) 		8-98134-726-1 01 1 1410- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98134-727-1 01 1 1410- ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),OUTER ROPE HOOKS<7MZ> (A) 		8-98134-727-1 01 1 1410- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6) (A) 		8-98126-088-1 01 1 1410- ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98126-088-1 01 1 1410- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6) (A) 		8-98126-089-1 01 1 1410- ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98126-089-1 01 1 1410- ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1410- ● ● ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1410- ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1410- ● ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1410- ●
238 17.185 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98181-076-2 01 1 1410- ● ● ●
238 17.185 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98181-076-2 01 1 1410- ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98102-971-3 01 1 1410- ● ● ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-971-3 01 1 1410- ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98102-972-3 01 1 1410- ● ● ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-972-3 01 1 1410- ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-276-0 01 1 1410- ● ● ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97381-276-0 01 1 1410- ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-277-0 01 1 1410- ● ● ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97381-277-0 01 1 1410- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98139-776-4 01 1 1410- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98139-776-4 01 1 1410- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98139-776-4 01 1 1410- ● ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98139-776-4 01 1 1410- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98139-775-4 01 1 1410- ● ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98139-775-4 01 1 1410- ●
çizim 451708
291 290 37 257 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1410- ● ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1410- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1410-1505 ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1410-1505 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 17.490 		8-98057-864-0 02 1 1410- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 17.490 		8-98057-864-0 02 1 1410- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) 17.490 		8-98057-864-0 02 1 1410- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) 17.490 		8-98057-864-0 02 1 1410- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 17.490 		8-98057-864-0 04 1 1410- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.490 		8-98057-864-0 04 1 1410- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) 17.490 		8-98057-864-0 04 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-543-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-544-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1410- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1410-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1410-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.540 (B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1410- ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1505 ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
