Isuzu WW
▶
PICKUP
▶
TFR
▶
51581 - TFR/TFS LHD EUROPE
▶
9 - Tools
▶
9-01 - TOOLS
▶
9-01 — TOOLS
(#151542) — 16 parça
Tümü
A - TFB6CF
B - TFB6SF
C - TFB6WF
D - TFS6CF
E - TFS6SF
F - TFS6WF
◀

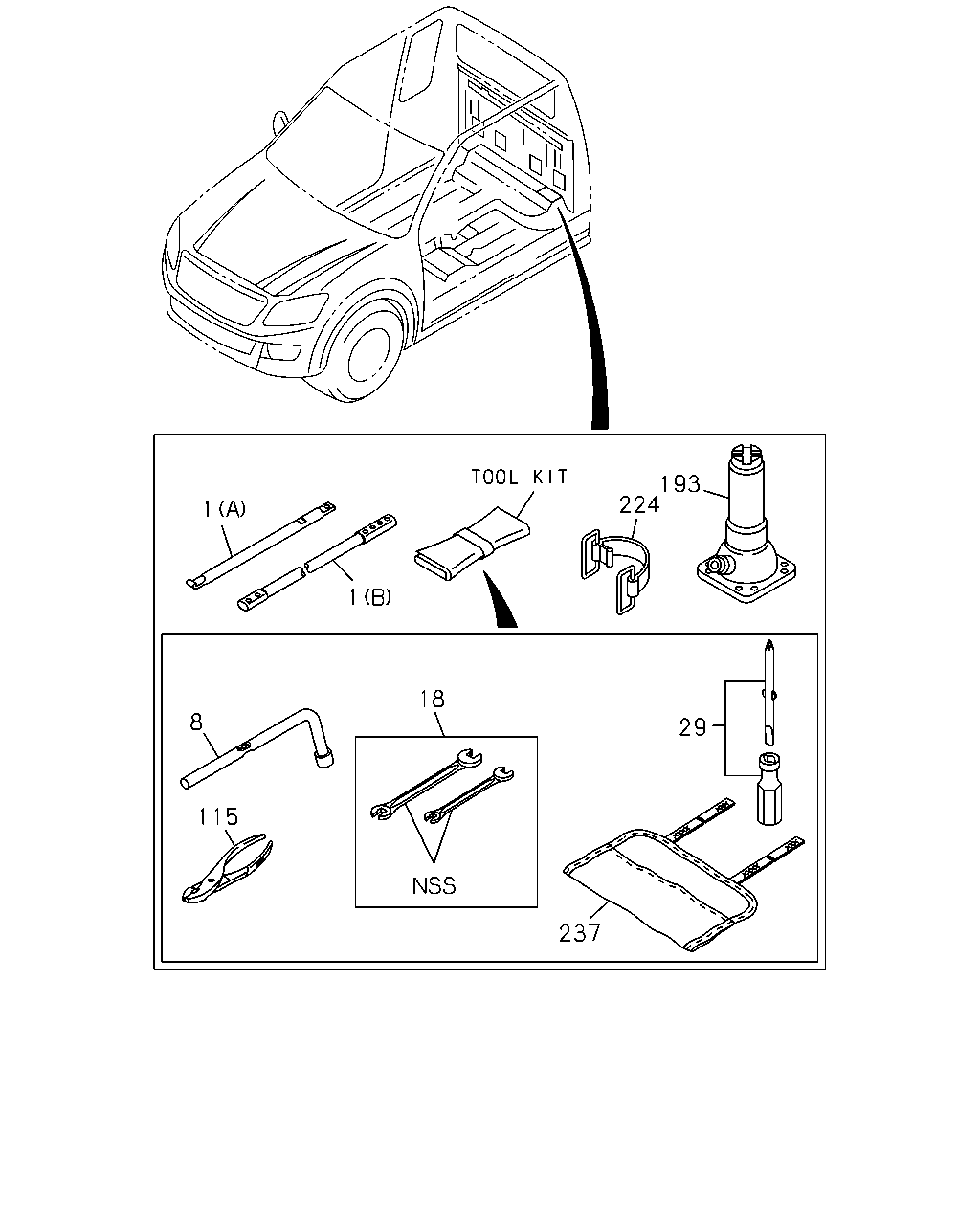

[901A] TOOLS (12 parça)
[901A] SEAL AND COMPRESSOR;TIRE REPAIR (4 parça)
▶
1
1
224
193
29
18
8
115
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
07.629 HANDLE; SPARE TIRE CARRIER
(A)
8-98153-978-0
01
1
1410-
●
●
●
●
●
●
1
07.629 HANDLE; SPARE TIRE CARRIER
(B)
8-98153-999-0
03
1
1410-
●
●
●
●
●
●
8
08.821 WRENCH; WHEEL
L=19
8-98027-834-0
01
1
1410-
●
●
●
●
●
●
18
08.821 WRENCH KIT
8X10,12X14
8-97945-273-0
01
1
1410-
●
●
●
●
●
●
29
08.821 DRIVER; SCREW
8-98027-833-0
01
1
1410-
●
●
●
●
●
●
115
08.821 PLIER
8-98099-659-0
01
1
1410-
●
●
●
●
●
●
193
08.820 JACK ASM
HIGH RIDE SUSPENSION(7YC)
8-98269-209-0
01
1
1410-
●
●
193
08.820 JACK ASM
8-98269-209-0
01
1
1410-
●
●
●
193
08.820 JACK ASM
EXC. HIGH RIDE SUSPENSION(7YC)
8-98269-208-0
01
1
1410-
●
●
193
08.820 JACK ASM
8-98269-208-0
01
1
1410-
●
224
08.821 BAND; RUBBER,JACK
8-98178-626-0
01
1
1410-
●
●
●
●
●
●
237
08.821 BAG; TOOL
8-97945-395-0
01
1
1410-
●
●
●
●
●
●
457
456
455
456
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
455
08.821 COMPRESSOR;TIRE AIR
8-98178-938-0
01
1
1410-
●
456
08.821 HOUSING;COMPRESSOR,TIRE AIR
(A)
8-98173-857-0
01
1
1410-
●
456
08.821 HOUSING;COMPRESSOR,TIRE AIR
(B)
8-98173-858-0
01
1
1410-
●
457
08.821 SEAL; TIRE REPAIR
8-98178-939-2
01
1
1410-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
