◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51581 - TFR/TFS LHD EUROPE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#151535) — 168 parça

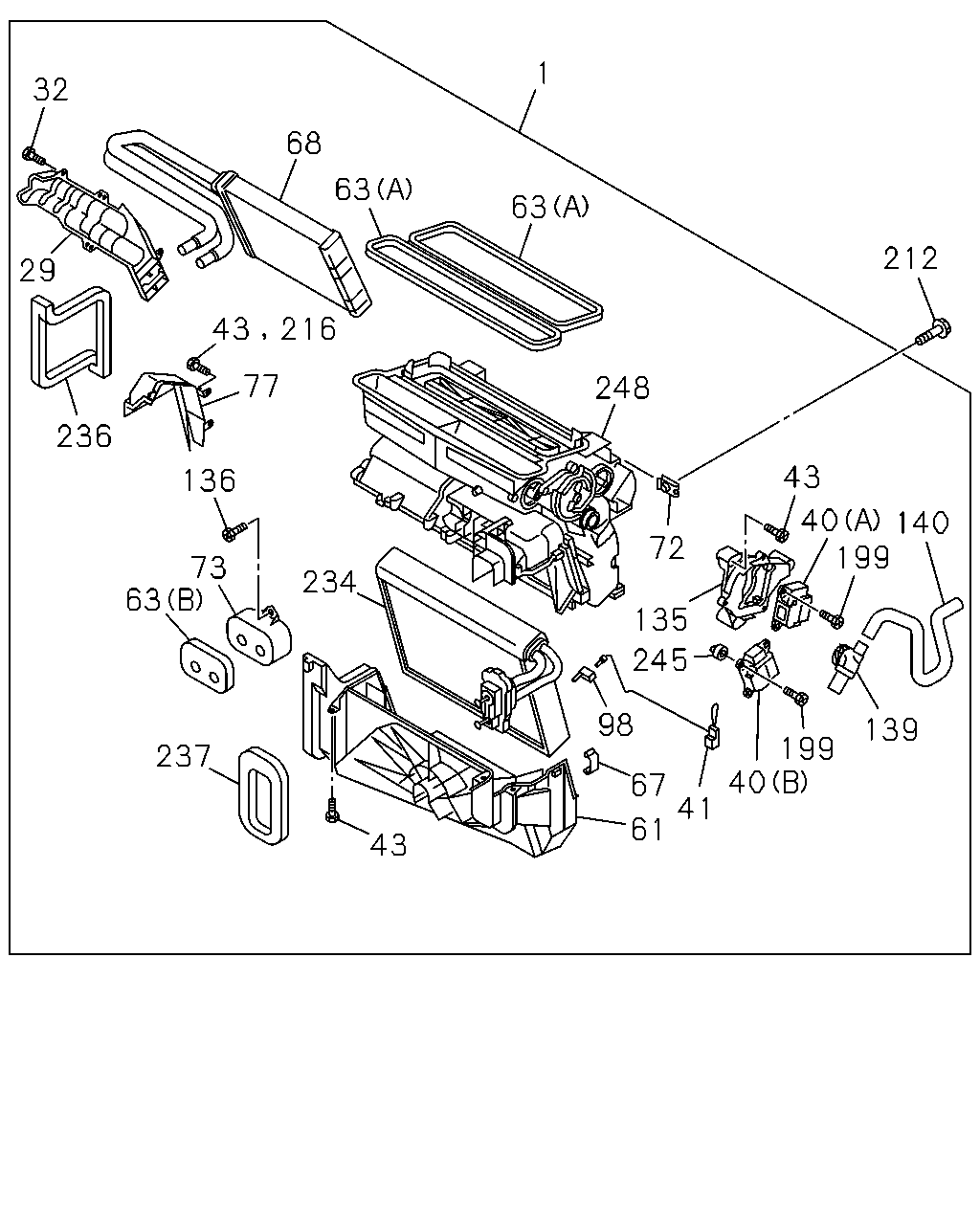

çizim 451733
32 68 63 29 43 216 236 77 136 73 63 234 237 43 63 1 212 248 72 135 245 98 67 61 41 40 43 40 199 140 199 139
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) 		8-98233-030-0 01 1 1410- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98233-030-0 01 1 1410- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) 		8-98233-014-0 01 1 1410- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) 		8-98233-031-1 01 1 1410- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98233-031-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) 		8-98233-015-1 01 1 1410- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) 		8-98274-155-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98274-155-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) 		8-98274-153-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98274-153-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98233-037-0 01 1 1410- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98233-021-0 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98233-038-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98233-022-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98274-156-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98274-154-1 01 1 1410- ● ●
29 08.857 COVER; HTR UNIT 8-98233-590-0 01 1 1410- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT 8-98233-593-0 04 1 1410- ● ● ● ● ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98139-385-0 01 1 1410- ● ● ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98139-386-0 01 1 1410- ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1410- ● ● ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-382-0 01 1 1410- ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 18 1 1410- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-582-0 01 1 1410- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-581-0 01 1 1410- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-581-0 01 1 1410- ● ●
63 08.856 LINING; HTR UNIT
(A) 		8-98139-358-1 02 1 1410- ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
(B) 		8-98139-361-1 01 1 1410- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1410- ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT 8-98139-374-0 01 1 1410- ● ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1410- ● ● ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1410- ● ● ● ● ● ●
77 08.857 COVER; HTR CASE 8-98233-589-0 01 1 1410- ● ● ● ● ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98157-122-0 01 1 1410- ● ● ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98157-122-0 01 1 1410- ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1410- ● ● ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1410- ● ● ● ● ● ●
139 08.845 ASPIRATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-392-1 01 1 1410- ● ● ● ●
140 08.845 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98274-188-0 01 1 1410- ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1410- ● ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98233-593-0 04 1 1410- ● ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1410-1505 ● ● ● ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1506- ● ● ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1410- ● ● ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-376-1 01 1 1410- ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-376-1 01 1 1410- ● ●
236 08.855 GASKET; HEATER 8-98139-357-1 01 1 1410- ● ● ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1410- ● ● ● ● ● ●
245 08.854 ADAPTER; HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-390-0 01 1 1410- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-575-0 01 1 1410- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-576-0 01 1 1410- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-577-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98233-577-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98233-580-0 01 1 1410- ● ●

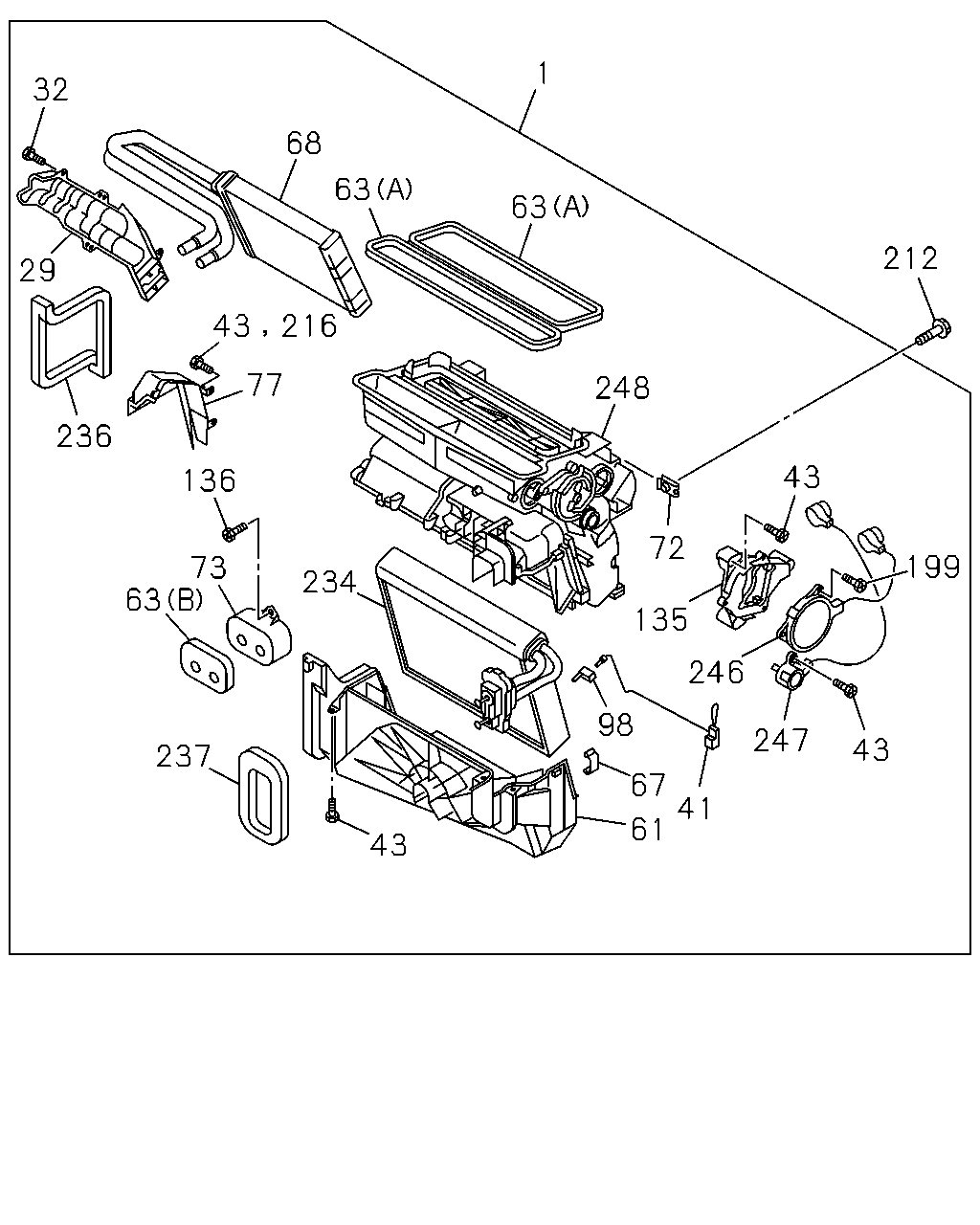

çizim 451831
32 68 63 63 1 212 29 43 216 248 43 199 72 135 246 247 43 98 67 61 41 43 237 63 234 73 136 236 77
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) 		8-98233-030-0 01 1 1410- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98233-030-0 01 1 1410- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) 		8-98233-014-0 01 1 1410- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) 		8-98233-031-1 01 1 1410- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98233-031-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) 		8-98233-015-1 01 1 1410- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) 		8-98274-155-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98274-155-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) 		8-98274-153-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98274-153-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98233-037-0 01 1 1410- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98233-021-0 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98233-038-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98233-022-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98274-156-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98274-154-1 01 1 1410- ● ●
29 08.857 COVER; HTR UNIT 8-98233-590-0 01 1 1410- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT 8-98233-593-0 04 1 1410- ● ● ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1410- ● ● ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-382-0 01 1 1410- ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 18 1 1410- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-582-0 01 1 1410- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-581-0 01 1 1410- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-581-0 01 1 1410- ● ●
63 08.856 LINING; HTR UNIT
(A) 		8-98139-358-1 02 1 1410- ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
(B) 		8-98139-361-1 01 1 1410- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1410- ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT 8-98139-374-0 01 1 1410- ● ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1410- ● ● ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1410- ● ● ● ● ● ●
77 08.857 COVER; HTR CASE 8-98233-589-0 01 1 1410- ● ● ● ● ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98157-122-0 01 1 1410- ● ● ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98157-122-0 01 1 1410- ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1410- ● ● ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1410- ● ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1410- ● ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98233-593-0 04 1 1410- ● ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1410-1505 ● ● ● ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1506- ● ● ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1410- ● ● ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-376-1 01 1 1410- ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-376-1 01 1 1410- ● ●
236 08.855 GASKET; HEATER 8-98139-357-1 01 1 1410- ● ● ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1410- ● ● ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1410- ● ● ● ● ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-398-1 01 1 1410- ● ● ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-575-0 01 1 1410- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-576-0 01 1 1410- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-577-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98233-577-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98233-580-0 01 1 1410- ● ●

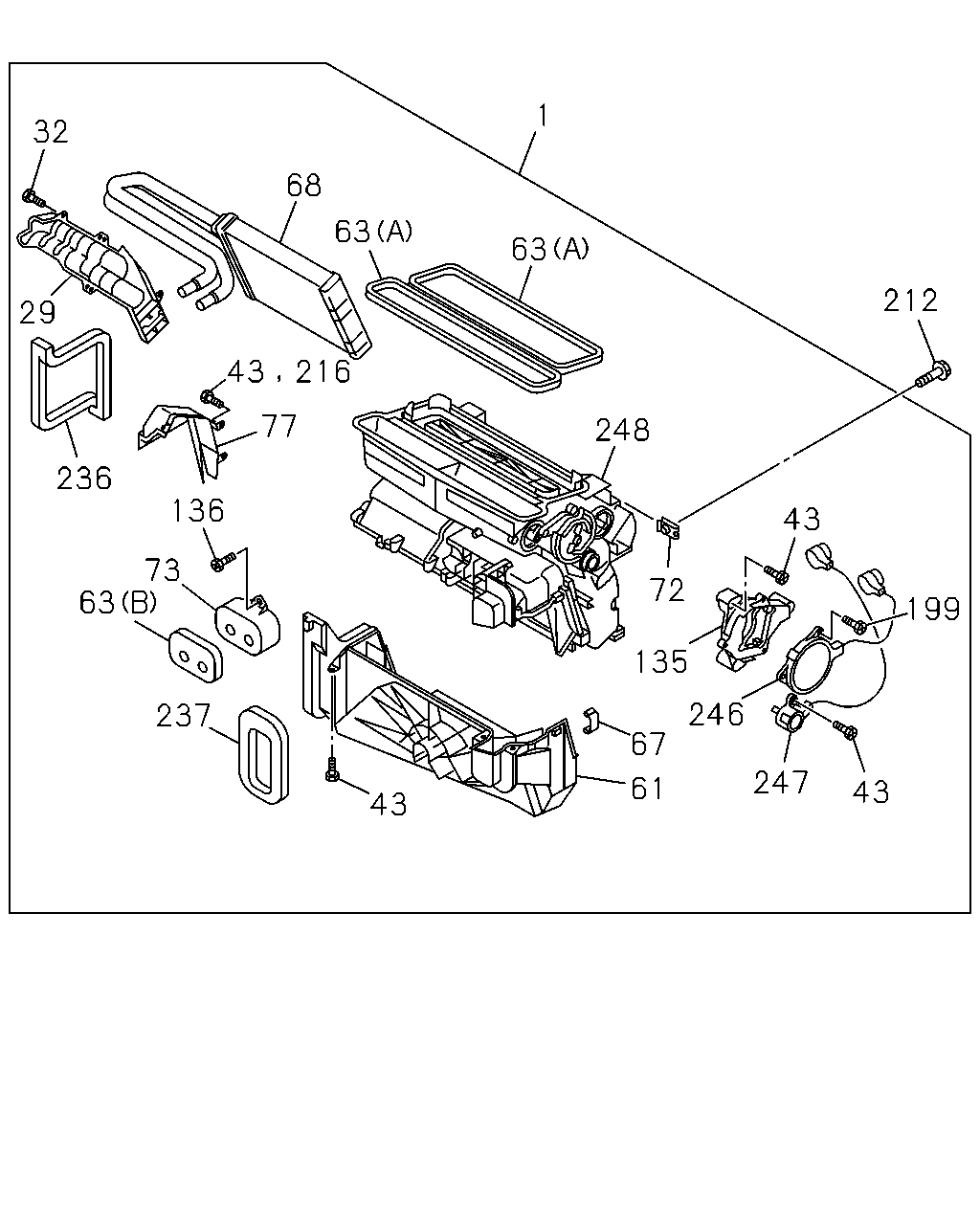

çizim 451929
32 68 63 63 1 212 248 72 43 135 246 247 43 199 67 61 43 237 63 73 136 77 216 43 236 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) 		8-98233-030-0 01 1 1410- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98233-030-0 01 1 1410- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) 		8-98233-014-0 01 1 1410- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) 		8-98233-031-1 01 1 1410- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98233-031-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) 		8-98233-015-1 01 1 1410- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) 		8-98274-155-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98274-155-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) 		8-98274-153-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98274-153-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98233-037-0 01 1 1410- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98233-021-0 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98233-038-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98233-022-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98274-156-1 01 1 1410- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98274-154-1 01 1 1410- ● ●
29 08.857 COVER; HTR UNIT 8-98233-590-0 01 1 1410- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT 8-98233-593-0 04 1 1410- ● ● ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 18 1 1410- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-582-0 01 1 1410- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-581-0 01 1 1410- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-581-0 01 1 1410- ● ●
63 08.856 LINING; HTR UNIT
(A) 		8-98139-358-1 02 1 1410- ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
(B) 		8-98139-361-1 01 1 1410- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1410- ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT 8-98139-374-0 01 1 1410- ● ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1410- ● ● ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1410- ● ● ● ● ● ●
77 08.857 COVER; HTR CASE 8-98233-589-0 01 1 1410- ● ● ● ● ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1410- ● ● ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1410- ● ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1410- ● ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98233-593-0 04 1 1410- ● ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1410-1505 ● ● ● ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1506- ● ● ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1410- ● ● ● ● ● ●
236 08.855 GASKET; HEATER 8-98139-357-1 01 1 1410- ● ● ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1410- ● ● ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1410- ● ● ● ● ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-398-1 01 1 1410- ● ● ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-575-0 01 1 1410- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-576-0 01 1 1410- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-577-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98233-577-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1410- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98233-580-0 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
